HI, MY NAME IS STEVE AND WELCOME TO MY SUZUKI GT550 & GT380 WEB PAGE.
I HAVE BROKEN A 1976 GT550M BIKE FOR SPARES & I ALSO HAVE
VARIOUS GT380 SPARES FOR SALE.

I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS
TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE / PROJECT.
I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART.

IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE
USE THE E-MAIL ADDRESS SHOWN IN THE TOP LEFT OF THIS PAGE.

I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.

FRAME NUMBER = GT550 658XX --- MODEL = GT550M YEAR 1976 --- "P" REDG
ENGINE NUMBER = GT550 689XX / GT380 23608 AND 100802

JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS:
     1 ANCILLARIES - (CLOCKS, LIGHTS, TANK, SEAT, ETC).
     2 FUEL, EXHAUST, LUBRICATION SYSTEM - (OIL PUMP PARTS,  PIPES, ETC).
     3 RUNNING GEAR - (FRAME, SUSPENSION, BARS, BRAKES, FOOTRESTS, STANDS, ETC).
     4 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, SWITCHES, ETC).
     5 ENGINE, CLUTCH AND GEARBOX PARTS -
     6 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC).

ANCILLARY PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
380 - 223
SPEEDO CLOCK DISH / BOTTOM - GOOD WITH THE ODD LIGHT MARK.

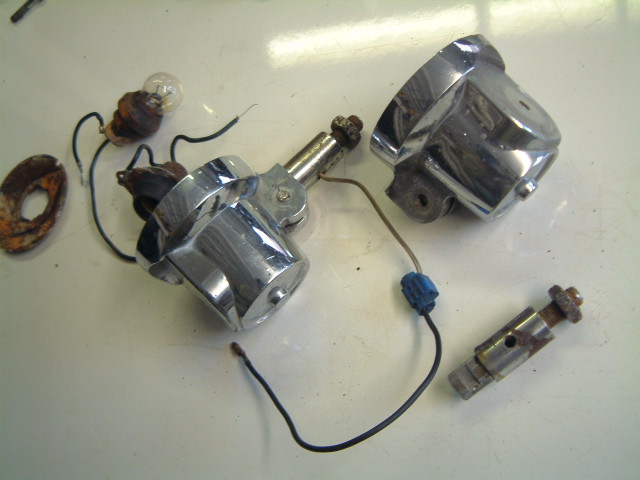

380 - 286
SOME INDICATORS - ALL A BIT TARINISHED / PITTED, MIGHT BE GOOD FOR SOME SPARES?. BULB HOLDERS SOLD.


FUEL, AIR, COOLING PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
380 - 216
INLET RUBBER - SERVICEABLE.
380 - 170
CARB SPARES - SOME USEFUL LEFTOVER PARTS, JUST LET ME KNOW WHAT YOU NEED.


RUNNING GEAR PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
550 - 021
CLUTCH LEVER - VERY GOOD, NO DAMAGE.		 550 - 067
TORQUE ARM - SOLID, NEEDS PAINT.
380 - 258
FOOTREST BOLT - GOOD.		 380 - 297
FORK SPRING RETAINING CIRCLIP - SERVICEABLE.
380 - 301
CALIPER BOLTS - GOOD.		 380 - 302
CALIPER RUBBERS - 2 GOOD, 2 SERVICEABLE.
380 - 303
CALIPER PISTONS DUST SEAL - GOOD.		 380 - 358
PAIR OF REAR BRAKE SHOES SPRINGS - GOOD.
380 - 395
REAR BRAKE CABLE NUT & COLLAR - GOOD.
380 - 380
REAR WHEEL SHAFT COMPLETE - ALL GOOD SERVICEABLE PARTS.


ELECTRICAL PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
380 - 308

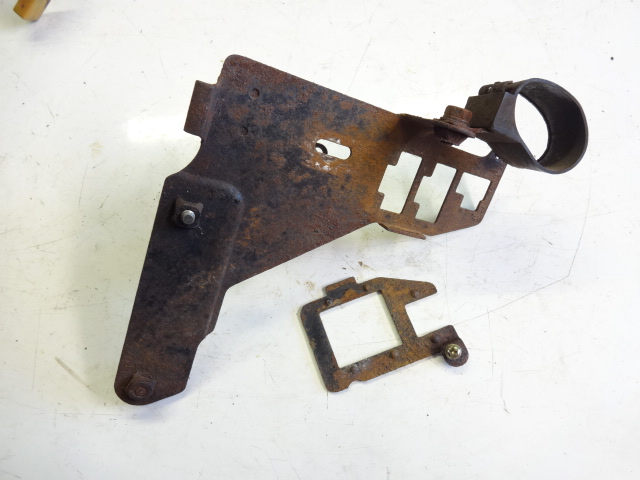

SINGLE COIL - CIRCUIT TESTED OK.		 380 - 413
ELECTRICS MOUNTING BRACKET - FROM A 1974 GT380 - GOOD, NEEDS PAINT, RUBBER GOOD.
??? - 354
ENGINE START & KILL SWITCH - GOOD, TESTED OK, NO DAMAGE. NOT SURE IF THIS IS A GT PART ?.
380 - 469
START / KILL SWITCH TOP 1/2 CASING - THREADS ALL OK.
380 - 470
START / KILL SWITCH TOP 1/2 CASING - THREADS ALL OK.
380 - 449
WIRING HARNESS TO ELECTRICS BRACKET - NEEDS A LITTLE WORK OR FOR SPARES.
380 - 465
LEFT SWITCHGEAR - BOTTOM HALF CASING - GOOD, STAMPED AS S577-8.


ENGINE, CLUTCH, GEARBOX PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
550 - 117
GEAR SELECTION MECH - VERY GOOD.		 550 - 118
GEAR SELECTION PARTS - ALL GOOD.
380 - 174
GEAR SELECTION DOGS / ARMS - VERY GOOD.(From engine No. 100802).
380 - 175
OTHER GEAR SELECTION DOGS / ARMS - VERY GOOD.(From engine No. 100802).		 380 - 176
SELECTOR DRUM - VERY GOOD. (From engine No. 100802).
380 - 177
DRUM HOLDERS - VERY GOOD.(From engine No. 100802).		 380 - 178
TACHO & OIL PUMP GEAR - VERY GOOD.(From engine No. 100802).
380 - 180
OIL PUMP DRIVE GEAR - GOOD.(From engine No. 100802)		 380 - 183
TACHO & OIL PUMP GEAR - GOOD.
380 - 185
OUTPUT SHAFT COMPLETE - ALL GOOD.(From engine No. 100802).		 380 - 191
PRIMARY GEAR ? - GOOD.
380 - 193

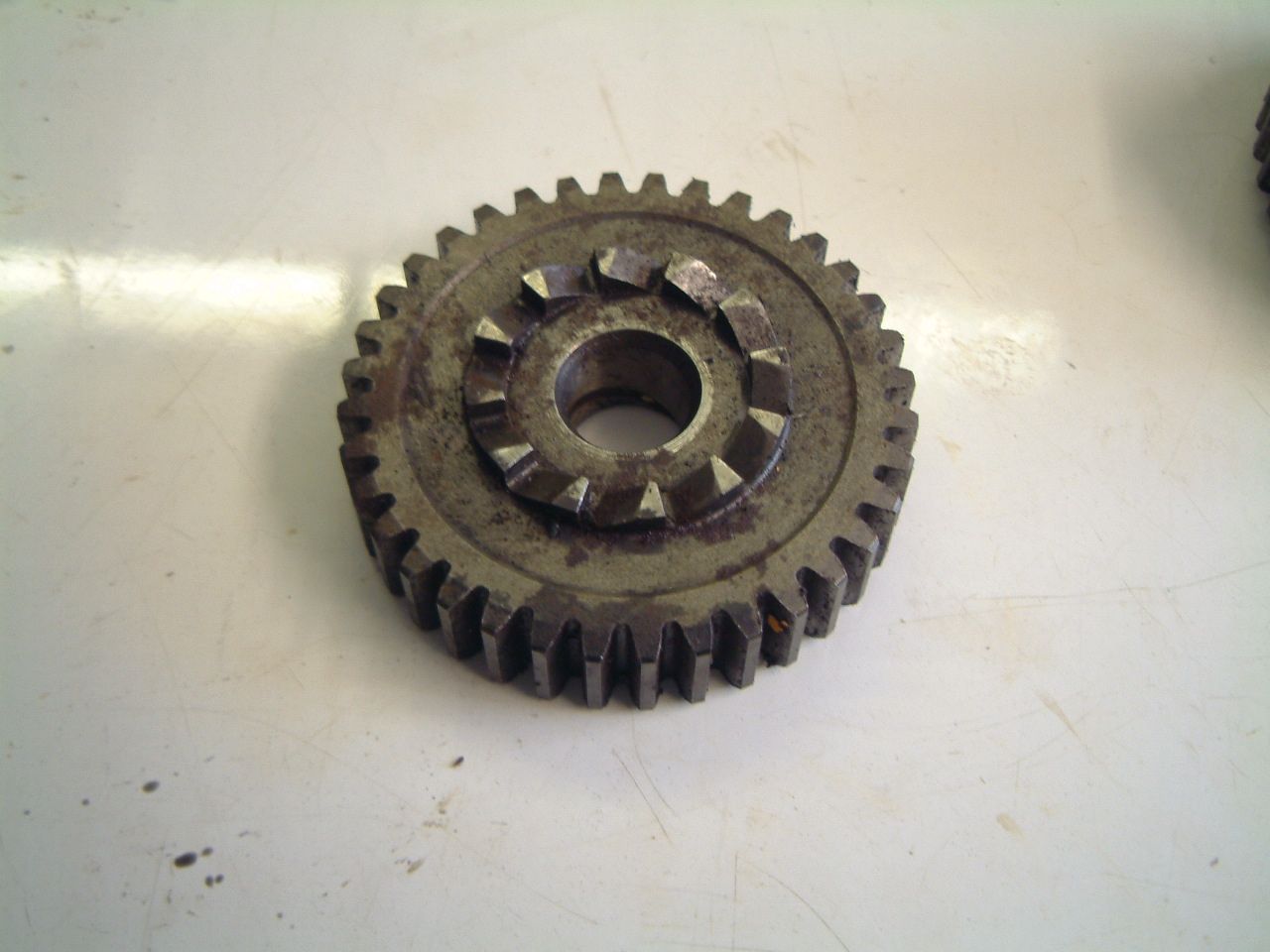

SELECTOR DRUM - GOOD.		 380 - 197
KICK-START RATCHET - GOOD.
380 - 225
SELECTOR DRUM RATCHET PARTS - ALL VERY GOOD. LET ME KNOW WHAT YOU NEED.		 380 - 259
STEEL PLATE - VERY GOOD, NOT SURE WHERE THIS FITS ?.
380 - 270
PISTON GUDGEON PIN - GOOD.		 380 - 342
CLUTCH CENTRE - VERY GOOD, NOTE: SPRINGS SOLD).
380 - 372
ENGINE MOUTING SPACERS - 86mm LONG, 16mm DIAMETER, 10mm INSIDE.
380 - 189
INPUT SHAFT PLUS A COUPLE OF THE GEARS - VERY GOOD.(matches the same as from engine No. 23608).
380 - 253
LONG BOLT - GOOD, 300mm X 14mm.
380 - 329
LARGE SELECTION OF GEARBOX PARTS - LOADS HERE, JUST LET ME KNOW THE DETAILS OF THE PART YOU NEED AND I'LL SEE IF I HAVE IT.

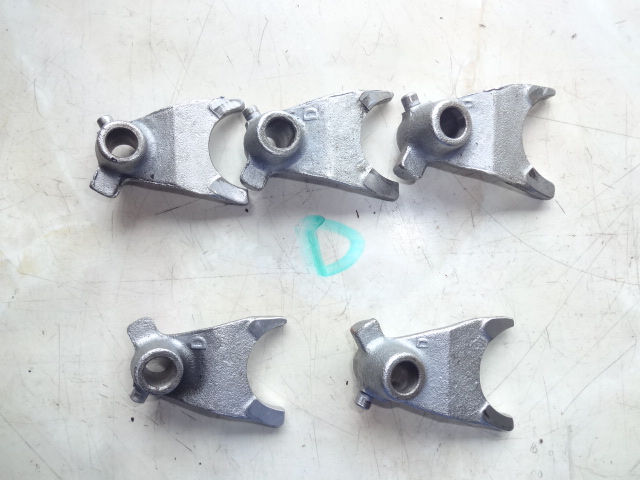

380 - 476
LARGE SELECTION OF SELECTOR FORKS - LOADS HERE, JUST LET ME KNOW THE DETAILS OF THE PART YOU NEED AND I'LL SEE IF I HAVE IT.
380 - 477
380 - 478
380 - 479
380 - 480

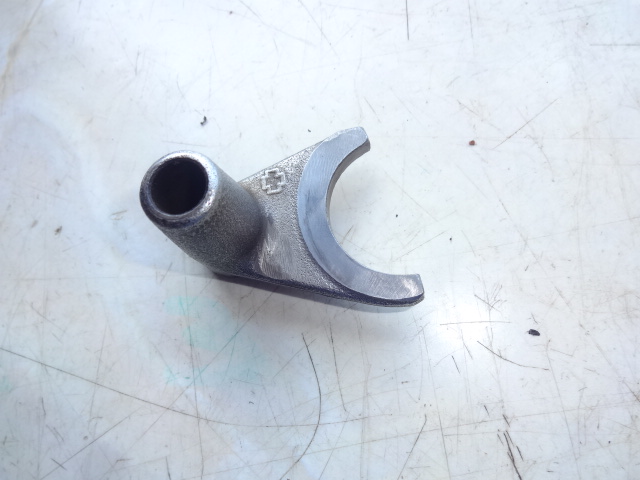

380 - 481
380 - 482
380 - 483
380 - 484
380 - 202
GT380 CLUTCH - NOT COMPLETE BUT ALL THE PARTS THAT ARE THERE LOOK GOOD.

MISSING THE SPRINGS & NUTS AND 1 OF THE FRICTION PLATES.
380 - 275
ALTERNATOR COVER - GOOD, NO DAMAGE, HAS A FEW LIGHT MARKS.
380 - 326
380 MIDDLE BARREL - ONE TINY FIN CHIP OTHERWSIE ALL VERY GOOD, NO WEAR OR SCORING.

MEASURING 54.5mm IN BORE DIAMETER.
380 - 445
GEARBOX INPUT SHAFT - EXCELLENT.

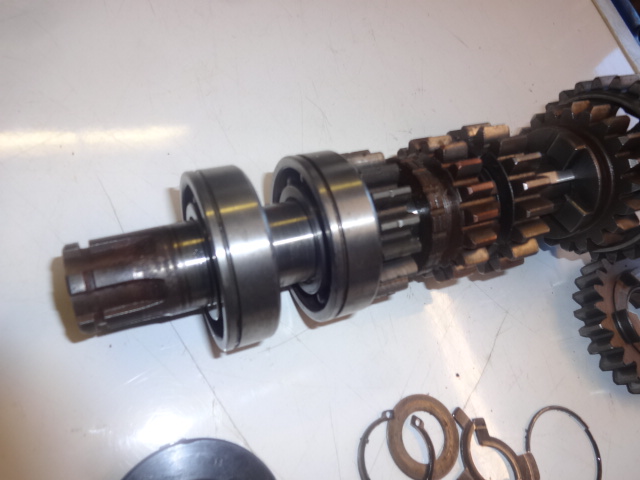

380 - 600
GEARBOX OUTPUT SHAFT - ONE GEAR HAS SOME DAMAGE, REST VERY GOOD.

380 - 601
A COUPLE OF GEARS FROM AN OUTPUT SHAFT - GOOD.
380 - 602
SOME GEARS ETC FROM AN OUTPUT SHAFT - GOOD.


MISCELLANEOUS PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
550 - 035
OIL TANK REST RUBBERS - SERVICEABLE.		 550 - 090
TANK FRONT RUBBER - ONE ONLY, GOOD.
550 - 092
BRAKE HOSE RUBBER - GOOD.		 550 - 093
PAIR OF EXHAUST SEALS - ONE GOOD ONE HAS A TEAR.
380 - 251
HEADLIGHT RUBBER FROM SHELL - GOOD.		 380 - 273
GASKET - GOOD,. OUTSIDE 28mm, INSIDE 22mm.
380 - 391
SPEEDO OR TACHO (REV COUNTER) CABLE - GOOD, NOT SURE WHICH THIS IS - 87cm LONG.
