HI, MY NAME IS STEVE AND WELCOME TO MY KAWASAKI Z750 WEB PAGE. I HAVE BROKEN TWO KAWASAKI Z750's FOR SPARES. A 80 H/L BIKE ON THIS PAGE AND A 1979/80 E BIKE ON ANOTHER PAGE, CLICK THE LINK IN ORANGE BELOW TO VIEW THE OTHER PAGE.I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT. I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART. IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE. I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.
ENGINE NUMBER = KZ750EE 043171 AND FRAME NUMBER = JKAKZDH 12BA0248XX. |
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC). |
| 3 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC). |
| 4 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC). |
| 5 ENGINE - (ENGINE AND GEARBOX PARTS). |
| 6 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| TO VIEW THE PARTS I HAVE FROM THE Z750E BIKE THEN CLICK THIS LINK: >> HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

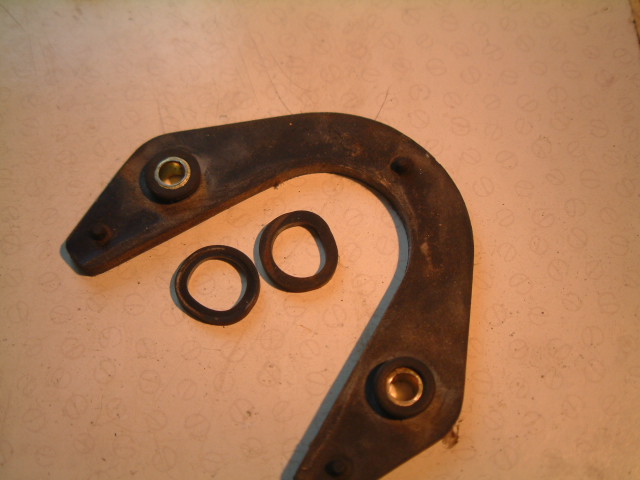

750H - 054 TAIL LIGHT BRACKET TO TAIL LIGHT RUBBERS - GOOD. |
 |
750H - 062 REV COUNTER MOUNTING RUBBERS - GOOD. |
 |
 |

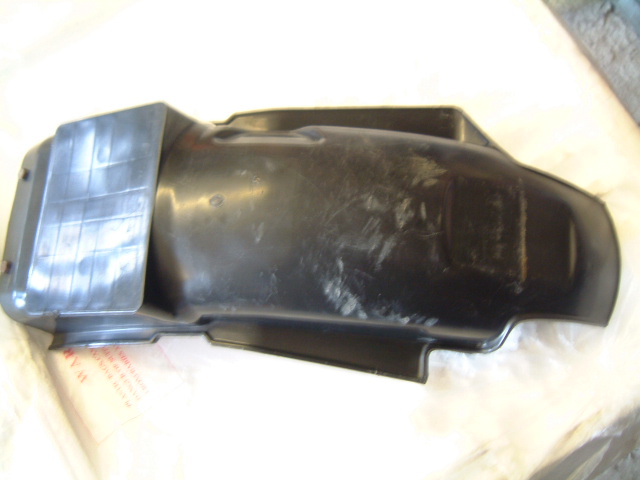

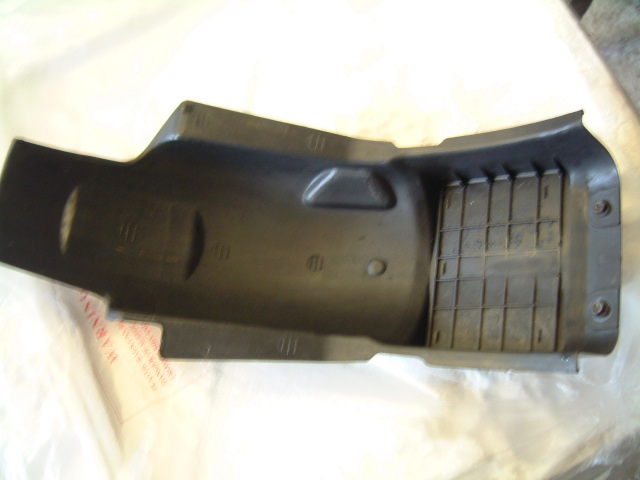

750H - 158 INNER REAR MUDGUARD - GOOD, NO DAMAGE. |
| BRAKE AND CLUTCH PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

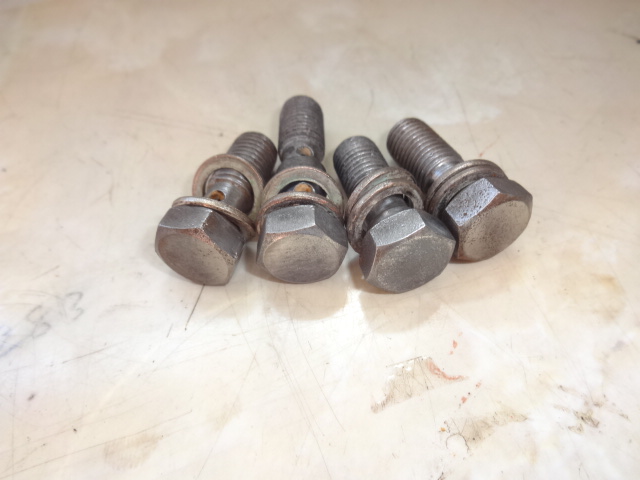

750H - 088 FOUR BANJO BOLTS FOR BRAKE CONNECTIONS - ALL SERVICEABLE. |
 |

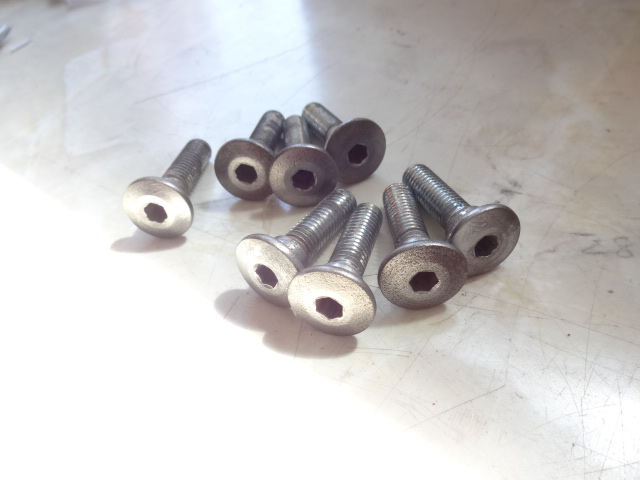

750H - 092 FRONT DISC ALLEN SCREWS - GOOD, NONE CHEWED. |
 |

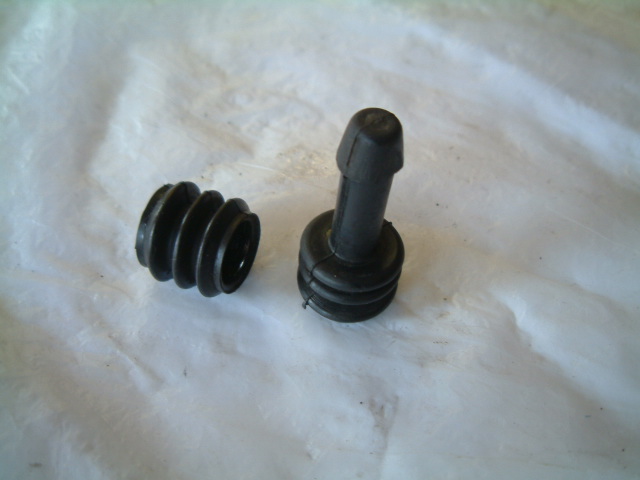

750H - 097 REAR CALIPER RUBBERS X2 - GOOD. |
 |

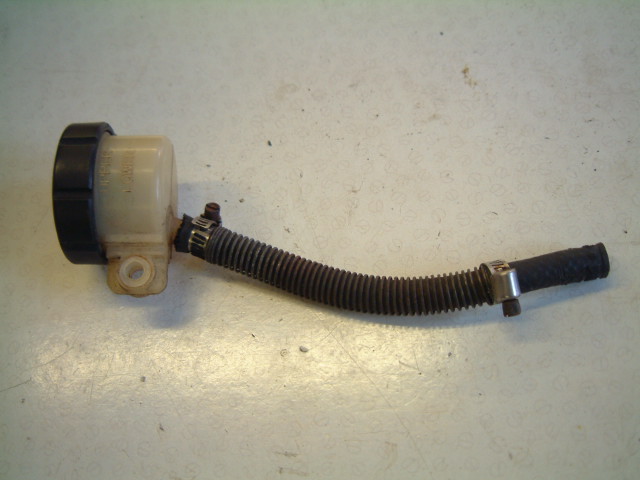

750H - 224 REAR BRAKE FLUID CONTAINER - GOOD. |
 |
 |

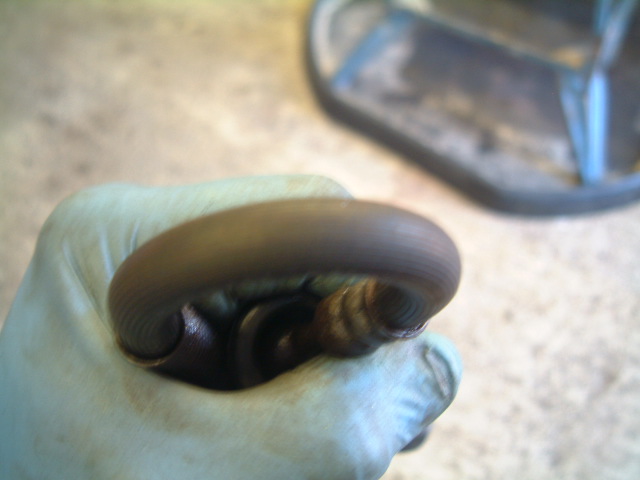

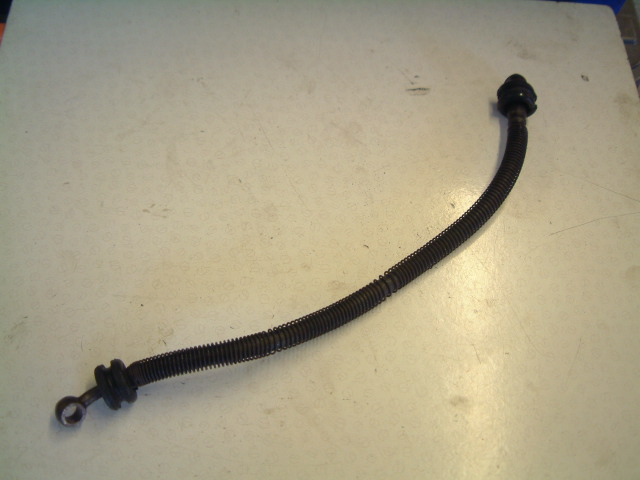

750H - 246 BRAKE HOSE FROM REAR MASTER CYLINDER - GOOD, NO PERISHING. |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
750H - 111 PAIR OF COLLAR / INSERTS FROM INSIDE THE FORKS - GOOD. |
 |

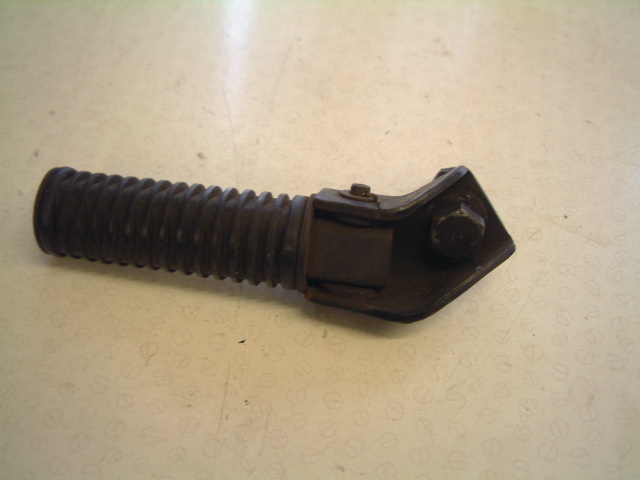

750H - 132 RHS REAR FOOT REST - GOOD, NO DAMAGE. |
 |

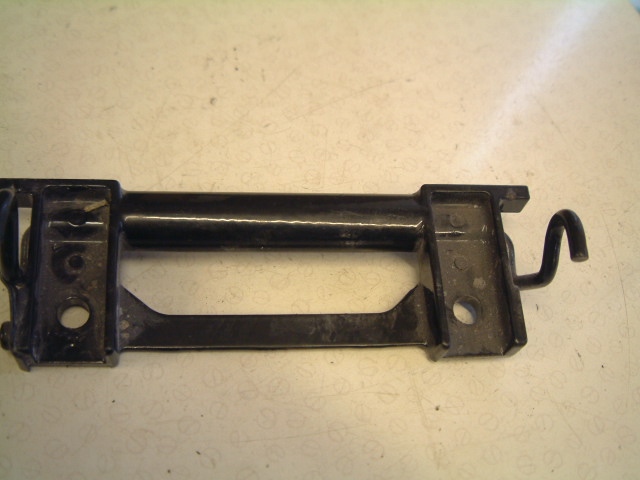

750H - 139 UNDERSEAT HOOKS - GOOD, LOOKS POWDERCOATED. |
 |
 |
 |

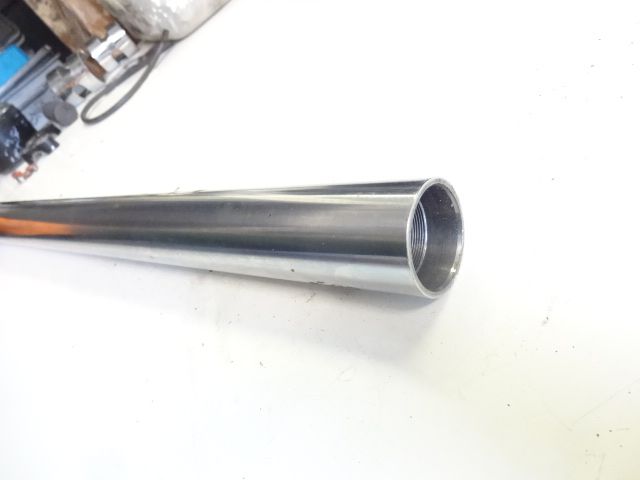

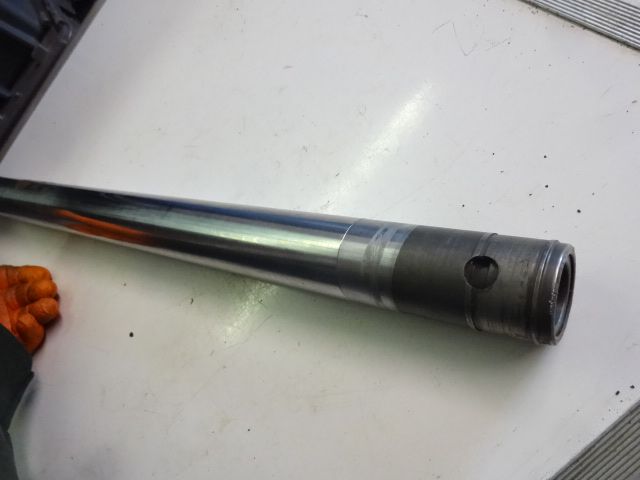

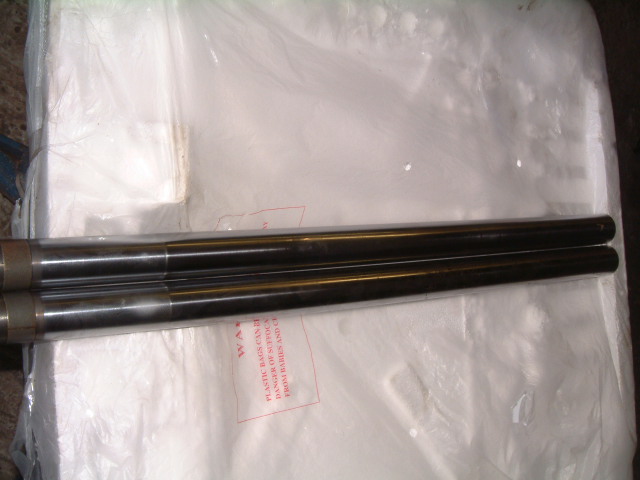

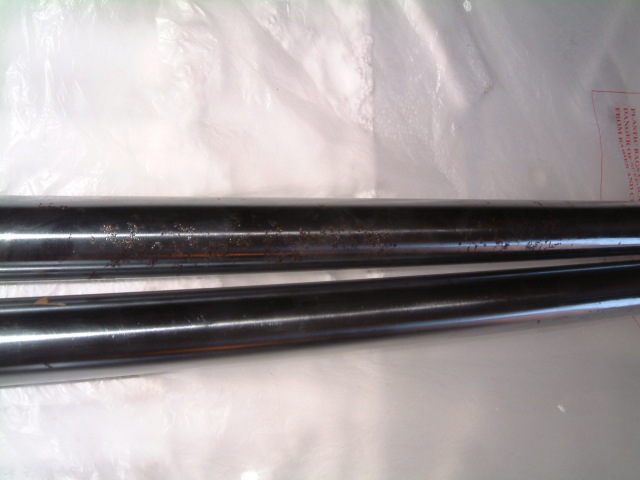

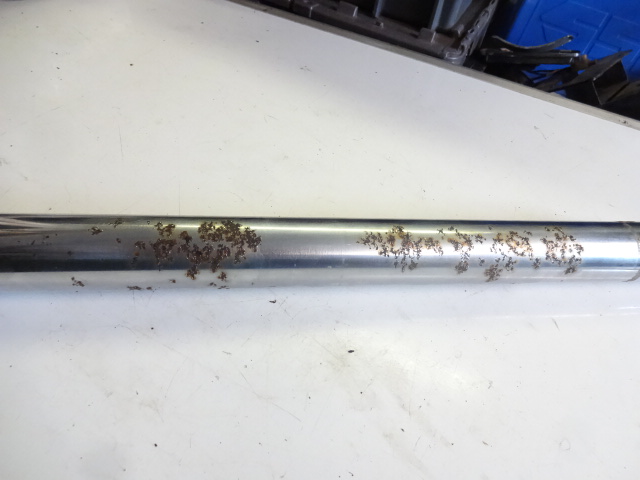

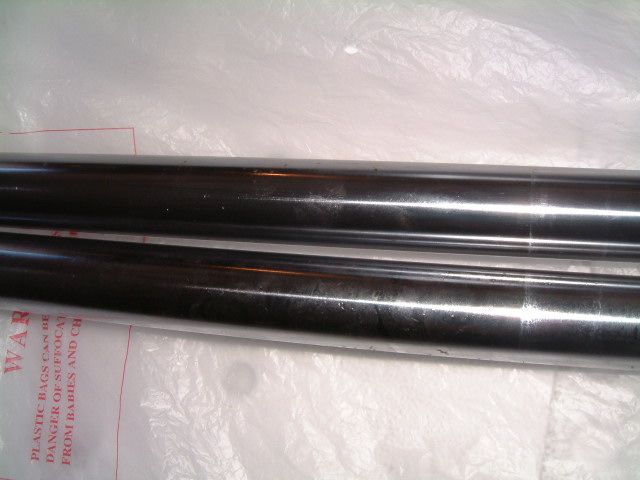

750H - 114 PAIR OF FORK TUBES / STANCHIONS - STRAIGHT BUT THE CHROME HAS SOME PITTING, SEE PHOTOS. |
 |
 |
 |
THE PITTING IS NOT BAD SO THESE WILL RECHROME OK |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
750H - 149 POWER LEAD - GOOD. |
 |

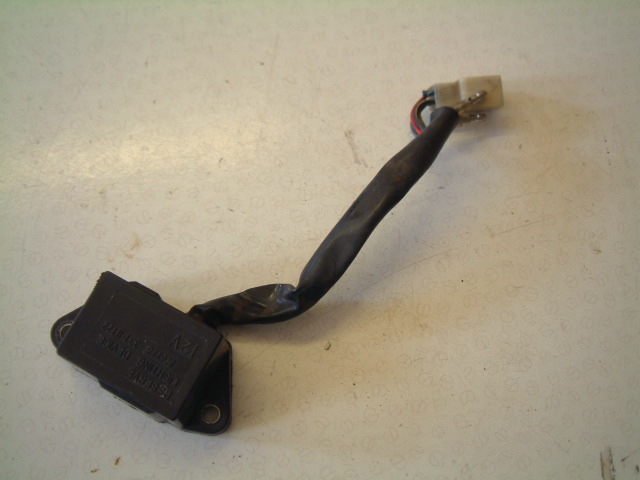

750H - 159 RESERVE LIGHTING DEVICE - MARKED AS " KOITO 337-11722 12V ". |
 |

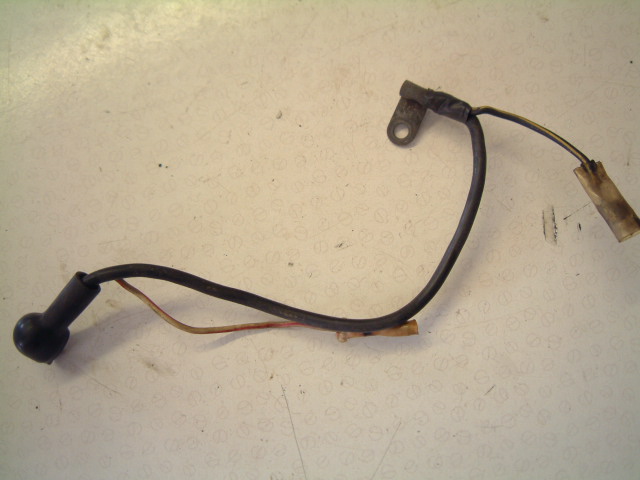

750H - 167 EARTH LEAD - GOOD. |
 |

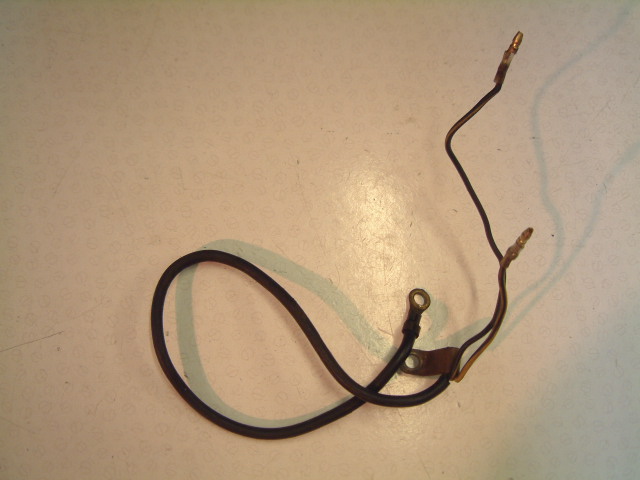

750H - 232 EARTH STRAP - GOOD. |
| ENGINE & GEARBOX PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

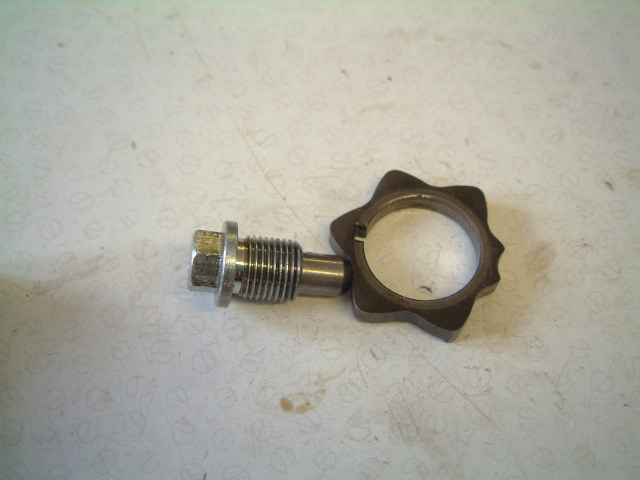

750H - 187 GEAR CHANGE DETENT CAM AND PLUNGER - VERY GOOD. |
 |

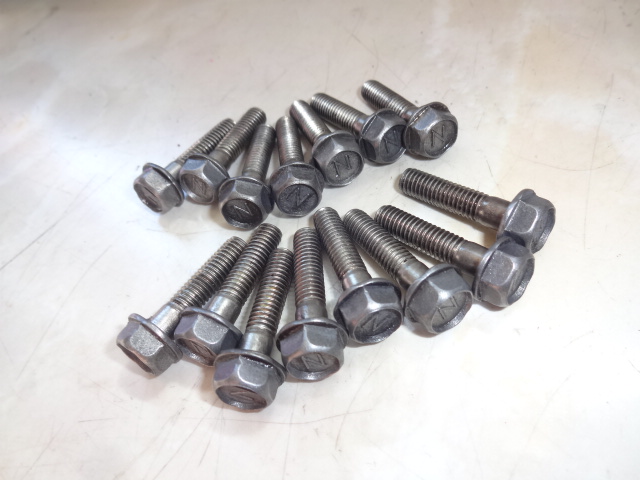

750H - 188 SUMP BOLT SET - ALL SERVICEABLE. |
 |

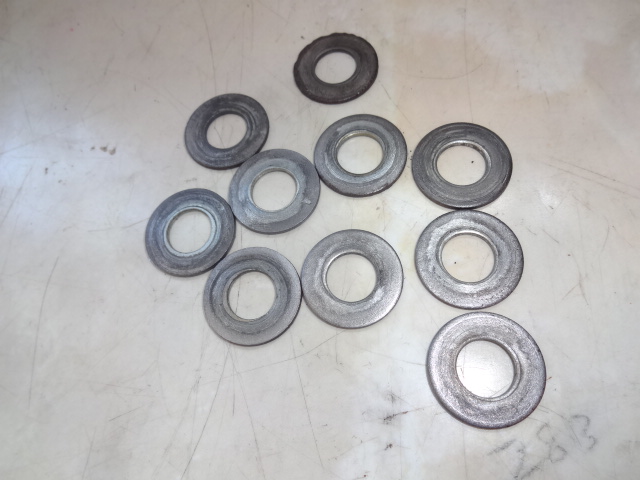

750H - 192 HEAD WASHER SET - ALL SERVICEABLE. |
 |

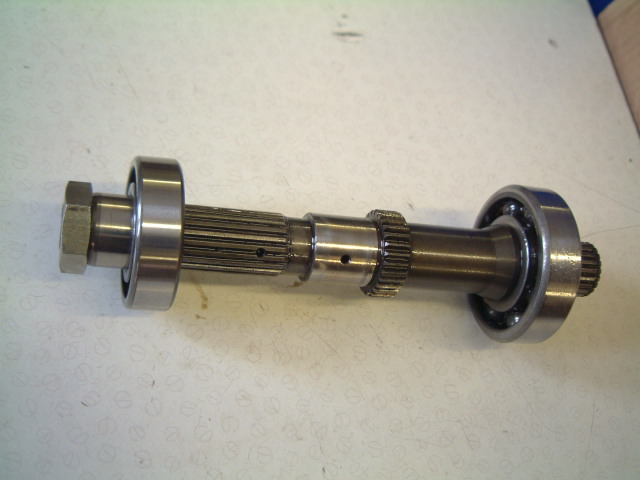

750H - 196 STARTER CLUTCH SHAFT - VERY GOOD. |
 |

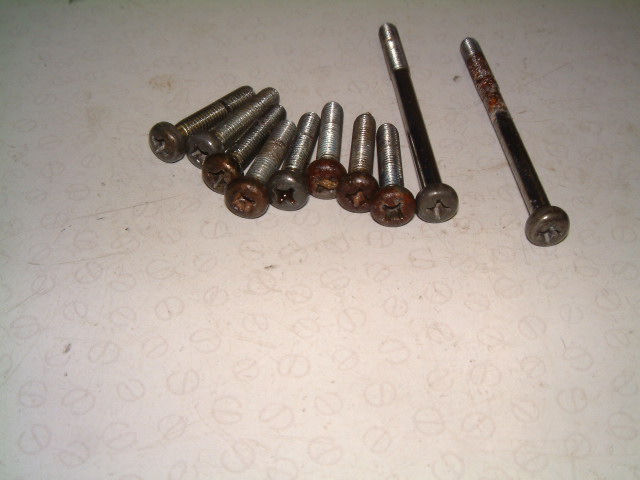

750H - 198 CLUTCH CASE SCREWS - ALL SERVICEABLE. |
||
 |

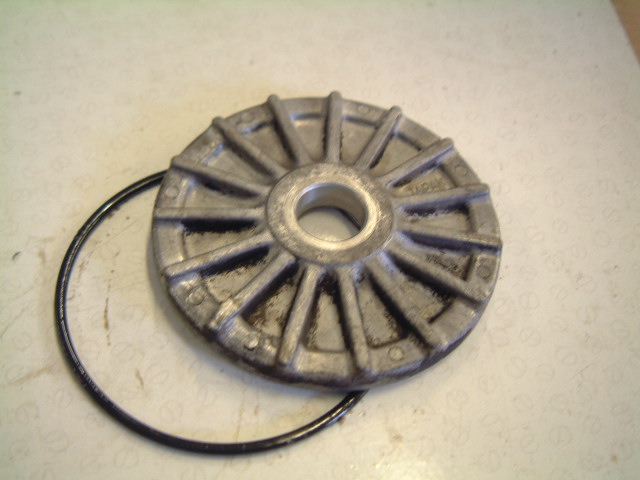

750H - 202 OIL FILTER COVER - GOOD. |
 |

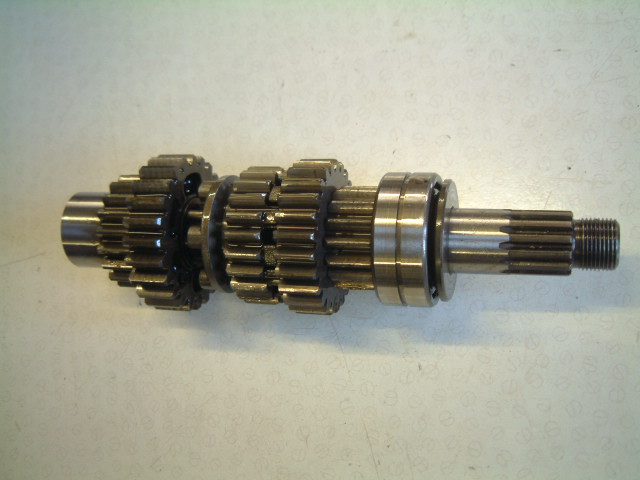

750H - 203 INPUT SHAFT AND GEARS - ALL VERY GOOD. |
 |

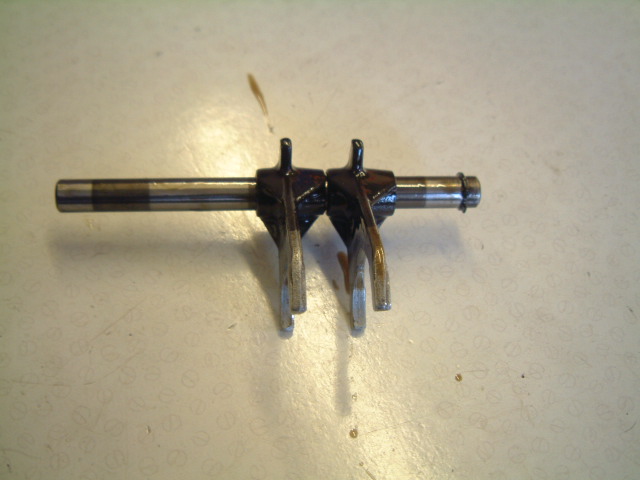

750H - 205 GEAR SELECTOR FORKS - VERY GOOD. |
 |

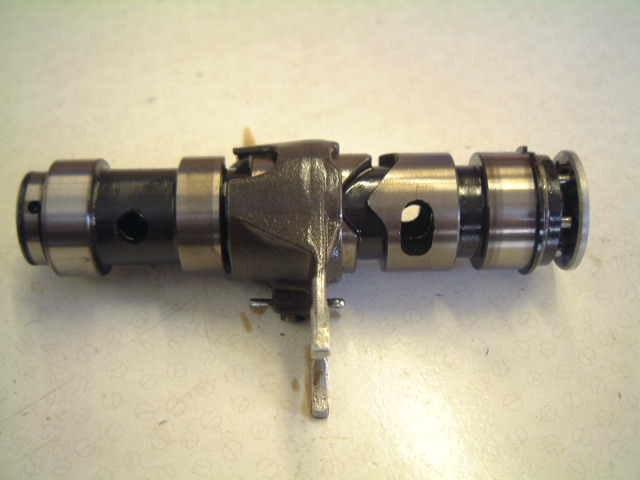

750H - 206 GEAR SELECTOR DRUM - VERY GOOD. |
 |

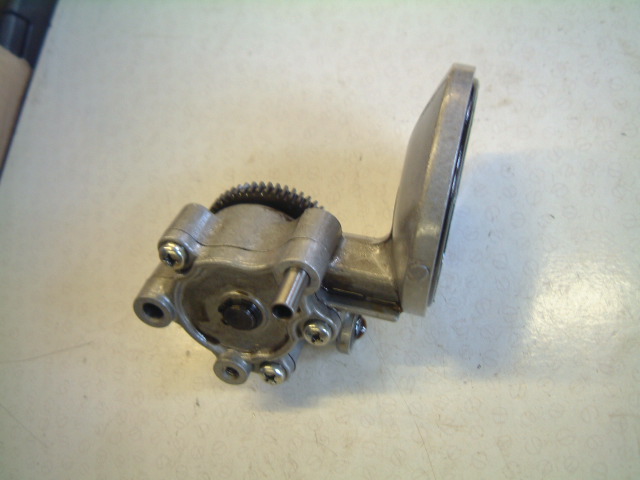

750H - 209 OIL PUMP - NO SIGNS OF ANY OIL FEED PROBLEM INSIDE THE ENGINE - CAN STRIP AND PHOTO IF REQUESTED. |
 |

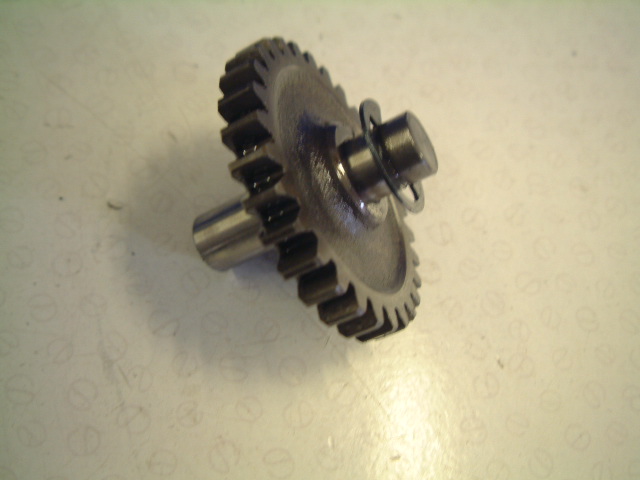

750H - 238 STARTER MOTOR DRIVE GEAR & PINION - VERY GOOD. |
 |

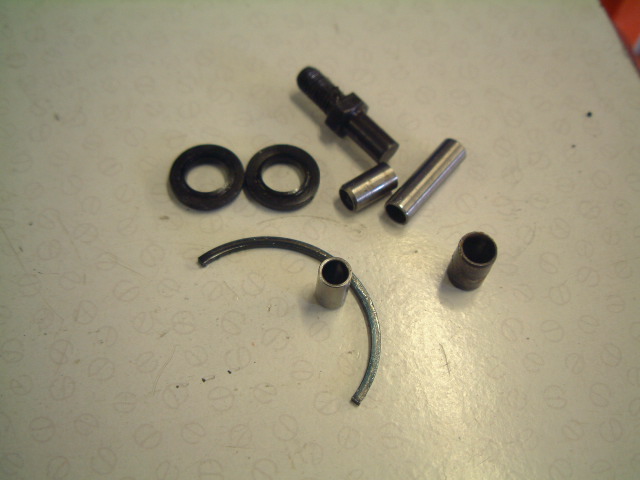

750H - 242 VARIOUS ENGINE BITS FROM CRANKCASE - ALL GOOD. |
 |

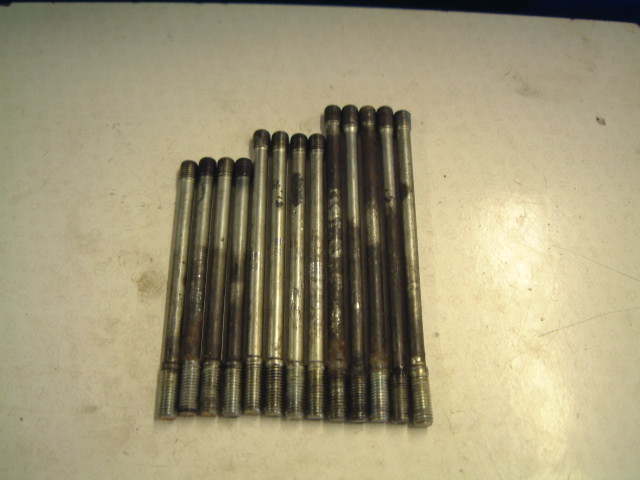

750H - 247 ENGINE CRANKCASE STUD SET - SHORTER ONES SOLD, ALL GOOD. |
 |
 |

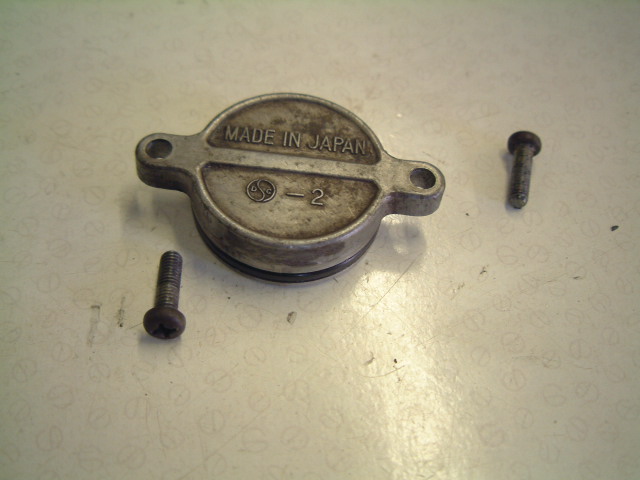

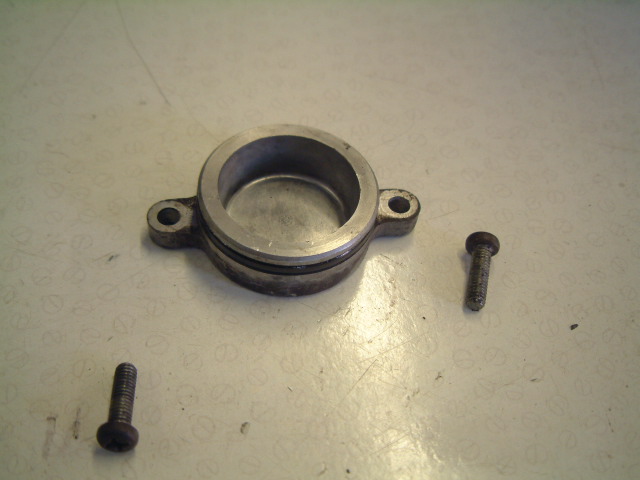

750H - 218 SECONDARY SHAFT BEARING CAP - GOOD. |
 |
 |
 |

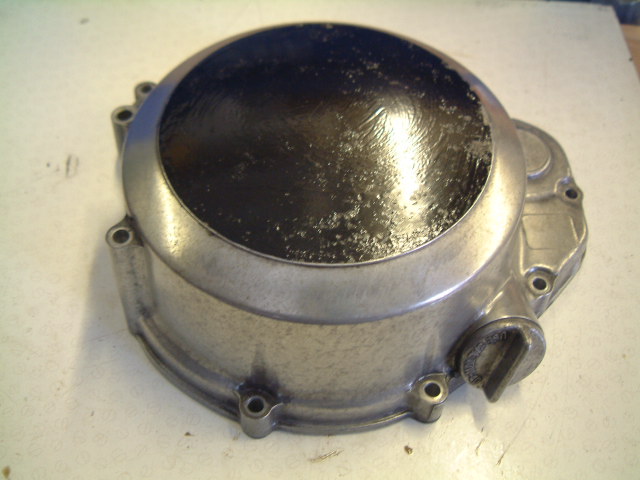

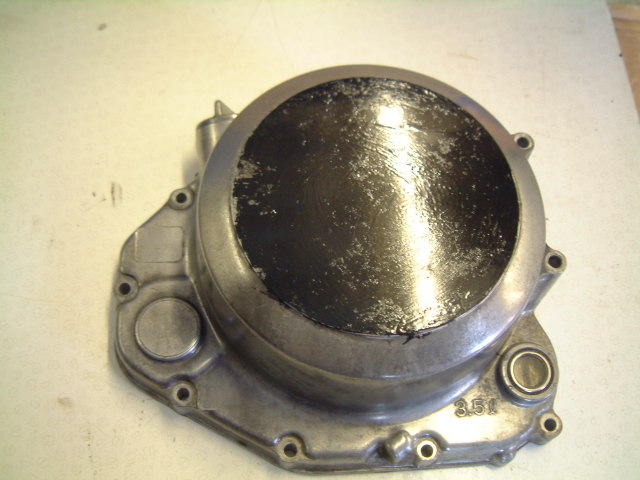

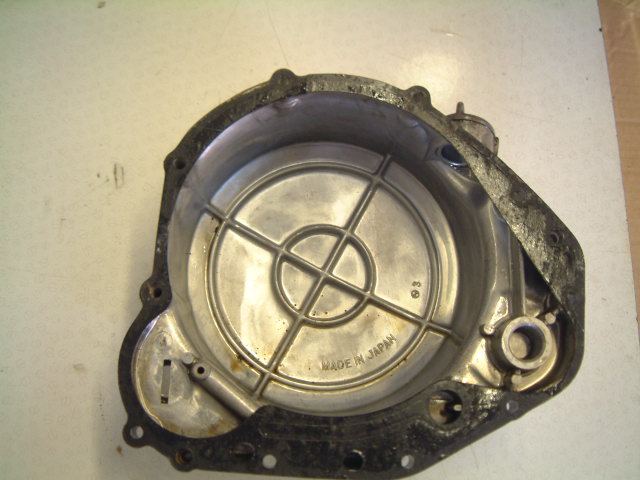

750H - 200 CLUTCH CASING - NO DAMAGE, NEEDS A CLEAN UP/POLISH. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

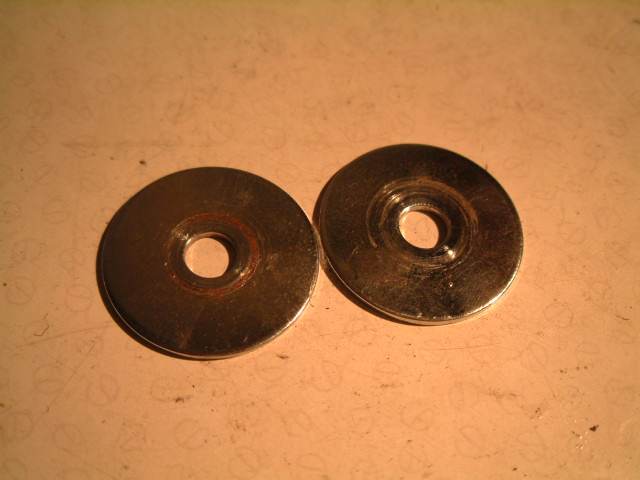

750H - 076 LARGE CHROME WASHERS - INDICATORS TO HEADLIGHT - GOOD. |
 |

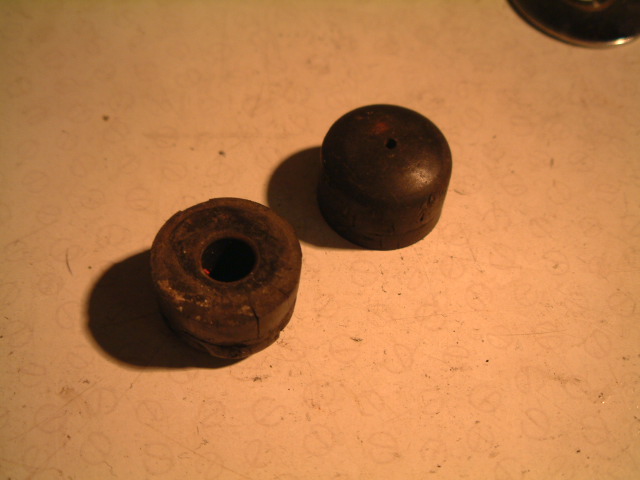

750H - 077 PAIR OF RUBBER BUNGS - ??? - SERVICEABLE. |
 |

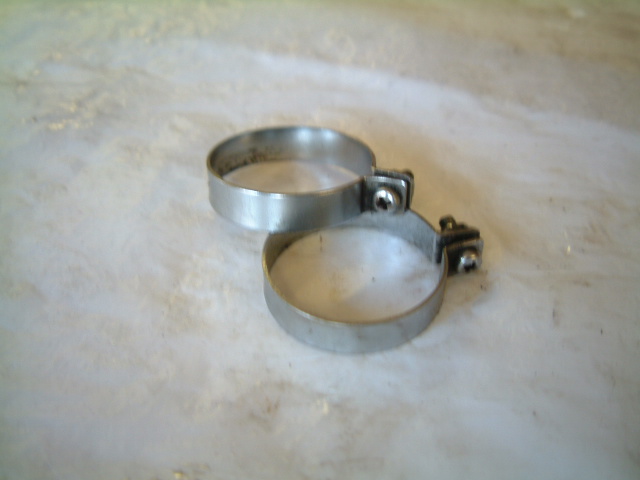

750H - 116 PAIR OF CHROME CLAMPS - GOOD, NOT SURE WHAT THESE WERE FROM. |
 |

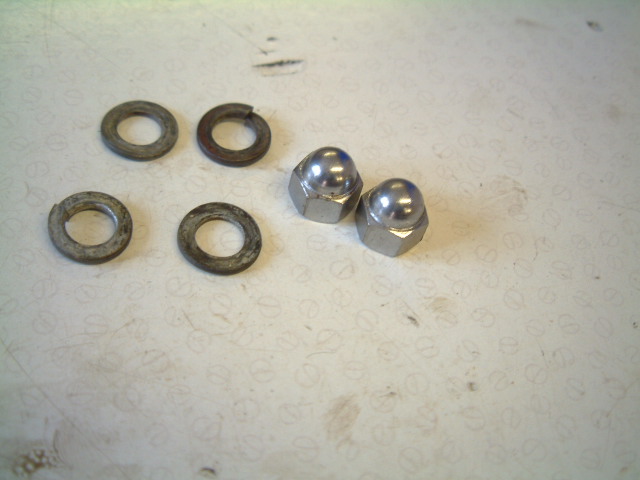

750H - 190 DOMED NUTS (REAR SHOCK + ?) - OK. |
 |

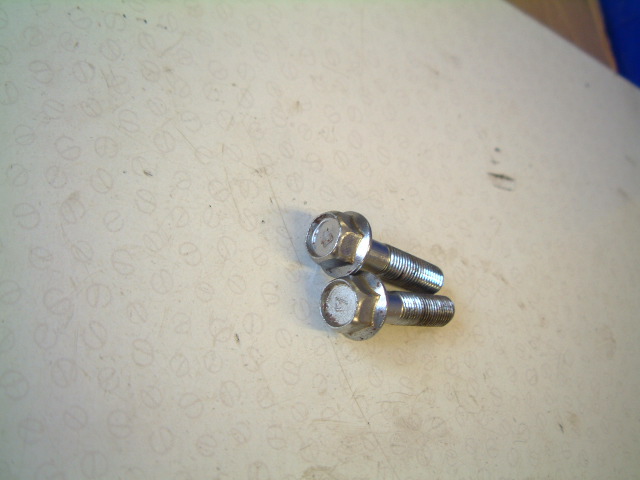

750H - 191 2X PINCH BOLTS - SERVICEABLE. |
 |

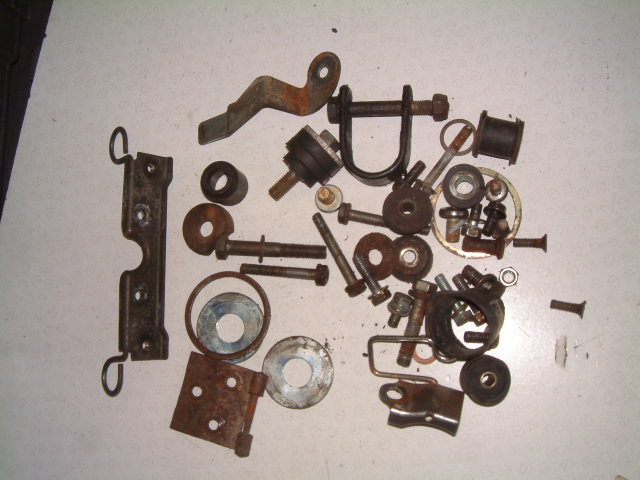

750H - 233 VARIOUS LEFTOVER BOLTS AND BRACKETS ETC - ALL SERVICEABLE. |
