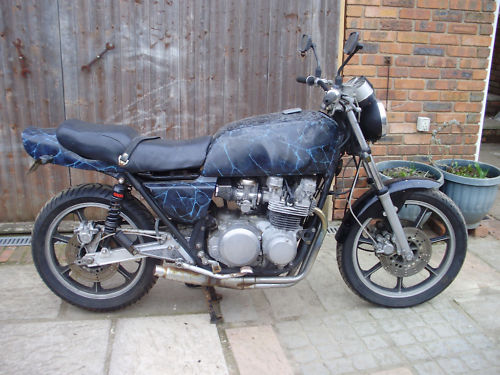

HI, MY NAME IS STEVE AND WELCOME TO MY KAWASAKI Z750 WEB PAGE. I HAVE BROKEN TWO KAWASAKI Z750's FOR SPARES. A 1979/80 E BIKE ON THIS PAGE AND A 1980/81 H BIKE ON ANOTHER PAGE, CLICK THE LINK IN ORANGE BELOW TO VIEW THE OTHER PAGE.I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT. I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART. IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE. I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.
FRAME NUMBER = KZ750E0027xx ~ ENGINE NUMBER = KZ750EE0061xx |
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC). |
| 3 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC). |
| 4 ENGINE - (ENGINE AND GEARBOX PARTS). |
| 5 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| TO VIEW THE PARTS I HAVE FROM THE Z750H BIKE THEN CLICK THIS LINK: >> HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
 |

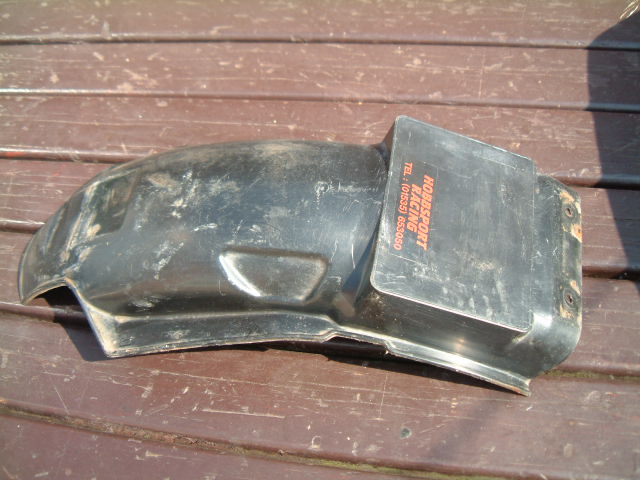

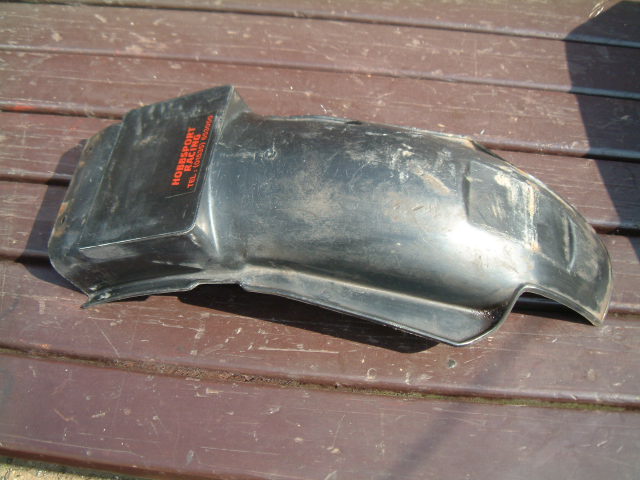

B - 097 INNER REAR MUDGUARD - GOOD, NO DAMAGE. |
 |
 |

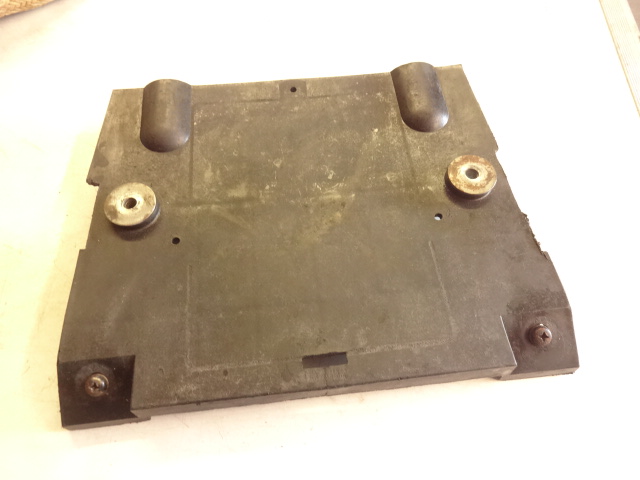

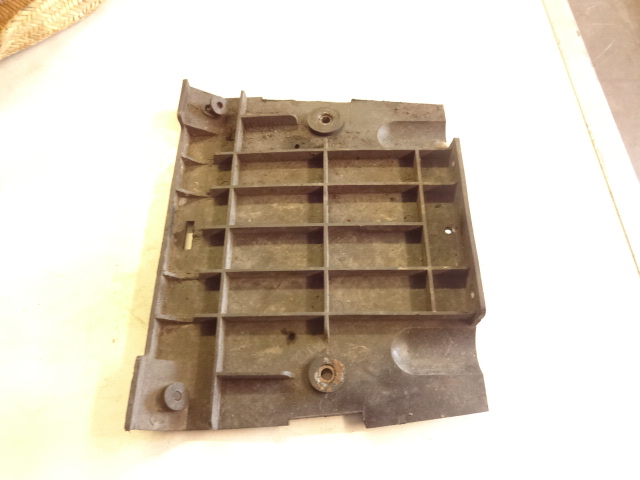

B - 049 PLASTIC GUARD / PANEL FROM UNDER SEAT - GOOD, NO DAMAGE. |
| BRAKE AND CLUTCH PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

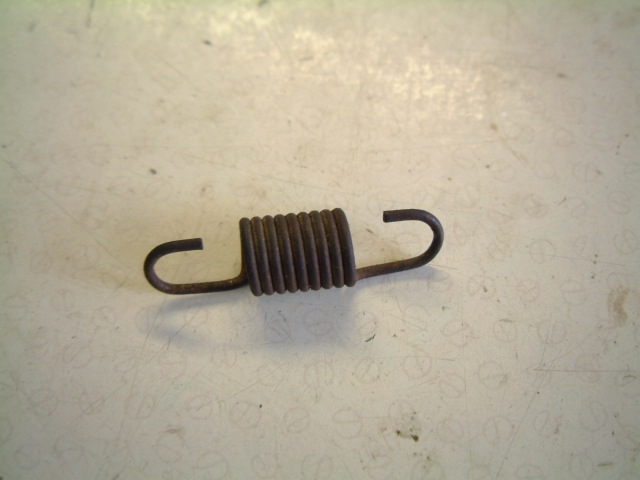

B - 004 REAR BRAKE SPRING - GOOD. |
 |

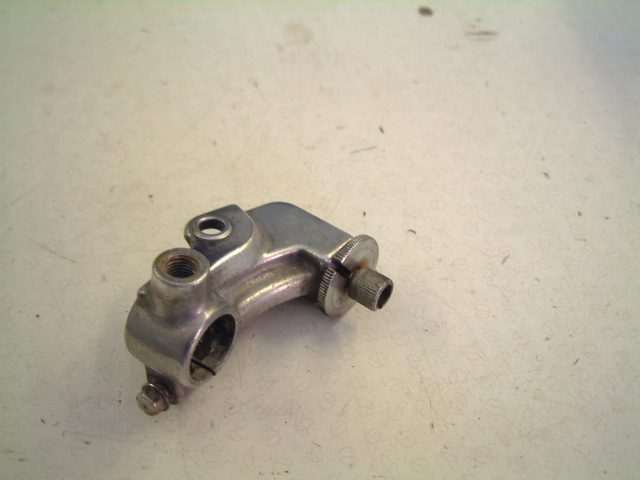

B - 043 CLUTCH LEVER MOUNT - GOOD, THREADS ALL OK. |
 |

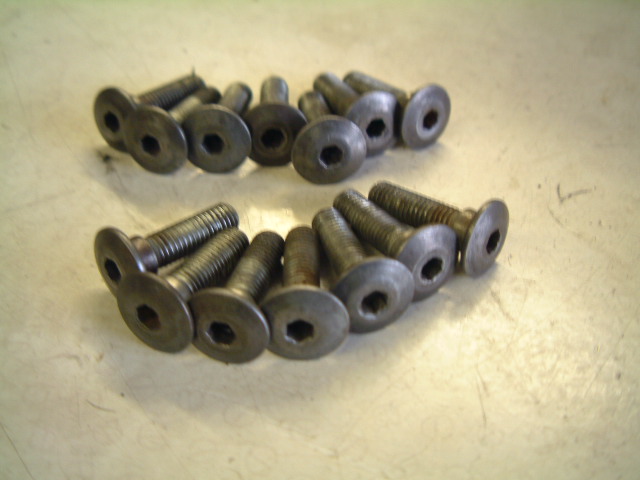

B - 153 FRONT DISC SCREWS - ALL GOOD, NO CHEWED HEADS. |
 |

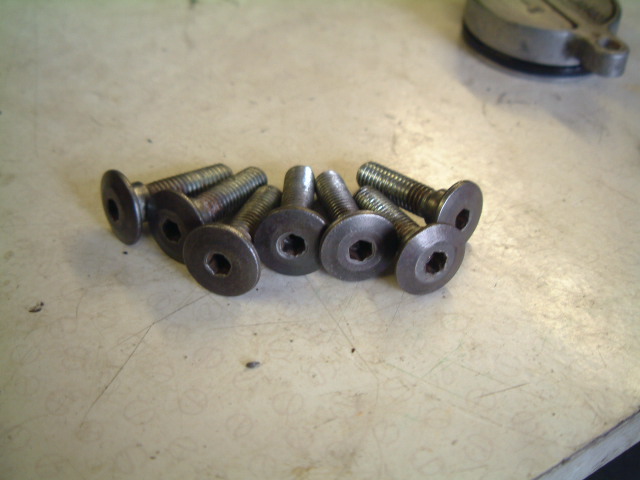

B - 155 REAR DISC SCREWS - 1 A BIT CHEWED, REST ALL GOOD. |
 |
 |
 |

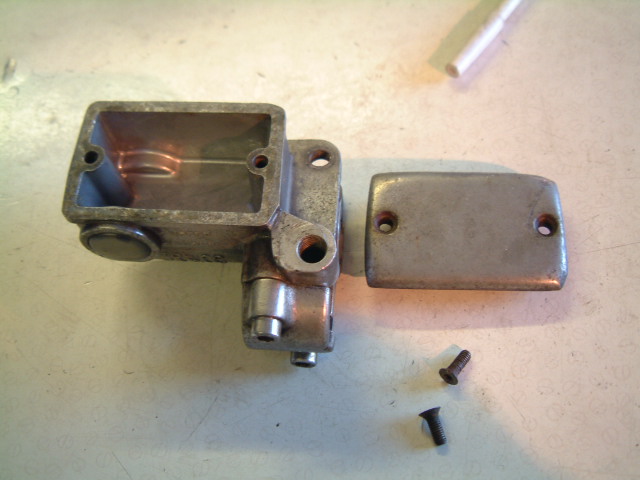

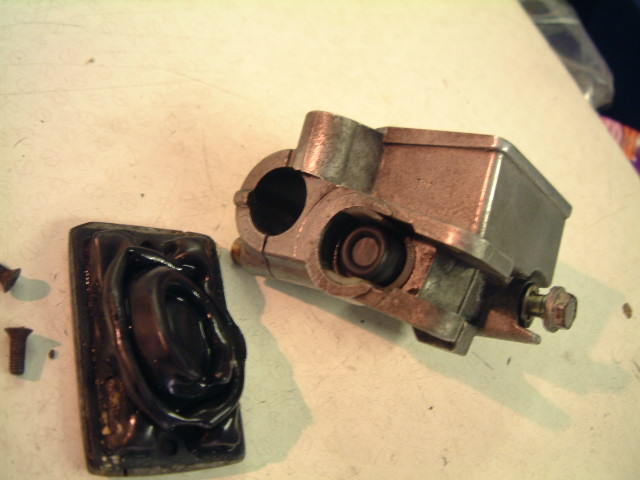

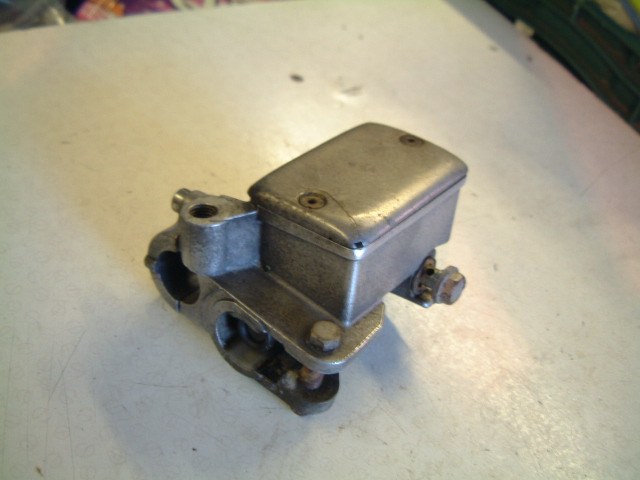

B - 109 FRONT BRAKE MASTER CYLINDER - WORKING WELL, NO LEAKS, LID IS CRACKED AND RUBBER INSERT HAD IT. |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
 |

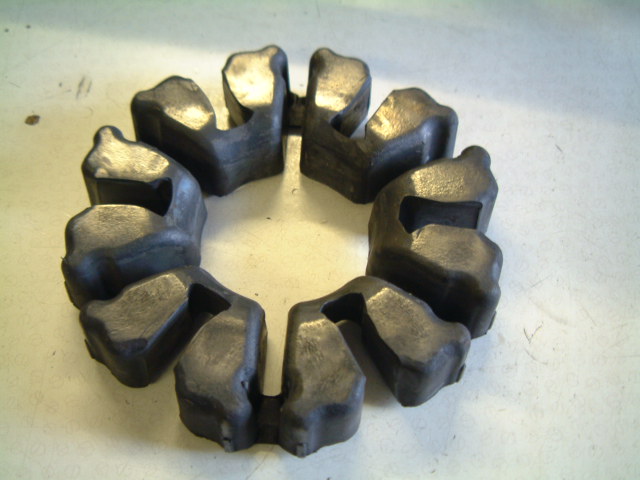

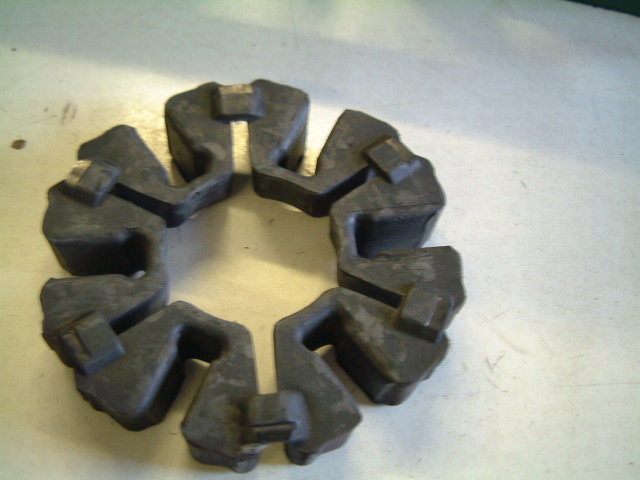

B - 164 CUSH DRIVE - VERY GOOD, NO DAMAGE. |
| ENGINE, CLUTCH, GEARBOX PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

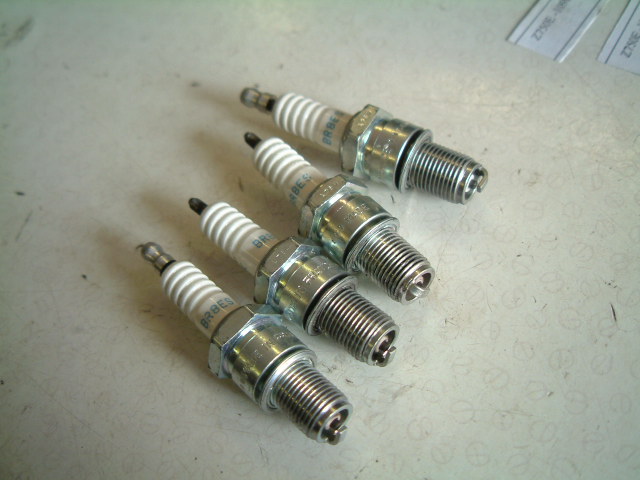

B - 061 SPARK PLUGS - HAVE BEEN FITTED BUT LOOK LIKE NEW, NGK BR8E2 |
 |

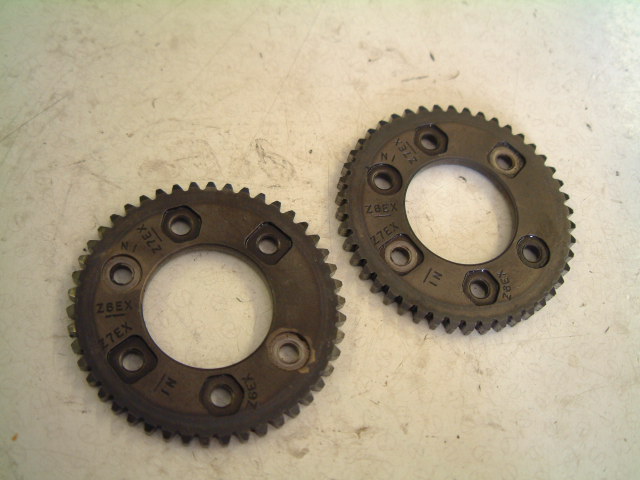

B - 068 CAMSHAFT SPROCKETS - VERY GOOD. |
 |

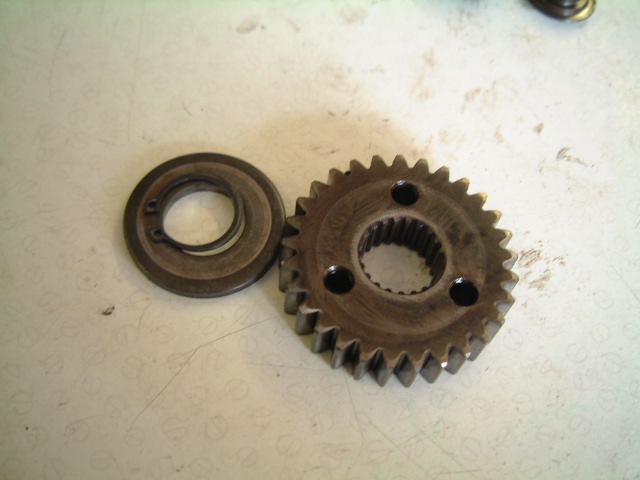

B - 073 GEAR BETWEEN CRANK AND CLUTCH - VERY GOOD. |
 |

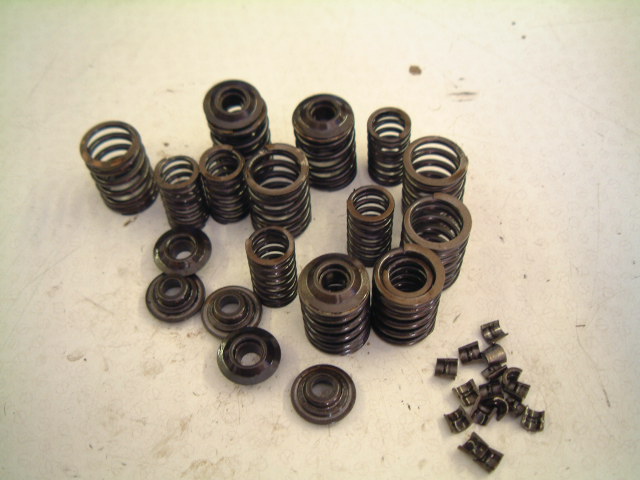

B - 074 VALVE SPRING SET - FULL SET, ALL GOOD, WILL SPLIT. |
 |

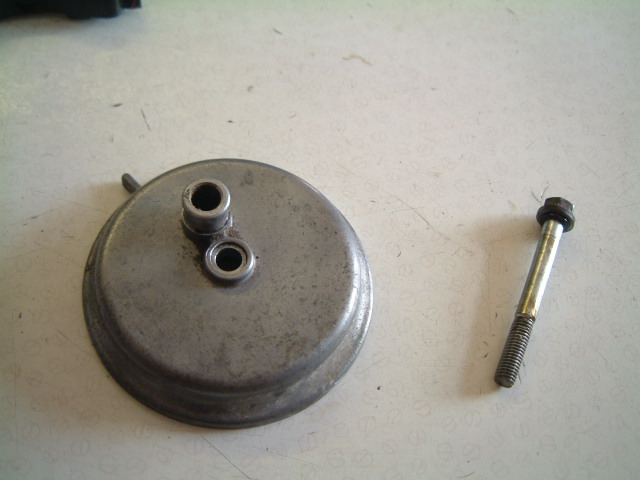

B - 078 BREATHER CAP - GOOD. |
 |

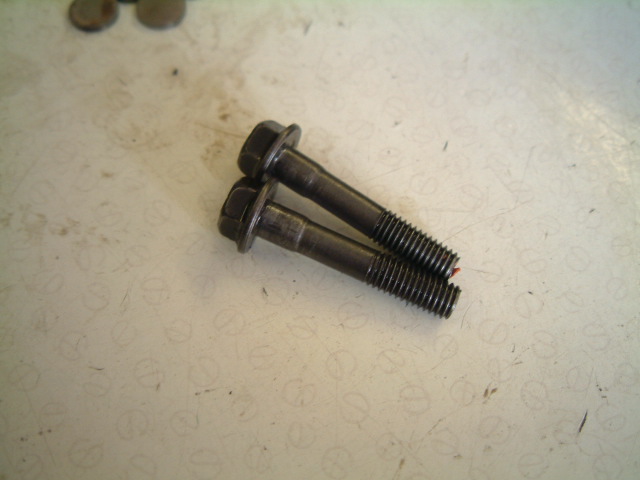

B - 082 CAMCHAIN GUIDES BOLTS - GOOD. |
 |

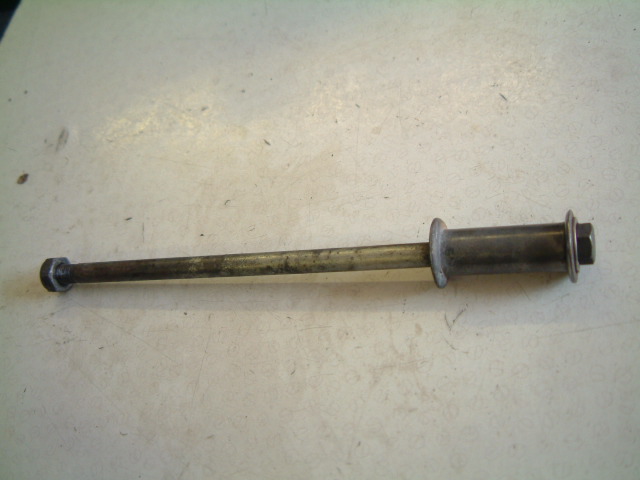

B - 084 UPPER REAR ENGINE BOLT AND SPACER - GOOD. |
||
 |

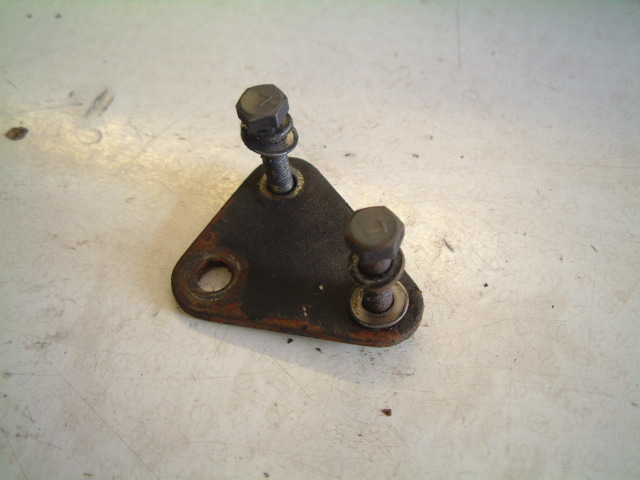

B - 086 UPPER REAR ENGINE RHS BRACKET & BOLTS - GOOD. |
 |

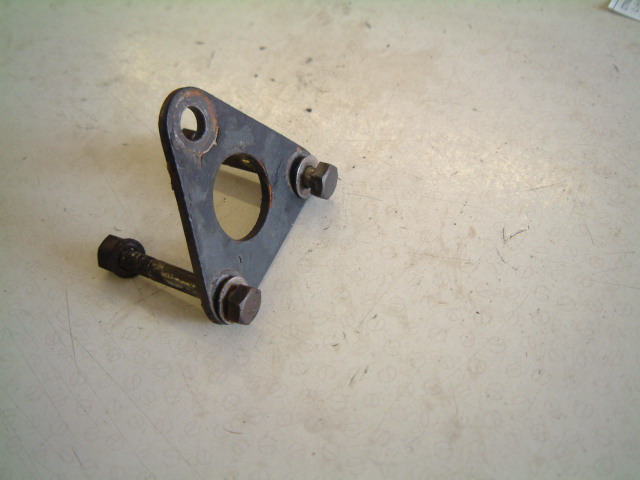

B - 087 FRONT RHS ENGINE BRACKET & BOLTS - GOOD. |
 |

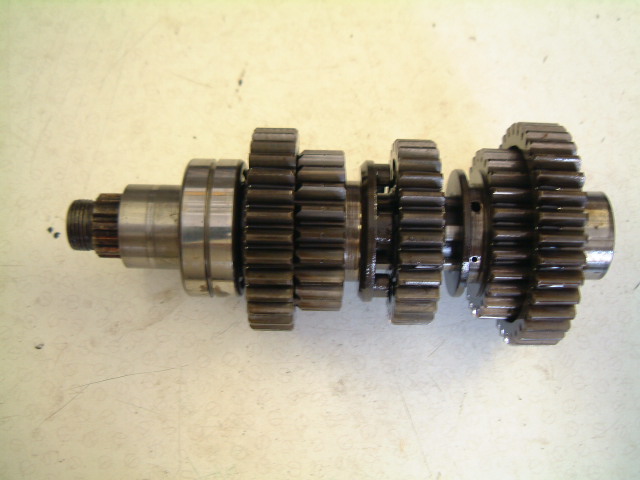

B - 123 OUTPUT SHAFT & GEARS - ALL VERY GOOD, NO CHIPPED OR MARKED TEETH. |
 |

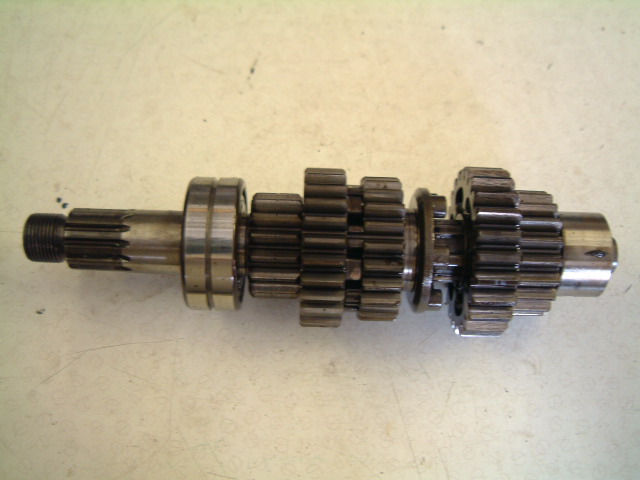

B - 124 INPUT SHAFT & GEARS - ALL VERY GOOD, NO CHIPPED OR MARKED TEETH. |
 |

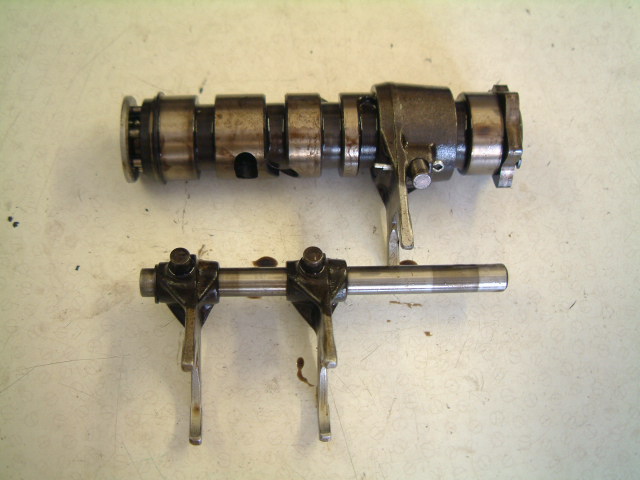

B - 125 SELECTOR DRUM AND FORKS - VERY GOOD. |
 |

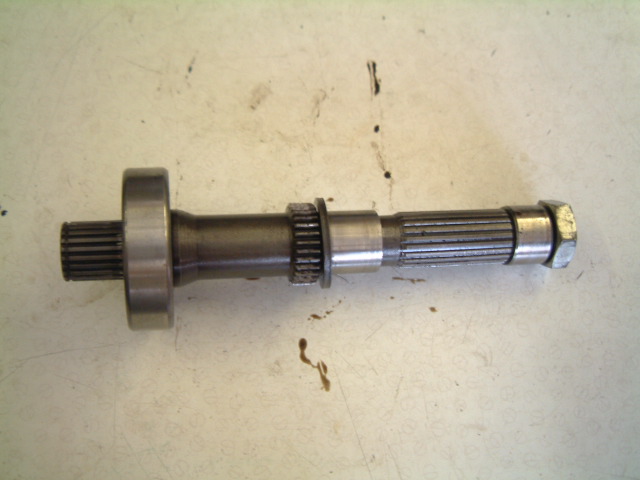

B - 126 STARTER CLUTCH SHAFT - VERY GOOD. |
 |
B - 128 PRIMARY CHAIN - LOOKS OK ?. |
 |
B - 129 CAM CHAIN - LOOKS OK ?. |
 |
B - 130 OIL PUMP - FEELS OK, ALL ENGINE INTERNALS WERE IN GOOD ORDER. |
 |

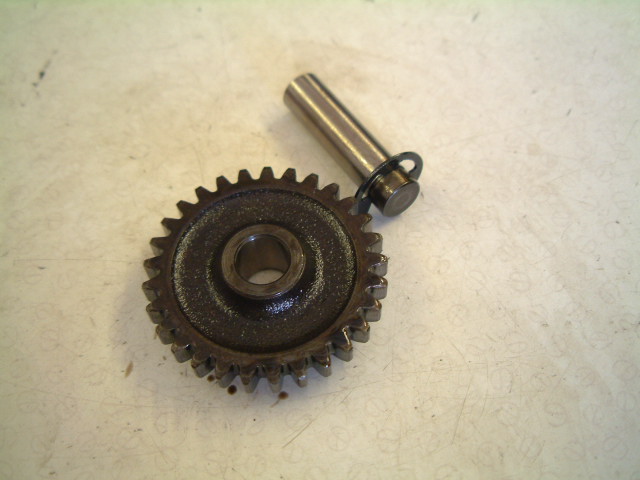

B - 131 GEAR & PINION - VERY GOOD. |
 |

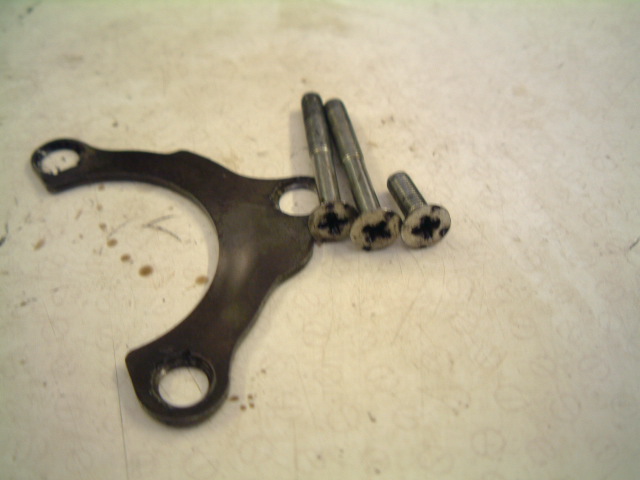

B - 134 RETAINING CLAMP AND SCREWS - SERVICEABLE. |
 |

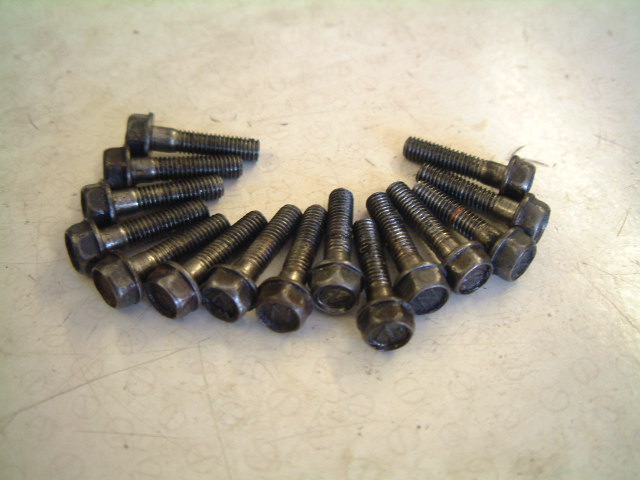

B - 138 SUMP BOLT SET - ALL GOOD. |
 |

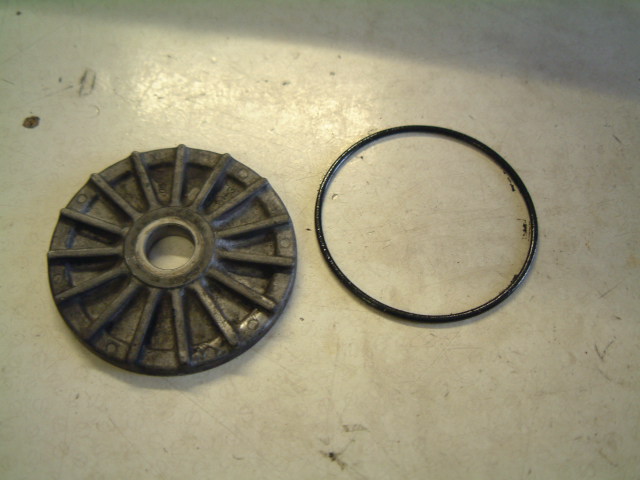

B - 154 OIL FILTER COVER & SEAL - VERY GOOD. |
 |
B - 156 SMALL ENGINE COVER - VERY GOOD, FITS NEXT TO THE ENGINE SPROCKET. |
 |

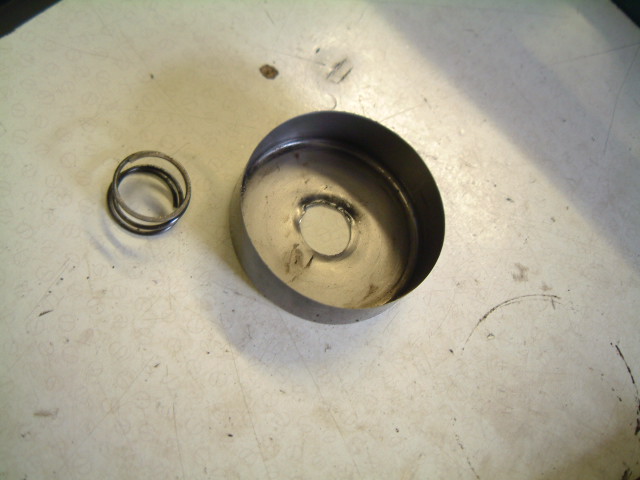

B - 159 OIL FILTER HOLDER & SPRING - GOOD. |
 |
B - 165 CAM COVER BOLTS SET - ALL GOOD. |
 |
 |

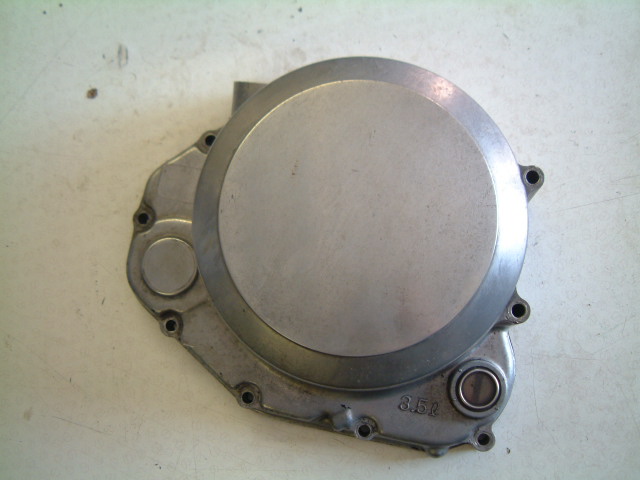

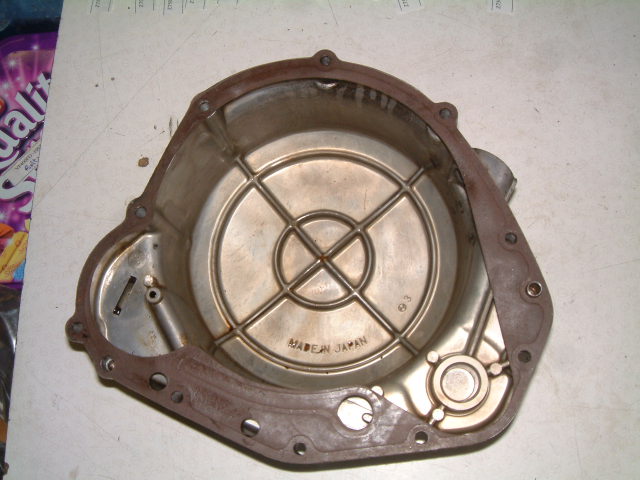

B - 090 CLUTCH COVER - VERY GOOD, NO DAMAGE. |
 |
 |

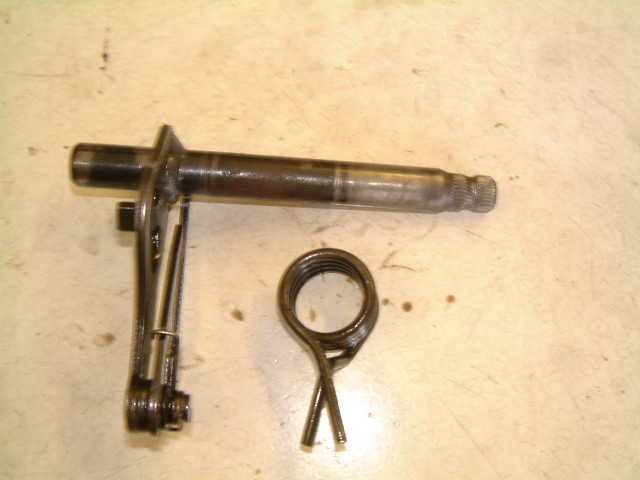

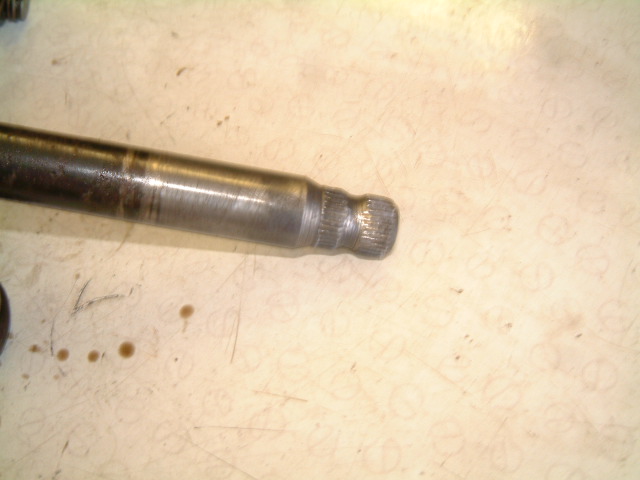

B - 133 GEAR SELECTION SHAFT - ALMOST PERFECT, HAS A COUPLE OF VERY LIGHTLY SQUASHED SPLINES, STILL VERY SERVICEABLE. |
 |
 |

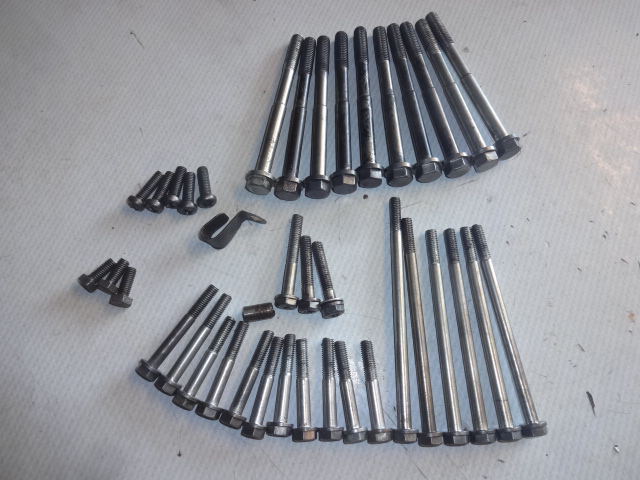

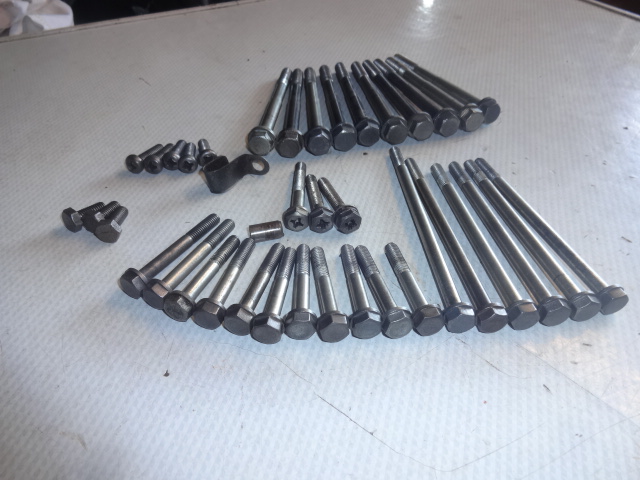

B - 161 ENGINE / CRANKCASE BOLTS SET - VERY GOOD. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

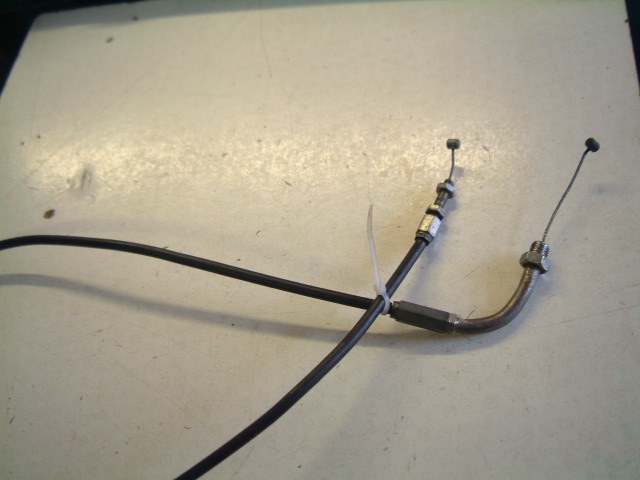

B - 031 THROTTLE CABLE - CHROME BEND PART IS RUSTY OTHERWISE SERVICEABLE. |
 |

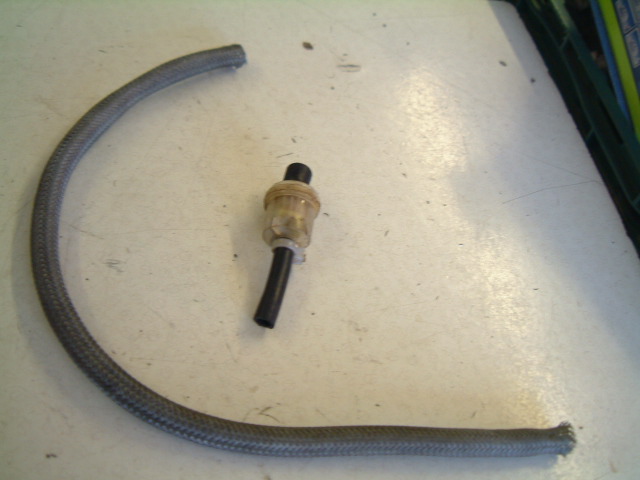

B - 052 BRAIDED FUEL LINE OUTER COVER & INLINE FILTER - SERVICEABLE. LENGHT 60cm., SUITS PIPES WITH INTERNAL DIA 10-12mm |
 |

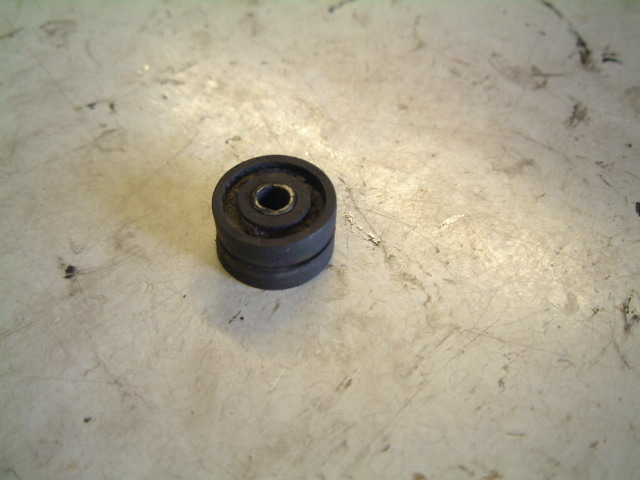

B - 162 RUBBER MOUNT - VERY GOOD, CAN'T REMEMBER WHERE FROM ? |
||
 |

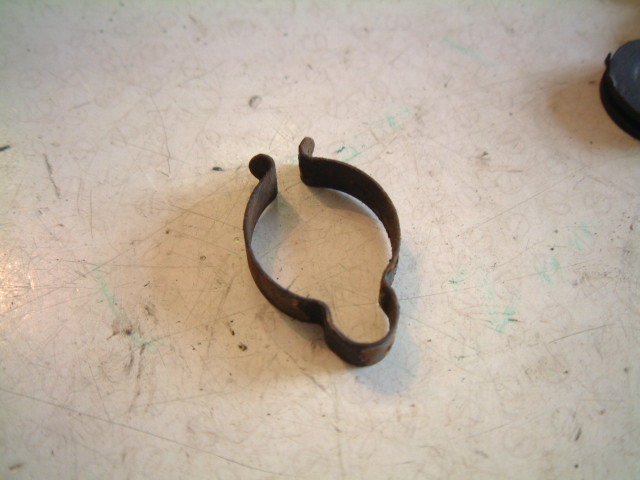

B - 169 CLUTCH CABLE GUIDE - SOLID BUT A LITTLE RUSTY. |
 |

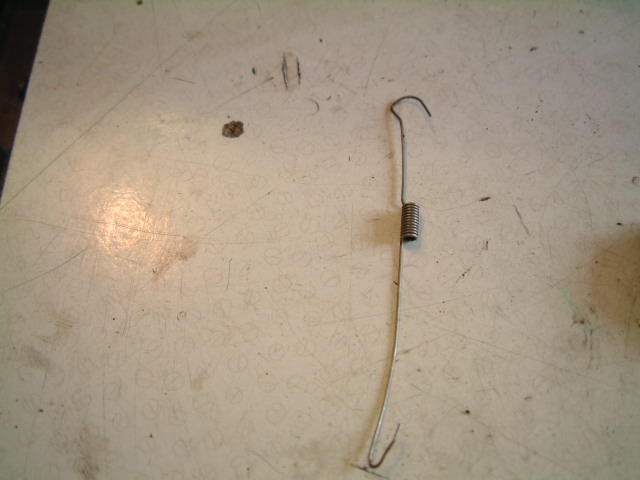

B - 170 REAR BRAKE LIGHT SWITCH SPRING - GOOD. |
