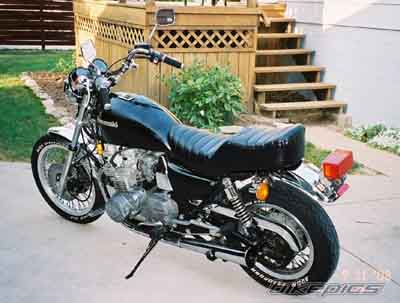

HI, MY NAME IS STEVE AND WELCOME TO MY KAWASAKI Z1000 WEB PAGE. HAVE BROKEN TWO Z1000 LTD's FOR SPARES. A 1980/1 BIKE ON THIS PAGE AND A 1981 BIKE ON ANOTHER PAGE, CLICK THE LINK IN ORANGE BELOW TO VIEW THE OTHER PAGE.I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT. I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART. IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE. I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.
FRAME NUMBER = JKAKZCK17BA0062xx ~ ENGINE NUMBER = KZT00JE0174xx. |
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC). |
| 3 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC). |
| 4 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC). |
| 5 ENGINE AND GEARBOX PARTS - |
| 6 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| TO VIEW THE PARTS I HAVE FROM THE OTHER Z1000 LTD THEN CLICK THIS LINK: > HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

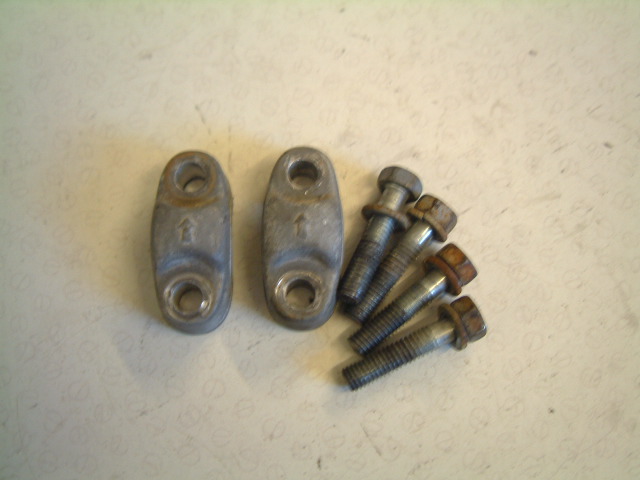

LTD2 - 119 HANDLEBAR CLAMPS & BOLTS - BOLT HEADS RUSTY, CLAMPS GOOD. |
 |
LTD2 - 121 TAIL LIGHT LENS RED INSERT - VERY GOOD. |
 |
 |

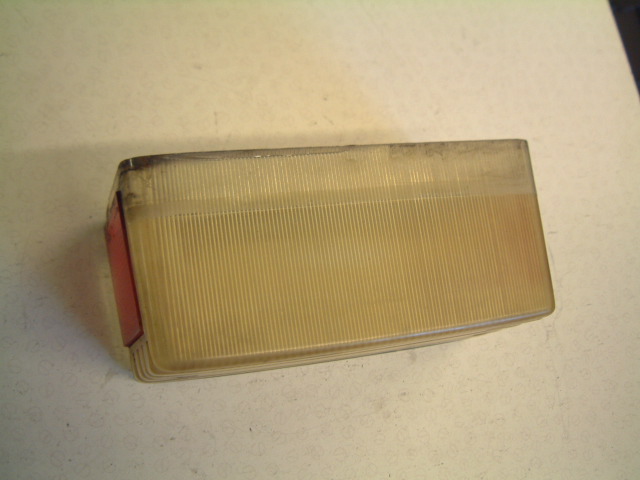

LTD2 - 120 TAIL LIGHT LENS - HAS A CRACK AROUND ONE HOLE - SERVICEABLE. |
 |
 |
LTD2 - 124 TAIL LIGHT - ELECTICAL PARTS GOOD, REST NEEDS PAINT. |
| BRAKE AND CLUTCH PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

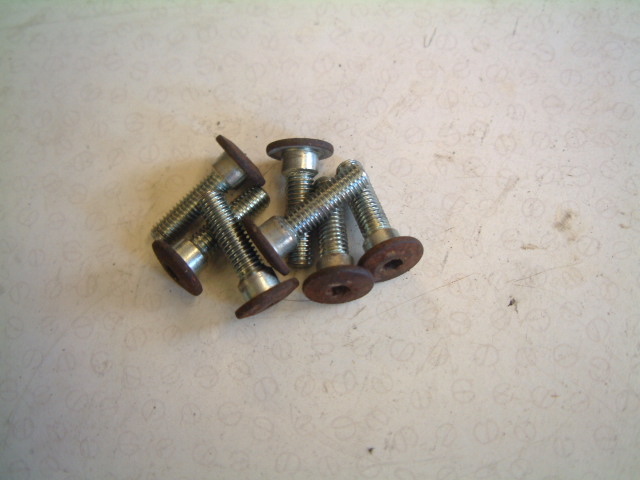

LTD2 - 075 REAR DISC ALLEN SCREWS - HEAD AND THREADS GOOD, FACES NEED A CLEAN UP WITH A WIRE BRUSH. |
 |

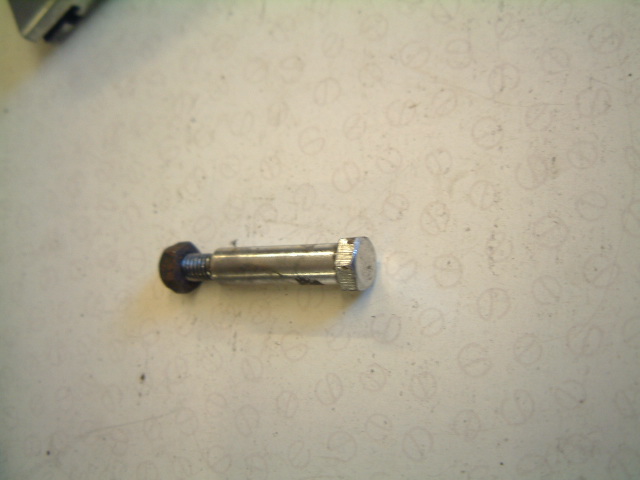

LTD2 - 108 CLUTCH LEVER BOLT - GOOD. |
 |

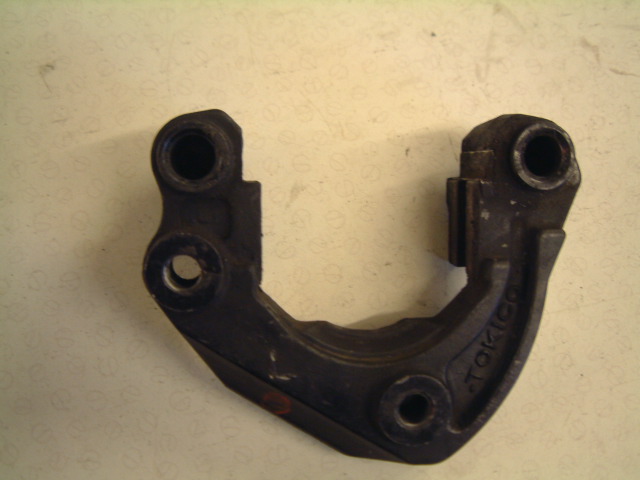

LTD2 - 130 FRONT LHS CALLIPER MOUNT - ALL LOOKS GOOD. |
 |

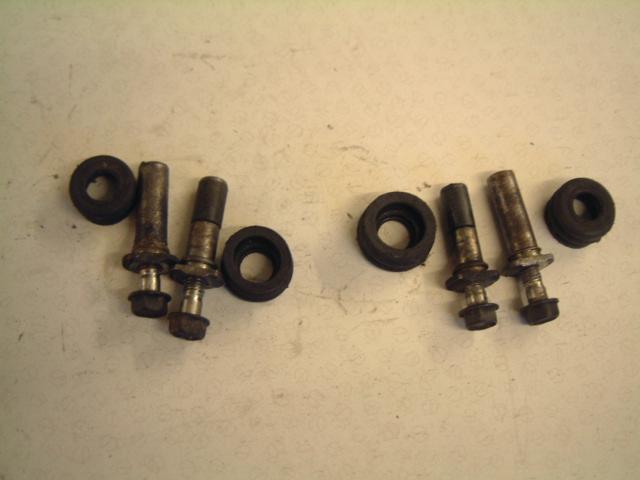

LTD2 - 132 BOLTS (& DUST COVERS) FOR FIXING FRONT CALLIPERS TO MOUNTING BRACKETS, X 4 - ALL LOOKS GOOD. |
 |

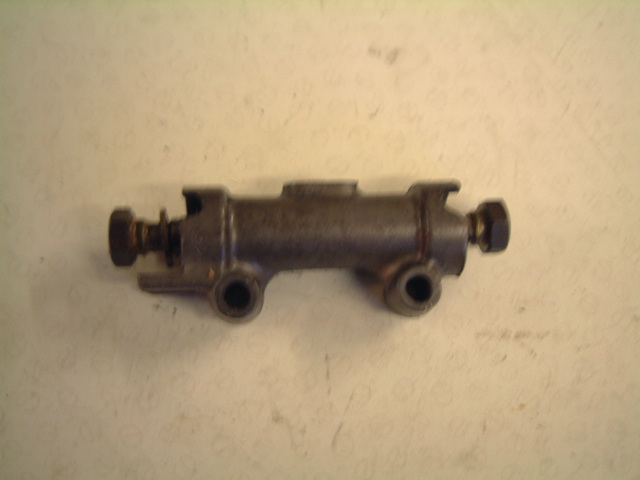

LTD2 - 133 FRONT BRAKE HOSE CONNECTION POINT - GOOD. |
 |

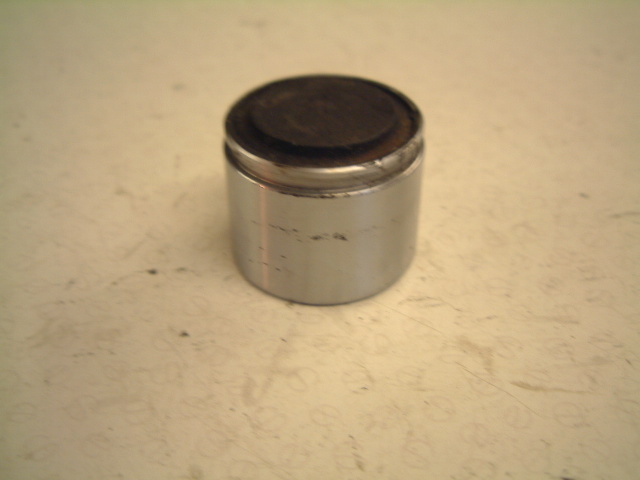

LTD2 - 137 FRONT BRAKE PISTON - VERY LIGHTLY PITTED, SERVICEABLE. |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

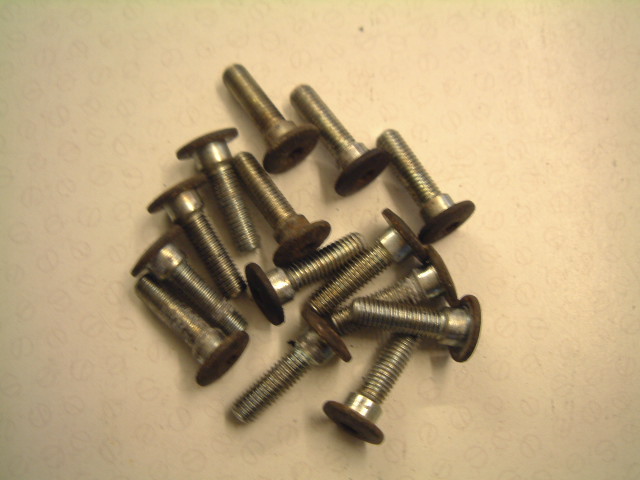

LTD2 - 019 FRONT DISC SCREWS - THREADS & HEADS GOOD, COULD DO WITH A WIRE BRUSH ON HEADS. |
 |

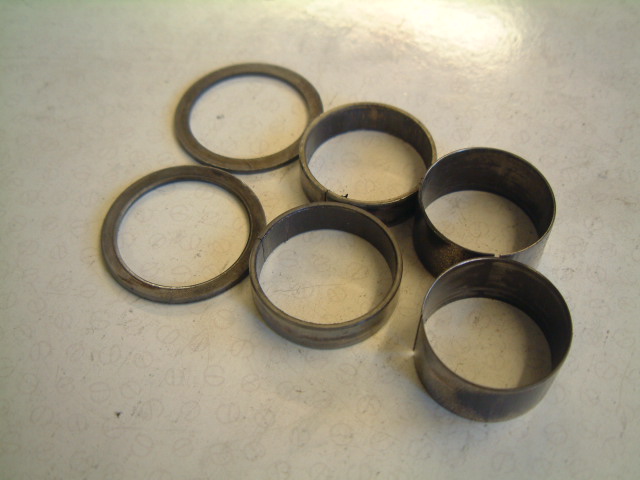

LTD2 - 087 FORKS STANCHION BUSHES - SERVICEABLE. |
 |

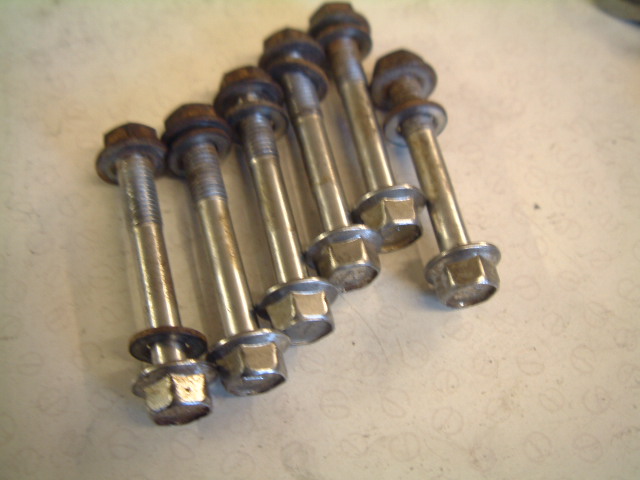

LTD2 - 090 SET OF TOP AND BOTTOM YOKE PINCH BOLTS - CHROME ON BOLTS OK, NUTS RUSTY. |
 |

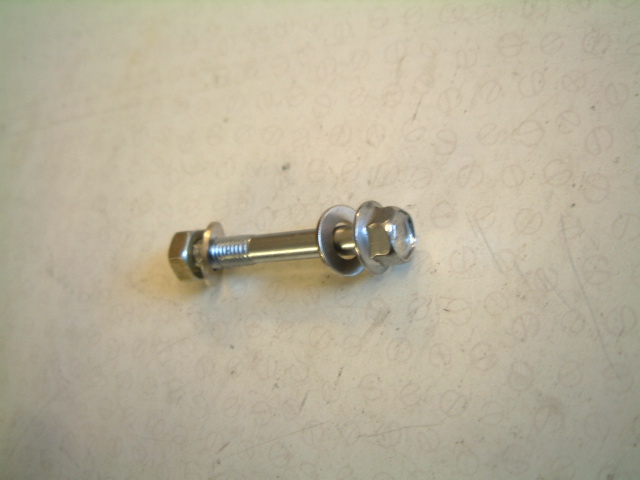

LTD2 - 152 TOP YOKE CENTRE PINCH BOLT - VERY GOOD, NEW NUT & WASHERS. |
 |
 |

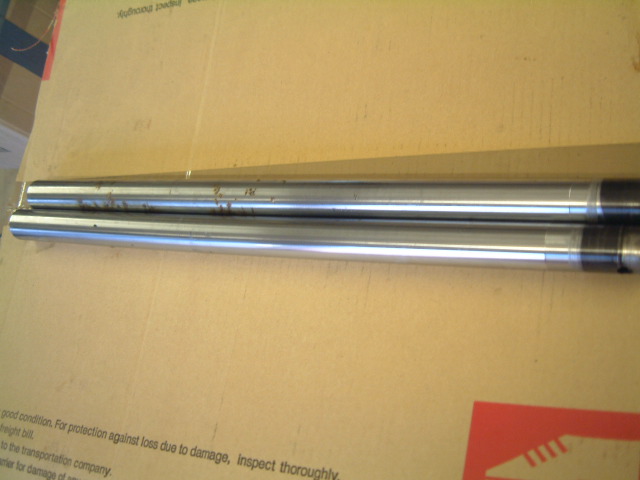

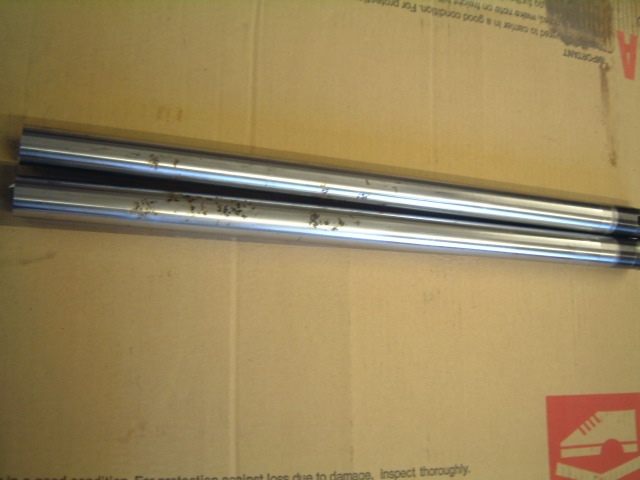

LTD2 - 089 FORK LEG - I ONLY HAVE ONE OF THESE, STRAIGHT WITH SOME PITTING. |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

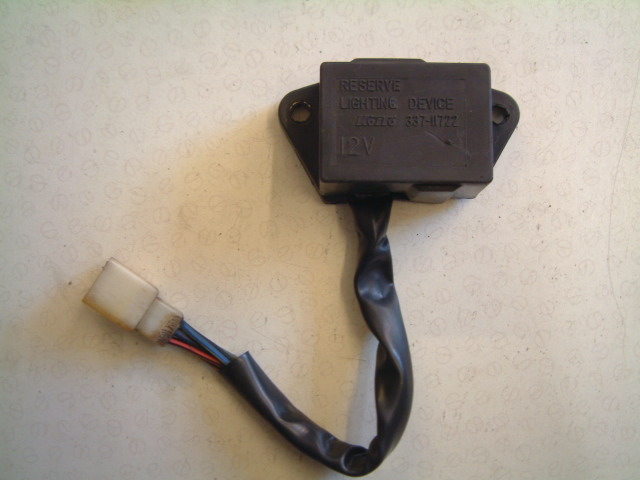

LTD2 - 101 RESERVE LIGHTING DEVICE - MARKED AS " 337-11722 ". |
 |

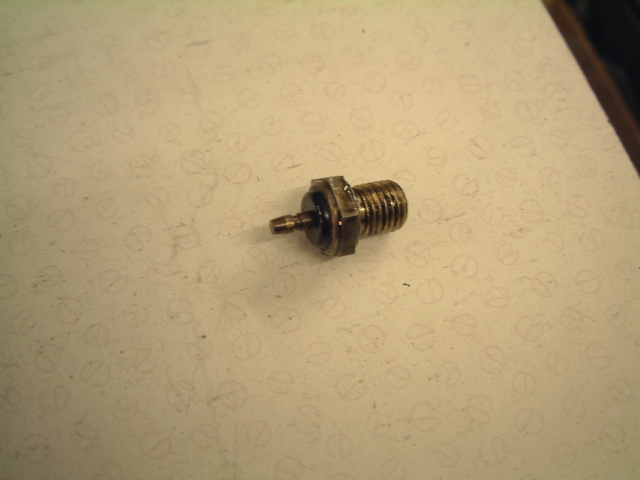

LTD2 - 148 NEUTRAL SWITCH - TESTED, GOOD. |
| ENGINE, CLUTCH, GEARBOX PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

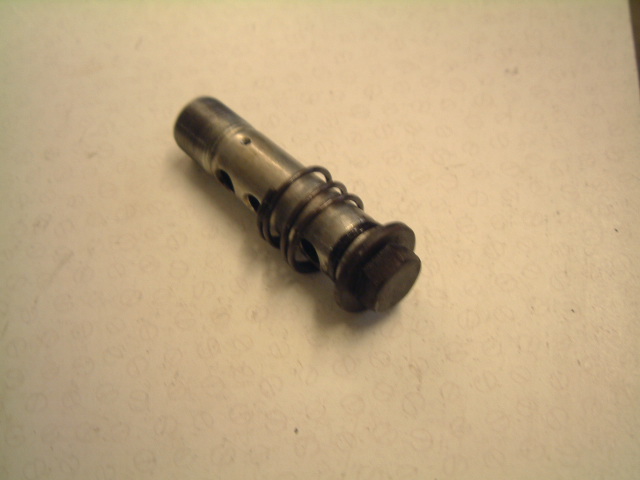

LTD2 - 001 OIL FILTER BOLT & SPRING - GOOD. |
 |
LTD2 - 024 SHIMS - VARIOUS SIZES. |
 |

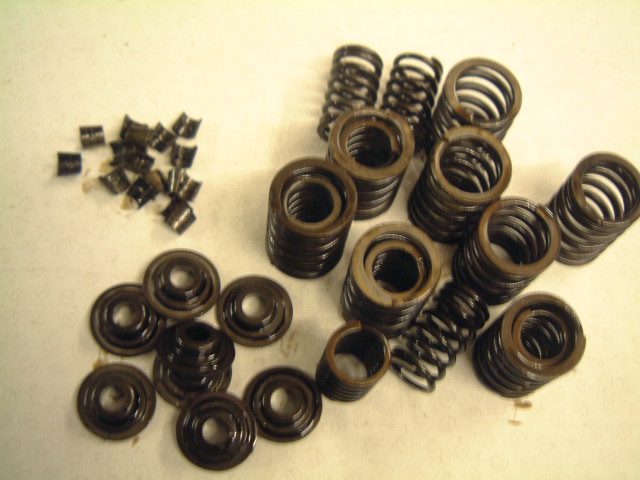

LTD2 - 026 VALVES SPRINGS, COLLARS ETC - ALL LOOK SERVICEABLE. ( SOME SOLD). |
 |

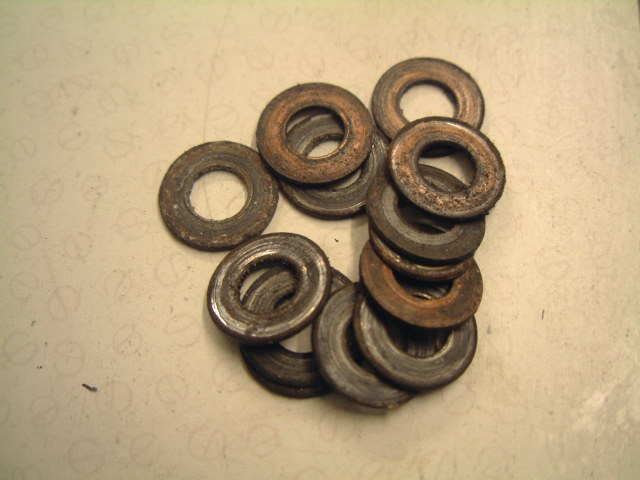

LTD2 - 032 WASHERS FOR HEAD NUTS - SERVICEABLE. |
 |

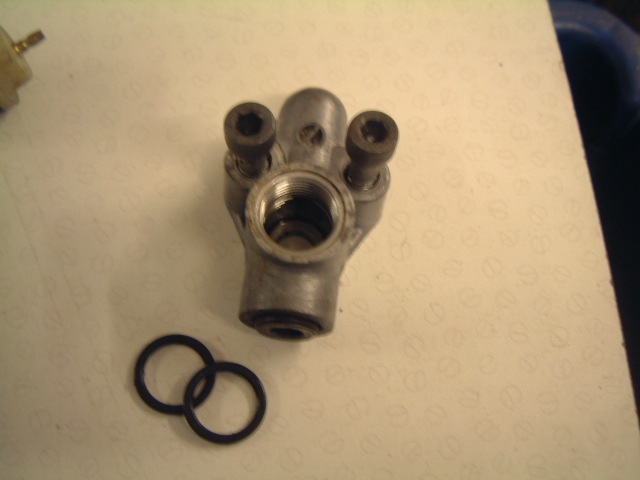

LTD2 - 033 OIL PRESSURE SWITCH MOUNT - VERY GOOD. |
 |

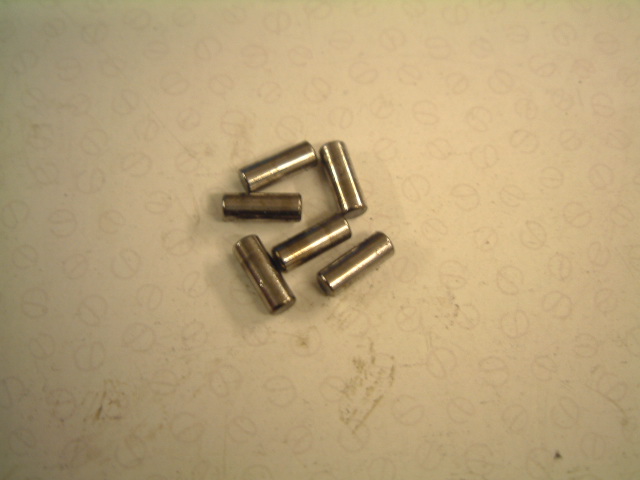

LTD2 - 048 CRANK LOCATION PEGS - VERY GOOD. |
 |

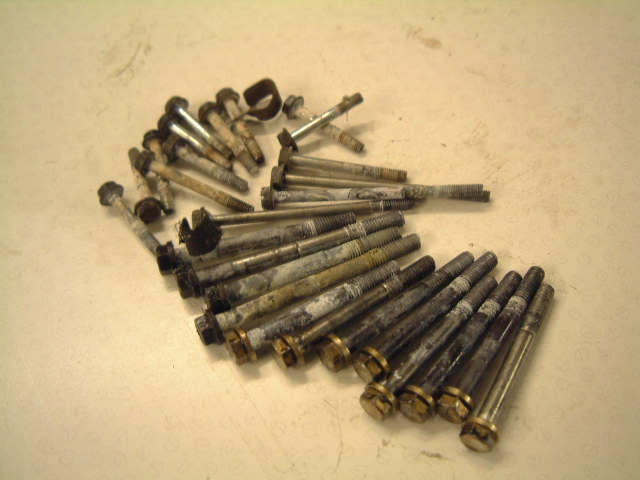

LTD2 - 052 CRANKCASE BOLTS SET - ALL HEAD & THREADS GOOD, NEED A CLEAN. |
 |

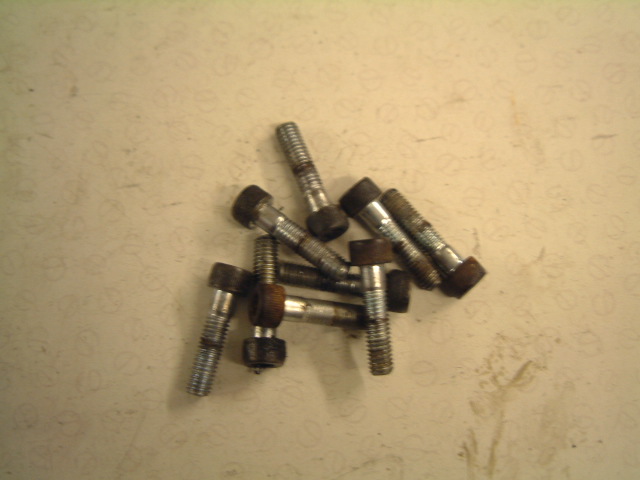

LTD2 - 054 CLUTCH COVER ALLEN SCREW SET - ALL HEAD & THREADS GOOD, NEED A CLEAN. |
 |

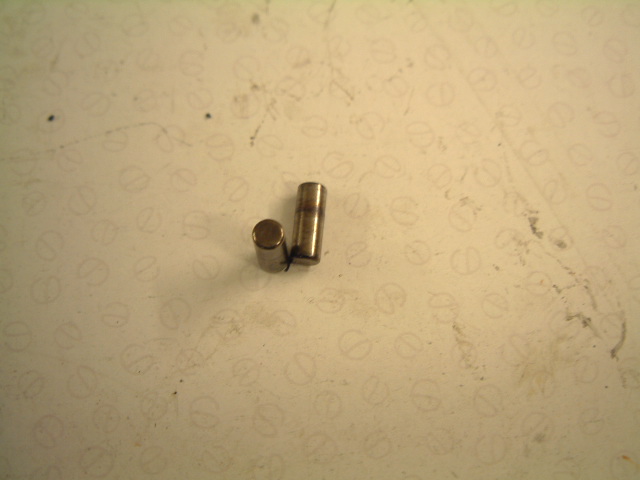

LTD2 - 055 PEGS THAT LOCATE THE RHS POINTS COVER CASING - VERY GOOD. |
 |

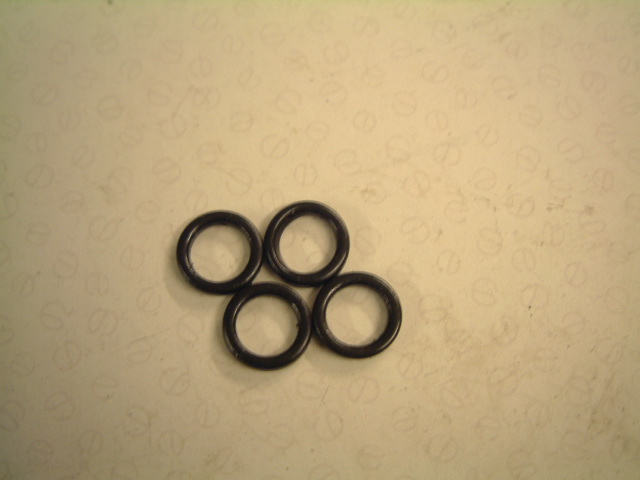

LTD2 - 056 HEAD TO BARRLES OILS SEALS - MIGHT BE USEFUL TO SOMEONE (The last Z1000 full engine gasket set I bought didn't have these and Kawasaki wanted £5+vat each !!). |
 |

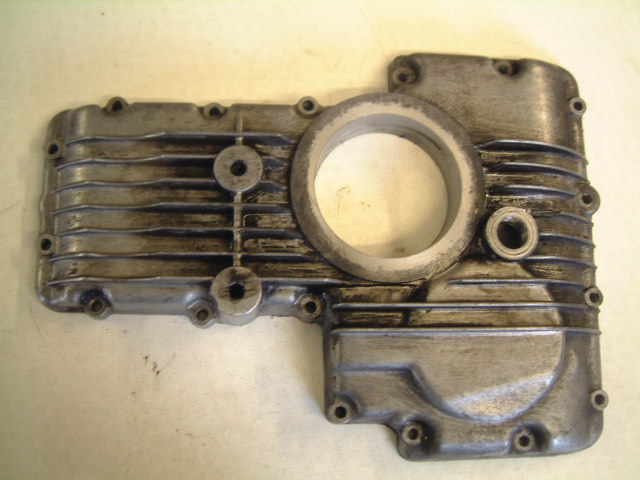

LTD2 - 067 SUMP / OIL PAN - HAS ONE TINY CHIPPED FIN BY DRAIN HOLE, REST IS ALL VERY GOOD. |
 |

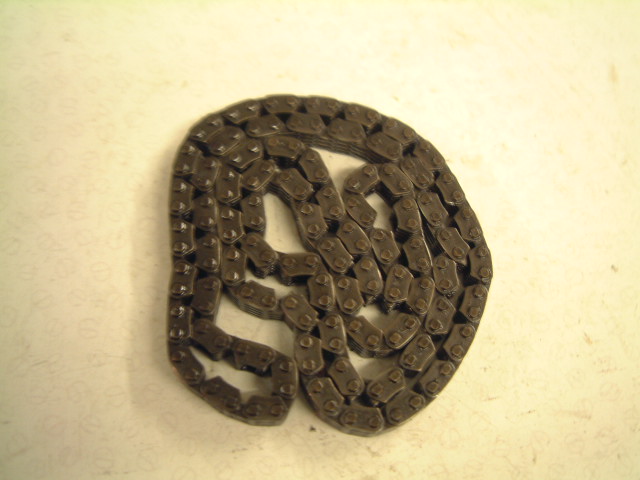

LTD2 - 150 CAM CHAIN. |
 |
 |

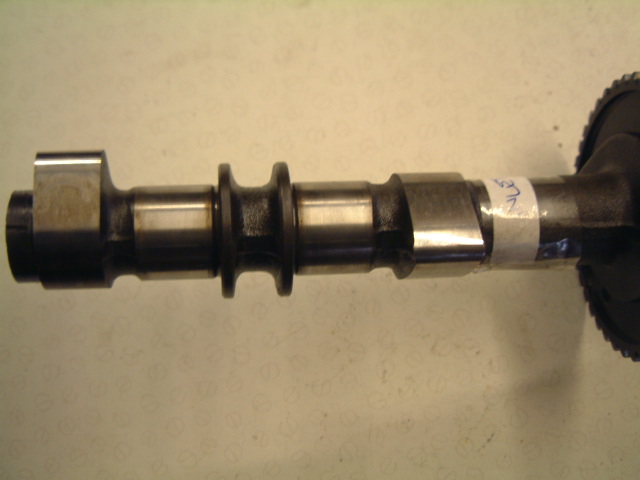

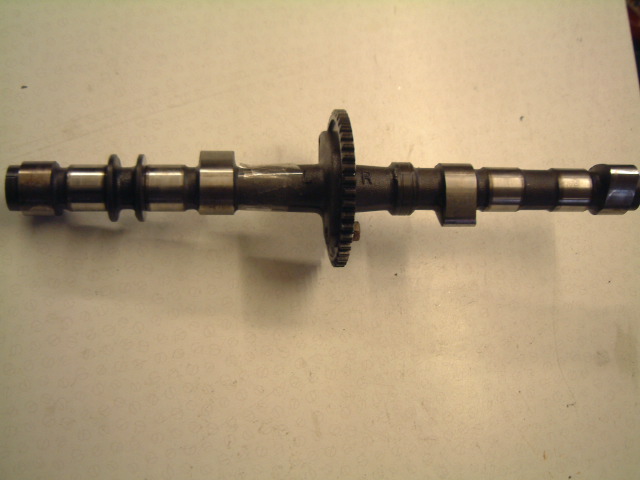

LTD2 - 005 INLET CAMSHAFT - VERY GOOD, NO MARKS ON ANY OF THE FACES. |
 |
 |

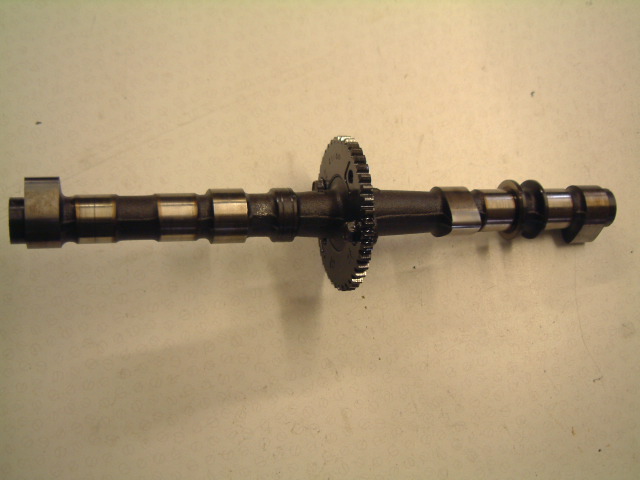

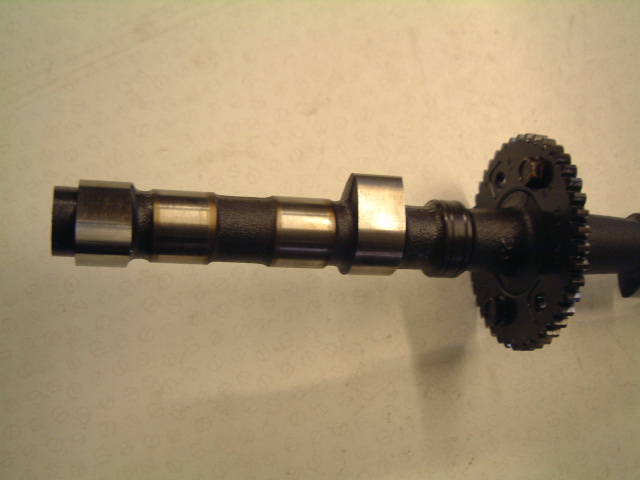

LTD2 - 006 EXHAUST CAMSHAFT - VERY GOOD, NO MARKS ON ANY OF THE FACES. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
LTD2 - 095 REAR TANK MOUNTING - GOOD. |
 |

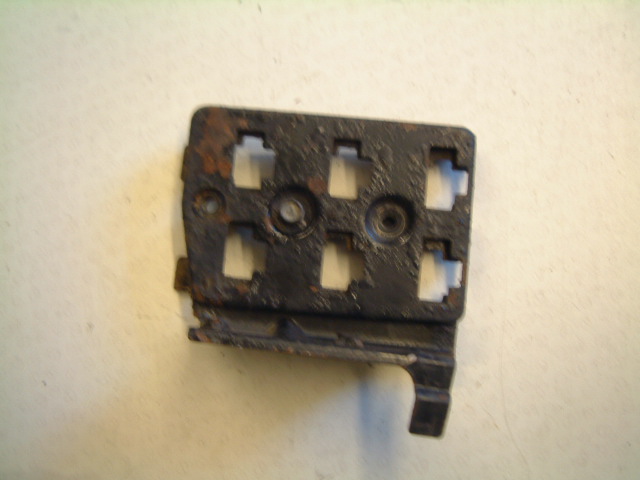

LTD2 - 117 ELECTRICAL CONNECTION POINT BRACKET - SOLID, NEEDS PAINT. |
 |
LTD2 - 122 TAIL LIGHT MOUNTING RUBBER - SERVICEABLE. |
 |

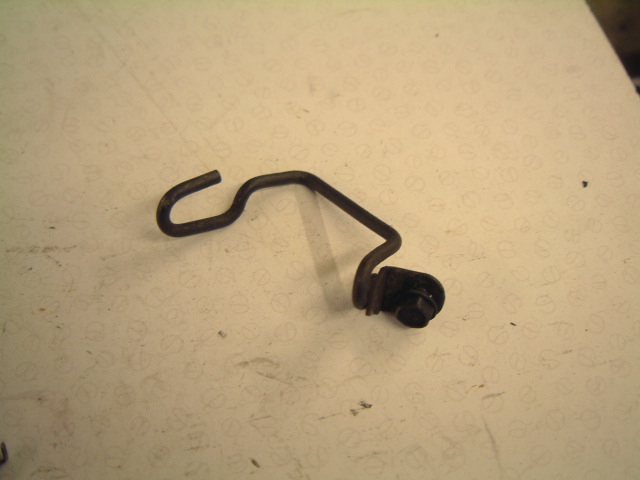

LTD2 - 136 SPEEDO CABLE GUIDE (By front callpier) - SOLID. |
 |

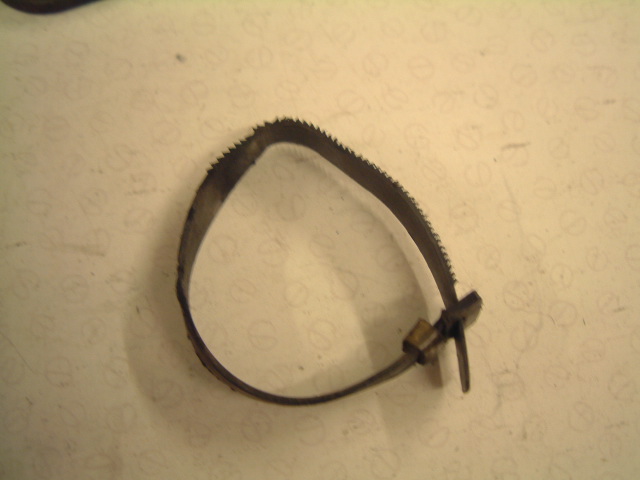

LTD2 - 145 WIRING HARNESS CLIP - GOOD. |
