HI, MY NAME IS STEVE AND WELCOME TO MY YAMAHA XS750 WEB PAGE.
I HAVE BROKEN A 1982/83 XS750SE "Y" REDG BIKE FOR SPARES.

I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS
TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT.
I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART.
IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE
USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE.

I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.

JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS:
     1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC).
     2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC).
     3 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC).
     4 ENGINE - (ENGINE AND GEARBOX PARTS).
     5 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. TOOLS, CABLES, RUBBER PARTS, ODD BRACKETS, ETC).

ANCILLARY PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
XS - 018

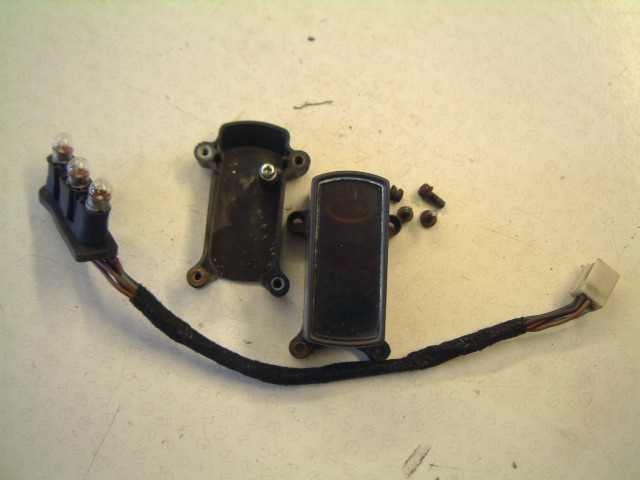

CENTRE CONSOLE UNIT - GOOD.
XS - 011

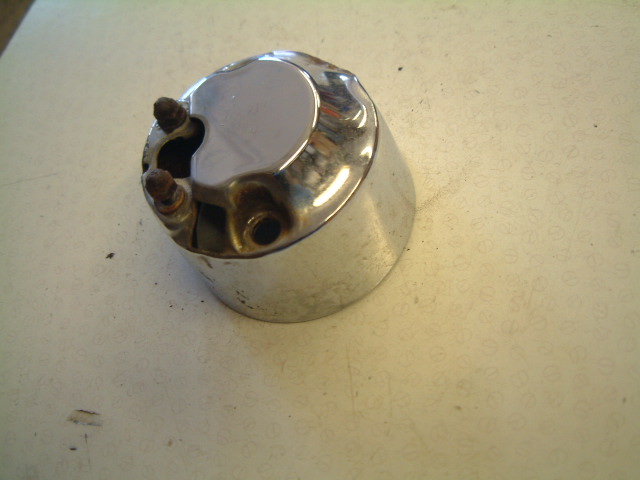

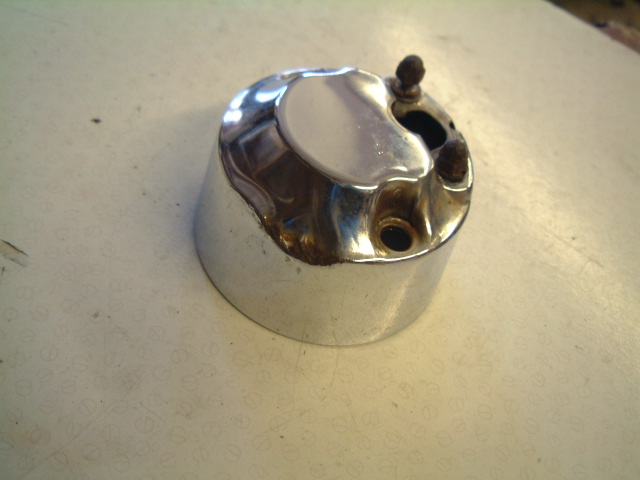

REV COUNTER BOWL - SCUFFED, LIGHT PITTING.
XS - 020

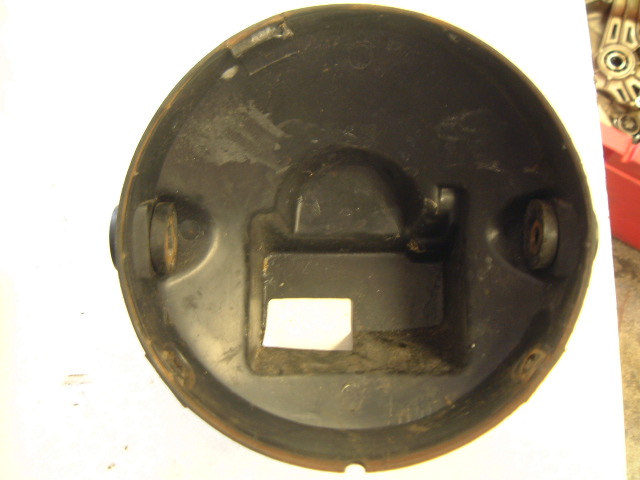

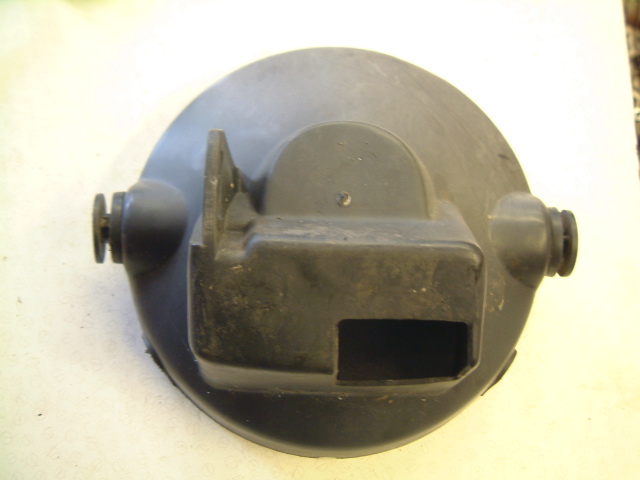

HEADLIGHT SHELL - PLASTIC, NO CRACKS/DAMAGE ETC.
XS - 149

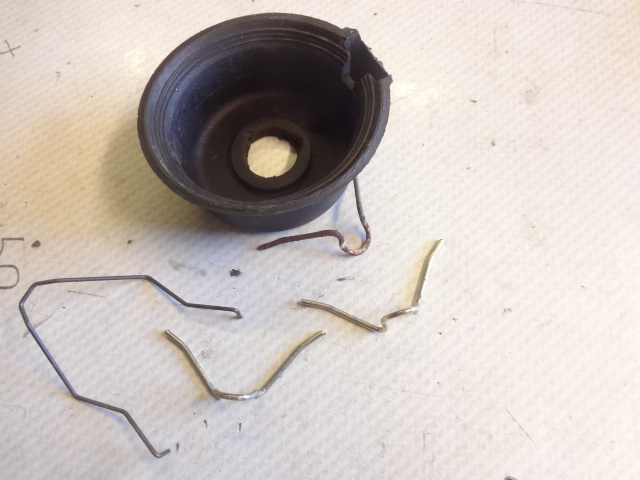

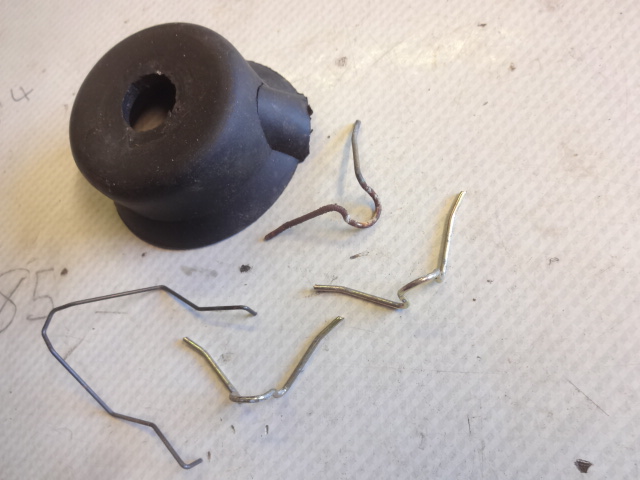

RUBBER BACK AND CLIPS ETC FROM THE HEADLIGHT - GOOD.


BRAKE AND CLUTCH PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
XS - 064

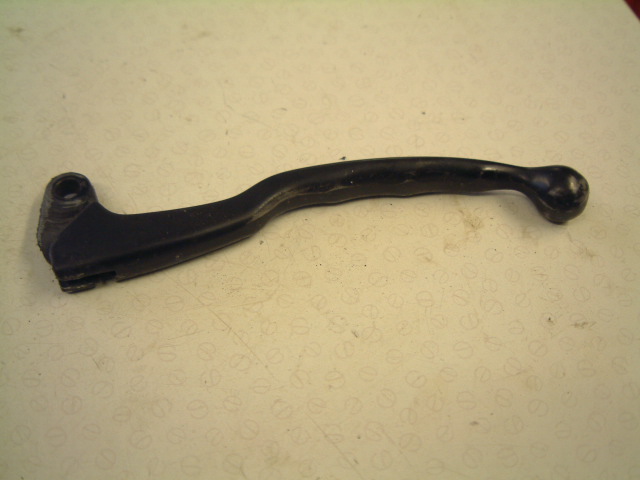

CLUTCH LEVER - GOOD.		 XS - 112

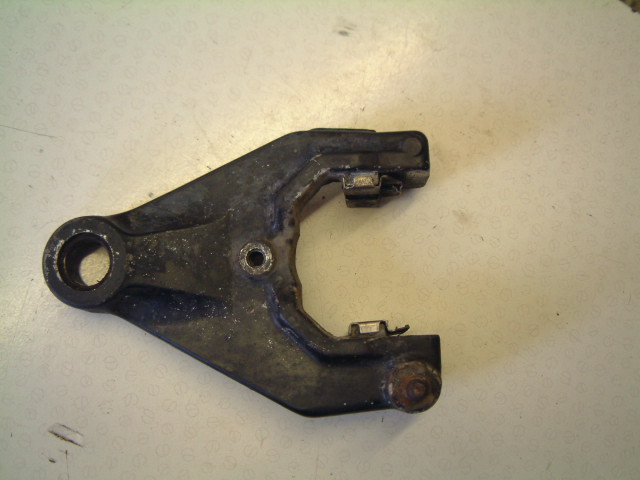

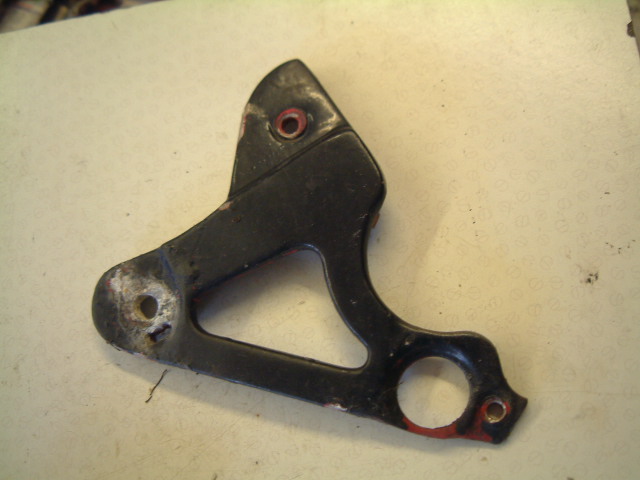

REAR CALIPER TORQUE ARM BRACKET - GOOD, NEEDS PAINT.
XS - 116

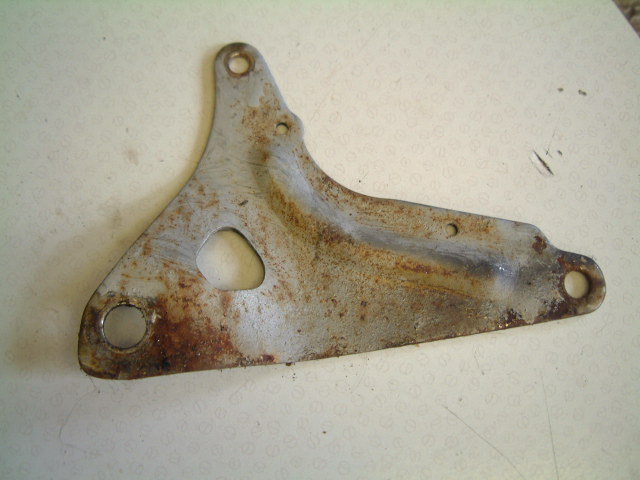

REAR CALIPER MOUNTING BRACKET - GOOD, THREADS OK.
XS - 128

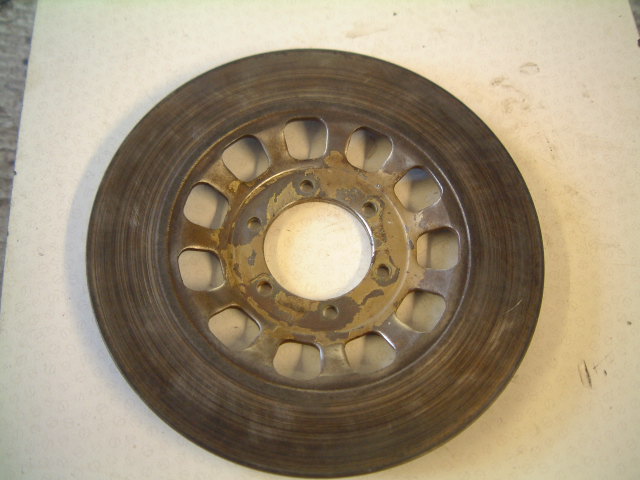

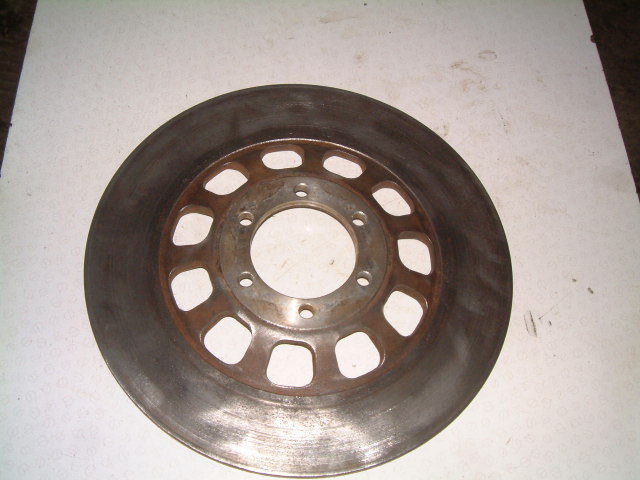

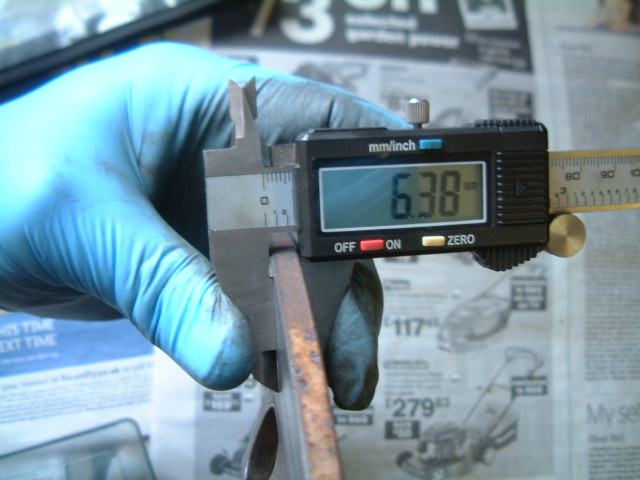

REAR DISC - MEASURES 6.38 mm , WAS RUSTY, CLEANED UP OK AND WILL IMPROVE WITH USE.


RUNNING GEAR PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
XS - 016
LHS FRAME COVER - ALLY, NEEDS STRIP AND RE-PAINT.		 XS - 017
RHS FRAME COVER - ALLY, NEEDS STRIP AND RE-PAINT.
XS - 072

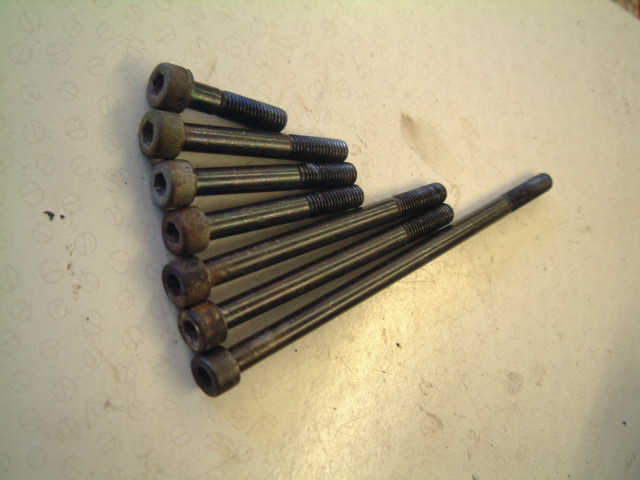

FINAL DRIVE ALLEN BOLT SET - GOOD.		 XS - 098

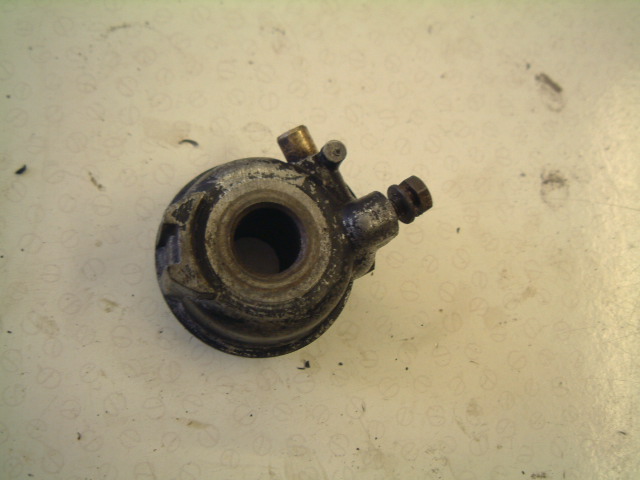

SPEEDO DRIVE - GOOD, TURNING FREELY.
XS - 117

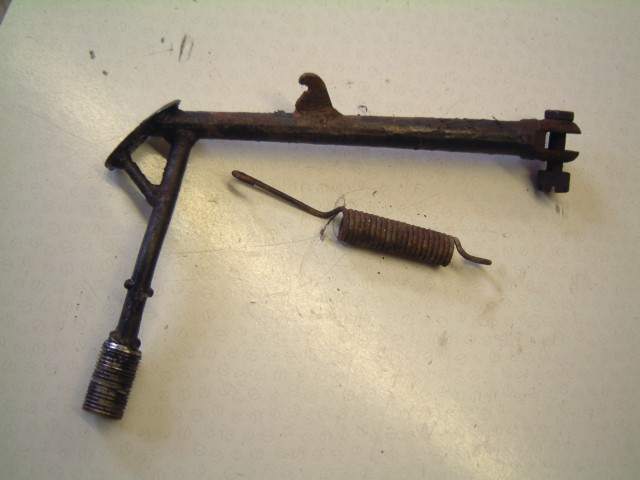

SIDE STAND - WITH SPRING AND BOLT. HAS A BIT ADDED ON THE END FOR USE WITH 3:2 EXHAUST SYSTEMS.		 XS - 143

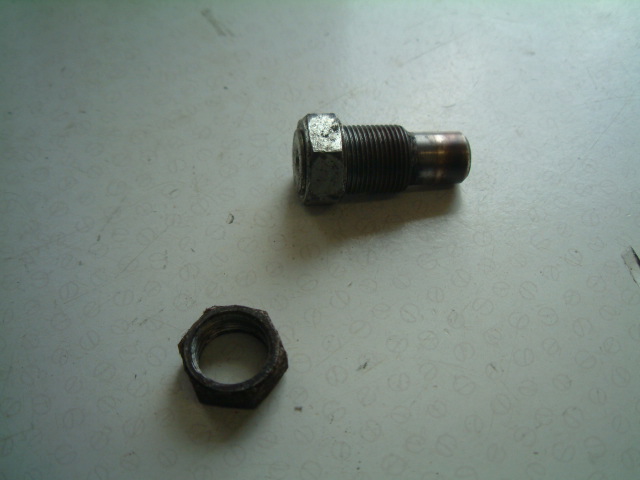

RHS SWING ARM BOLT - GOOD.
XS - 148

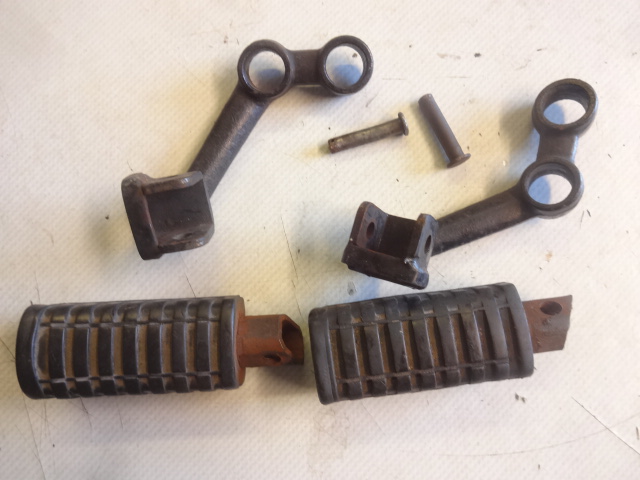

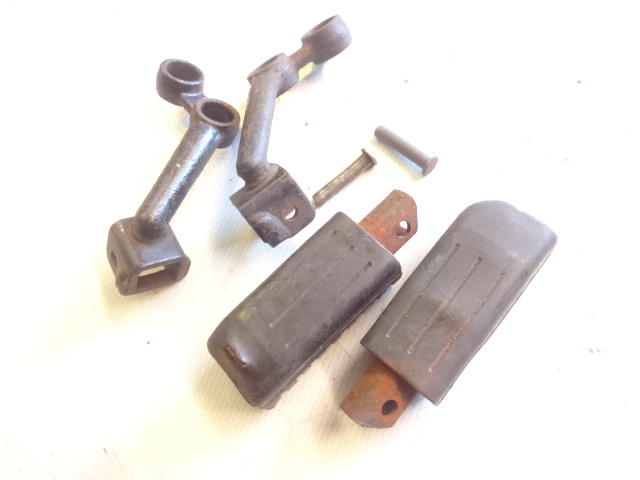

PAIR OF RIDERS FOOTREST ETC - GOOD.


ENGINE & GEARBOX PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
XS - 019

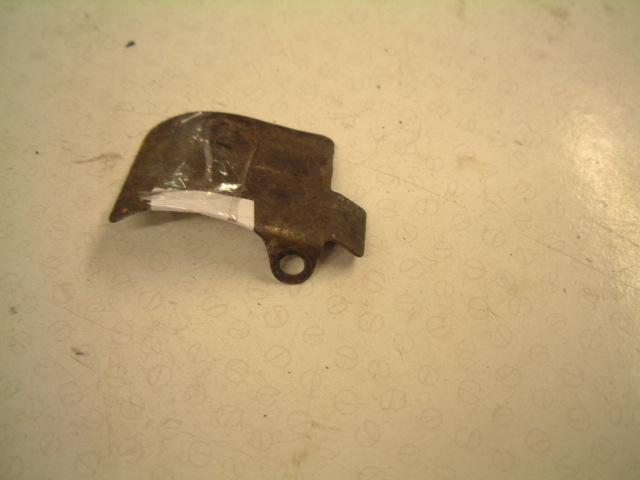

WIRE PROTECTOR FROM UNDER RHS OF ENGINE - OK.		 XS - 026

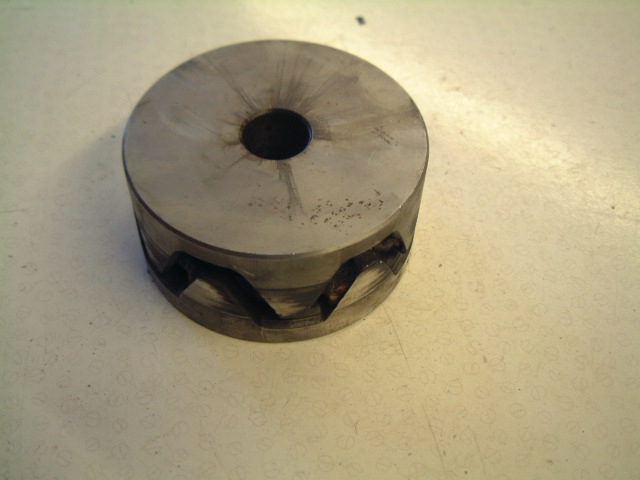

ROTOR - VERY GOOD.
XS - 028

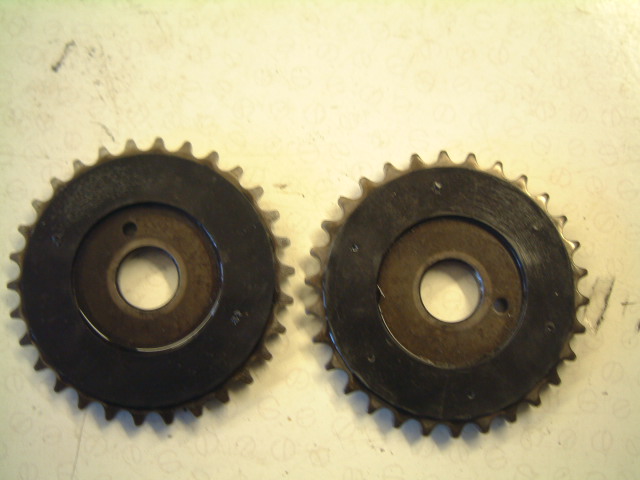

CAMSHAFT SPROCKETS - GOOD.		 XS - 030

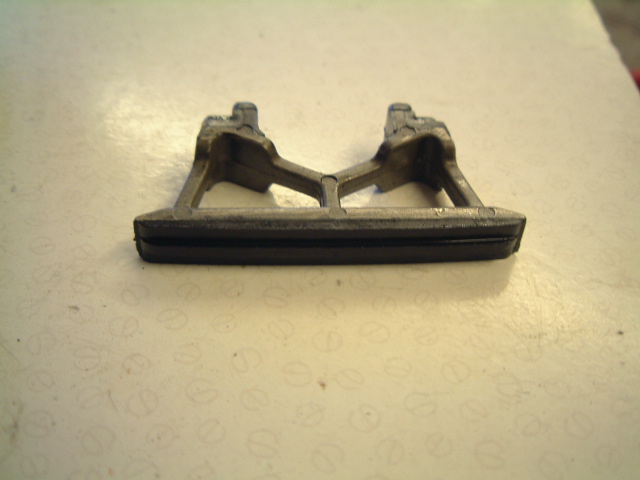

CAMCHAIN GUIDE FROM TOP LHS OF HEAD - GOOD.
XS - 033

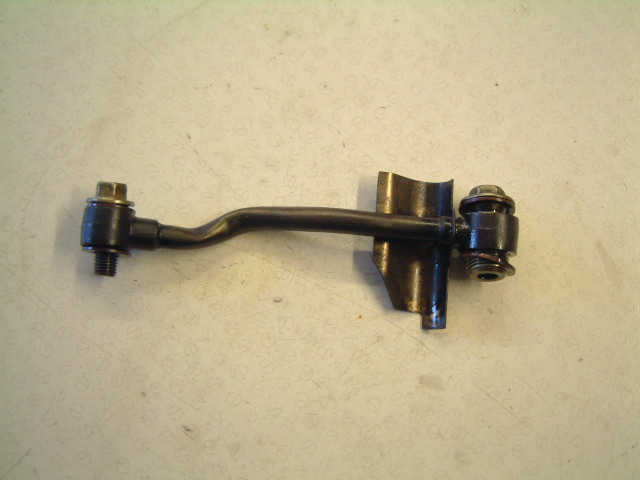

INTERNAL (LHS casing) OIL FEED PIPE - GOOD.		 XS - 034

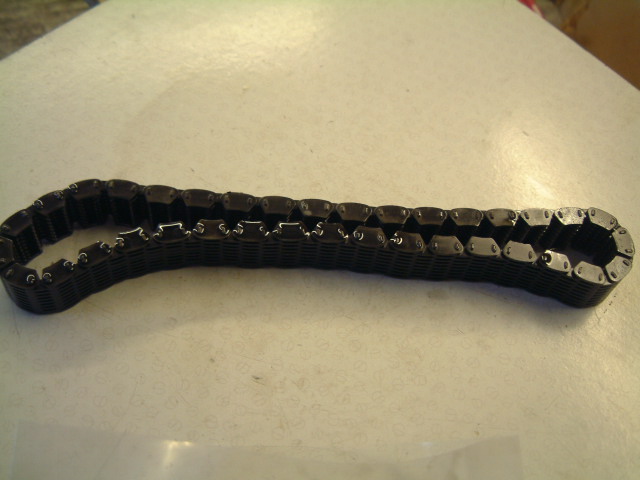

PRIMARY CHAIN - NO DAMAGE.
XS - 036

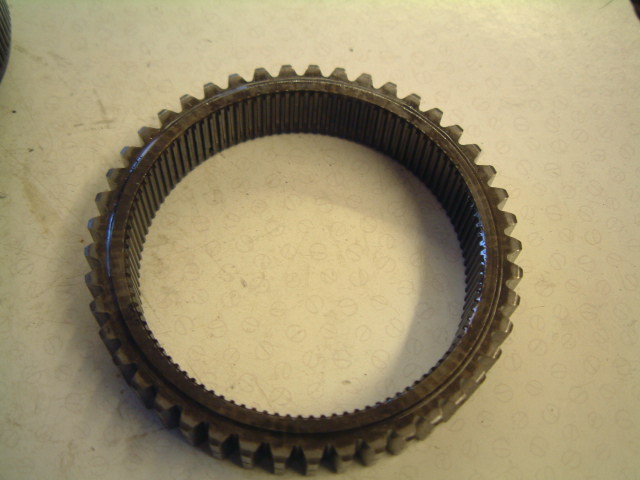

PRIMARY DRIVE OUTER GEAR - VERY GOOD.		 XS - 040

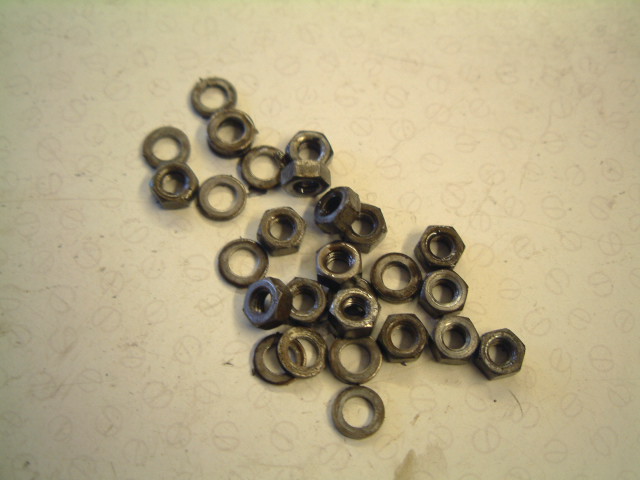

CAMSHAFT CLAMP NUTS - ALL GOOD.
XS - 045

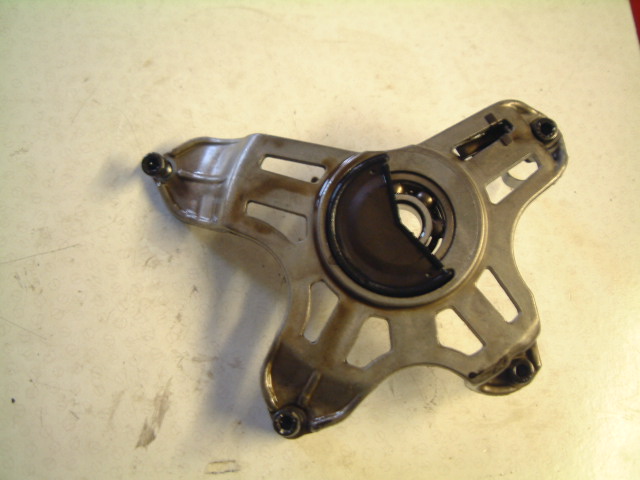

CLUTCH CENTRE SUPPORT - VERY GOOD.		 XS - 077

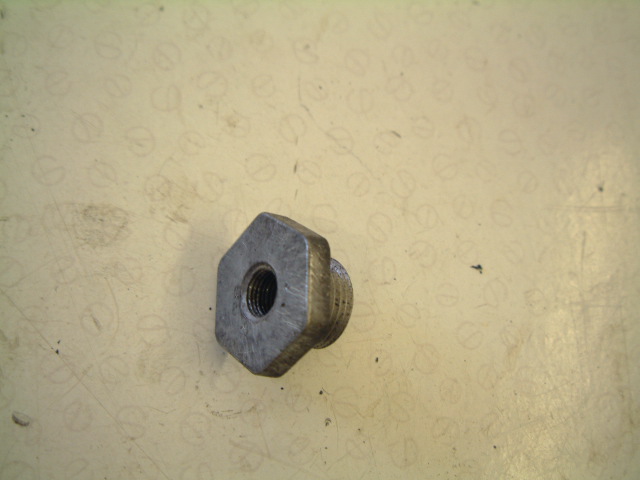

OIL SWITCH MOUNTING BOLT - GOOD.
XS - 078

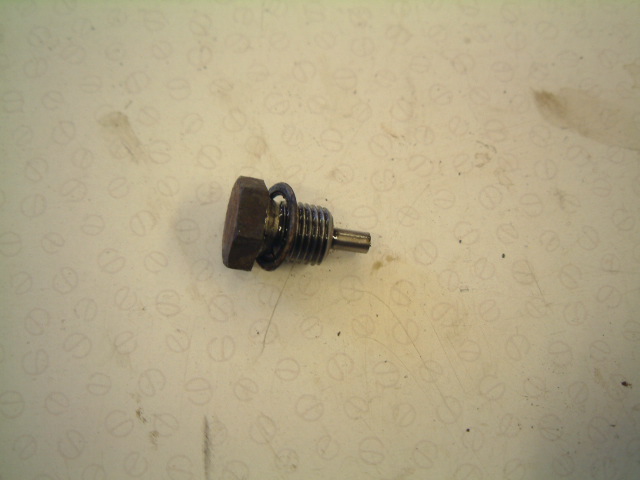

MAGNETIC DRAIN PLUG FROM FINAL DRIVE - GOOD.		 XS - 080
GEAR SELECTOR DRUM LOCATOR THING - VERY GOOD.
XS - 083

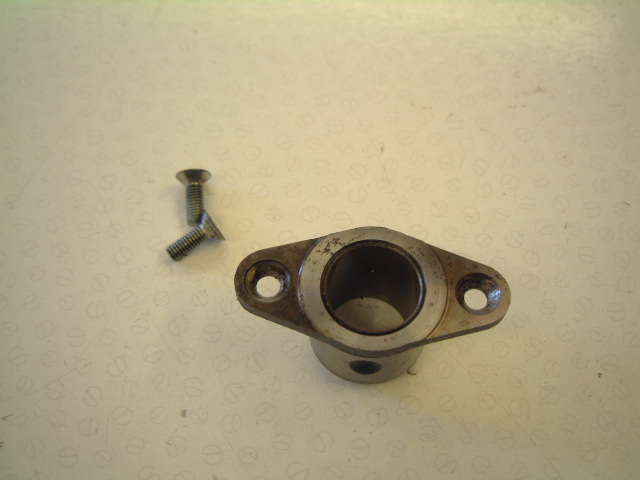

STARTER CLUTCH BUSH/BEARING - GOOD.		 XS - 084

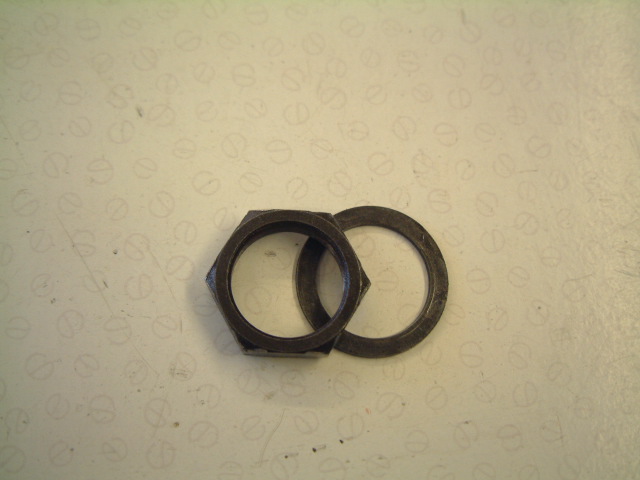

RETAINING NUT FOR PART 031 - GOOD.
XS - 085

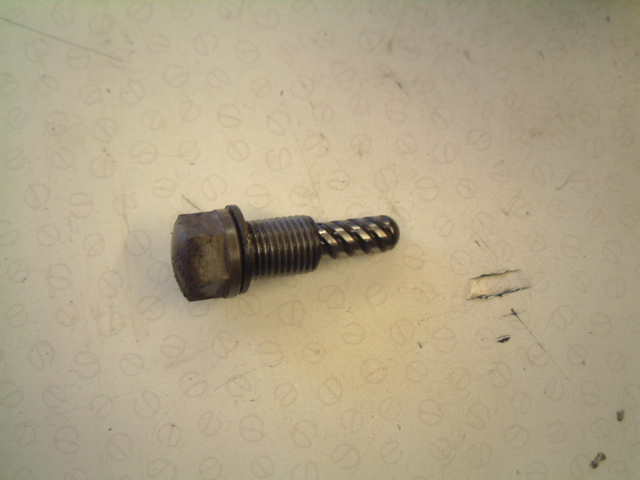

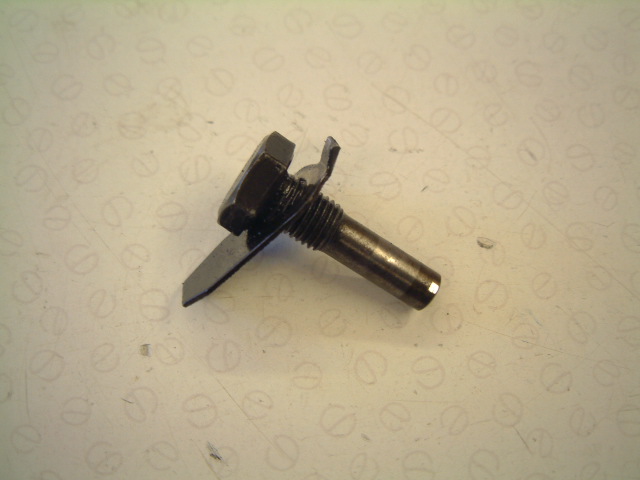

LOCATOR BOLT FOR SELECTOR DRUM - GOOD.		 XS - 088

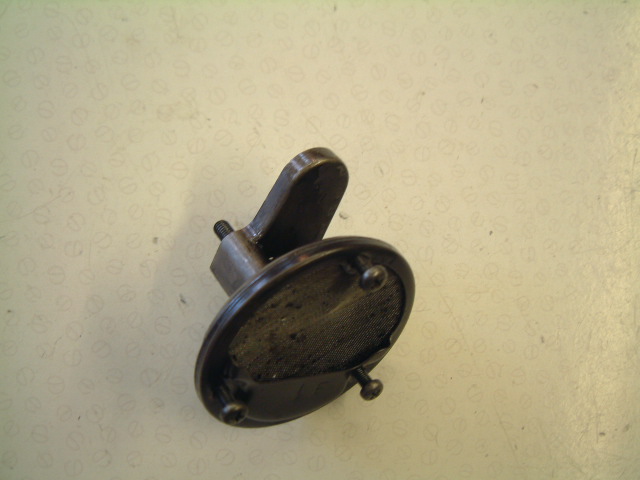

OIL PUMP PICK UP - GOOD.
XS - 092

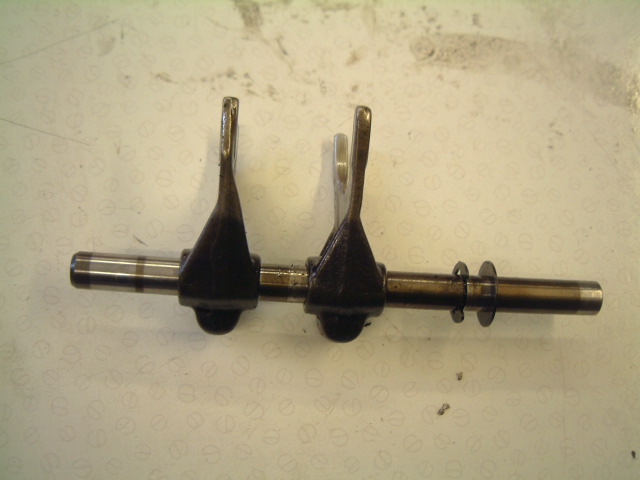

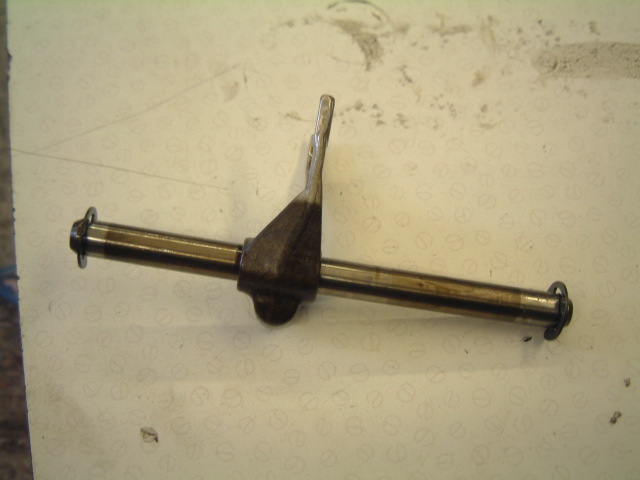

SELECTOR FORK, SINGLE - VERY GOOD.		 XS - 093
SELECTOR FORK, DOUBLE - VERY GOOD.
XS - 106

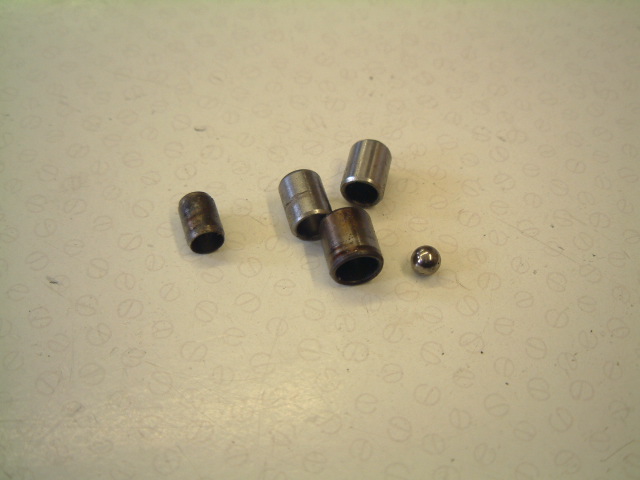

VARIOUS ENGINE DOWELS ETC - ALL GOOD.		 XS - 130

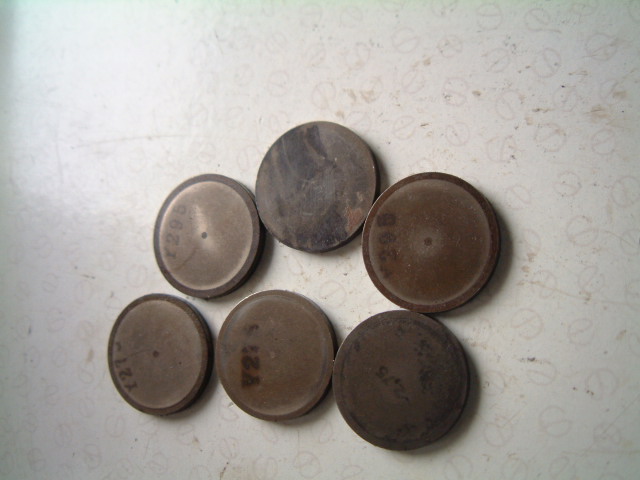

BUCKET SHIMS - 1 LEFT (size 295).
XS - 132

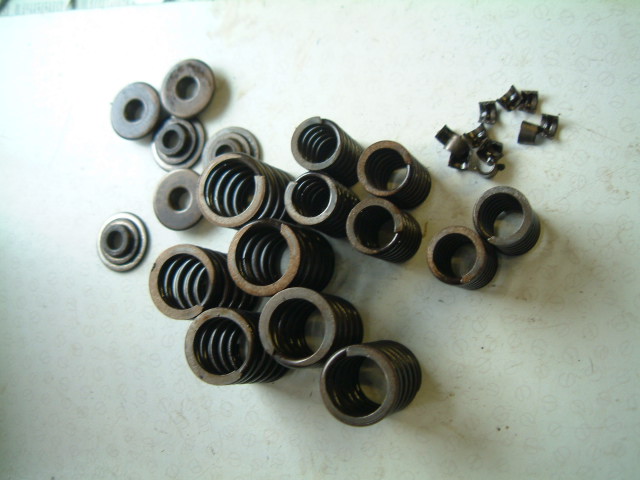

VALVES SPRINGS ETC - ALL SERVICEABLE, WILL SPLIT.		 XS - 145
VARIOUS SEALS AND PEGS FROM BARRELS/HEAD - SERVICEABLE.
XS - 039

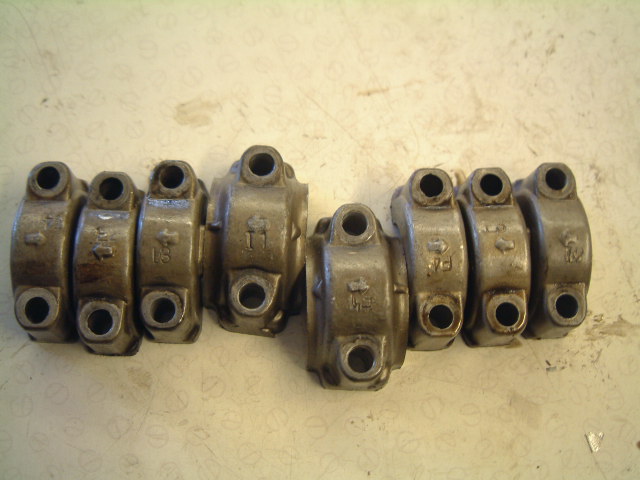

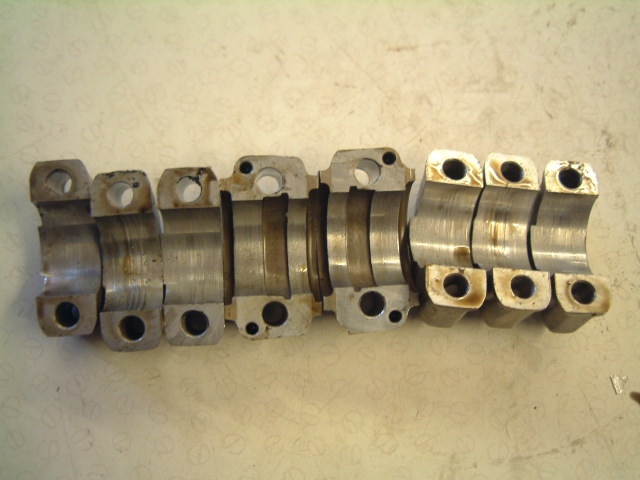

CAMSHAFT CLAMPS - SOME HAVE MARKS.
XS - 095

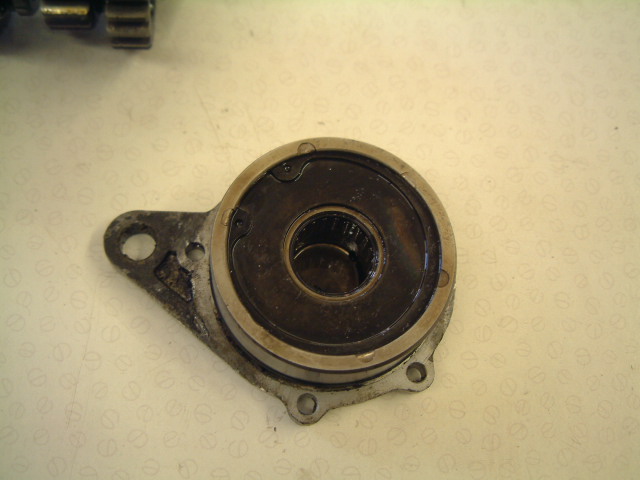

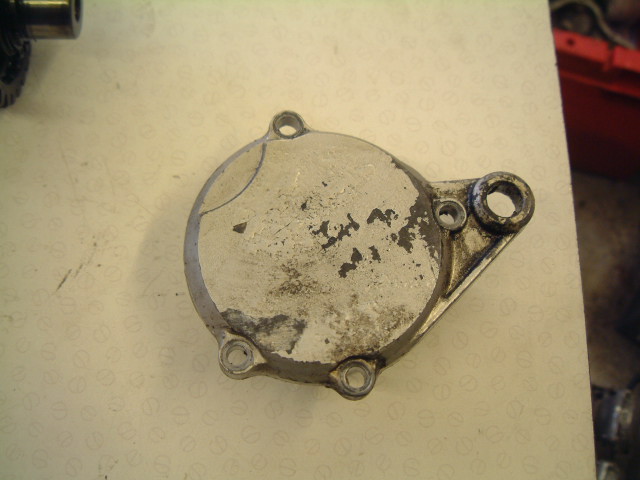

OUTPUT SHAFT END CAP - NEEDS PAINT.


MISCELLANEOUS PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
XS - 101

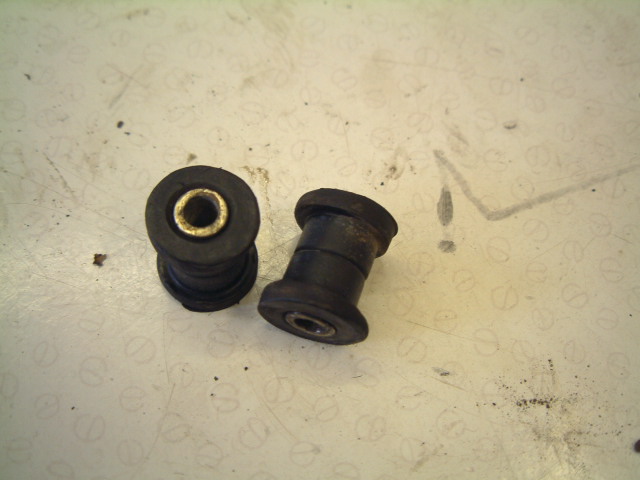

CLOCK MOUNT TO YOKE RUBBERS - GOOD.		 XS - 103

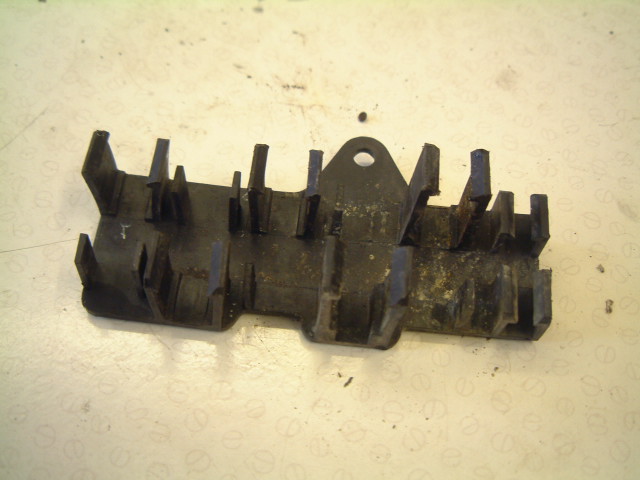

PLASTIC ELECTRICAL PLUG HOLDER - GOOD.
