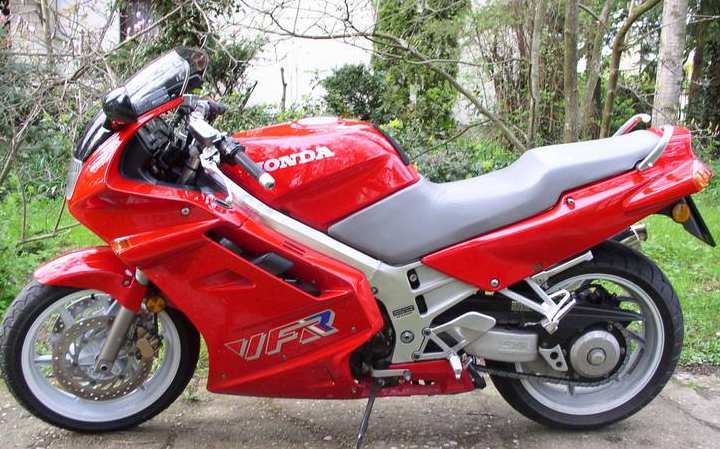

HI, MY NAME IS STEVE AND WELCOME TO MY HONDA VFR750 WEB PAGE. I HAVE BROKEN A 1990 VFR750FL (RC36) BIKE + FEW OTHER EXTRA SPARES. I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.
FRAME NUMBER = RC3620092XX ~ ENGINE NUMBERS = RC36E-20025XX AND RC36E-22039XX |
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC). |
| 3 FUEL, EXHAUST, AIR AND COOLING - (CARBS & INTAKE, RADIATOR & HOSES ETC). |
| 4 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC). |
| 5 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC). |
| 6 ENGINE AND GEARBOX PARTS - |
| 7 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| I HAVE ALSO BROKEN A VFR750-FG FOR SPARES, TO VIEW THESE PARTS THEN CLICK >> HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

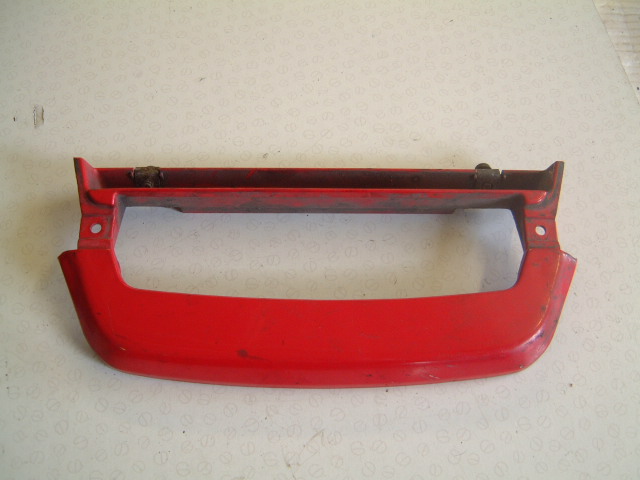

FL - 013 TAIL LIGHT SURROUND PANEL - GOOD, NO DAMAGE. |
||
 |

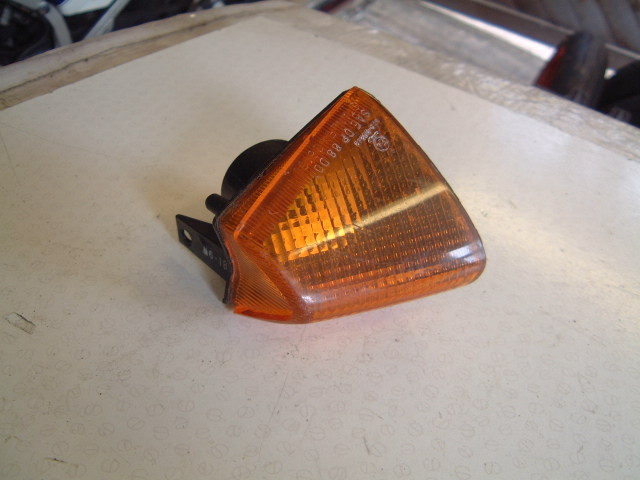

FL - 068 LHS FRONT INDICATOR - GOOD, NO DAMAGE, NO LOOM. |
 |

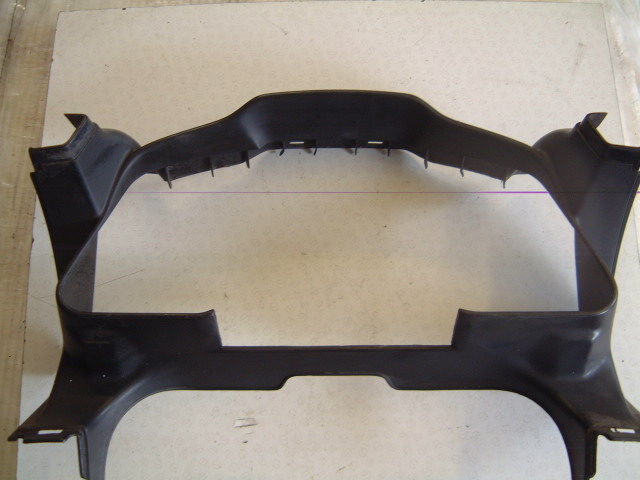

FL - 070 CLOCK SURROUND - VERY GOOD, PART No. 64600-MT4-0000. |
 |

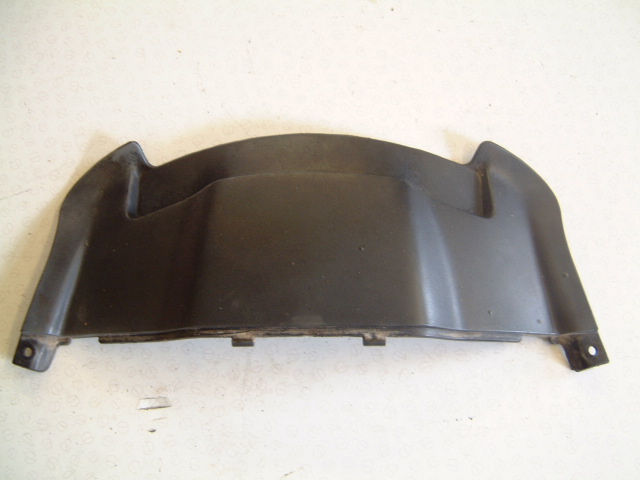

FL - 071 LOWER VISOR - VERY GOOD, PART No. 64605-MT4-0000. |
 |

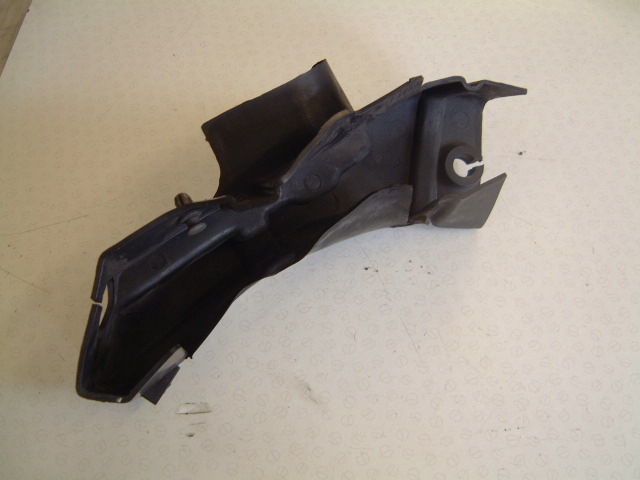

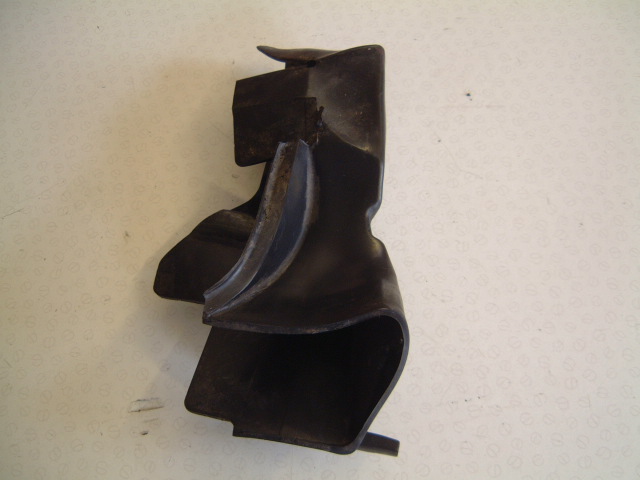

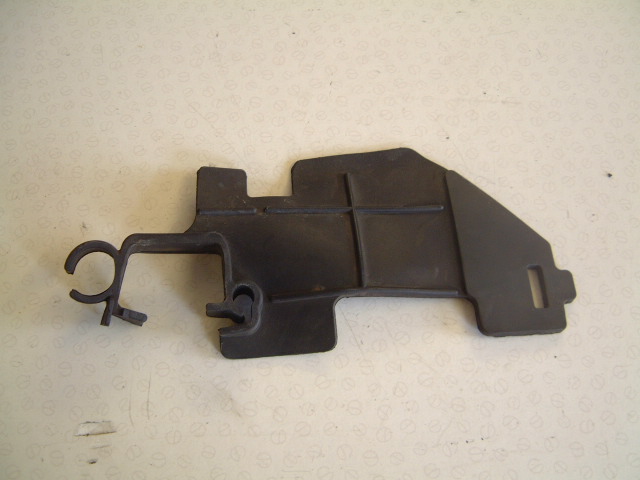

FL - 080 RUBBER FAIRING PANEL - GOOD. |
 |

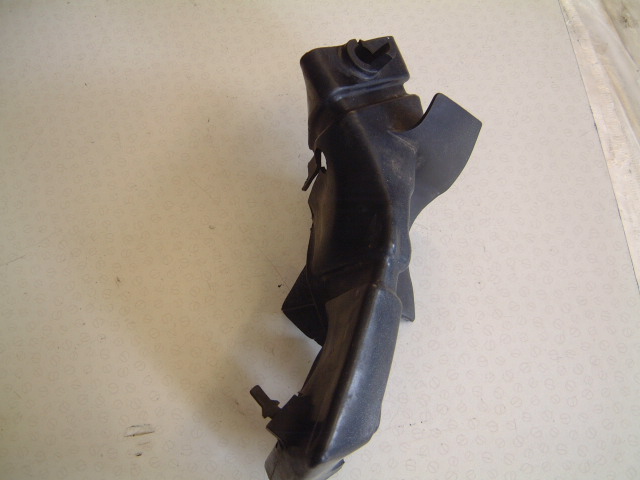

FL - 081 RUBBER FAIRING PANEL - GOOD. |
 |

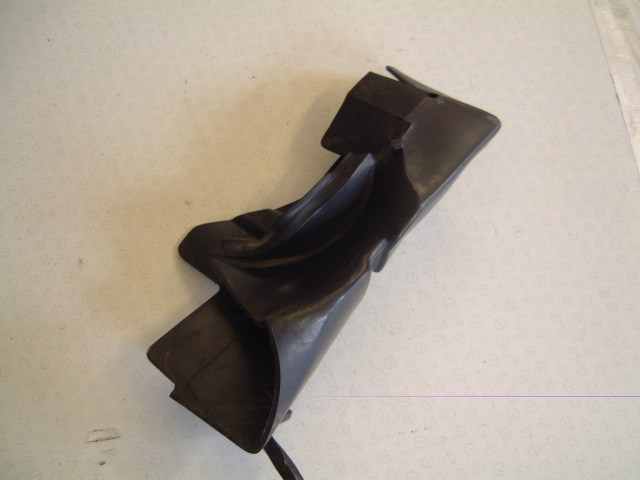

FL - 082 RUBBER FAIRING PANEL - GOOD. |
 |
FL - 083 RUBBER FAIRING PANEL - GOOD. |
 |
FL - 084 RUBBER FAIRING PANEL - GOOD. |
 |
FL - 085 RUBBER FAIRING PANEL - GOOD. |
 |

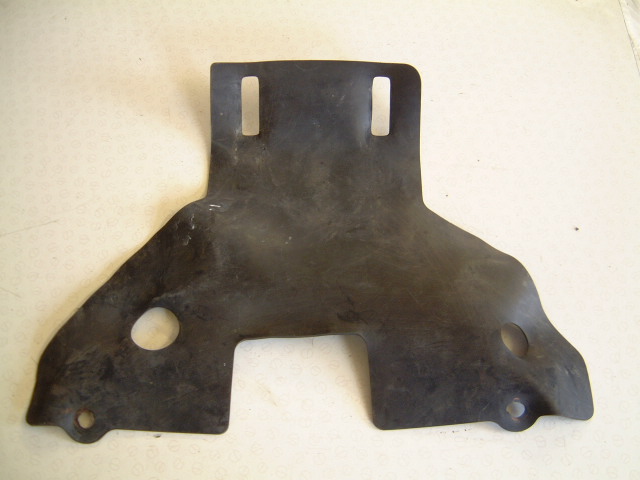

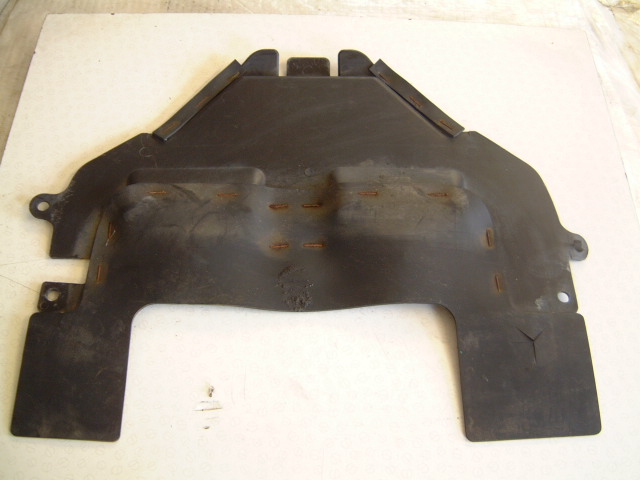

FL - 086 CARBURETOR HEATSHIELD - GOOD. |
 |
 |

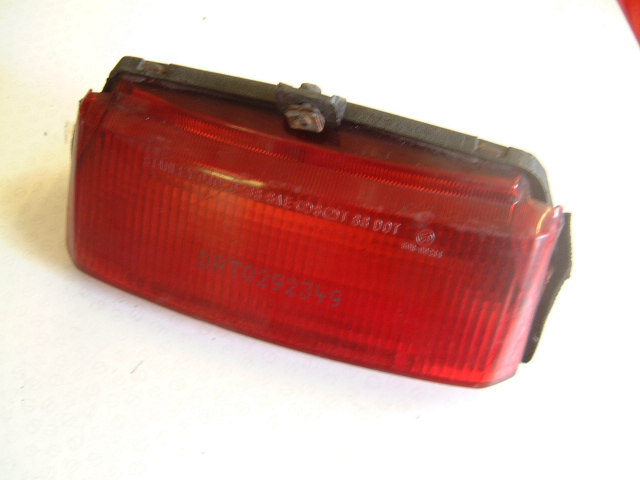

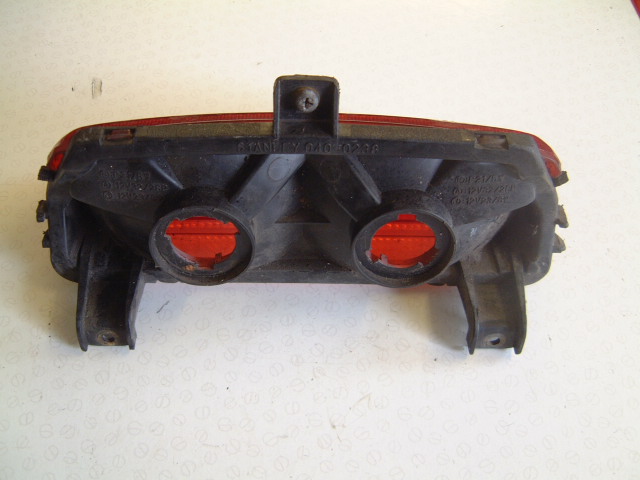

FL - 012 TAIL LIGHT - GOOD, NO DAMAGE. |
| BRAKE AND CLUTCH PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

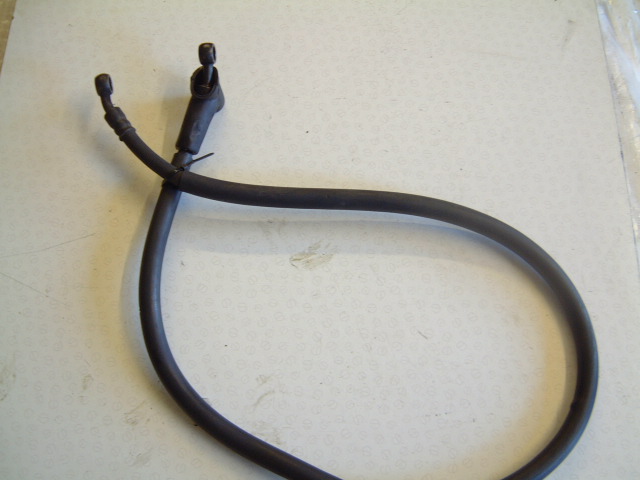

FL - 027 CLUTCH HOSE - VERY GOOD. |
 |

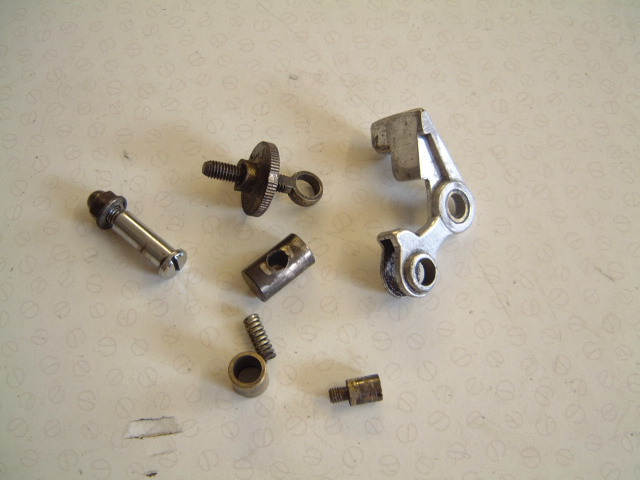

FL - 039 VARIOUS CLUTCH/BRAKE LEVER PARTS - GOOD. |
 |

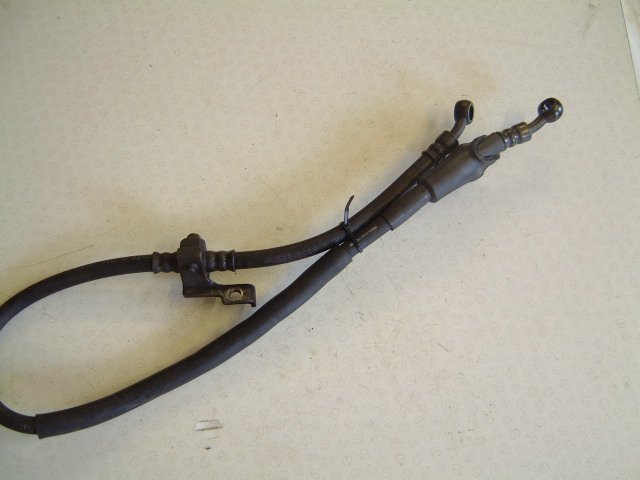

FL - 044 SHORT FRONT BRAKE PIPE - GOOD NO PERISHING. |
 |
FL - 046 LONG FRONT BRAKE PIPE - VERY GOOD. |
 |

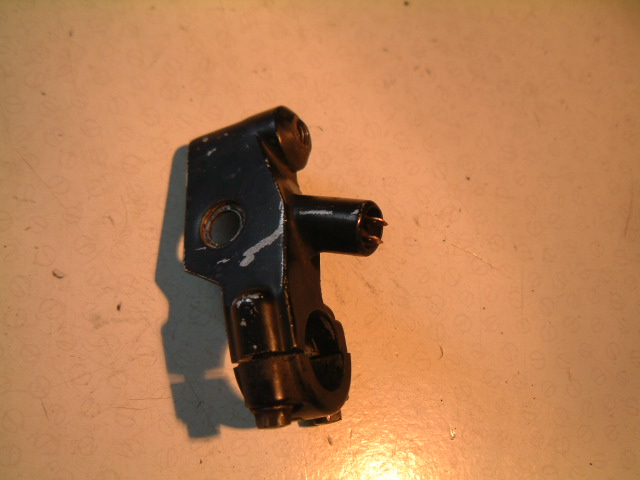

FL - 253 CLUTCH LEVER MOUNT - GOOD, WITH WORKING SWITCH. |
 |

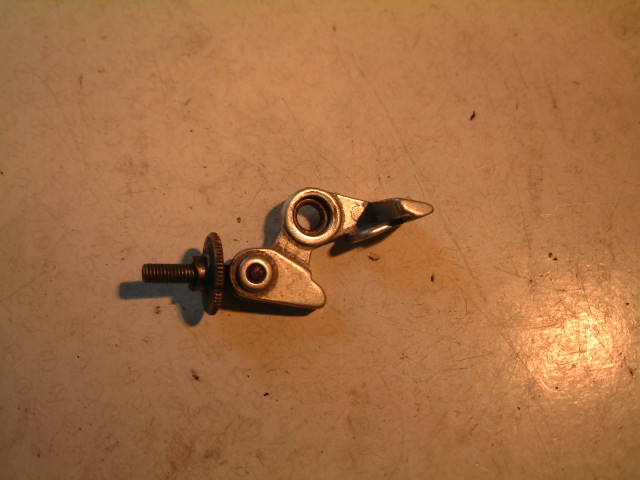

FL - 295 FRONT BRAKE LEVER PART - GOOD. |
 |

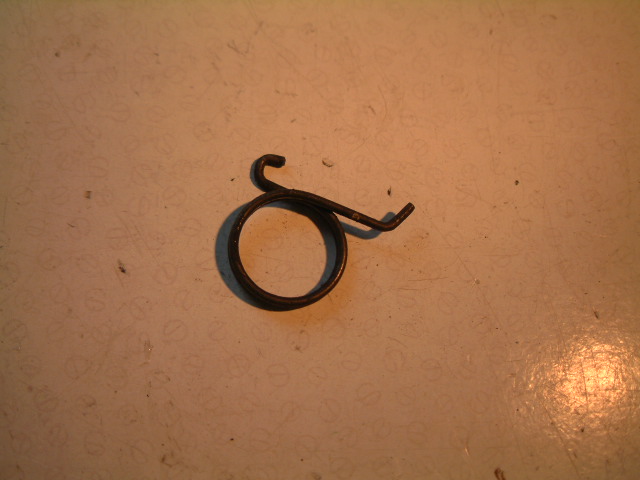

FL - 305 REAR BRAKE PEDAL SPRING - GOOD. |
 |

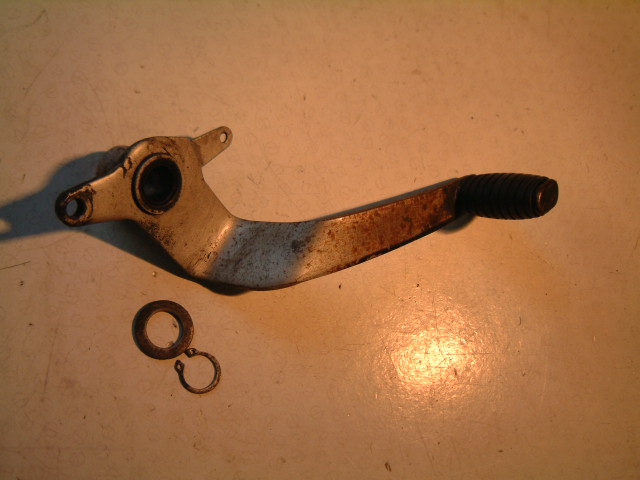

FL - 306 REAR BRAKE PEDAL - STRAIGHT & SOLID, NEEDS PAINT. |
 |
 |
 |

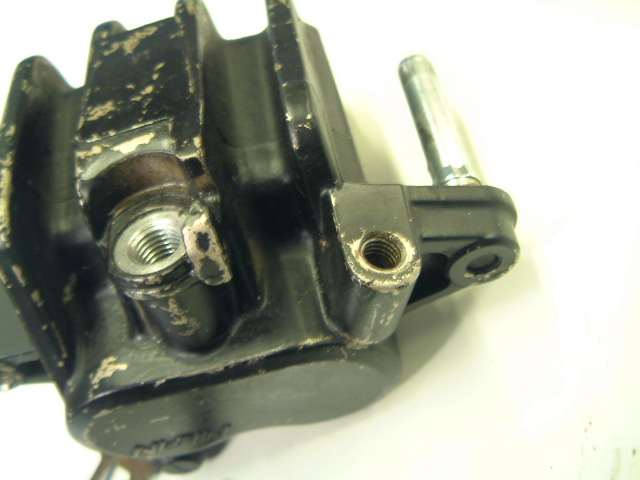

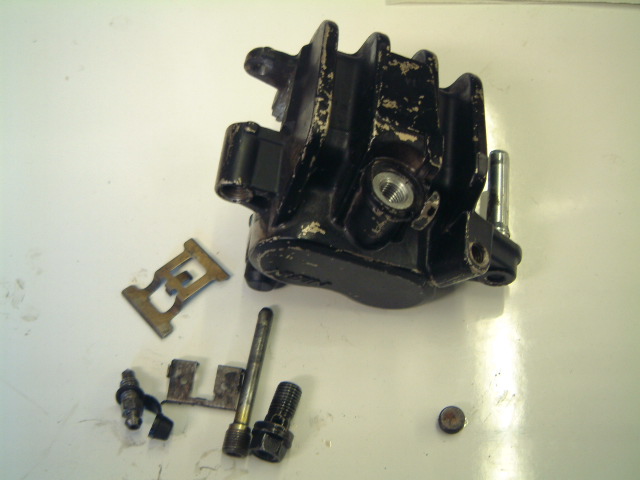

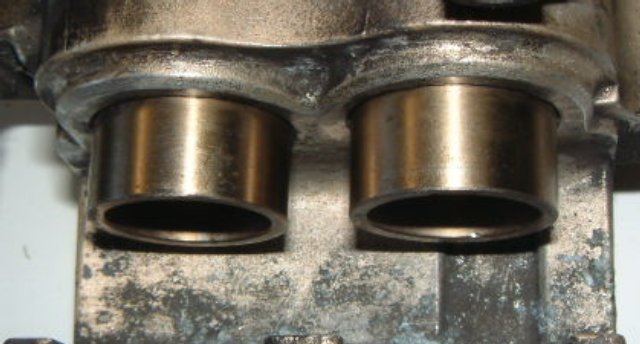

FL - 325 RIGHT FRONT CALIPER - GOOD, PISTONS OK, NO PITTING, BLEED SCREW AND PIPE CONNECTION THREADS VERY GOOD. |
 |
 |
 |
 |

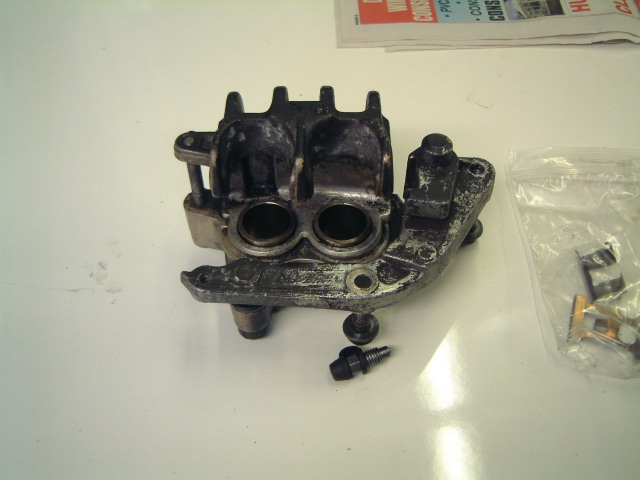

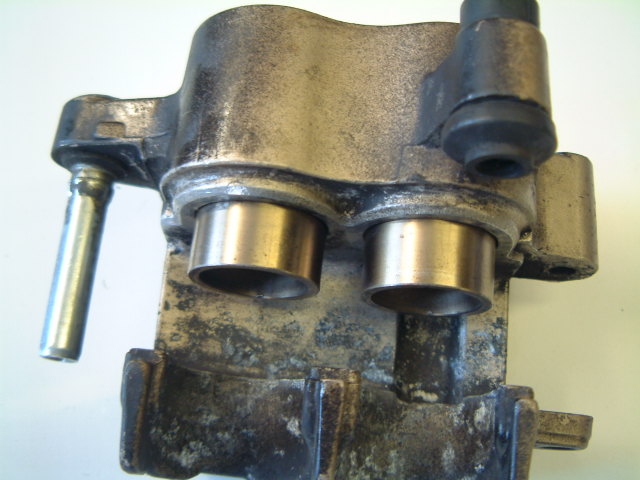

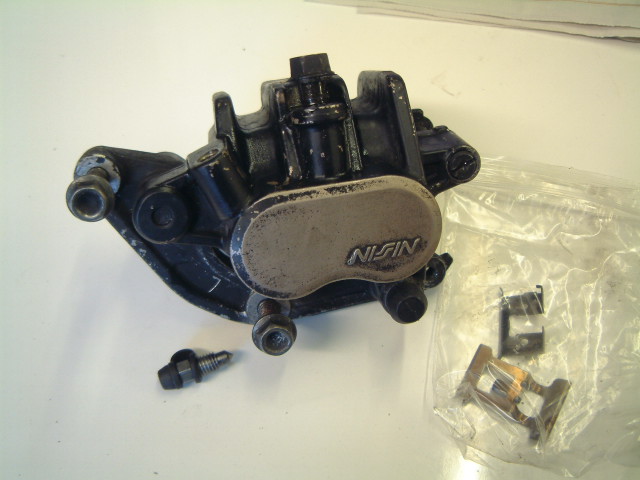

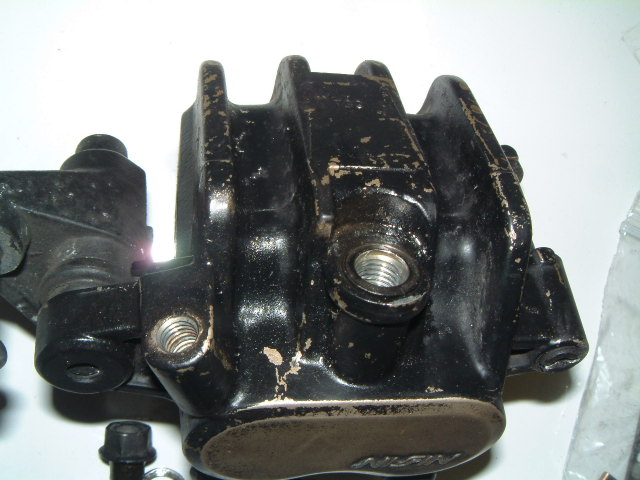

FL - 324 LEFT FRONT CALIPER & BRACKET - GOOD, PISTONS OK, NO PITTING, BLEED SCREW AND PIPE CONNECTION THREADS VERY GOOD. MOUNTING BRACKET THREADS ALL GOOD + BOLTS. |
| FUEL, AIR, COOLING PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

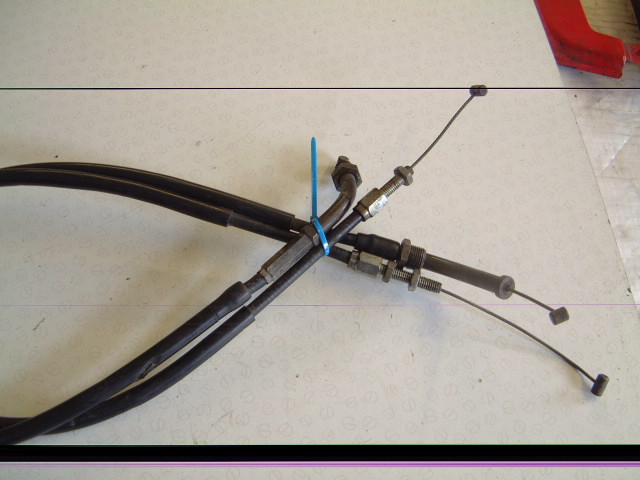

FL - 010 PAIR OF THROTTLE CABLES - VERY GOOD. |
 |

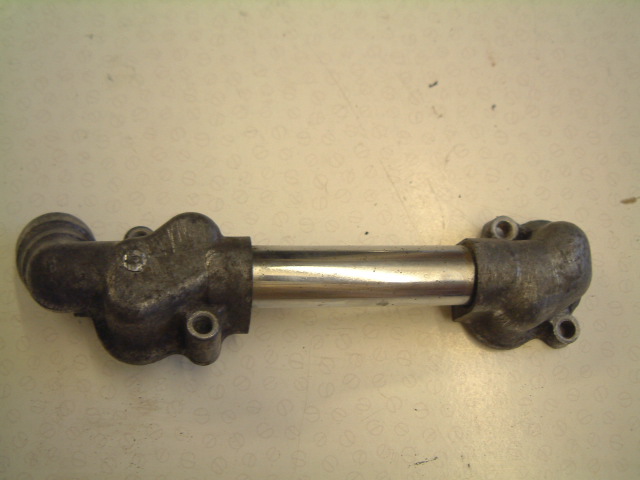

FL - 129 WATER PIPE AND ENGINE CONNECTION POINTS - LITTLE BIT PITTED, VERY SERVICEABLE. |
 |

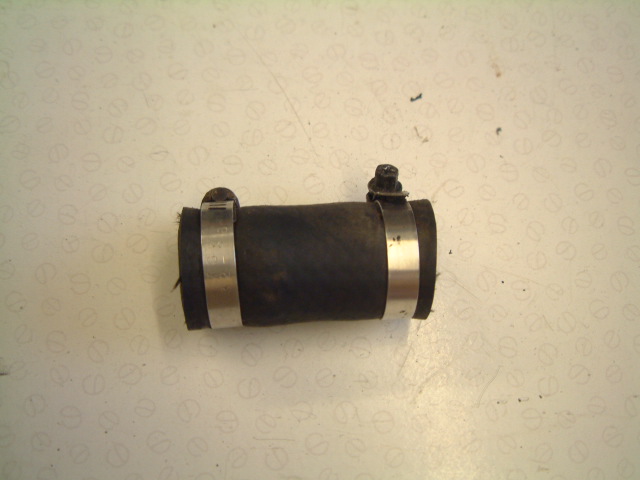

FL - 130 SHORT COOLANT HOSE FROM CHROMED COOLANT PIPE - GOOD. |
 |

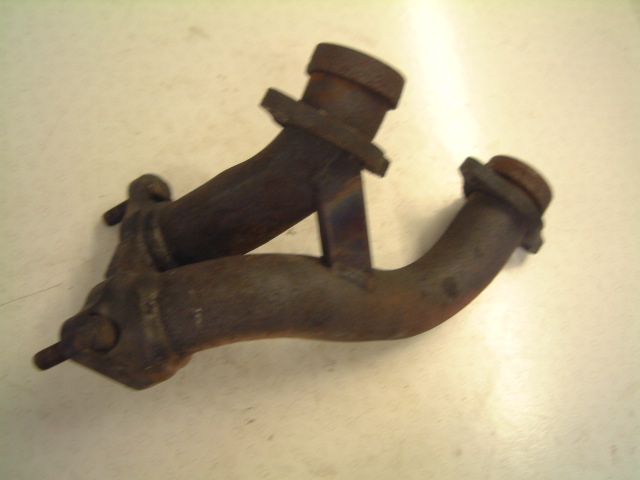

FL - 151 EXHAUST PIPE TO REAR HEAD - GOOD . |
 |

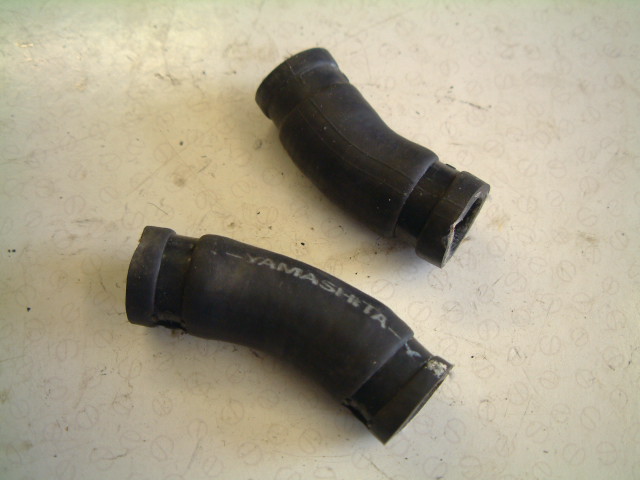

FL - 179 PAIR OF SHORT COOLANT HOSES FROM THERMOSTAT TO HEAD - GOOD . |
 |

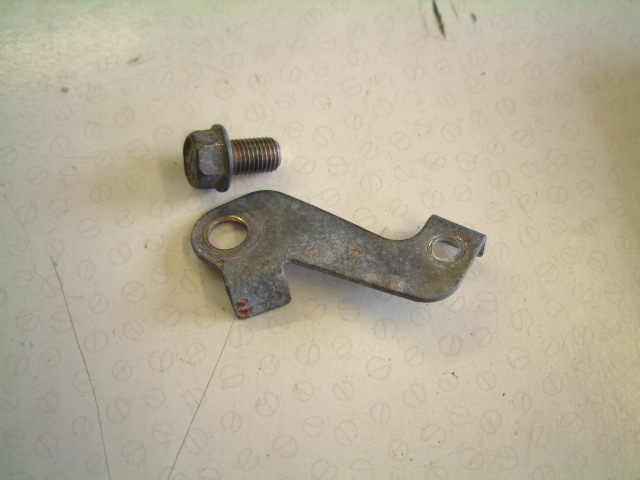

FL - 181 THERMOSTAT BRACKET - GOOD. |
 |

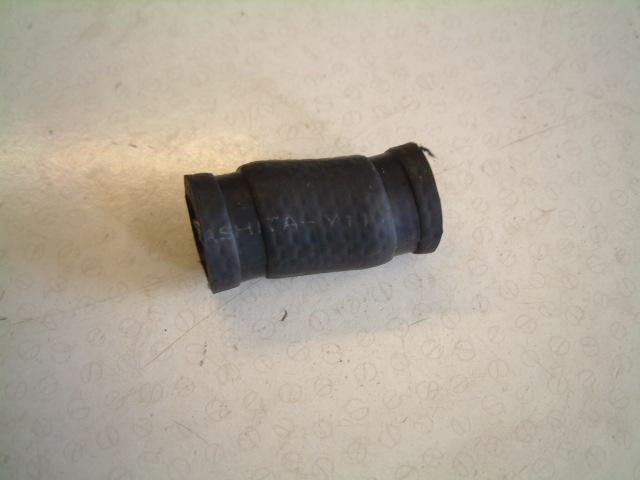

FL - 225 SHORT COOLANT HOSE FROM PUMP - GOOD . |
 |

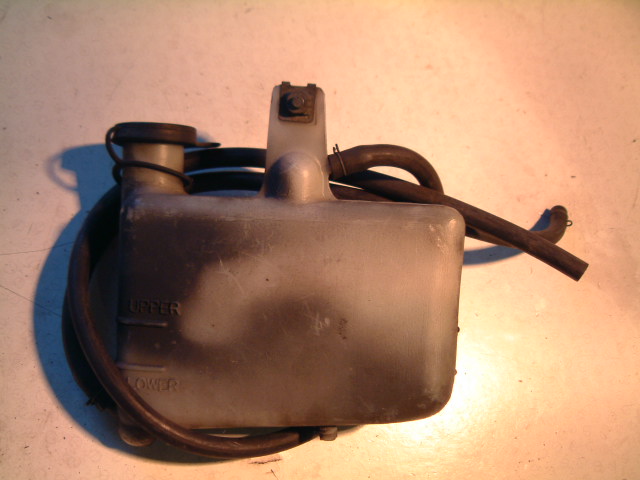

FL - 284 COOLANT TANK - GOOD, NO LEAKS OR REPAIRS ETC . |
 |

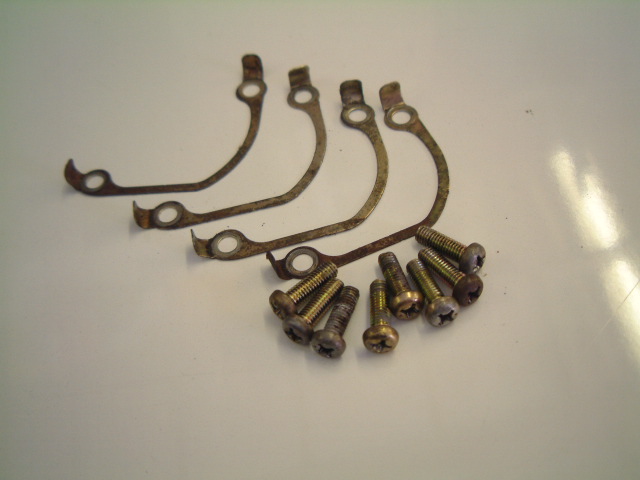

FL - 321 CARB MOUNT LOCK WASHER AND SCREWS - ALL GOOD. |
 |

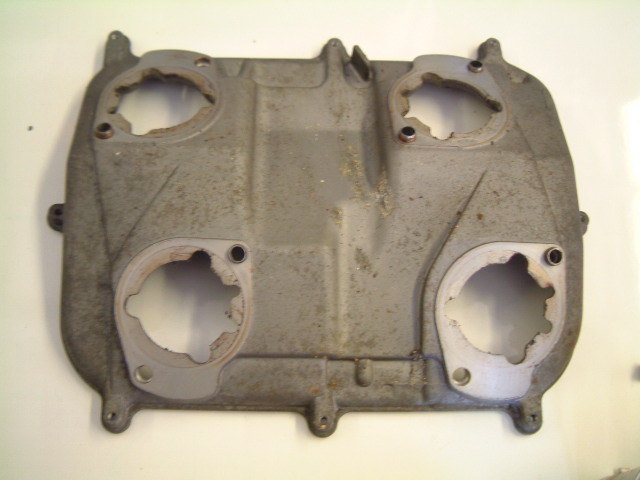

FL - 322 CARB MOUNTING PLATE - VERY GOOD, ALL THREADS OK. |
 |
 |

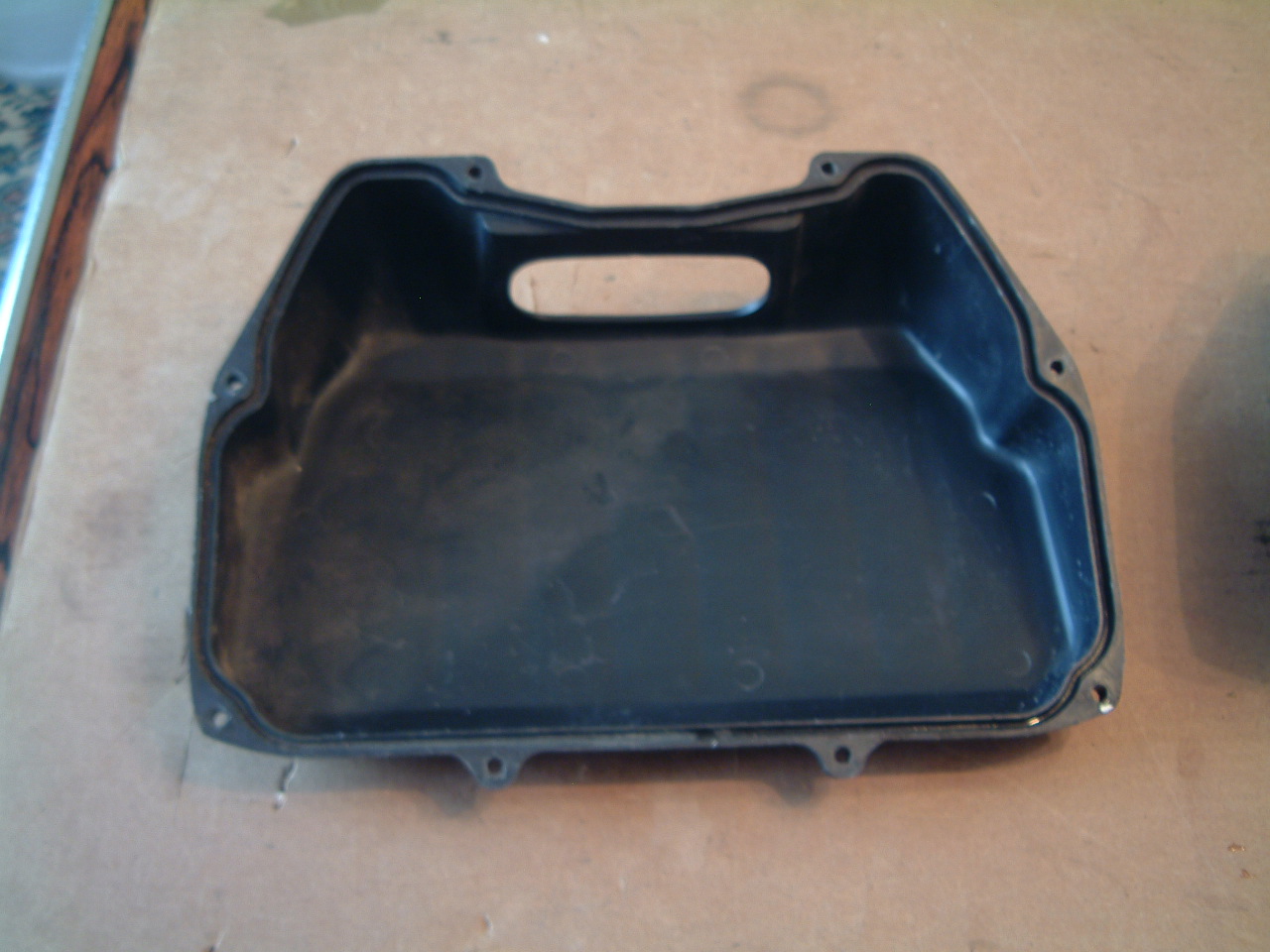

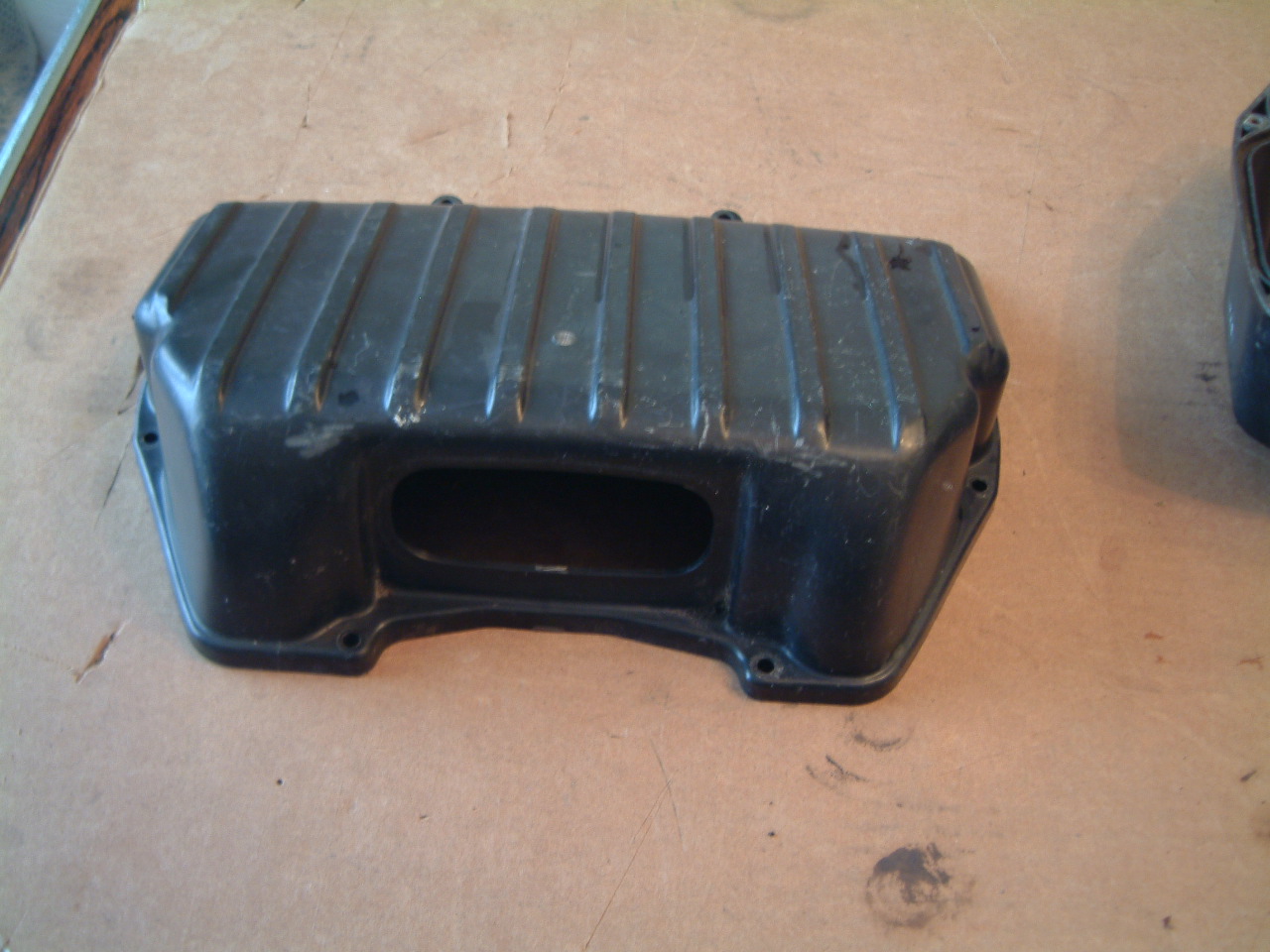

FL - 090B AIRBOX TOP SECTION / LID - VERY GOOD, NO CRACKS OR DAMAGE. |
 |
 |

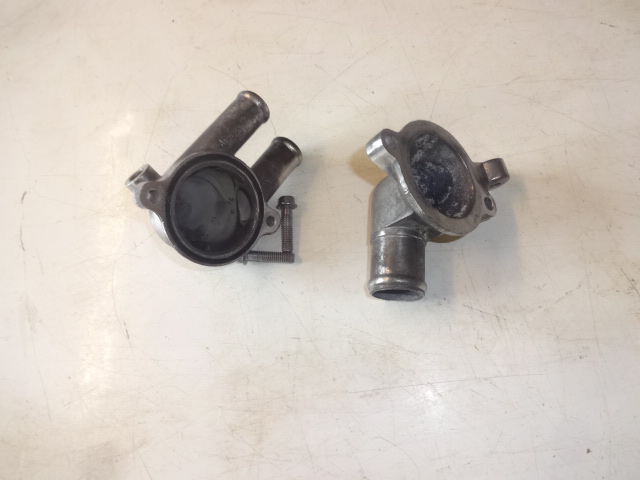

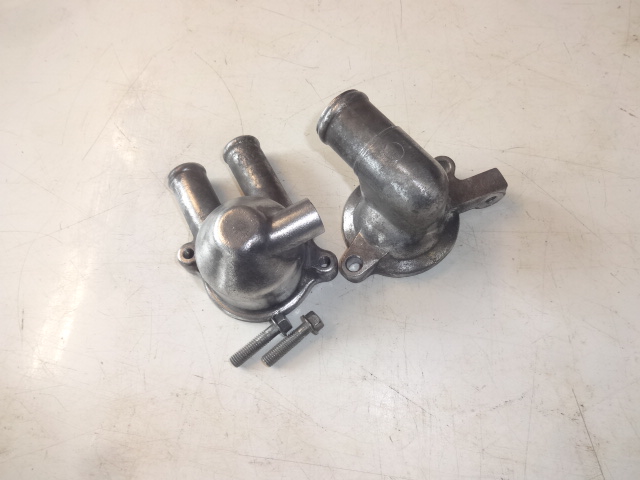

FL - 330 THERMOSTAT HOUSING - GOOD |
 |
 |

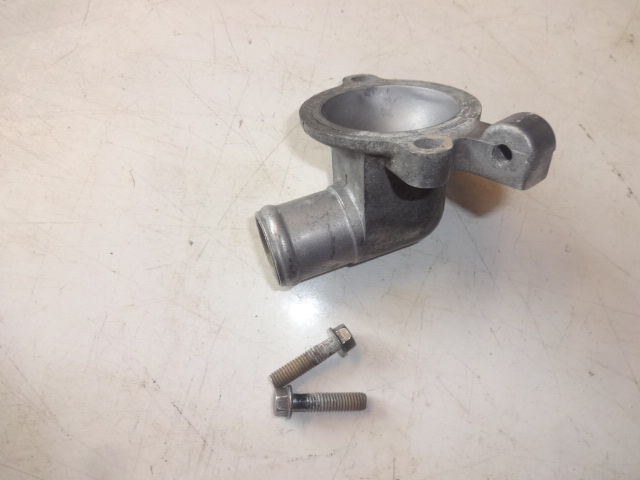

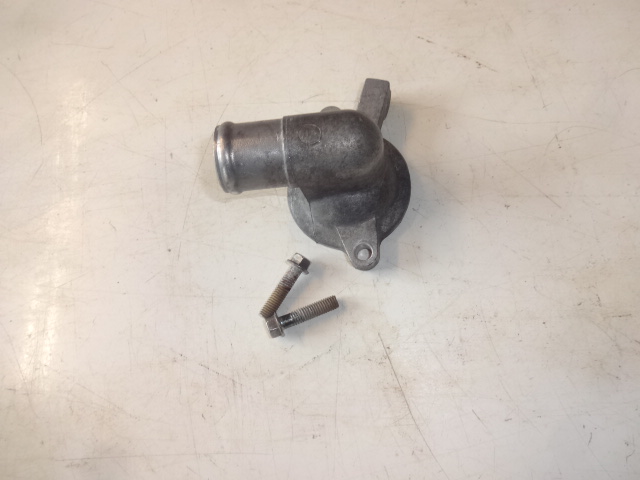

FL - 333 THERMOSTAT HOUSING TOP HALF - GOOD . |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

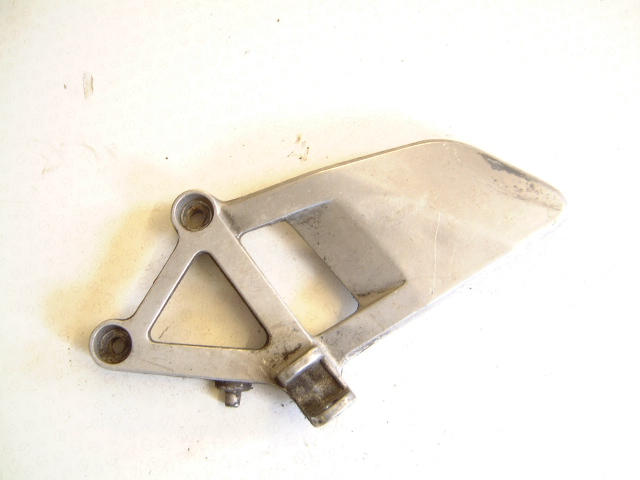

FL - 019 LHS FRONT FOOT PEG MOUNT - GOOD, NO DAMAGE. |
 |

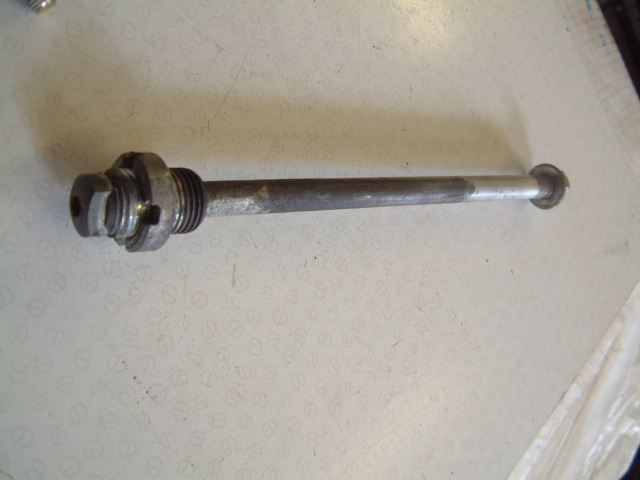

FL - 058 SWINGARM SHAFT & NUT - GOOD. |
 |

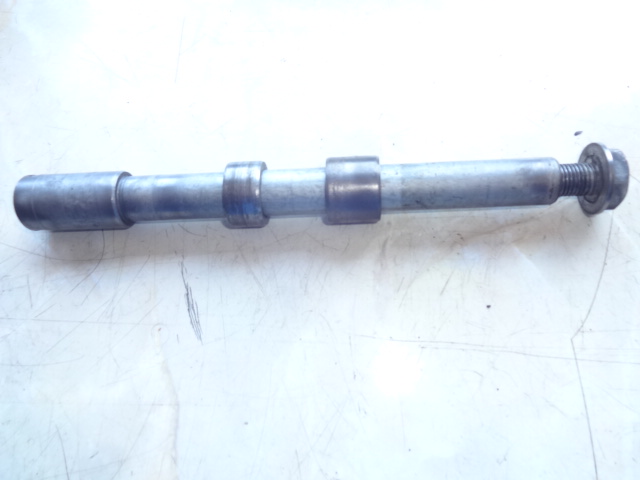

FL - 059 FRONT WHEEL SHAFT & SPACERS & NUT - GOOD. |
 |

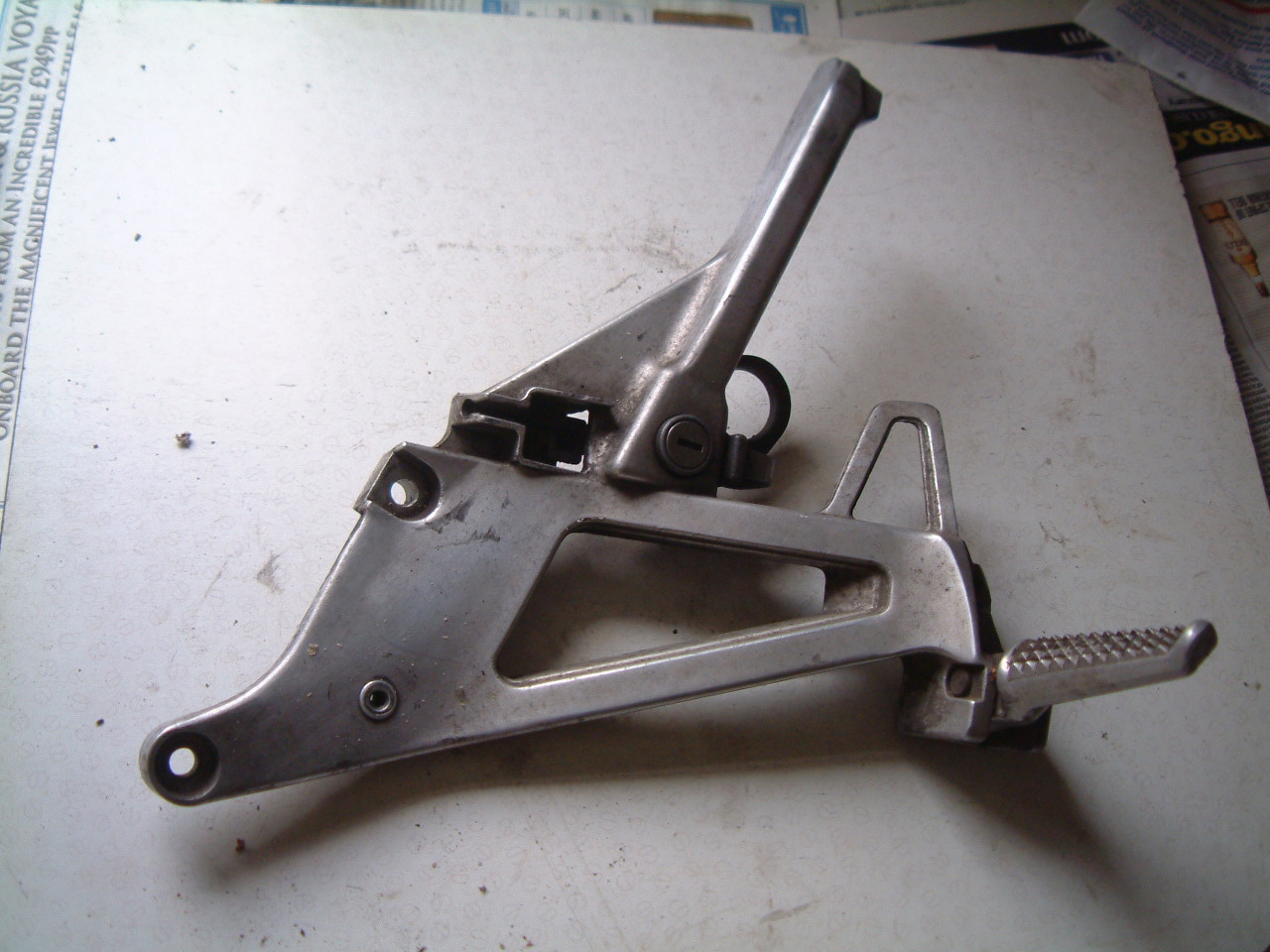

FL - 235 LHS REAR FOOT REST MOUNTING BRACKET & PEG - GOOD, NO DAMAGE, HAS LOCK, (number is visable so its possible to get a key cut). |
 |

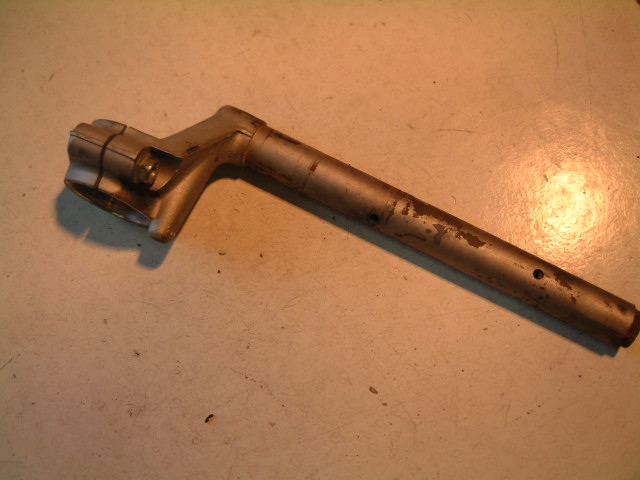

FL - 289 RHS BAR - GOOD AND STRAIGHT. |
 |

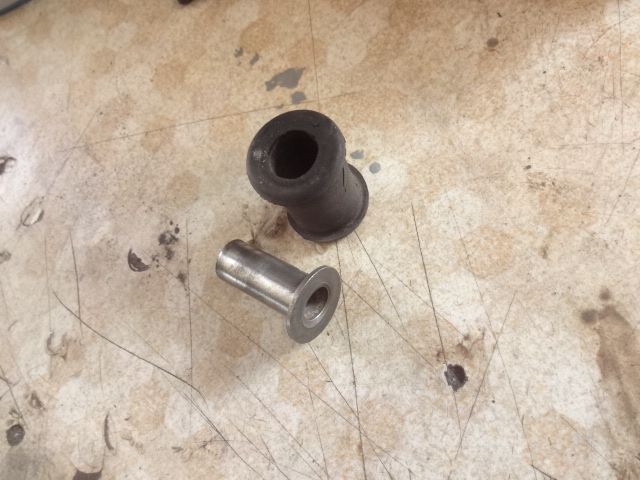

FL - 270B RUBBER MOUNT & INSERT FROM FOOTREST HANGER - GOOD. |
 |
 |
 |

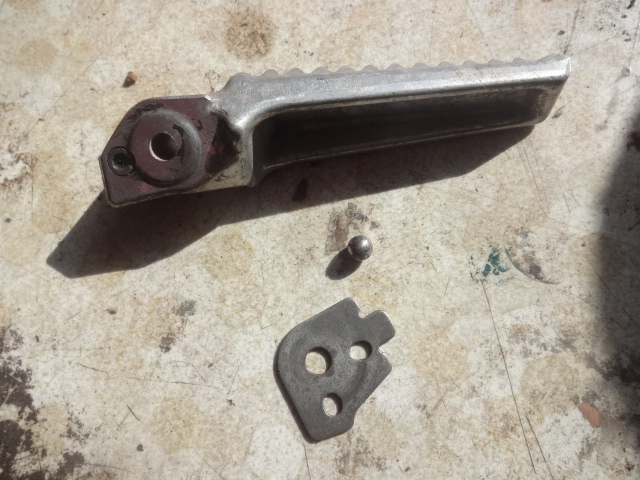

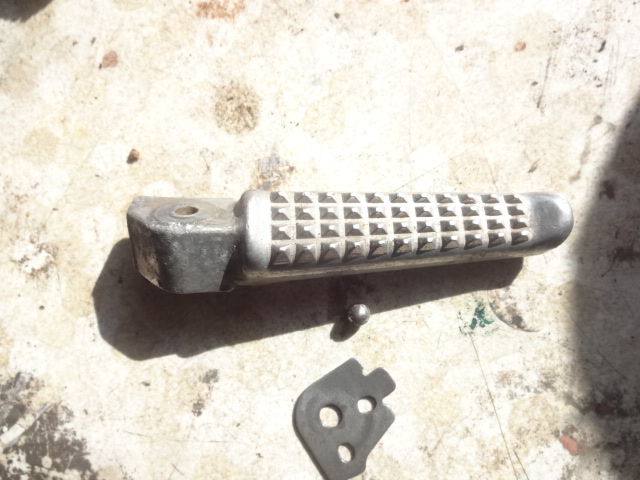

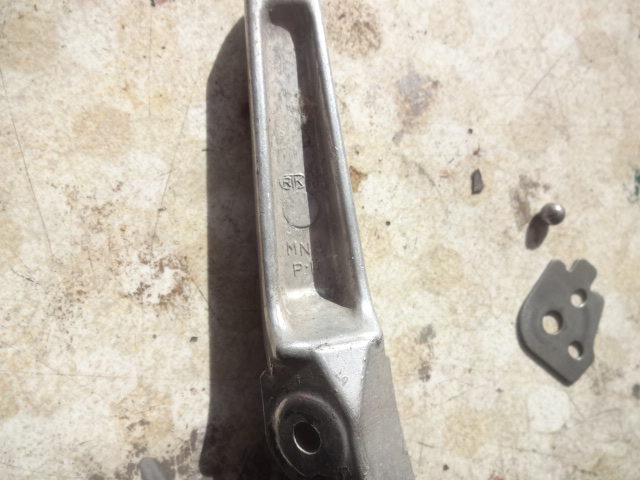

FL - 270A RIGHT REAR FOOTREST - VERY GOOD, WITH PLATE & BALL BEARING & SPRING. |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

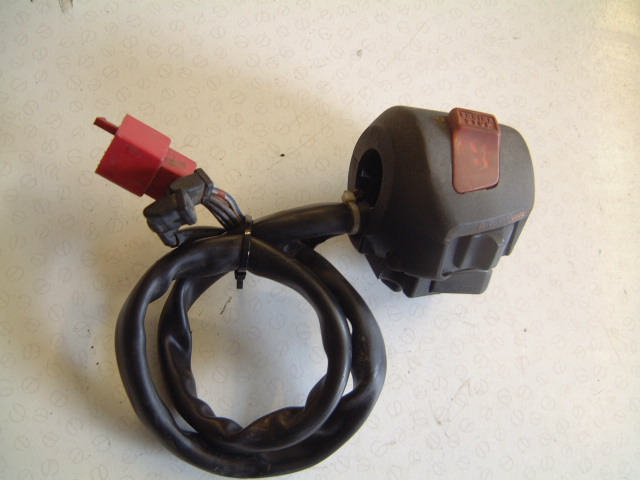

FL - 009 RHS SWITCHGEAR - GOOD, FULLY TESTED, FINISH A BIT WEATHERED. |
 |

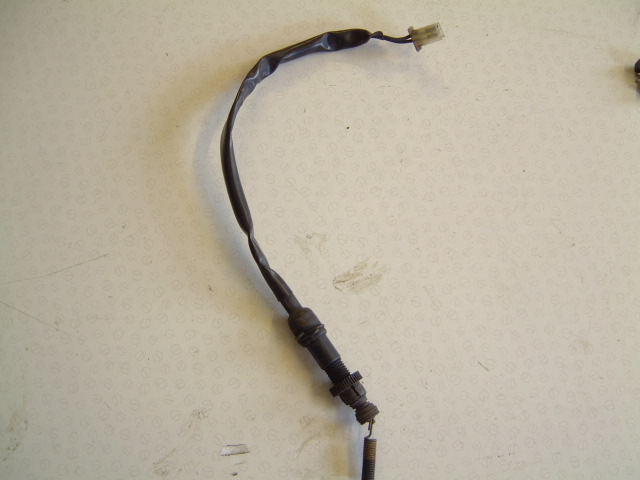

FL - 022 REAR BRAKE LIGHT SWITCH - TESTED. |
 |

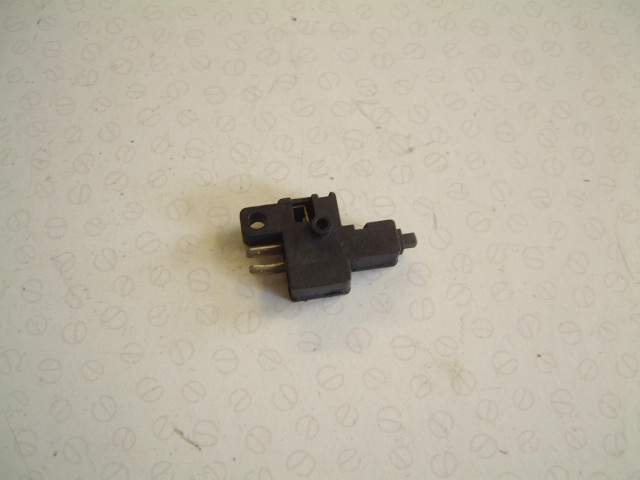

FL - 024 CLUTCH SWITCH - TESTED. |
 |

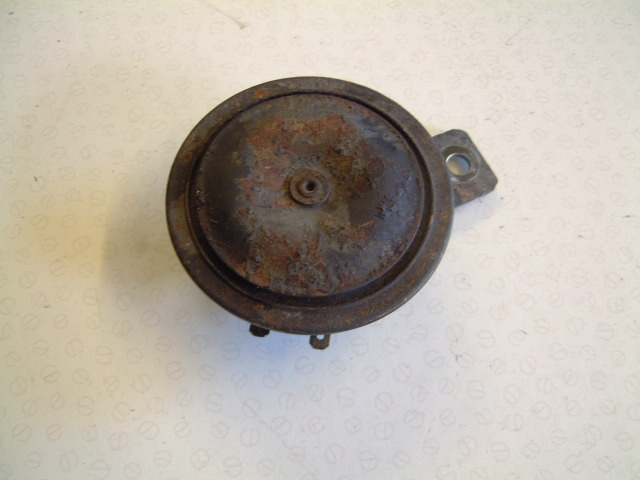

FL - 032 HORN - WORKING OK, NEEDS PAINT. |
 |

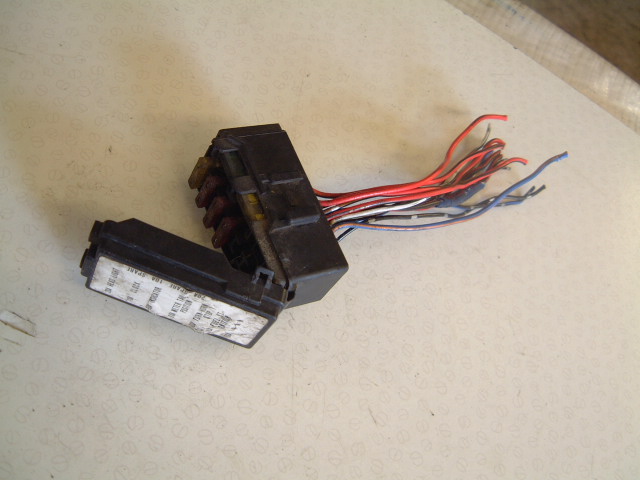

FL - 049 FUSEBOX - GOOD, WILL NEED SPLICING INTO YOUR HARNESS AS THE PLUG HAS BEEN CUT OFF. |
 |

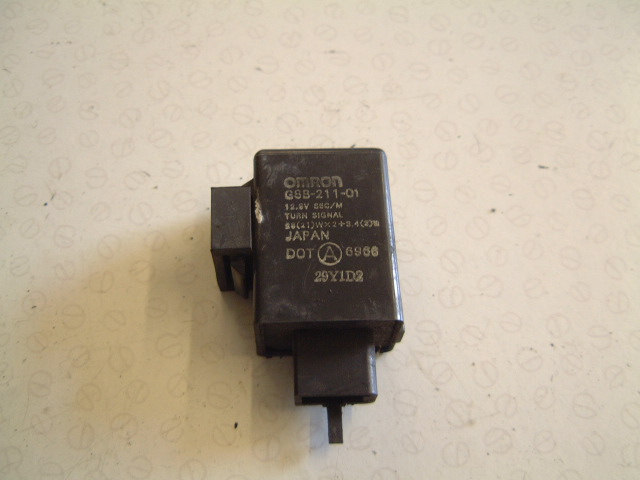

FL - 062 FLASHER - WORKING, MARKED AS G8B-211-01. |
 |

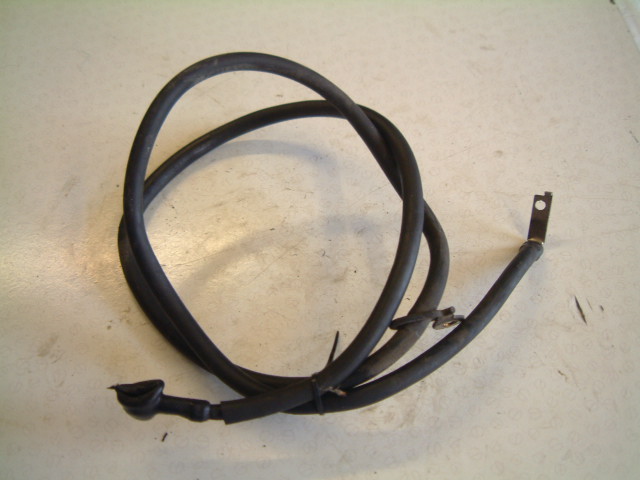

FL - 152 STARTER MOTOR LEAD - GOOD. |
 |
FL - 174 NEUTRAL SWITCH - GOOD. |
 |

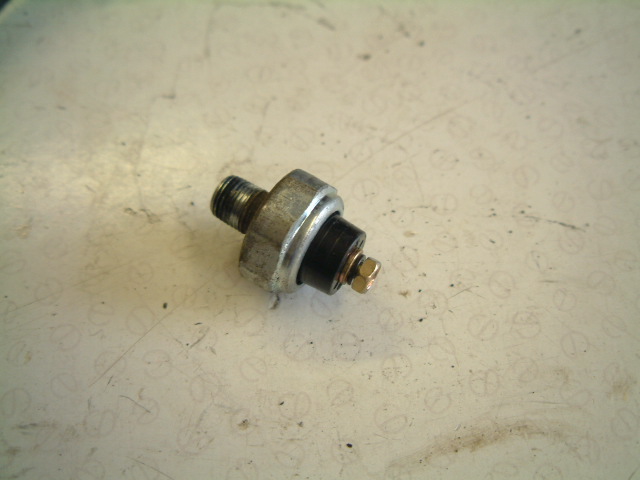

FL - 175 OIL PRESSURE SWITCH - VERY GOOD. |
 |

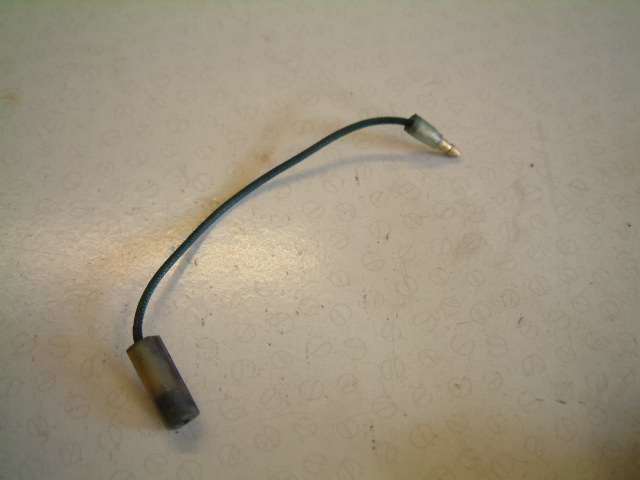

FL - 224 WIRING FOR TEMP SENSOR FROM THERMOSTAT - GOOD. |
 |

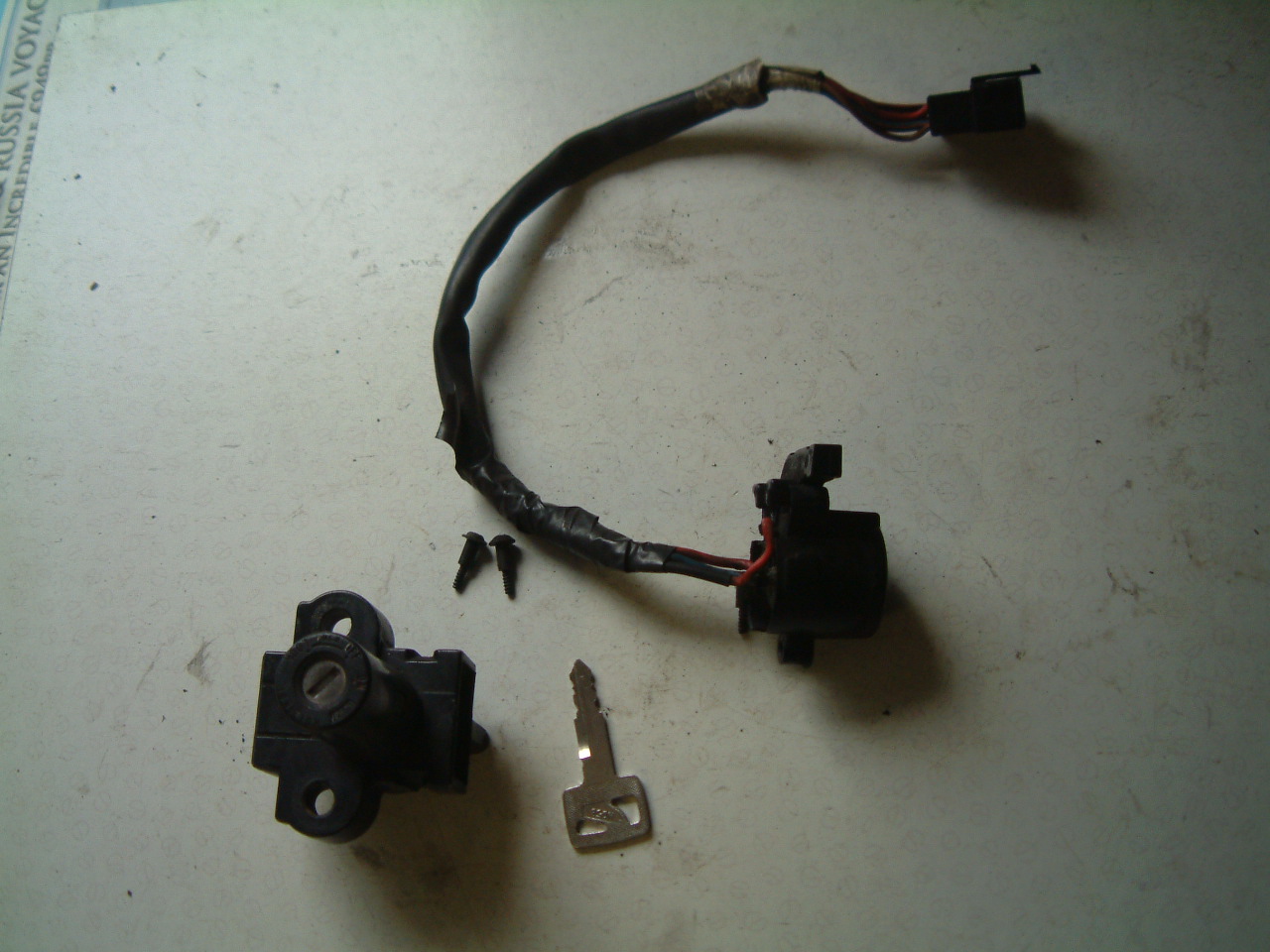

FL - 234 IGNITION SWITCH - LOCK VERY GOOD, WITH NEW KEY. THE ELECTRICAL PARTS WORKS OK BUT THE WIRING IS A BIT TATTY AND NEEDS ATTENTION. (The complete electrical part screws in and can be swapped if yours is ok) . |
 |

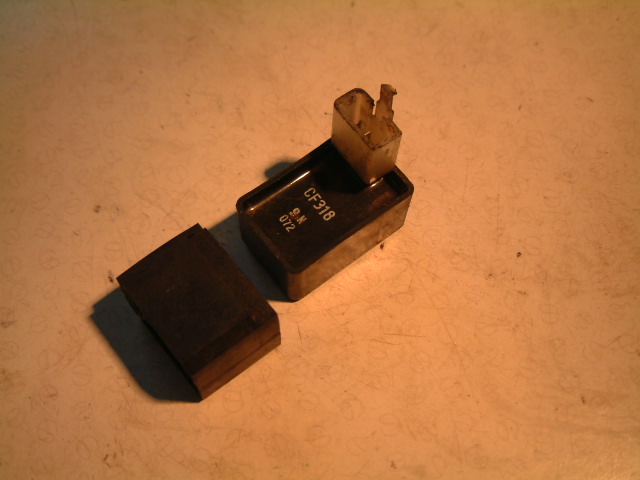

FL - 278 FUEL RELAY - CF318 - GOOD. |
 |

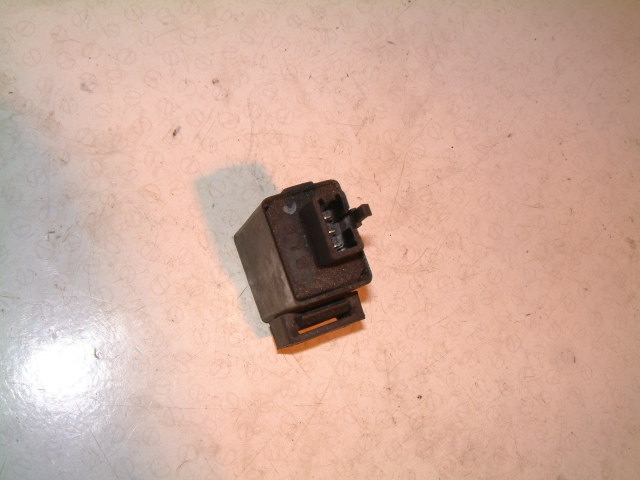

FL - 281 3 - PIN RELAY. |
 |

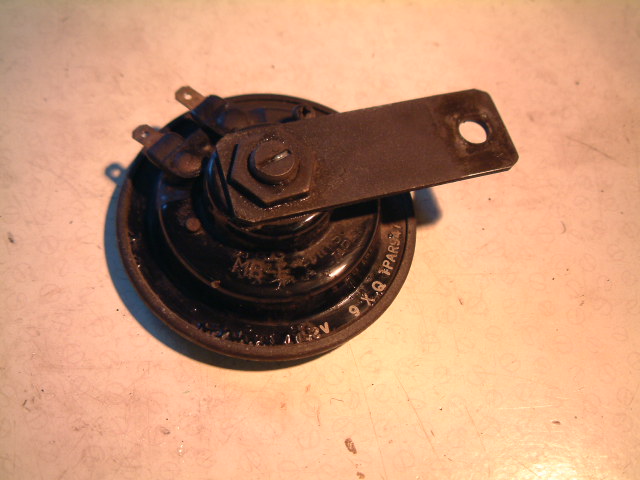

FL - 283 HORN - GOOD, WORKING. |
 |
 |

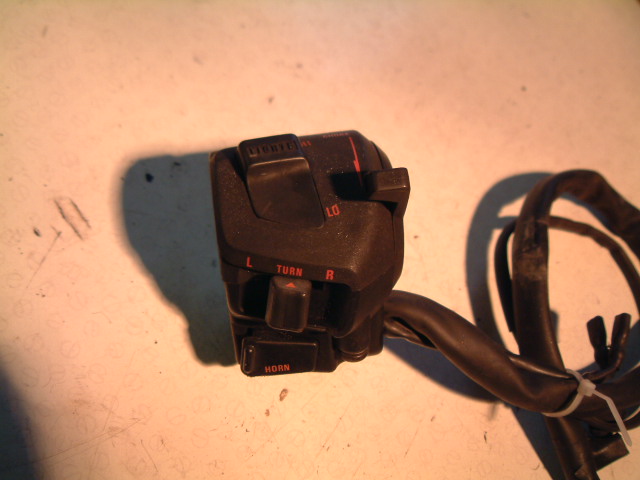

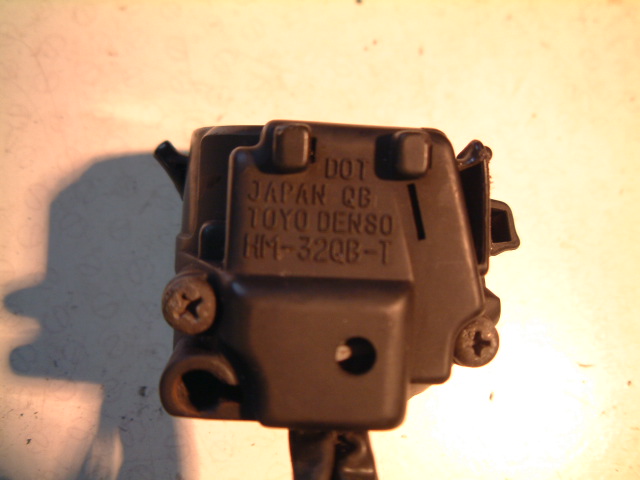

FL - 271 LHS SWITCHGEAR - VERY GOOD, FULLY WORKING, NO DAMAGE, (MARKED AS HM-32QB-T ). |
 |
 |

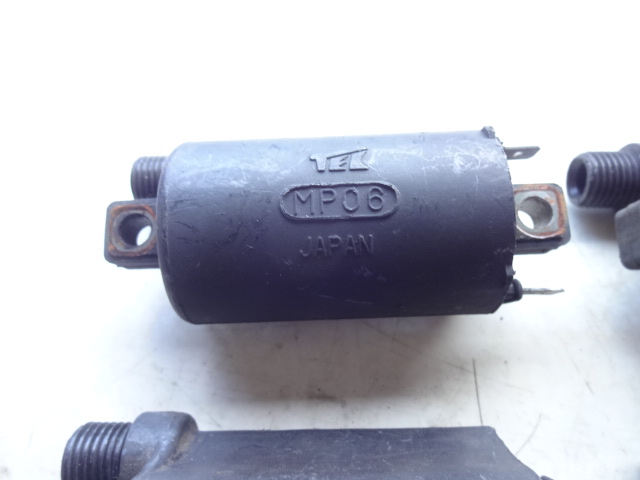

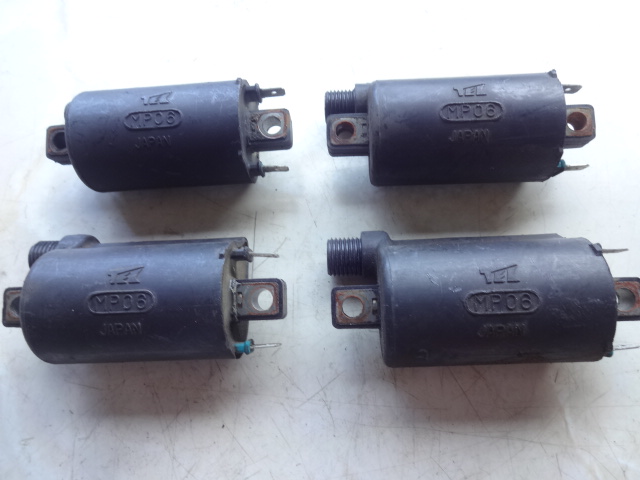

FL - 287A IGNITION COILS TEC MP06 - VERY GOOD, 2 LEFT. |
 |
 |

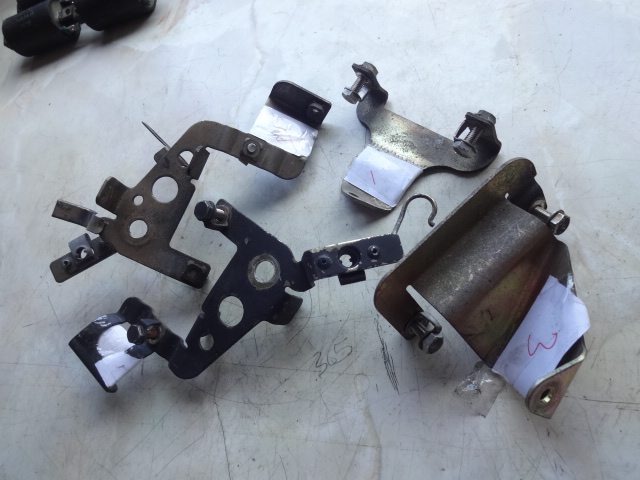

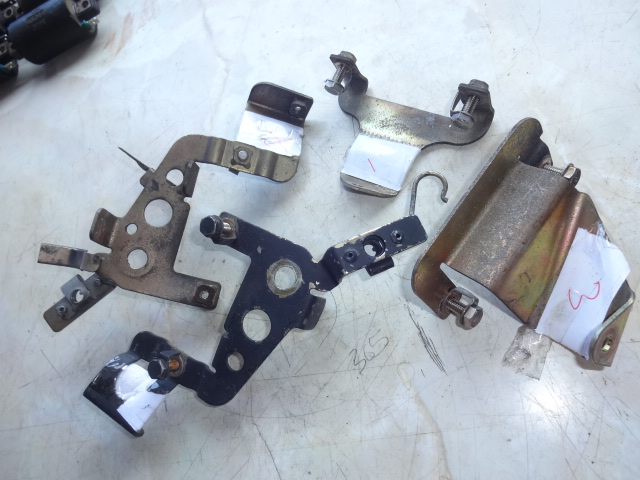

FL - 287B COIL MOUNTING BRACKETS - GOOD. |
| ENGINE, CLUTCH, GEARBOX PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

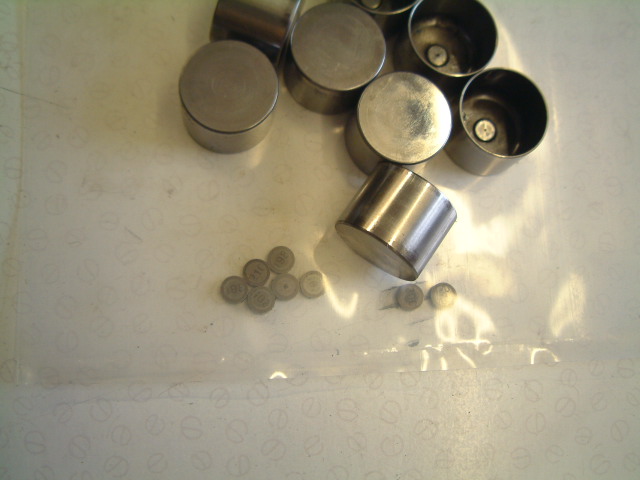

FL - 099 BUCKETS & SHIMS - GOOD, WILL SPLIT. |
||
 |

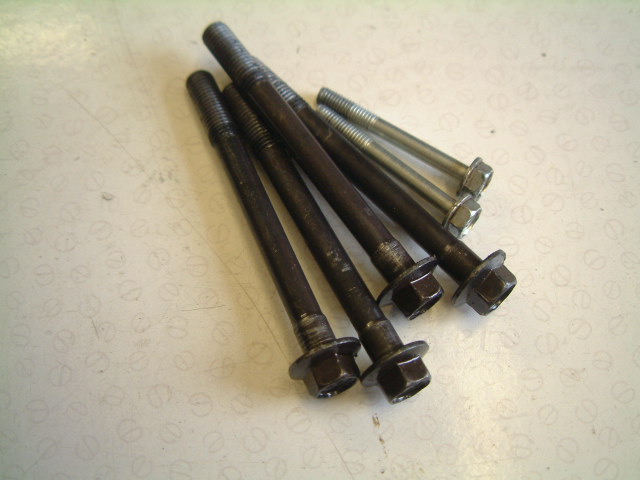

FL - 100 SINGLE HEAD BOLT SET - VERY GOOD, I HAVE MORE OF THESE. |
 |

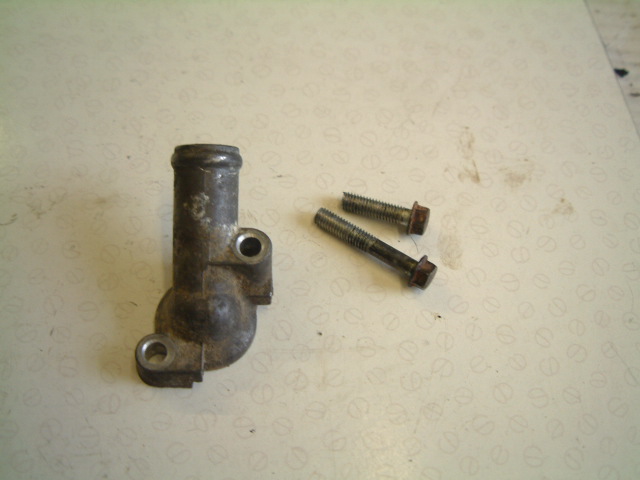

FL - 105 WATER CONNECTION POINT FROM REAR OF HEAD - GOOD, (I have a few of these). |
 |

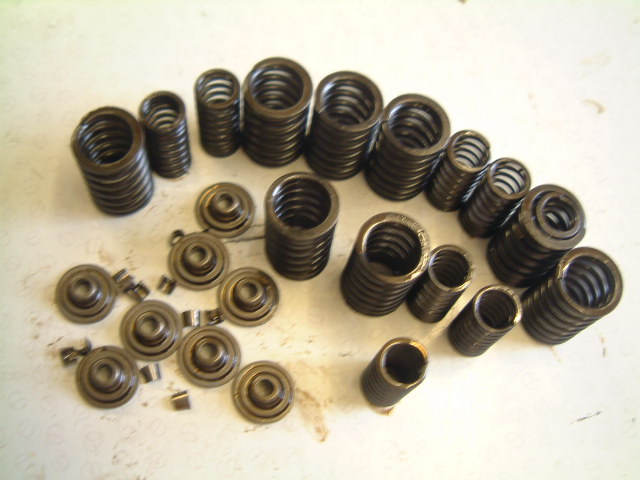

FL - 106 VALVES SPRINGS, WASHER ETC - ALL GOOD, WILL SPLIT. |
 |

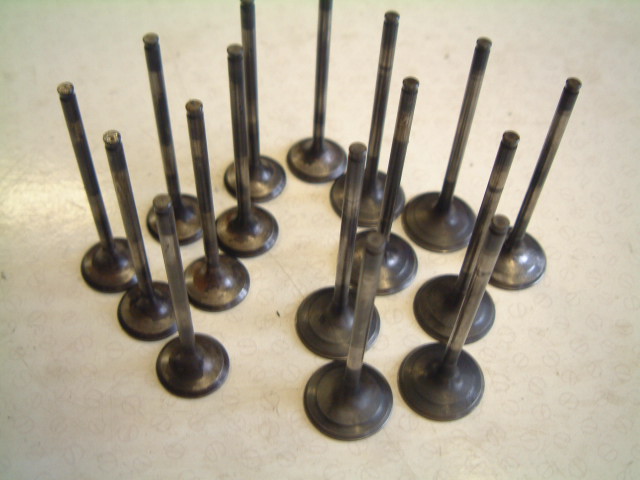

FL - 107 SET OF VALVES - ALL GOOD, WILL SPLIT. |
 |

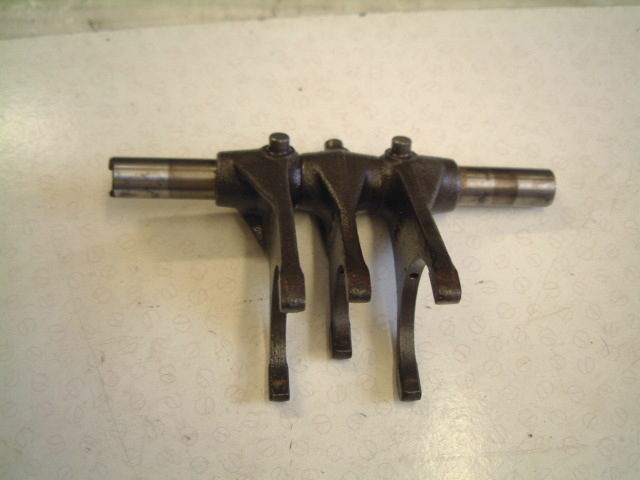

FL - 116 SELECTOR FORKS - VERY GOOD. |
 |

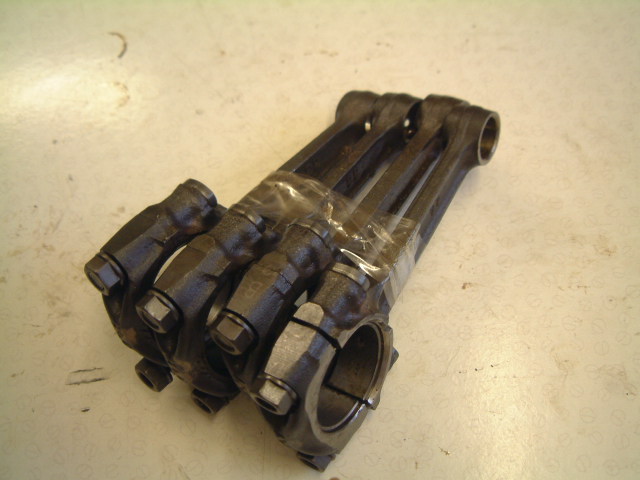

FL - 118 SET OF CON-RODS - WITH SHELLS, WILL SPLIT. |
 |
FL - 119 OUTPUT SHAFT & GEARS - SPLIT FOR PARTS, ALL GOOD, (I also have one for sale complete). |
 |

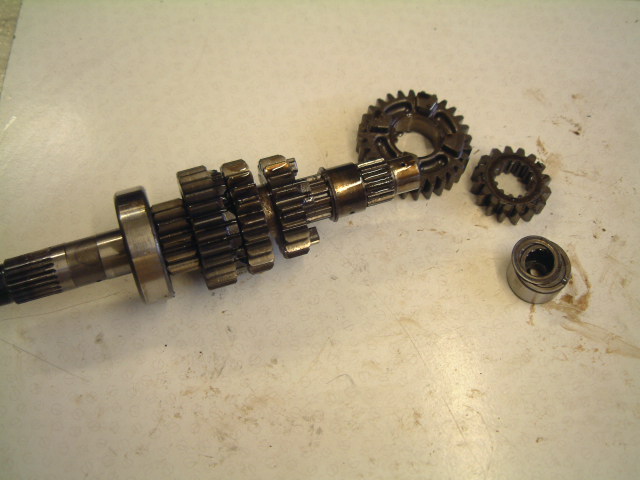

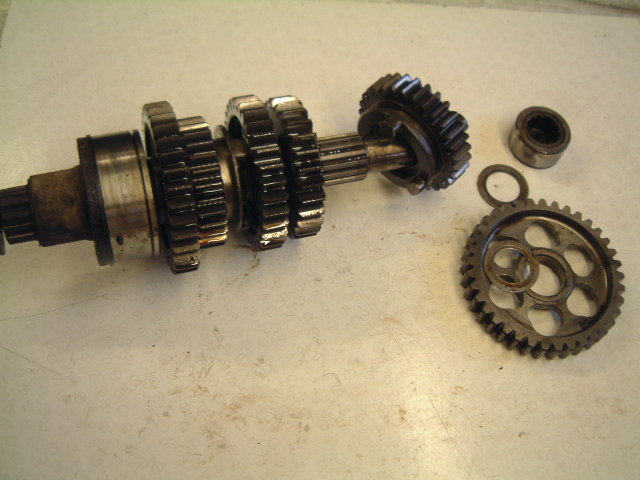

FL - 120 INPUT SHAFT & GEARS - SPLIT FOR PARTS, ALL GOOD, (I also have one for sale complete). |
 |

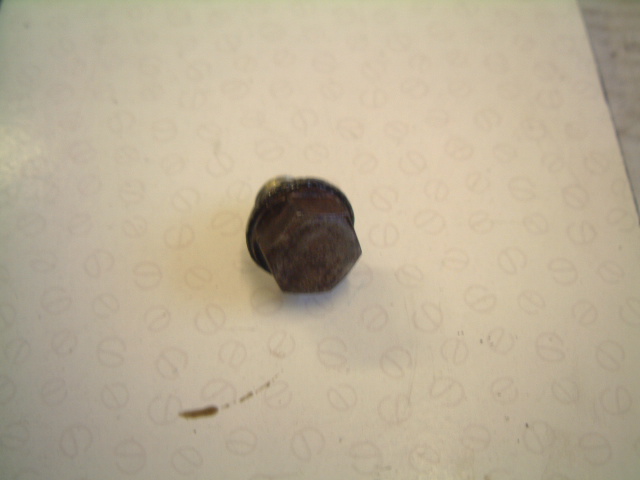

FL - 126 SUMP PLUG/BOLT - SERVICEABLE. |
 |

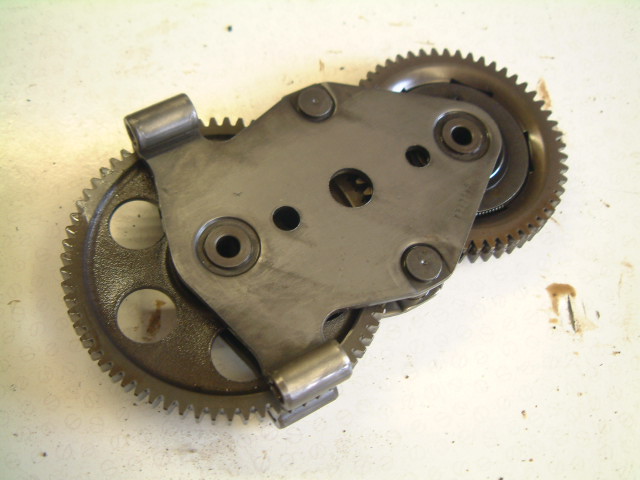

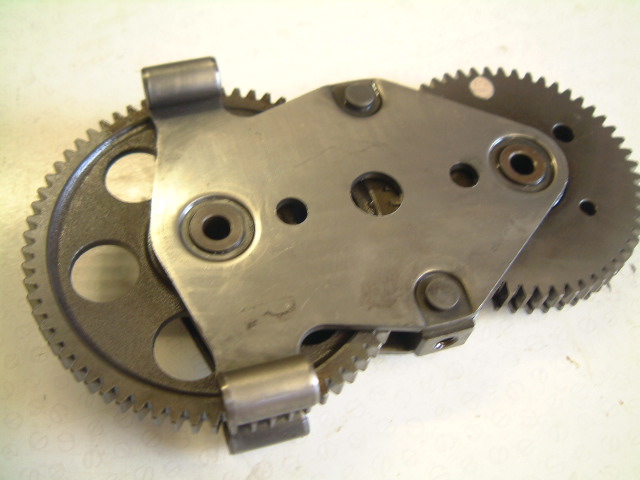

FL - 142 CAMSHAFT GEAR ASSEMBLY FROM FRONT HEAD - LOOKS PERFECT, MARKED AS GK26154. |
 |
FL - 143 CAMSHAFT GEAR ASSEMBLY FROM REAR HEAD - LOOKS PERFECT, MARKED AS GK26098. |
 |

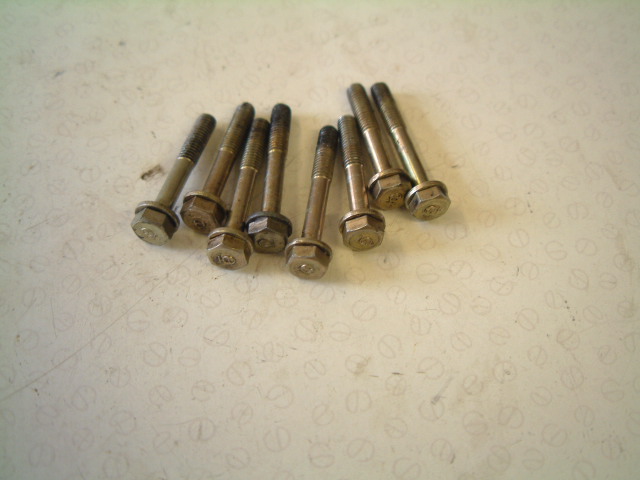

FL - 144 CAMSHAFT GEAR ASSEMBLY BOLTS - ALL VERY GOOD. |
 |

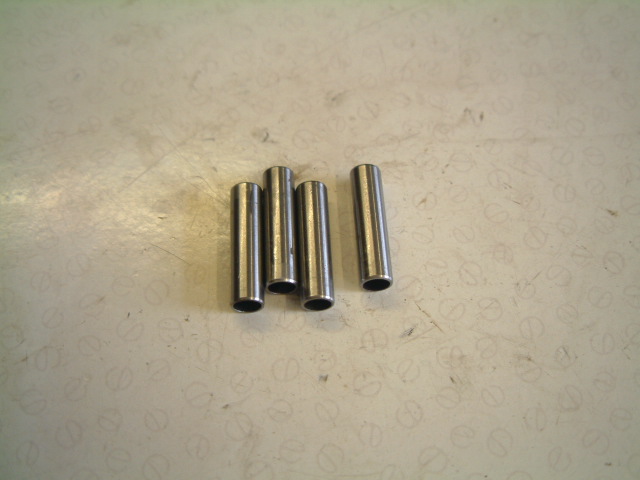

FL - 145 CAM GEAR ASSEMBLY LOCATING PINS - VERY GOOD, (I have a few sets of these). |
 |

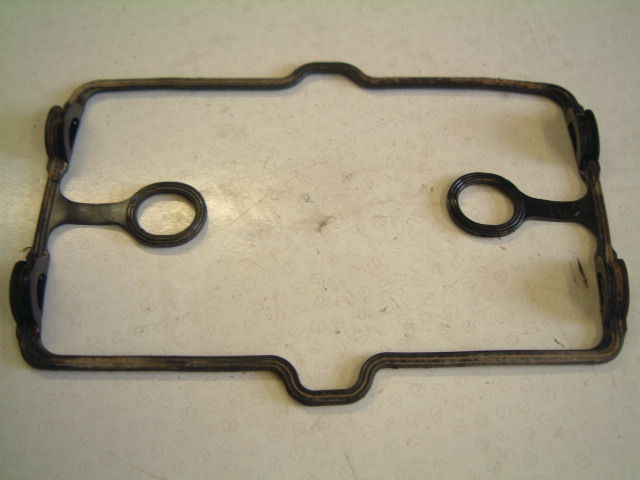

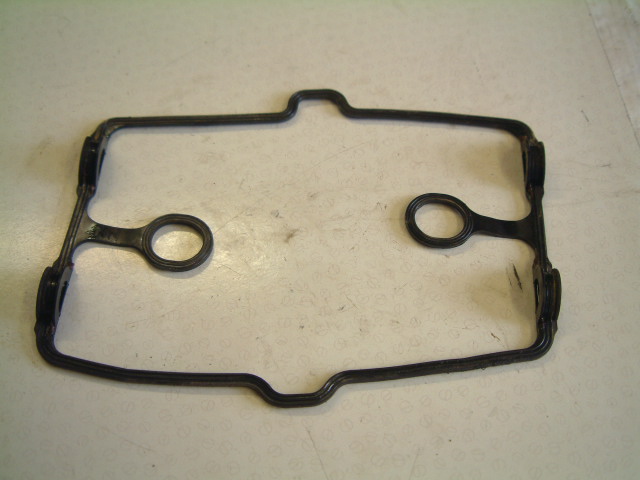

FL - 146 FRONT CAM COVER SEAL - SERVICEABLE CONDITION. |
 |
FL - 147 REAR CAM COVER SEAL - SERVICEABLE CONDITION. |
 |

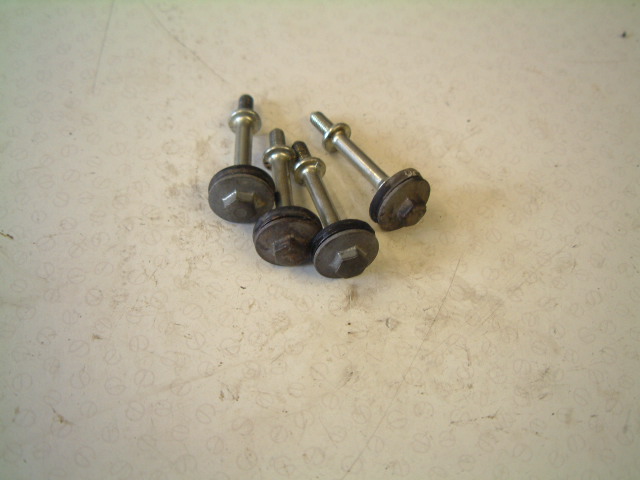

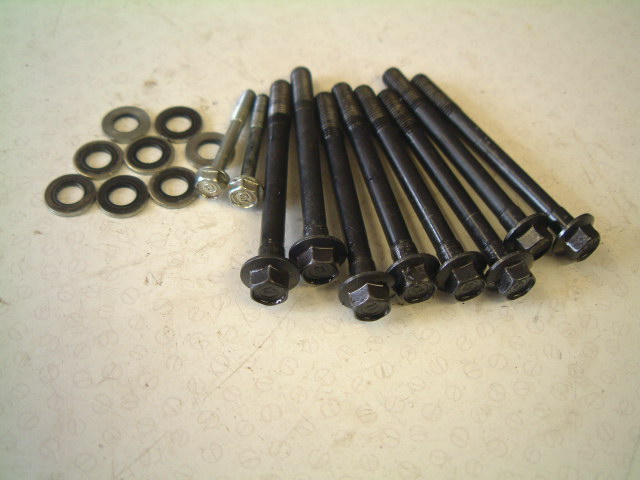

FL - 148 HEAD BOLTS SET - VERY GOOD, (I have a few sets of these). |
 |
FL - 149 CAM COVER BOLTS AND SEALS - GOOD, (I have a few sets of these). |
 |

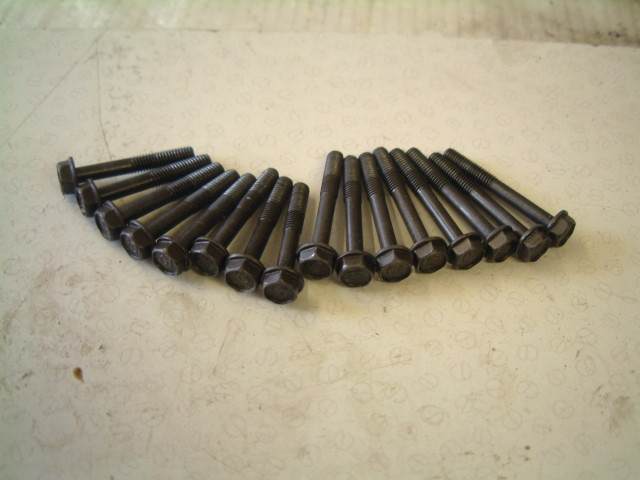

FL - 150 CAM CLAMPS BOLT SET X16 - ALL VERY GOOD, (I have a few sets of these). |
 |

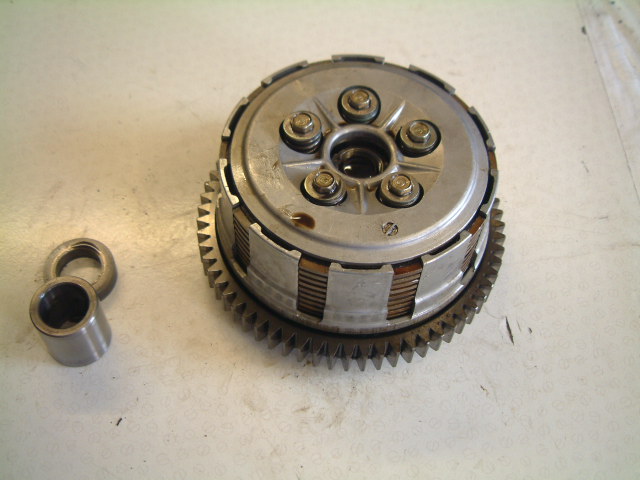

FL - 153 COMPLETE CLUTCH - ALL LOOKS VERY GOOD. |
 |

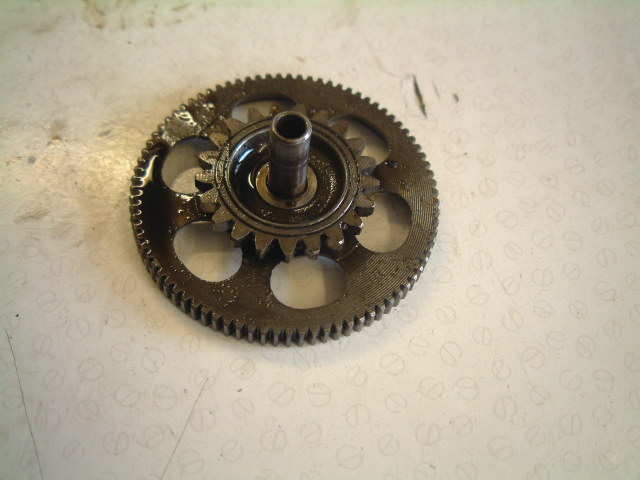

FL - 154 STARTER/IDLER GEAR - VERY GOOD. |
 |
FL - 155 OIL PUMP CHAIN AND GEARS - VERY GOOD. |
 |

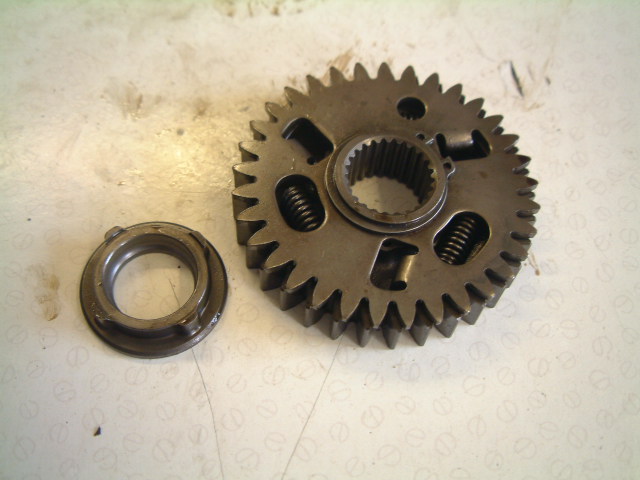

FL - 156 PRIMARY GEAR - VERY GOOD. |
 |
FL - 158 PLATE FROM INSIDE CLUTCH CASING - GOOD. |
 |

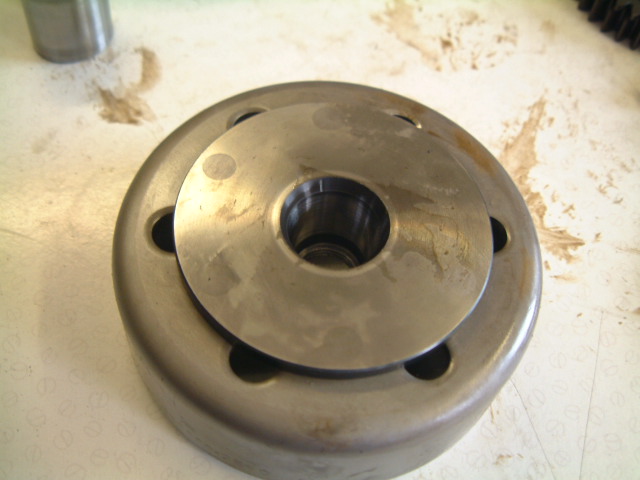

FL - 160 ROTOR - VERY GOOD. |
 |

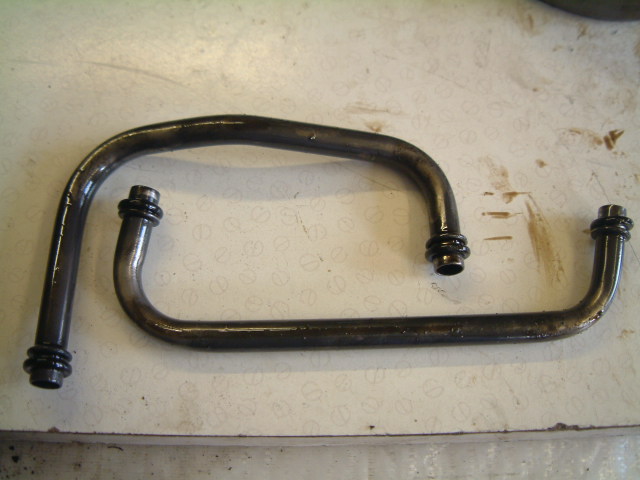

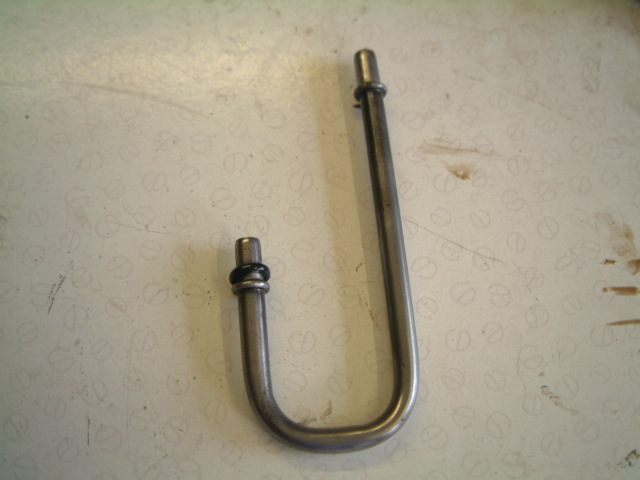

FL - 161 PAIR OF OIL PIPES - VERY GOOD. |
 |

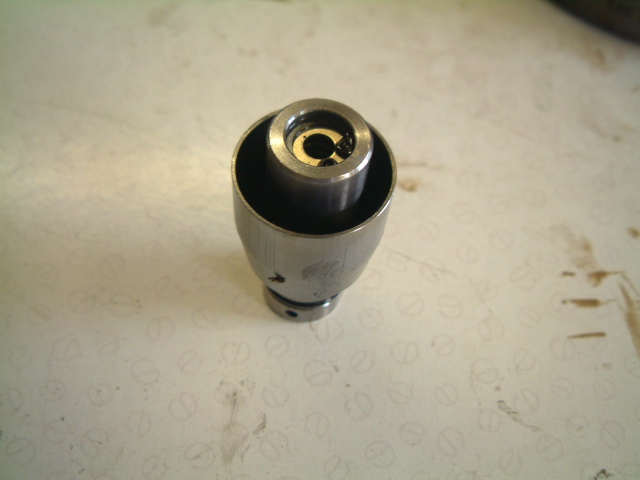

FL - 162 OIL PRESSURE VALVE - VERY GOOD. |
 |

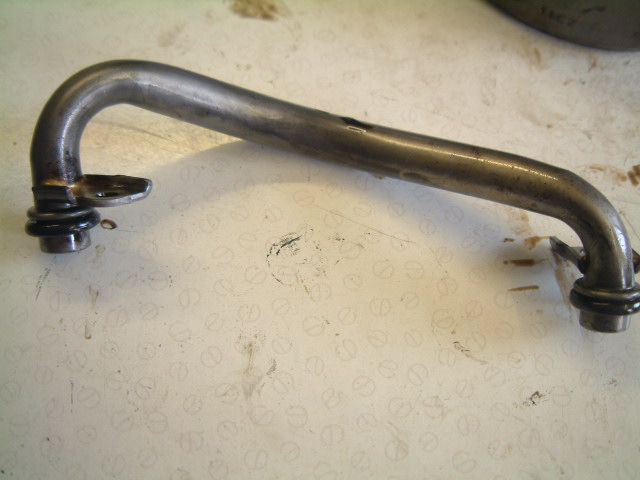

FL - 163 LARGE OIL PIPE - VERY GOOD. |
 |
FL - 164 OIL PIPE - VERY GOOD. |
 |

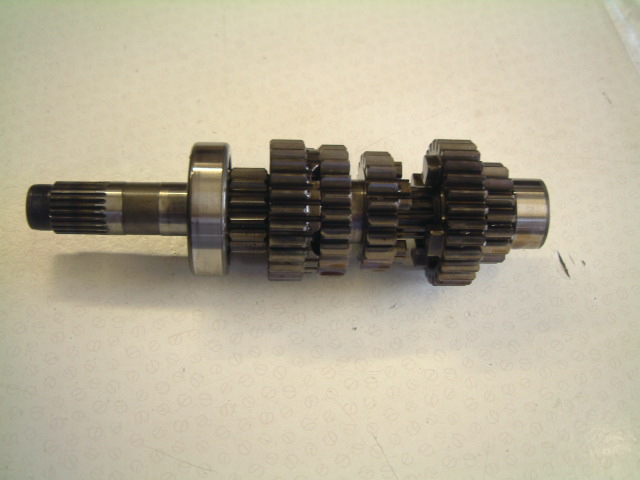

FL - 165 INPUT SHAFT & GEARS - VERY GOOD. |
 |

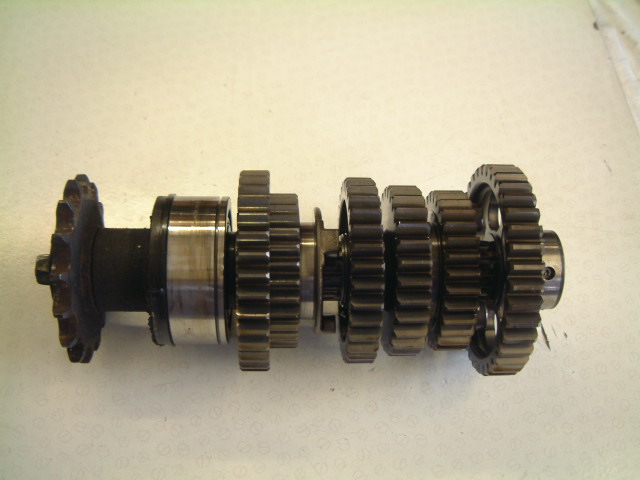

FL - 166 OUTPUT SHAFT & GEARS - VERY GOOD. |
 |

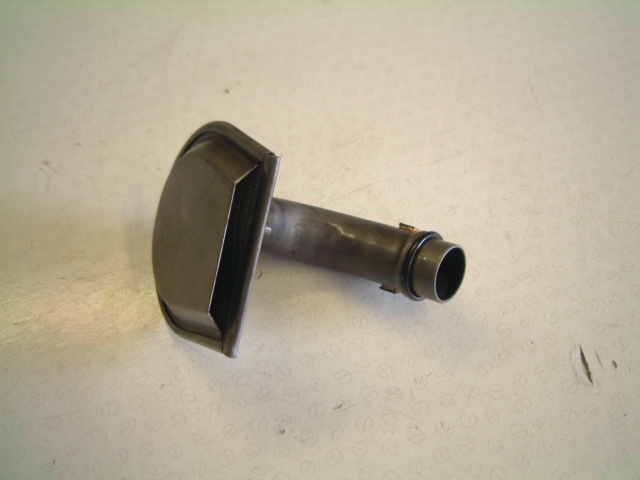

FL - 168 OIL PICK UP - GOOD. |
 |

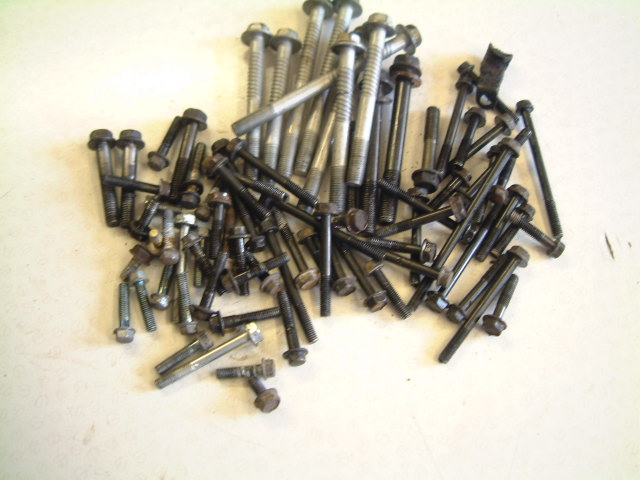

FL - 170 CRANKCASE BOLTS + FEW OTHERS - ALL GOOD. |
 |

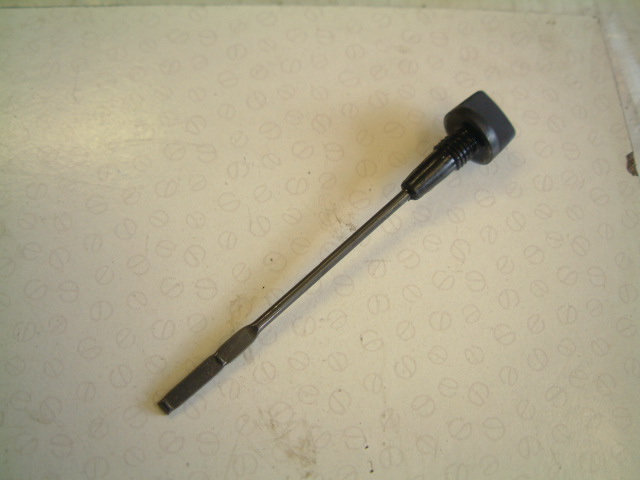

FL - 171 DIP STICK - VERY GOOD. |
 |

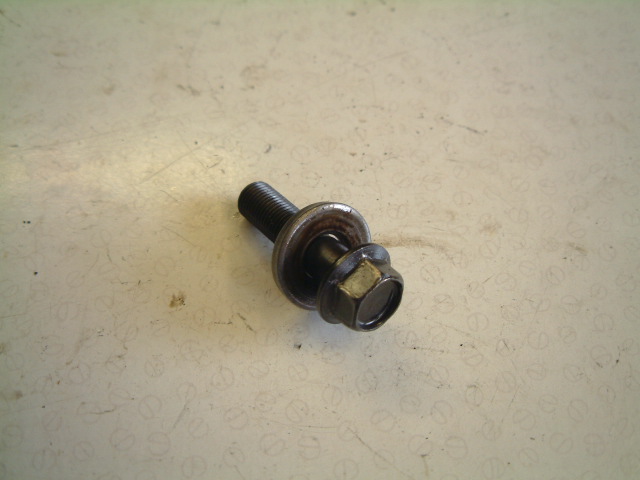

FL - 173 STARTER CLUTCH BOLT - VERY GOOD. |
 |

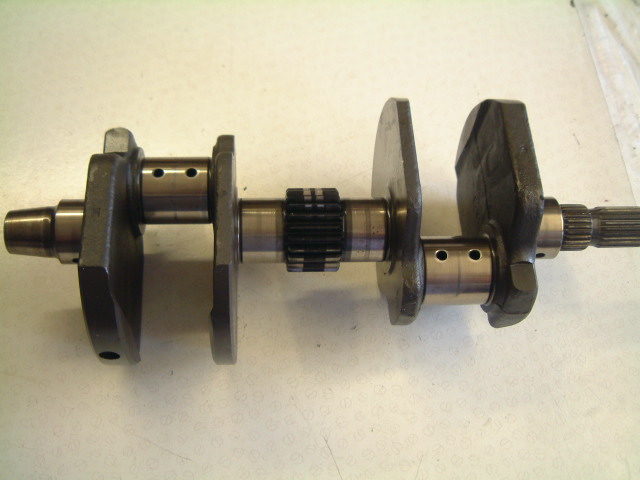

FL - 184 CRANK SHAFT - ALL JOURNELS LOOK GOOD, (I can take some measurements if needed). |
 |

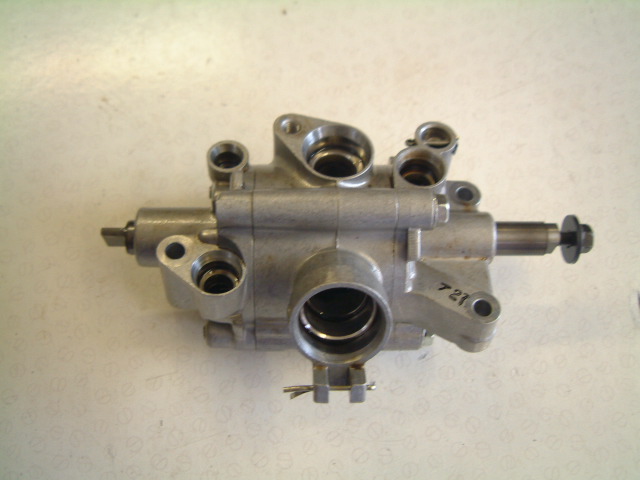

FL - 187 OIL PUMP - LOOKS OK, ENGINE INTERNALS PERFECT SO SHOULD BE SAFE TO USE. |
 |

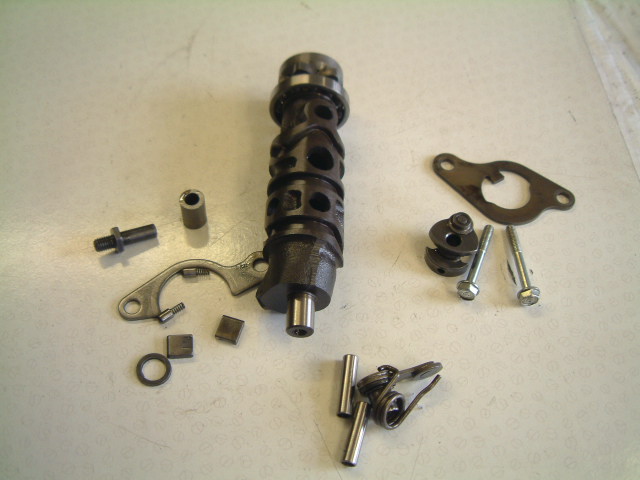

FL - 188 SELECTOR DRUM & PARTS - ALL GOOD. |
 |

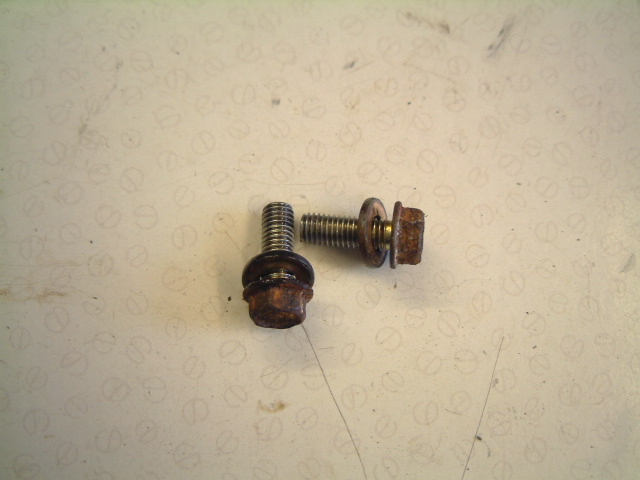

FL - 195 CAM GEAR ASSEMBLY FIXING BOLTS - SERVICEABLE. |
 |

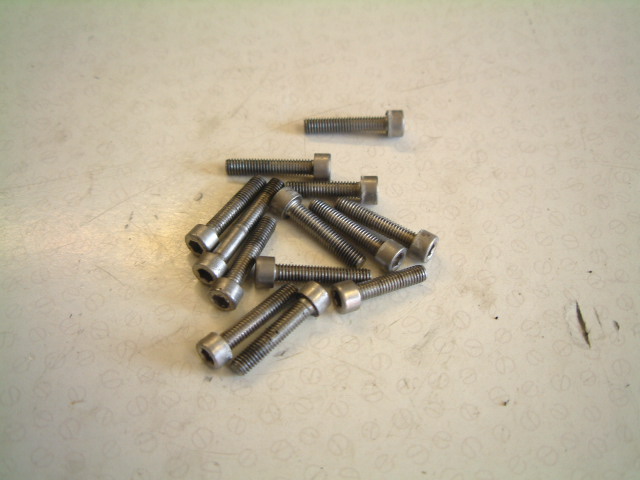

FL - 207 CLUTCH CASING ALLEN SCREWS - ALL GOOD. |
 |

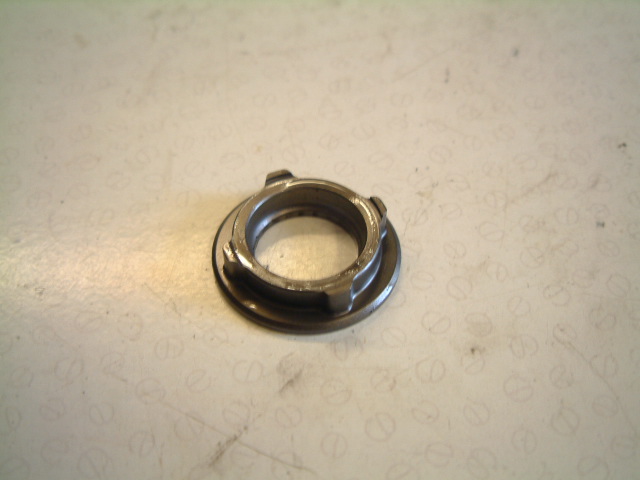

FL - 209 SPACER - FITS BEHIND STARTER CLUTCH - VERY GOOD. |
 |

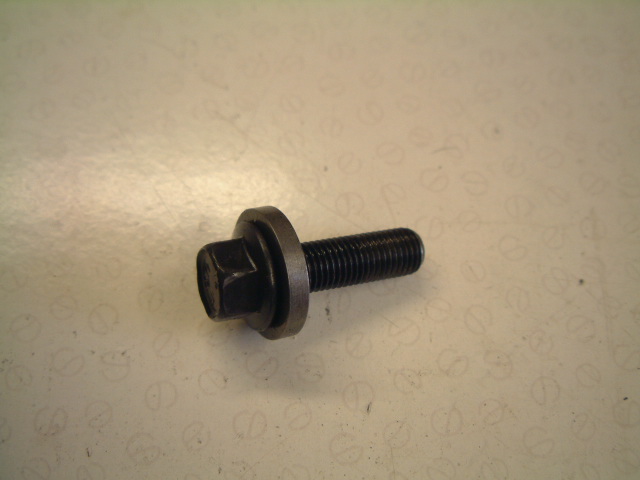

FL - 211 ROTOR BOLT - VERY GOOD. |
 |

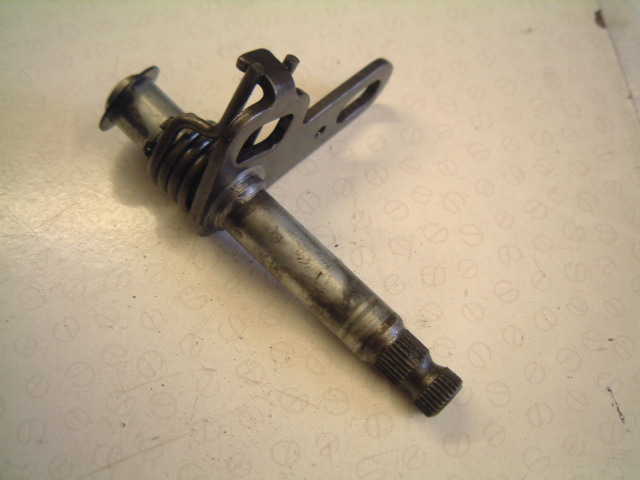

FL - 212 GEAR SELECTION SHAFT - GOOD. |
 |

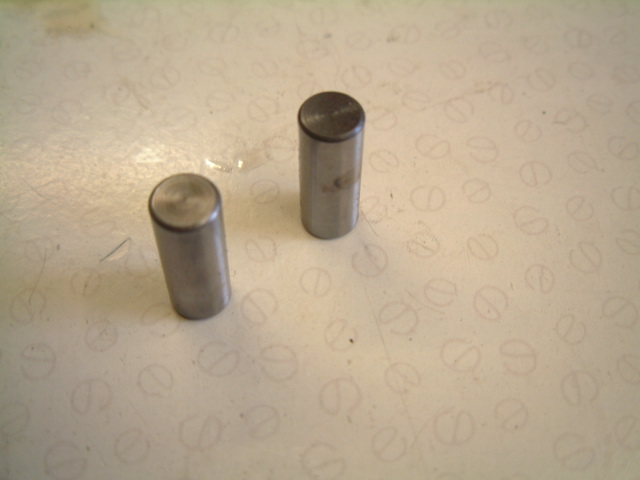

FL - 213 CRANKCASE LOCATING DOWELS - VERY GOOD. |
 |

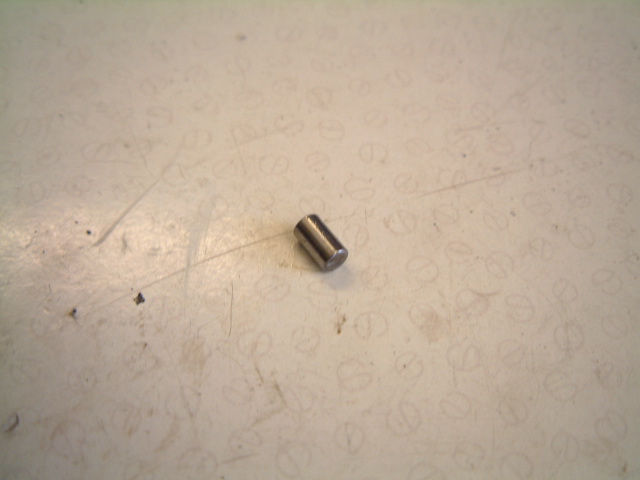

FL - 215 GEAR SHAFT LOCATING DOWEL - VERY GOOD. |
 |

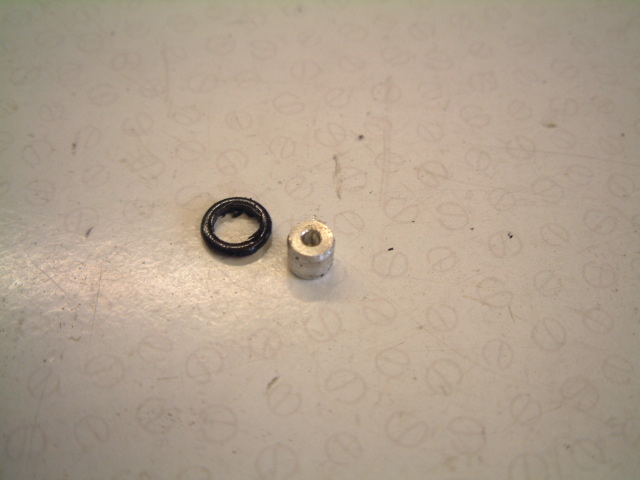

FL - 216 OIL JET - FITS BETWEEN CRANK CASES - GOOD. |
 |

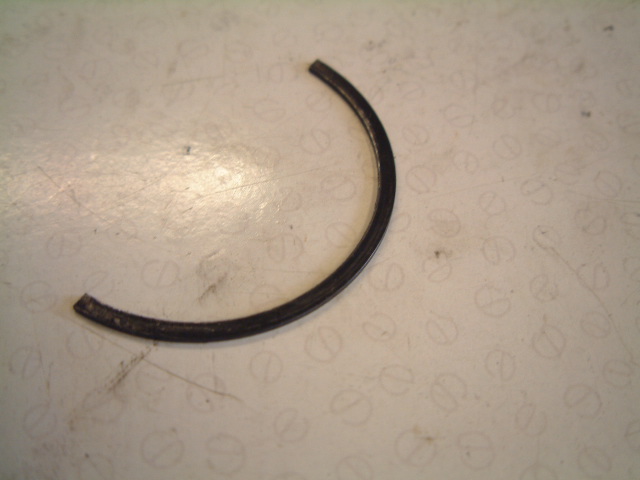

FL - 217 GEAR SHAFT HALF RING - VERY GOOD. |
 |
FL - 218 GEAR SHAFT COVER - GOOD. |
 |

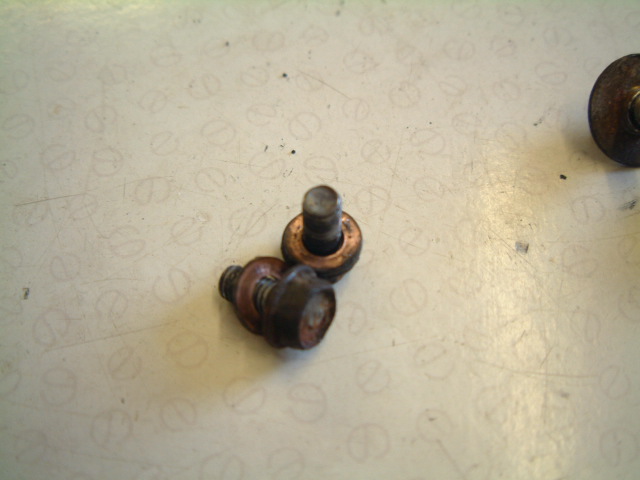

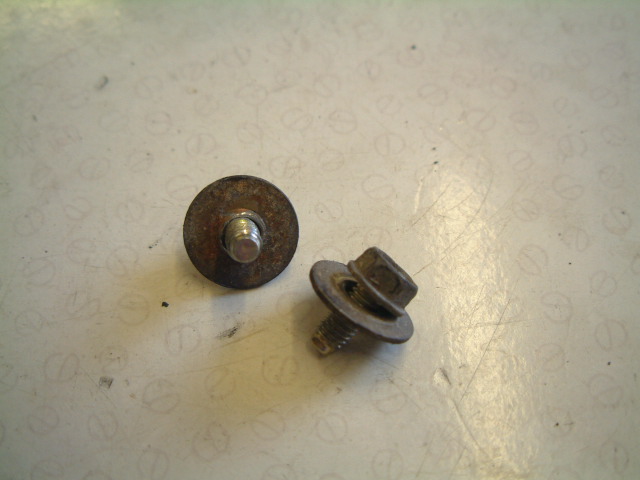

FL - 228 TOP OF REAR HEAD BLEED SCREWS - SERVICEABLE. |
 |
FL - 229 REAR OF BARRELS BLEED SCREWS - SERVICEABLE. |
 |

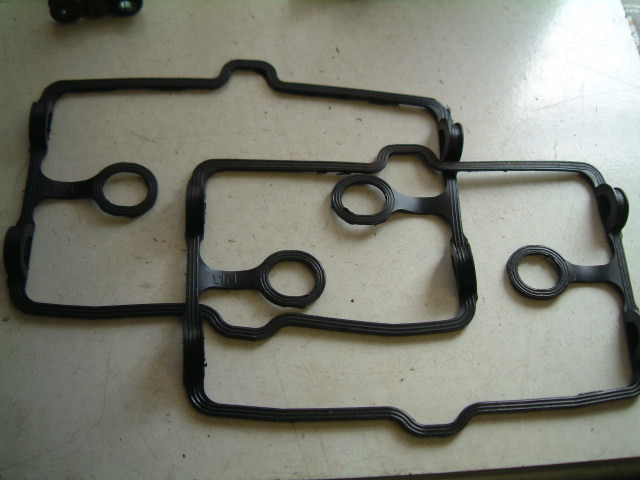

FL - 240 CAM COVER SEALS - GOOD. |
 |
 |

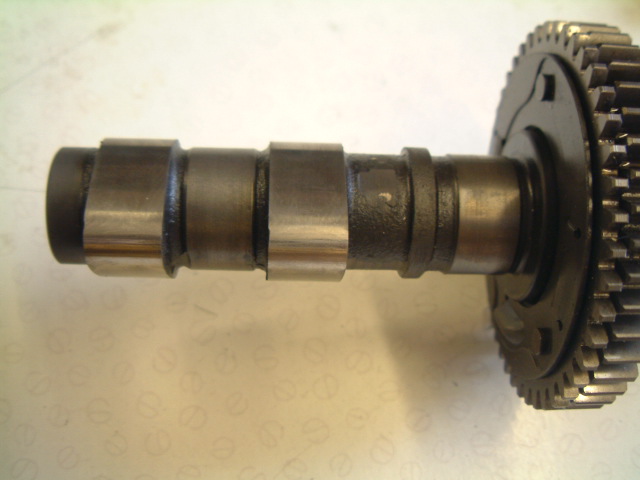

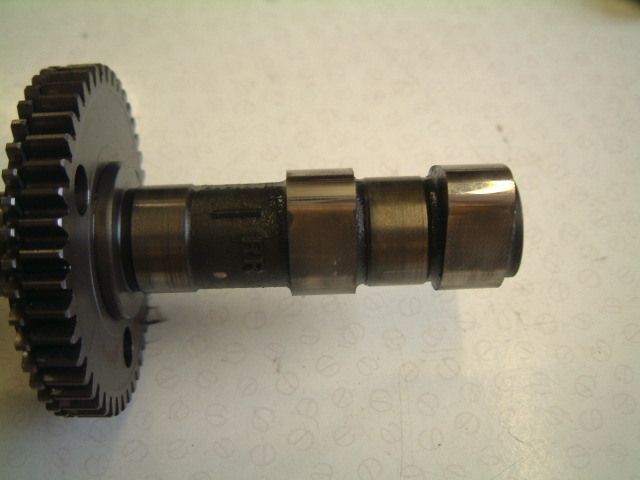

FL - 101 INLET CAMSHAFT REAR - VERY GOOD, UN-MARKED FACES. |
 |
 |

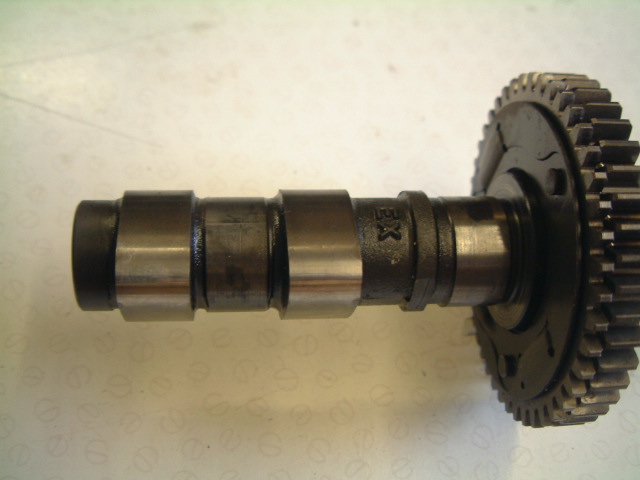

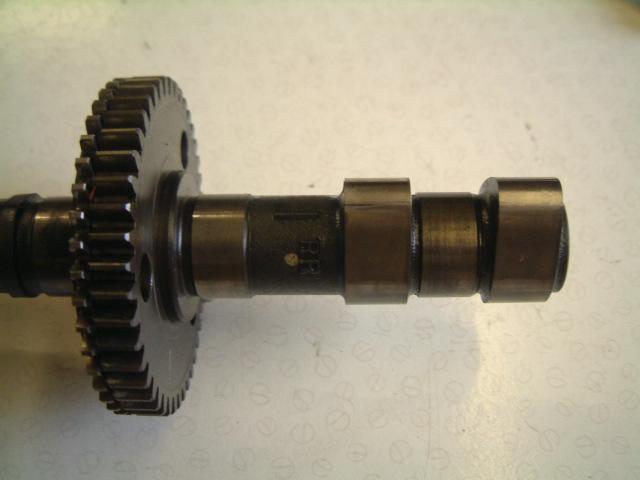

FL - 102 EXHAUST CAMSHAFT REAR - VERY GOOD, UN-MARKED FACES. |
 |
 |

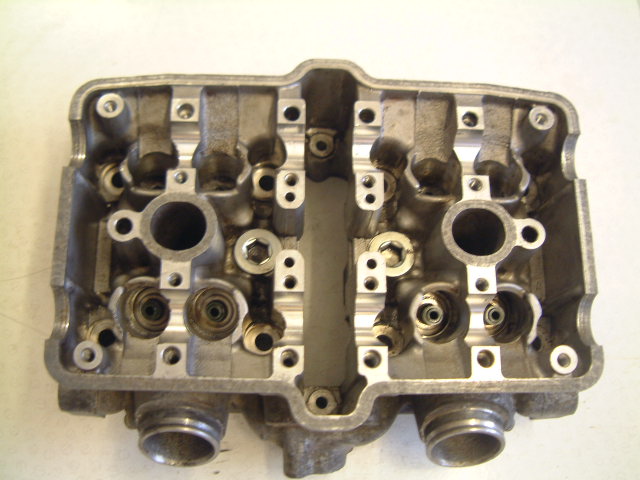

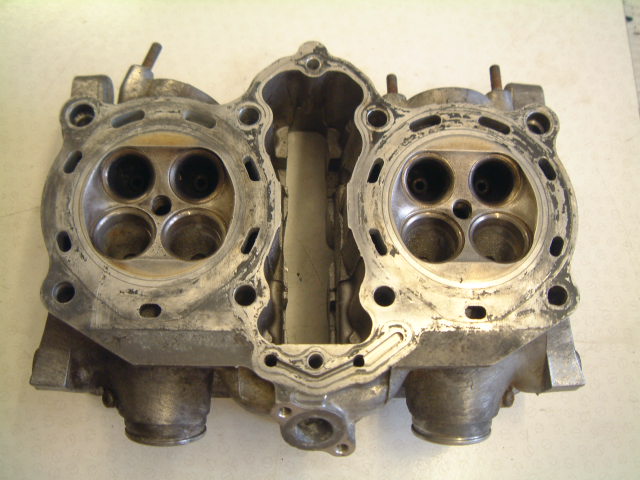

FL - 108 REAR CYLINDER HEAD - BARE, GOOD, NO DAMAGE AND ALL THREADS GOOD. CAMSHAFT CLAMPS INCLUDED. |
 |
 |

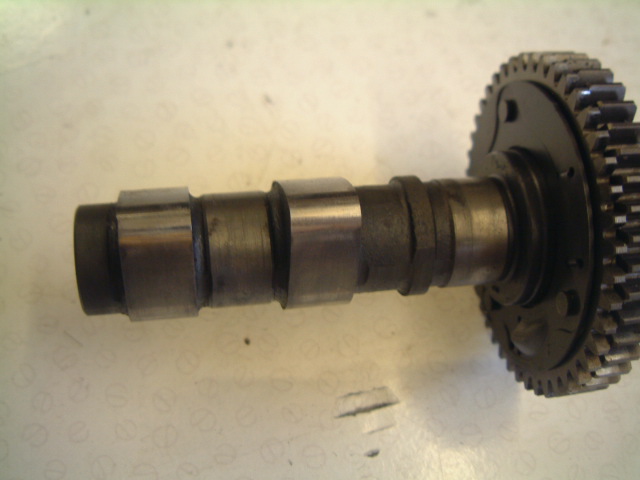

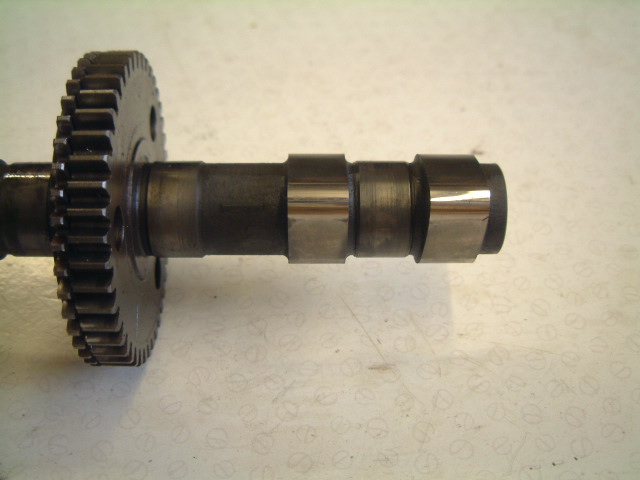

FL - 109 INLET CAMSHAFT FRONT - VERY GOOD, UN-MARKED FACES. |
 |
 |

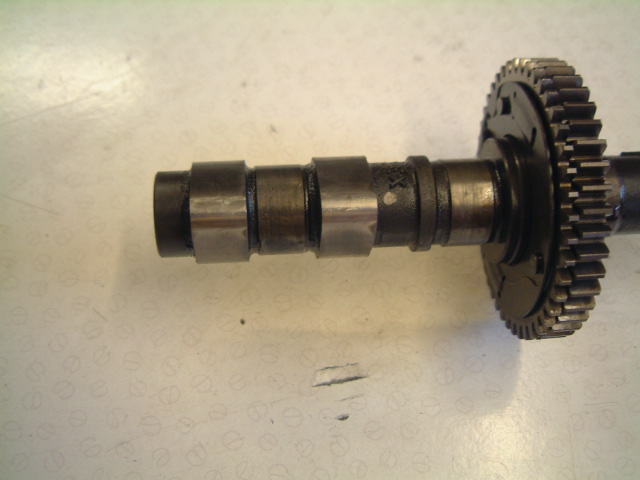

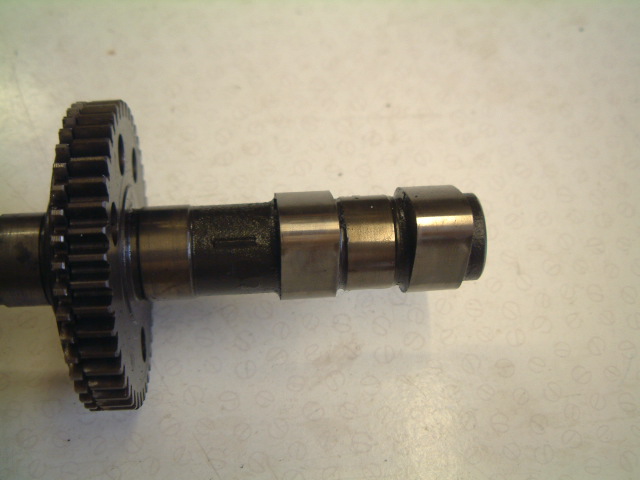

FL - 110 EXHAUST CAMSHAFT FRONT - VERY GOOD, UN-MARKED FACES. |
 |
 |

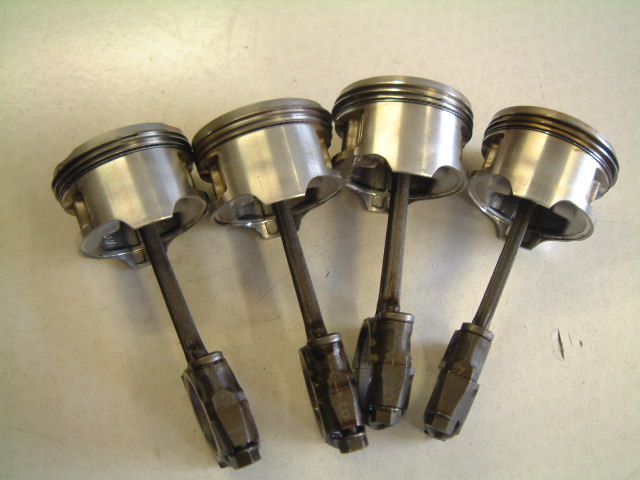

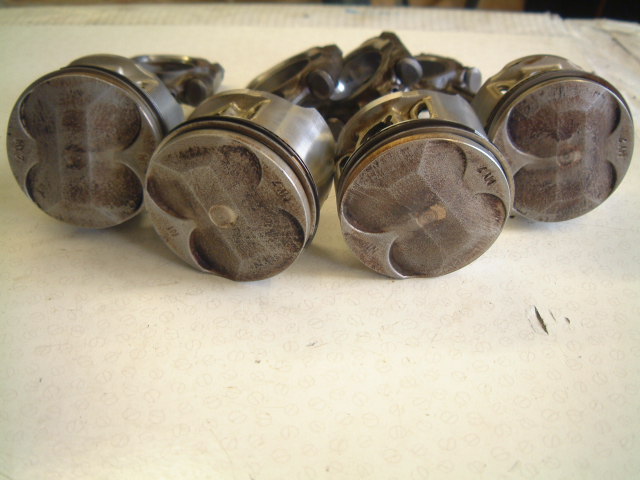

FL - 167 SET OF PISTONS - ALL LOOK GOOD, CAN TAKE ANY MEASUREMENTS IF REQUIRED, (Will split if you don@t need a full set). |
 |
 |

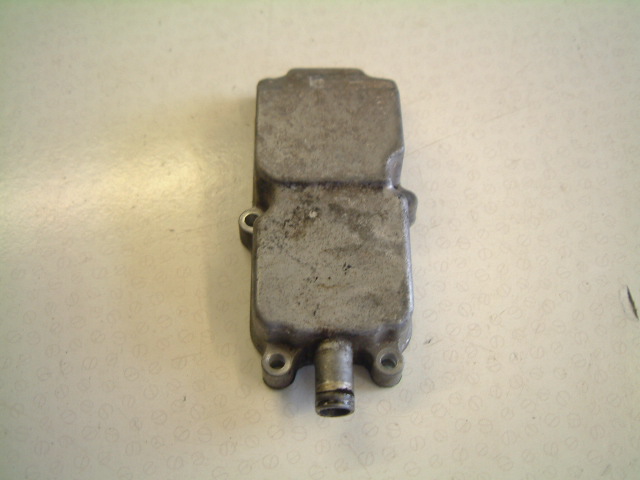

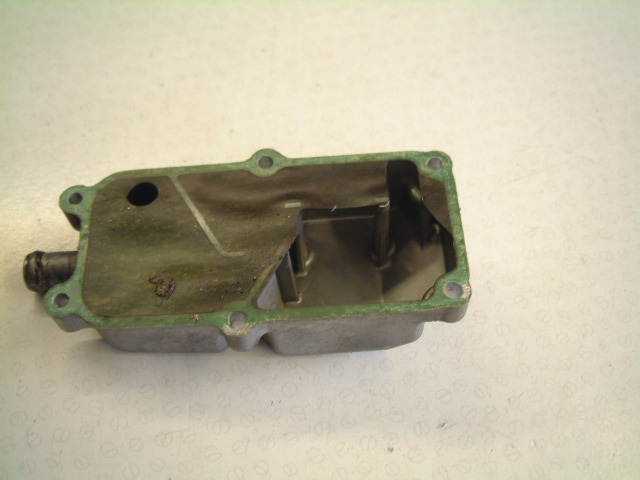

FL - 183 BREATHER CAP - GOOD. |
 |
 |

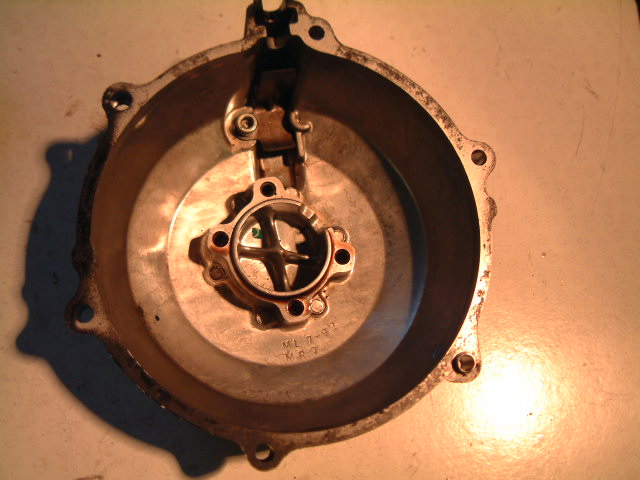

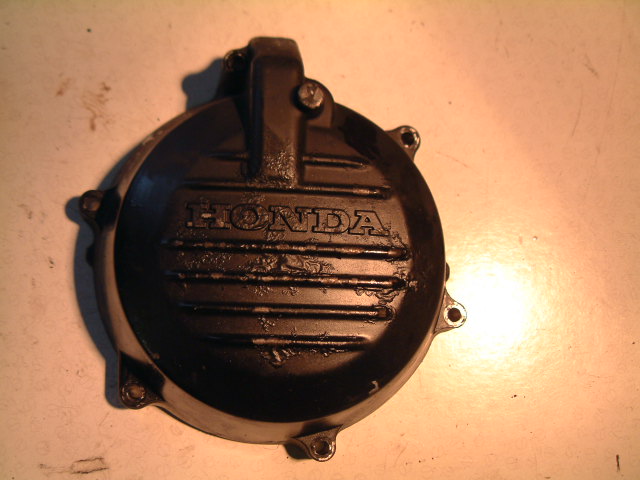

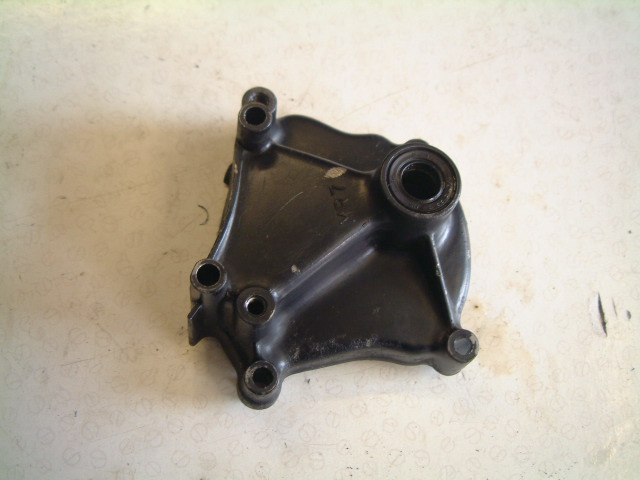

FL - 273 ALTERNATOR COVER - NO DAMAGE OR SRATCHES, BUT NEEDS SOME NEW PAINT. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

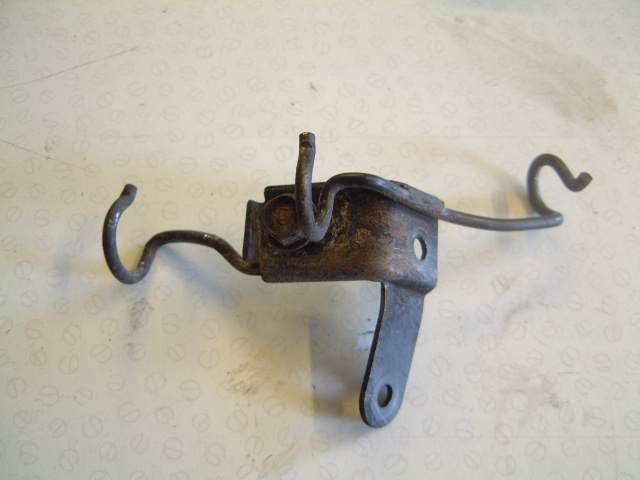

FL - 031 HORN AND FRONT BRAKE HOSE BRACKET - GOOD. |
 |

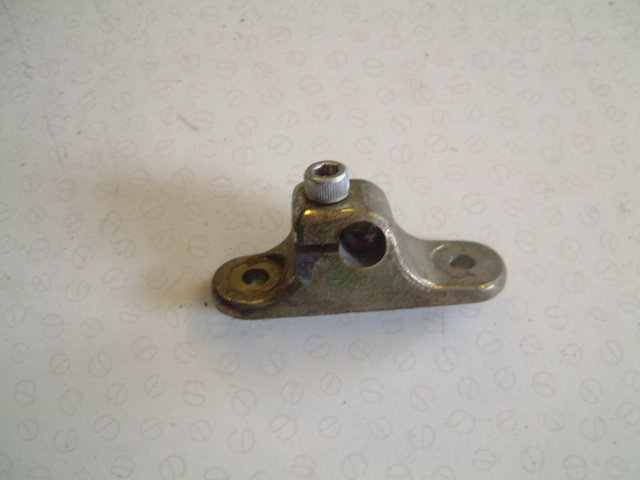

FL - 056 MIRROR CLAMP - GOOD. |
 |

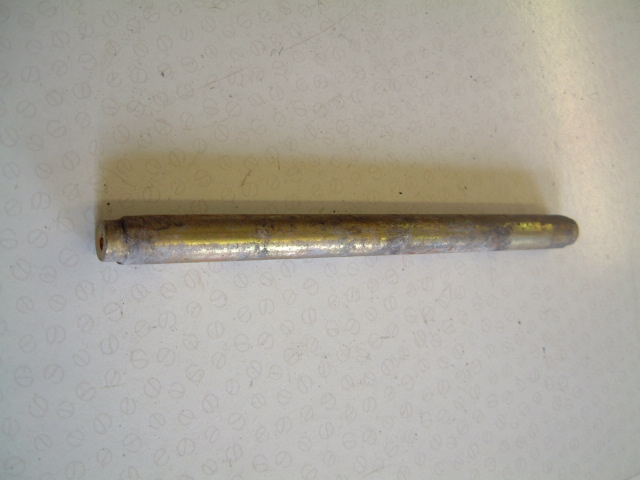

FL - 060 TUBE, THREADED EACH END - NOT SURE WHAT THIS IS FOR ? - THREADS GOOD. |
 |

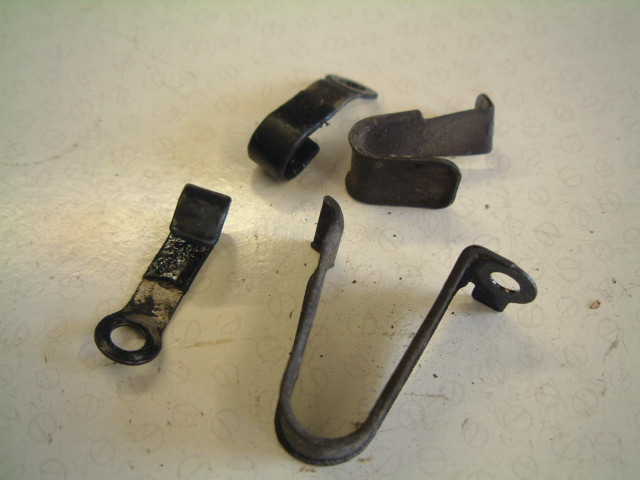

FL - 176 VARIOUS WIRING GUIDES - ALL SERVICEABLE. |
 |

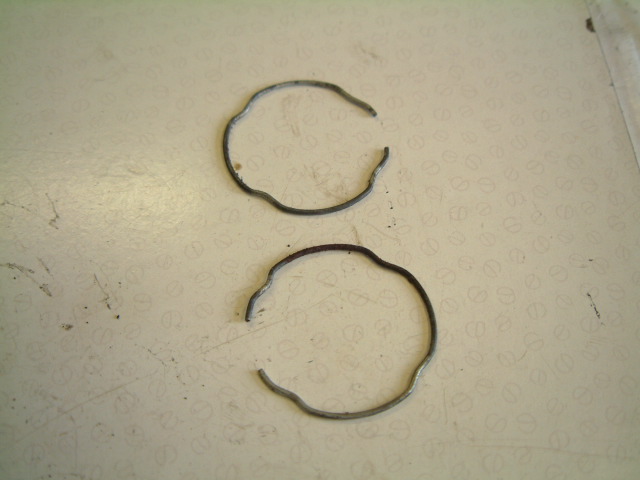

FL - 177 FORK SEAL RETAINING CLIPS - SERVICEABLE. |
 |

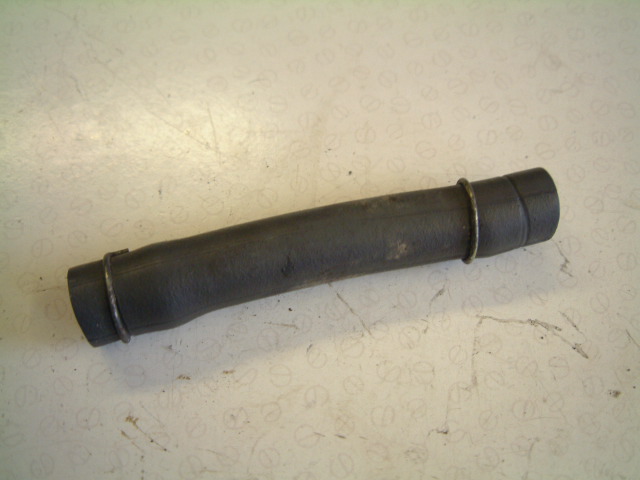

FL - 180 BREATHER PIPE & CLIPS FOR REAR CAM COVER - VERY GOOD. |
 |

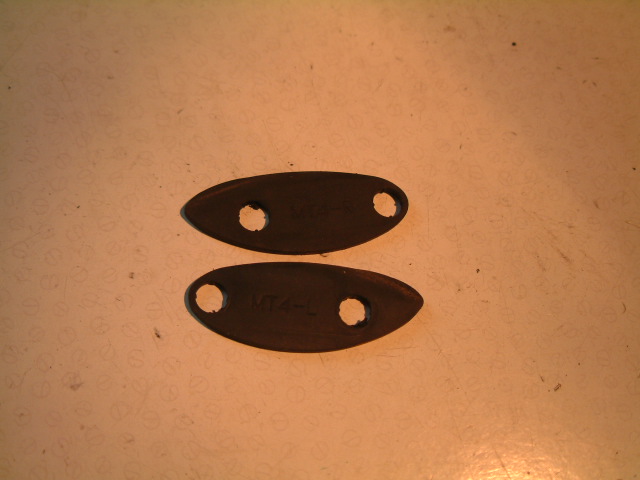

FL - 262 MIRROR MOUNT RUBBERS - GOOD, HAVE MT4-L AND MT4-R ON THEM. |
 |

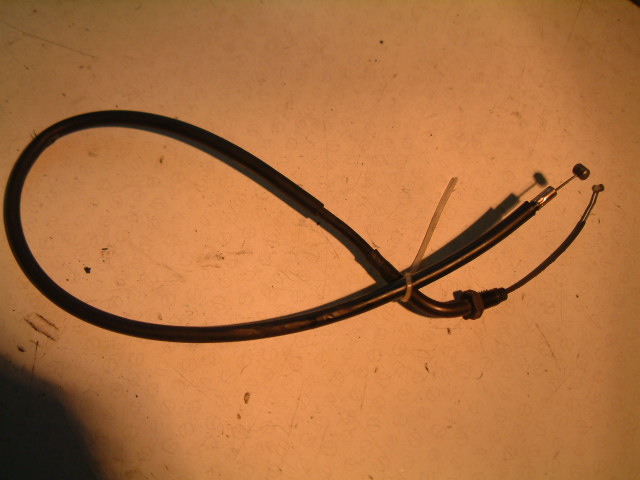

FL - 272 CHOKE CABLE - GOOD. |
