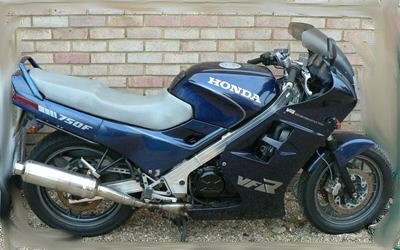

HI, MY NAME IS STEVE AND WELCOME TO MY HONDA VFR750 WEB PAGE. I HAVE BROKEN A 1986 VFR750FG (RC24) "D" REDG BIKE FOR SPARES. I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.
I HAVE ALSO ADDED SOME SPARES FROM A 1988/89 VFR750FJ BIKE
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 BRAKES AND CLUTCH - (LEVERS, CALIPERS, MASTER CYLINDERS & HOSES ETC). |
| 3 FUEL, AIR, COOLING & EXHAUST - (AIRBOX, FUEL TAP + CAP, RAD, HOSES ETC) |
| 4 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ENGINE BOLTS). |
| 5 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC). |
| 6 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| I HAVE ALSO BROKEN A VFR750-FL FOR SPARES, TO VIEW THESE PARTS THEN CLICK >> HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

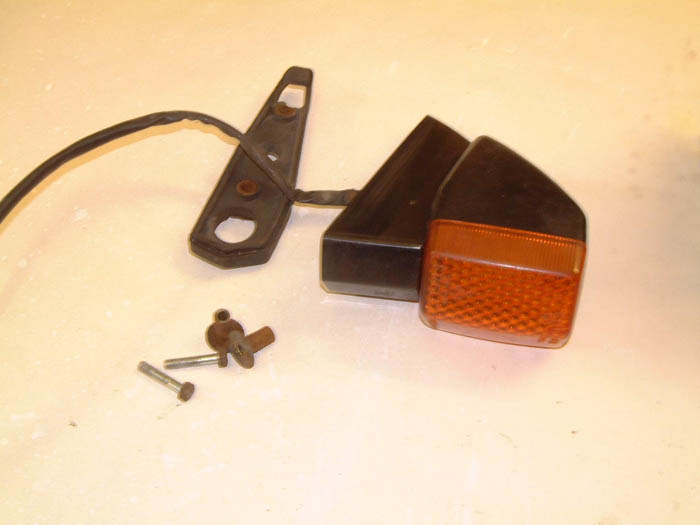

FJ - 201 REAR RIGHT HAND INDICATOR - GOOD & UNDAMAGED, FROM THE FJ 1988 MODEL. |
| BRAKE AND CLUTCH PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

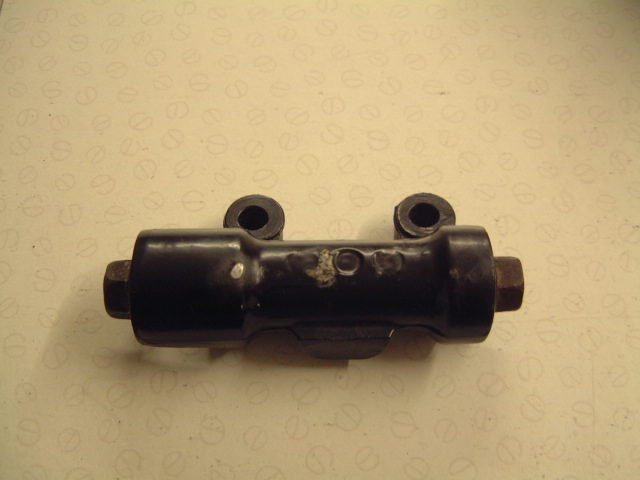

FG - 105 FRONT BRAKE "T" JOINT AND BANJO'S - VERY GOOD. |
||
 |

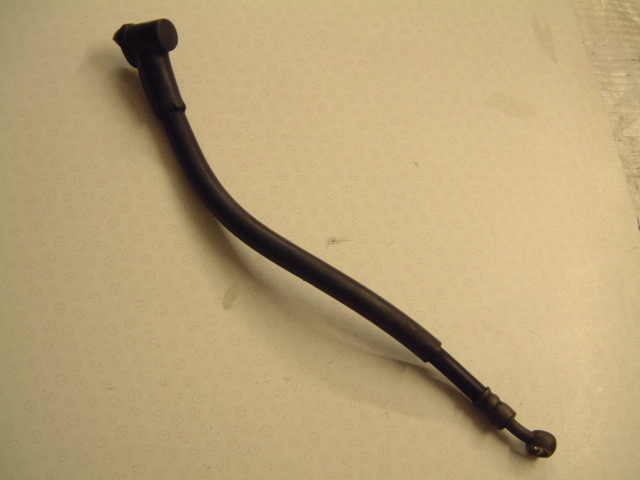

FG - 109 FRONT BRAKE HOSE FROM MASTER CYLINDER - VERY GOOD. |
 |

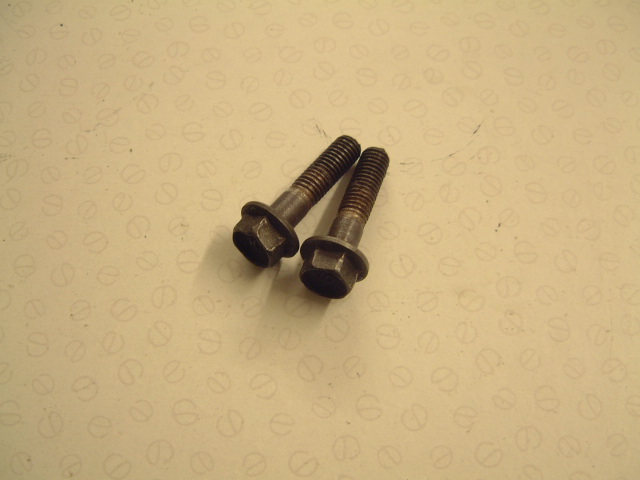

FG - 110 RHS FRONT BRAKE CALLIPER BOLTS - GOOD. |
 |

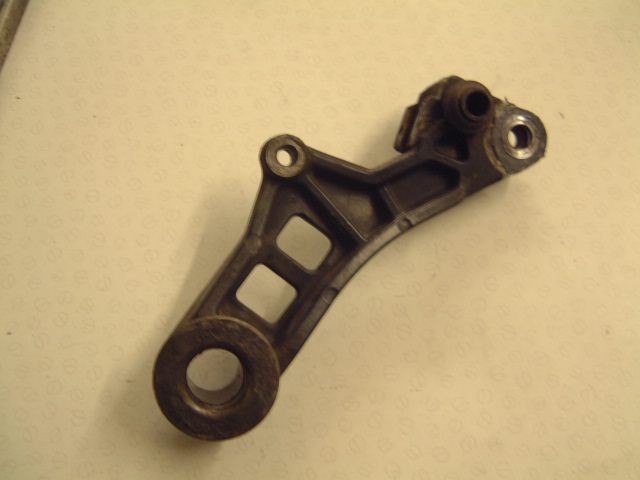

FG - 113 REAR BRAKE CALLIPER MOUNT - GOOD WITH GOOD RUBBER. |
 |

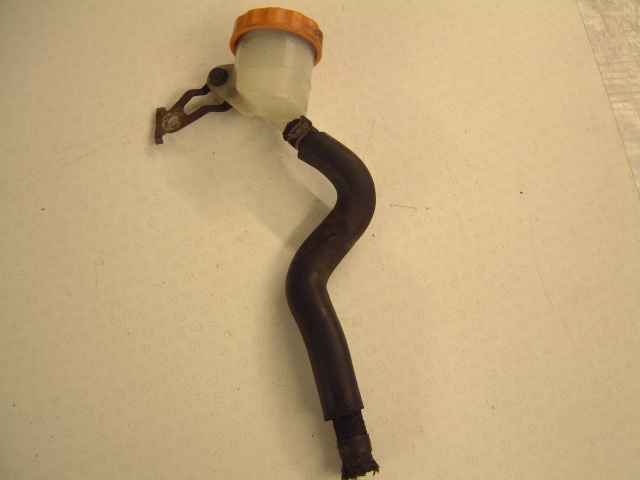

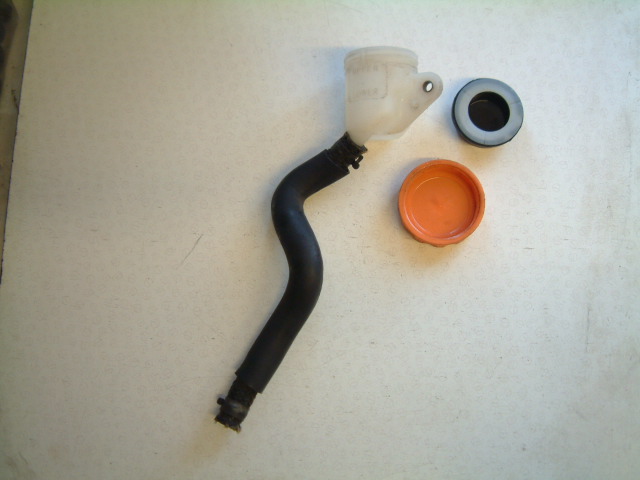

FG - 191 REAR BRAKE FLUID RESERVOIR AND HOSES - GOOD. |
 |

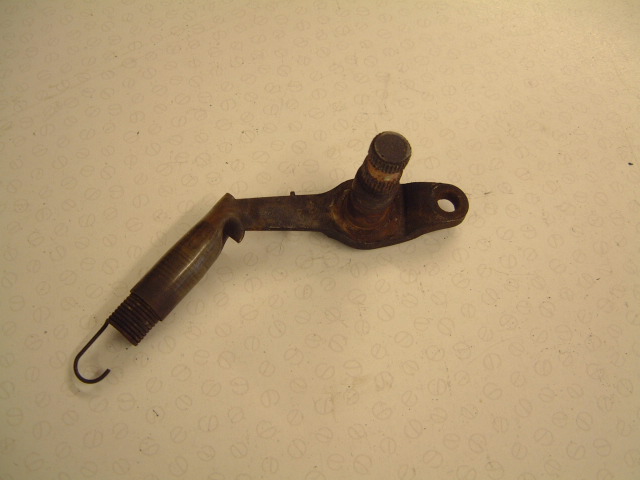

FG - 192 REAR BRAKE LEVER PIVOT & SPRING - GOOD. |
 |

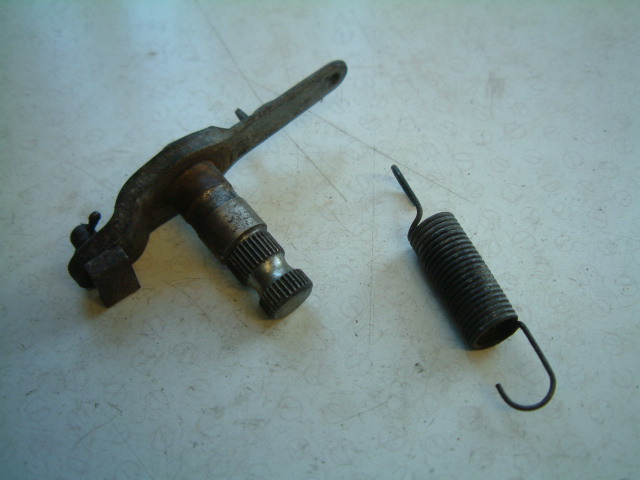

FJ - 024 REAR BRAKE PIVOT AND SPRING - VERY GOOD, SPLINES PERFECT. |
 |

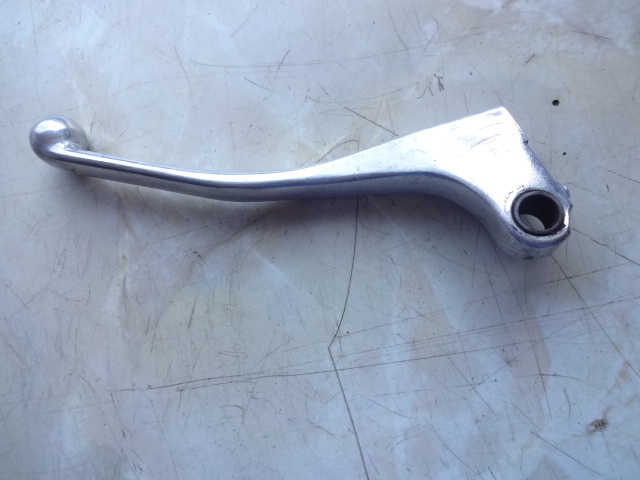

FJ - 027 CLUTCH LEVER - GOOD, VERY TINY SCUFF ON BALL. |
 |
FJ - 040 REAR FLUID CAP - GOOD. |
| FUEL, AIR, COOLING PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
FG - 009 AIR BOX MOUNT SCREWS AND LOCK RINGS - GOOD. |
 |

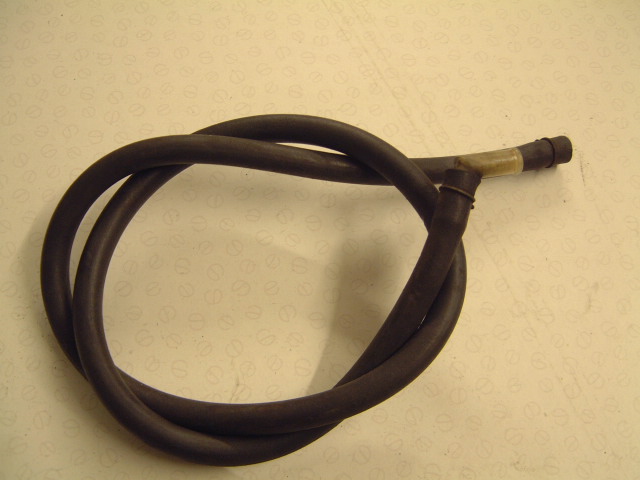

FG - 082 HOSE FROM COOLANT TANK TO RADIATOR BY FILLER CAP - VERY GOOD. |
 |
FG - 083 LHS BOTTOM RADIATOR BRACKET - VERY GOOD. |
 |

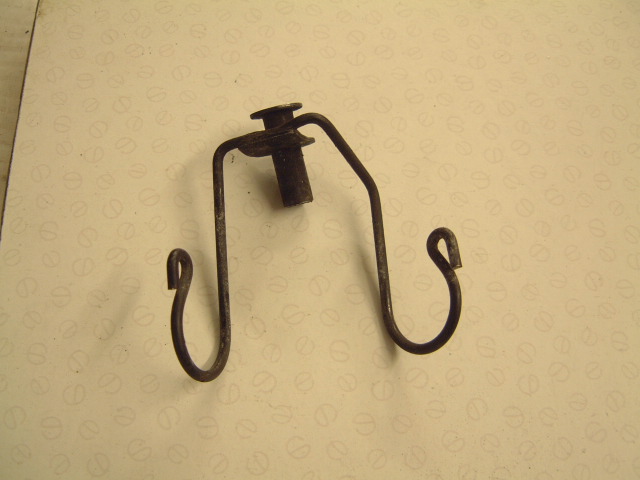

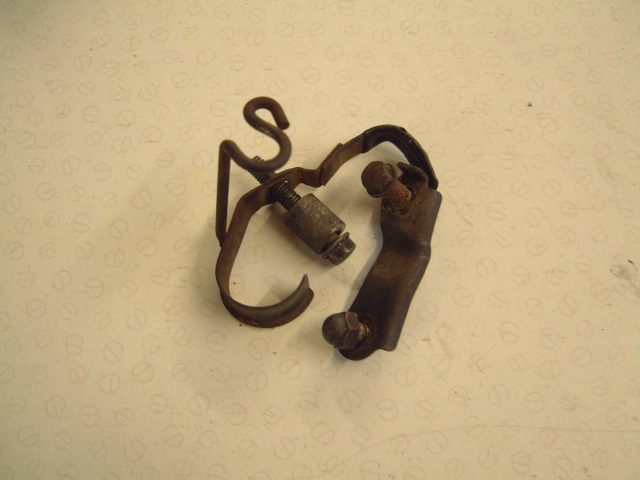

FG - 085 PIPE/HOSE GUIDE, FITS BY RADIATOR - GOOD. |
 |

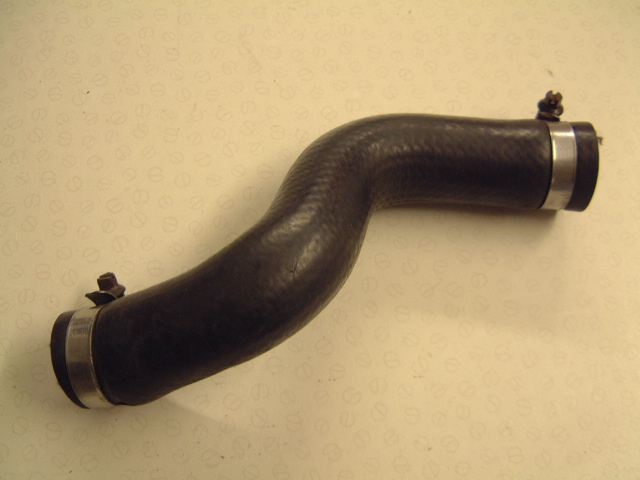

FG - 092 RHS HOSE FROM THERMOSTAT TO RADIATOR - VERY GOOD. |
 |

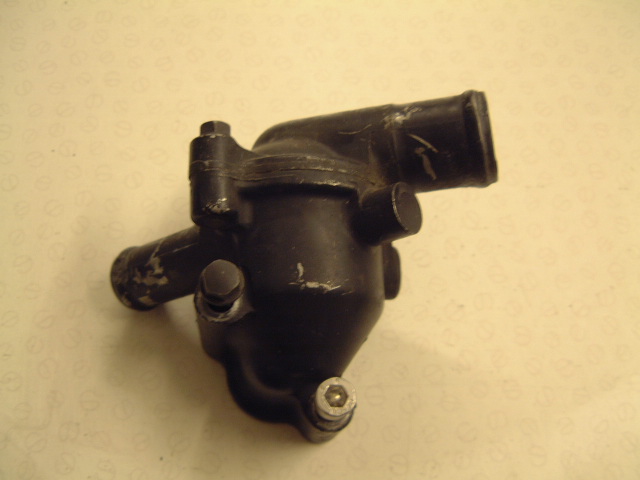

FG - 094 THERMOSTAT HOUSING - VERY GOOD, NO SIGNS OF CORROSION. |
 |

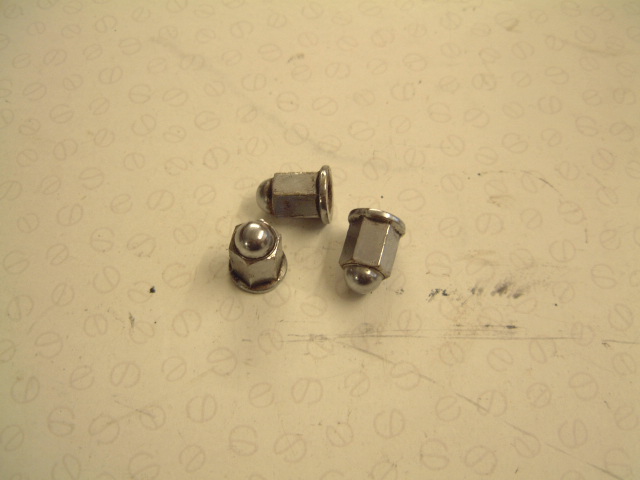

FG - 145 CHROME FRONT EXHAUST NUTS - 3 OF THE 4, ALL GOOD. |
 |

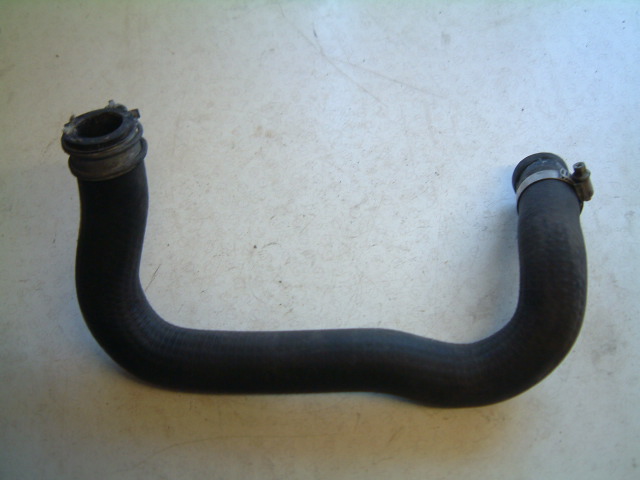

FJ - 035 COOLANT HOSE - GOOD. |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

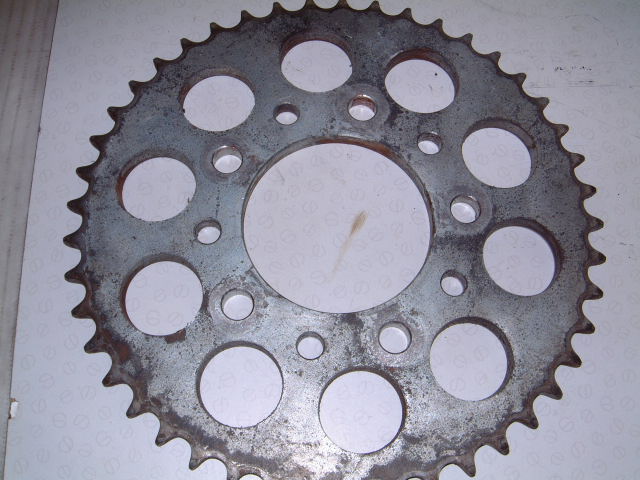

FG - 141 REAR SPROCKET - GOOD, LOTS OF LIFE LEFT. |
 |

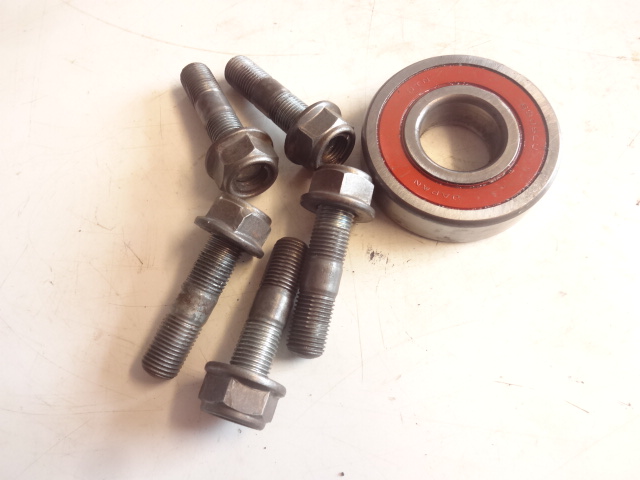

FG - 143 REAR SPROCKET PEGS & NUT & BEARING FROM REAR WHEEL HUB / SPROCKET CARRIER - VERY GOOD. |
 |

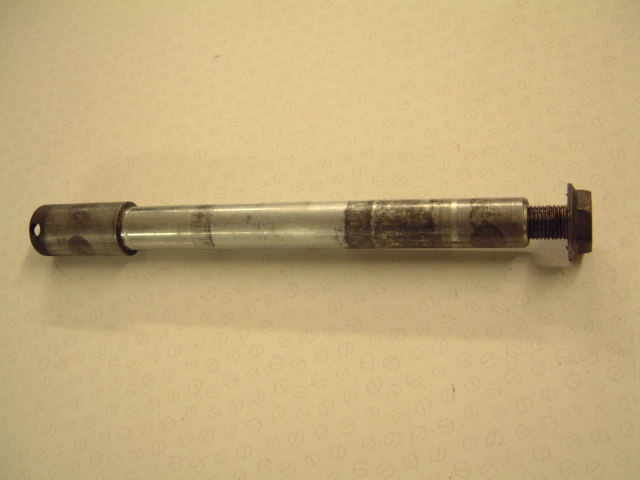

FG - 150 FRONT WHEEL SHAFT & NUT - GOOD. |
||
 |

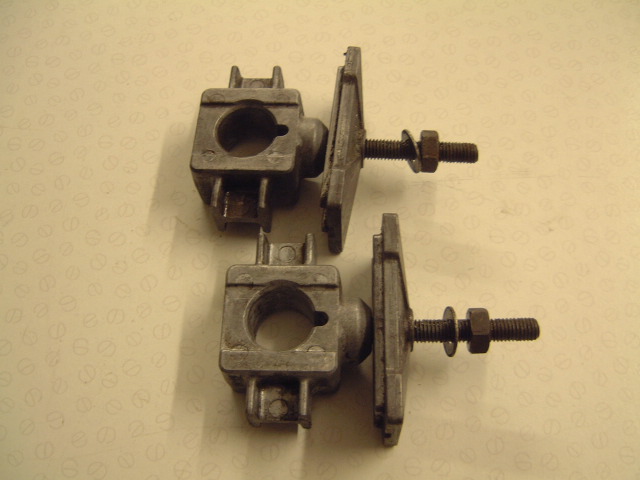

FG - 154 PAIR OF REAR WHEEL ADJUSTERS - GOOD, WILL SPLIT. |
 |

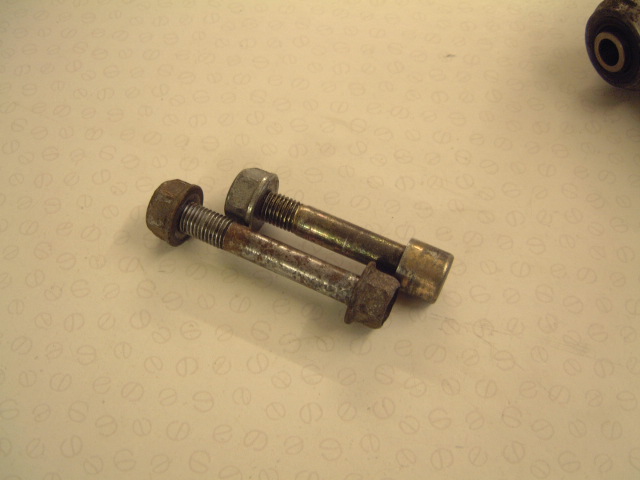

FG - 158 REAR MONO SHOCK BOLTS - TOP & BOTTOM, GOOD. |
 |

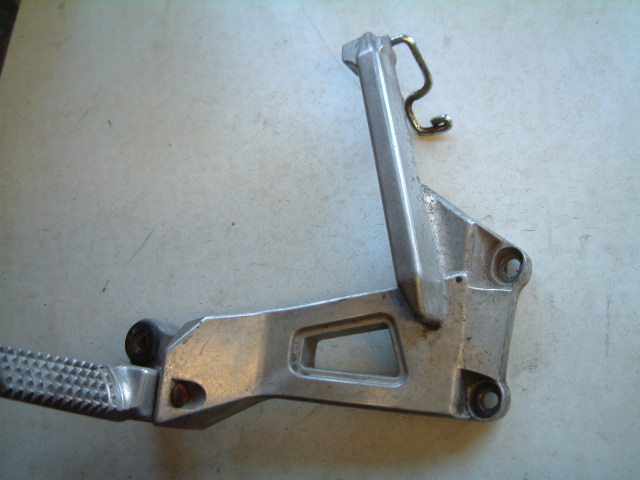

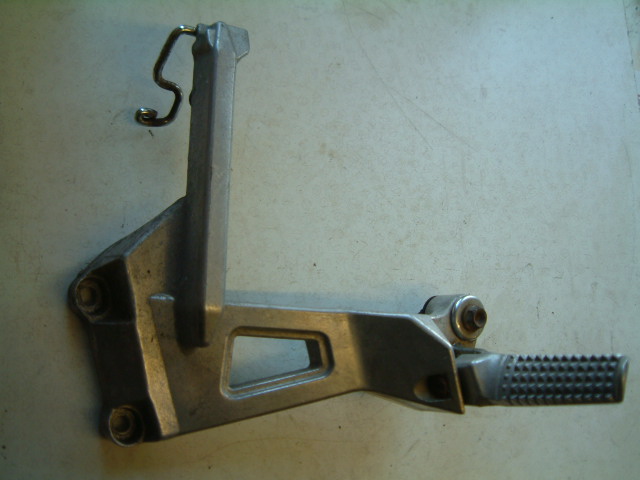

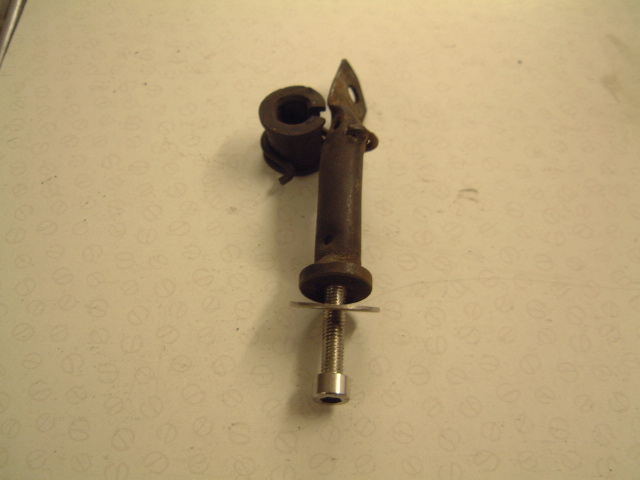

FJ - 021 FOOT REST MOUNT - VERY GOOD. |
 |
FJ - 022 FOOT REST MOUNT - VERY GOOD. |
 |

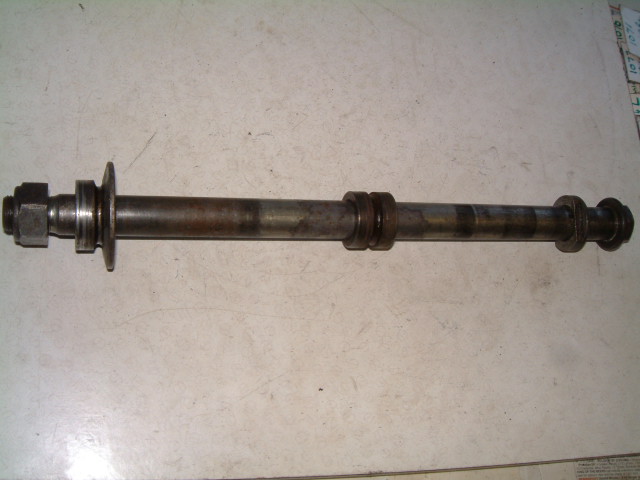

FJ - 034 SHAFT AND SPACERS - ALL SERVICEABLE. |
 |

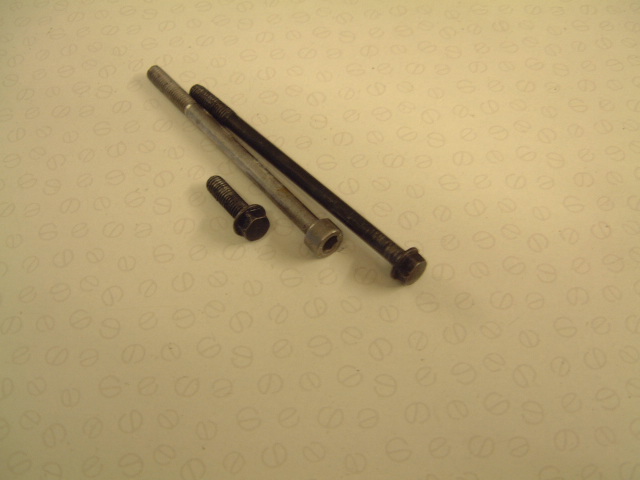

FG - 103 CLUTCH SLAVE CYLINDER BOLTS - GOOD. |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

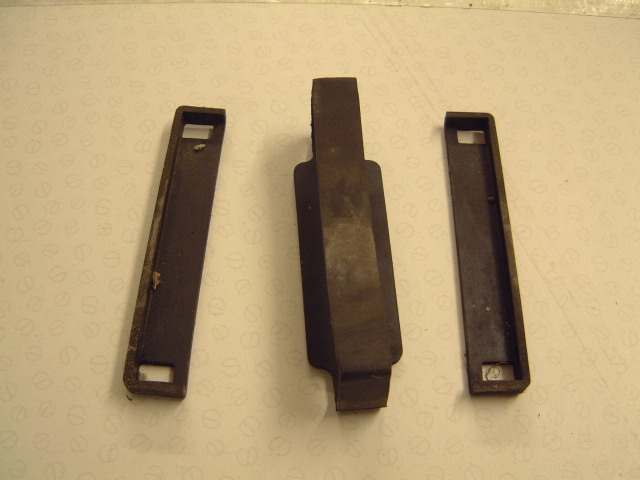

FG - 019 MOUNTING RUBBER PARTS FOR THE ELECTRONIC UNIT WITH PART NUMBER 131800-002 ML7 - VERY GOOD. |
 |

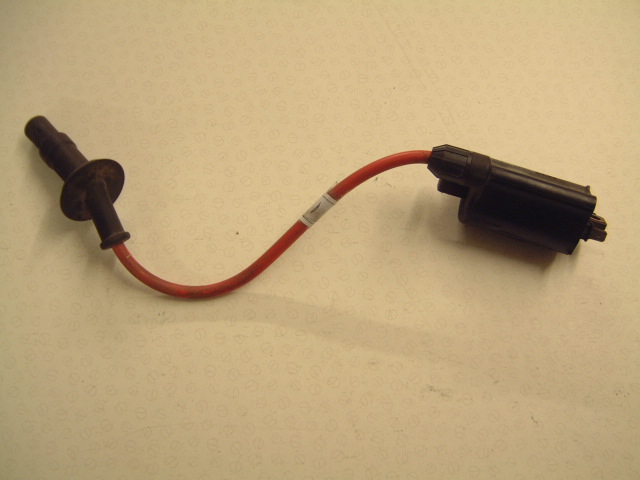

FG - 027 COIL FROM NUMBER 1 CYLINDER (rear left) - WORKING. |
 |

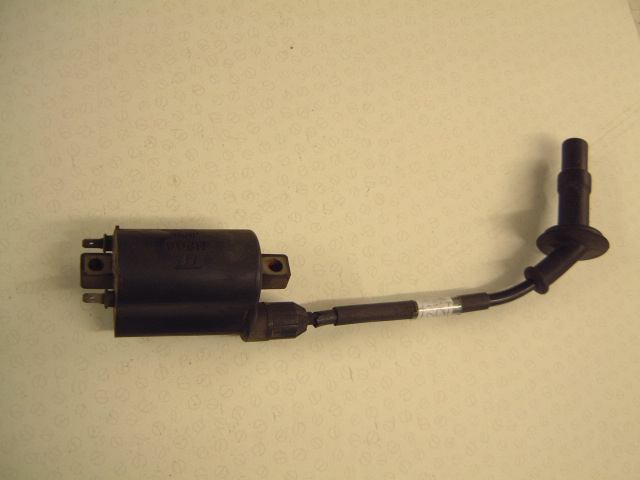

FG - 033 COIL FROM NUMBER 3 CYLINDER (rear right) - WORKING. |
 |

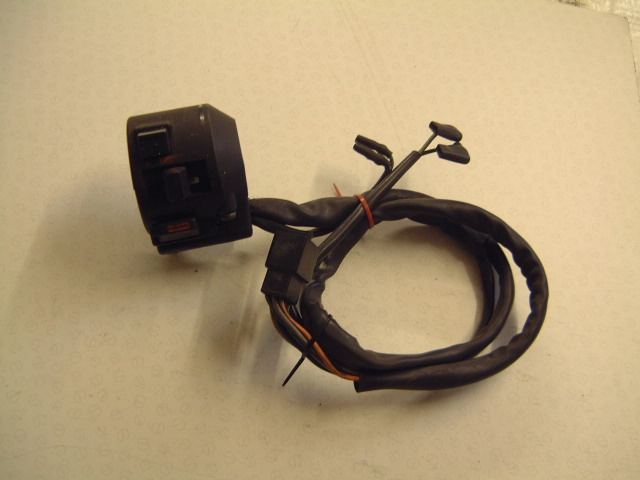

FG - 041 LHS SWITCHGEAR - VERY GOOD, FULLY TESTED & WIRING EXCELLENT. |
 |

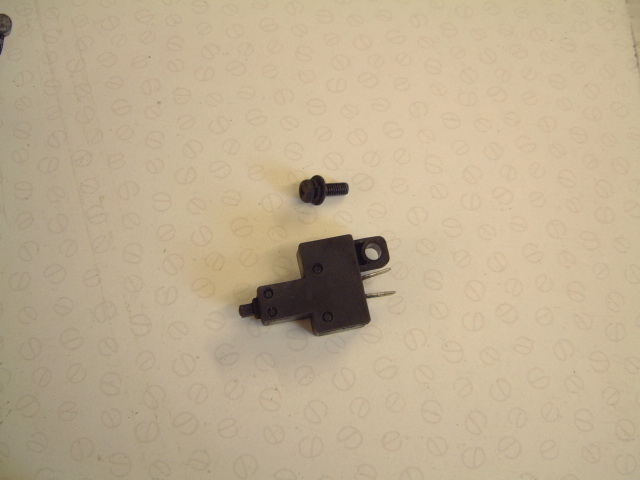

FG - 044 CLUTCH SWITCH - TESTED. |
 |

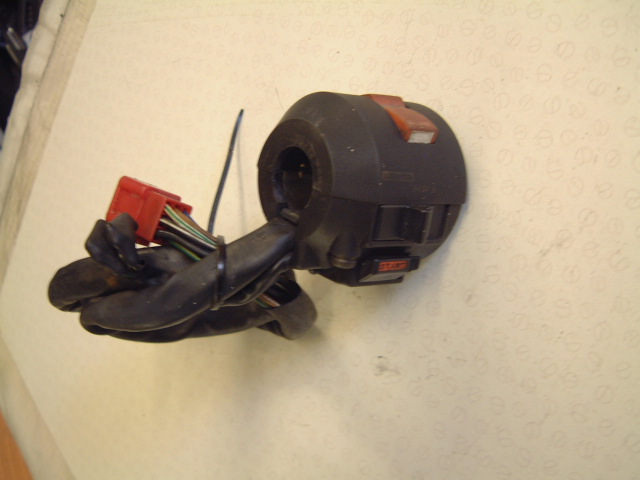

FG - 049 RHS SWITCHGEAR - VERY GOOD, FULLY TESTED & WIRING EXCELLENT. |
 |

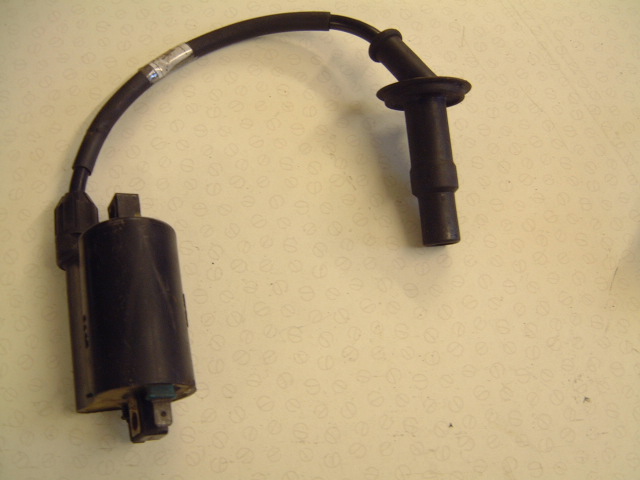

FG - 053 COIL FROM NUMBER 4 CYLINDER (front right) - WORKING. |
 |

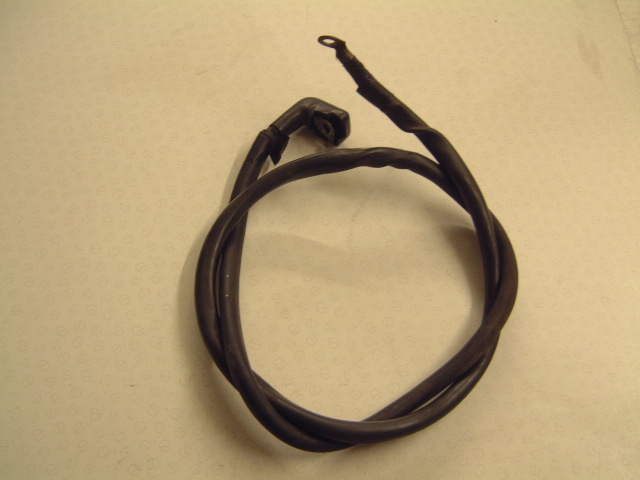

FG - 112 STARTER MOTOR LEAD - VERY GOOD. |
 |

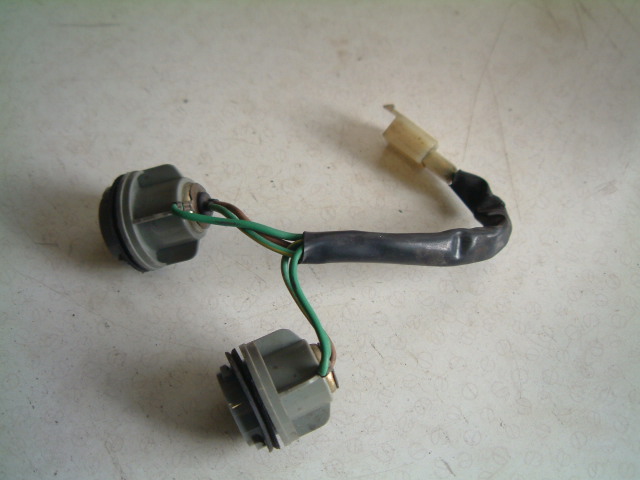

FJ - 003 TAIL LIGHT LOOM - VERY GOOD. |
 |

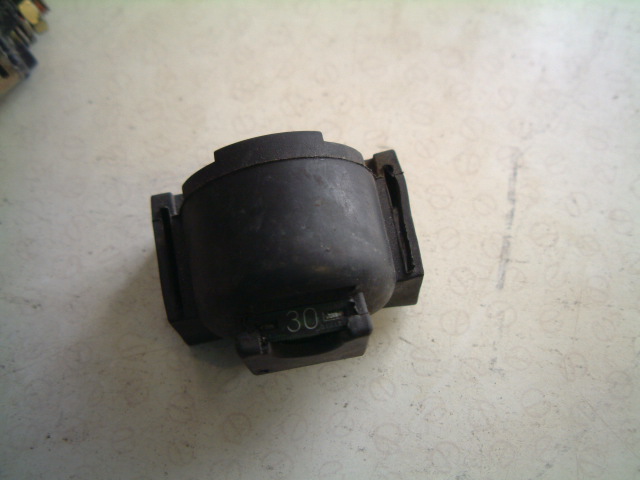

FJ - 005 SOLENOID CUP AND SPARE FUSE HOLDER - GOOD. |
 |

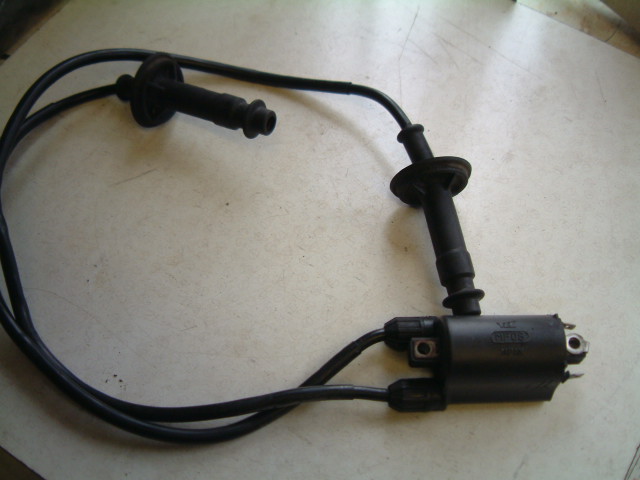

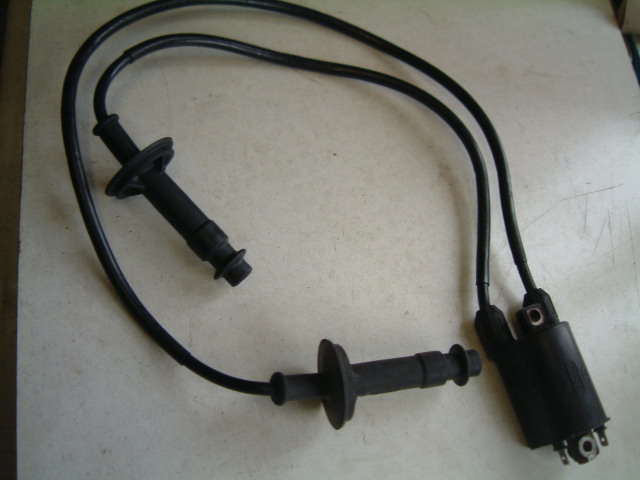

FJ - 006 IGNITION COILS AND CAPS FOR CYLINDERS 2 & 3 - VERY GOOD, BENCH TESTED. |
 |
FJ - 007 IGNITION COILS AND CAPS FOR CYLINDERS 1 & 4 - VERY GOOD, BENCH TESTED. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

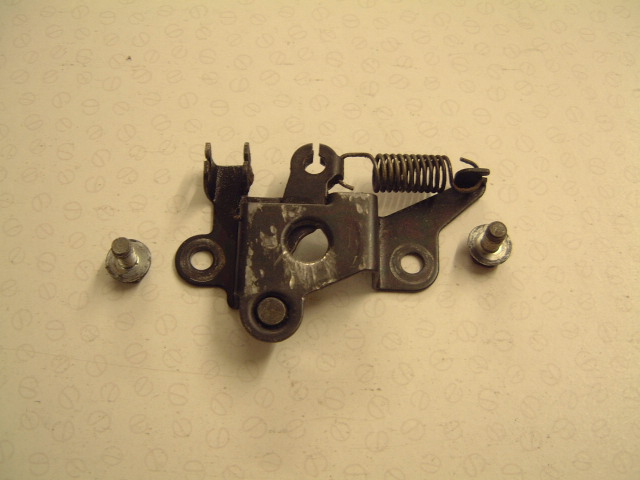

FG - 017 SEAT CATCH - VERY GOOD. |
 |

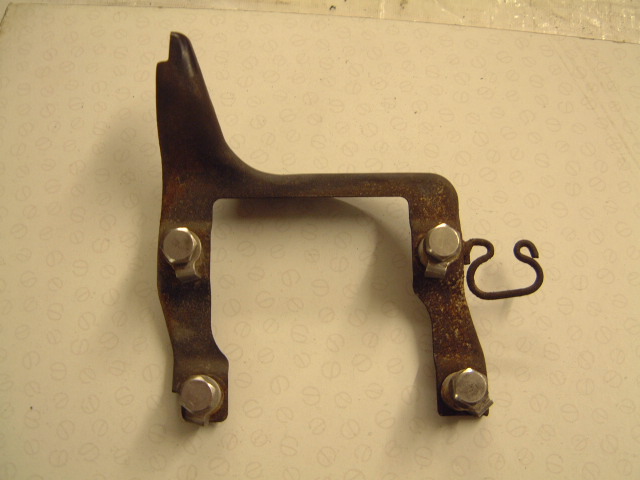

FG - 026 REAR COILS MOUNTING BRACKET & BOLTS & EARTH CONNECTORS - ALL GOOD. |
 |

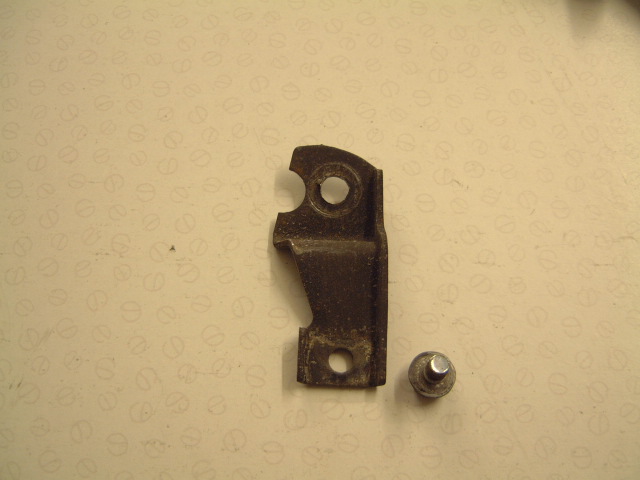

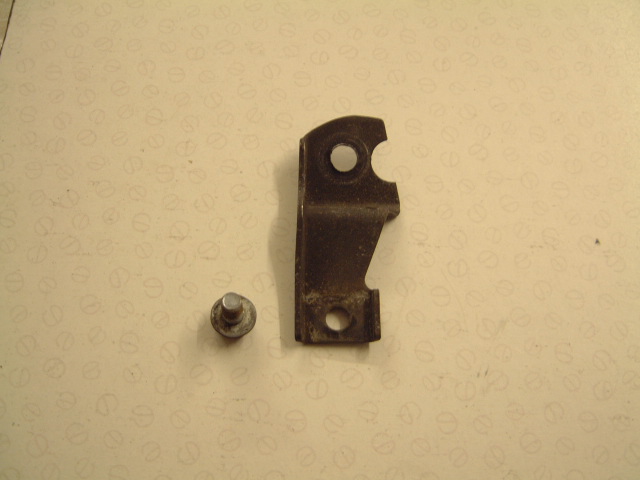

FG - 031 LHS FRONT INDICATOR BRACKET - GOOD. |
 |
FG - 032 RHS FRONT INDICATOR BRACKET - GOOD. |
 |

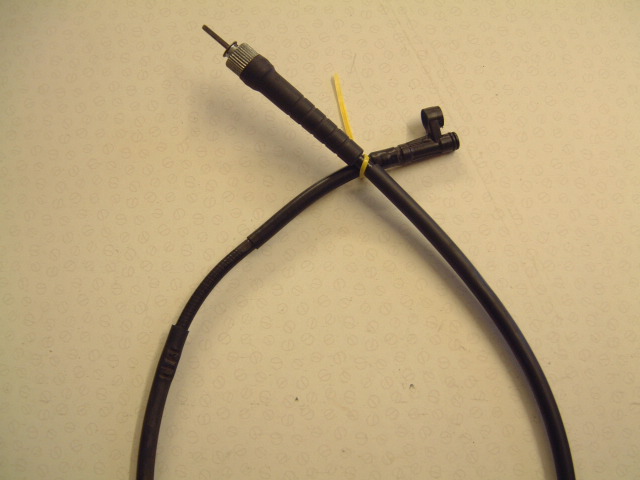

FG - 040 SPEEDO CABLE - VERY GOOD. |
||
 |

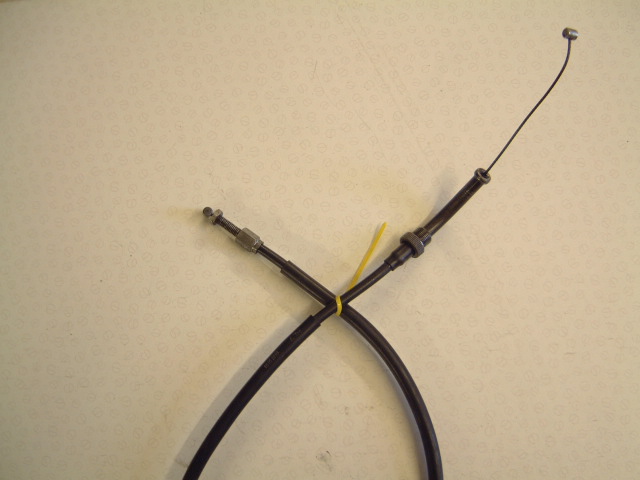

FG - 046 THROTTLE CABLE - OPEN - VERY GOOD. |
 |

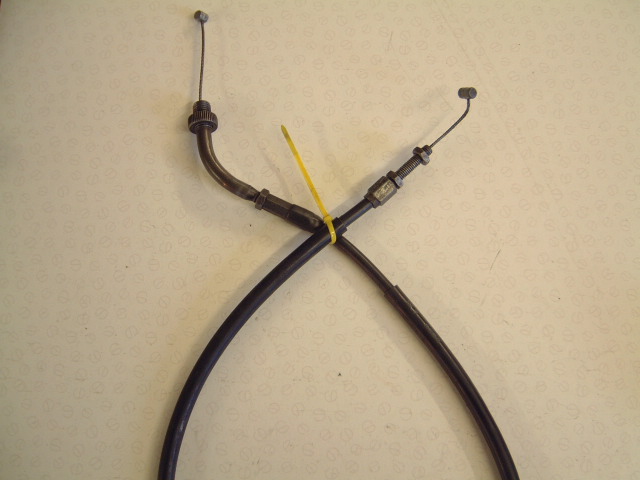

FG - 047 THROTTLE CABLE - CLOSE - VERY GOOD. |
 |
FG - 050 FRONT LHS COIL 2 MOUNTING BRACKET - GOOD. |
 |
FG - 052 FRONT RHS COIL 4 MOUNTING BRACKET - GOOD. |
 |

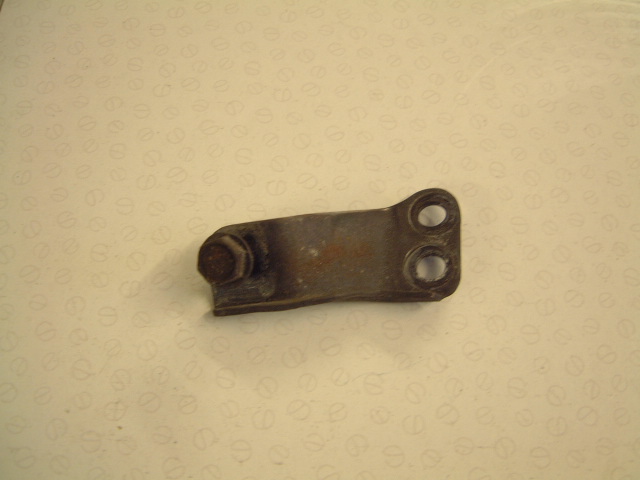

FG - 056 HORN BRACKET - GOOD. |
 |

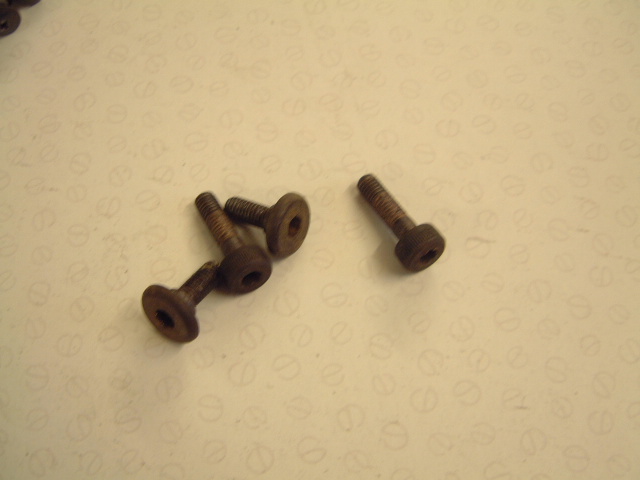

FG - 060 FRONT MUDGUARD ALLEN SCREWS - ALL GOOD. |
 |

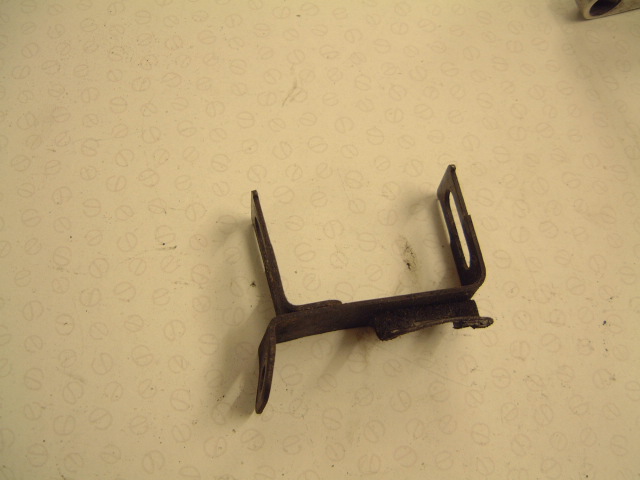

FG - 072 FUEL PUMP BRACKET - GOOD. |
 |
FG - 097 LHS HOSE GUIDE, FITS BETWEEN WATER PUMP AND RADIATOR - VERY GOOD. |
 |

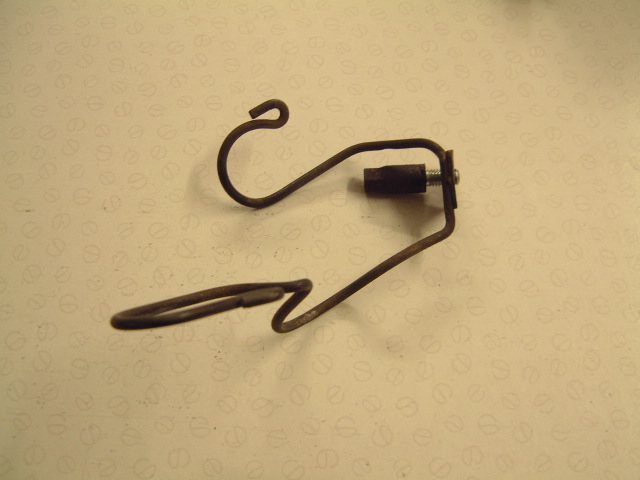

FG - 099 RHS OIL PIPE GUIDE TO OIL COOLER - VERY GOOD. |
 |

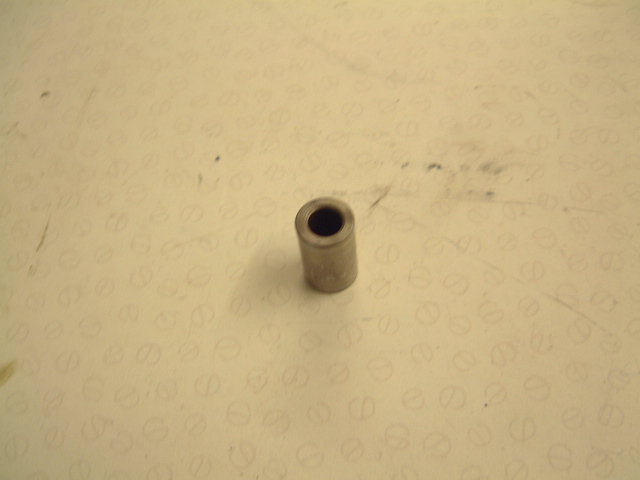

FG - 147 UNKNOWN SPACER ? - VERY GOOD. |
 |

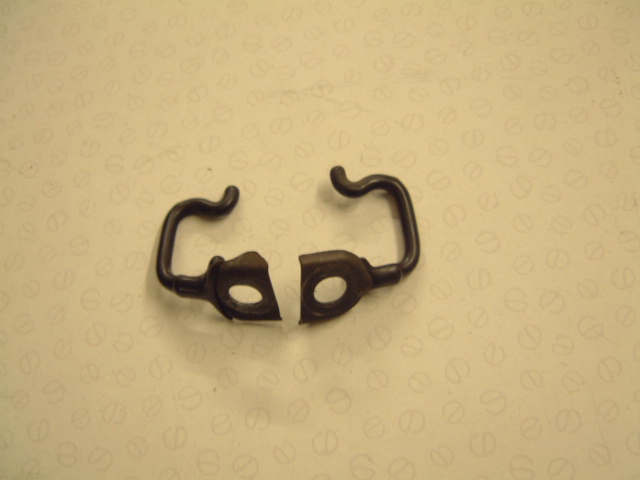

FG - 151 PAIR OF CABLE GUIDES THAT FIT ON THE TOP YOKES - VERY GOOD. |
 |

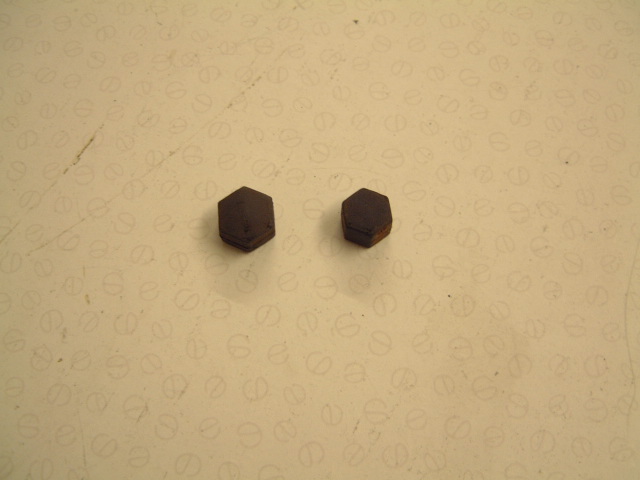

FG - 181 RUBBER INSERTS FOR THE SWING ARM BOLTS (one each side) - VERY GOOD. |
 |

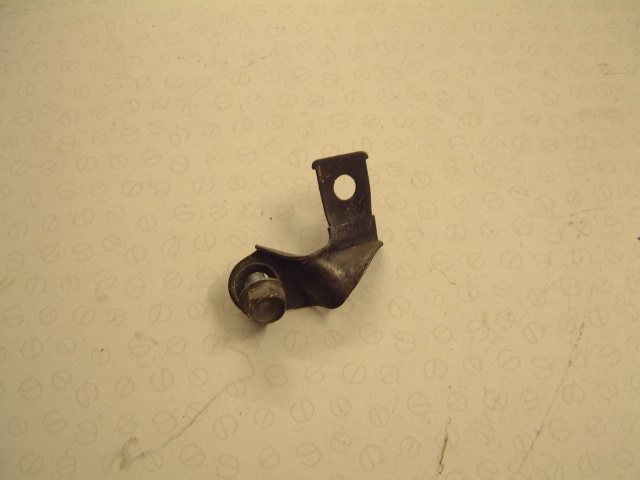

FG - 182 RELAY BRACKET - GOOD. |
 |

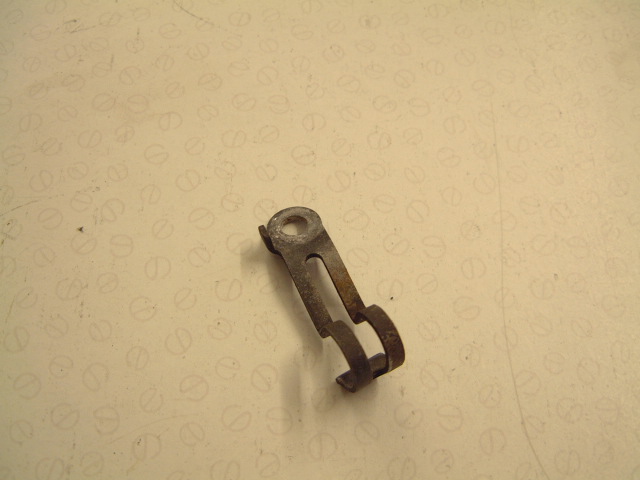

FG - 183 CABLE GUIDE/HOLDER - GOOD. |
 |

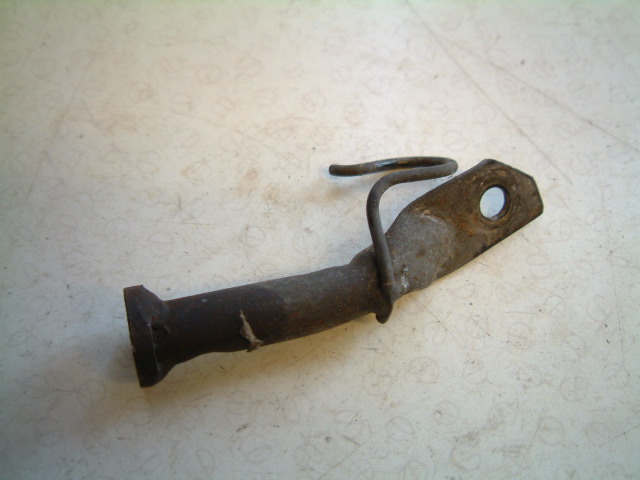

FJ - 029 BRACKET FROM OIL COOLER PIPE - GOOD, NOT SURE WHICH SIDE. |
||
 |
FJ - 030 OTHER BRACKET FROM OIL COOLER PIPE - GOOD, NOT SURE WHICH SIDE. |
 |

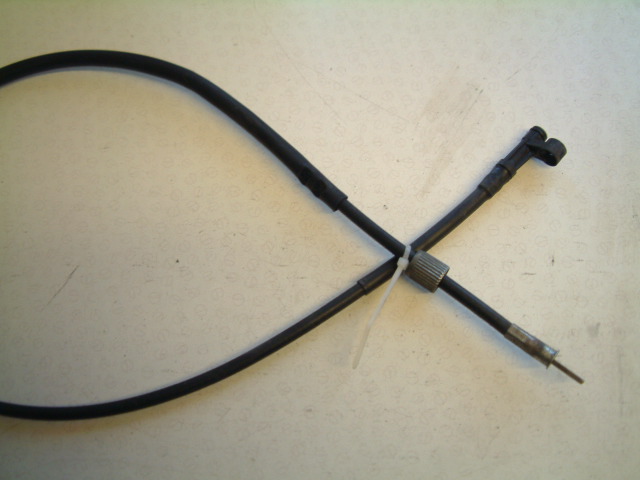

FJ - 043 SPEEDO CABLE - GOOD, MARKED AS " ML7-920-87 ". |
