HI, MY NAME IS STEVE AND WELCOME TO MY HONDA VF400F WEB PAGE. I HAVE BROKEN TWO 1984 VF400's FOR SPARES. I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.
bike 1: FRAME NUMBER = NC13-2002742 ~ ENGINE NUMBER = NC13E-2002749 |
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC). |
| 3 FUEL, AIR, COOLING & EXHAUST - (AIRBOX, FUEL TAP + CAP, RAD, HOSES ETC) |
| 4 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC). |
| 5 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC). |
| 6 ENGINE - (ENGINE AND GEARBOX PARTS). |
| 7 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| TO VIEW SOME VF500F PARTS I HAVE CLICK HERE --->>> HERE |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
 |
VF400F - 248 GRAB RAIL - UNDAMAGED, COULD USE A REPAINT OR POLISH. |
 |
 |
 |
VF400F - 413 TAIL LIGHT - GOOD, NO DAMAGE, MARKED AS STANLEY HM-67RC. |
 |
 |
 |
VF400F - 345 FRONT MUDGUARD - GOOD, NO DAMAGE OR SPLITS, WITH BRACE, NEEDS PAINTING. |
 |
 |
 |
VF400F - 354 INNER REAR MUDGUARD - ALL GOOD. |
| BRAKE AND CLUTCH PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
VF400F - 036 REAR BRAKE PIVOT - GOOD INCLUDING SPLINES. |
 |
VF400F - 306 REAR BRAKE FLUID CONTAINER - VERY GOOD. |
 |
VF400F - 039 REAR BRAKE MASTER ALLEN SCREWS - VERY GOOD. |
||
 |
VF400F - 142 CLUTCH PIPE - GOOD. |
 |
VF400F - 305 REAR BRAKE PIVOT - GOOD, SPLINES ALL OK. |
 |
VF400F - 360 CLUTCH PIPE - GOOD, NO PERISHING OR ROT, JOINTS HAVE SOME SURFACE RUST. |
 |
VF400F - 379 REAR BRAKE PIPE - GOOD, NO PERISHING. |
| FUEL, AIR, COOLING PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
VF400F - 012 RESERVE COOLANT TANK - GOOD. |
 |
VF400F - 018 RHS RADIATOR SIDE TRIM - VERY GOOD. |
 |
VF400F - 021 RADIATOR MOUNTING - SERVICEABLE. |
 |
VF400F - 029 SMALL COOLANT TANK - GOOD. |
 |
VF400F - 041 METAL COOLANT PIPES - GOOD, NEED A CLEAN UP. |
 |
VF400F - 060 RADIATOR CAP MOUNT - GOOD. |
 |
VF400F - 363 SMALL COOLANT TANK - VERY GOOD. |
 |
VF400F - 365 COOLANT PIPE FROM TOP OF REAR HEAD - GOOD. |
 |
VF400F - 366 COOLANT PIPE FROM TOP OF FRONT HEAD - GOOD. |
 |
VF400F - 376 EXHAUST DOWNPIPE CLAMPS - 1 LEFT, - OK. |
 |
 |
VF400F - 318B THROTTLE TUBE - GOOD |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
VF400F - 015 TOP YOKE - GOOD, NO DAMAGE, THREADS OK. |
 |
VF400F - 034 SWINGING ARM BOLT - GOOD. |
 |
VF400F - 052 SIDE STAND - GOOD, SPRING INCLUDED (not in pic). |
 |
VF400F - 079 SUSPENSION LINKAGE - GOOD. |
 |
VF400F - 104 SHOCK BOLTS - SERVICEABLE. |
 |
VF400F - 138 REAR WHEEL ADJUSTERS - SERVICEABLE BUT VERY TATTY. |
 |
VF400F - 167 BEARING RINGS FROM THE FRAME - GOOD. |
 |
VF400F - 249 LEFT SIDE LIFTING RAIL - GOOD. |
 |
VF400F - 250 RIGHT SIDE LIFTING RAIL - GOOD. |
 |
VF400F - 317 FRAME TUBE / RAIL - GOOD. NEEDS PAINT. |
 |
VF400F - 369 SIDE STAND & FIXINGS - GOOD, NEEDS PAINT. |
 |
VF400F - 383 REAR SHOCK BOLTS - GOOD. |
 |
 |
VF400F - 263 RIGHT HANDLE BAR - STRAIGHT, NEEDS PAINT. |
 |
 |
VF400F - 268 FRONT WHEEL CENTRE - GOOD. |
 |
 |
VF400F - 386 REAR WHEEL SHAFT & SPACERS - ALL SERVICEABLE, FINISH TATTY. |
 |
 |
 |
VF400F - 244 FRONT & REAR FOOTREST ETC FROM RIGHT FOOTREST HANGER / BRACKET - GOOD . |
 |
 |
 |

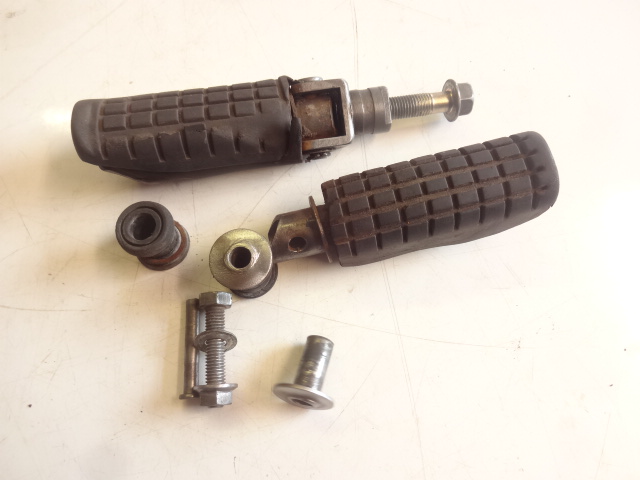

VF400F - 245 FRONT & REAR FOOTREST ETC FROM LEFT FOOTREST HANGER / BRACKET - GOOD . |
 |
 |
 |
 |
VF400F - 241 YOKE SET - ALL GOOD, DIAMETER 35mm WITH DISTANCE BETWEEN CENTRES = 172mm. |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
VF400F - 066 REAR BRAKE LIGHT SWITCH - WORKING. |
 |
VF400F - 132 ALTERNATOR COILS - CIRCUIT TESTED. |
 |
VF400F - 149 NEUTRAL SWITCH - WORKING. |
 |
VF400F - 150 OIL SWITCH - WORKING. |
 |
VF400F - 151 EARTH LEAD - GOOD. |
 |
VF400F - 262 PAIR OF BATTERY LEADS - GOOD. |
 |
VF400F - 265 COIL WIRING - GOOD. |
 |
VF400F - 320 STARTER MOTOR LEAD - GOOD. |
 |
VF400F - 336 SOLENOID RUBBER & FUSE - GOOD. |
 |
VF400F - 359 CLUTCH SWITCH - TESTED OK. |
| ENGINE, CLUTCH, GEARBOX PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
VF400F - 055 PAIR OF CAM COVER GASKETS - GOOD. |
 |
VF400F - 078 METAL OIL PIPES - SOLID AND SERVICEABLE. |
 |
VF400F - 085 VARIOUS ENGINE BOLTS - ALL SERVICEABLE.(THE TWO LONG BOLTS HAVE BEEN SOLD). |
 |
VF400F - 094 SEAL PLATE - GOOD. |
 |
VF400F - 095 OIL PICK-UP - GOOD. |
 |
VF400F - 096 IDLER GEAR - VERY GOOD. |
 |
VF400F - 098 OIL PUMP - ENGINE INTERNALS ALL OK. |
 |
VF400F - 106 CAMCHAIN GUIDES - GOOD. |
 |
VF400F - 112 GEAR - VERY GOOD. |
 |
VF400F - 113 ENGINE BOLTS SET - ALL SERVICEABLE. NOTE: 1 BOLT SOLD. |
 |
VF400F - 120 OIL FEED PIPES - GOOD. |
 |
VF400F - 122 BANJOE BOLTS FOR OIL PIPE TO HEAD - GOOD. |
 |
VF400F - 123 BOLT FROM STARTER CLUTCH I THINK - VERY GOOD. |
 |
VF400F - 129 CLUTCH PUSH ROD - STRAIGHT. |
 |
VF400F - 144 SELECTOR FORKS - VERY GOOD. |
 |
VF400F - 145 SELECTOR DRUM ETC - VERY GOOD. |
 |
VF400F - 146 GEAR CHANGE SHAFT AND GEARS ETC - VERY GOOD. |
 |
VF400F - 147 CAM GUIDES - SERVICEABLE. |
 |
VF400F - 148 PISTONS & RODS - GOOD UNMARKED PISTONS WITH ALL RINGS. |
 |
VF400F - 155 INPUT SHAFT AND GEARS - VERY GOOD, NO DAMAGED TEETH ETC. |
 |
VF400F - 280 OUTPUT SHAFT AND GEARS - VERY GOOD, NO DAMAGED TEETH ETC. |
||
 |
VF400F - 158 CRANKCASE BOLTS - ALL SERVICEABLE. |
 |
VF400F - 170 VALVES SPRINGS ETC ETC - ALL GOOD, WILL SPLIT. |
 |
VF400F - 171 ROCKERS / CAM FOLLOWERS - SOME VERY GOOD, SOME MARKED, ALL SERVICEABLE. |
 |
VF400F - 271 SPACER FROM BEHIND THE CLUTCH - VERY GOOD. |
 |
VF400F - 272 CONRODS - GOOD, 2X REAR, 1 FRONT - WILL SEPARATE. |
 |
VF400F - 277 STARTER GEAR & PINION - VERY GOOD. |
 |
VF400F - 285 CAMGUIDE LOCATOR - VERY GOOD. |
 |
VF400F - 288 OIL PUMP DRIVE CHAIN ETC - ALL LOOKS GOOD. |
 |
VF400F - 289 PRIMARY GEAR - VERY GOOD. |
 |
VF400F - 290 CAM COVER BOLTS - NICE CHROME, THREADS OK. |
 |
VF400F - 291 FRONT HEAD CAM CHAIN GUIDE - GOOD. |
 |
VF400F - 292 REAR HEAD CAM CHAIN GUIDE - GOOD. |
 |
VF400F - 293A VARIOUS OIL PUMP PARTS - GOOD. |
 |
VF400F - 301 SUMP BOLT SET - GOOD. |
 |
VF400F - 307 ROTOR BOLT - VERY GOOD. |
 |
VF400F - 326 CLUTCH CASING BOLTS & WIRE GUIDES - GOOD. |
 |
VF400F - 327 CLUTCH PUSH ROD - GOOD. |
 |
VF400F - 328 VARIOUS ENGINE ODD PARTS - ALL GOOD, WILL SPLIT. |
 |
 |
VF400F - 054 SUMP / OIL PAN - GOOD, NO DAMAGE, BOTH THREADS OK. |
 |
 |
VF400F - 119 CAMCHAIN GUIDES - SERVICEABLE. |
 |
 |
VF400F - 124 CAMSHAFT CLAMPS - ALL GOOD, NONE SCORED OR WORN, (TWO NOW SOLD). |
 |
 |
VF400F - 125 COMPLETE CLUTCH - ALL LOOKS OK, WILL SELL COMPLETE OR SPLIT. |
 |
 |
VF400F - 173 INLET VALVES - GOOD. I HAVE 3 LEFT. |
 |
 |
VF400F - 174 EXHAUST VALVES - GOOD. I HAVE 2 LEFT. |
 |
 |
VF400F - 270 CLUTCH COMPLETE - ALL LOOKS VERY GOOD. |
 |
 |
VF400F - 276 STARTER CLUTCH - VERY GOOD |
 |
 |
VF400F - 281 FRONT HEAD COMPLETE WITH CAM CLAMPS + ROCKERS - ALL GOOD, BIKE RAN FINE (VALVES REMOVED). |
 |
 |
VF400F - 282 REAR HEAD COMPLETE WITH CAM CLAMPS + ROCKERS - ALL GOOD, BIKE RAN FINE (VALVES REMOVED). |
 |
 |
VF400F - 325 ROTOR - VERY GOOD. |
 |
 |
VF400F - 346 ENGINE SPROCKET COVER - GOOD, NO DAMAGE, PAINT TATTY. |
 |
 |
 |
VF400F - 116 FRONT EXHUAST CAMSHAFT - SOME LIGHT MARKS BUT VERY SERVICEABLE. |
 |
 |
 |
VF400F - 117 REAR EXHAUST CAMSHAFT - SOME LIGHT MARKS BUT VERY SERVICEABLE. |
 |
 |
 |
VF400F - 118 REAR INLET CAMSHAFT - GOOD. |
 |
 |
 |
VF400F - 294 ALTERNATOR COVER - HAS A FEW LIGHT MARKS BUT STILL VERY SERVICEABLE. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
VF400F - 020 BATTERY TRAY - GOOD. |
 |
VF400F - 063 PLASTIC COVER - GOOD, NOT SURE WHERE FROM ?. |
 |
VF400F - 071 COIL MOUNTING BRACKET - SERVICEABLE, THREADS ALL OK. |
 |
VF400F - 072 UNKNOWN BRACKET - SERVICEABLE. |
 |
VF400F - 073 UNKNOWN BRACKET - SERVICEABLE. |
 |
VF400F - 077 PLASTIC COVER - GOOD, NOT SURE WHERE FROM ?. |
 |
VF400F - 082 SPACER - SERVICEABLE. |
 |
VF400F - 084 PAIR OF SPACERS - GOOD. |
 |
VF400F - 087 PAIR OF LOWER SIDE PANEL RUBBERS - GOOD. |
 |
VF400F - 101 CHROME HEAD ALLEN SCREWS X4 - GOOD. |
 |
VF400F - 255 COIL MOUNTING BRACKET - GOOD. |
||
 |
VF400F - 257 ELECTRICS MOUNTING BRACKET - GOOD. |
 |
VF400F - 347 CDI RETAINING CLAMP - GOOD. |
 |
VF400F - 351 PLASTIC COIL COVER - GOOD. |
 |
VF400F - 353 BATTERY BOX - GOOD. |
 |
VF400F - 378 BRACKET - CAN'T REMEBER WHERE FROM - GOOD, WITH RUBBERS. |
 |
VF400F - 384 VARIOUS LEFTOVERS - WILL SPLIT. |
 |
VF400F - 410 SOME VARIOUS MOUNTING RUBBERS. - GOOD. |
 |
VF400F - 411 SEAT CATCH - FOR SPARES, IT HAS A BROKEN PLASTIC BIT. |
