Used KAWASAKI GPZ750R Spares

Emails to: GPZ750R@STEVESBIKEPARTS.CO.UK

BOOKMARK / SAVE THIS PAGE (Ctrl D )

HI, MY NAME IS STEVE AND WELCOME TO MY KAWASAKI GPZ750 WEB PAGE.
I HAVE BROKEN A 1986 GPZ750R "B"REDG BIKE FOR SPARES.
I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS
TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT.
I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART.

IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS THEN PLEASE USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE.
I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.

FRAME NUMBER = ZX750G-0018XX ~ ENGINE NUMBER = ZX750GE-0021XX
MODEL ZX750G = GPZ750R YEAR 1986 ~ "B" REDG.

JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS:

1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC).

2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC).

3 FUEL, EXHAUST, AIR AND COOLING - (CARBS & INTAKE, RADIATOR & HOSES ETC).

4 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC).

5 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC).

6 ENGINE AND GEARBOX PARTS -

7 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC).

ANCILLARY PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

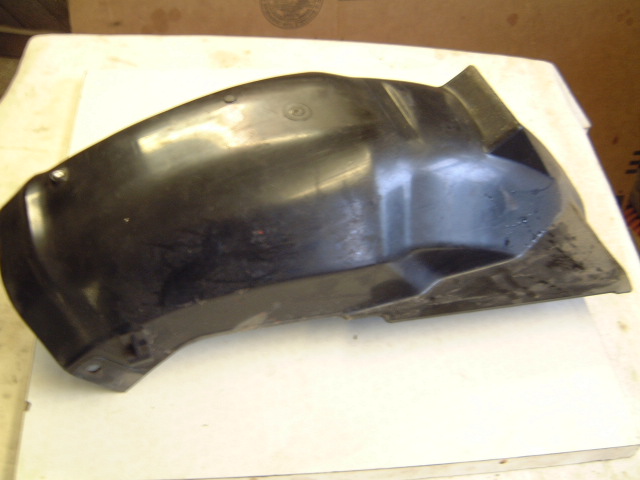

750R - 086
INNER REAR MUDGUARD - VERY GOOD, NO DAMAGE.

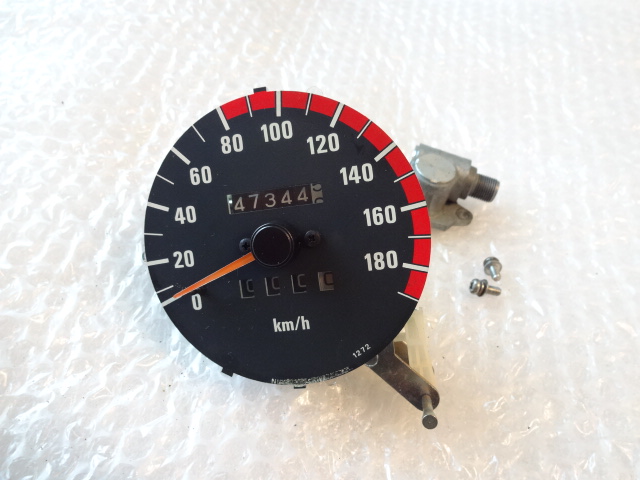

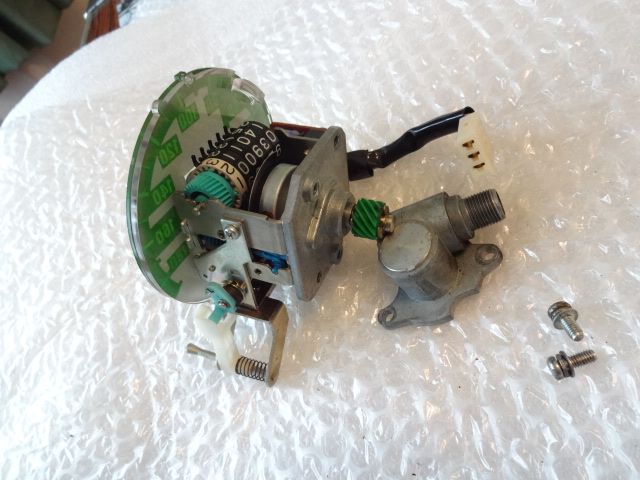

750R - 287

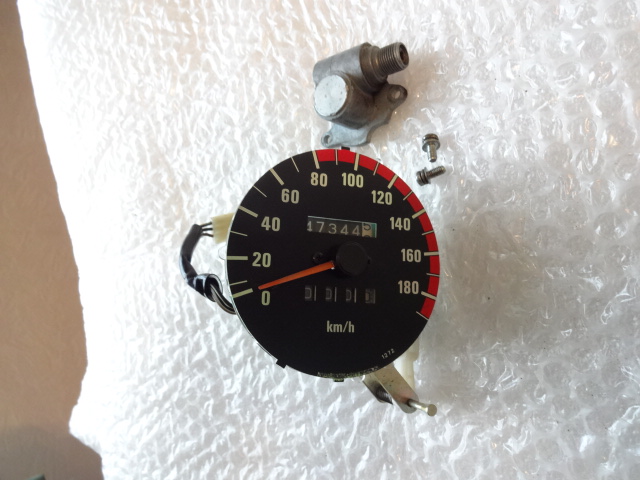

SPEEDO KM/H - VERY GOOD WORKING ORDER.

BRAKE AND CLUTCH PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

750R - 071

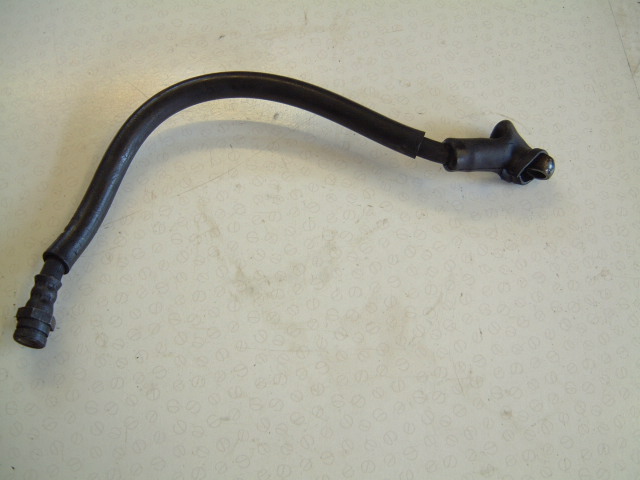

CLUTCH LEVER - VERY GOOD, NO DAMAGE. 750R - 100
CLUTCH HOSE FROM MASTER CYLINDER - VERY GOOD, NO PERISHING.

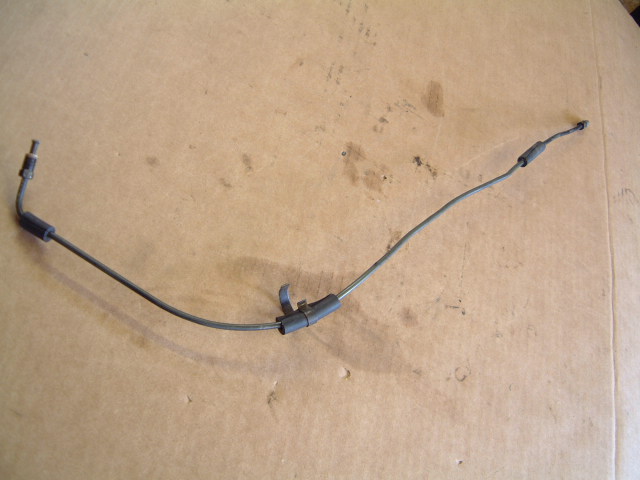

750R - 101

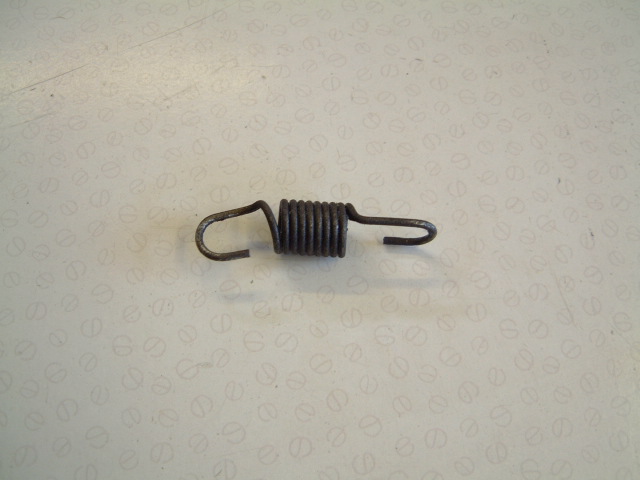

CLUTCH METAL HOSE - VERY GOOD, NO CORROSION. 750R - 116
REAR BRAKE LEVER SPRING - GOOD.

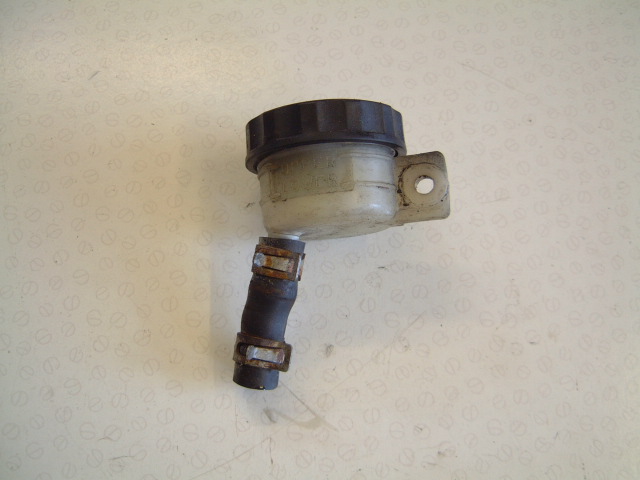

750R - 122

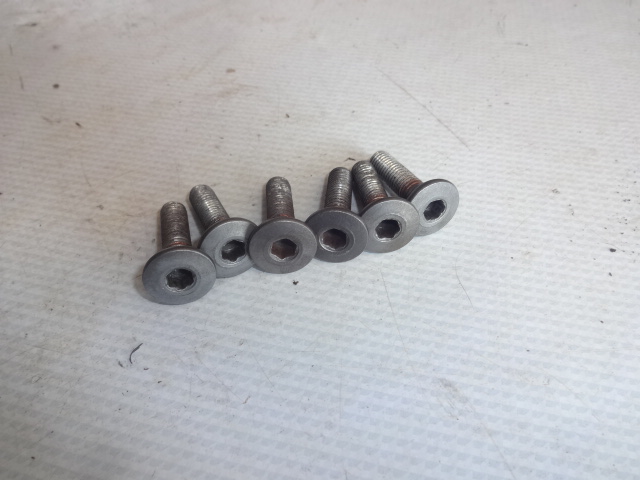

REAR BRAKE RESERVOIR - GOOD. 750R - 217
FRONT DISC BOLTS - ALL GOOD.

FUEL, AIR, COOLING PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

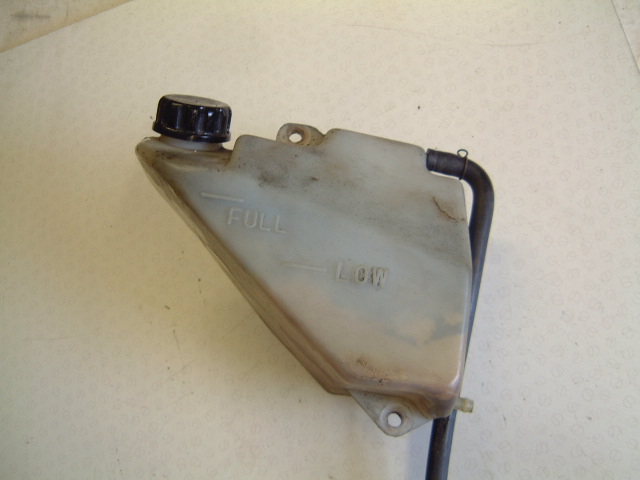

750R - 066

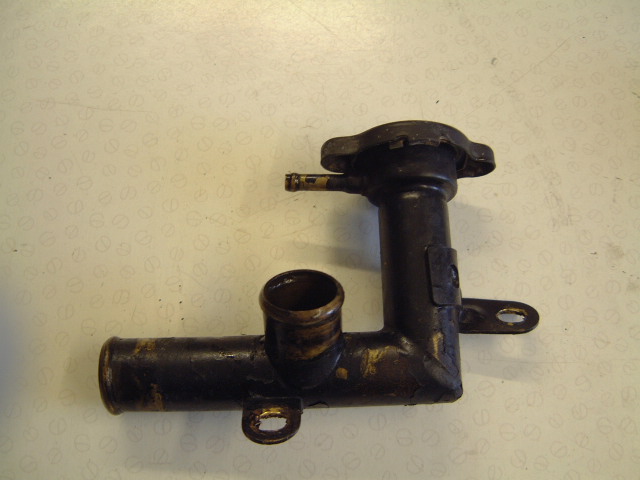

COOLANT TANK - VERY GOOD. 750R - 079
RADIATOR CAP MOUNT - VERY GOOD.
750R - 127

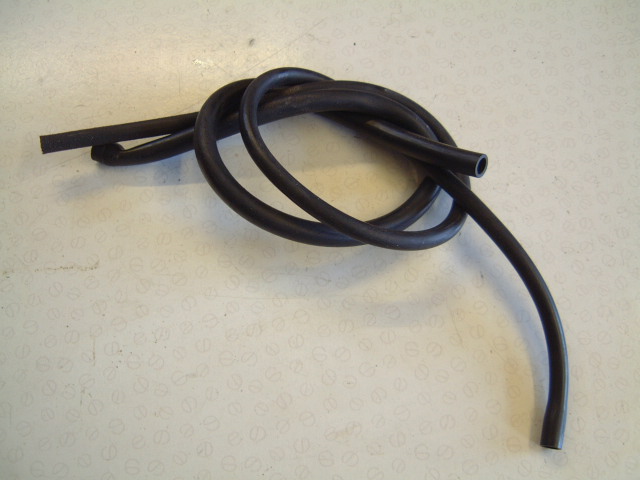

COUPLE OF BREATHER PIPES - GOOD.

RUNNING GEAR PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

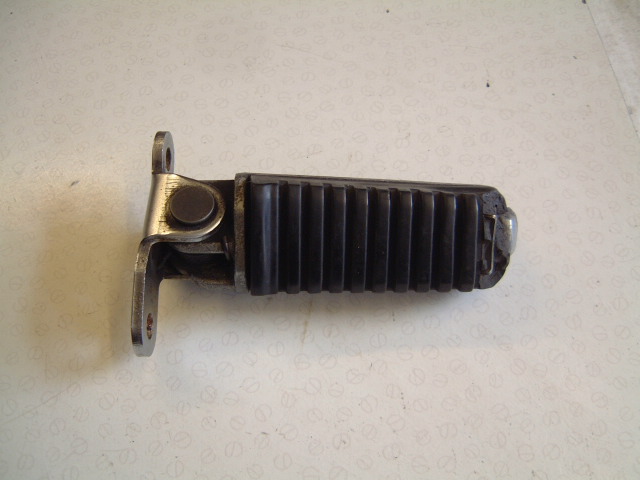

750R - 059
RHS FRONT FOOT PEG - VERY GOOD, NO SCUFFS.
750R - 060

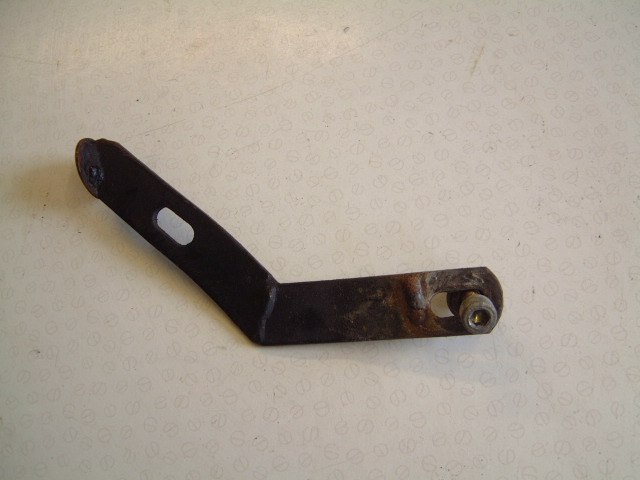

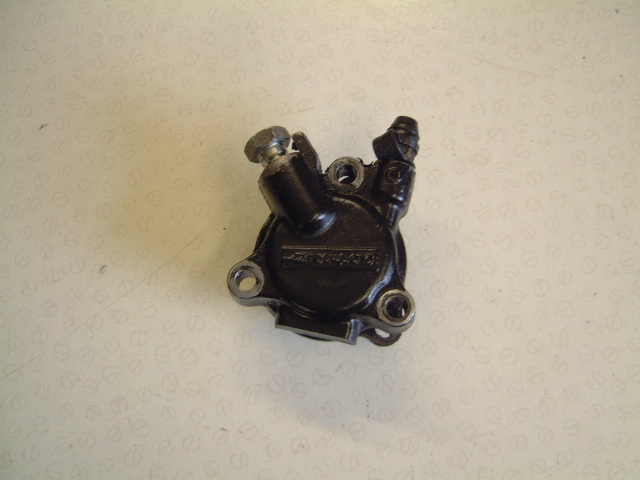

BRACKET TO STOP CENTRE STAND WHEN USING 4:1 EXHAUST. 750R - 070
CLUTCH SLAVE CYLINDER - VERY GOOD.

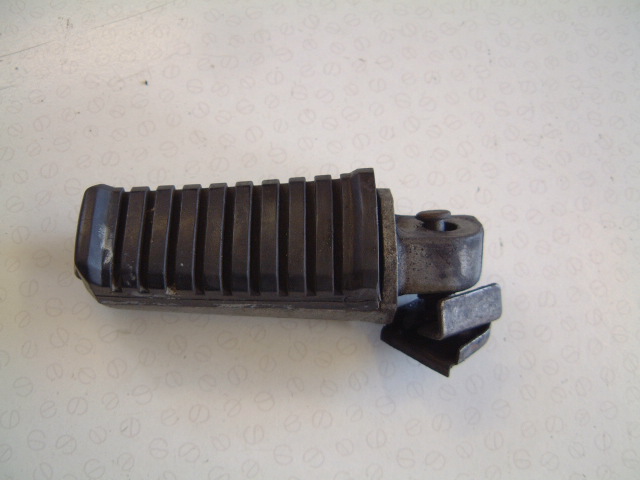

750R - 089
LHS REAR FOOT PEG & FIXINGS - GOOD, NO DAMAGE, NEEDS A CLEAN. 750R - 118
RHS REAR FOOT PEG & FIXINGS - GOOD, NO DAMAGE, NEEDS A CLEAN.

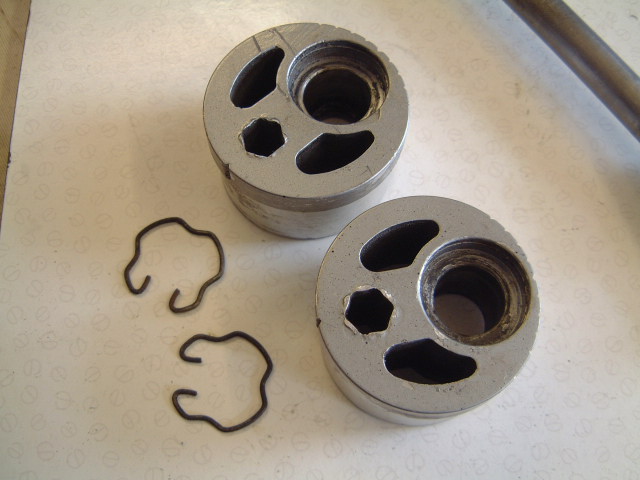

750R - 201

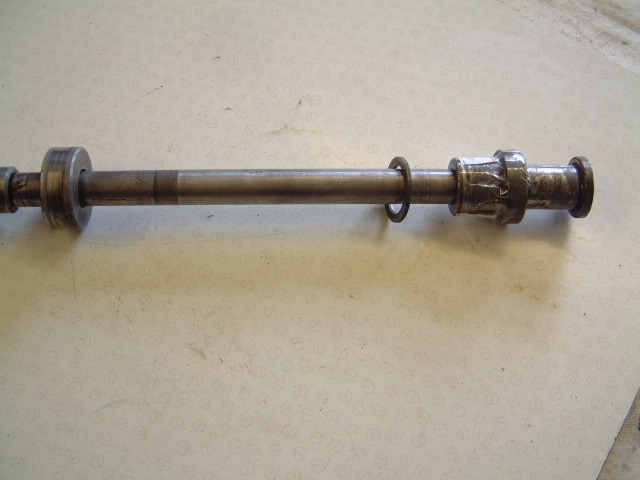

REAR WHEEL ADJUSTERS - GOOD, WITH CLIPS. 750R - 203
REAR WHEEL SHAFT COMPLETE - VERY GOOD.

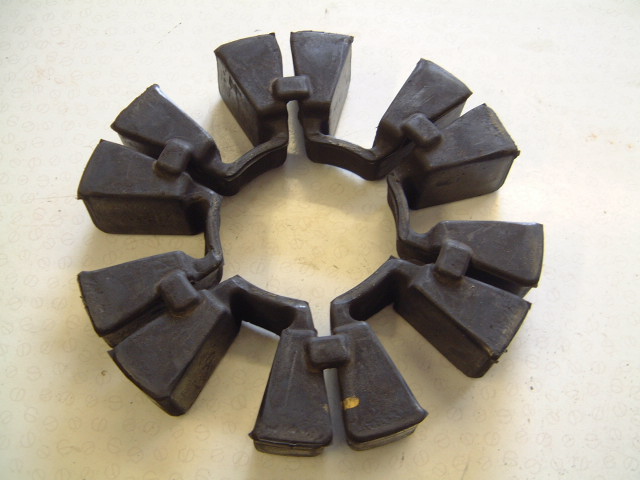

750R - 204
CUSH DRIVE - GOOD. 750R - 216

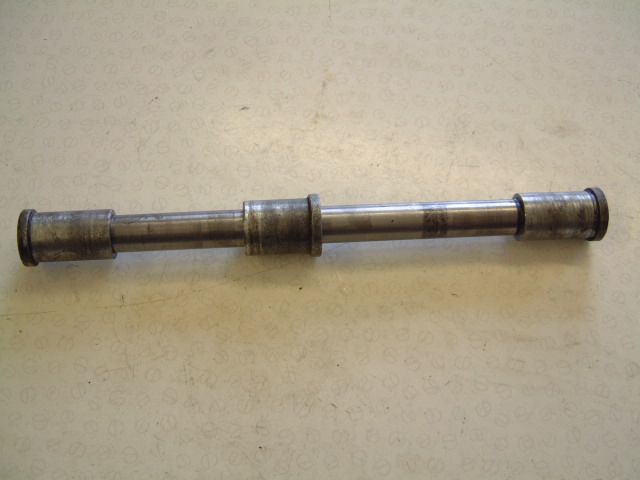

FRONT WHEEL SHAFT, SPACER & NUT - GOOD.

ELECTRICAL PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

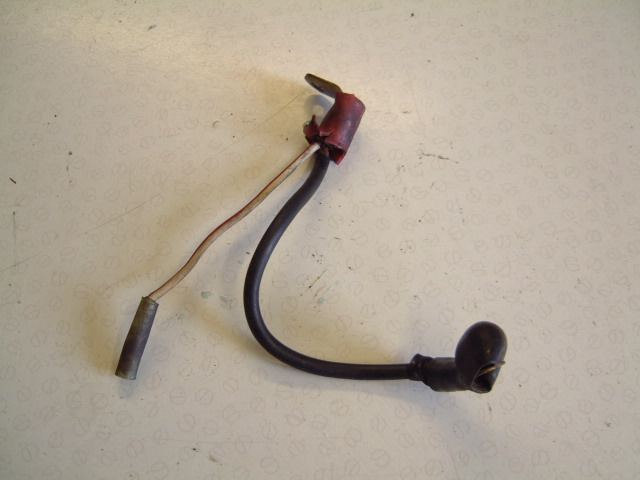

750R - 068
BATTERY POSITIVE LEAD - SERVICEABLE.

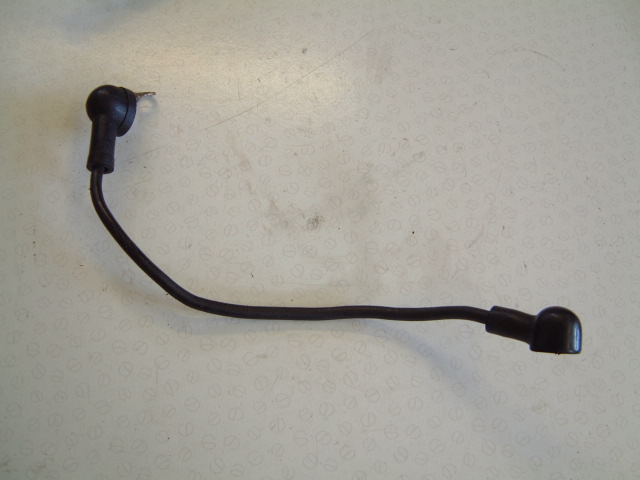

750R - 105

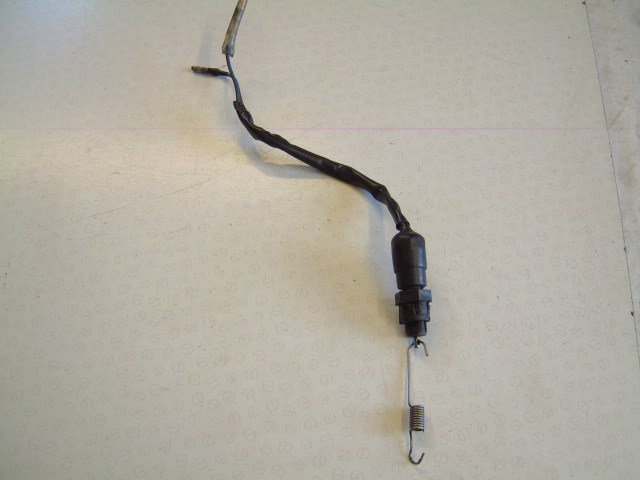

BATTERY TO STARTER MOTOR LEAD - VERY GOOD. 750R - 117
REAR BRAKE LIGHT SWITCH - TESTED.

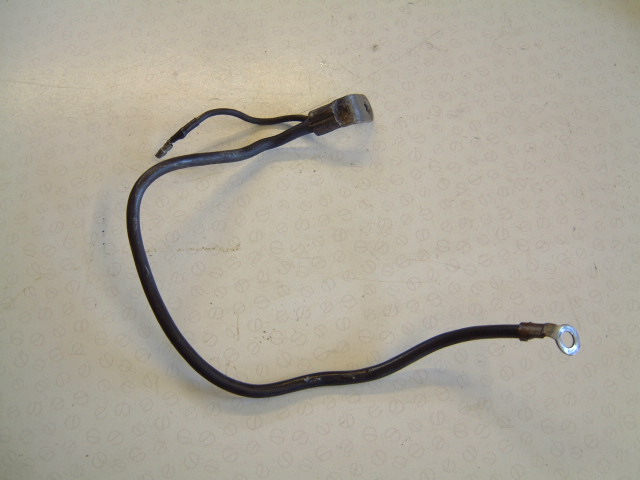

750R - 126
EARTH LEAD TO ENGINE - VERY GOOD. 750R - 132

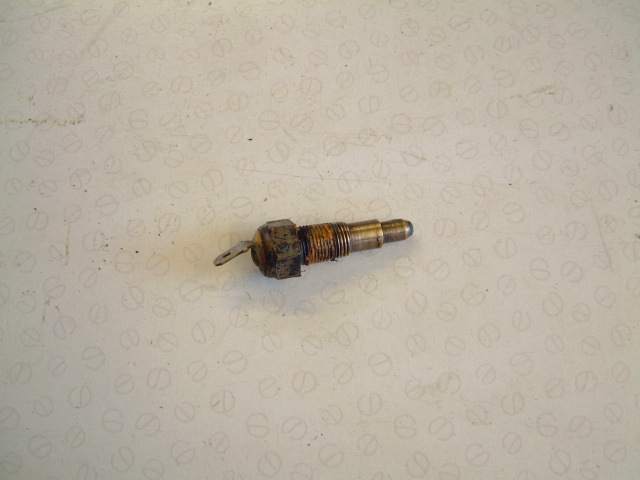

TEMP SENSOR - FROM THE BOTTOM OF THE THERMOSTAT, BY BLEED NIPPLE.

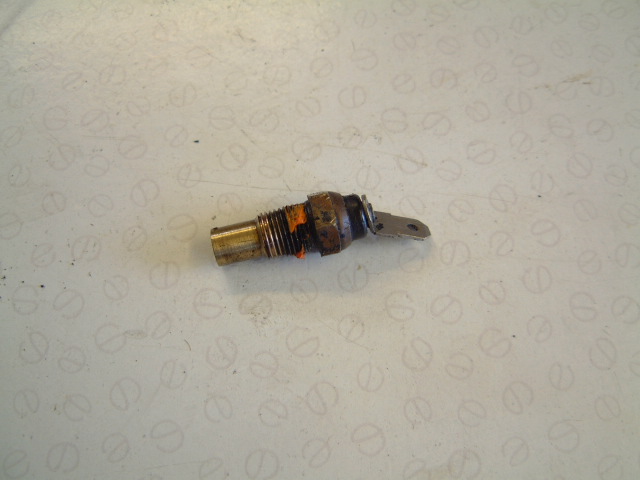

750R - 133

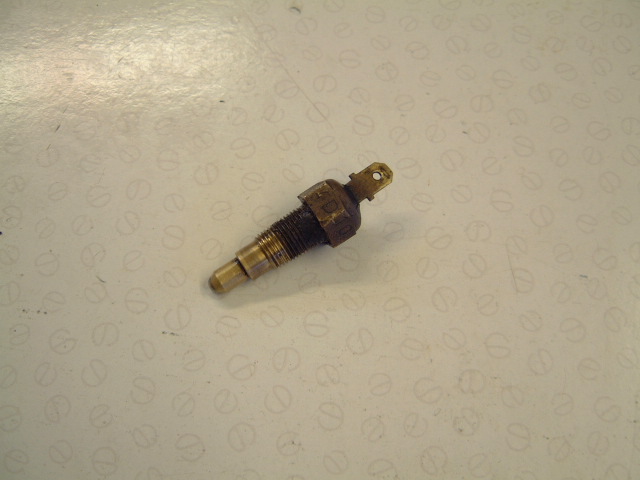

TEMP SENSOR - FROM THE TOP OF THE THERMOSTAT. 750R - 199
OIL TEMP SENSOR - FROM THE SUMP.

750R - 288
CLOCKS LOOM / WIRING HARNESS - VERY GOOD AND ALL ORIGINAL.

ENGINE, CLUTCH, GEARBOX PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

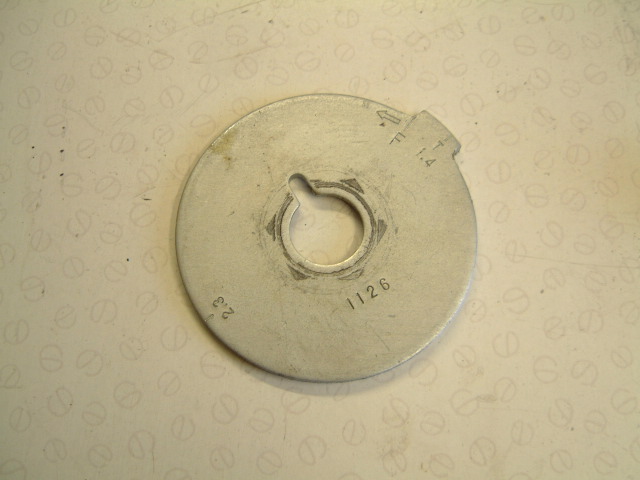

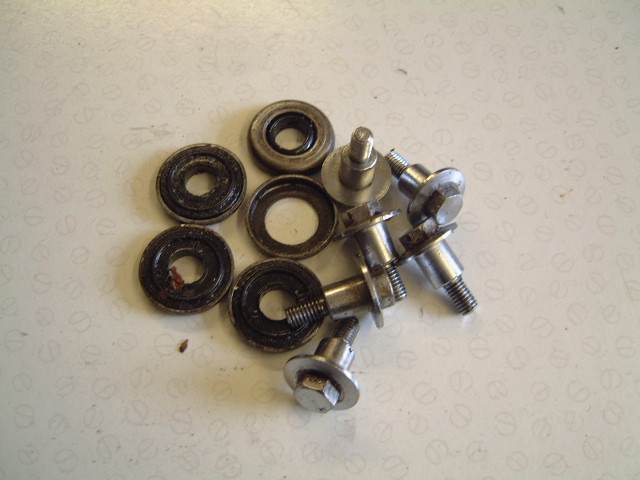

750R - 012
CAM COVER BOLTS & WASHER - SERVICEABLE, SOME PITTING ON THE CHROME. 750R - 082
TIMING PLATE - VERY GOOD.

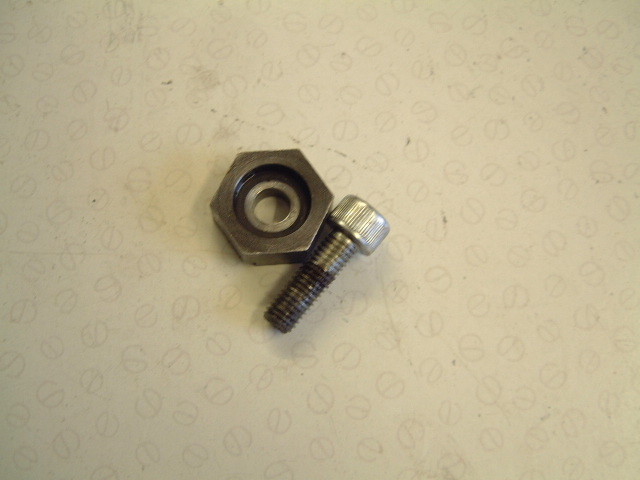

750R - 083

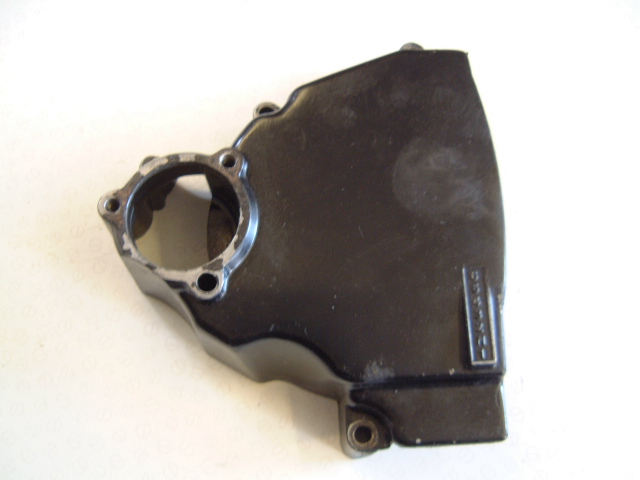

TIMING PLATE NUT & SCREW - GOOD. 750R - 087
SPROCKET COVER - GOOD, NO DAMAGE.
750R - 104

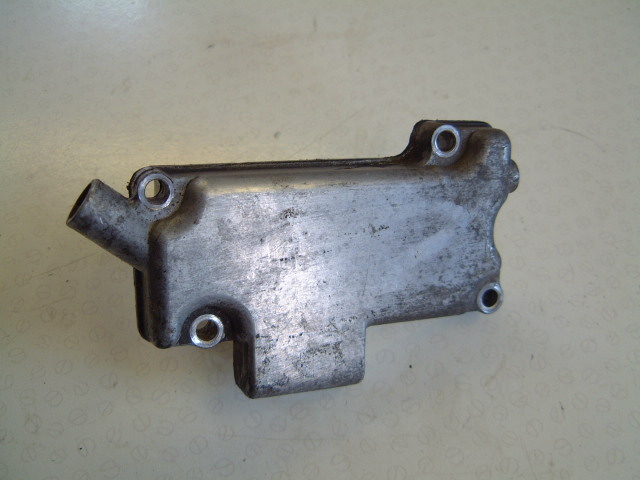

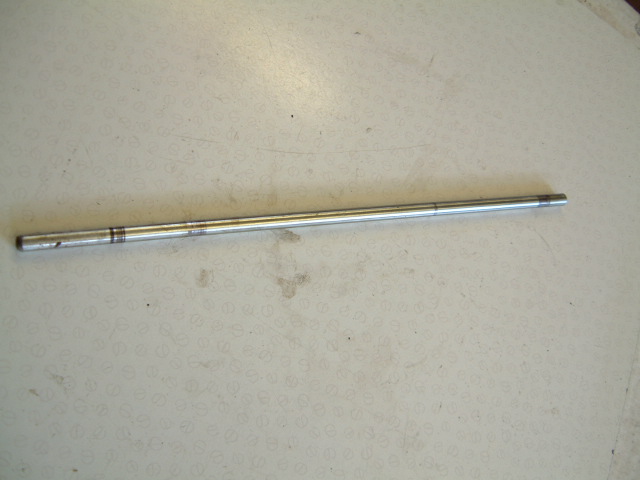

BREATHER CAP - VERY GOOD. 750R - 108
CLUTCH PUSH ROD - GOOD.

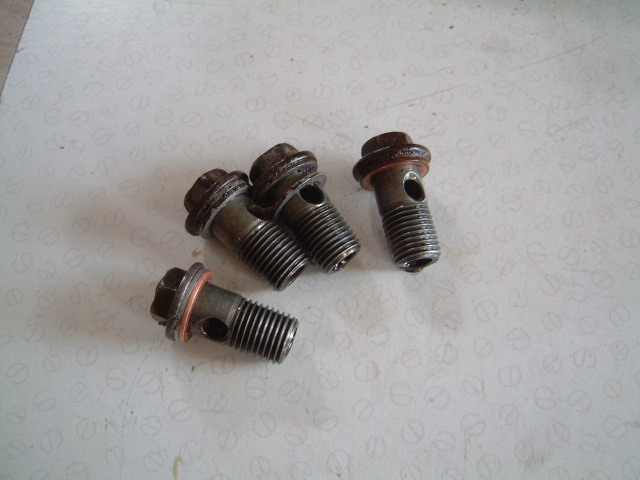

750R - 145

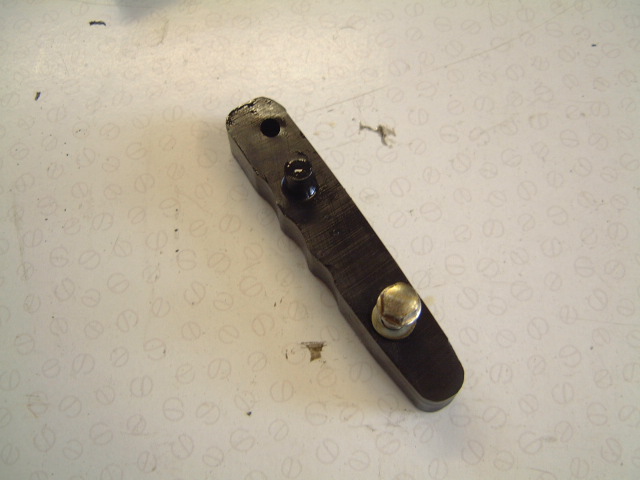

SET OF 4 OIL BANJO BOLTS - VERY GOOD, FROM OIL COOLER PIPES. 750R - 150
ALTERNATOR DRIVE CHAIN TENSIONER BLADE - VERY GOOD.

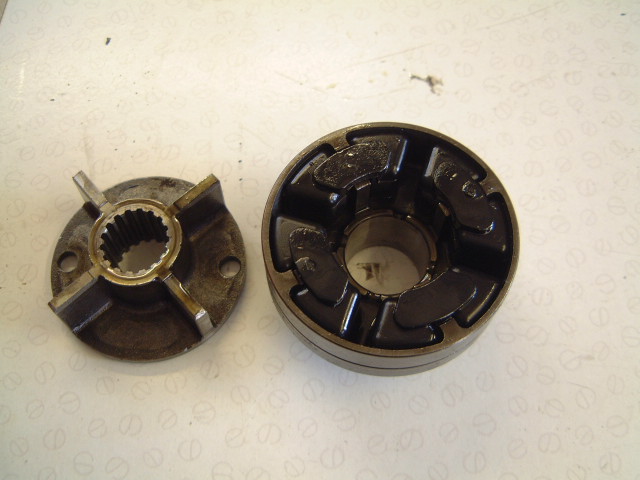

750R - 151

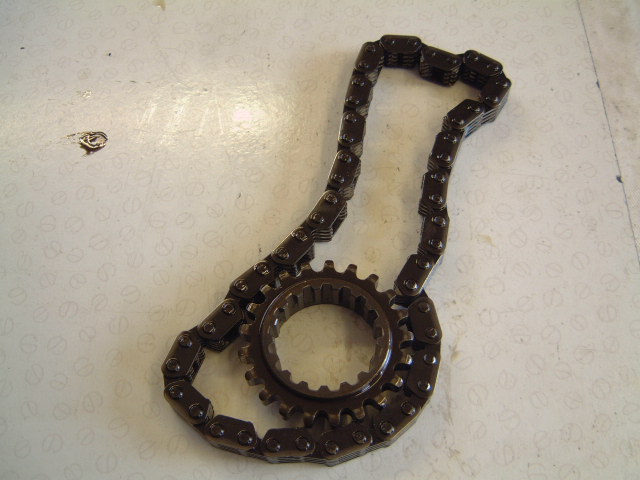

ALTERNATOR CUSH DRIVE, CLUTCH END - VERY GOOD.NOTE: THE RUBBER CUSH PARTS ARE HAVE BEEN SOLD. 750R - 152
ALTERNATOR DRIVE CHAIN & GEAR - VERY GOOD.

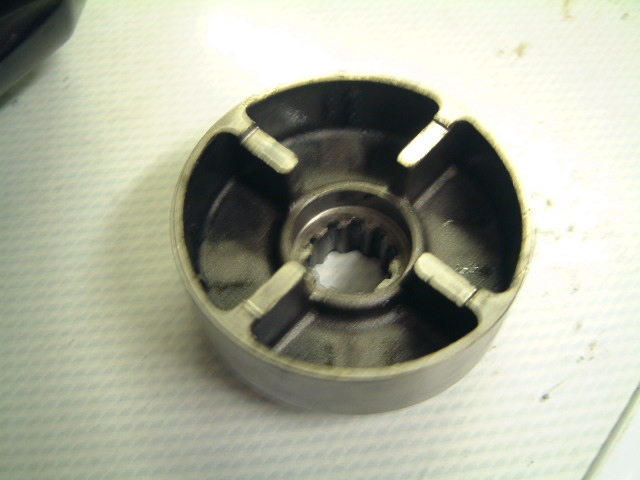

750R - 153

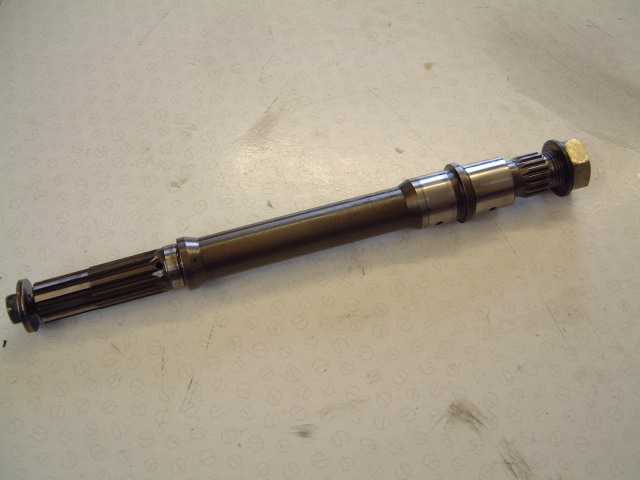

ALTERNATOR CUSH DRIVE, ALTERNATOR END - VERY GOOD. 750R - 154
ALTERNATOR DRIVE SHAFT - VERY GOOD.

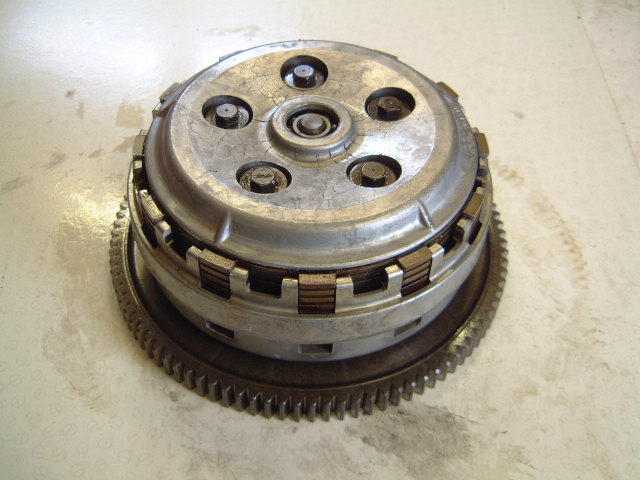

750R - 155

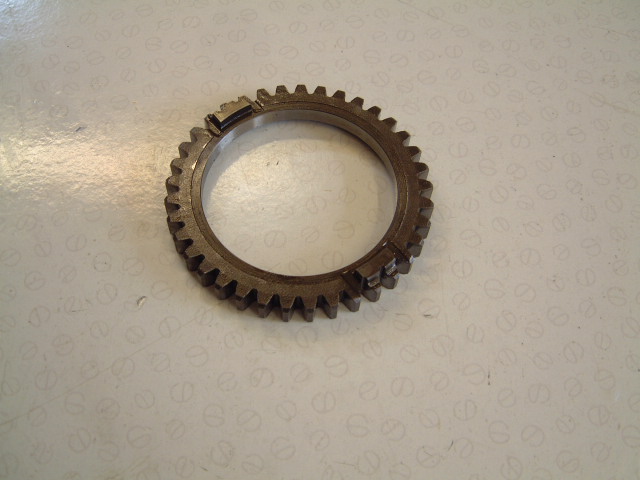

CLUTCH COMPLETE - ALL VERY GOOD. 750R - 156
OIL PUMP DRIVE RING FROM BEHIND CLUTCH - VERY GOOD.

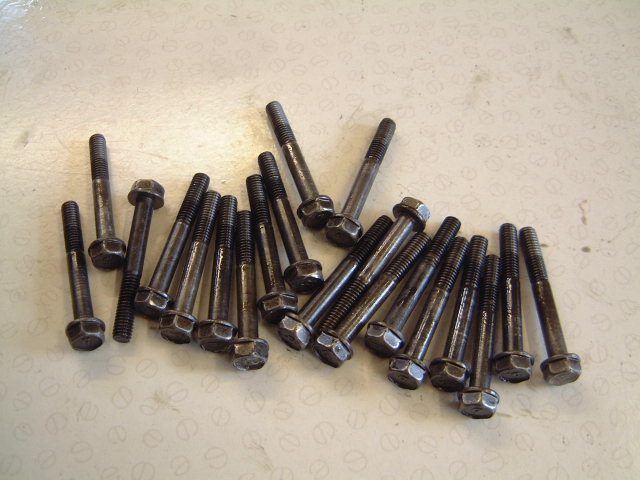

750R - 157

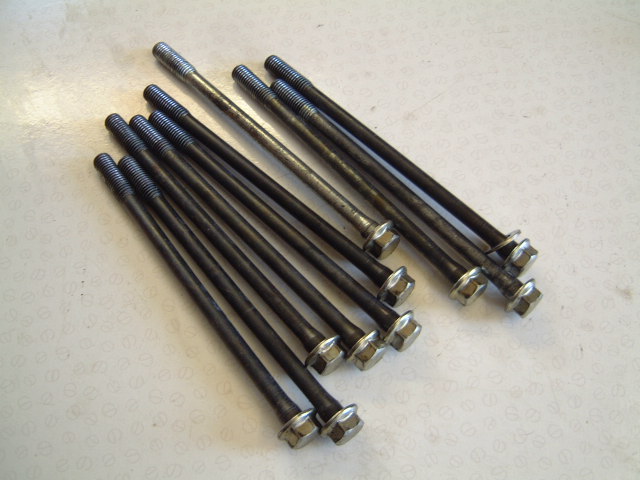

CAMSHAFT CLAMP BOLTS - ALL VERY GOOD. 750R - 163
HEAD BOLTS SET - ALL VERY GOOD, WASHERS INCLUDED.

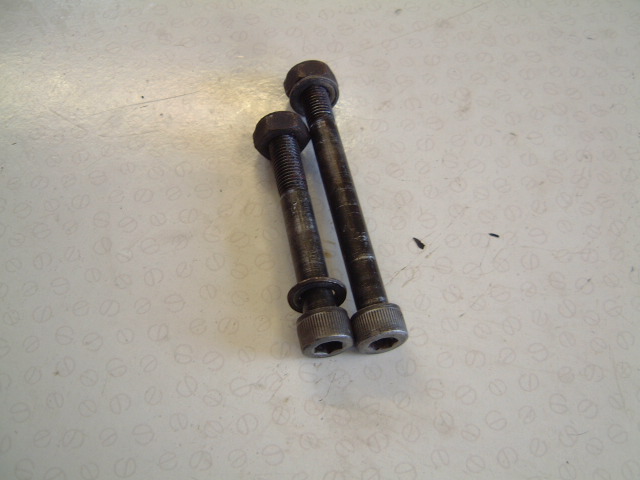

750R - 166
TWO FRONT ENGINE MOUNTING ALLEN BOLTS - VERY GOOD. 750R - 167

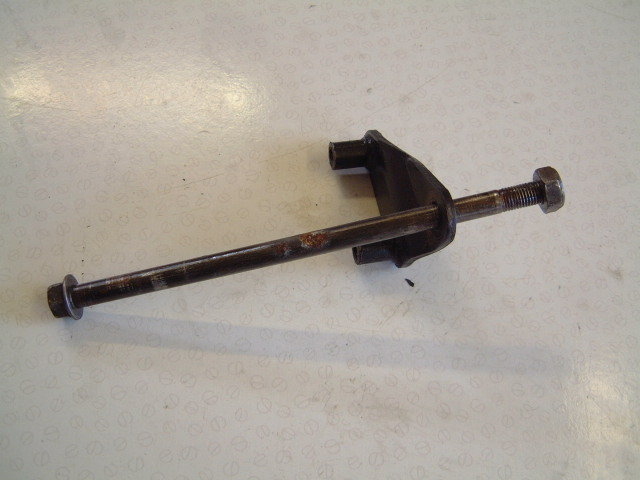

UPPER REAR ENGINE BOLT & BRACKET - VERY GOOD.

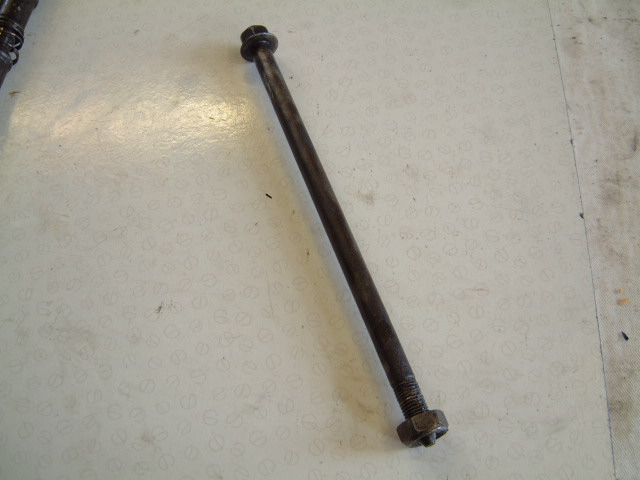

750R - 168

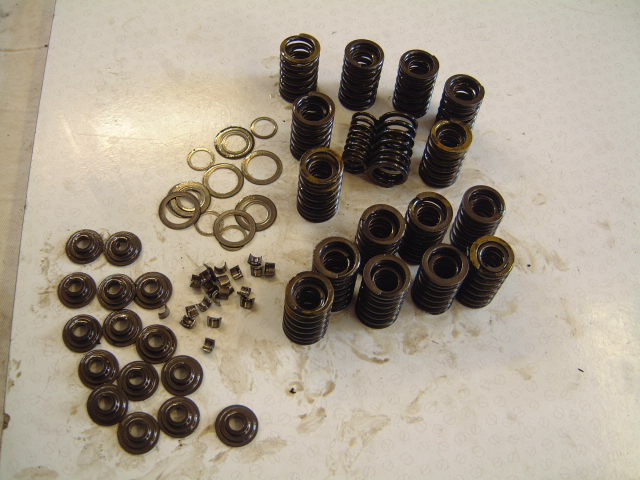

LOWER REAR ENGINE BOLT - SERVICEABLE. 750R - 170
COLLECTION OF VALVE SPRINGS ETC - WILL SPLIT.

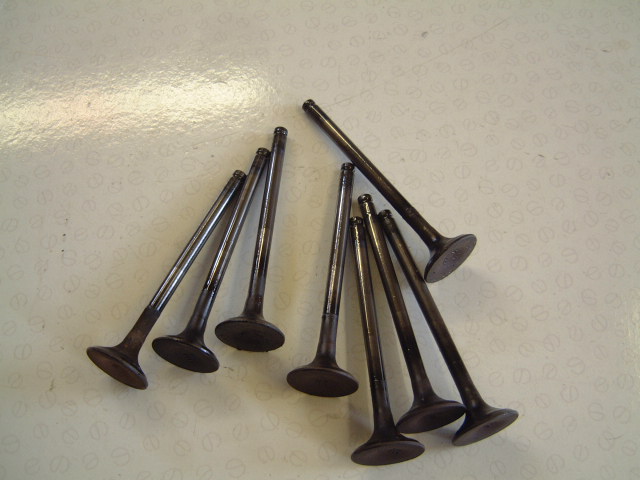

750R - 171
EXHAUST VALVES - FULL SET, ALL GOOD. 750R - 173

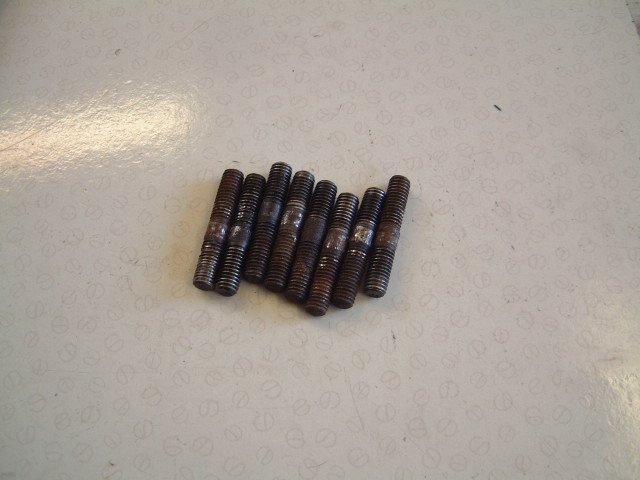

EXHAUST STUDS - VERY SERVICEABLE.

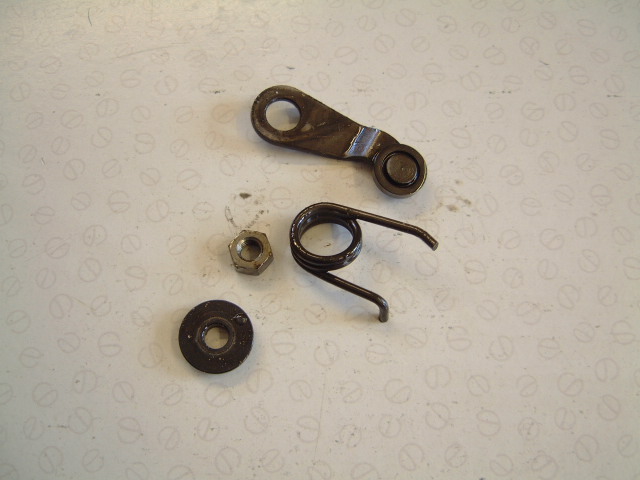

750R - 178

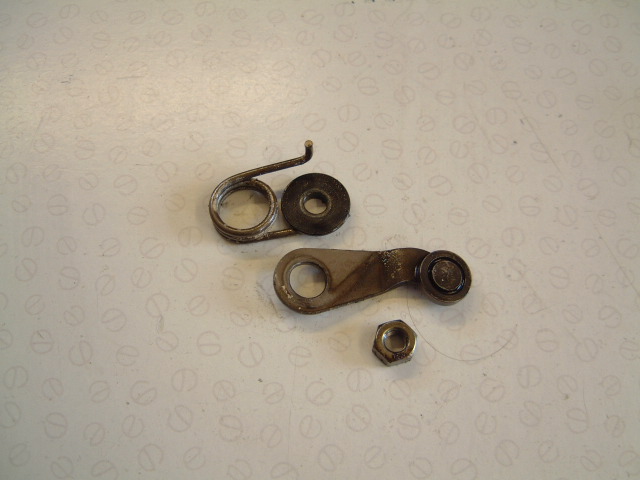

GEAR SELECTION PARTS (LOWER) - VERY GOOD. 750R - 179
GEAR SELECTION PARTS (UPPER) - VERY GOOD.

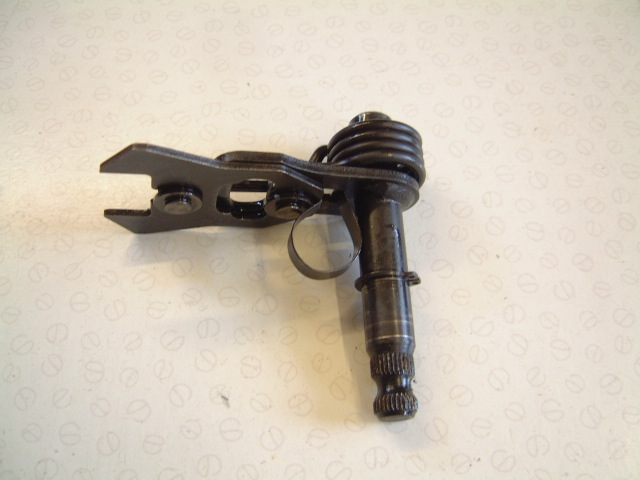

750R - 180
GEAR SELECTION SHAFT - VERY GOOD. 750R - 181
OIL FILTER BOLT & SPRING - GOOD.

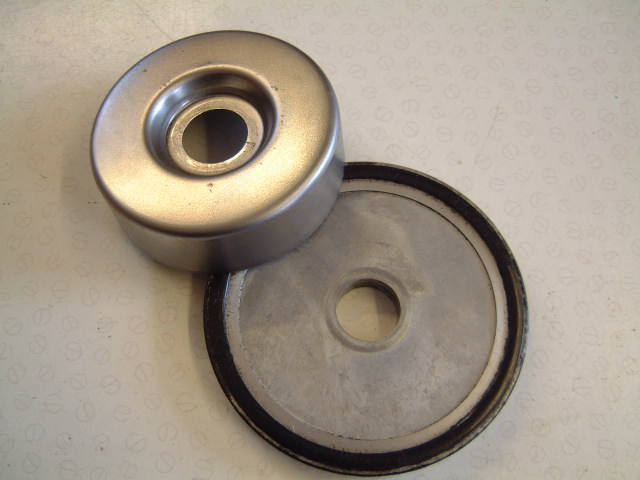

750R - 182

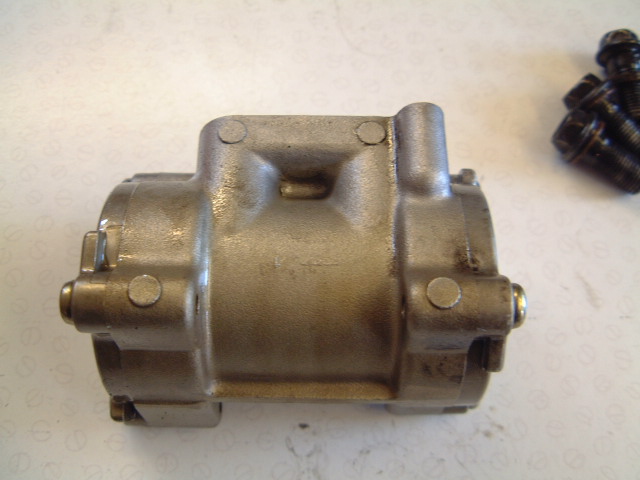

OIL FILTER COVER - GOOD, NEEDS A CLEAN. 750R - 184
OIL PUMP - LOOKS OK, CAN STRIP IF REQUESTED.

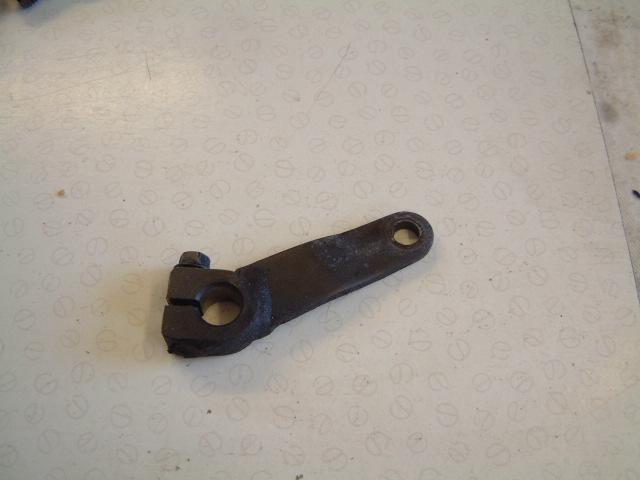

750R - 186

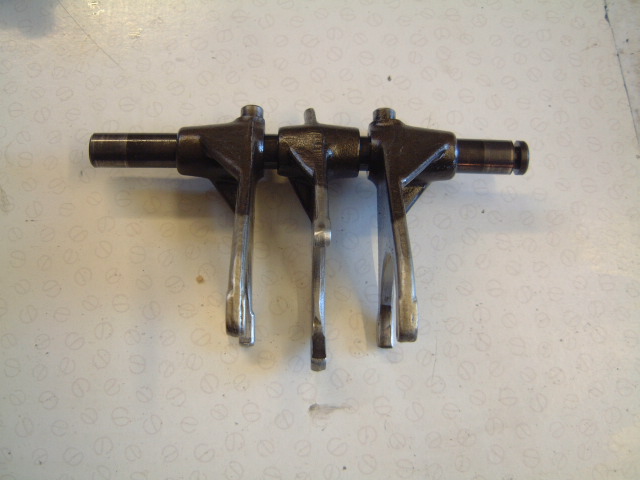

BALANCE SHAFT ARM - GOOD. 750R - 187
SELECTOR FORKS - VERY GOOD.

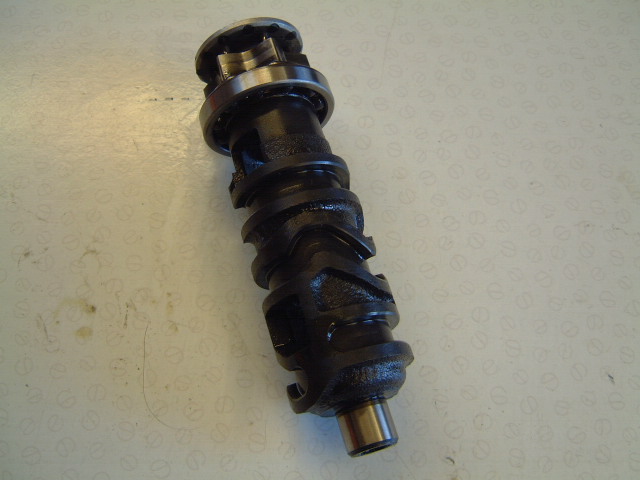

750R - 188

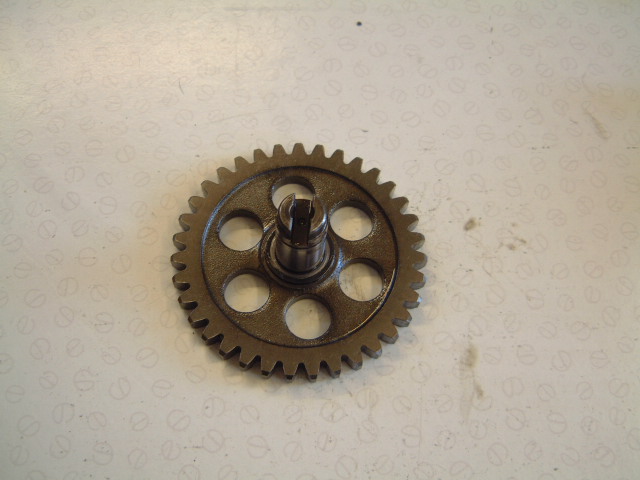

SELECTOR DRUM - VERY GOOD. 750R - 189
OIL PUMP DRIVE GEAR - VERY GOOD.

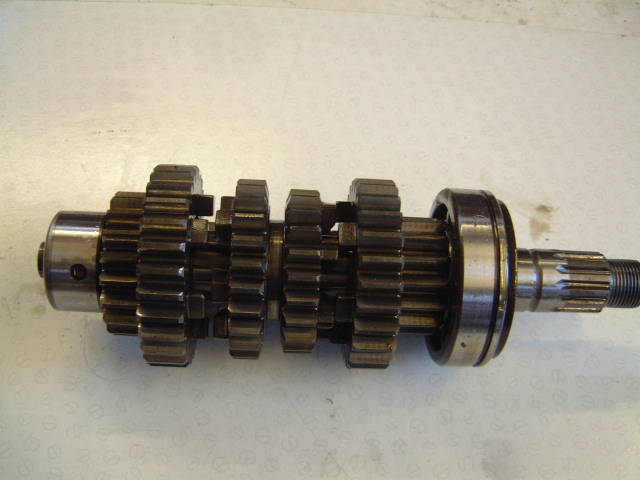

750R - 190

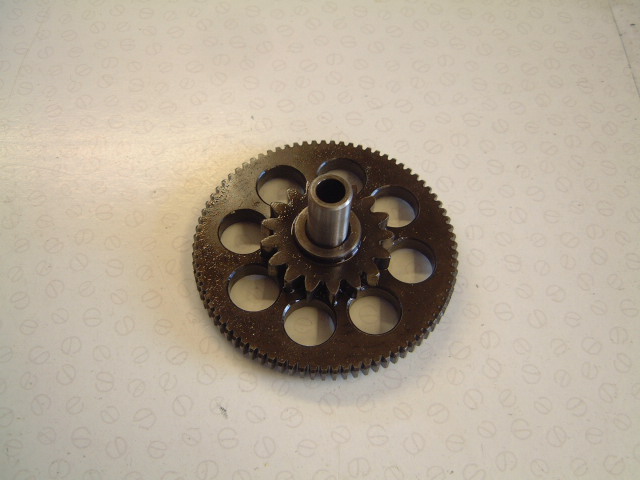

INPUT SHAFT AND GEARS - ALL LOOKS PERFECT. 750R - 194
STARTER/IDLER GEAR - VERY GOOD.

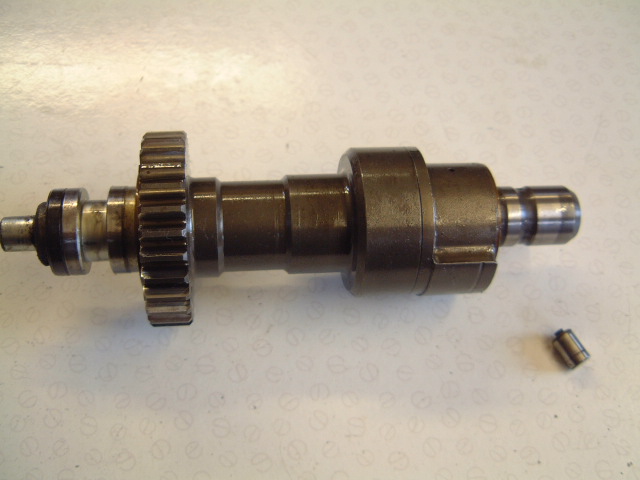

750R - 196

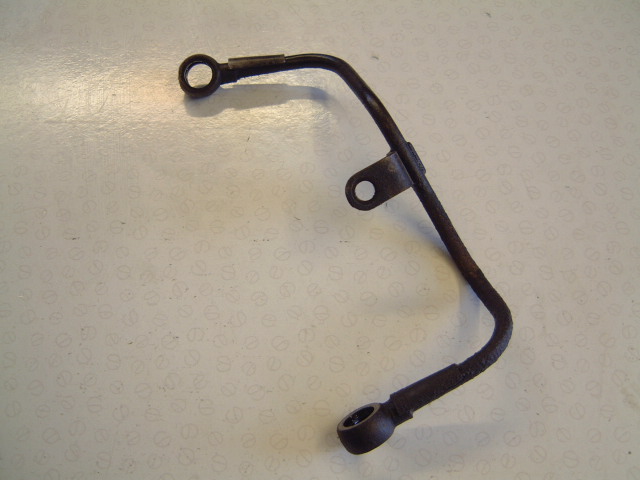

BALANCE SHAFT COMPLETE -ALL LOOKS GOOD. 750R - 197
OIL PIPES FROM UNDER ENGINE - LIGHT RUST ON ENDS, OTHERWISE OK.

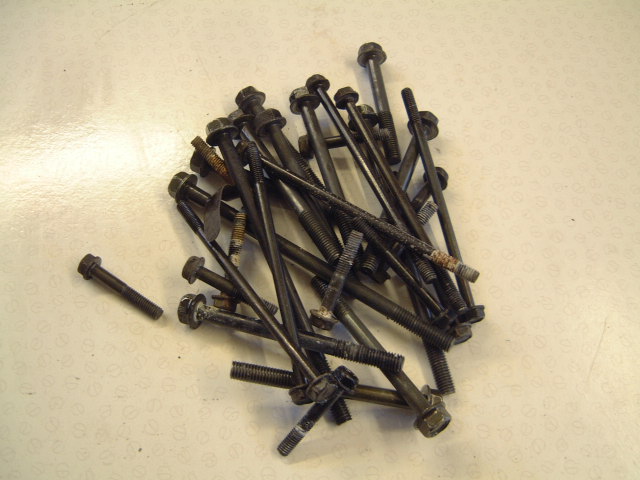

750R - 200

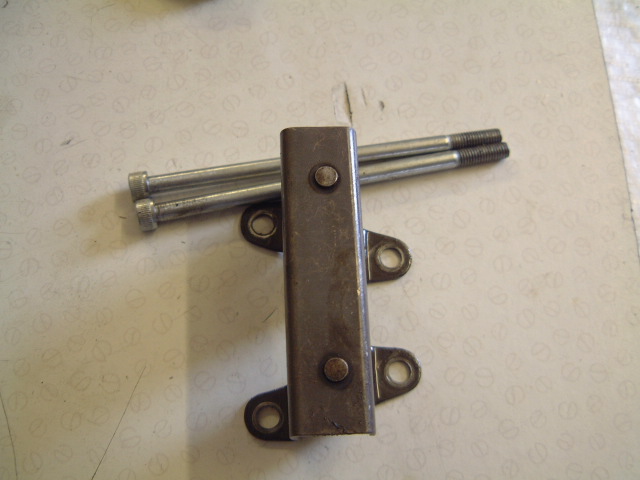

CRANKCASE BOLT SET - ALL GOOD. 750R - 237
CAMCHAIN GUIDE - VERY GOOD.

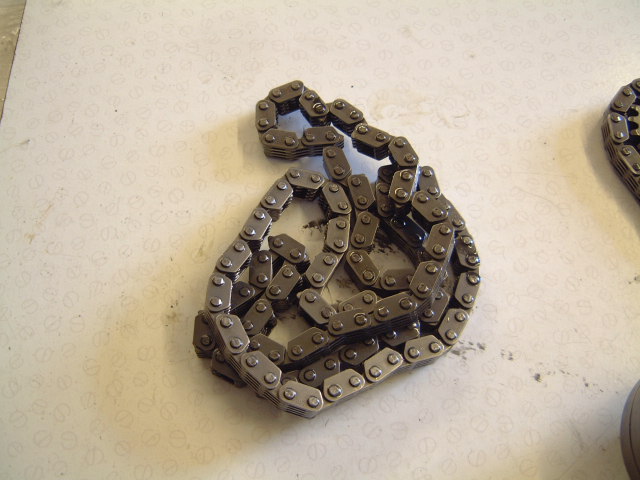

750R - 240

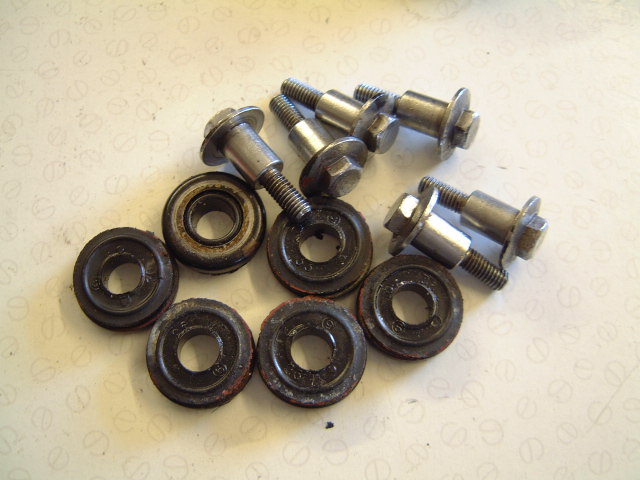

CAMCHAIN - LOOKS & FEELS OK, NOT SURE HOW YOU CHECK ?. 750R - 243
CAM COVER SEALS - GOOD, BOLTS SOLD.

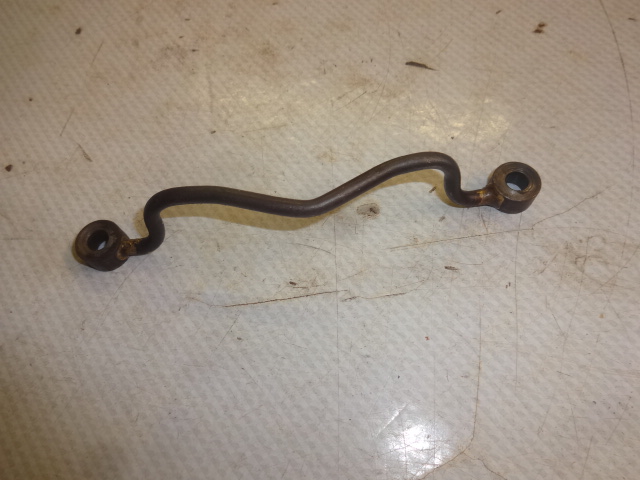

750R - 261

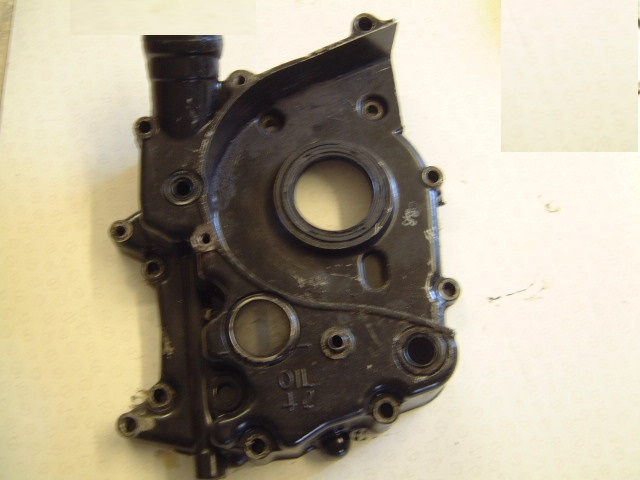

OIL FEED PIPE - GOOD. 750R - 265
ENGINE INNER SPROCKET CASING - GOOD.

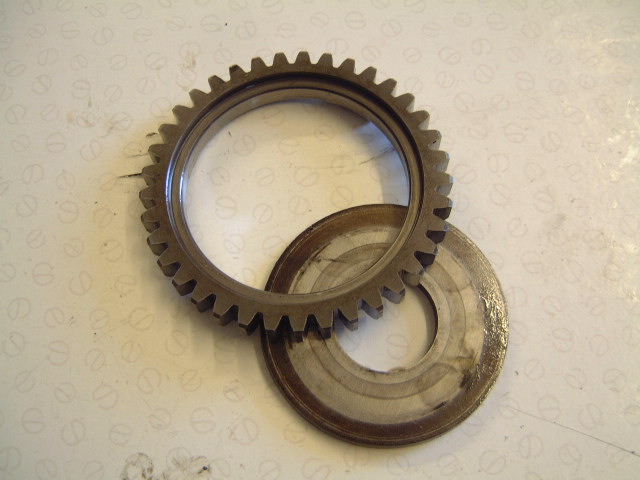

750R - 267
OIL PUMP DRIVE RING & WASHER - VERY GOOD. 750R - 270

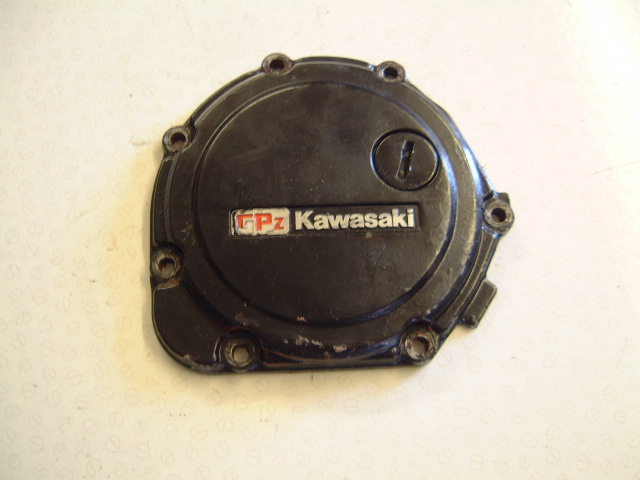

IGNITION COVER - LITTLE BIT SCUFFED, WILL TIDY UP WITH A REPAINT.

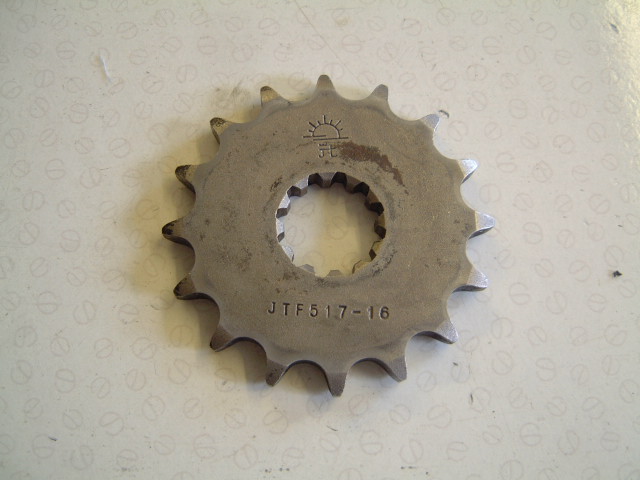

750R - 274
ENGINE SPROCKET - VERY GOOD. 750R - 276
GEAR BOX SHAFTS LOCATING PEGS & 1/2 MOONS - VERY GOOD.

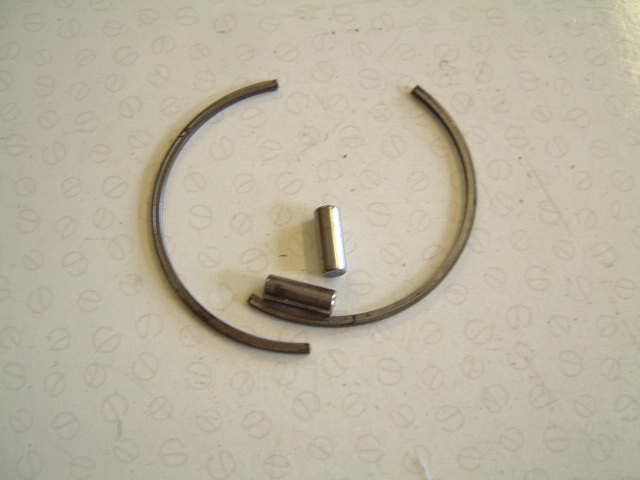

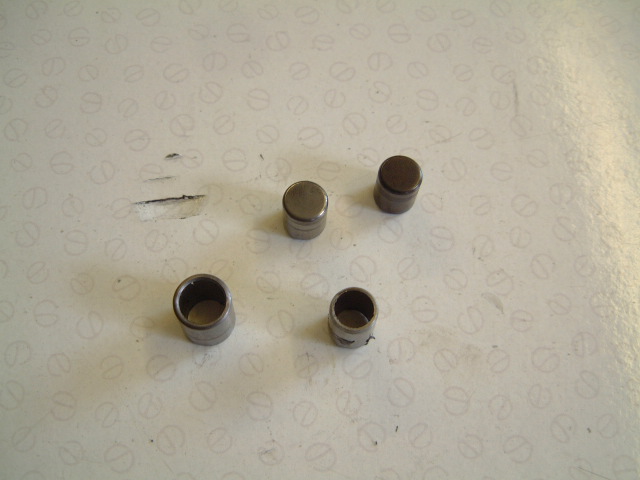

750R - 277
CRANKSHAFT PEGS - VERY GOOD.

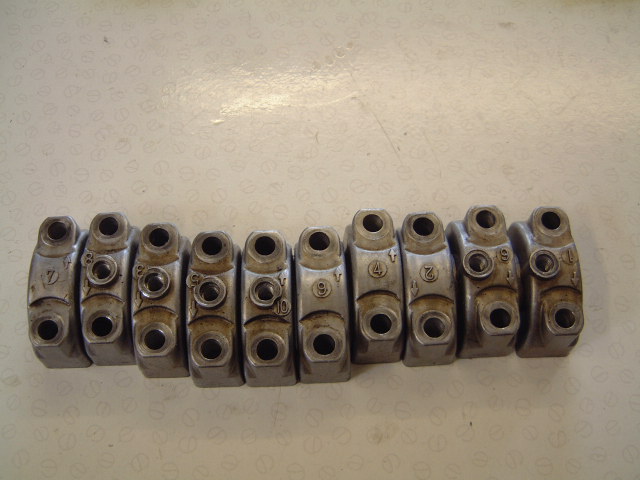

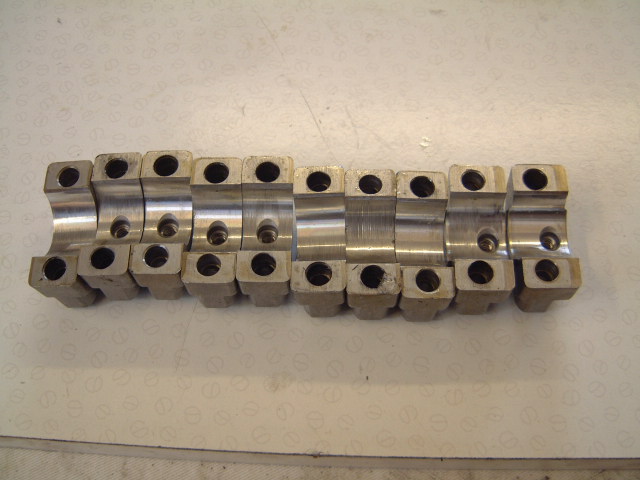

750R - 158
CAMSHAFT CLAMPS - FULL SET, ALL GOOD.

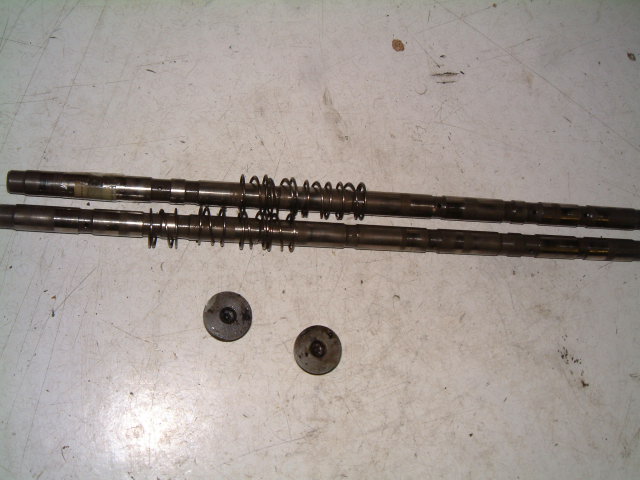

750R - 169

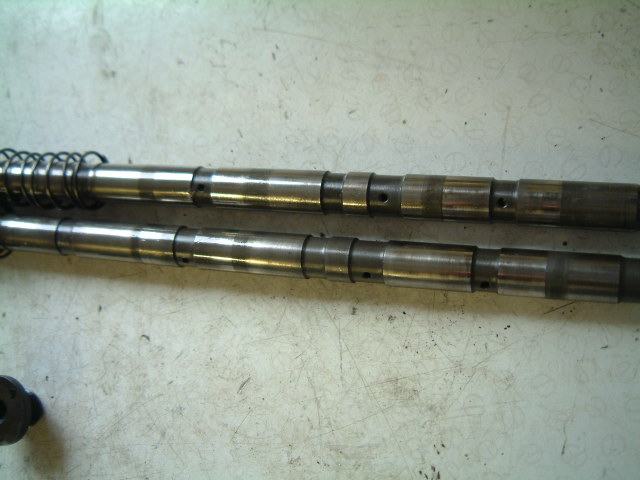

ROCKER SHAFTS AND SPRINGS + CAPS - ALL GOOD, NO SIGNS OF WEAR.

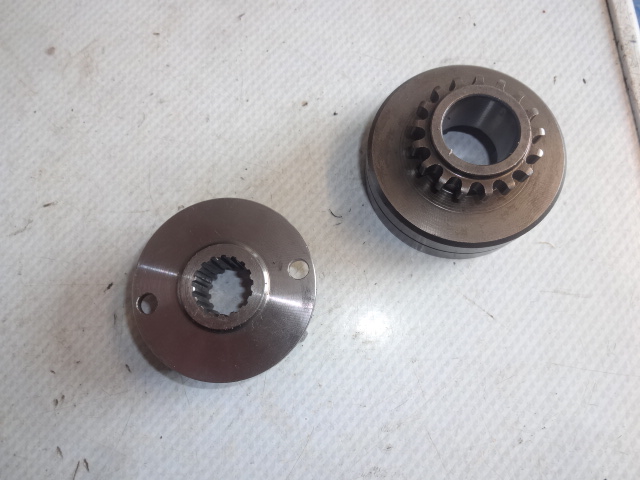

750R - 238

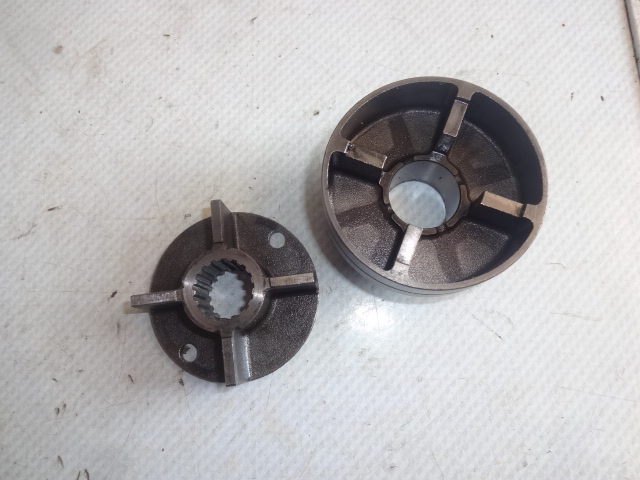

CUSH HOUSING - CLUTCH END - VERY GOOD.

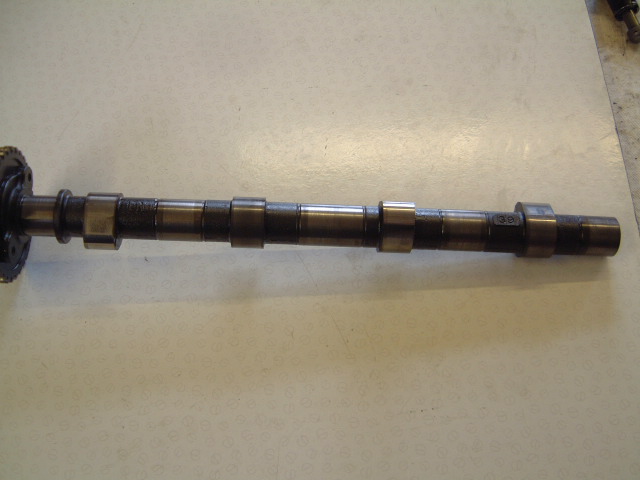

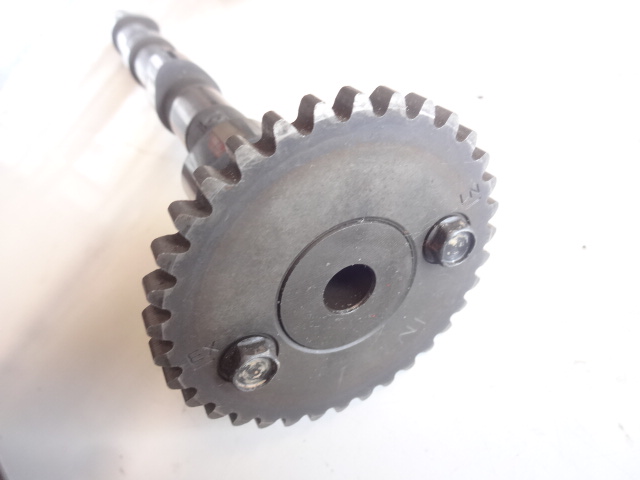

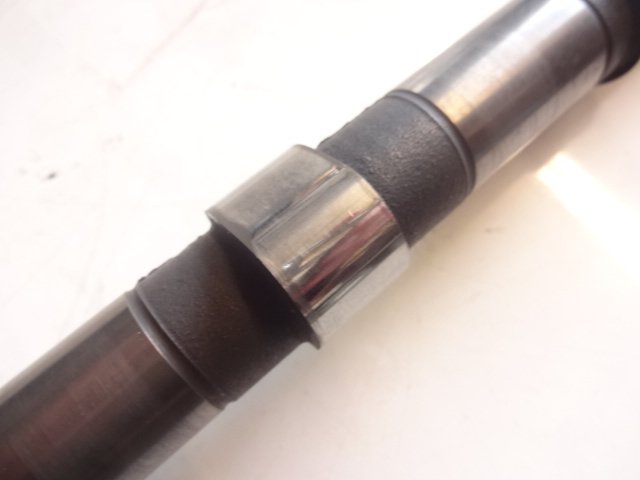

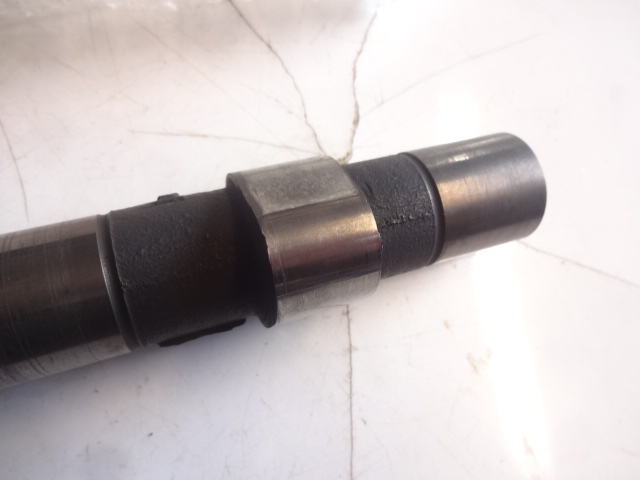

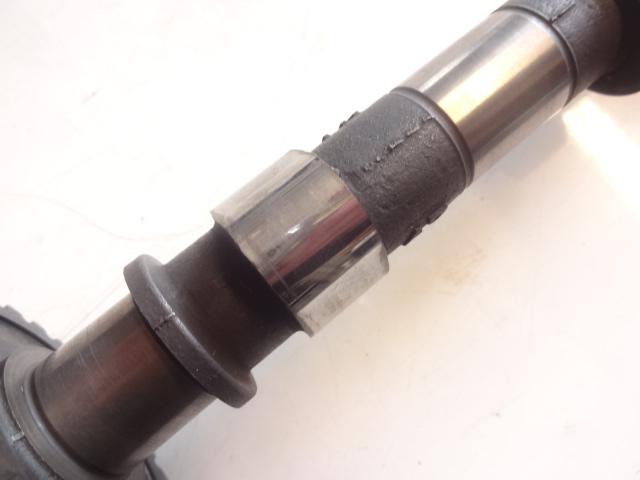

750R - 159

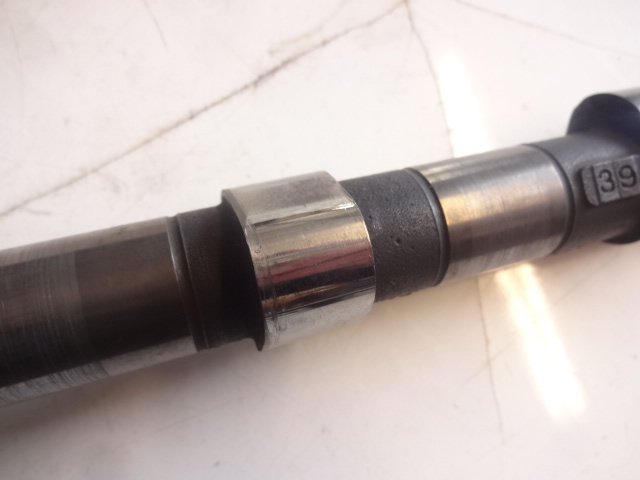

INLET CAMSHAFT & SPROCKET - VERY GOOD.

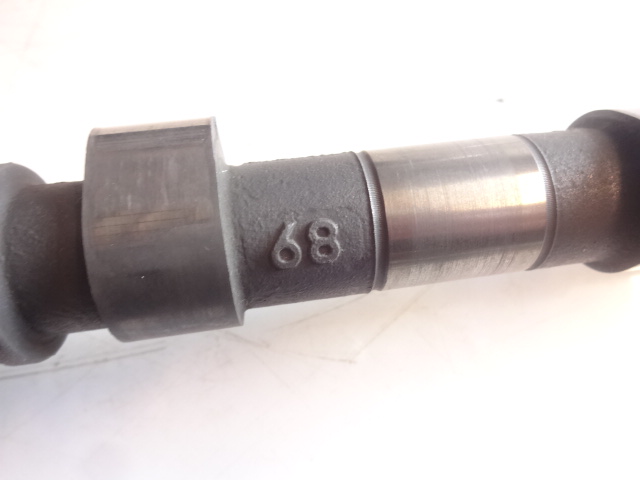

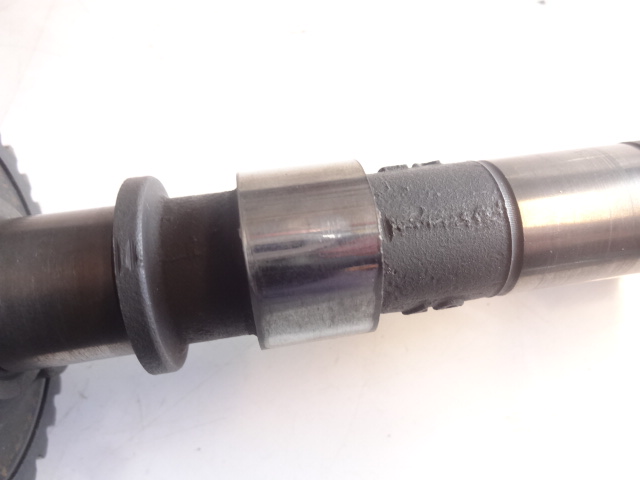

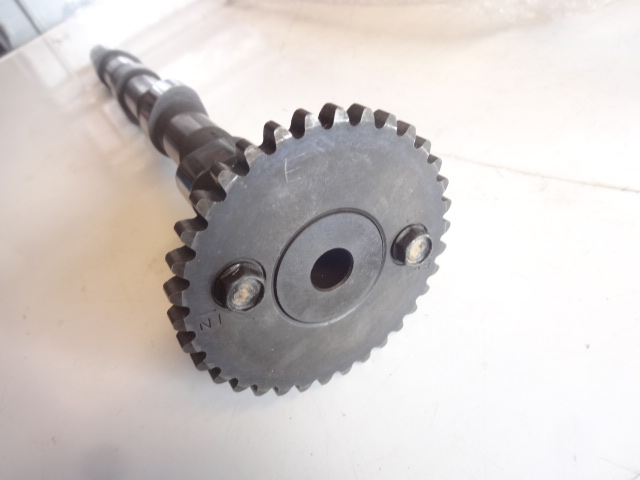

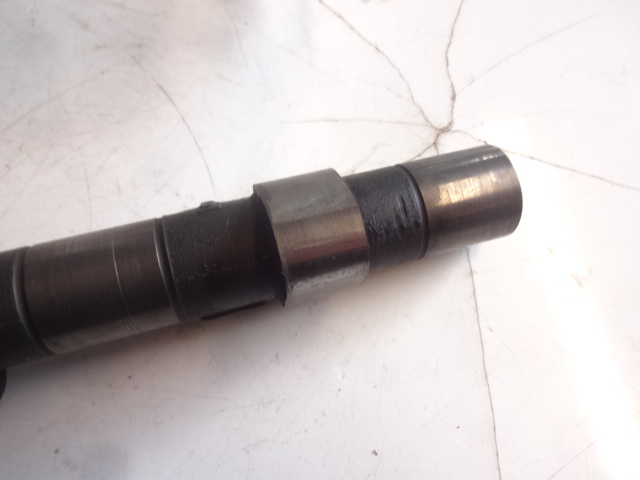

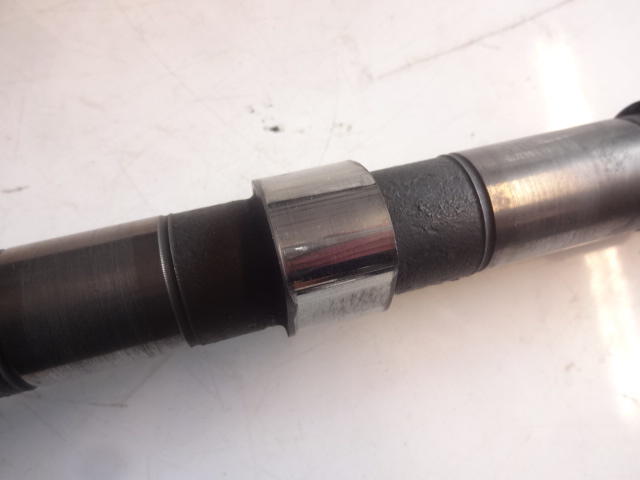

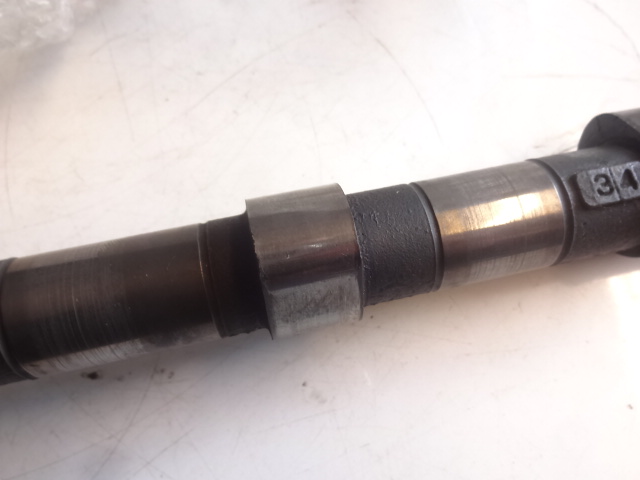

750R - 161
EXHAUST CAMSHAFT & SPROCKET - GOOD, HAS A COUPLE OF TINY PIN HOLES ON 2 FACES.

MISCELLANEOUS PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

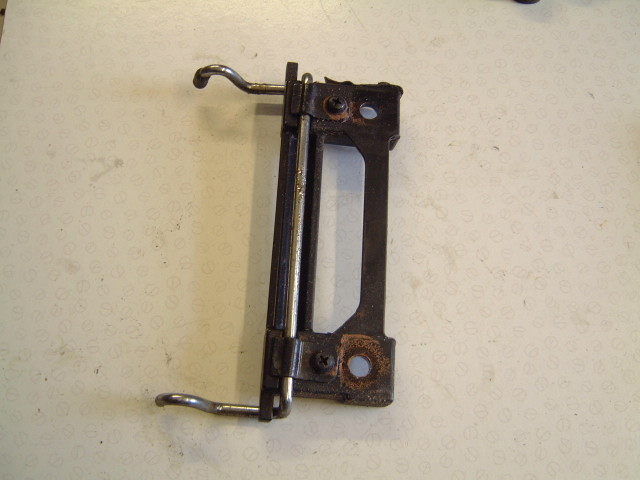

750R - 041

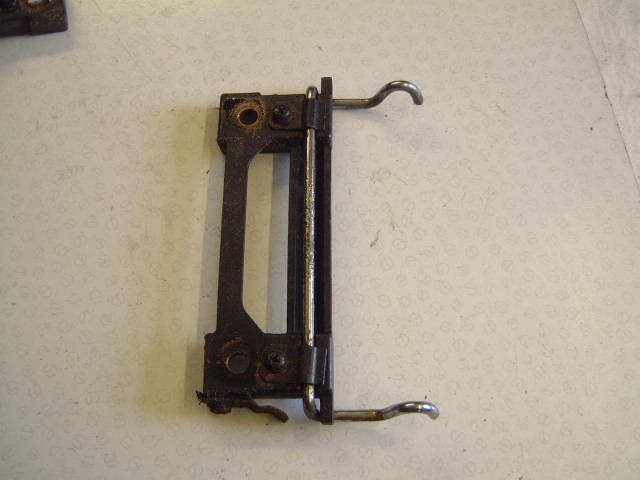

LHS RAIL AND HOOKS - GOOD. 750R - 042
RHS RAIL AND HOOKS - GOOD.
750R - 044

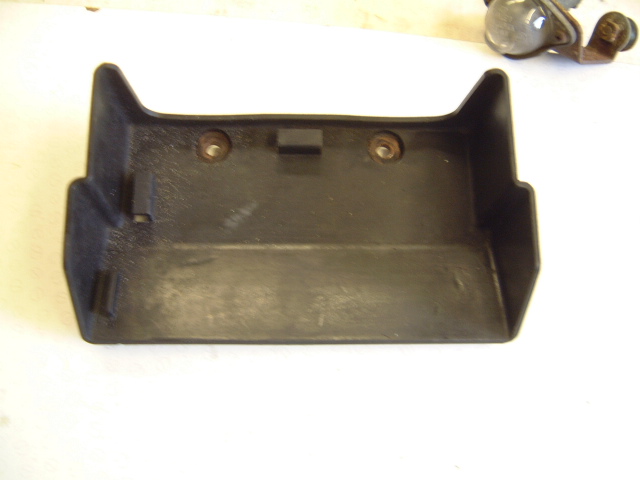

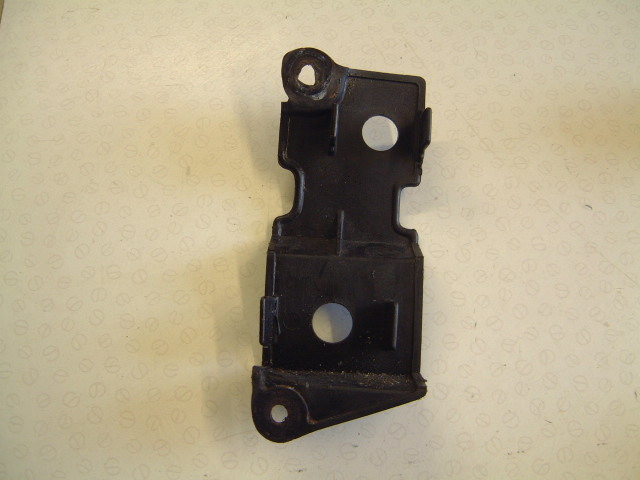

TOOL TRAY/BOX - GOOD, PART No. 32099-1064. 750R - 048
SOLENOID & RELAYS BRACKET - PLASTIC, GOOD.
750R - 054

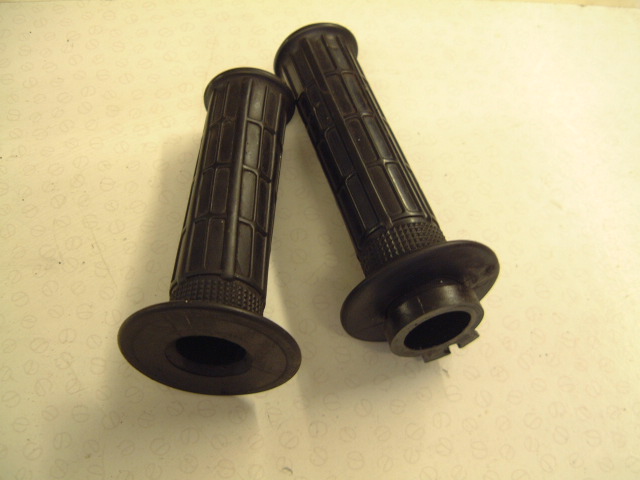

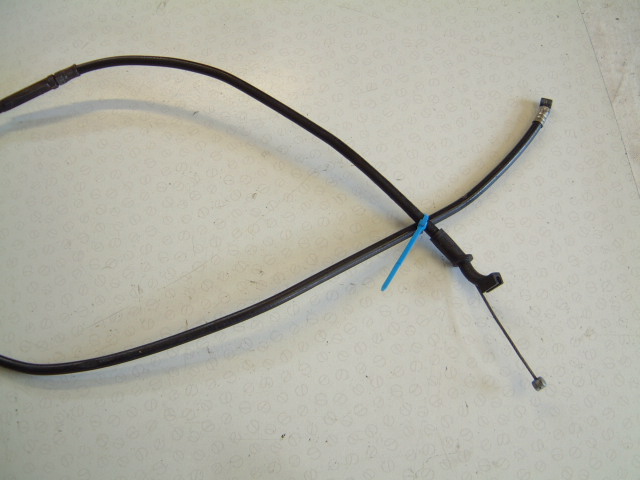

GRIPS - SINGLE CABLE THROTTLE, SERVICEABLE. 750R - 094
CHOKE CABLE - GOOD.

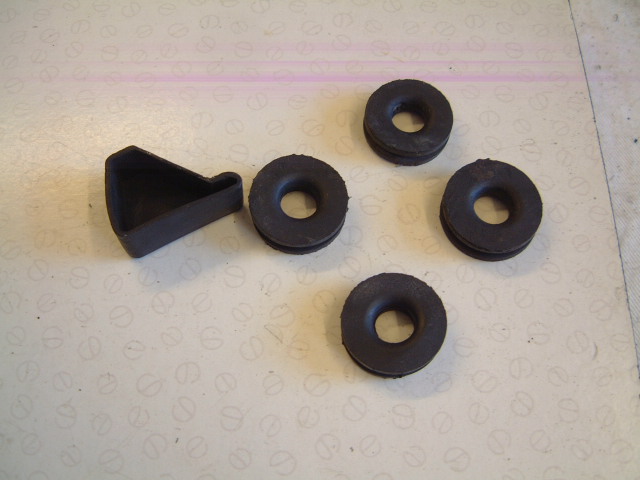

750R - 227

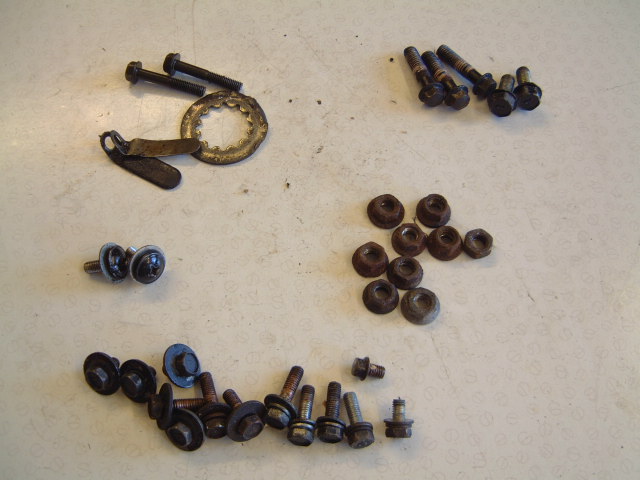

RUBBER FROM THE FAIRING - GOOD. SIDE PANEL RUBBERS SOLD. 750R - 226
VARIOUS BOLTS ETC - ALL SERVICEABLE, WILL SPLIT.
