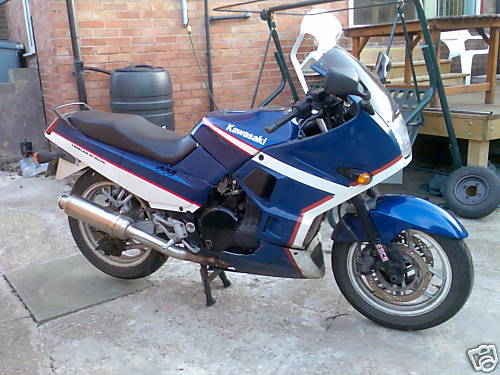

HI, MY NAME IS STEVE AND WELCOME TO MY KAWASAKI GPX750 WEB PAGE. I HAVE BROKEN TWO KAWASAKI GPX750's FOR SPARES. A 1989 F2 BIKE ON THIS PAGE AND A 1987 F1 BIKE ON ANOTHER PAGE, CLICK THE LINK BELOW TO VIEW THE OTHER PAGE.I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT. I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART. IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE. I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.
FRAME NUMBER = ZX750F-0194xx ~ ENGINE NUMBER = ZX750F-E0227xx |
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC). |
| 3 FUEL, AIR, COOLING & EXHAUST - (AIRBOX, FUEL TAP + CAP, RAD, HOSES ETC) |
| 4 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC). |
| 5 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC). |
| 6 ENGINE - (ENGINE AND GEARBOX PARTS). |
| 7 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| TO VIEW THE PARTS I HAVE FROM THE 1987 F1 BIKE, CLICK --->>> >> HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

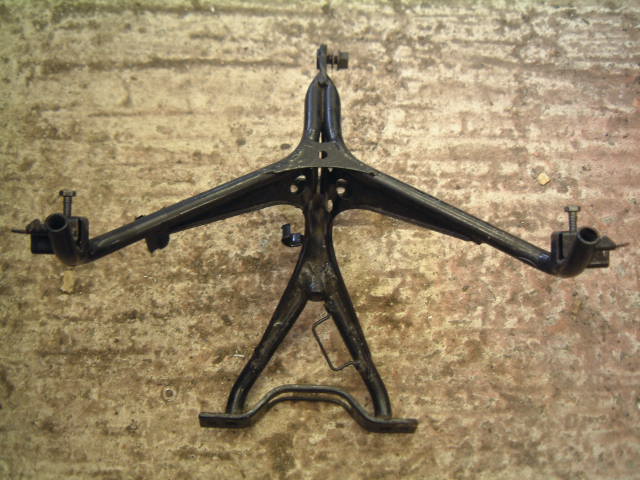

GPX750 - 011 MAIN FAIRING BRACKET - VERY GOOD, ALL THREADS OK. |
 |

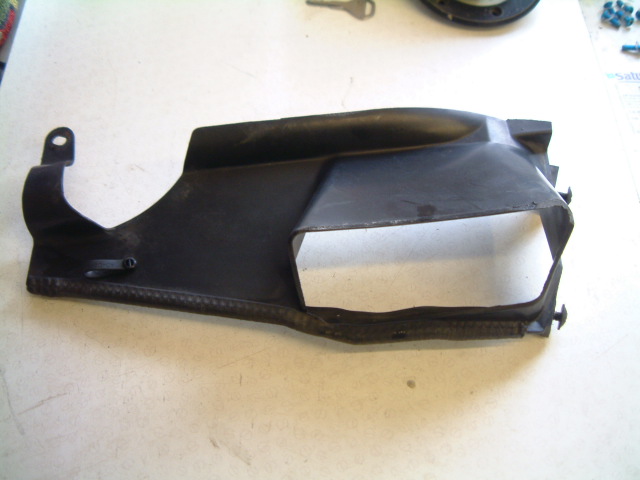

GPX750 - 028 LEFT RADIATOR DUCT - HAS SOME A SMALL AREA WITH SOME RUBBING DAMAGE, Part No. 14024-1346A. |
 |
 |

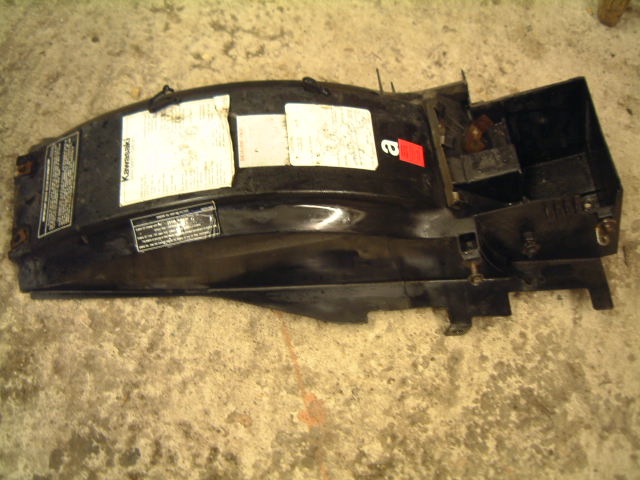

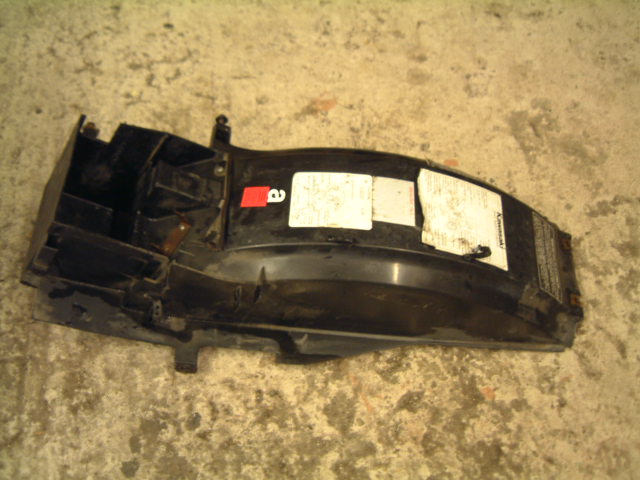

GPX750 - 048 INNER REAR MUDGUARD - ALL GOOD, NO DAMAGE. |
 |
 |
 |

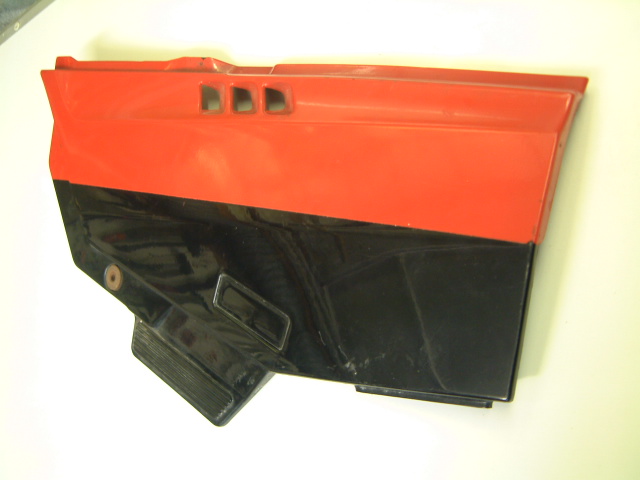

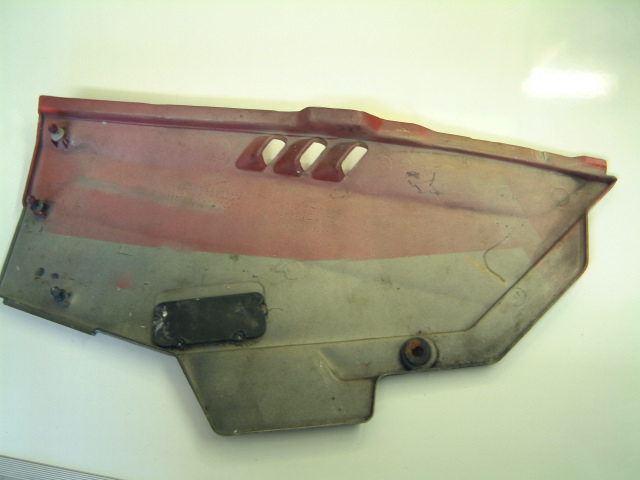

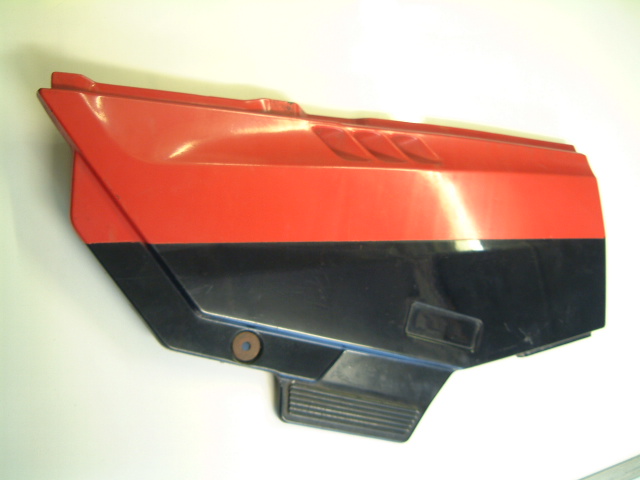

GPX750 - 241 LEFT HAND SIDE PANEL - VERY GOOD, ALL FIXINGS OK, HAS NUMBERS 360001-1342 & 360001-1361 STAMPED ON IT. |
 |
 |
 |
 |

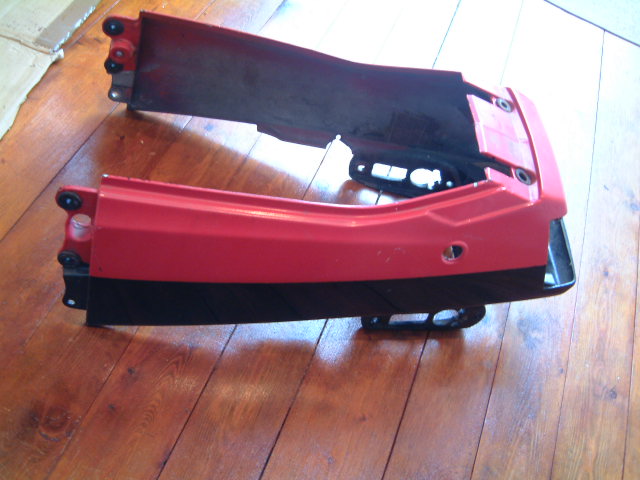

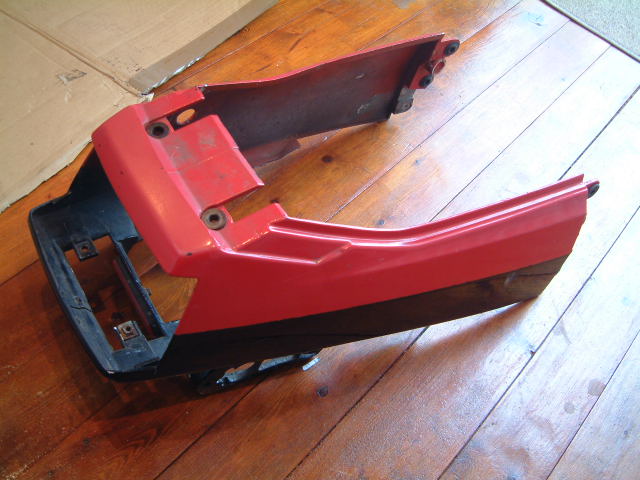

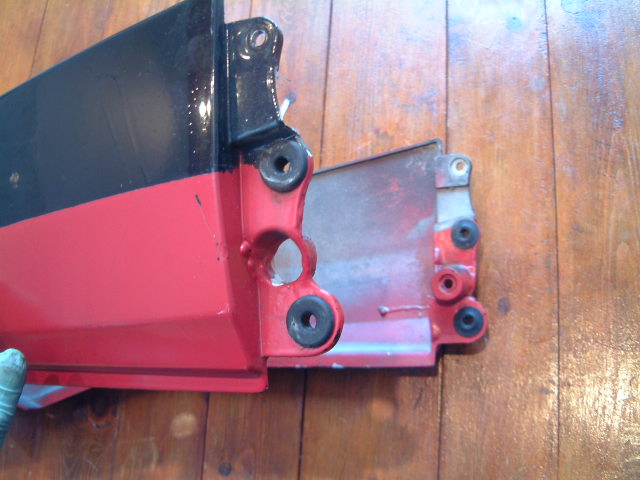

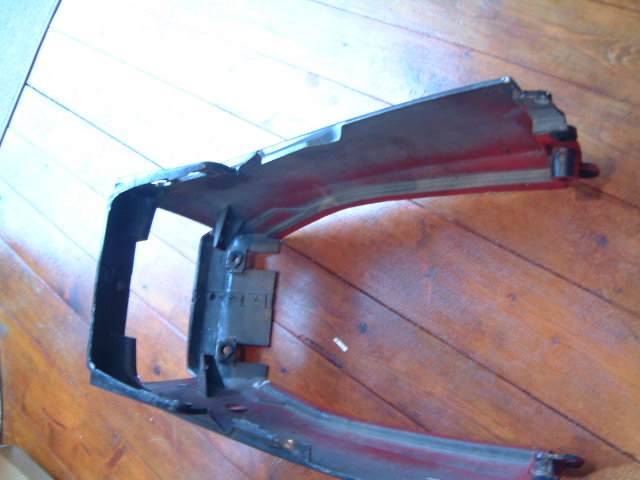

GPX750 - 240 TAIL SECTION / SEAT COWL - NEEDS SOME WORK AROUND THE FIXINGS. |
| BRAKE AND CLUTCH PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

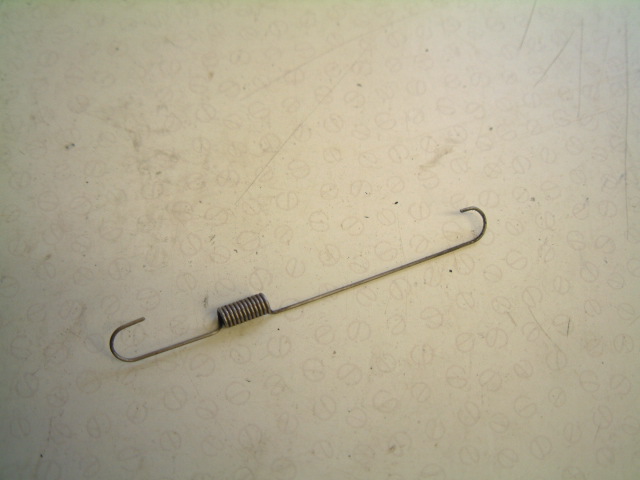

GPX750 - 043 REAR BRAKE LIGHT SWITCH SPRING - VERY GOOD. |
 |

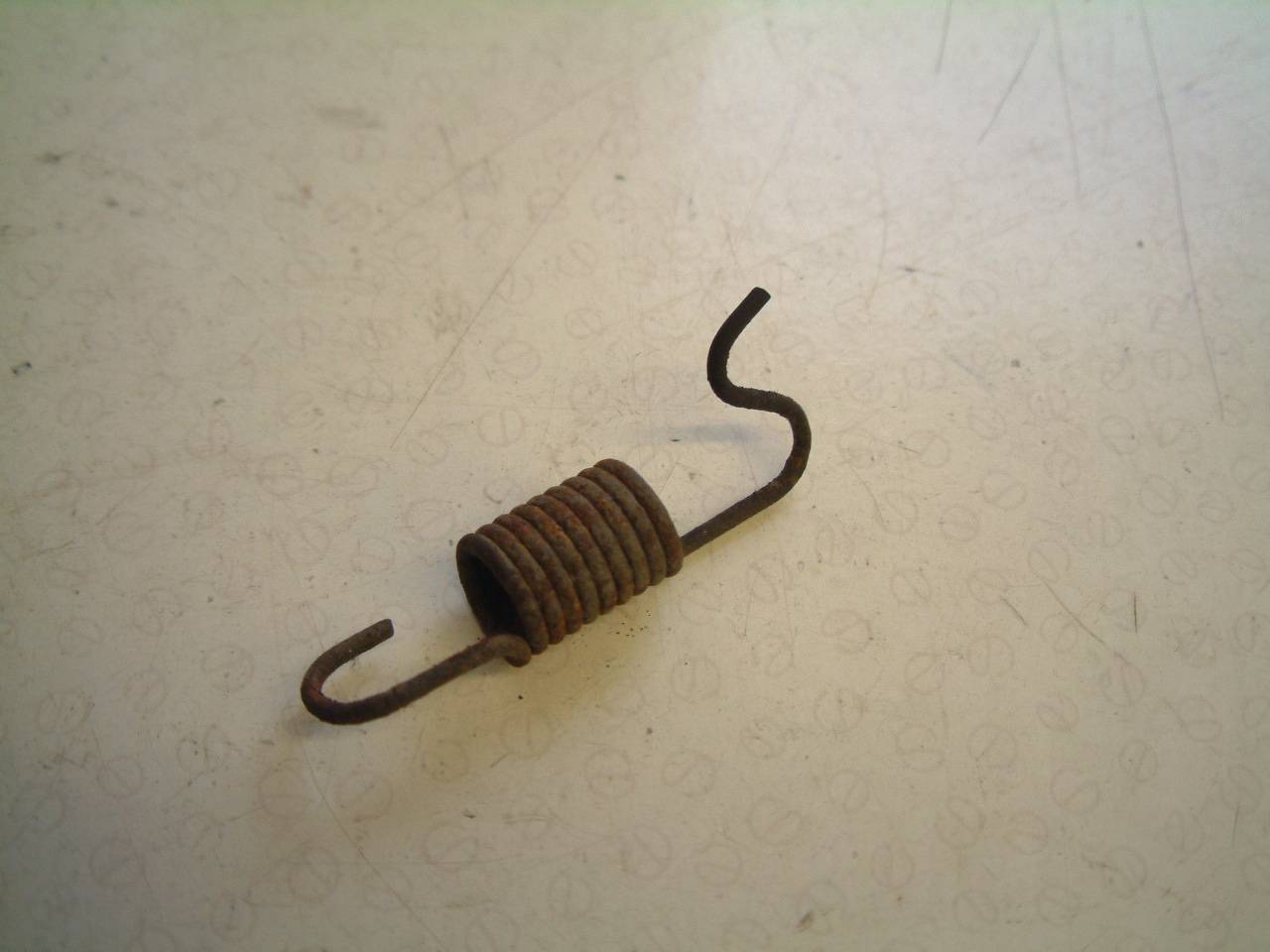

GPX750 - 090 REAR BRAKE SPRING - GOOD. |
 |

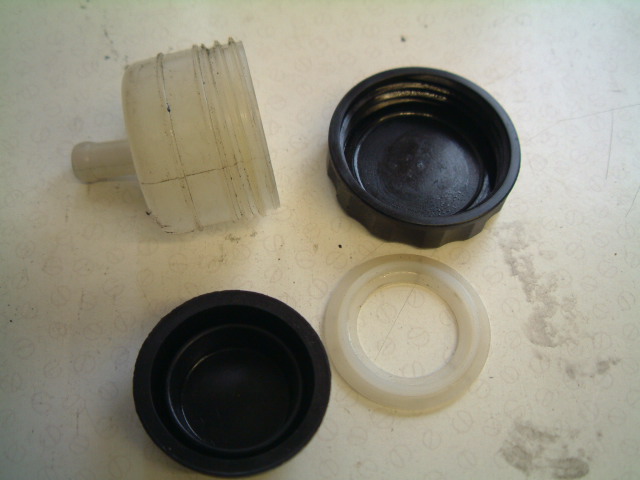

GPX750 - 164 REAR BRAKE FLUID CONTAINER - GOOD. |
 |

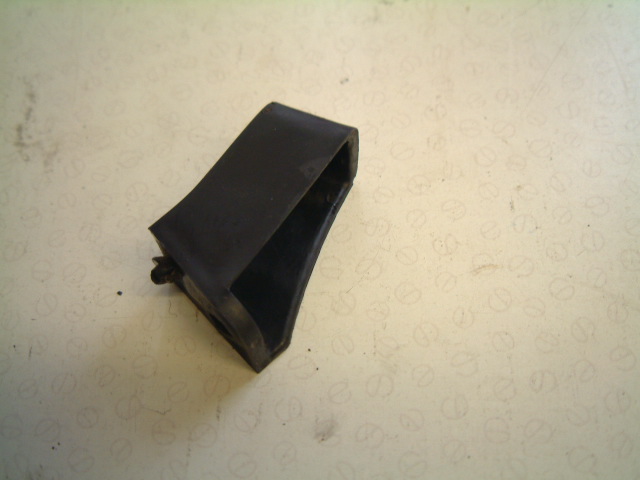

GPX750 - 166 REAR BRAKE HOSE GUIDE - GOOD. |
 |

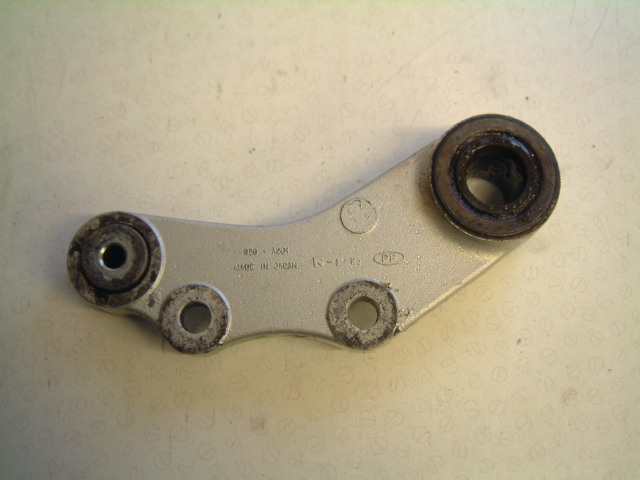

GPX750 - 174 REAR BRAKE CALIPER MOUNT - GOOD. |
 |

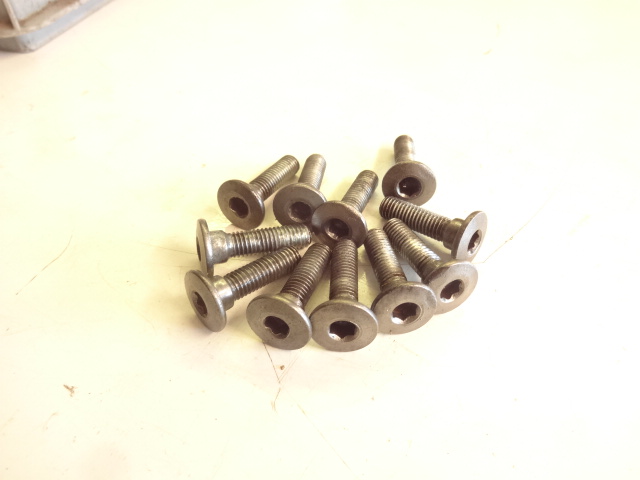

GPX750 - 187 DISC SCREWS - SERVICEABLE. |
 |

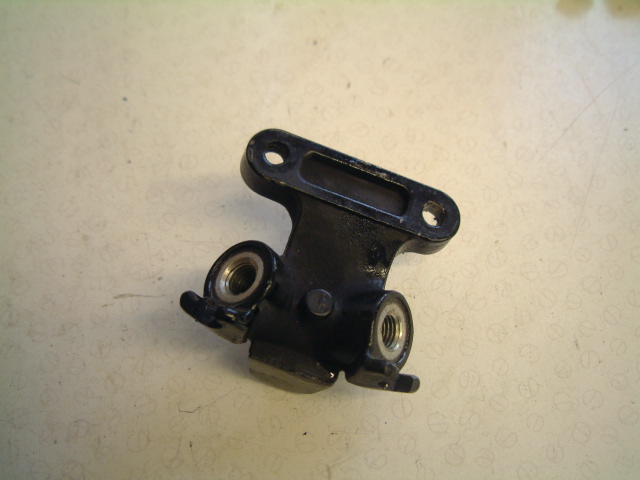

GPX750 - 192 FRONT BRAKE JOINT - VERY GOOD. |
 |

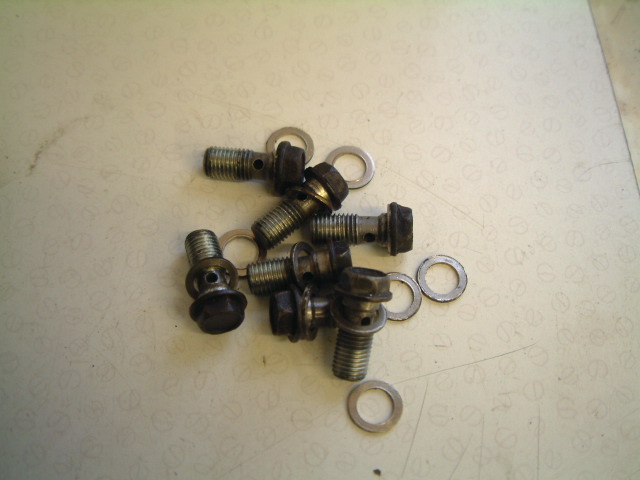

GPX750 - 193 BRAKE BANJO BOLTS - ALL SERVICEABLE. |
 |
GPX750 - 194 REAR BRAKE PIPE - SERVICEABLE, NO PERISHING, ENDS A BIT RUSTY. |
 |

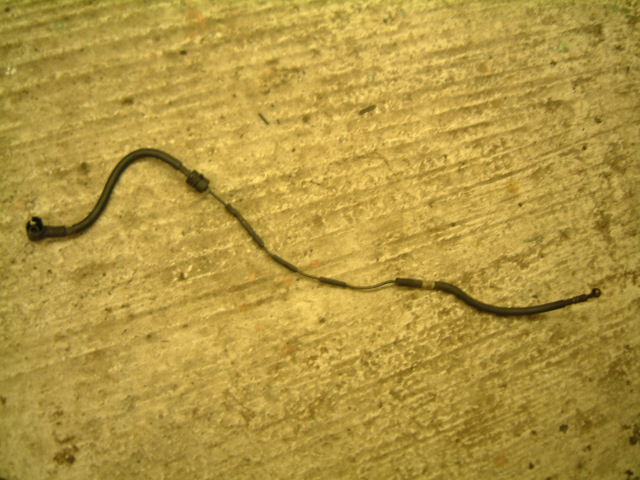

GPX750 - 201 CLUTCH PIPE - GOOD. |
 |
 |

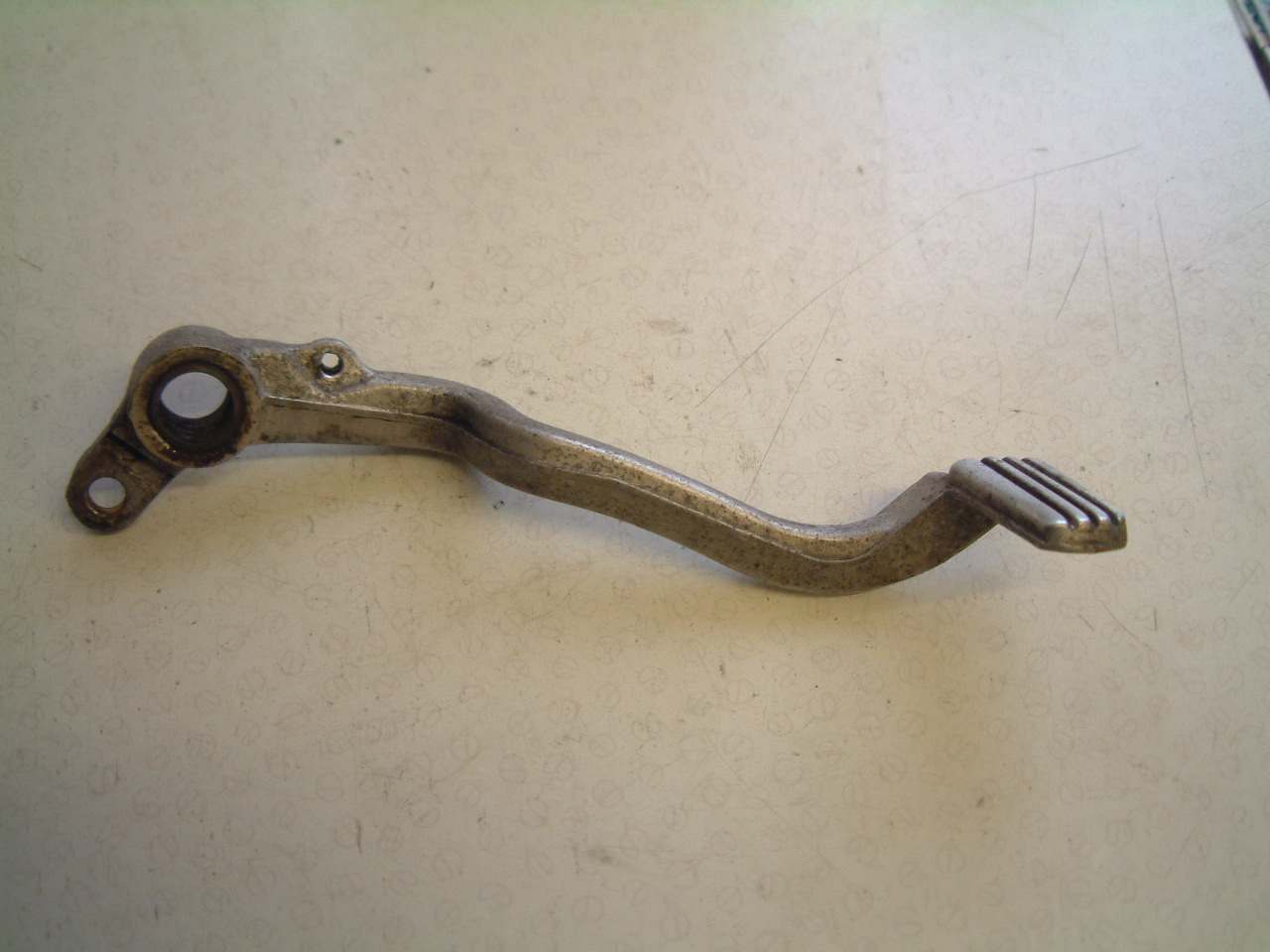

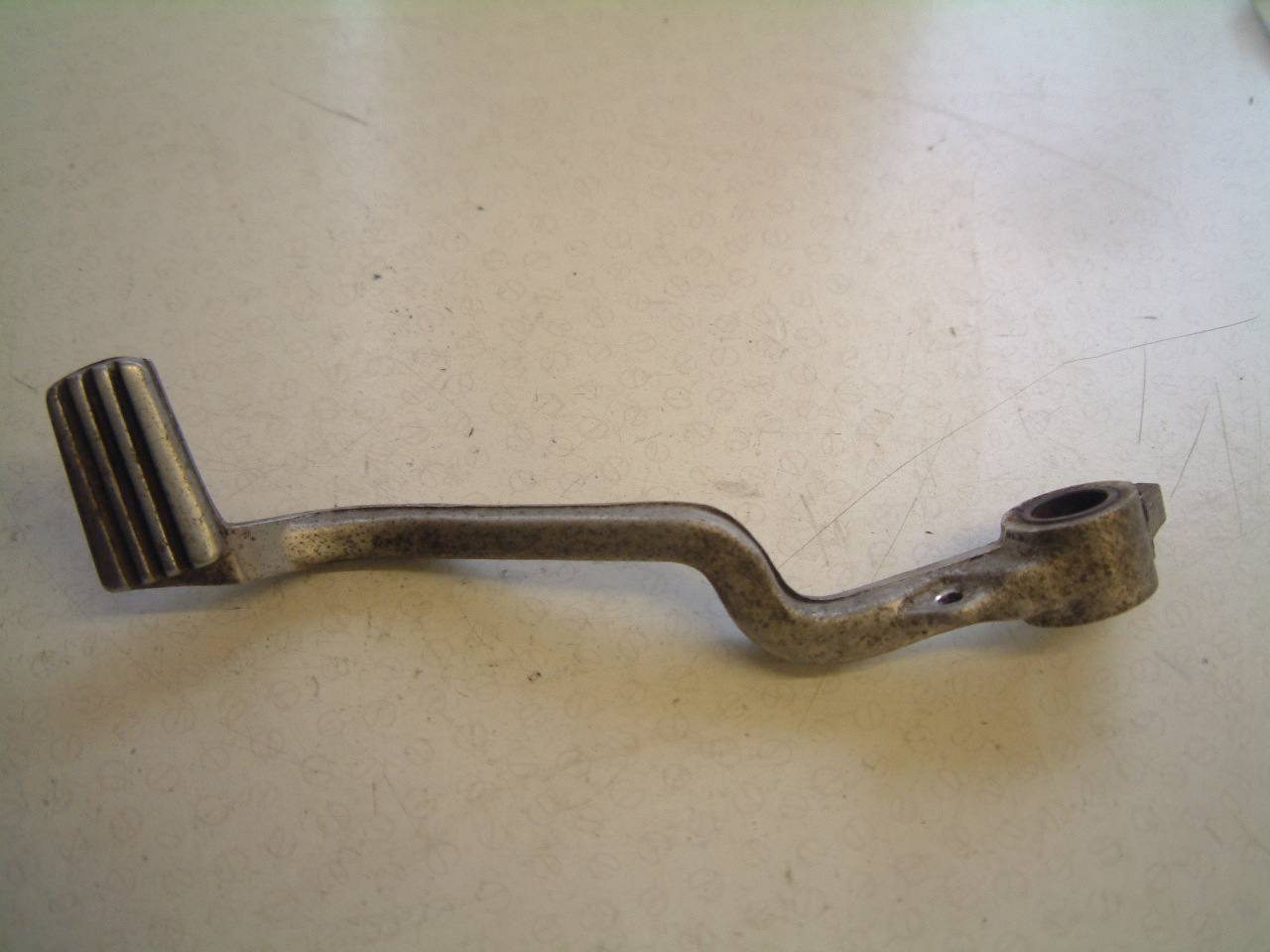

GPX750 - 091 REAR BRAKE PEDAL - VERY GOOD, NO DAMAGE. |
 |
 |

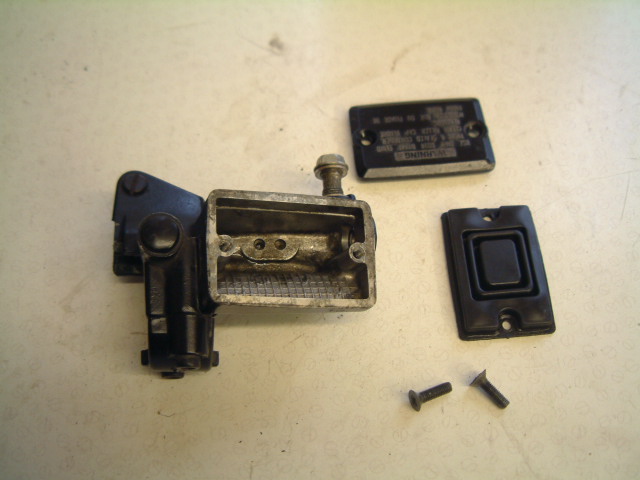

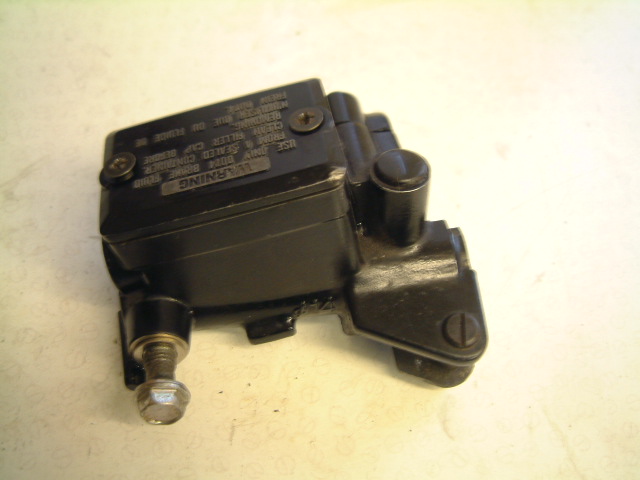

GPX750 - 198 CLUTCH MASTER CYLINDER - GOOD, WORKING WELL, NO DAMAGE, THE LITTLE DUST RUBBER HAS PERISHED. |
| FUEL, AIR, COOLING PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

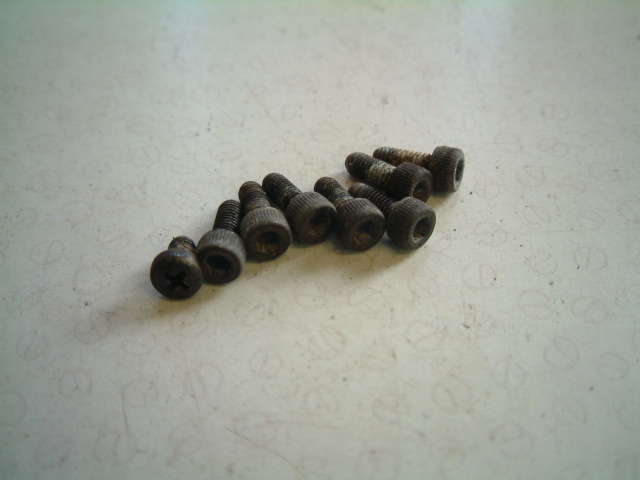

GPX750 - 017 FUEL CAP ALLEN SCREWS - ALL SERVICEABLE. |
||
 |

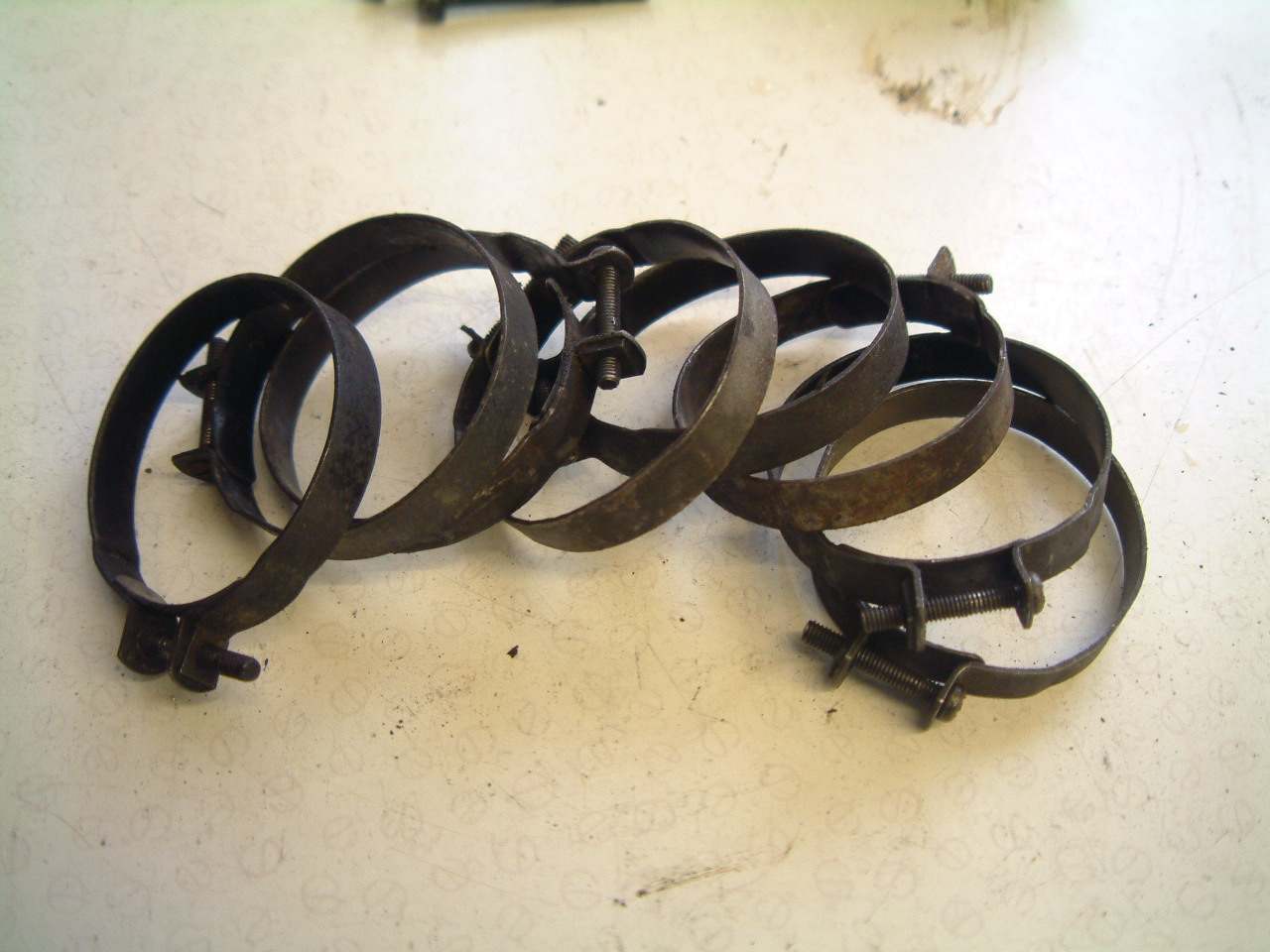

GPX750 - 087 INLET CLAMPS - FULL SET OF 8, ALL SERVICEABLE. |
 |

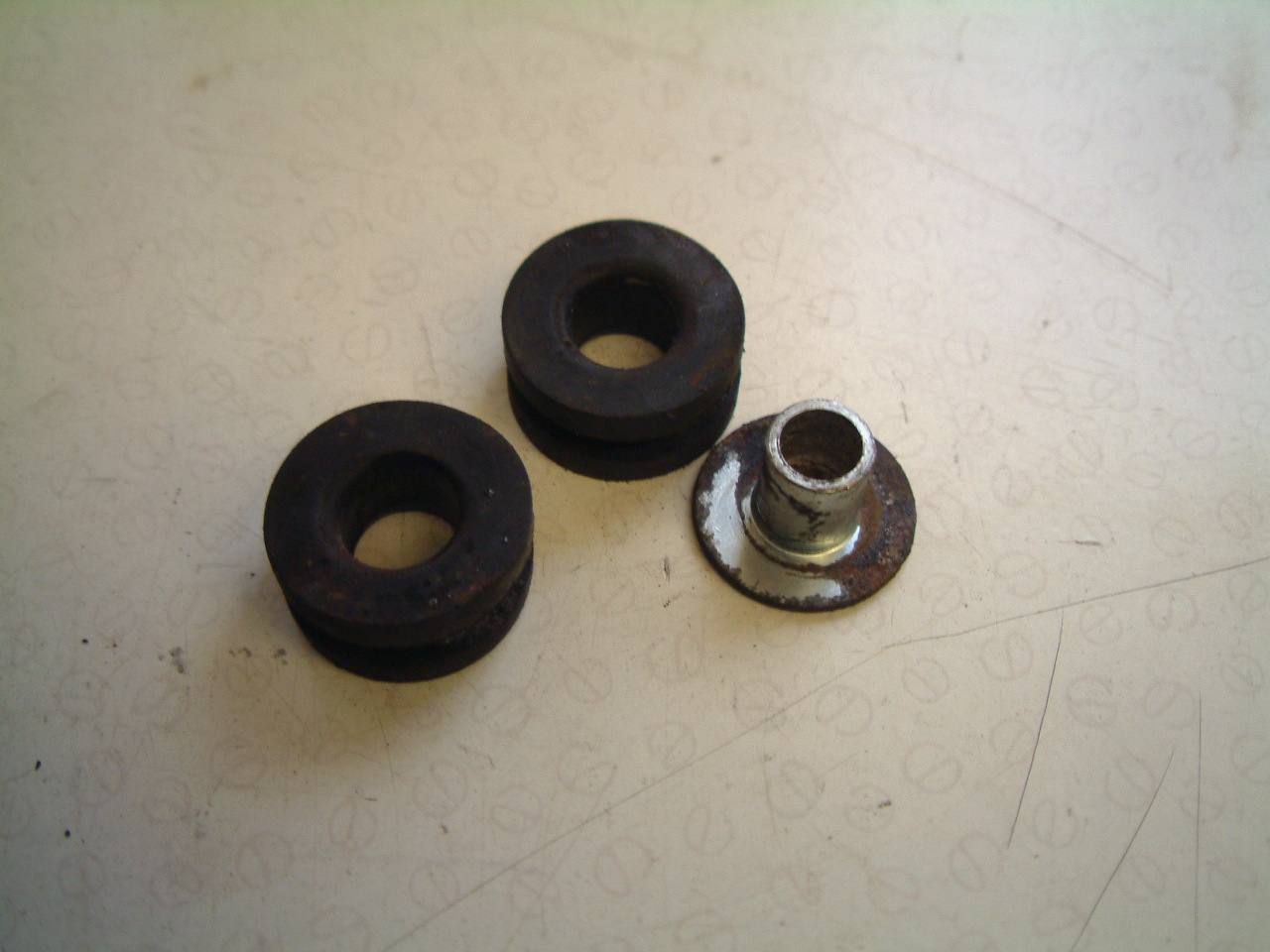

GPX750 - 101 RADIATOR RUBBER - GOOD. |
 |

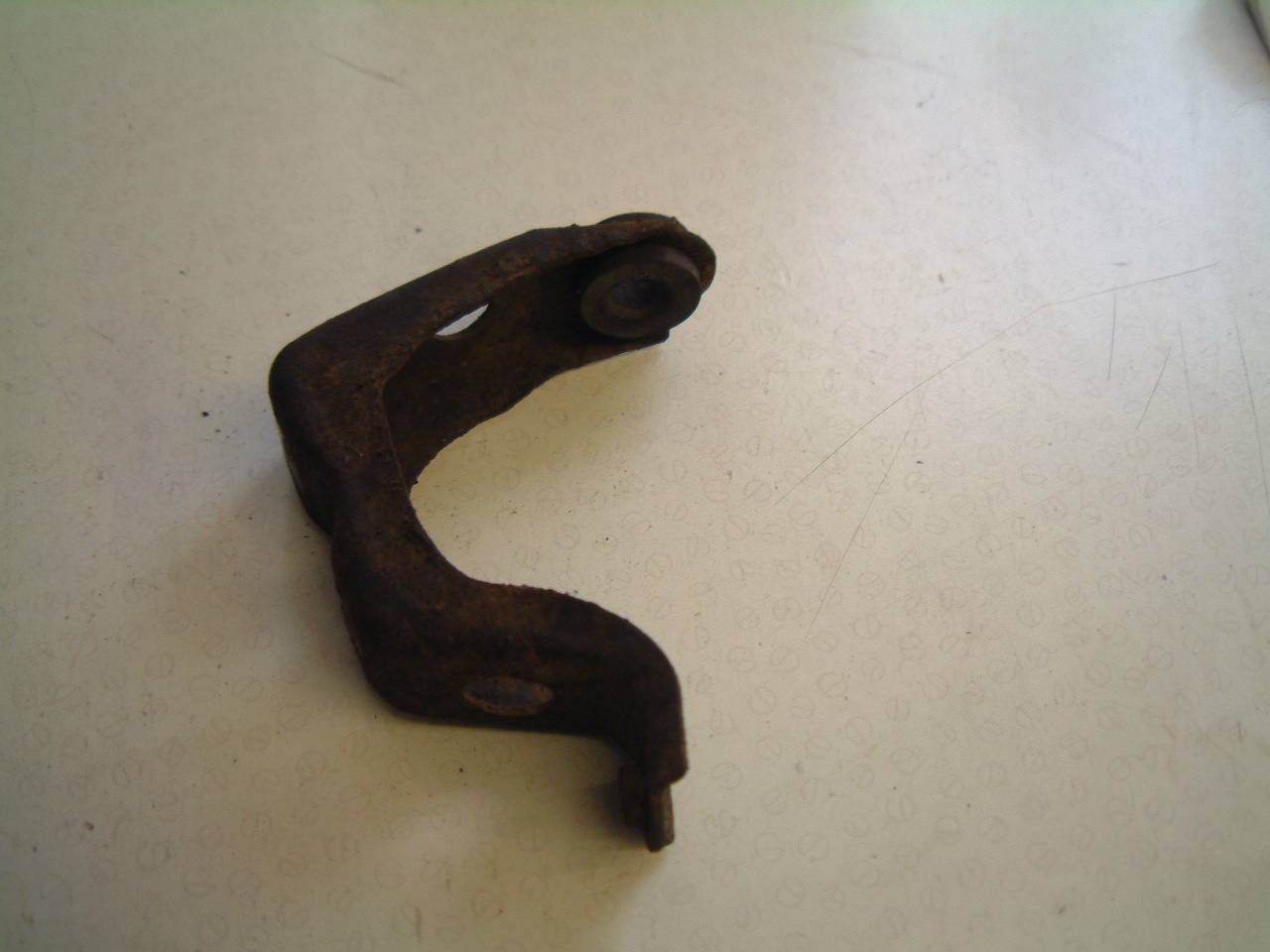

GPX750 - 113 RADIATOR SUPPORT BRACKET - SOLID BUT RUSTY. |
 |

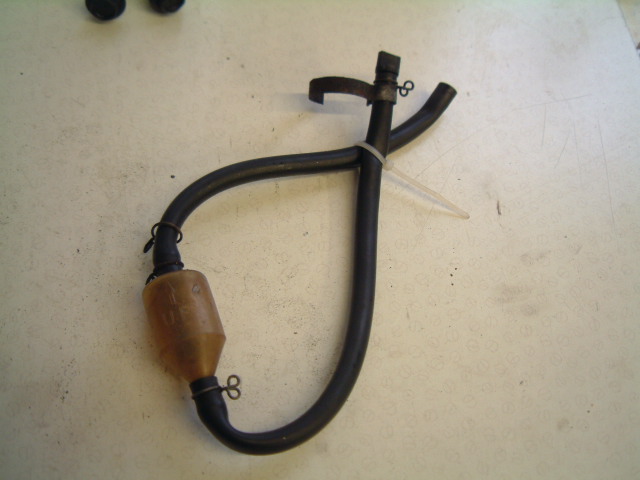

GPX750 - 178 WATER THINGY ? TO THE CARBS - GOOD. |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

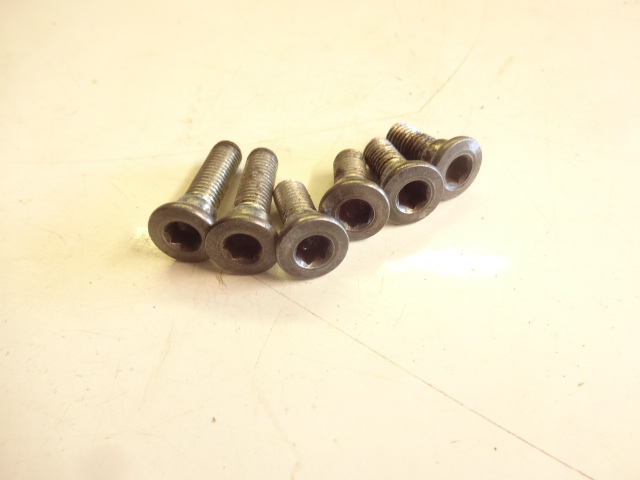

GPX750 - 032 FRONT FOOT REST ALLEN SCREWS - ALL GOOD. |
 |

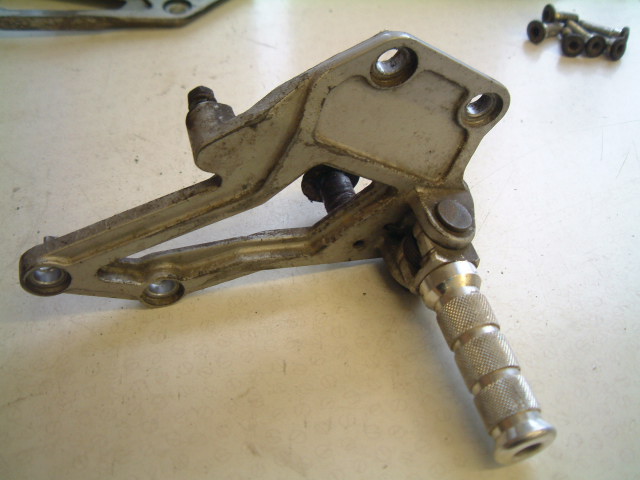

GPX750 - 033 RHS FRONT FOOT REST MOUNT AND PEG - GOOD, NO DAMAGE. |
 |

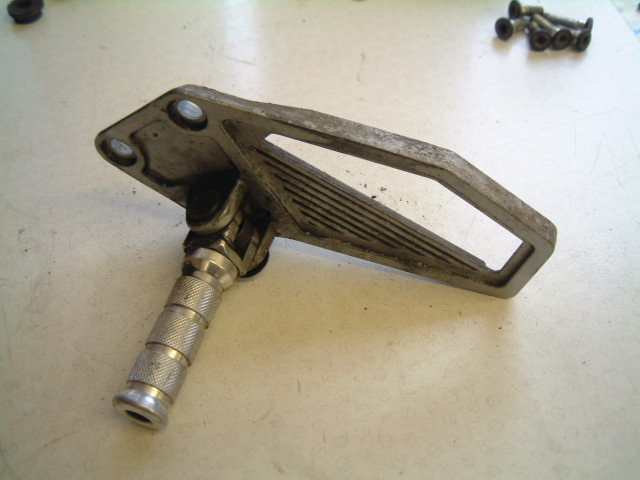

GPX750 - 034 LHS FRONT FOOT REST MOUNT AND PEG - GOOD, NO DAMAGE. |
 |

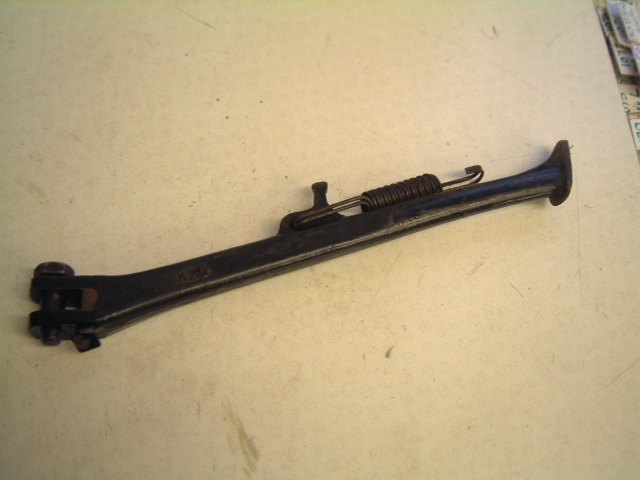

GPX750 - 051 SIDE STAND COMPLETE - ALL GOOD. |
 |

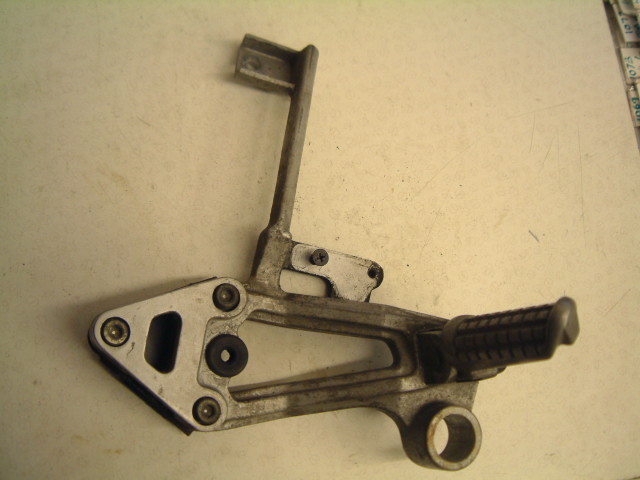

GPX750 - 058 LHS REAR FOOT REST MOUNT AND PEG - GOOD, NO DAMAGE, NEEDS A CLEAN. |
 |

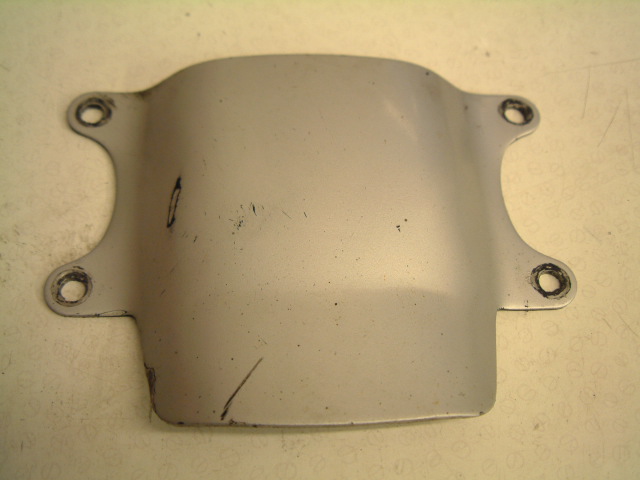

GPX750 - 059 FORK BRACE - GOOD. |
 |

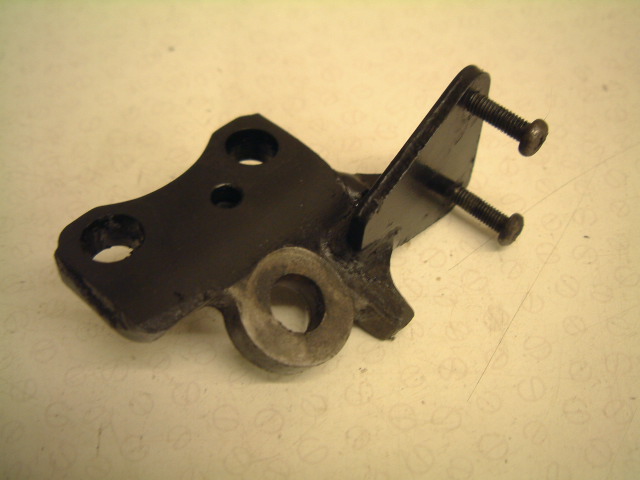

GPX750 - 068 SIDE STAND MOUNT - GOOD, THREADS OK. |
 |

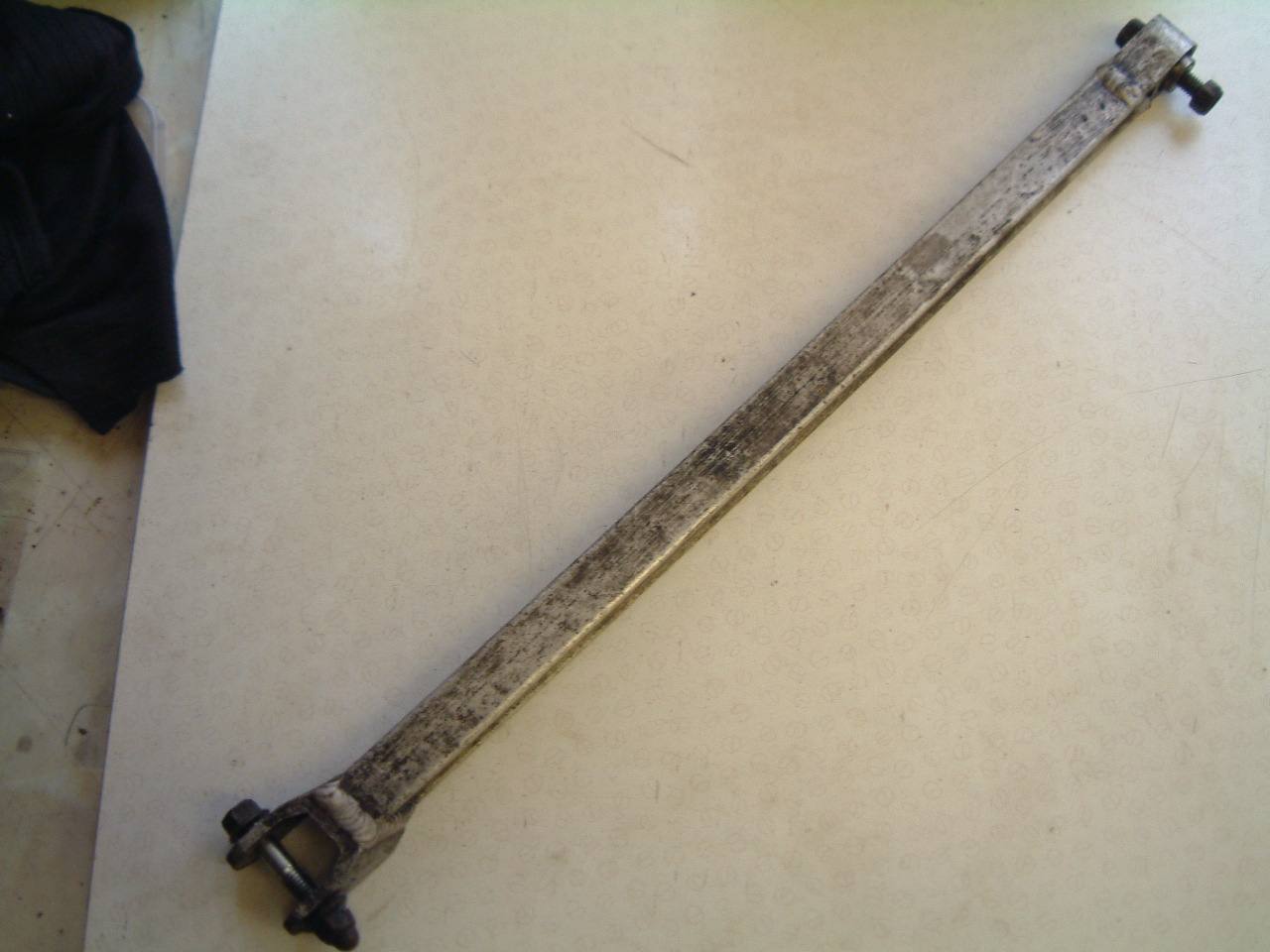

GPX750 - 133 TORQUE ARM - GOOD, NO DAMAGE, NEEDS A CLEAN. |
 |

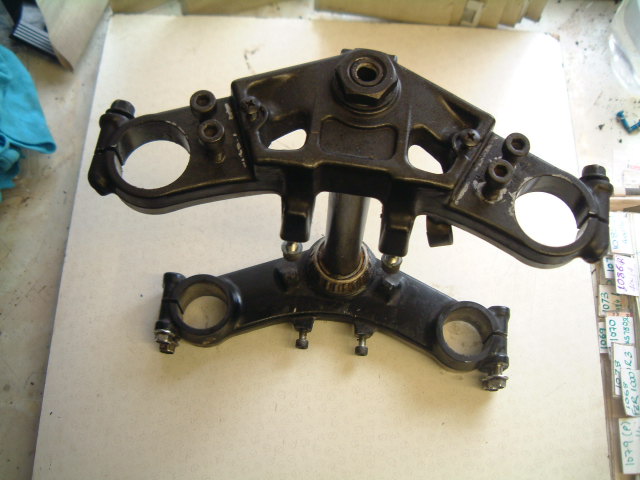

GPX750 - 162 YOKES AND BEARINGS - ALL GOOD, + BOLTS, 38mm DIAMETER, APPROX 200mm BETWEEN CENTRES. |
 |

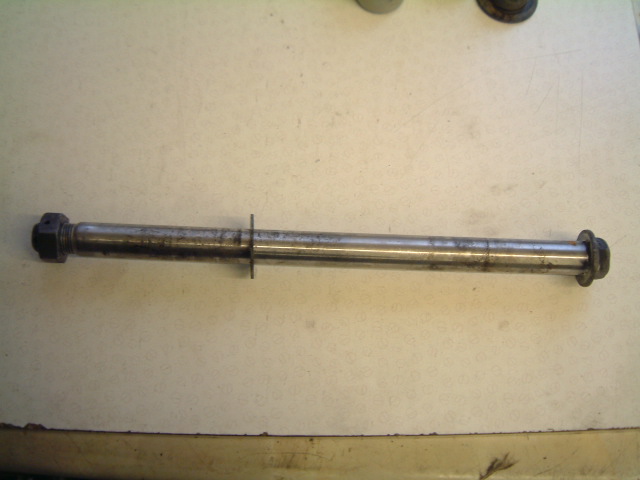

GPX750 - 172 REAR WHEEL SHAFT - GOOD. |
 |

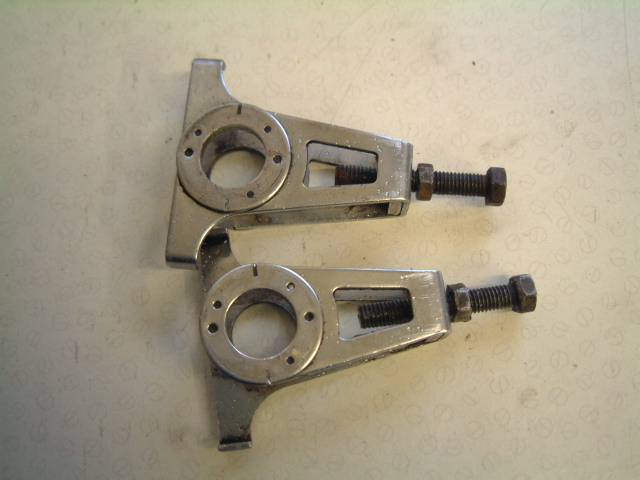

GPX750 - 173 REAR WHEEL CHAIN ADJUSTERS - GOOD. |
 |

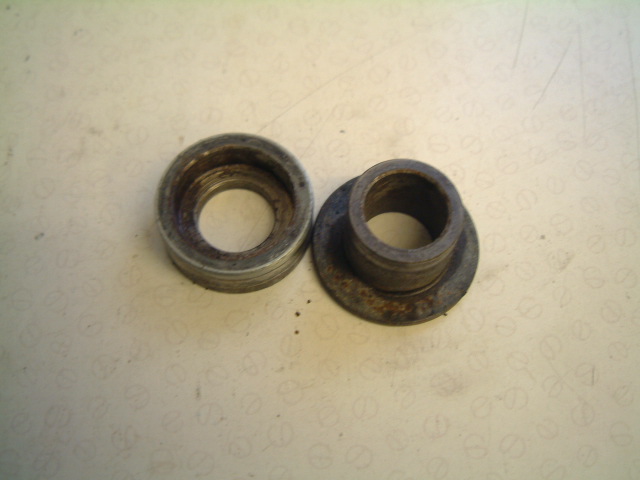

GPX750 - 175 REAR WHEEL SPACERS - GOOD. |
 |

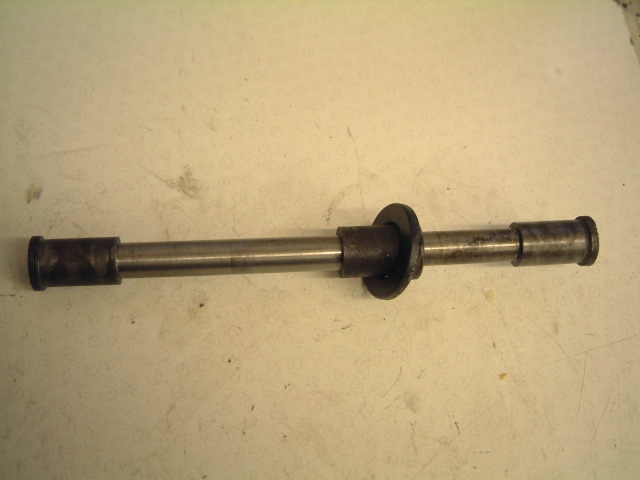

GPX750 - 205 FRONT WHEEL SHAFT COMPLETE - GOOD. |
 |
 |

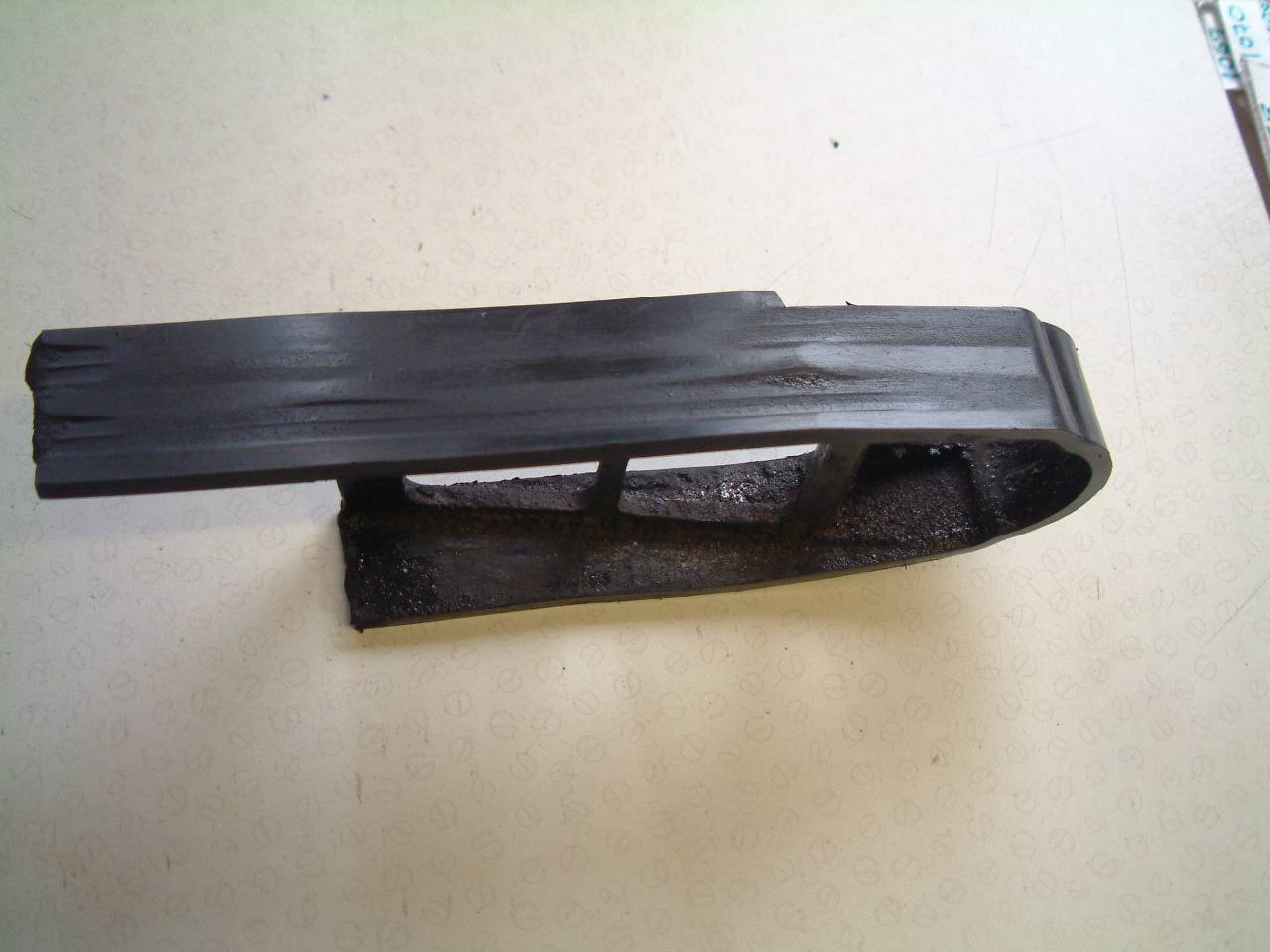

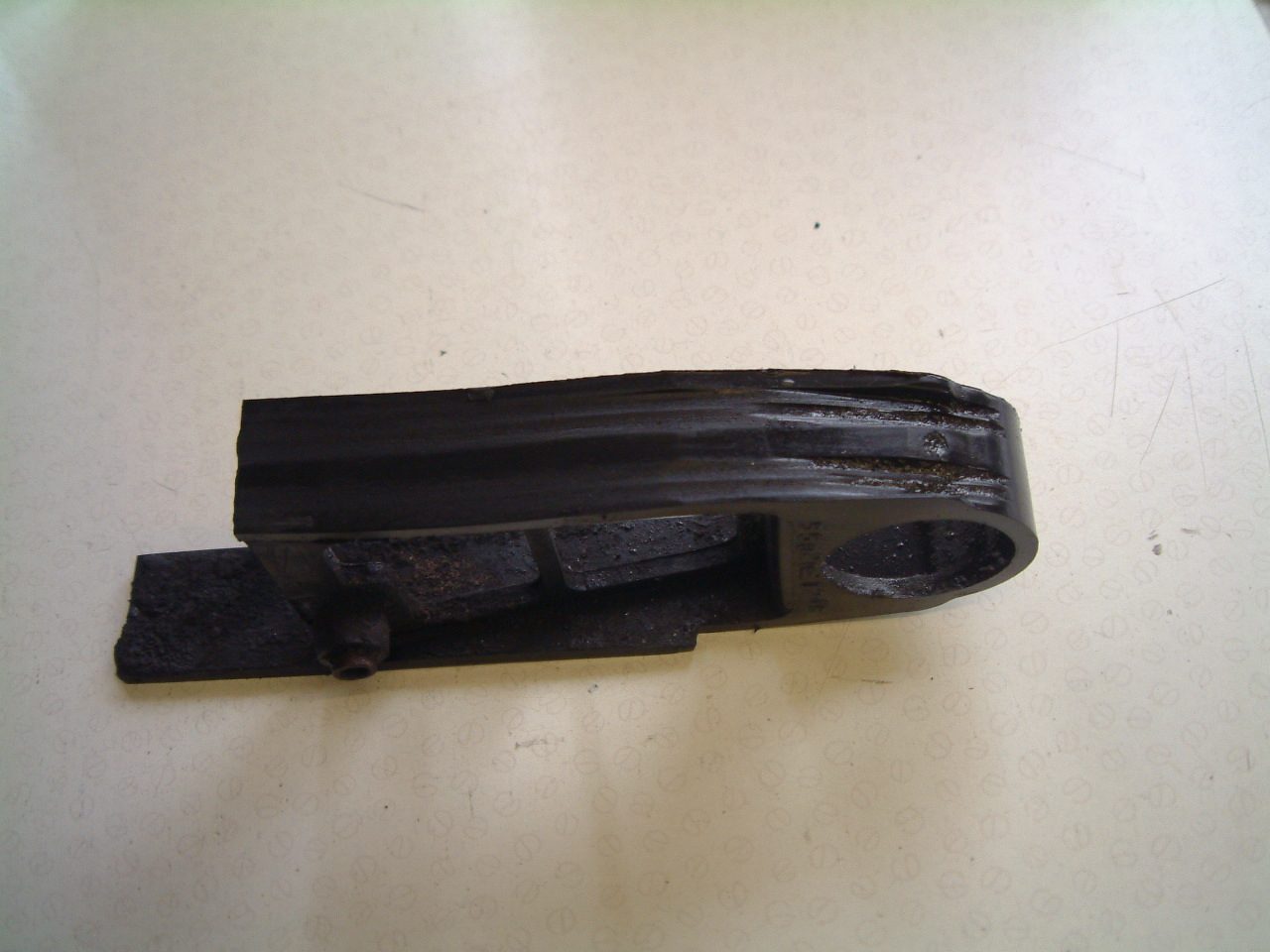

GPX750 - 120 DRIVE CHAIN GUIDE - HAS SOME WEAR BUT SERVICEABLE. |
 |
 |

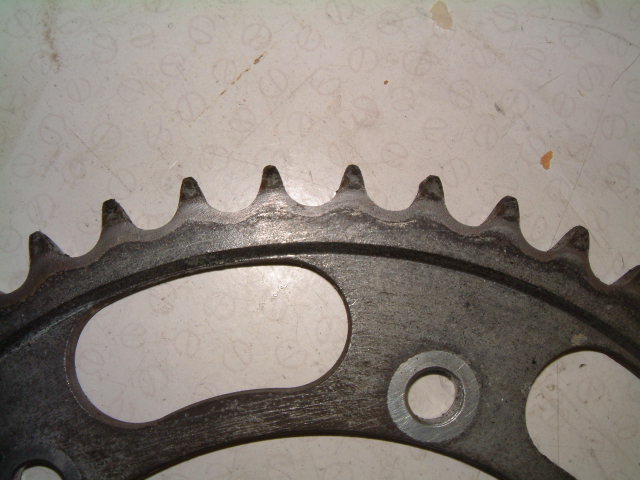

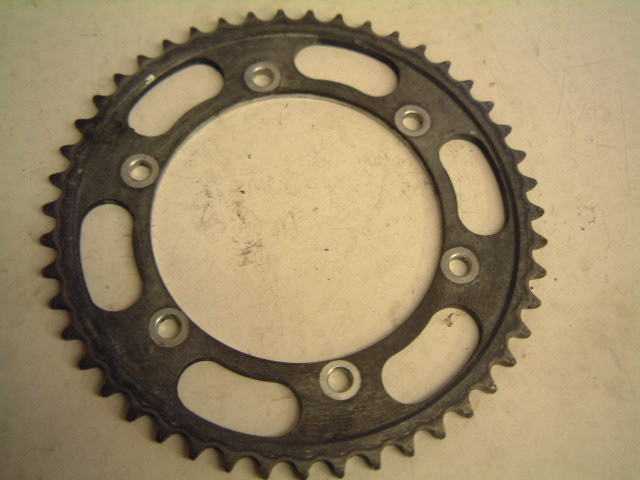

GPX750 - 204 REAR WHEEL SPROCKET - HAS SOME GOOD LIFE LEFT. |
 |
 |

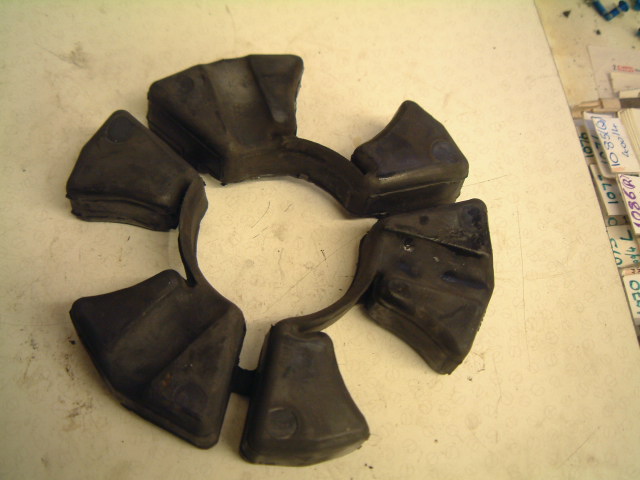

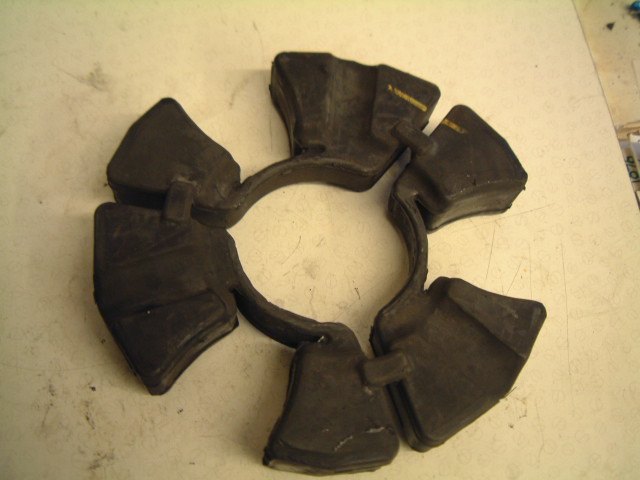

GPX750 - 206 CUSH DRIVE - VERY GOOD, NO DAMAGE. |
 |
 |
 |
 |

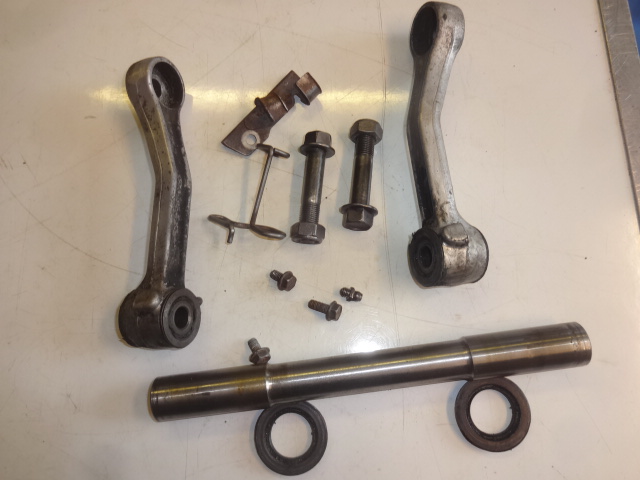

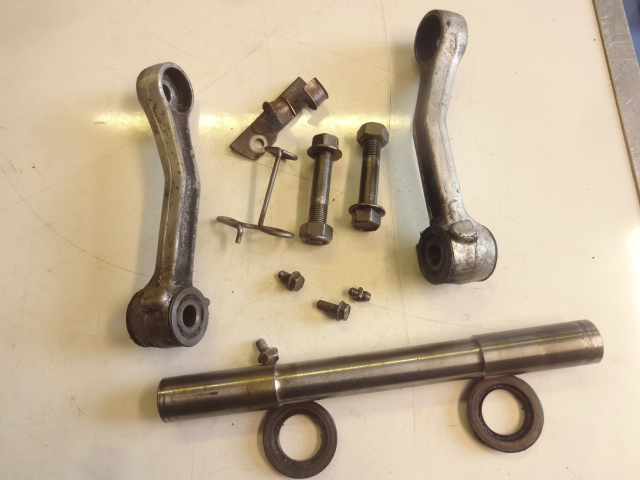

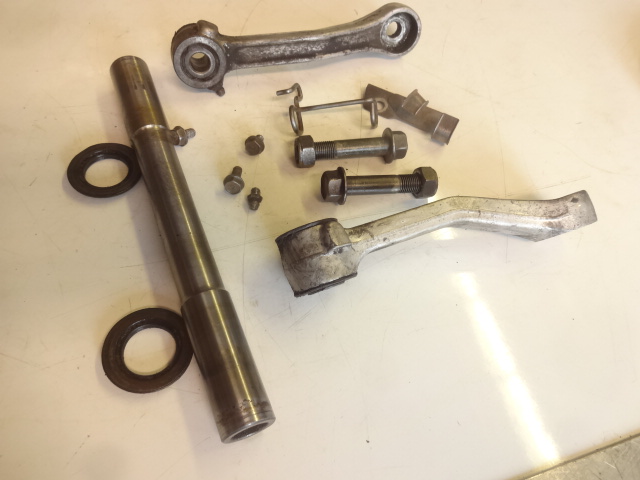

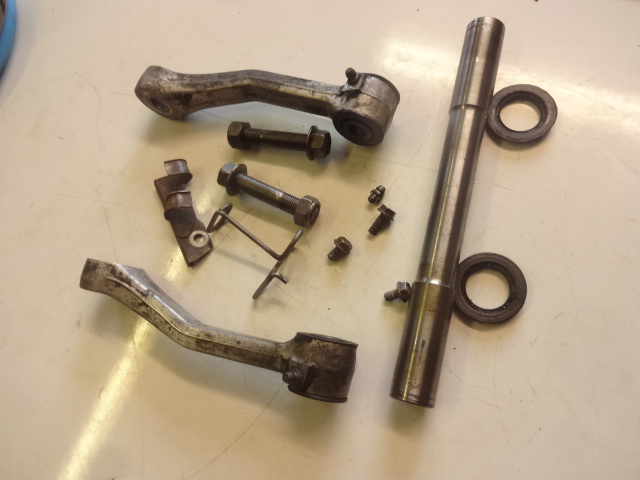

GPX750 - 215 COLLAR, WISHBONES ETC ALL FROM A SWING ARM - ALL GOOD PARTS. |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

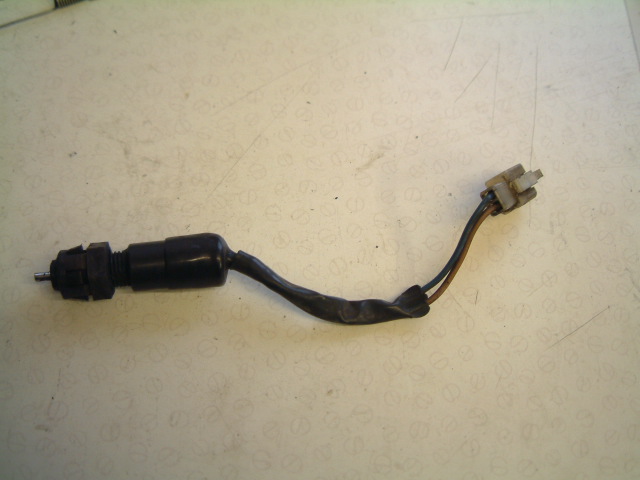

GPX750 - 041 REAR BRAKE LIGHT SWITCH - TESTED. |
 |

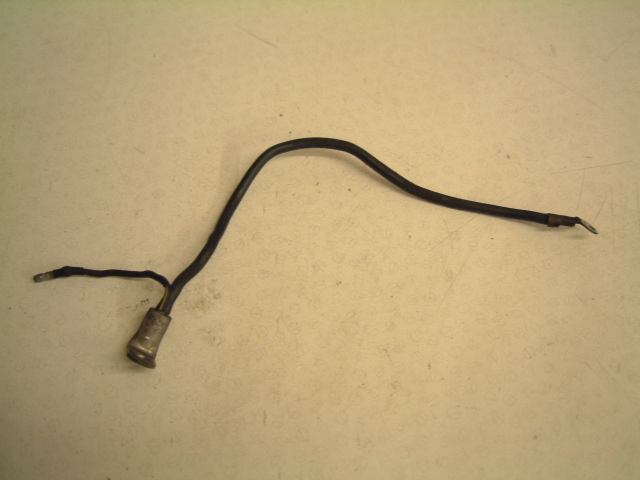

GPX750 - 060 BATTERY EARTH - GOOD. |
 |

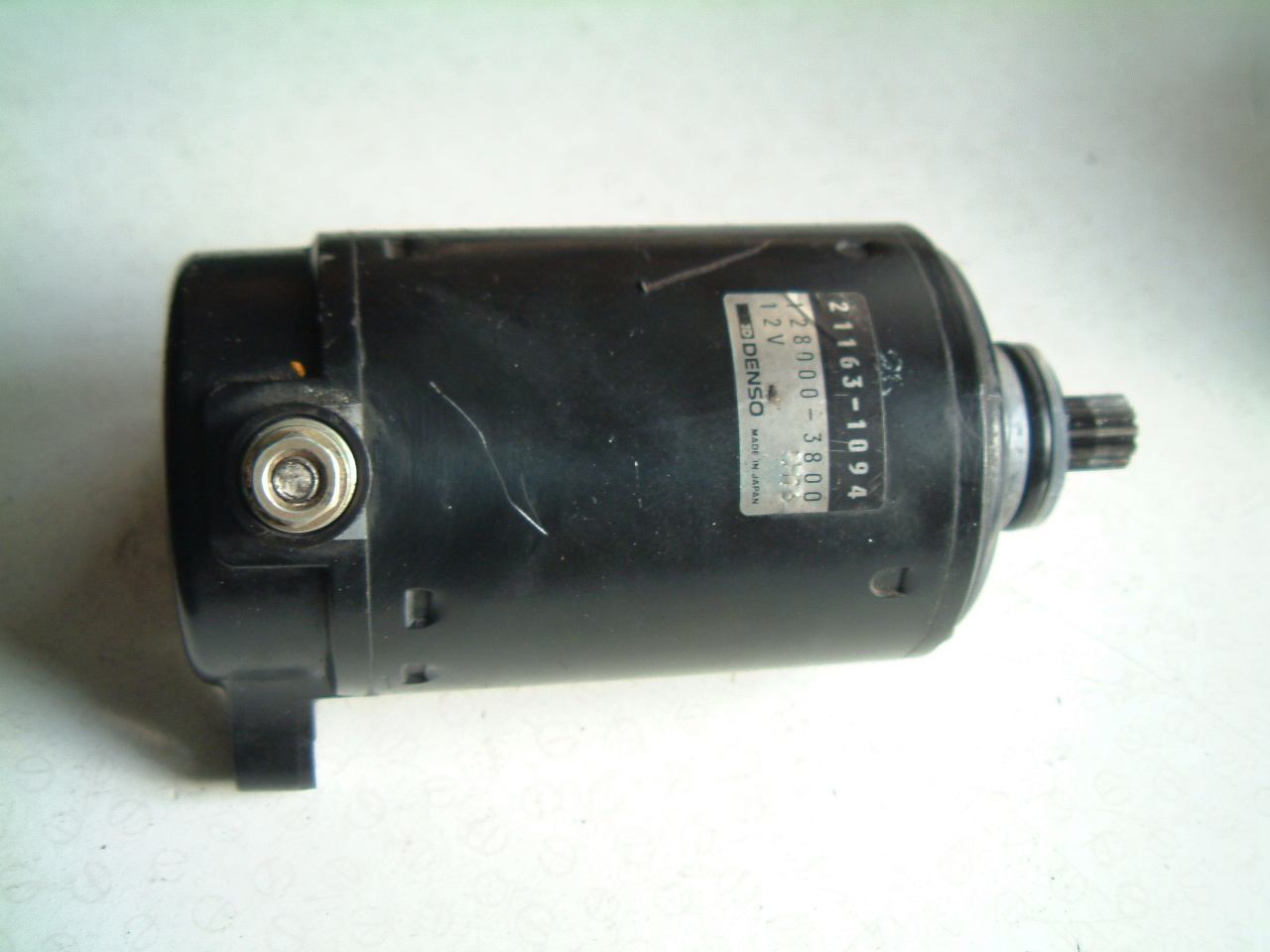

GPX750 - 071 STARTER MOTOR - TESTED, HAS 2 NUMBERS ON IT " 21163-1094 " AND " 128000-3800 ". |
 |

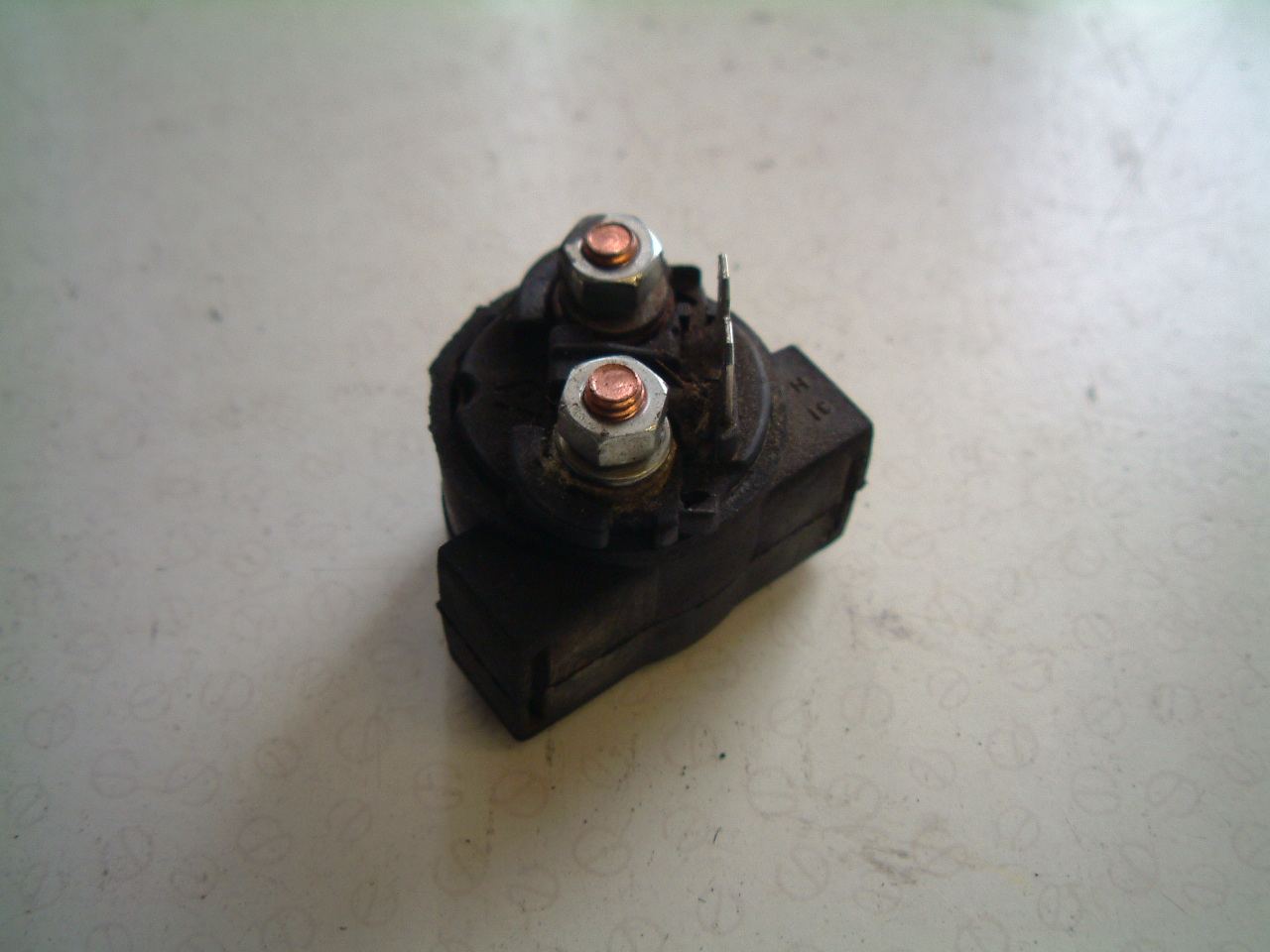

GPX750 - 074 STARTER SOLENOID - WORKING. |
 |

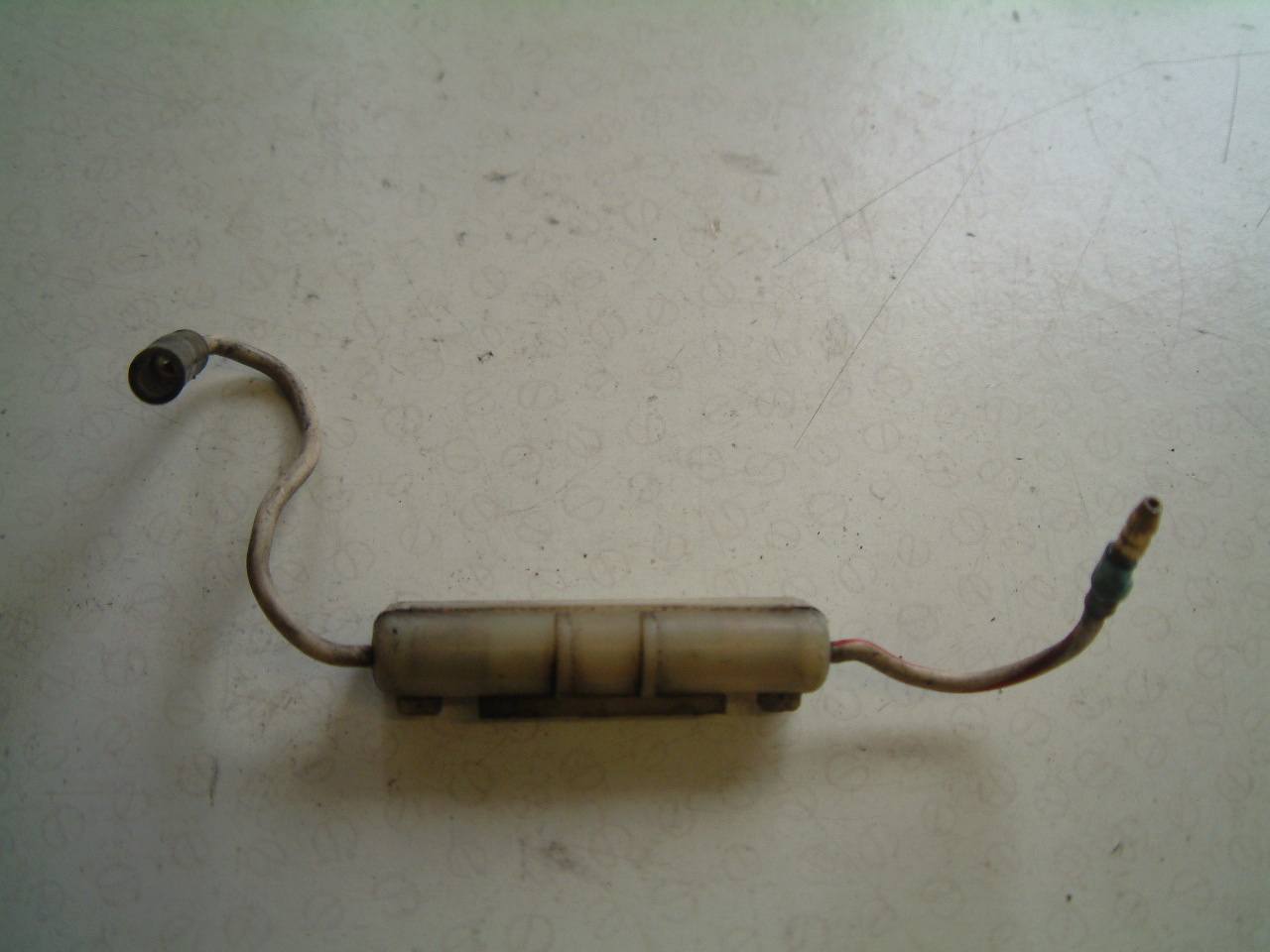

GPX750 - 077 MAIN FUSE - GOOD. |
 |
GPX750 - 078 STARTER LEAD - VERY GOOD. |
 |

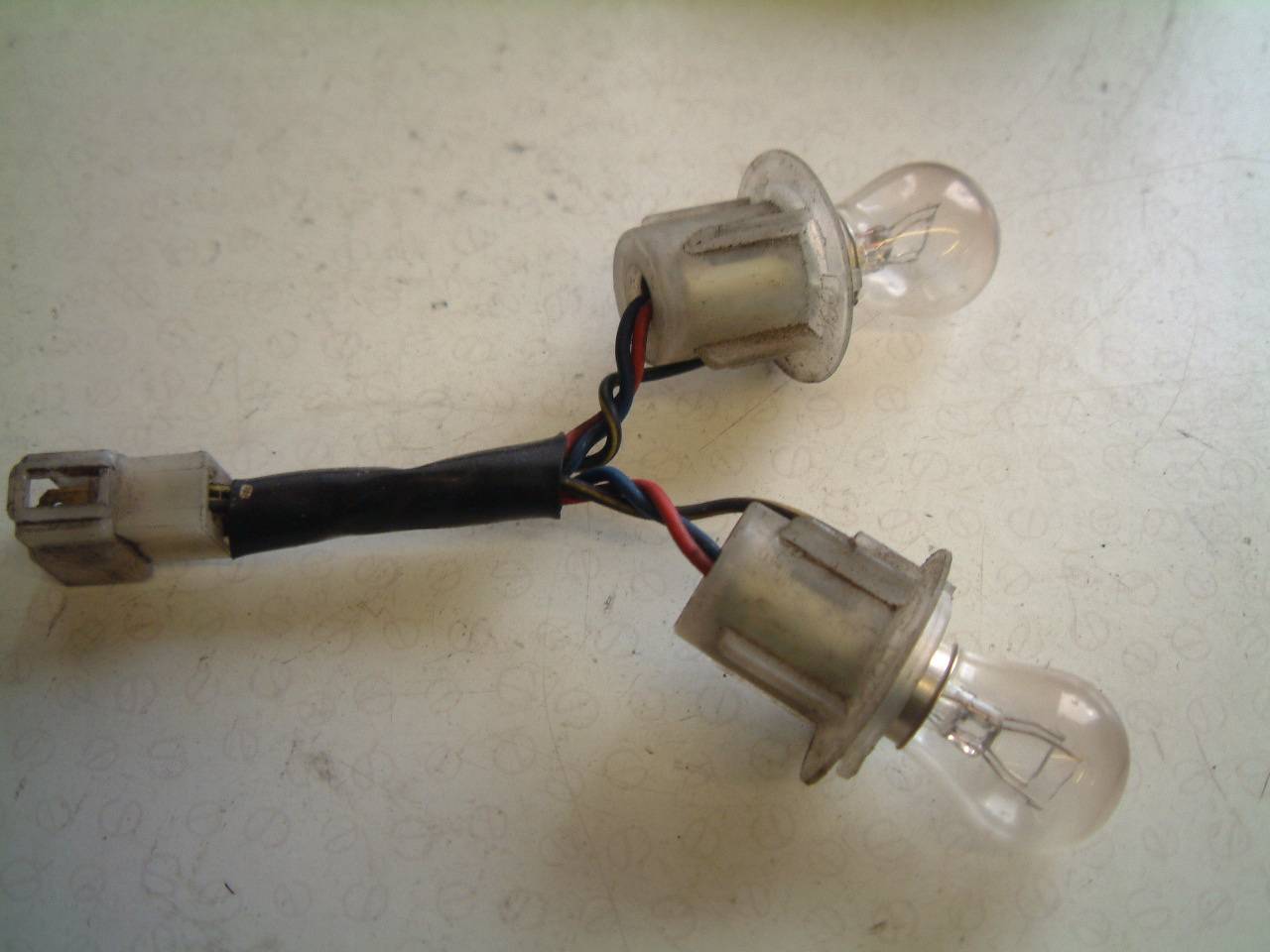

GPX750 - 080 TAIL LIGHT LOOM - VERY GOOD. |
 |

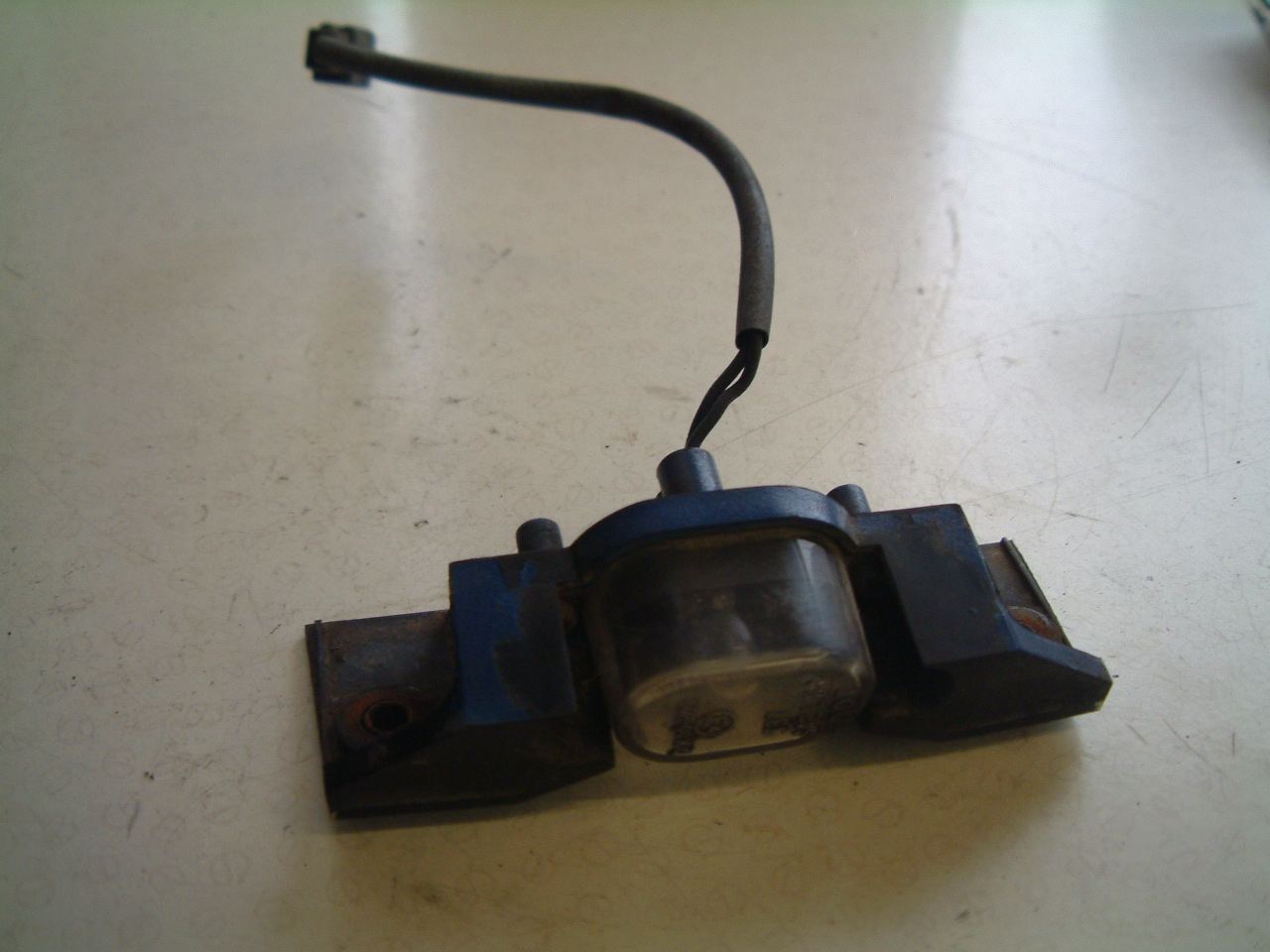

GPX750 - 082 NUMBER PLATE LIGHT - WORKING, NO DAMAGE. |
 |

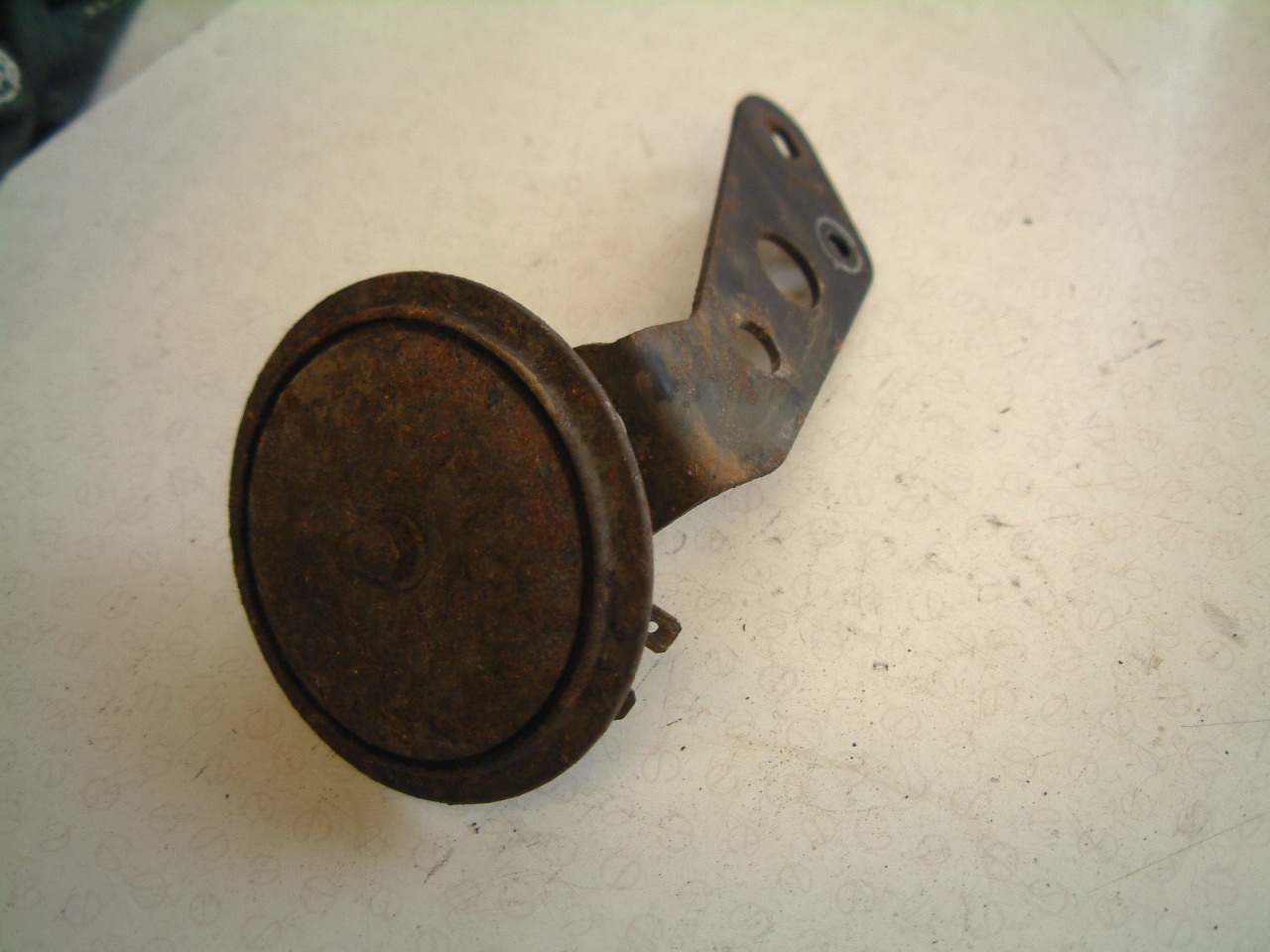

GPX750 - 084 RHS HORN AND BRACKET - WORKING, NEEDS PAINT. |
 |

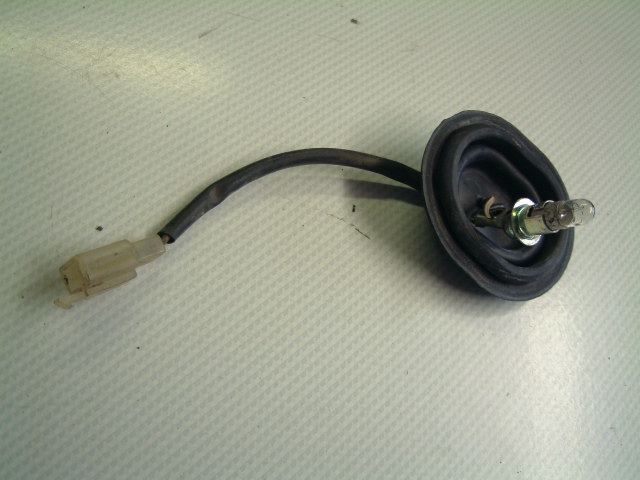

GPX750 - 236 PARKING LIGHT & RUBBER - GOOD. |
 |
 |

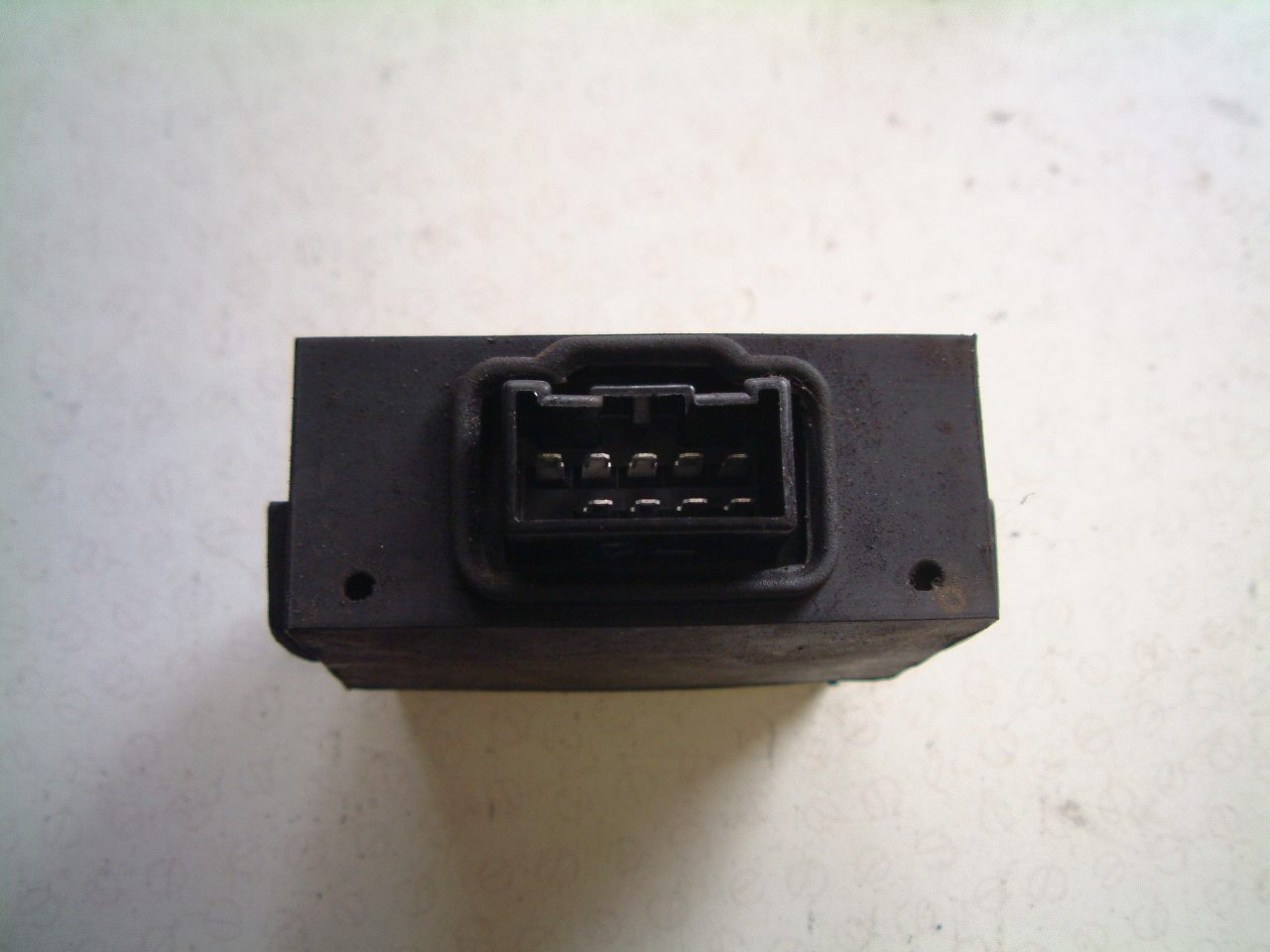

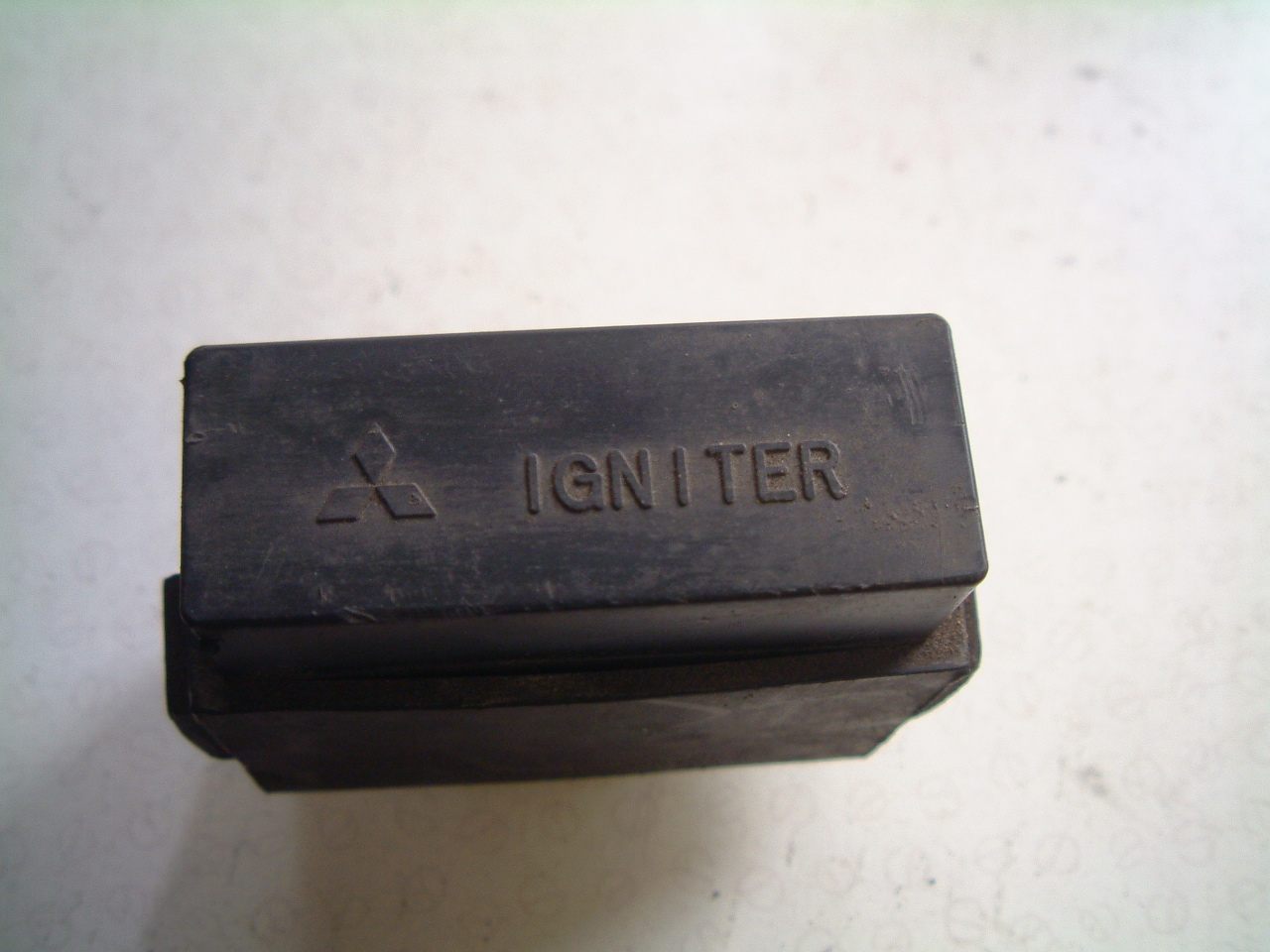

GPX750 - 073 IGNITER - WORKING, 21119-1204. |
 |
 |

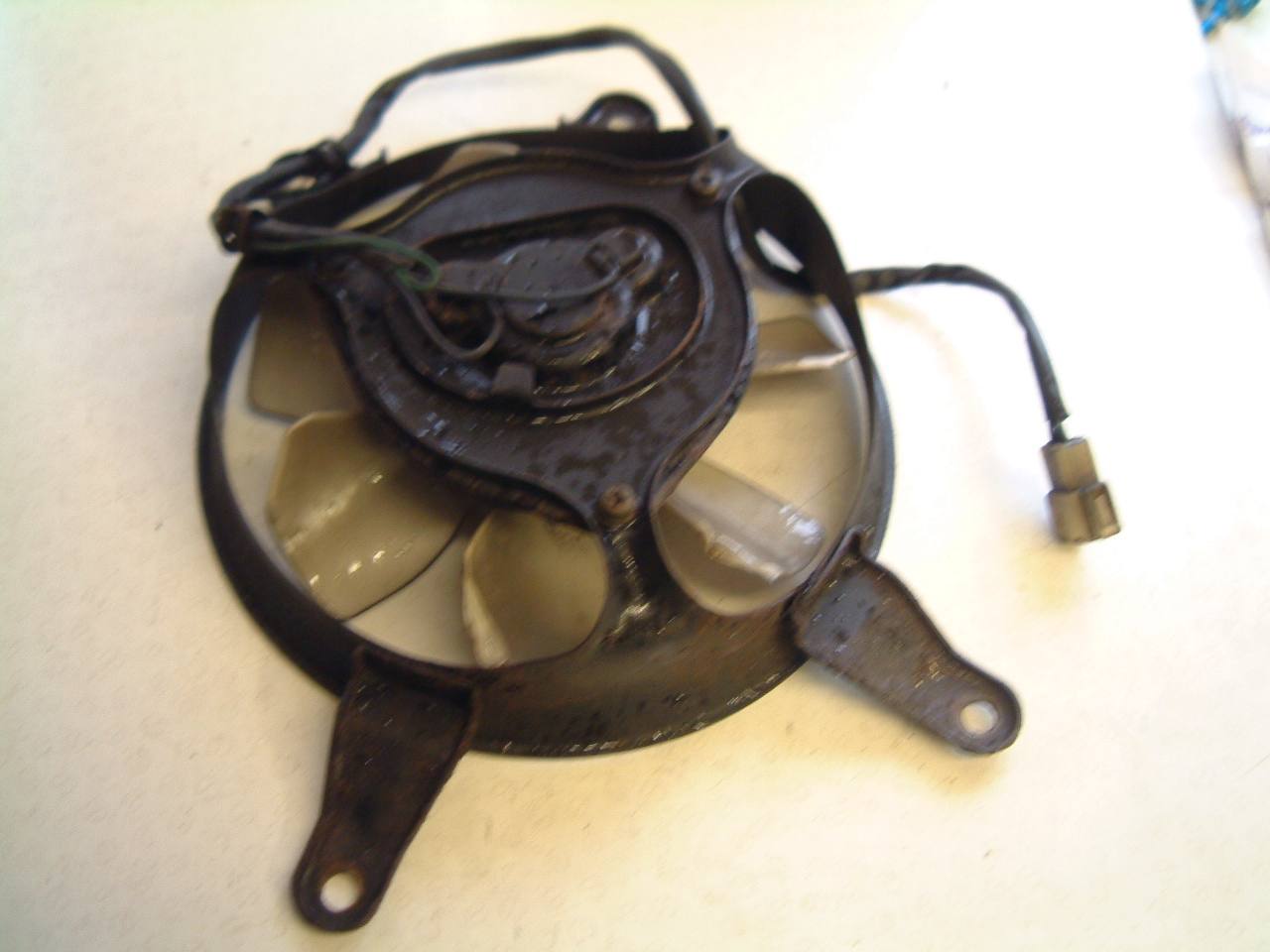

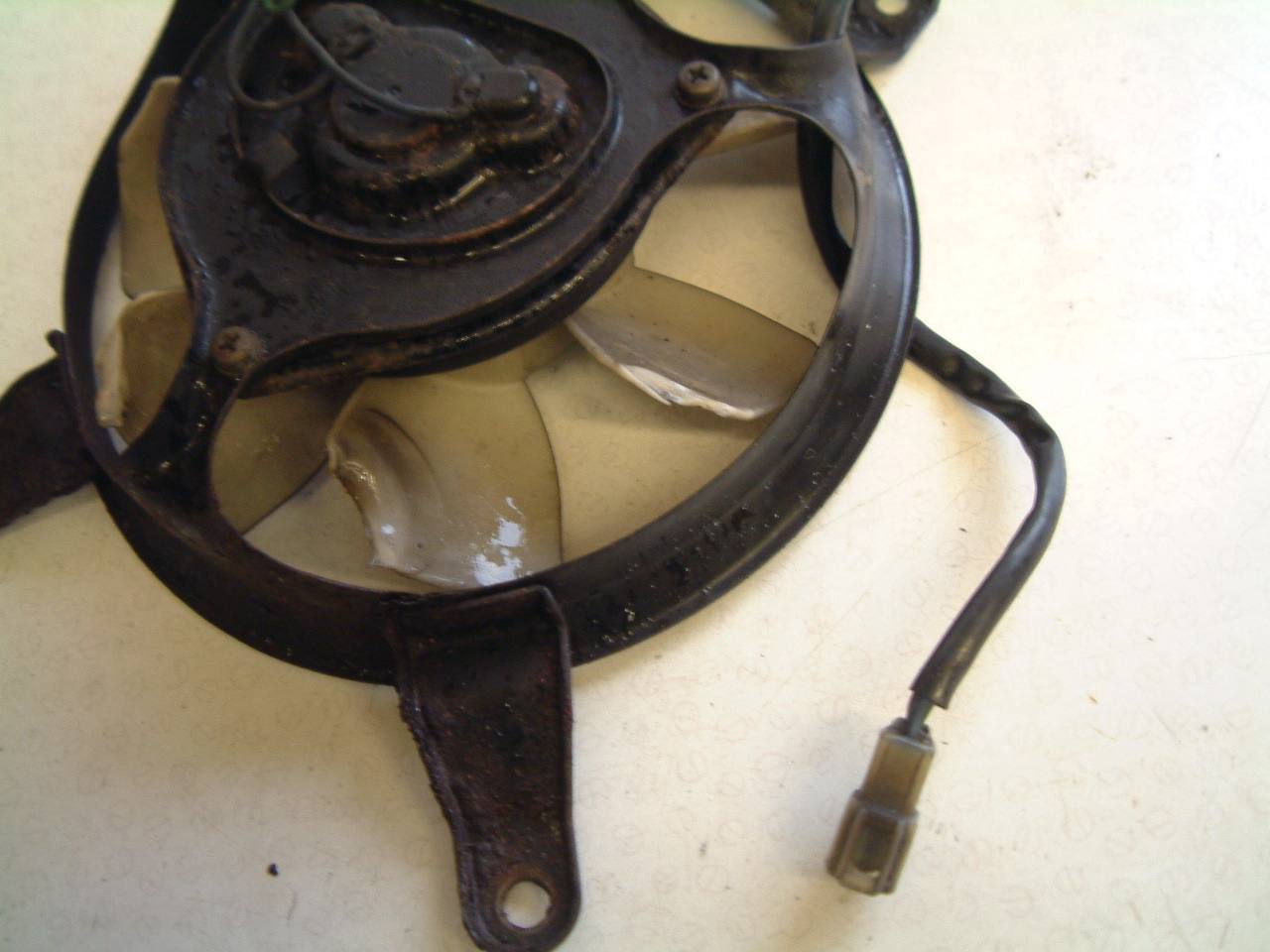

GPX750 - 099 RADIATOR FAN - WORKING, A FEW OF THE BLADES HAVE TH ENDS A BIT MELTED, STILL WORK PERFECTLEY OK. |
| ENGINE, CLUTCH, GEARBOX PARTS:- |
| NOTE ABOUT THE ENGINE:- ENGINE WAS RAN BEFORE BEING SPLIT AND RAN WELL WITH NO SMOKE, RATTLES ETC. WITH THE GEARBOX, CLUTCH CRANK ETC ALL OK. |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

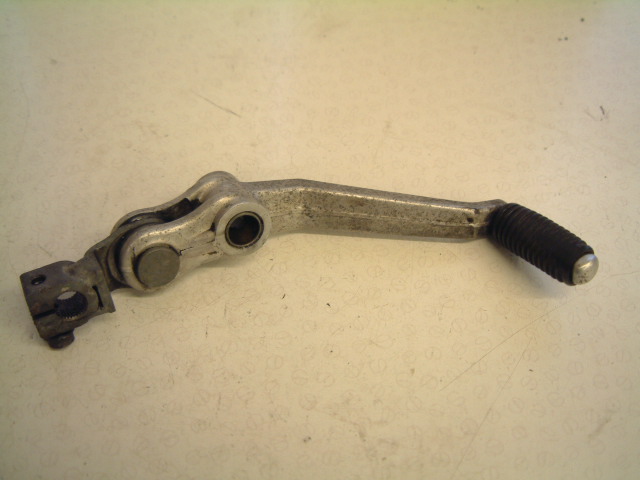

GPX750 - 047 GEAR CHANGE LEVER - VERY GOOD, SPLINES ALSO VERY GOOD. |
 |

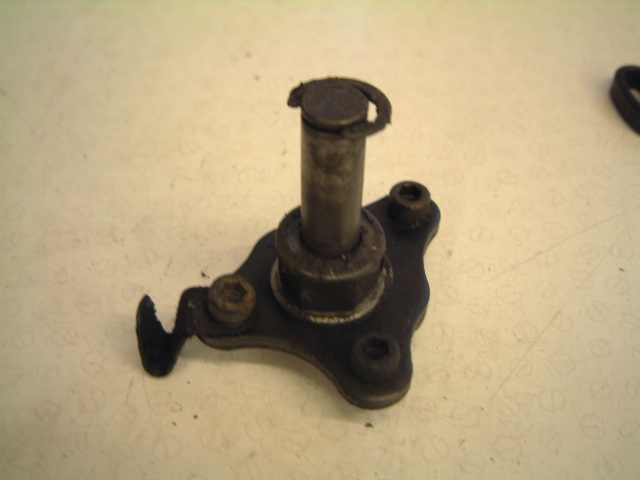

GPX750 - 049 GEAR CHANGE PIVOT - GOOD. |
 |

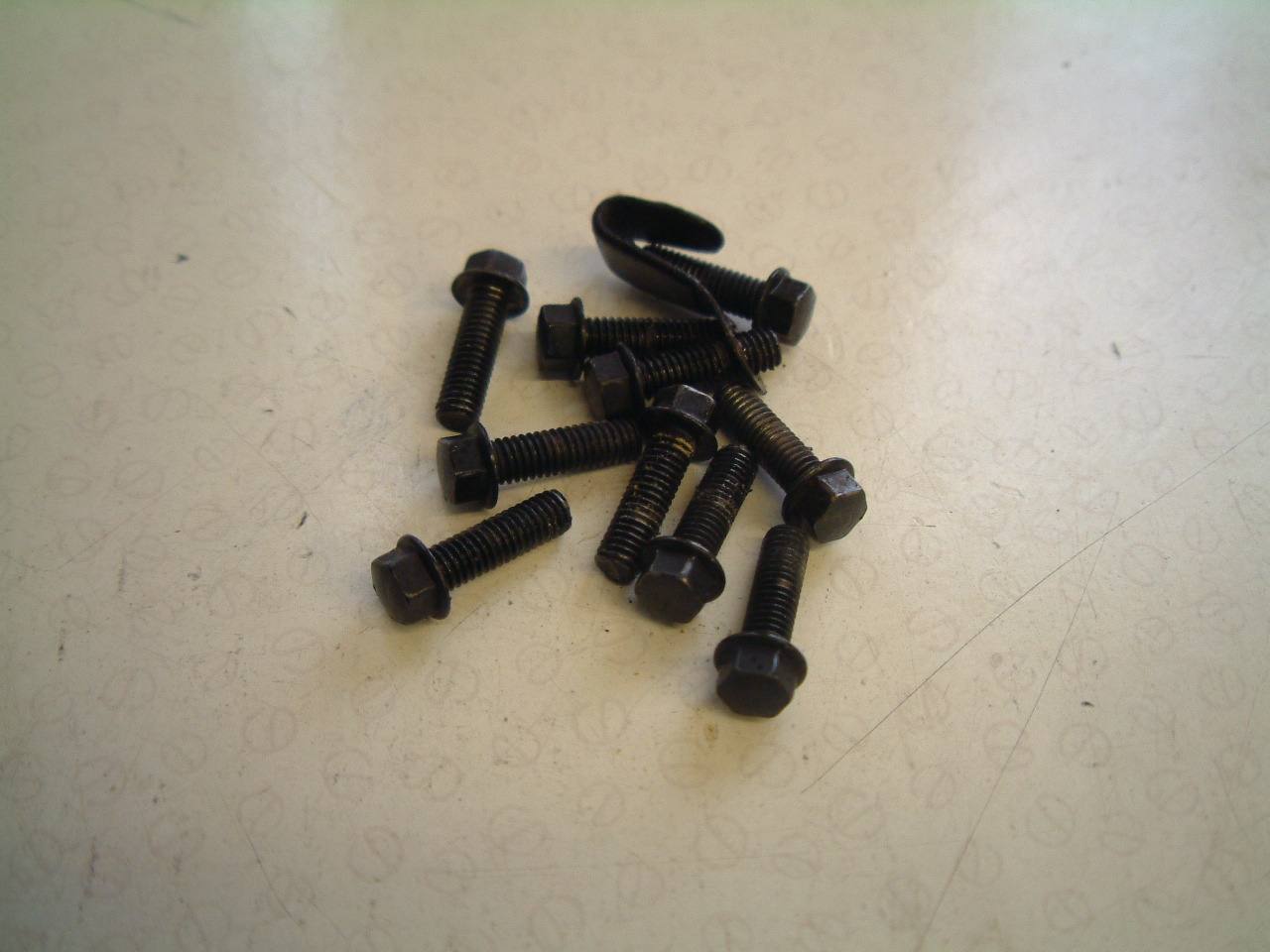

GPX750 - 093 CLUTCH COVER BOLTS - GOOD. |
 |

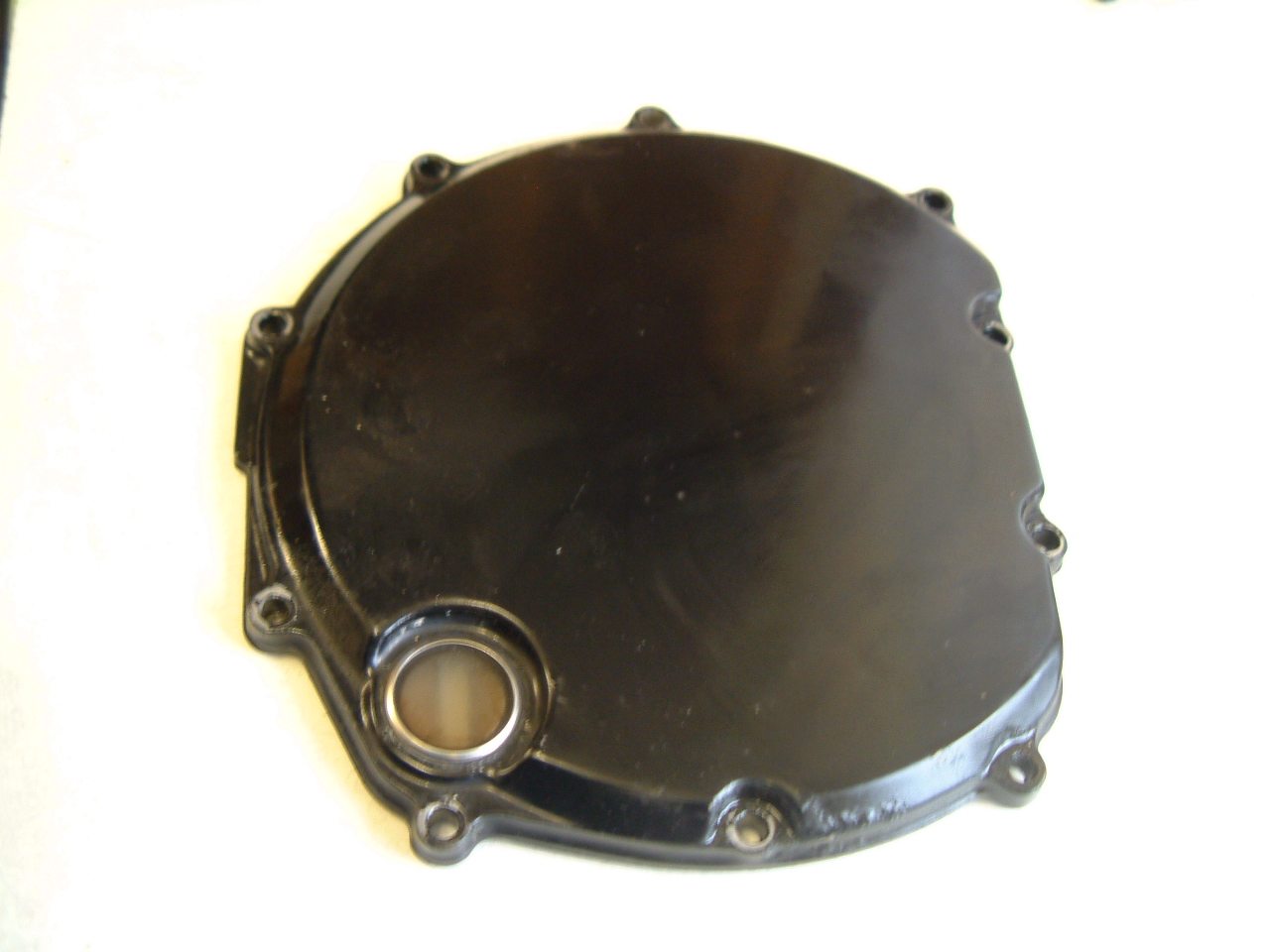

GPX750 - 094 CLUTCH COVER - VERY GOOD, NO DAMAGE. |
 |

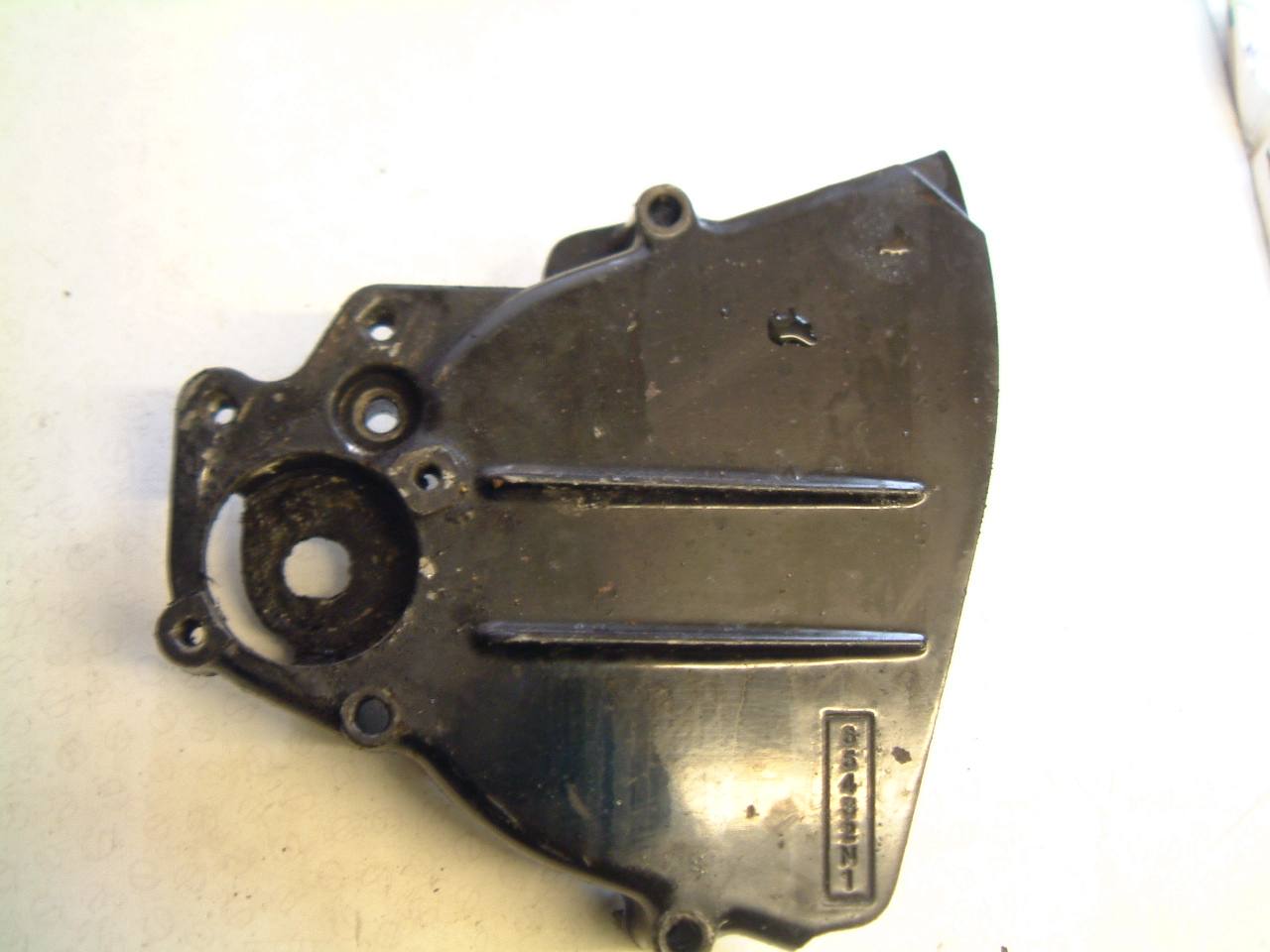

GPX750 - 105 SPROCKET COVER - GOOD, NO DAMAGE, NEEDS A CLEAN. |
 |

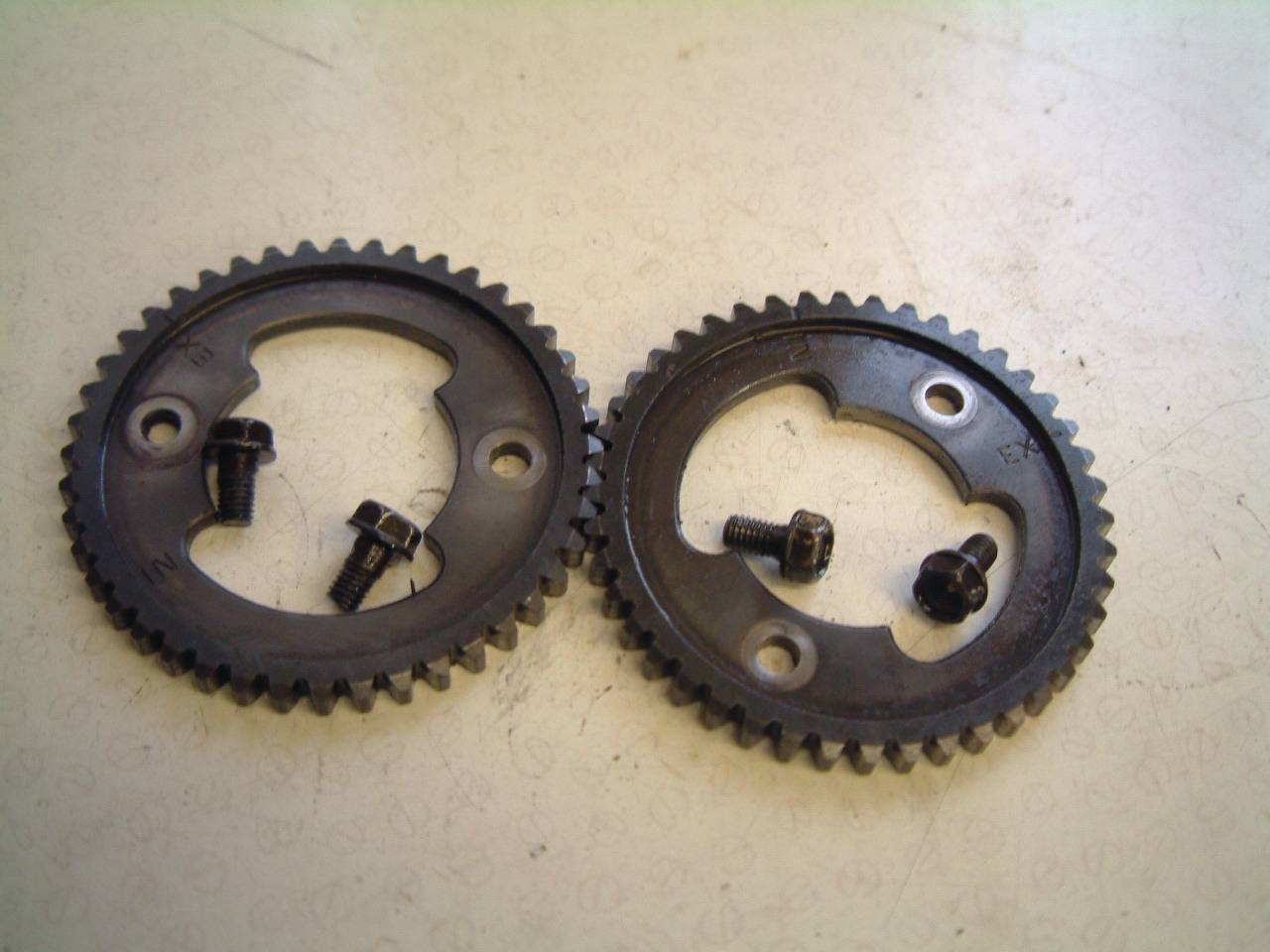

GPX750 - 106 PAIR OR CAMSHAFT SPROCKETS - VERY GOOD. |
 |

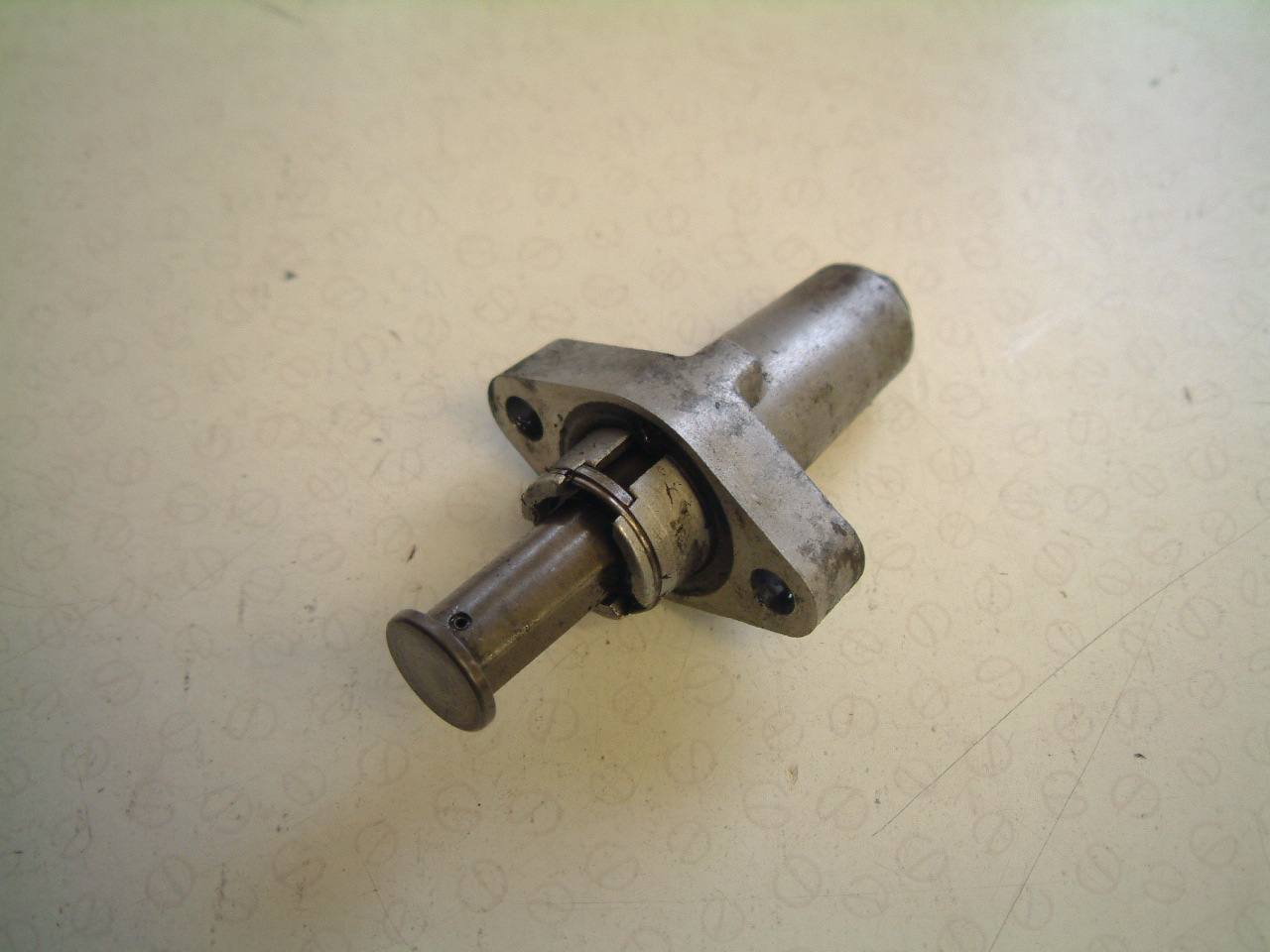

GPX750 - 107 CAM CHAIN TENSIONER - VERY GOOD. |
 |

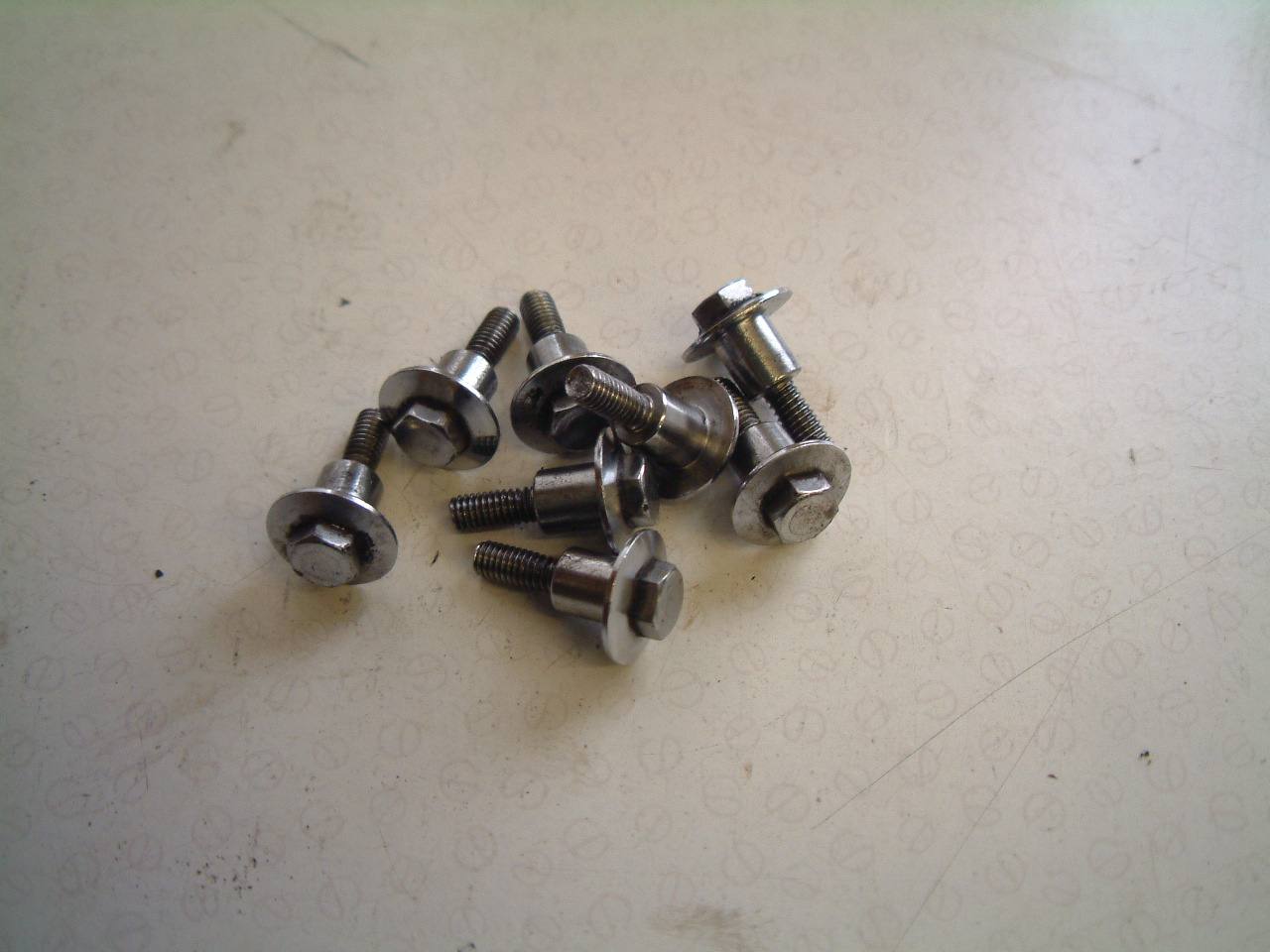

GPX750 - 114 CAM COVER BOLTS - ALL VERY GOOD, NICE CHROME. |
 |

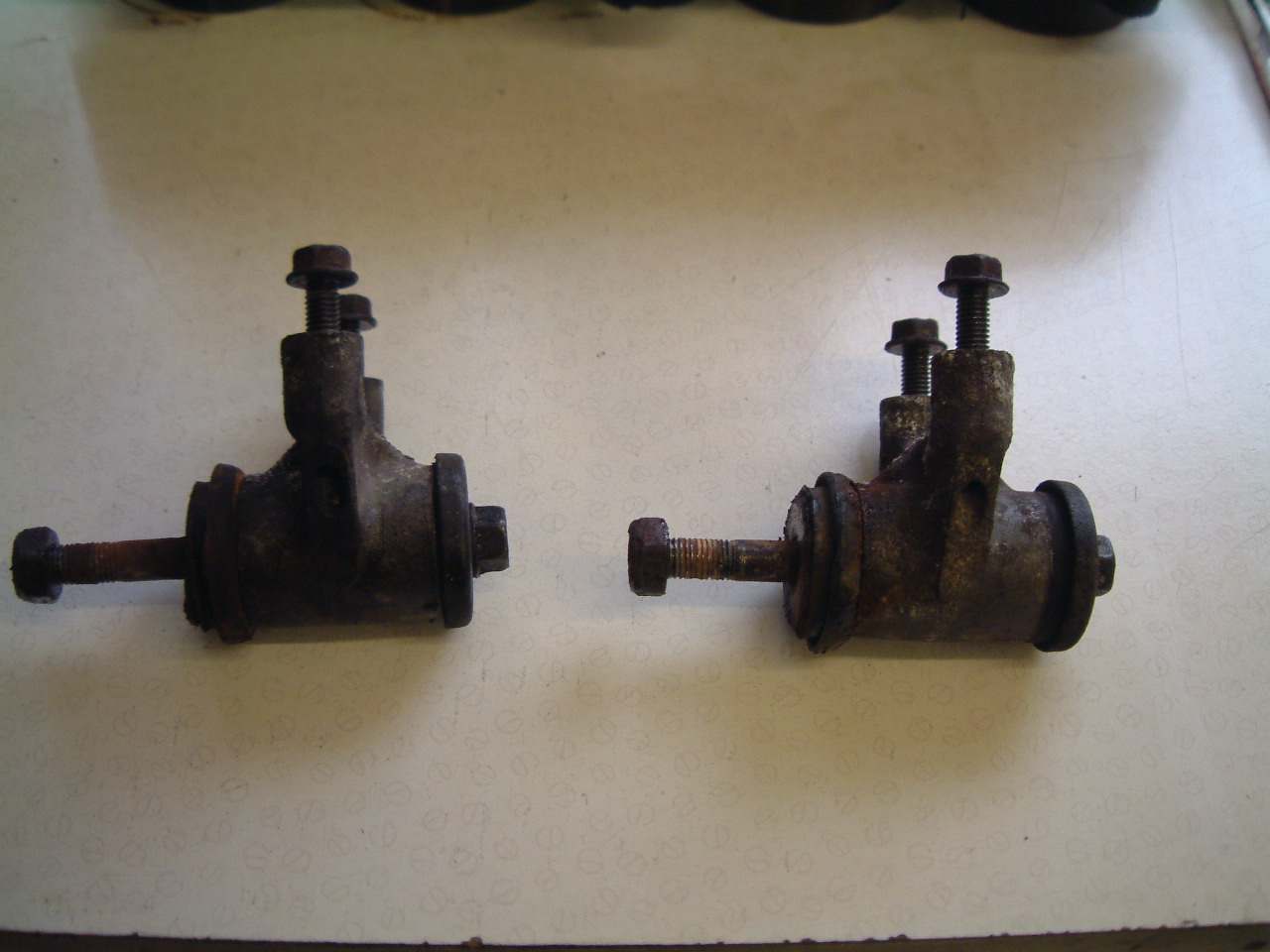

GPX750 - 118 FRONT ENGINE MOUNTS - NEED A CLEAN, SERVICEABLE. |
 |

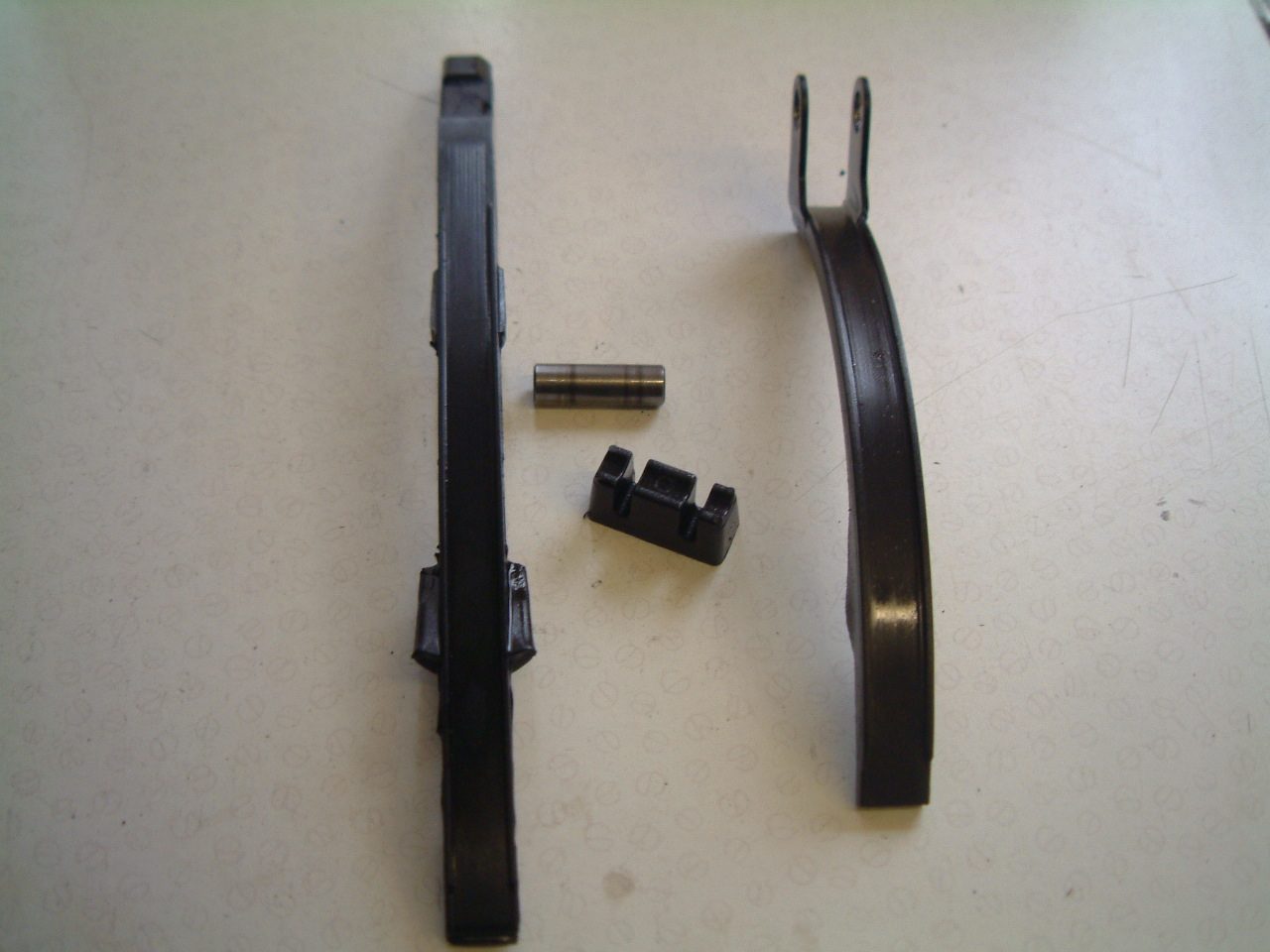

GPX750 - 121 CAM CHAIN GUIDES - GOOD AND RE-USEABLE. |
 |

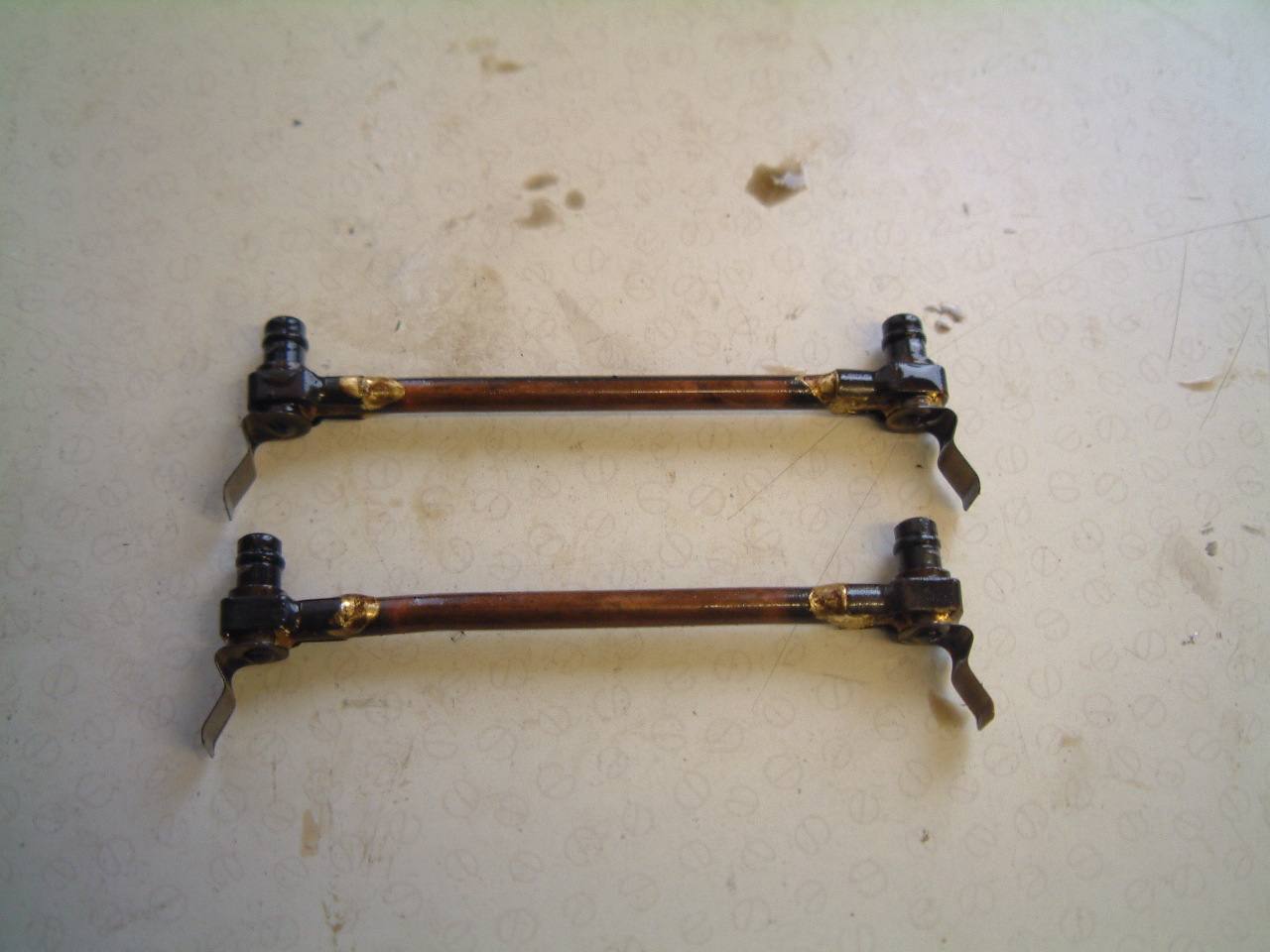

GPX750 - 125 OIL PIPES FROM HEAD - GOOD. |
 |

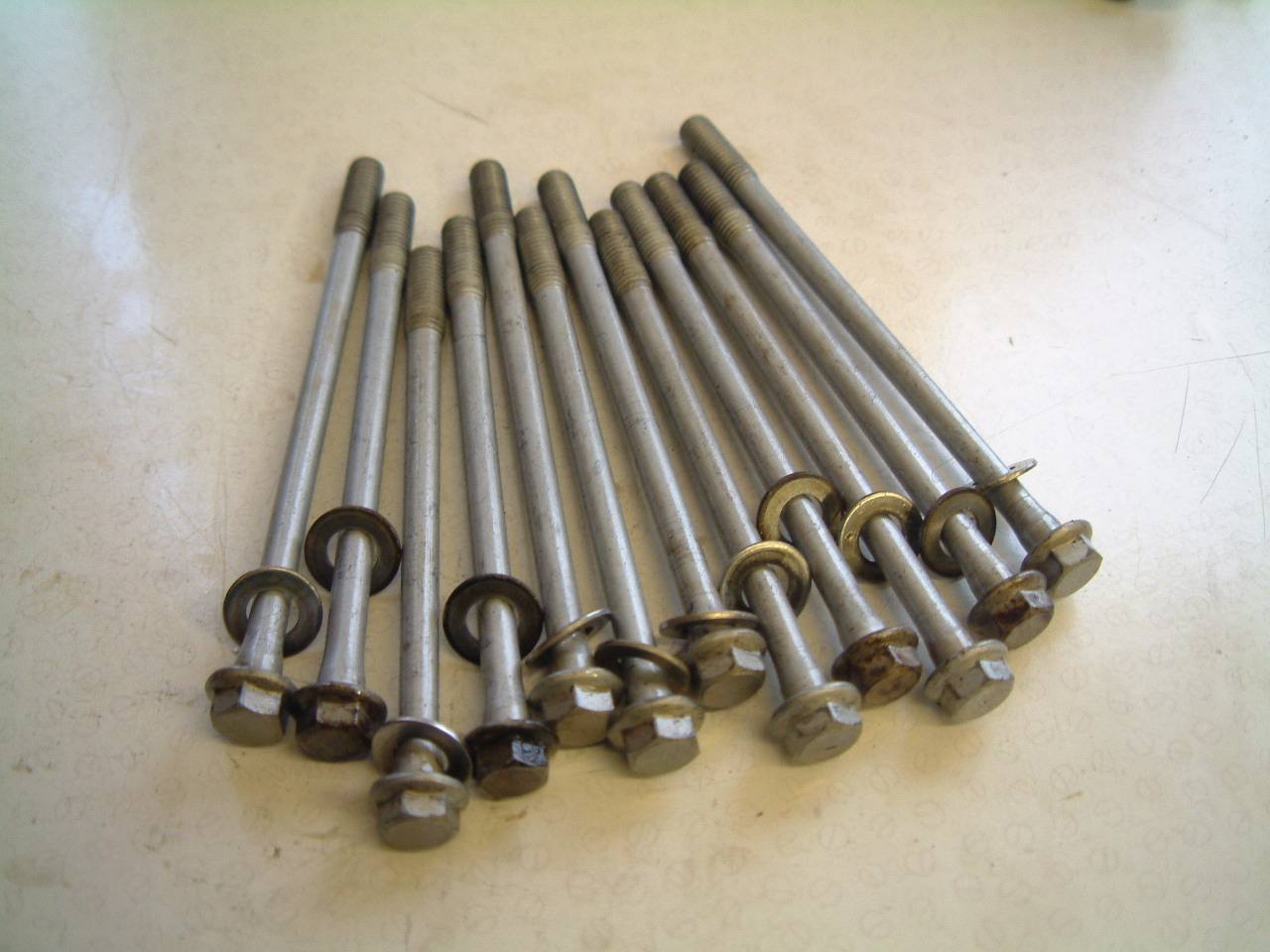

GPX750 - 126 HEAD BOLT SET - VERY GOOD. |
 |

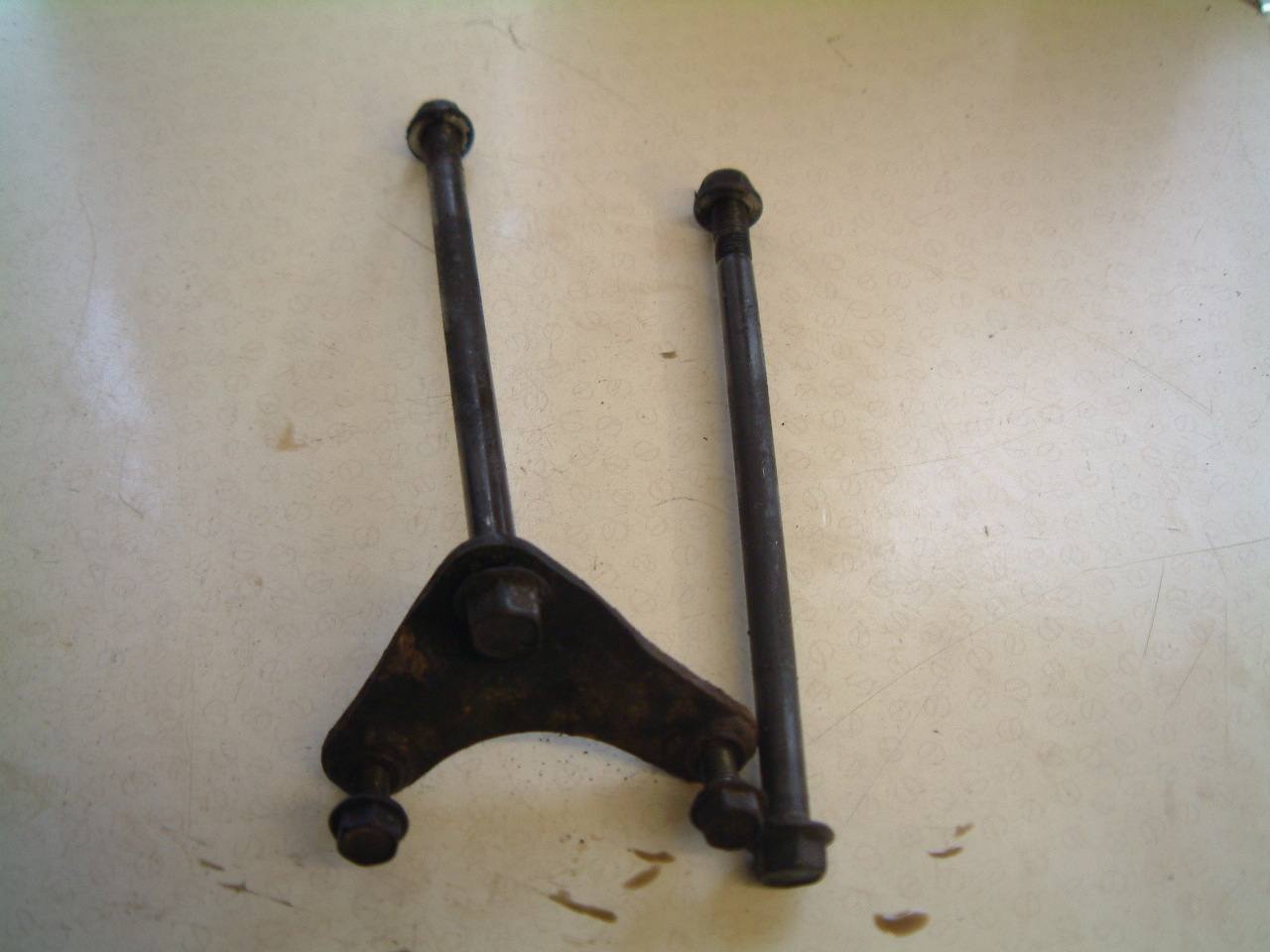

GPX750 - 127 REAR ENGINE BOLTS AND BRACKETS - ALL THREADS GOOD, NEED A CLEAN. |
 |

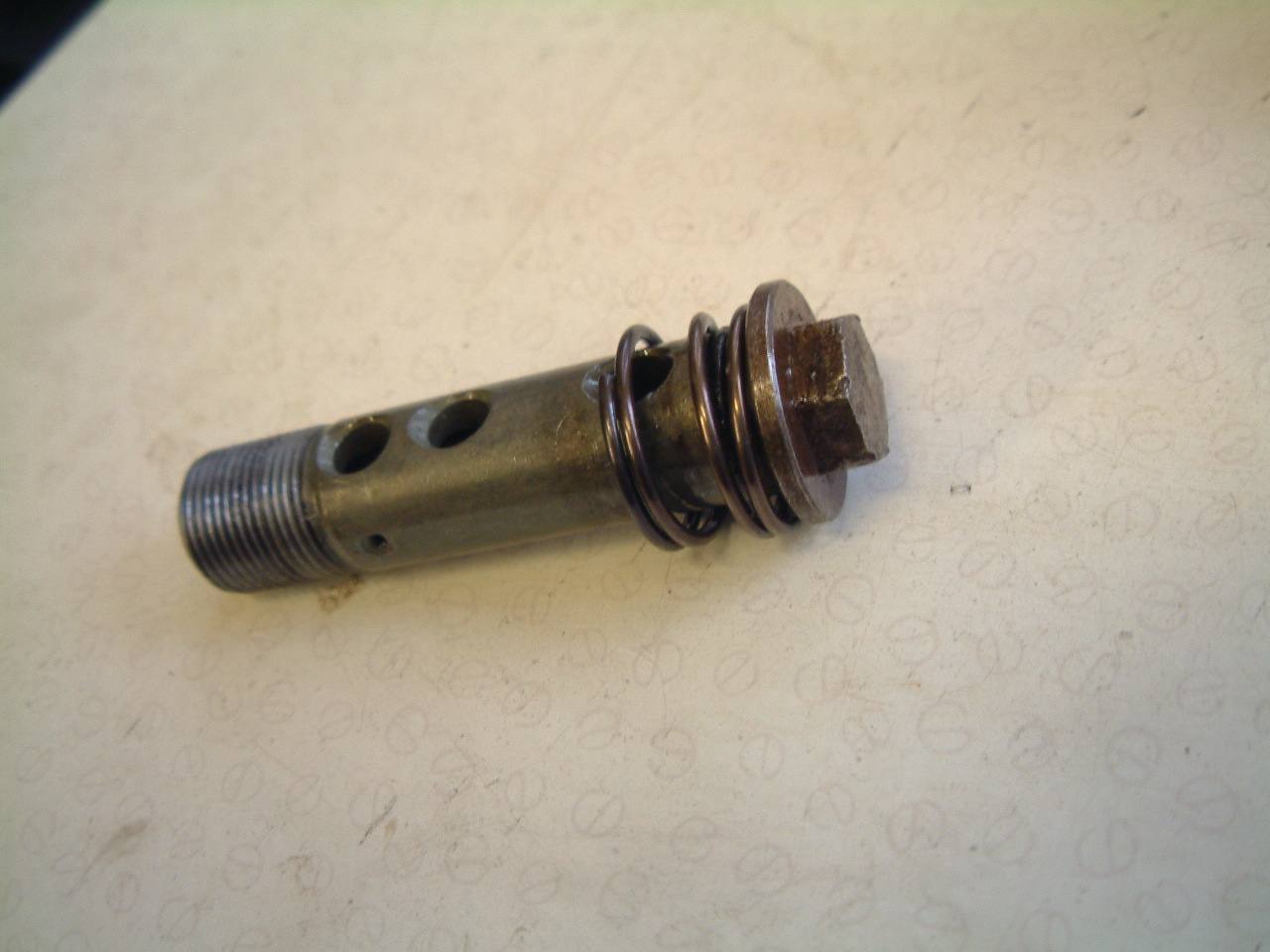

GPX750 - 128 OIL FILTER BOLT - GOOD. |
 |

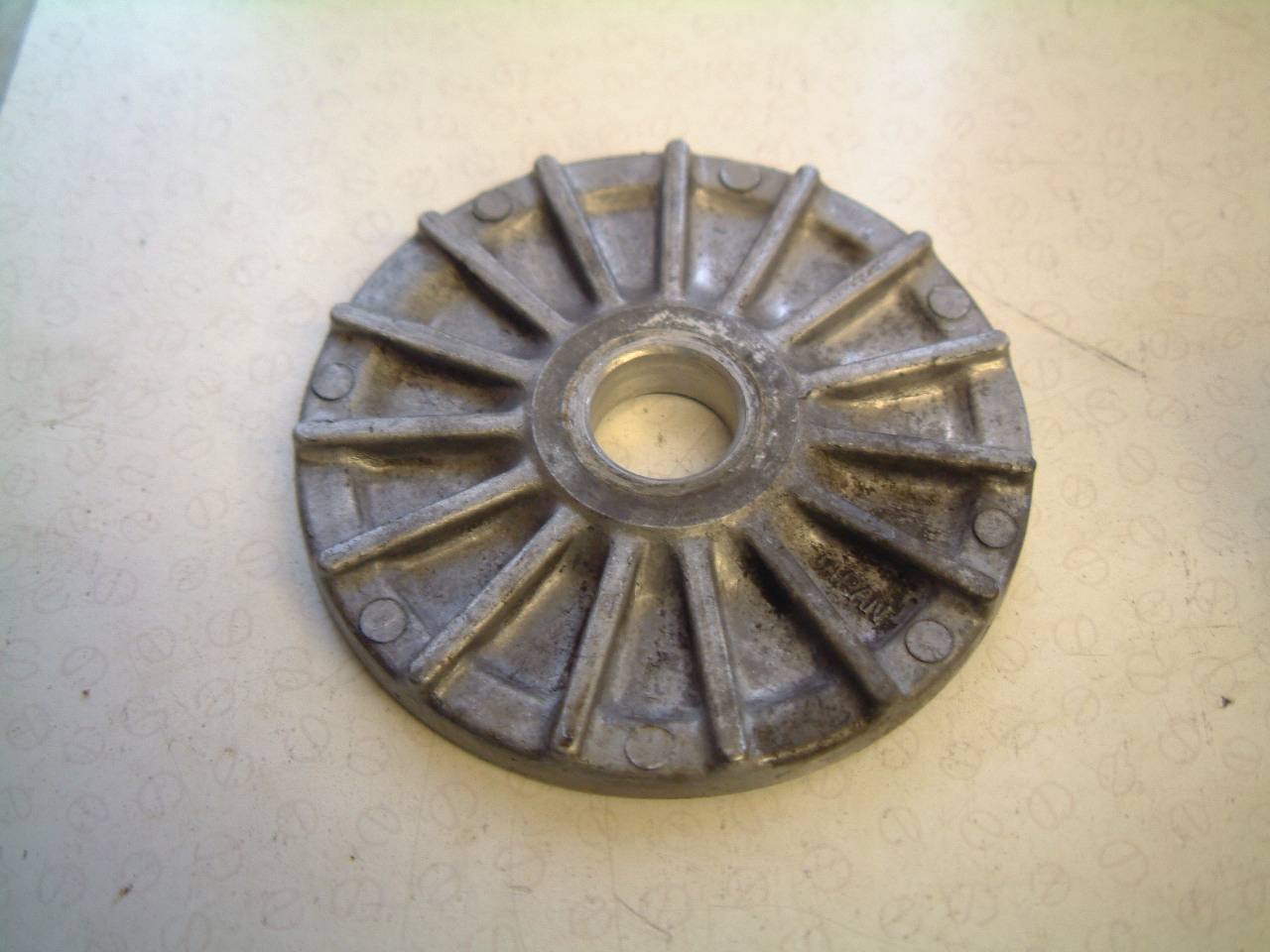

GPX750 - 129 OIL FILTER COVER - GOOD. |
 |

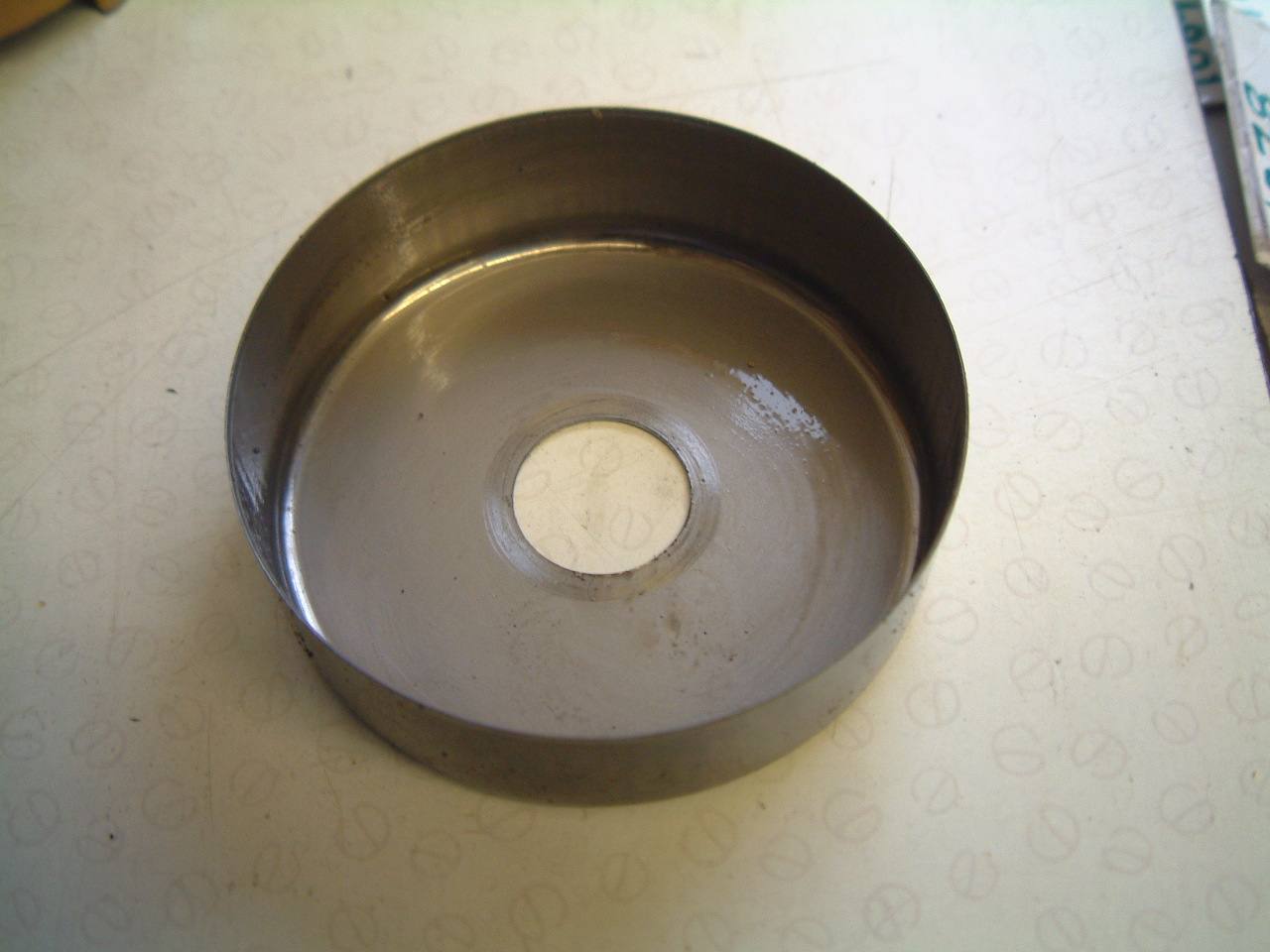

GPX750 - 130 OIL FILTER BOWL - VERY GOOD. |
 |
GPX750 - 131 OIL PICK-UP - GOOD. |
 |

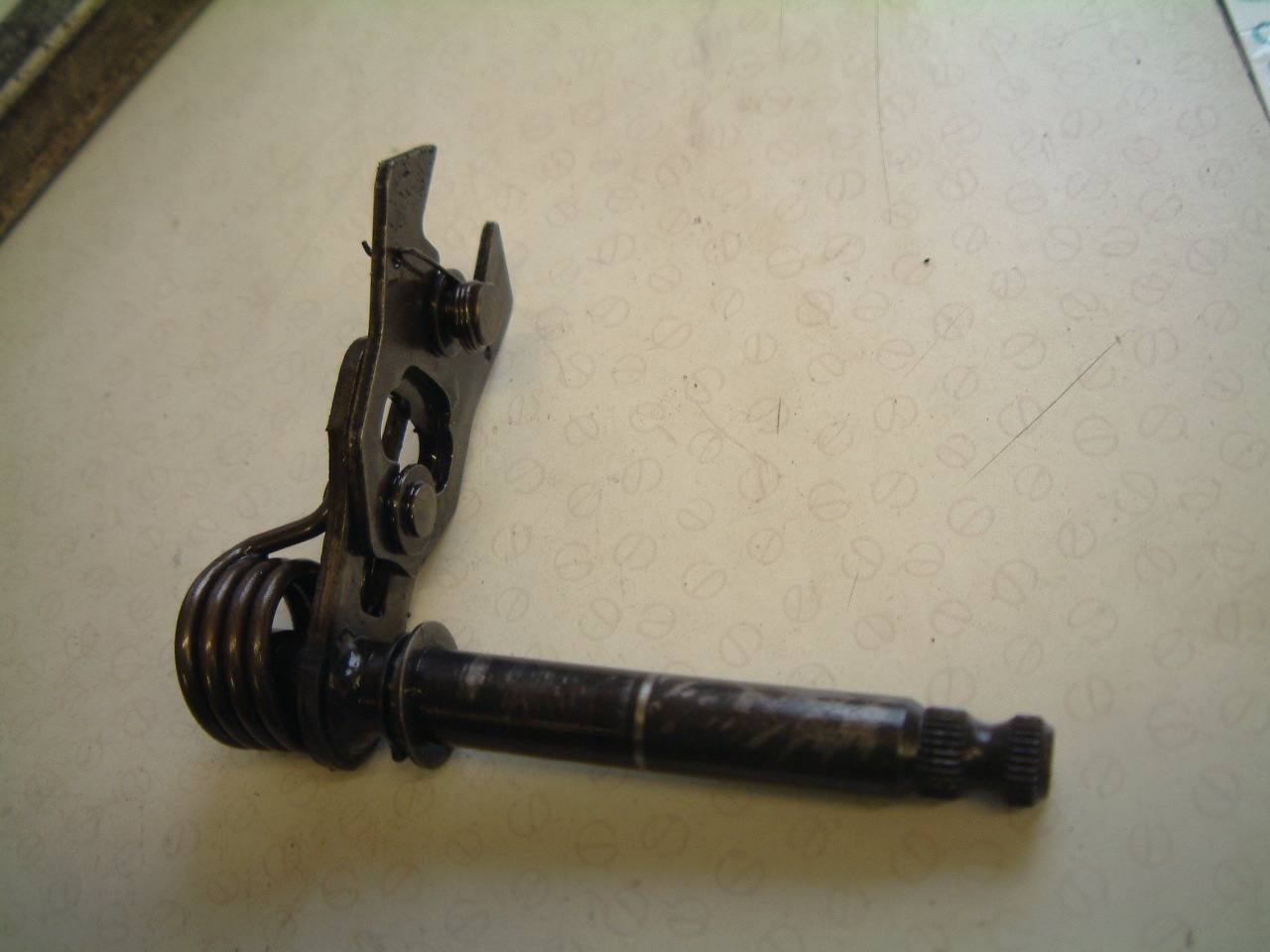

GPX750 - 132 GEAR CHANGE SHAFT - VERY GOOD, SPLINES VERY GOOD. |
 |

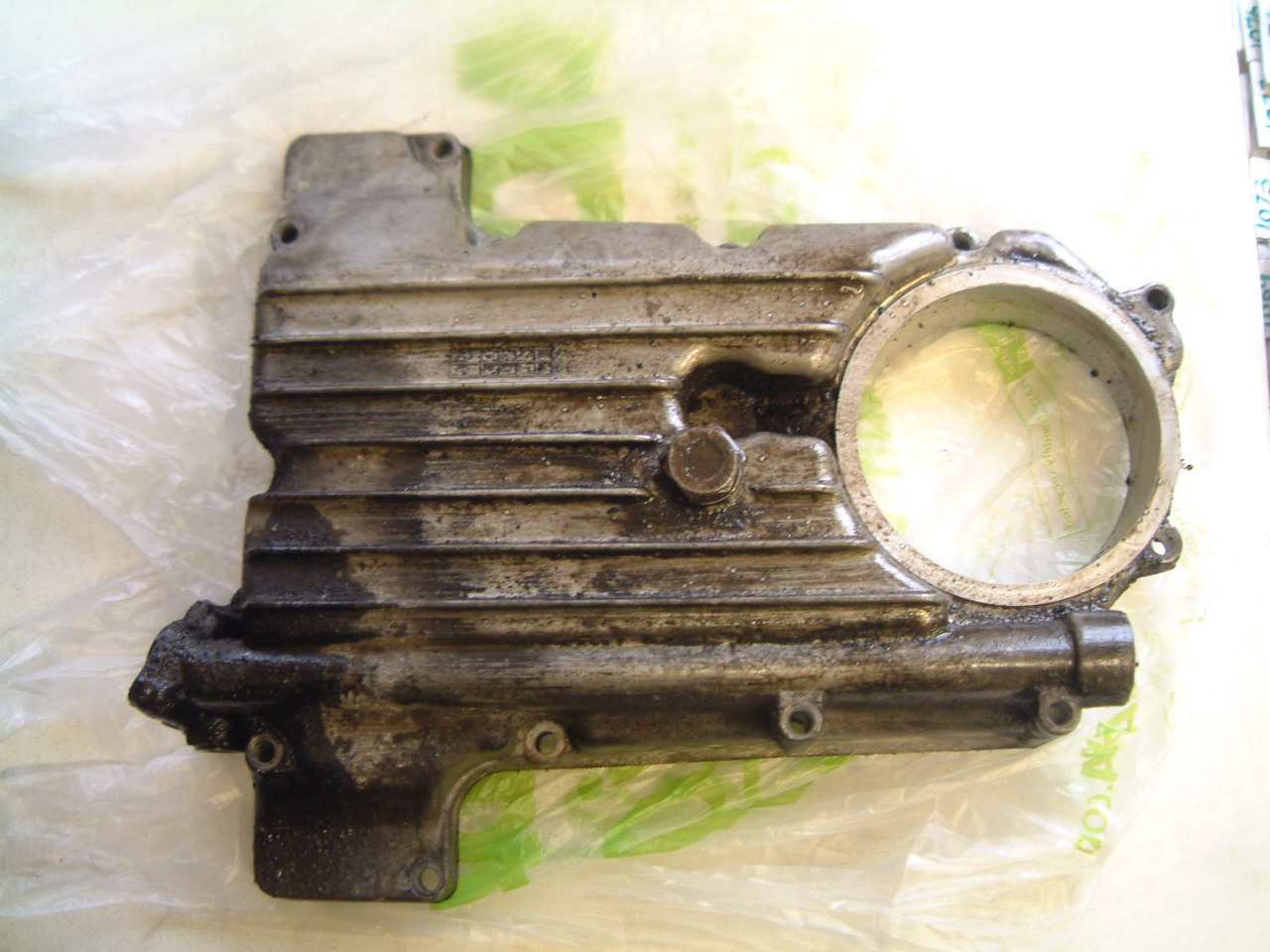

GPX750 - 134 SUMP / OIL PAN - GOOD, NO DAMAGE, NEEDS A CLEAN. |
 |

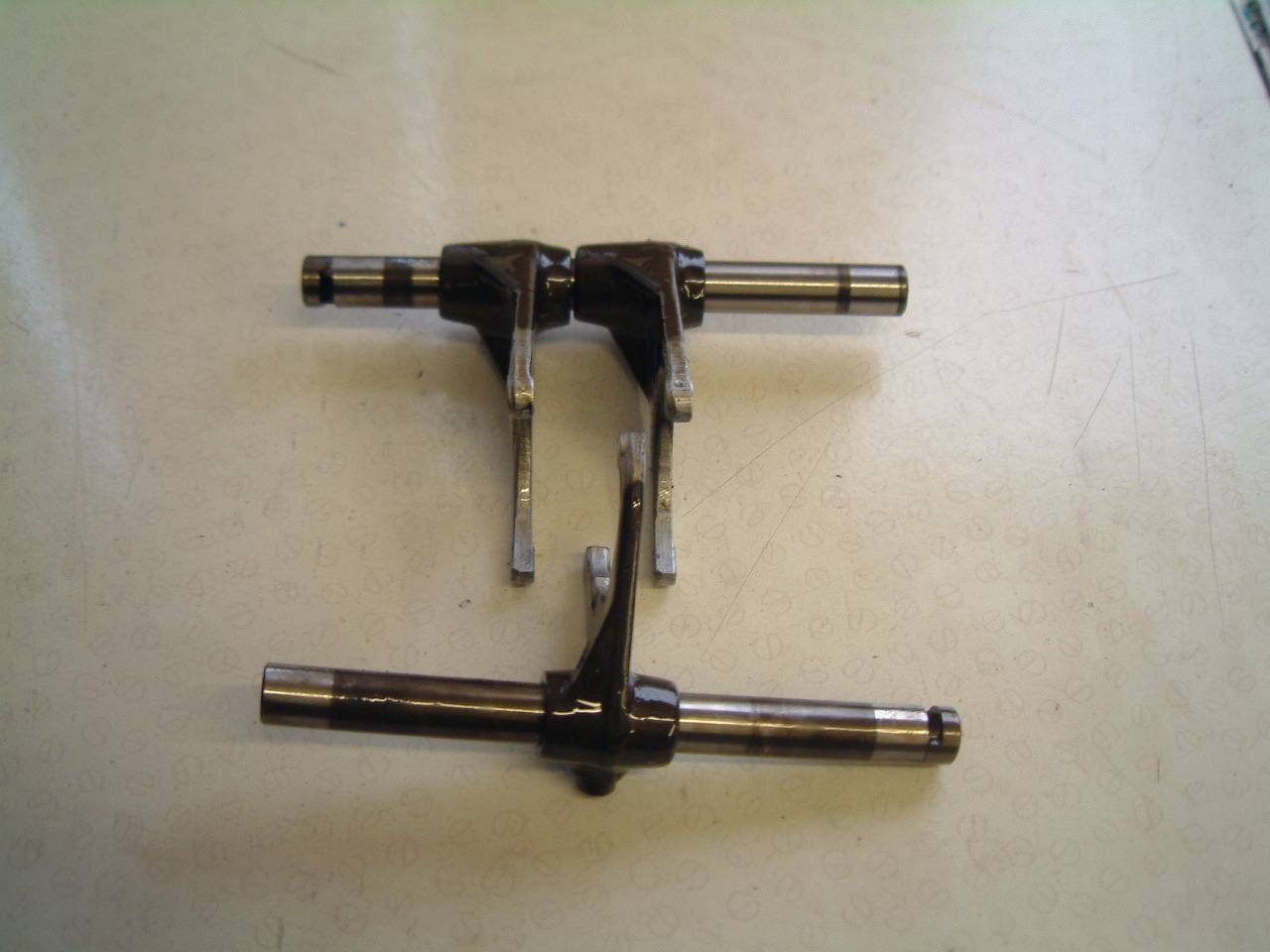

GPX750 - 135 GEAR SELECTOR FORKS - VERY GOOD. |
 |

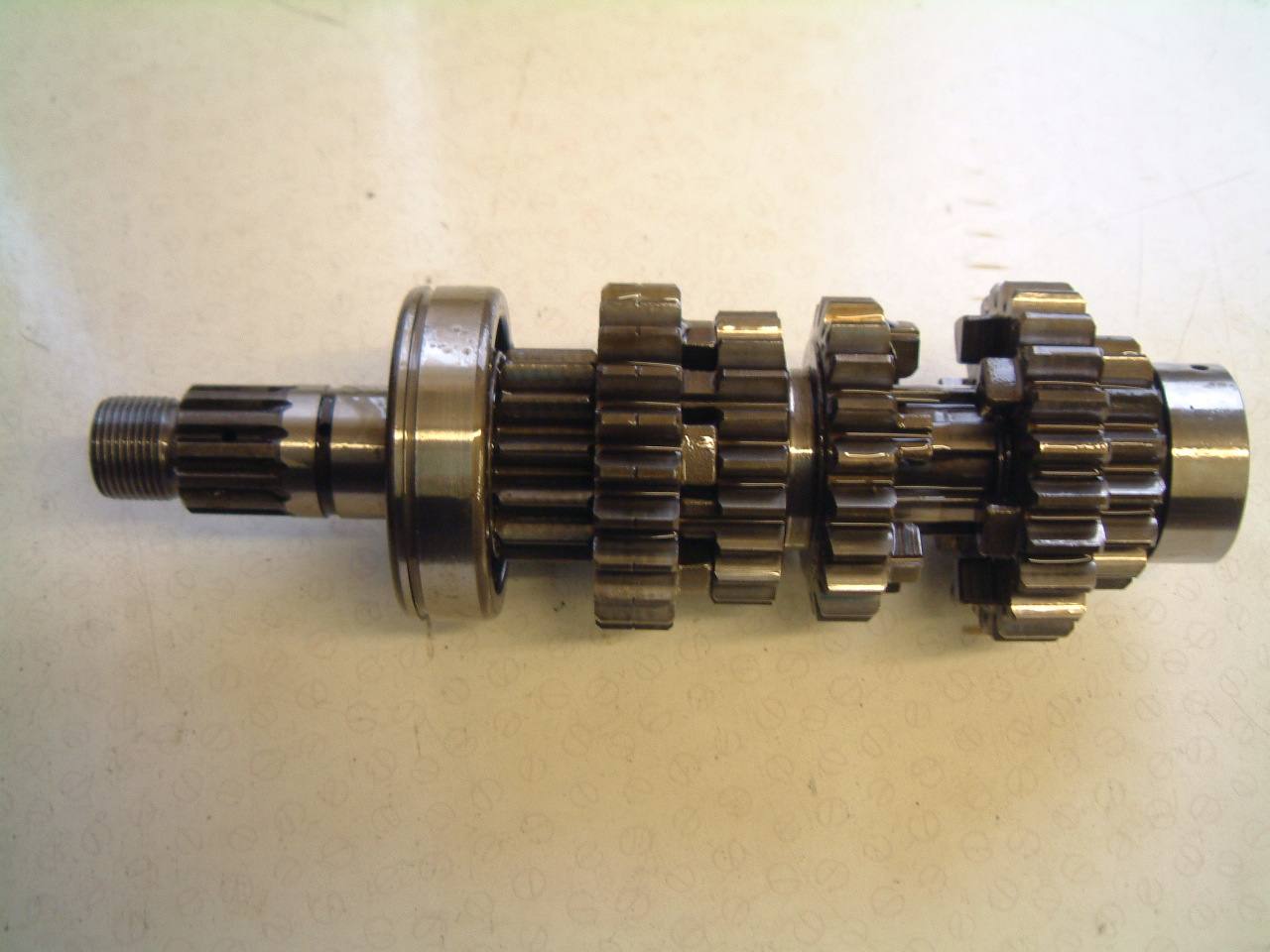

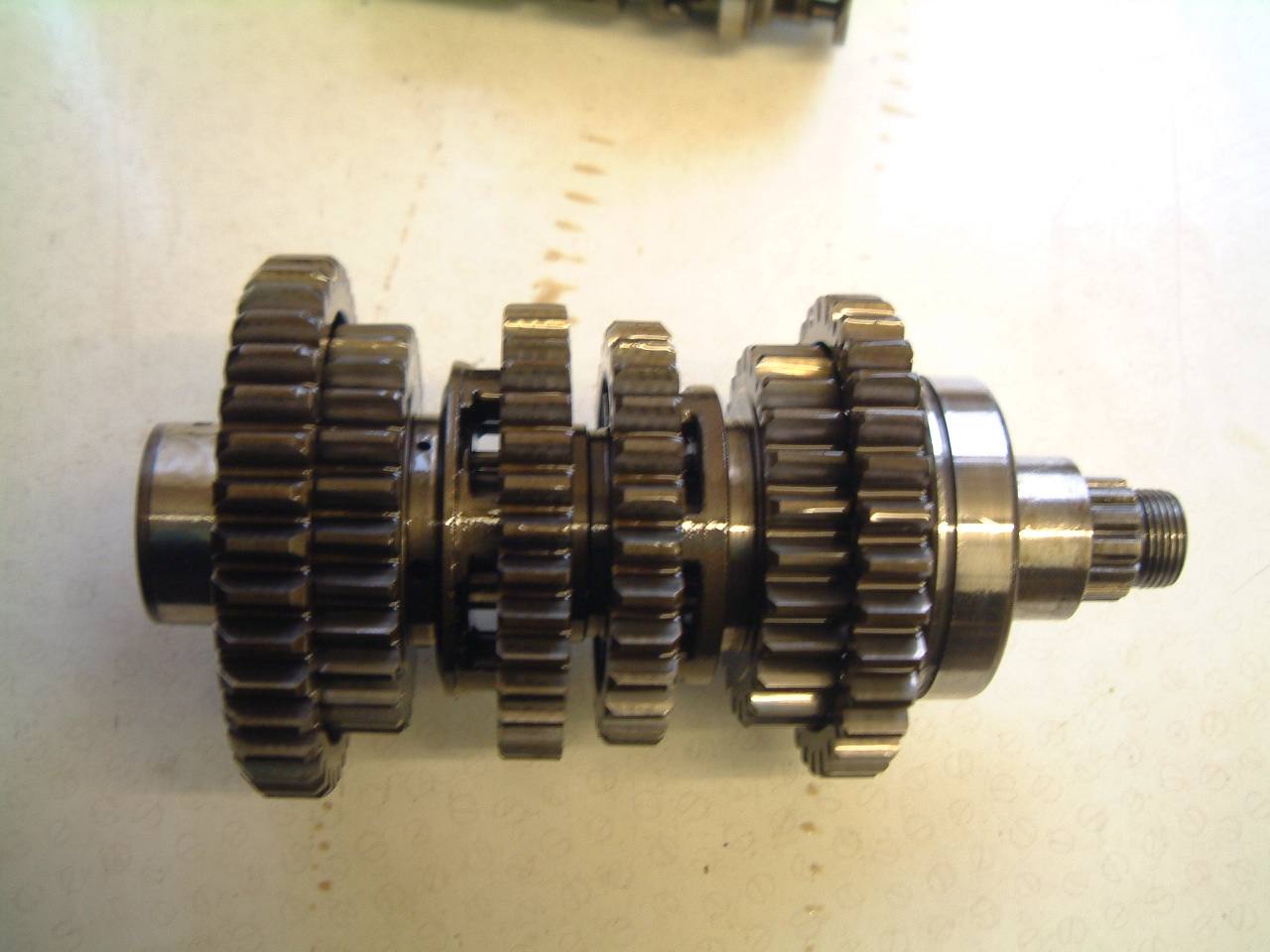

GPX750 - 137 INPUT SHAFT COMPLETE WITH ALL GEARS - ALL VERY GOOD. |
 |
GPX750 - 138 OUTPUT SHAFT COMPLETE WITH ALL GEARS - ALL VERY GOOD. |
 |

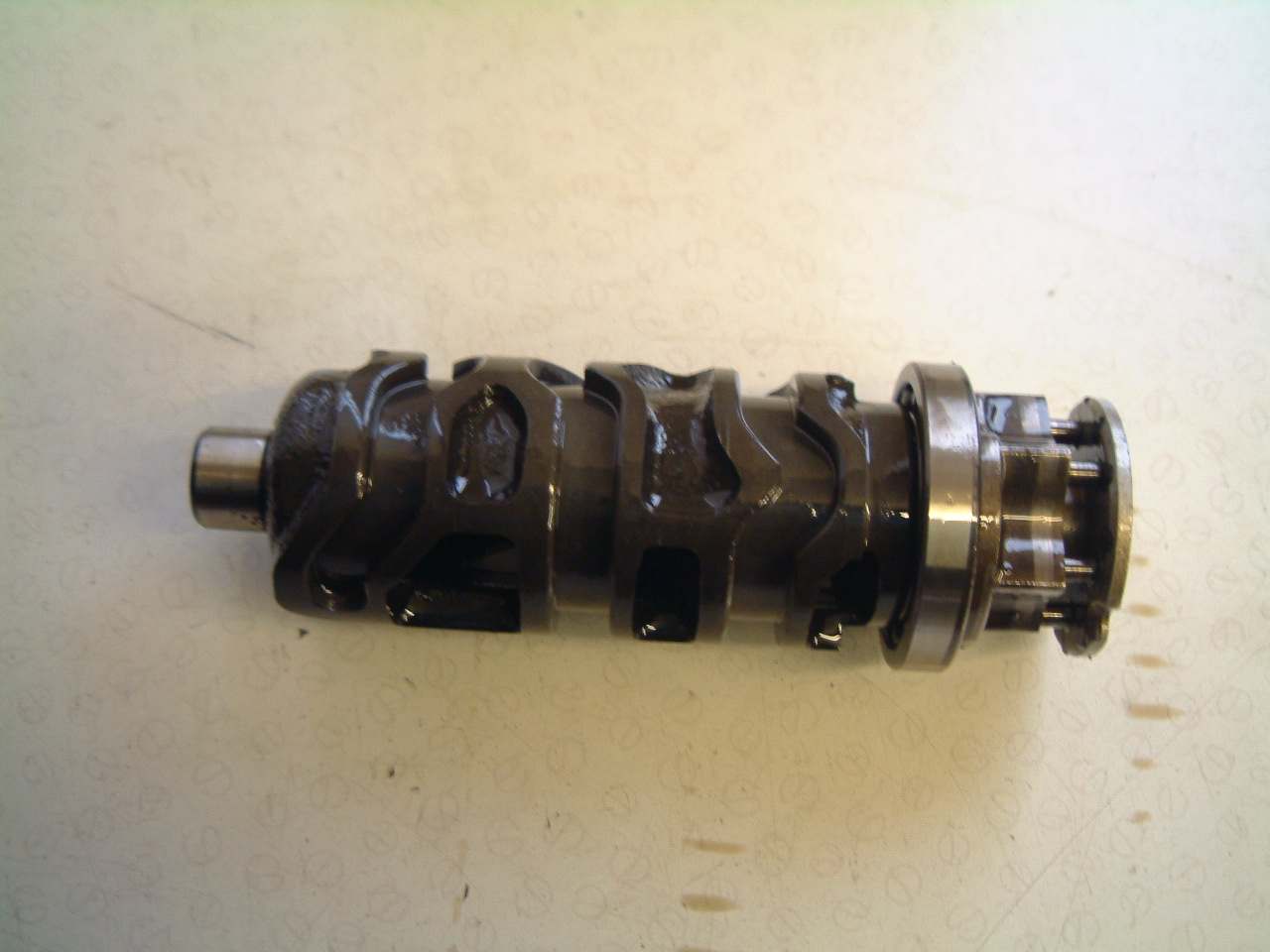

GPX750 - 139 SELECTOR DRUM - VERY GOOD. |
 |

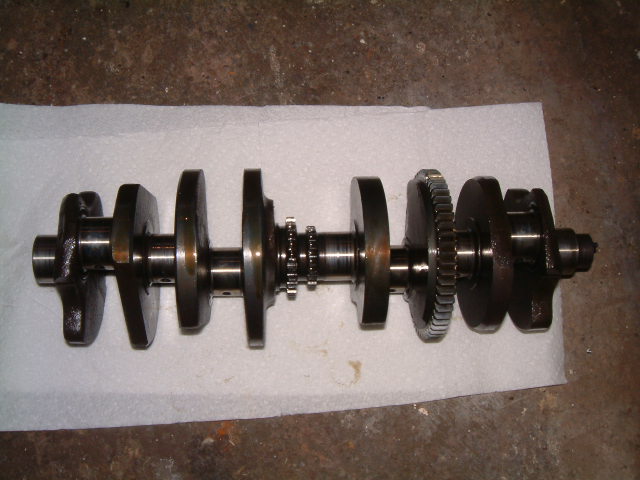

GPX750 - 140 CRANKSHAFT - JOURNELS ALL LOOK OK, BIKE RAN WELL WITH NO KNOCKS ETC. |
 |

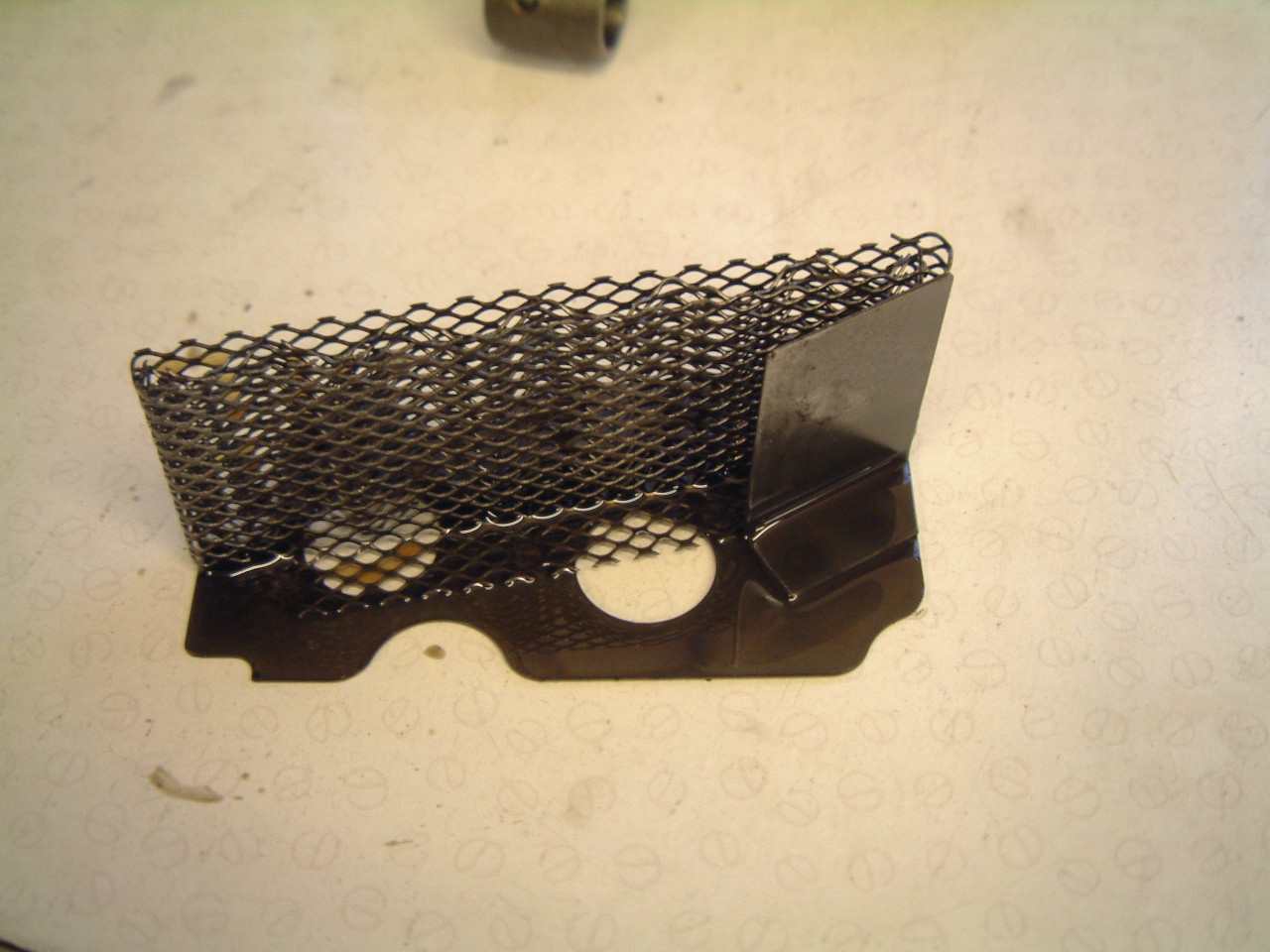

GPX750 - 144 GAUZE FROM BREATHER CAP - VERY GOOD. |
 |

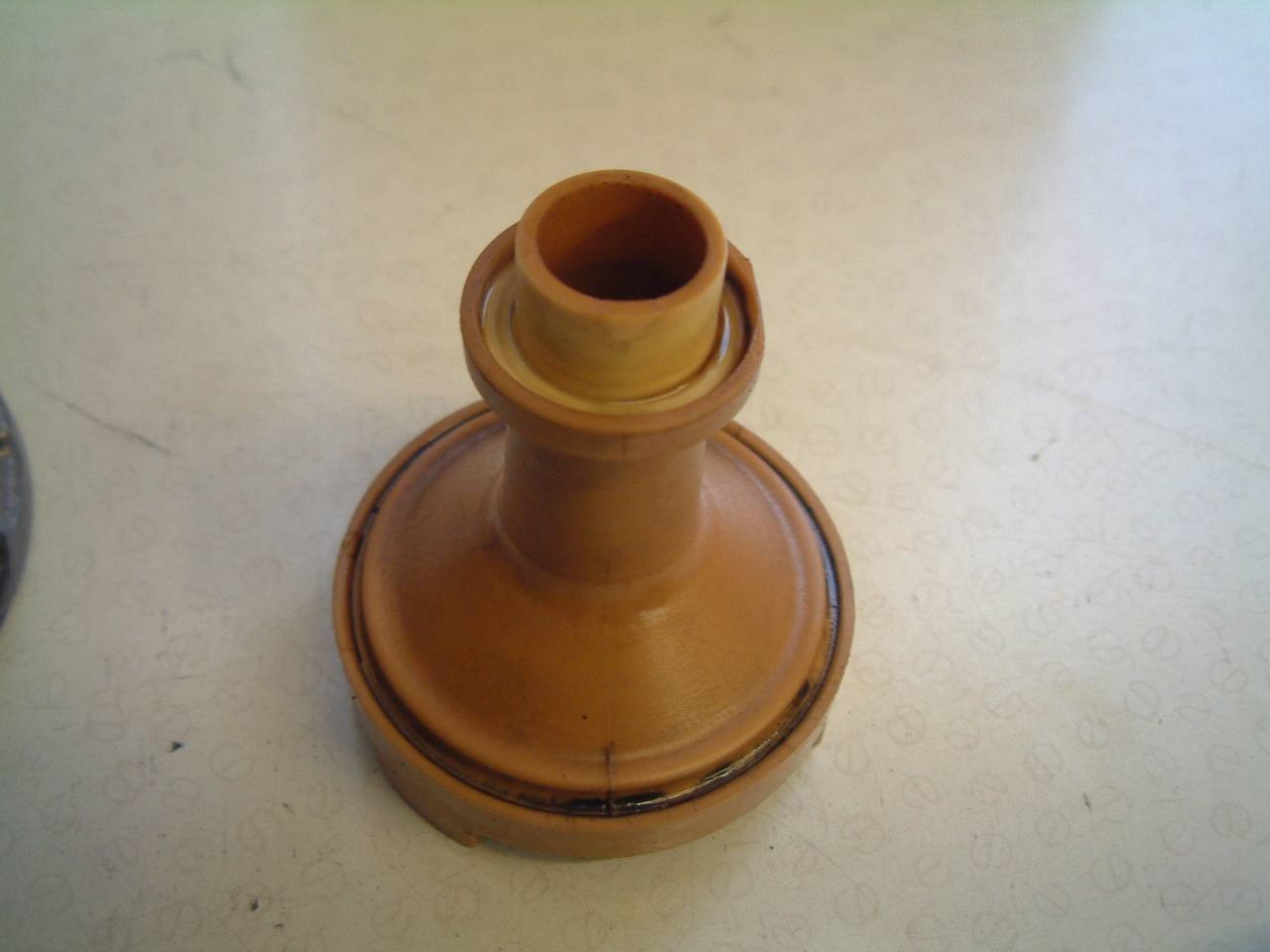

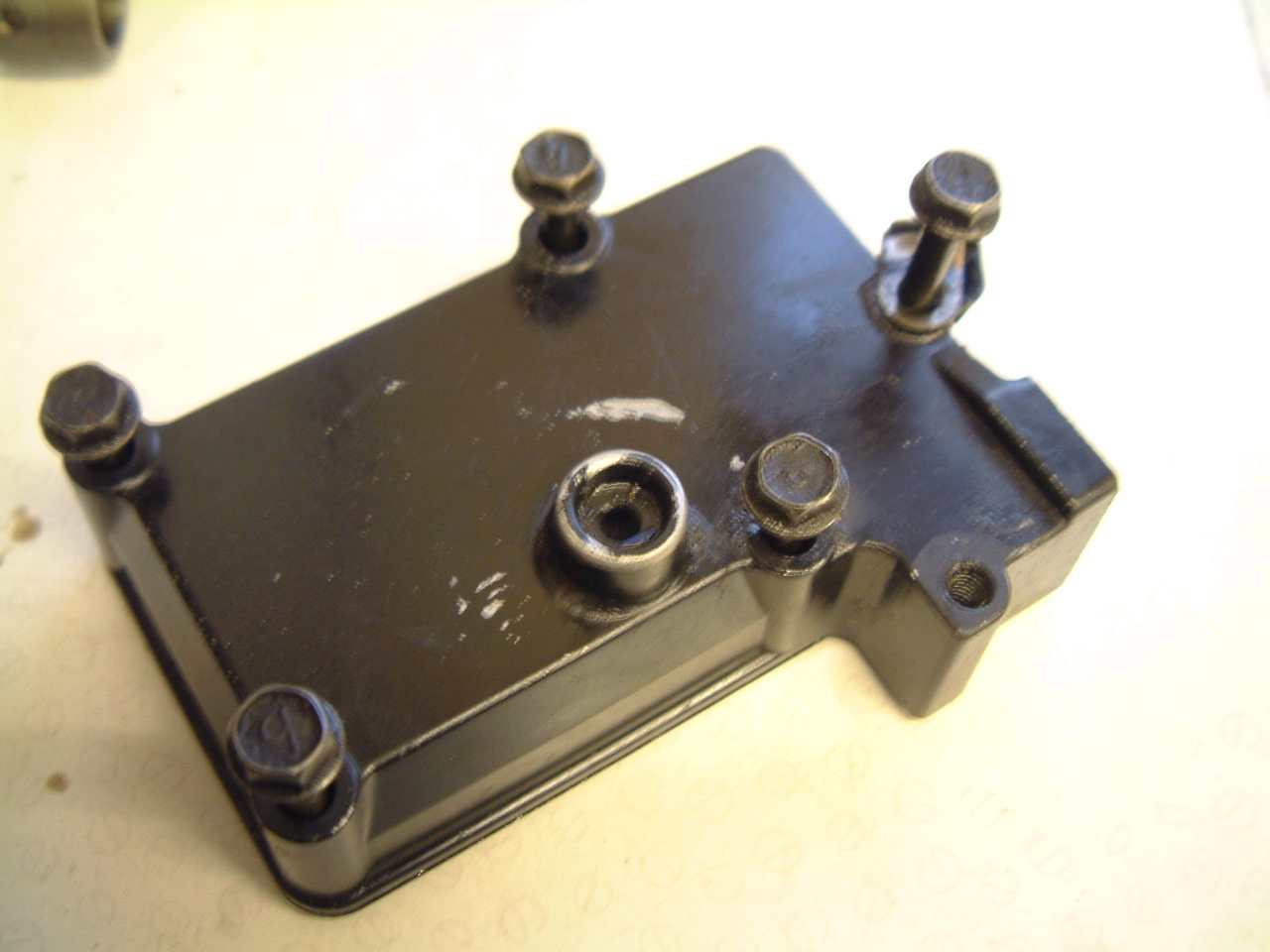

GPX750 - 145 BREATHER CAP - VERY GOOD. |
 |

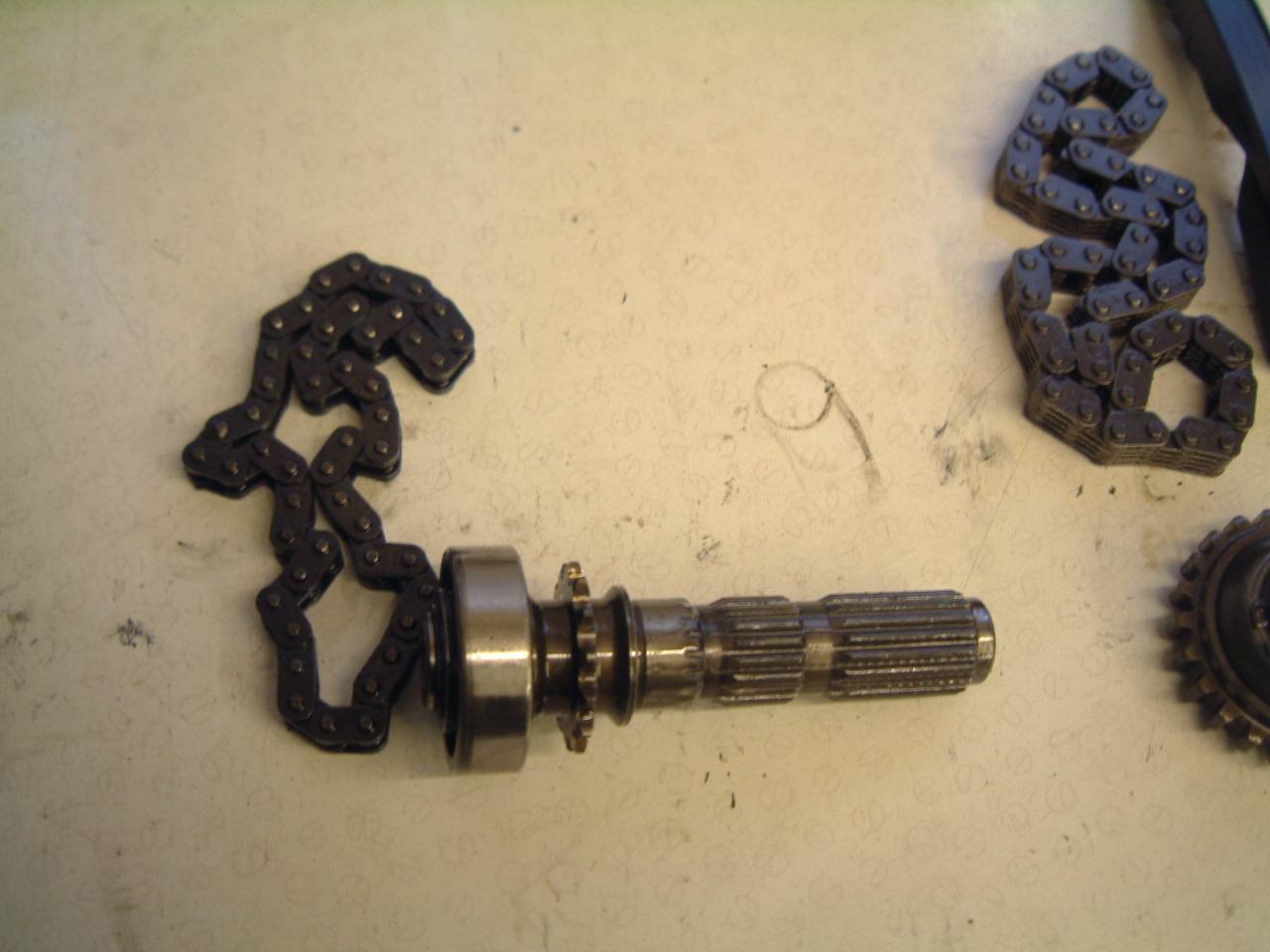

GPX750 - 146 AUX SHAFT & CHAIN TO DRIVE OIL PUMP ETC- VERY GOOD. |
 |

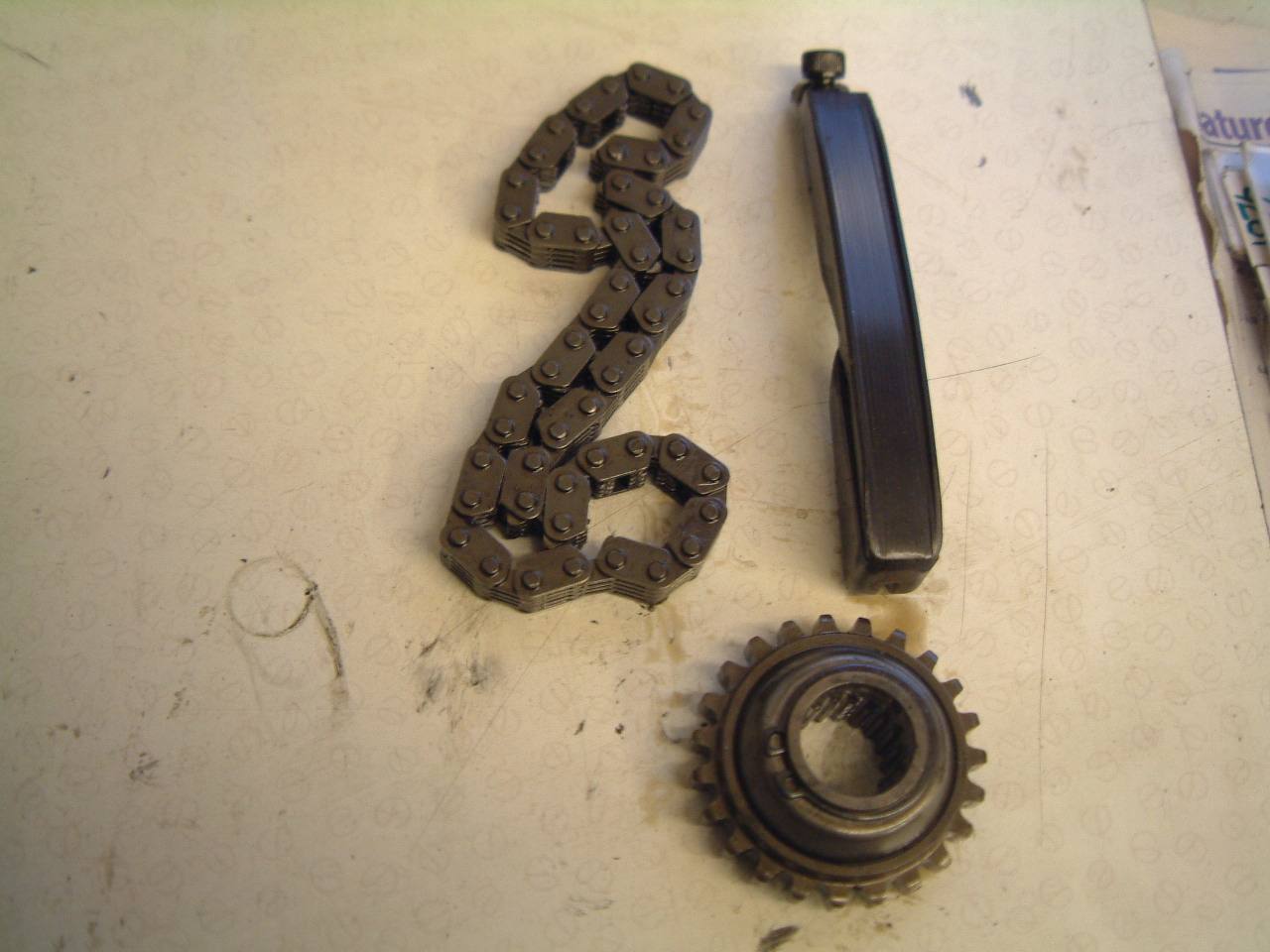

GPX750 - 147 CHAIN & GEAR & CHAIN GUIDE FROM CRANK TO AUX SHAFT - ALL GOOD. |
 |

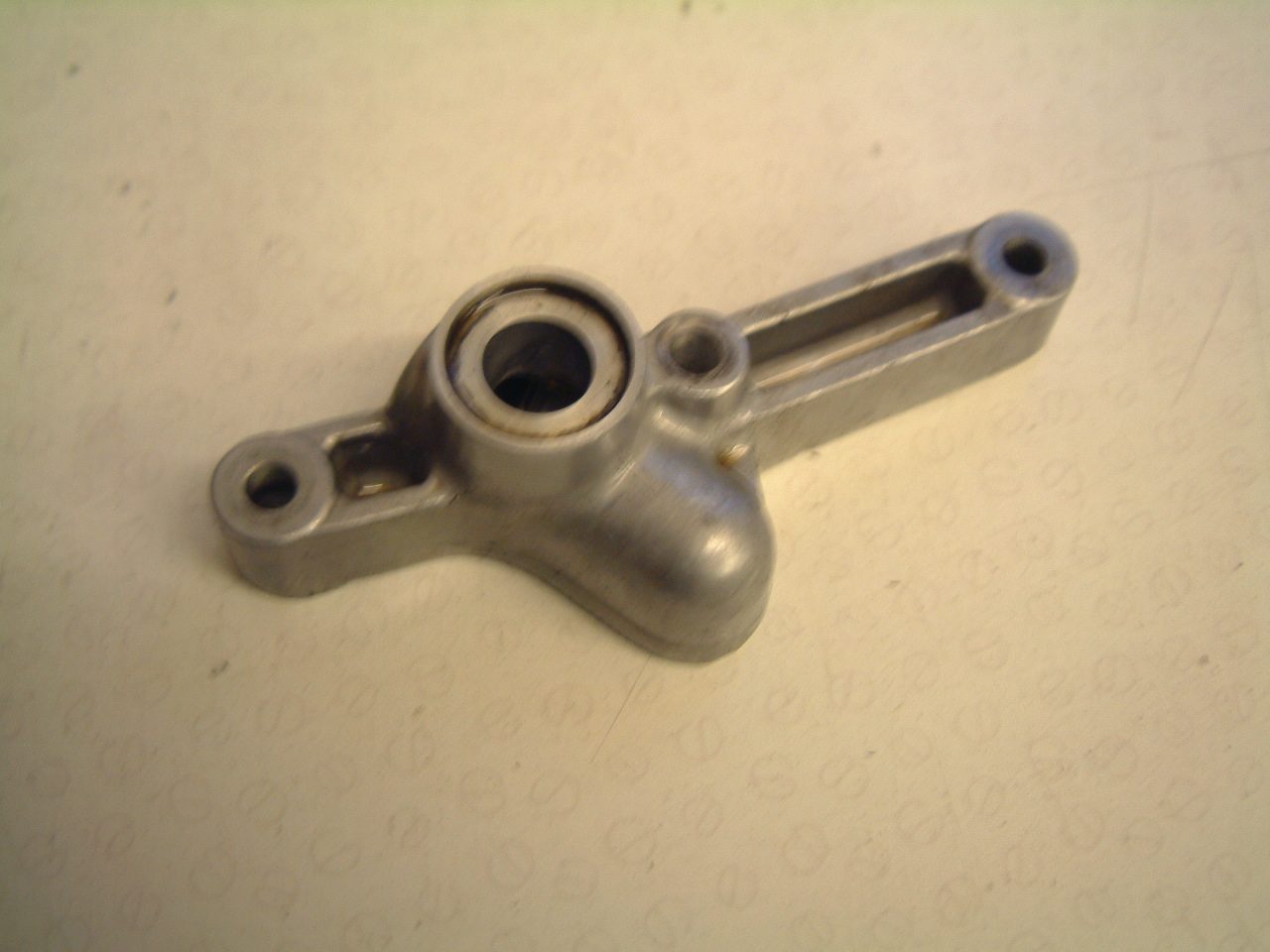

GPX750 - 150 OIL PICK-UP MOUNT - VERY GOOD. |
 |

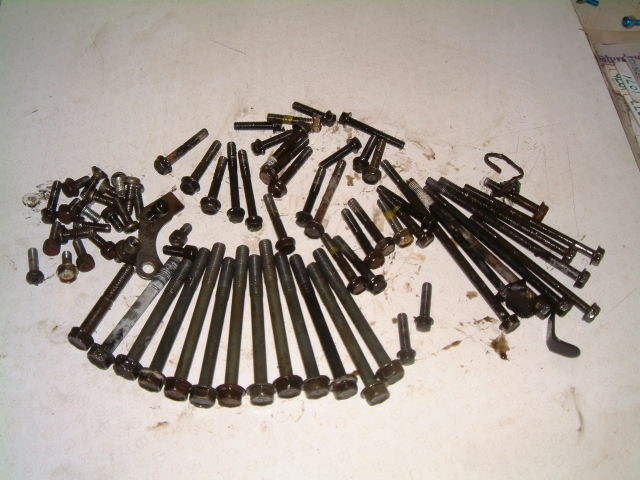

GPX750 - 152 LARGE SELECTION OF BOLTS AND SOME ALLEN SCREWS - ALL GOOD RE-USEABLE PARTS, MOSTLY FROM THE ENGINE. |
 |

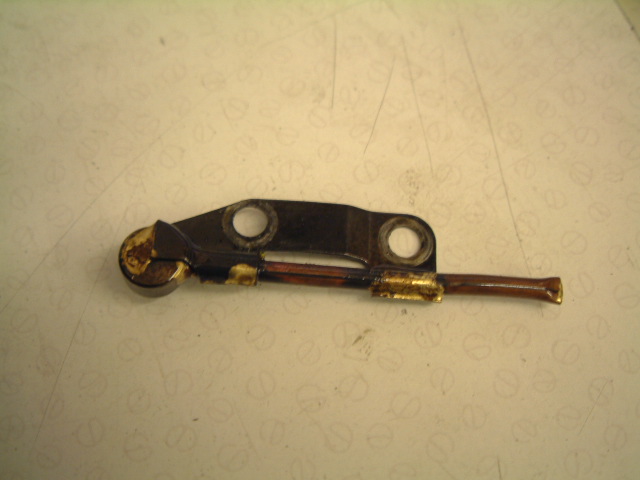

GPX750 - 153 OIL FEED PIPE - VERY GOOD. |
 |

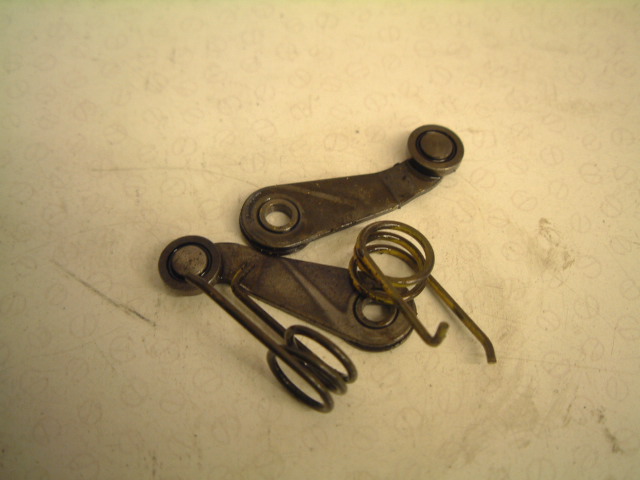

GPX750 - 155 GEAR SELECTION PARTS - ALL GOOD. |
 |

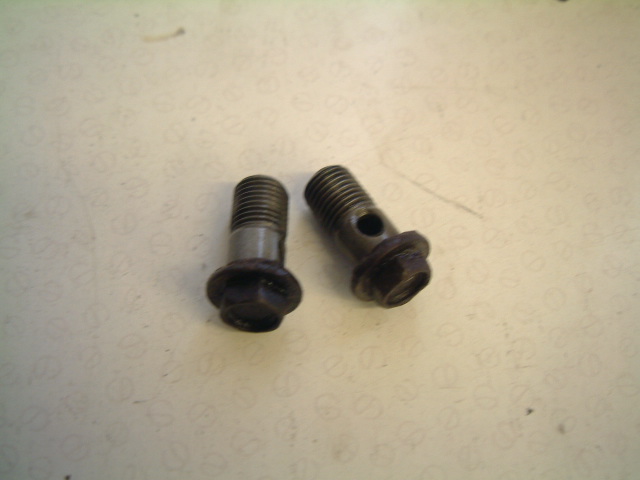

GPX750 - 176 OIL COOLER BANJO BOLTS - GOOD. |
 |

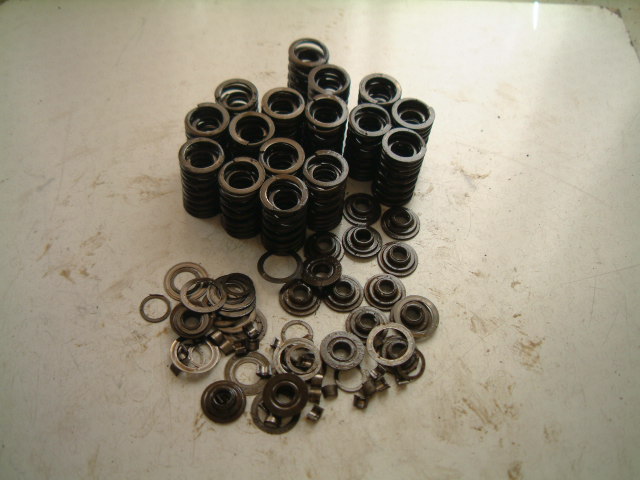

GPX750 - 221 VALVE SPRINGS ETC - ALL GOOD, WILL SPLIT. |
 |
 |

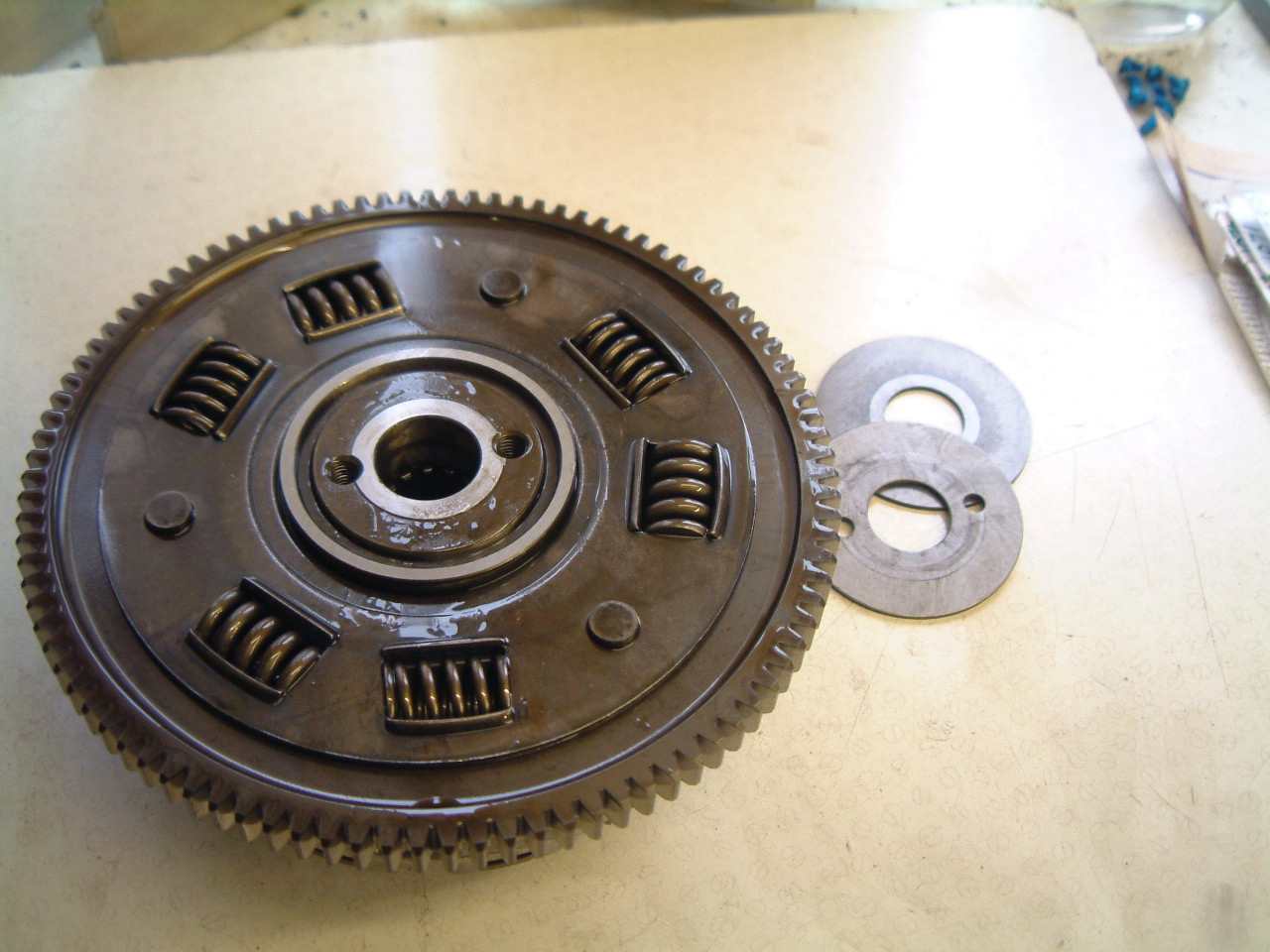

GPX750 - 092 COMPLETE CLUTCH - ALL LOOKS VERY GOOD, WORKING FINE ON BIKE JUST BEFORE THE BIKE WAS BROKEN FOR SPARES. |
 |
 |

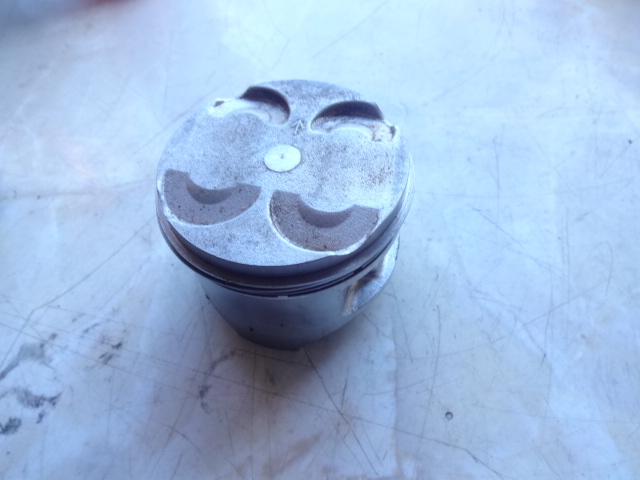

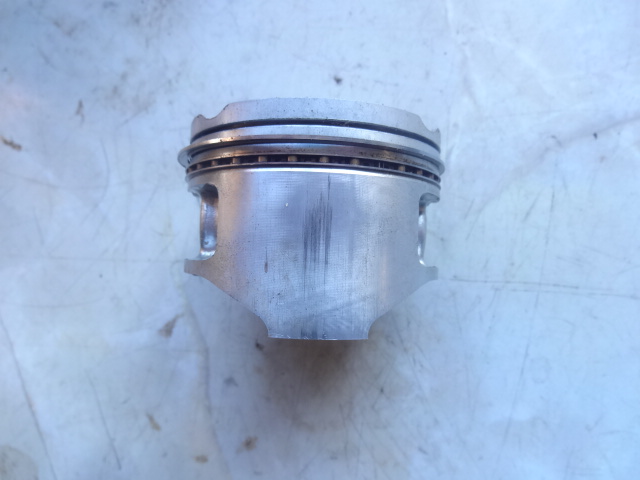

GPX750 - 119 PISTON WITH RINGS - LOOKS SERVICEABLE, FEW LIGHT MARKS ON THE SKIRTS. STANDARD SIZE. |
 |
 |

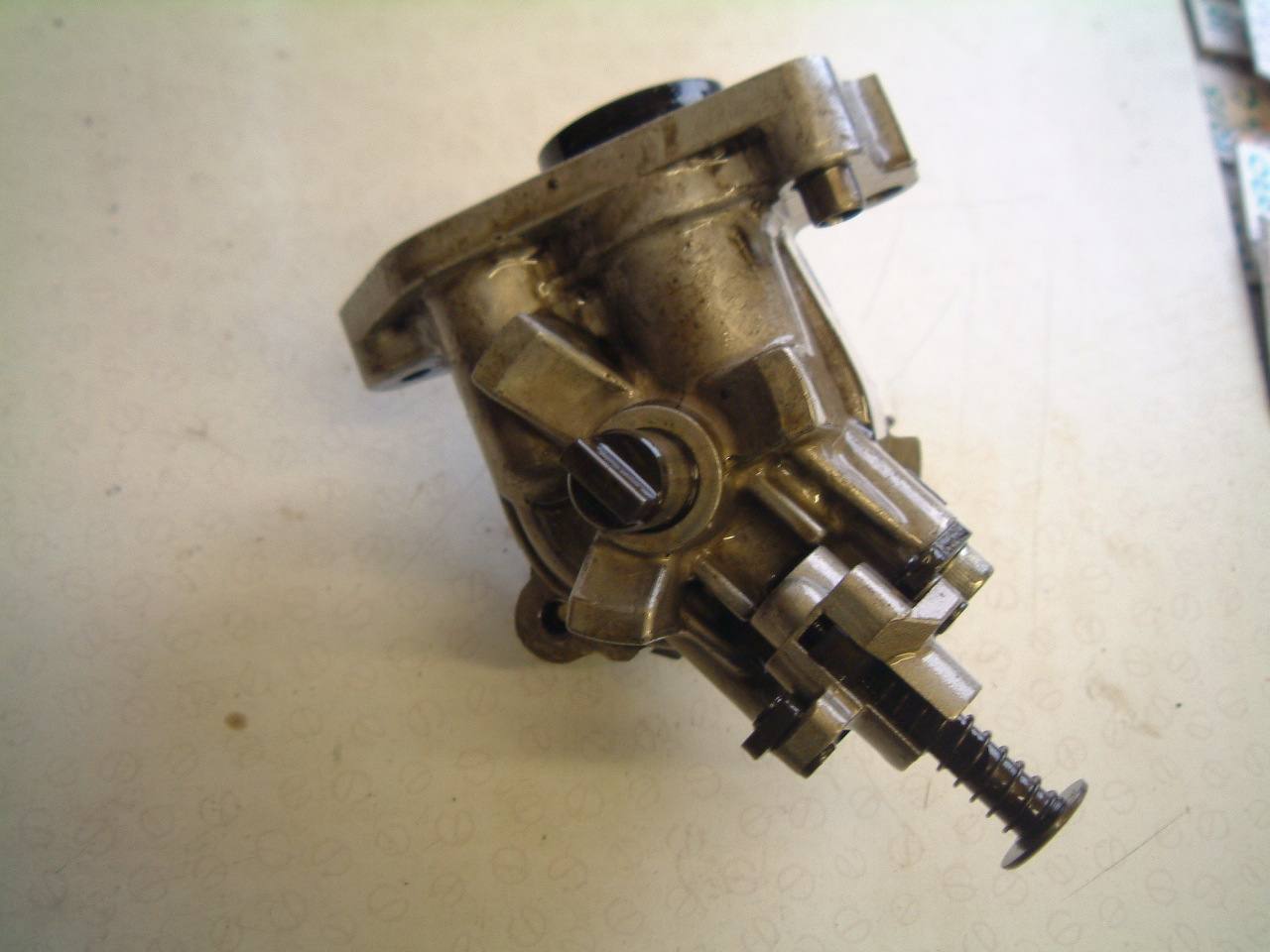

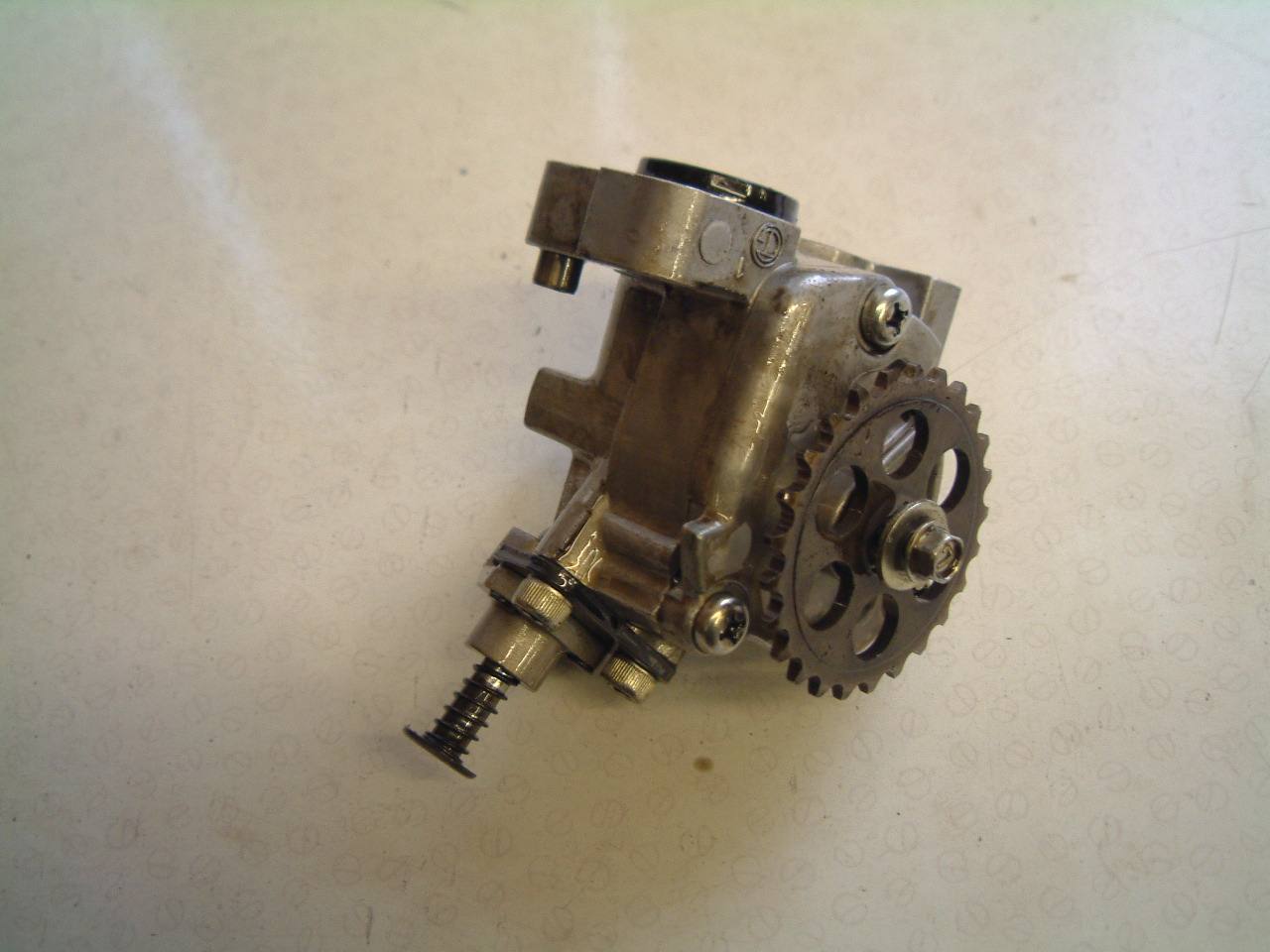

GPX750 - 136 OIL PUMP - SHOULD BE OK TO USE AS ALL THE ENGINE INTERNALS WERE OK. |
 |
 |

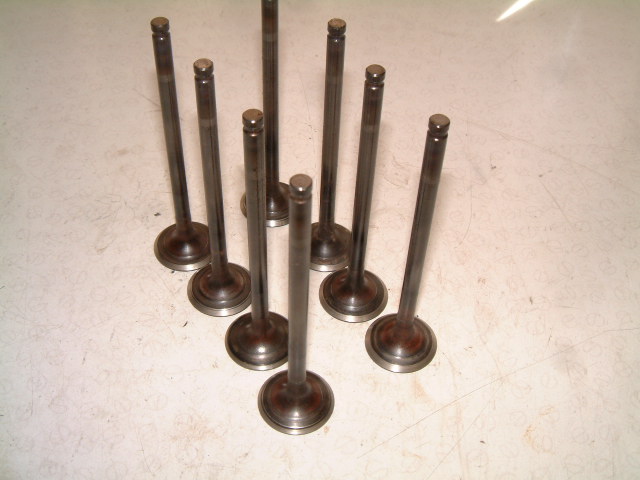

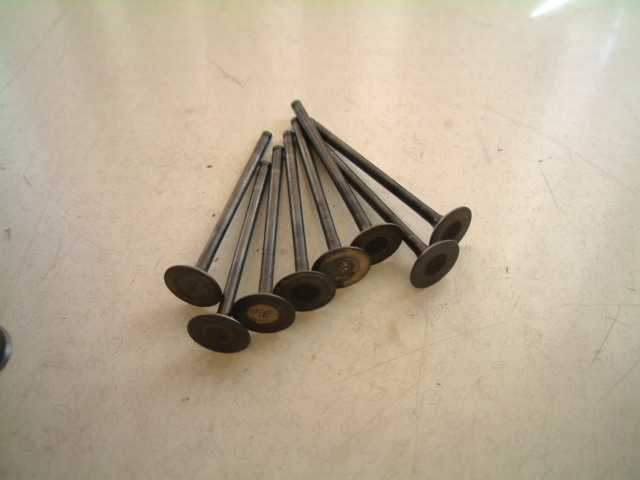

GPX750 - 222 EXHAUST VALVES - ALL LOOK SERVICEABLE, I HAVE SIX OF THESE LEFT, 2 SOLD. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

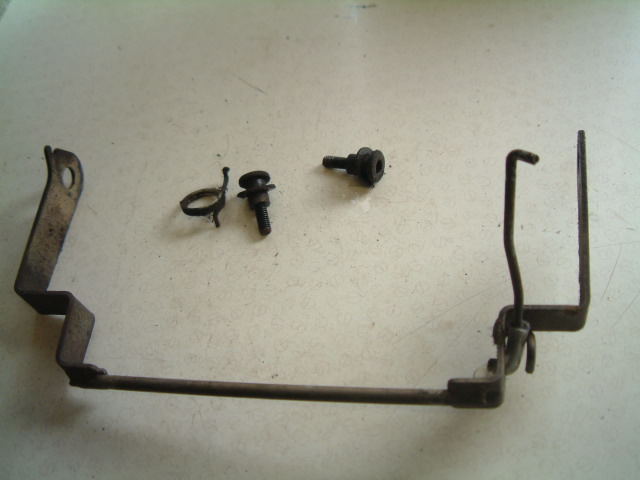

GPX750 - 015 SEAT CATCH & FIXINGS - GOOD. |
 |

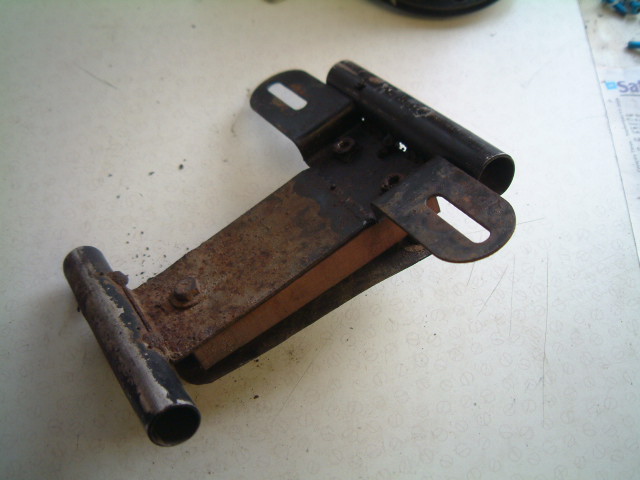

GPX750 - 020 REAR NUMBER PLATE BRACKET - SERVICEABLE. |
 |

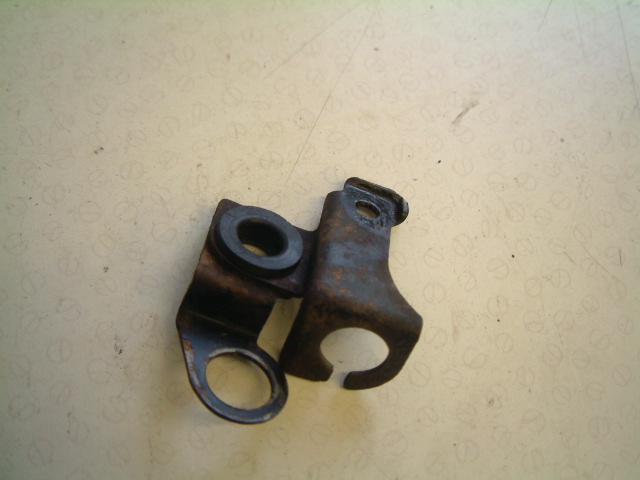

GPX750 - 040 REAR BRAKE LIGHT BRACKET - SOLID. |
||
 |

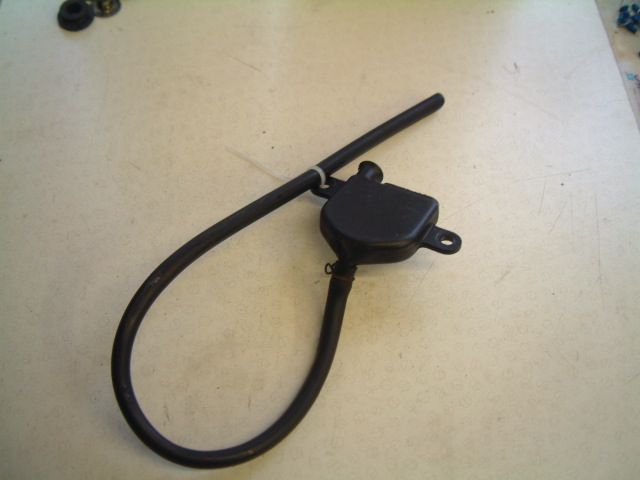

GPX750 - 045 NOT SURE WHAT THIS IS CALLED - GOOD UNDAMAGED CONDITION. |
 |

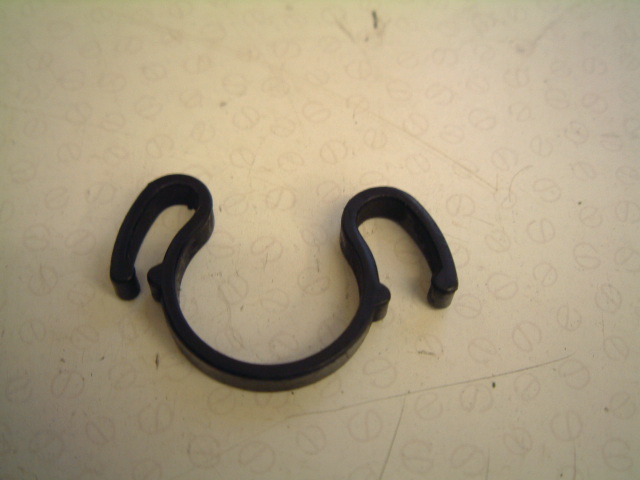

GPX750 - 050 CABLE GUIDE THAT SITS ON THE FRAME, UNDER THE TANK - VERY GOOD. |
 |

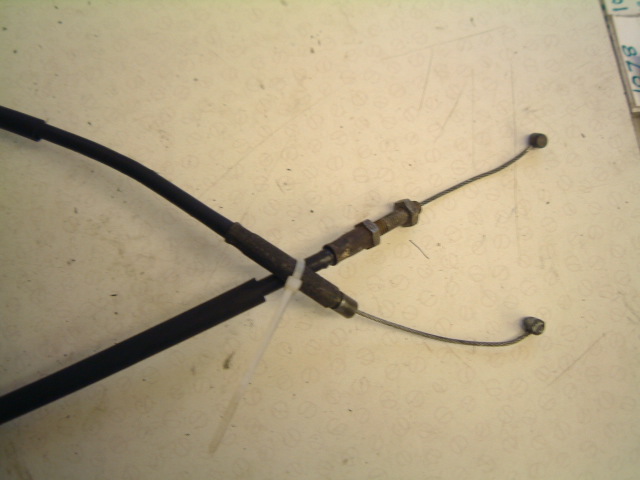

GPX750 - 055 THROTTLE CABLE, CLOSE - GOOD. |
 |

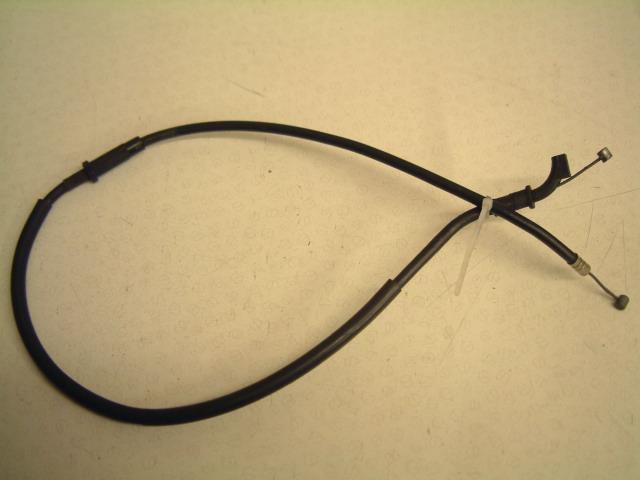

GPX750 - 065 CHOKE CABLE - SERVICEABLE. |
