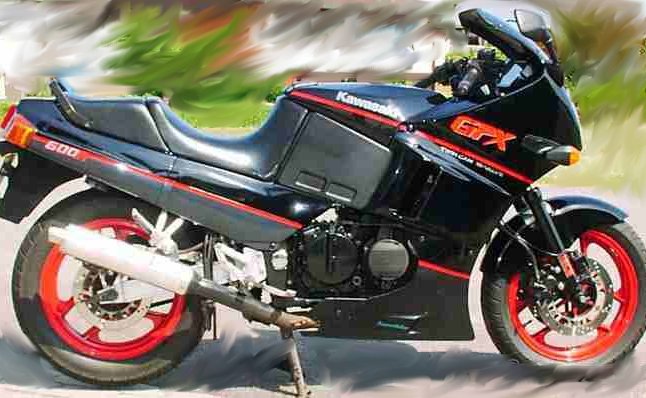

HI, MY NAME IS STEVE AND WELCOME TO MY KAWASAKI GPX600R WEB PAGE. I HAVE BROKEN TWO GPX600R's FOR SPARES. AN "F" REDG 1988/89 C1 ON THIS PAGE AND A 1991 C3 ON ANOTHER PAGE, CLICK THE LINK BELOW TO VIEW THE C3 PAGE. I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT. I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART. IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE. I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING. FRAME No. = ZX600C-005XX ~ ENGINE No. = ZX600AE059XXX ~ MODEL ZX600-C1. |
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 FUEL, EXHAUST, AIR AND COOLING - (CARBS & INTAKE, RADIATOR & HOSES ETC). |
| 3 RUNNING GEAR - (FRAME, SUSPENSION, BARS, BRAKES, FOOTRESTS, STANDS, ETC). |
| 4 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC). |
| 5 ENGINE, CLUTCH AND GEARBOX PARTS - |
| 6 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| TO VIEW THE PARTS I HAVE FROM THE GPX600R-C3 CLICK HERE --->>> > HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
 |

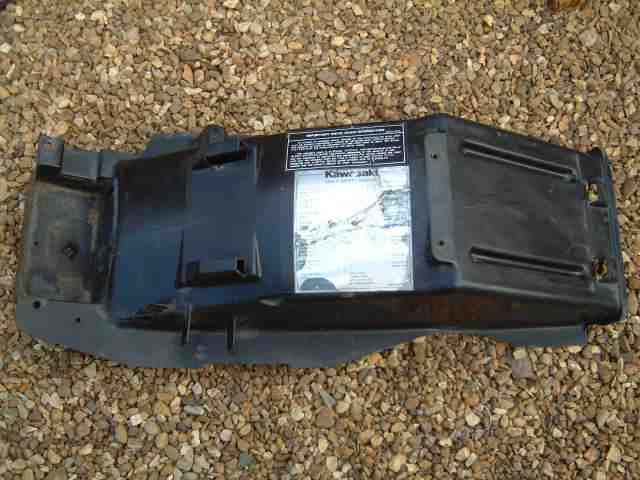

C1 - 044 INNER REAR MUDGUARD - GOOD. |
| FUEL, AIR, COOLING PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
 |

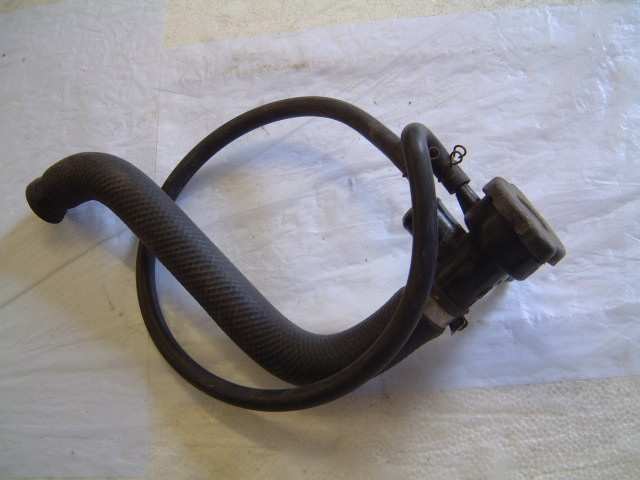

C1 - 025 RAD CAP, MOUNT & HOSES - GOOD. |
 |

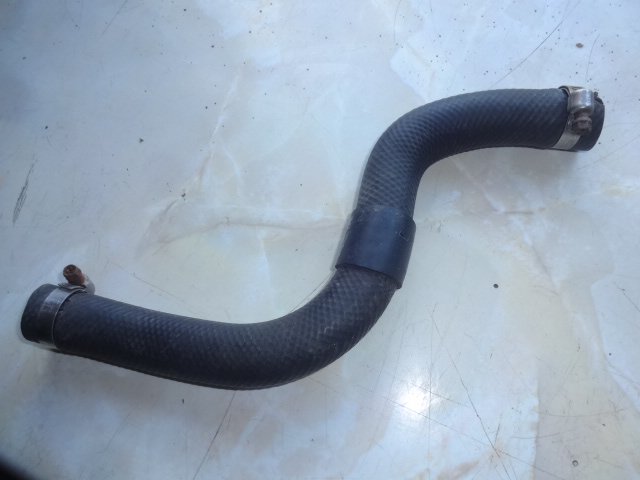

C1 - 026B WATER HOSE TO THERMOSTAT HOUSING - GOOD. |
 |

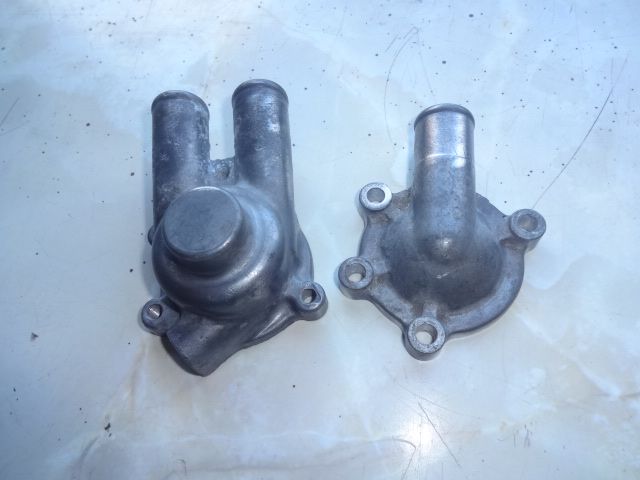

C1 - 026A THERMOSTAT HOUSING - GOOD. |
||
 |

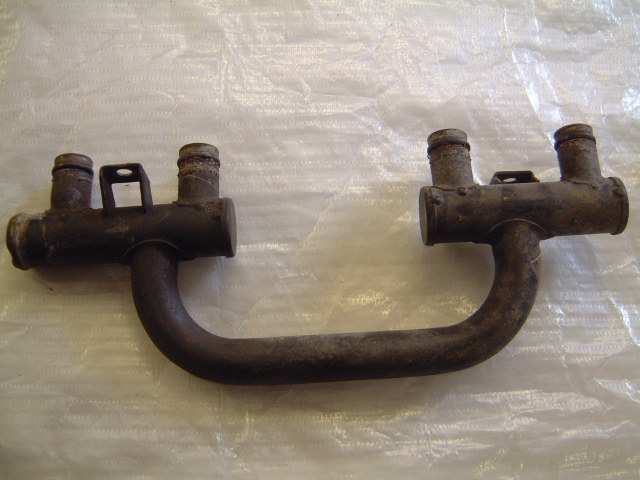

C1 - 053 METAL WATER TO HEAD PIPE - GOOD. |
 |

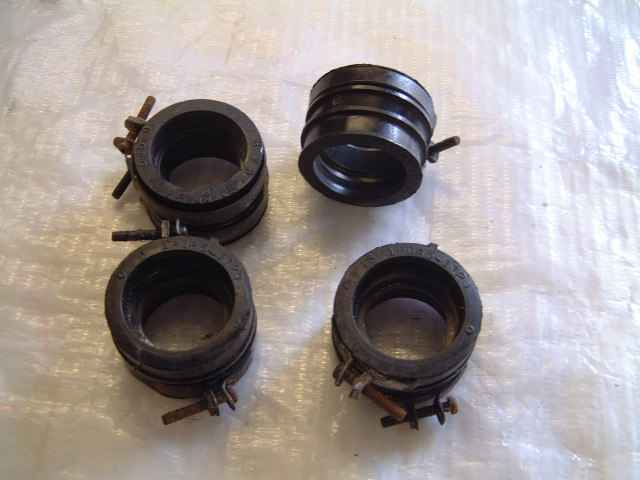

C1 - 085 HEAD TO CARBS INLET RUBBERS AND CLAMPS (7) - GOOD, NOT PERISHED. |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
 |

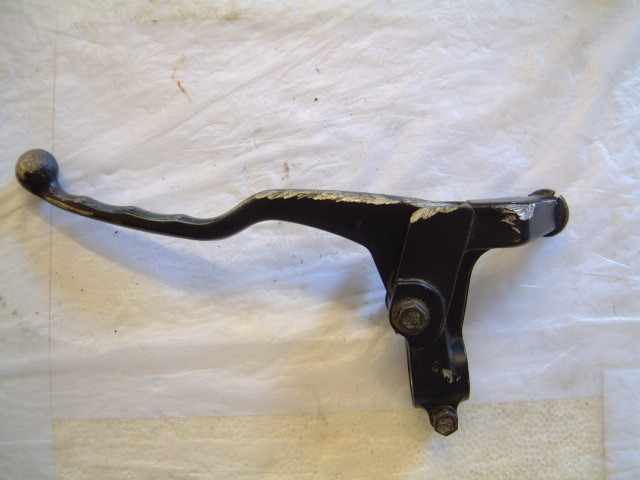

C1 - 033 CLUTCH LEVER AND MOUNT - HAS SOME ROAD RASH BUT NOTHING BROKEN/CRACKED. |
 |

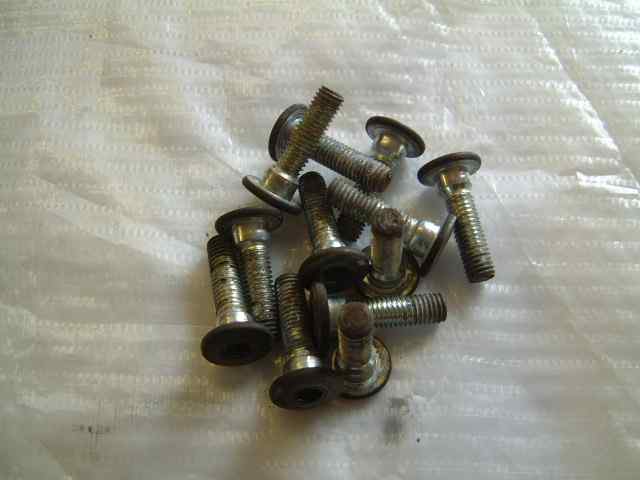

C1 - 063 FULL SET OF DISC ALLEN BOLTS - ALL HEADS GOOD, NONE CHEWED. |
 |

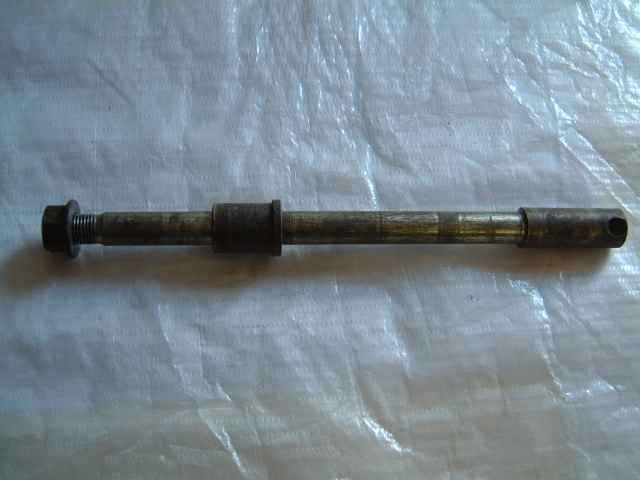

C1 - 065 FRONT WHEEL SHAFT AND SPACERS - GOOD. |
 |

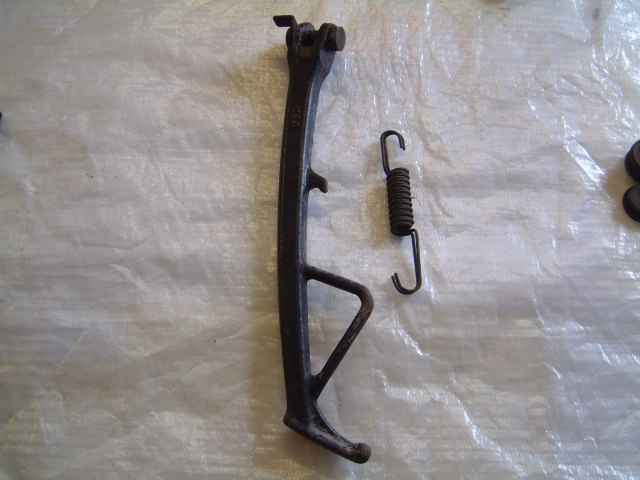

C1 - 066 SIDE STAND AND SPRING - GOOD. |
 |

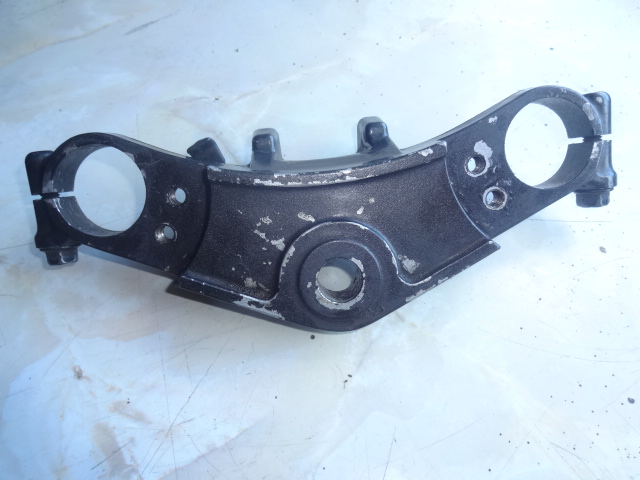

C1 - 071 TOP YOKE - VERY GOOD. |
 |

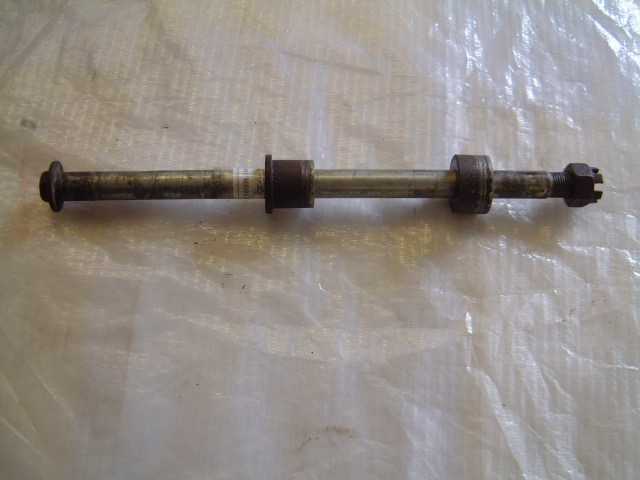

C1 - 076 REAR WHEEL SHAFT AND SPACERS - GOOD. |
 |

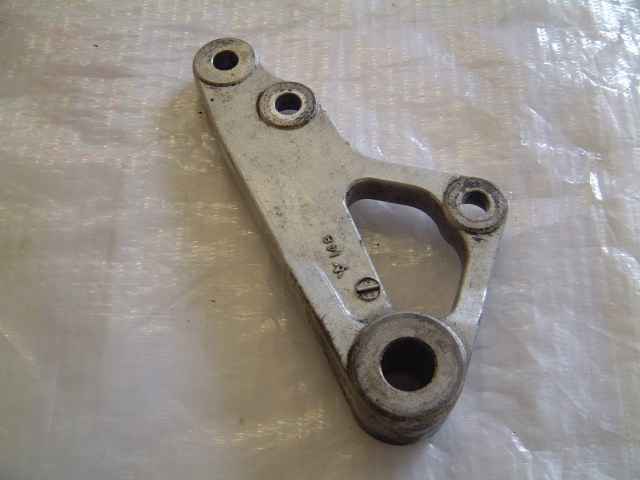

C1 - 077 REAR CALIPER MOUNTING BRACKET - GOOD. |
 |

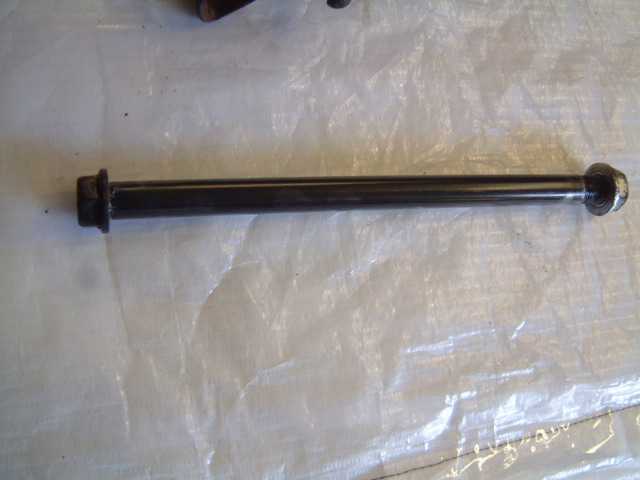

C1 - 081 SWING ARM SHAFT AND NUT - GOOD. |
 |

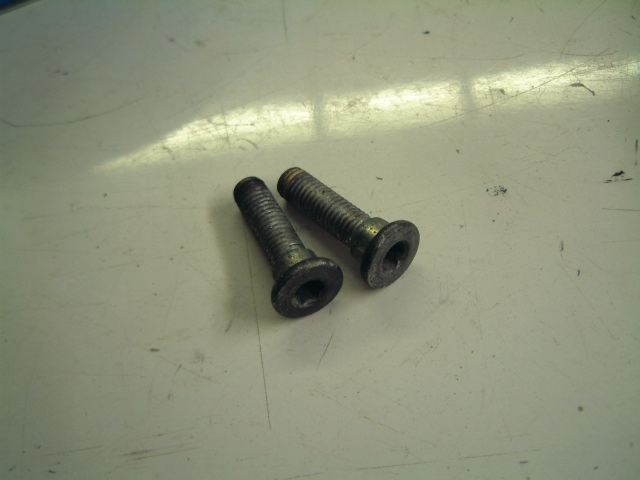

C1 - 136 REAR BRAKE MASTER MOUNTING ALLEN SCREWS - GOOD. |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
 |
C1 - 001 LEFT HAND SWITCH GEAR - FULLY TESTED - VERY GOOD (Very end tip of horn button missing, operates fine). |
 |

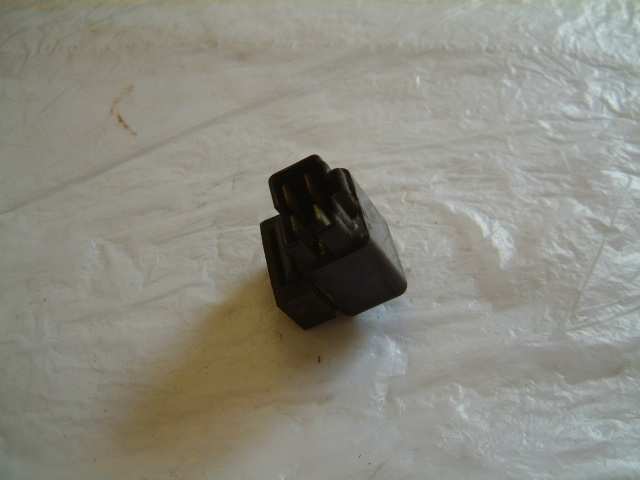

C1 - 006 RELAY ? - FITS BY HEADSTOCK UNDER THE FRONT OF THE TANK. |
 |

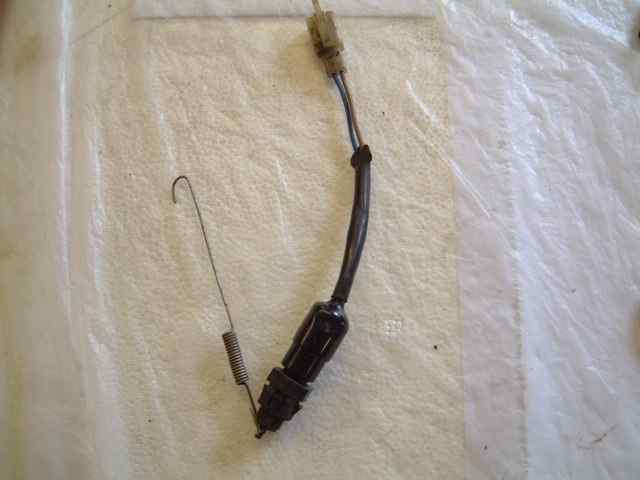

C1 - 041 REAR BRAKE LIGHT SWITCH - TESTED. |
 |

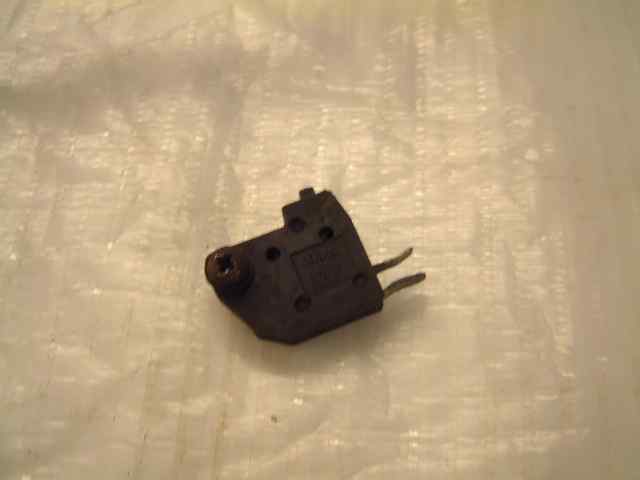

C1 - 127 FRONT BRAKE LIGHT SWITCH - TESTED. |
| ENGINE, CLUTCH, GEARBOX PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
 |

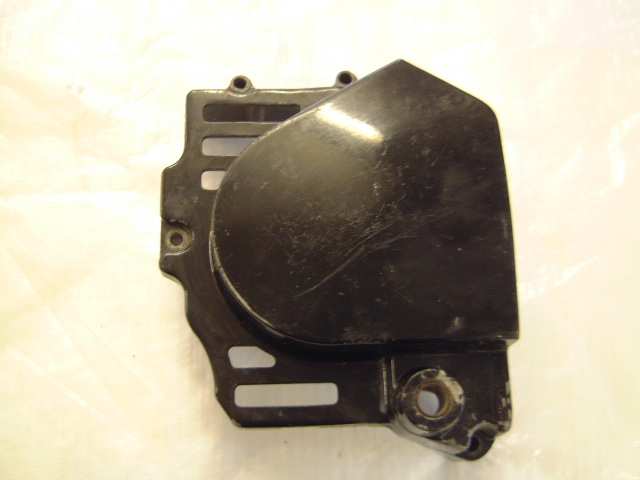

C1 - 050 LEFT HAND ENGINE/SPROCKET COVER - GOOD UN-DAMAGED. |
 |

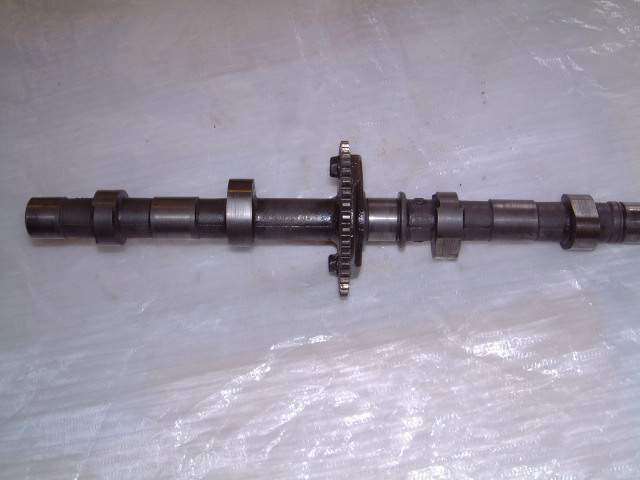

C1 - 058 INLET CAMSHAFT - SERVICEABLE. |
 |

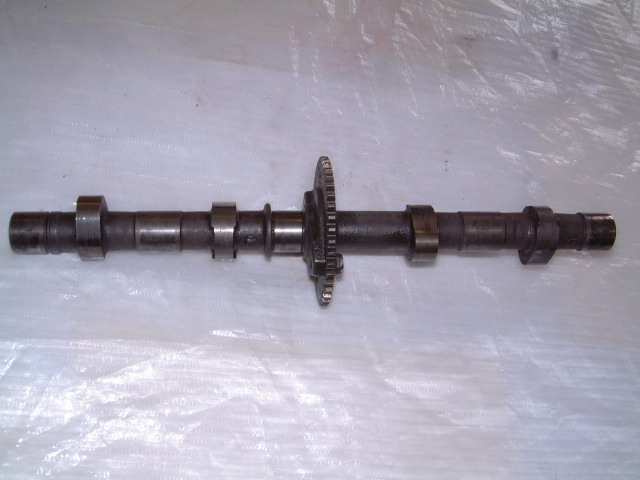

C1 - 059 EXHAUST CAMSHAFT - SERVICEABLE. |
 |

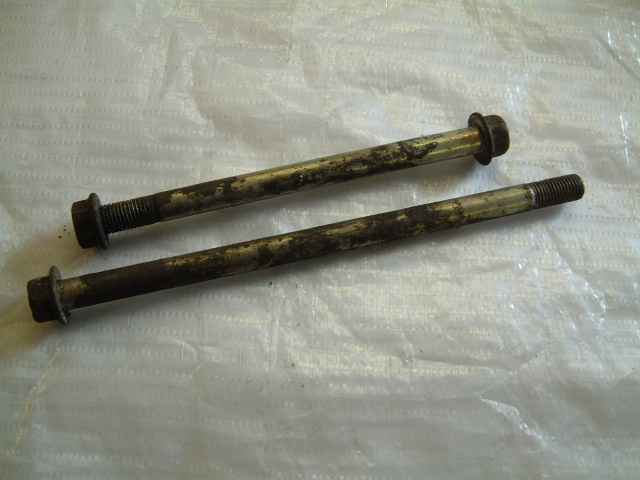

C1 - 067 PAIR OF ENGINE MOUNTING BOLTS - SERVICEABLE. |
 |

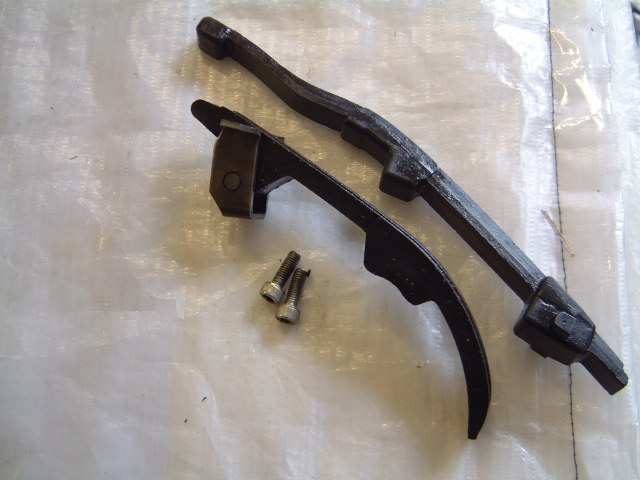

C1 - 089 CAMCHAIN GUIDES - GOOD. |
 |

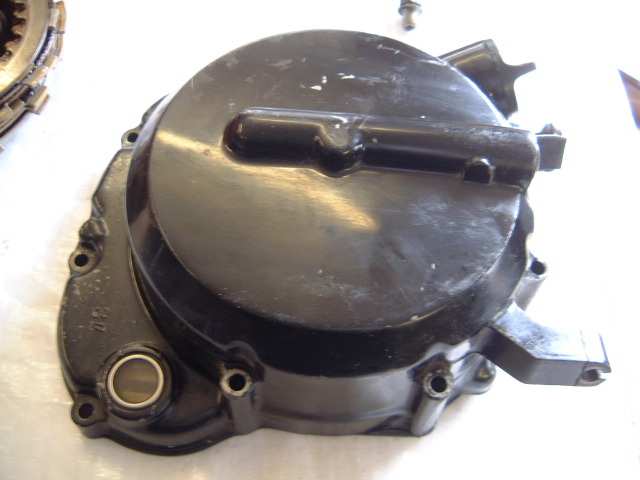

C1 - 092 CLUTCH CASING - VERY GOOD, NO DAMAGE. |
 |

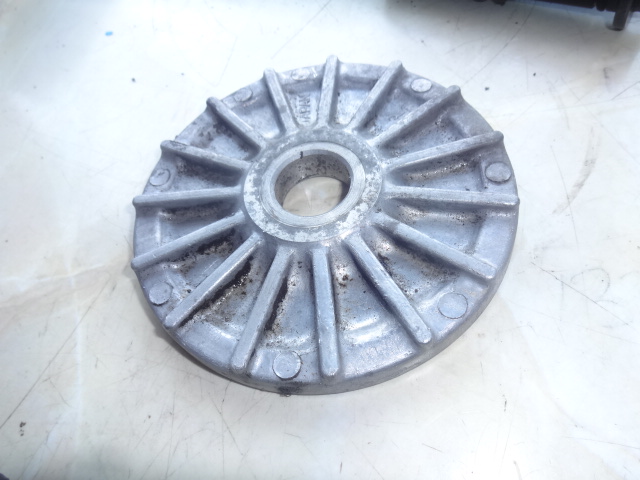

C1 - 097 OIL FILTER COVER - VERY GOOD. |
 |

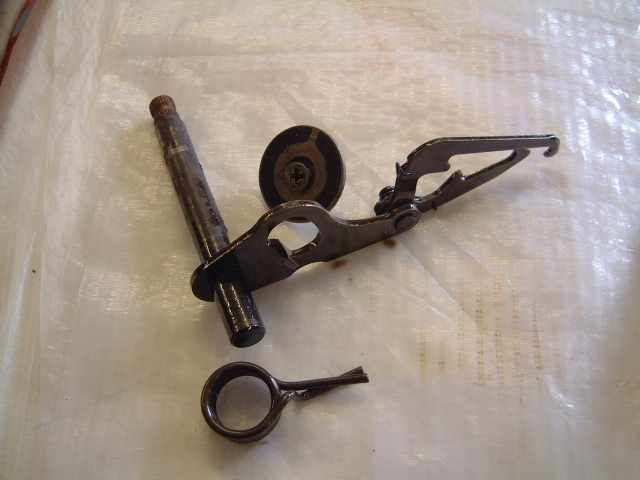

C1 - 098 GEAR SHIFT PARTS - GOOD - MAIN SHAFT SOLD. |
 |

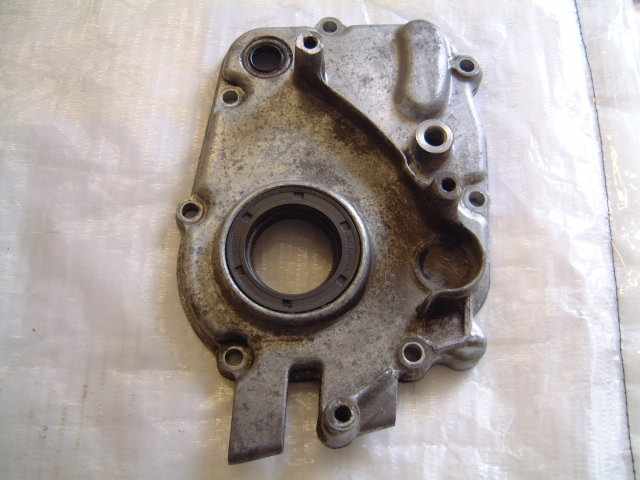

C1 - 099 ENGINE CASING, BEHIND DRIVE SPROCKET - GOOD. |
 |

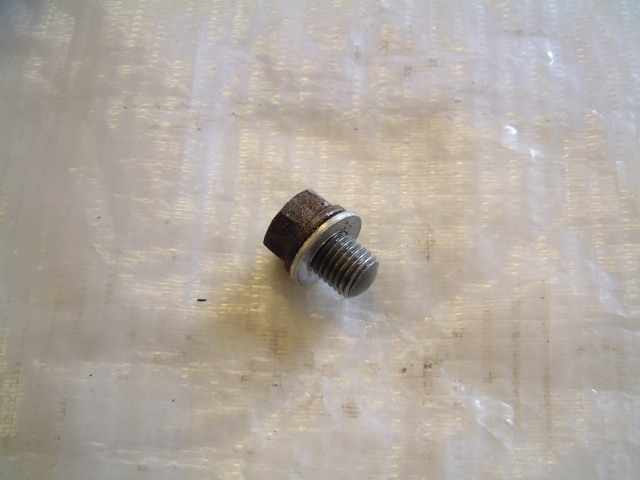

C1 - 100 SUMP PLUG - GOOD. |
 |

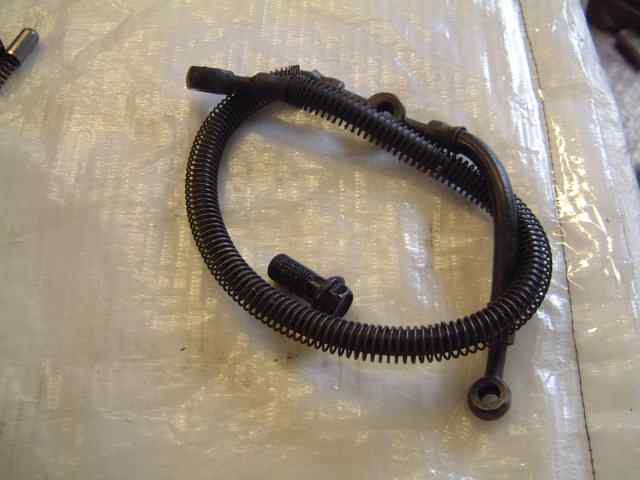

C1 - 103 OIL FEED PIPE - NO PERISHING. |
 |
C1 - 104 PRIMARY CHAIN GUIDE TENSIONER. |
 |

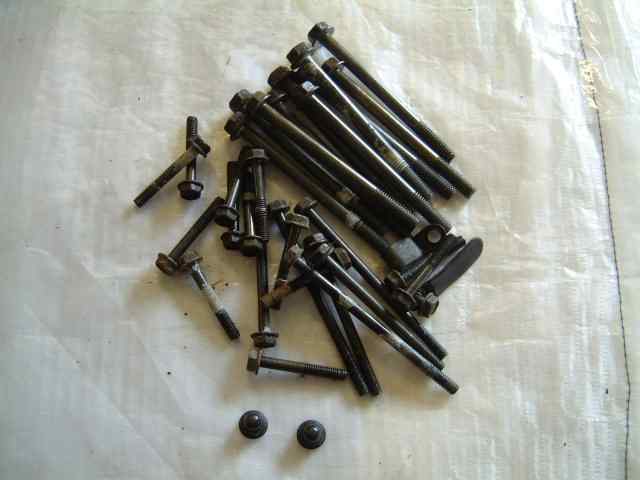

C1 - 106 CRANKCASE BOLT SET -ALL GOOD. |
 |

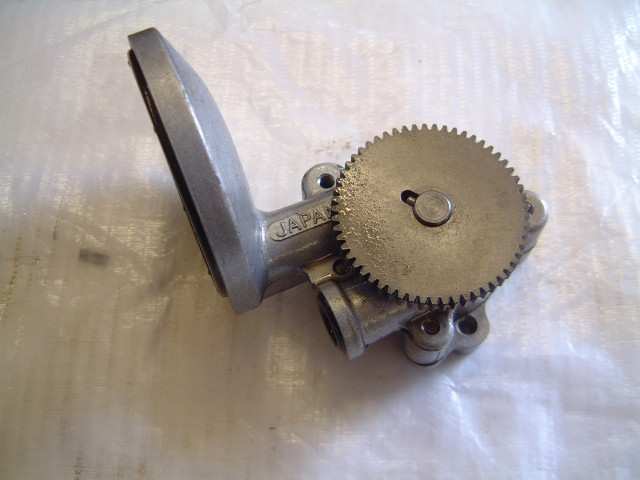

C1 - 109 OIL PUMP. |
 |

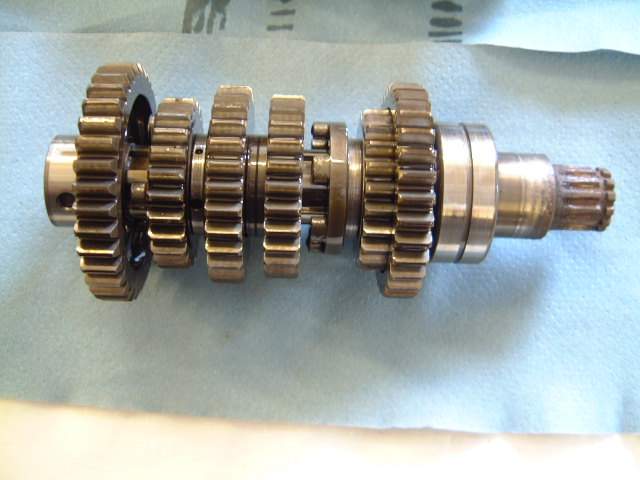

C1 - 110 MAIN DRIVE SHAFT - COMPLETE, ALL GEARS EXCELLENT. |
 |

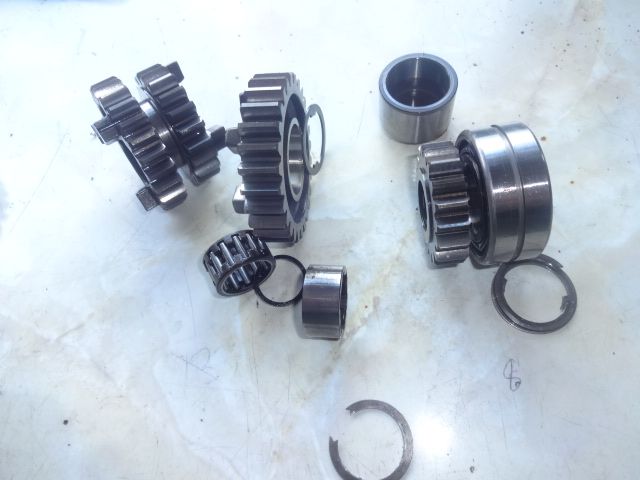

C1 - 111 INPUT SHAFT GEARS, ALL GEARS GOOD. |
 |

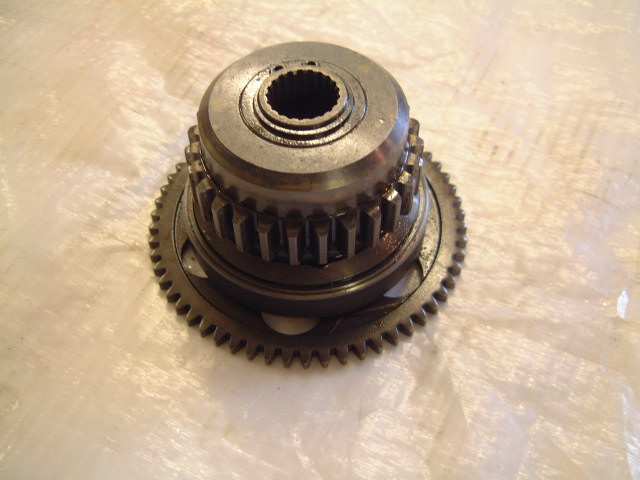

C1 - 112 STARTER CLUTCH COMPLETE - WORKING FINE. |
 |

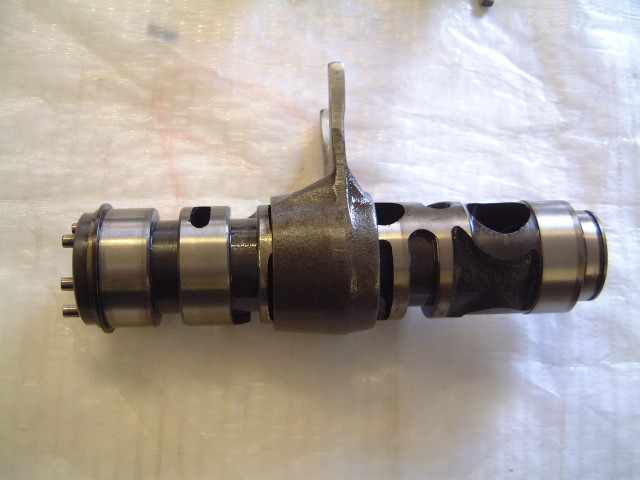

C1 - 113 SELECTOR DRUM - VERY GOOD. |
 |

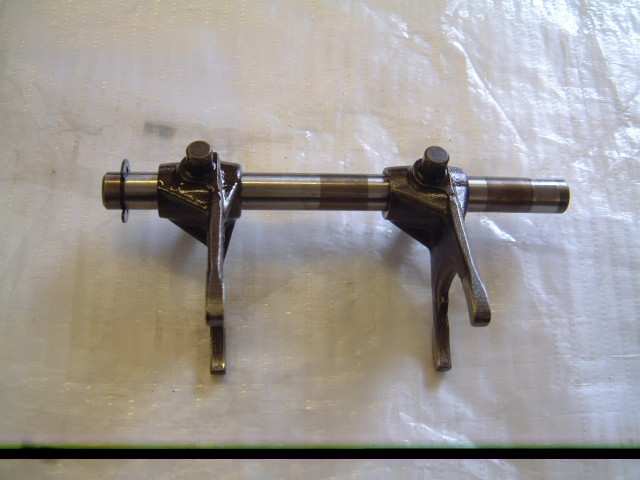

C1 - 114 SELECTOR FORKS - VERY GOOD. |
 |

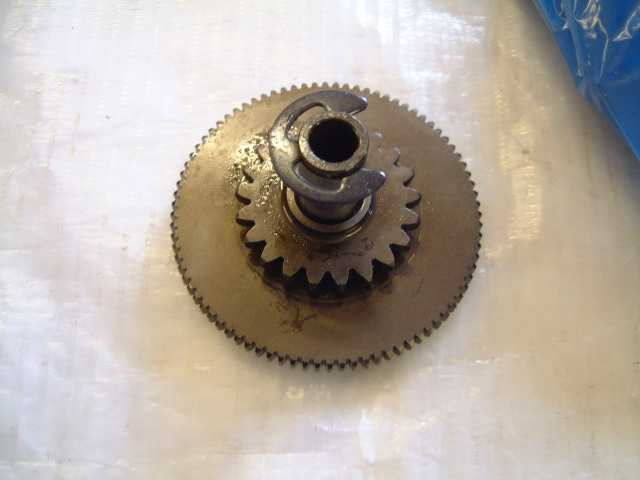

C1 - 115 IDLER GEAR - VERY GOOD. |
 |

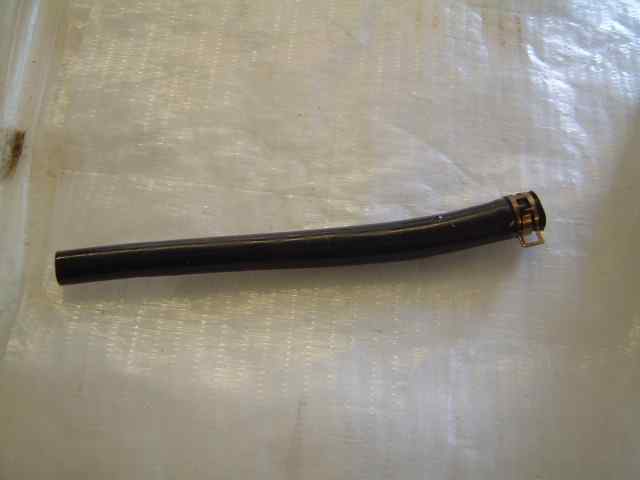

C1 - 116 PIPE - GOOD. |
 |

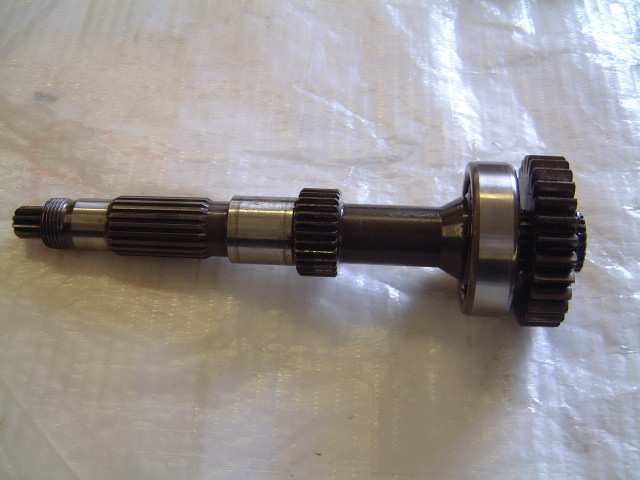

C1 - 117 STARTER CLUTCH / TRANSMISSION IN SHAFT - VERY GOOD. |
 |

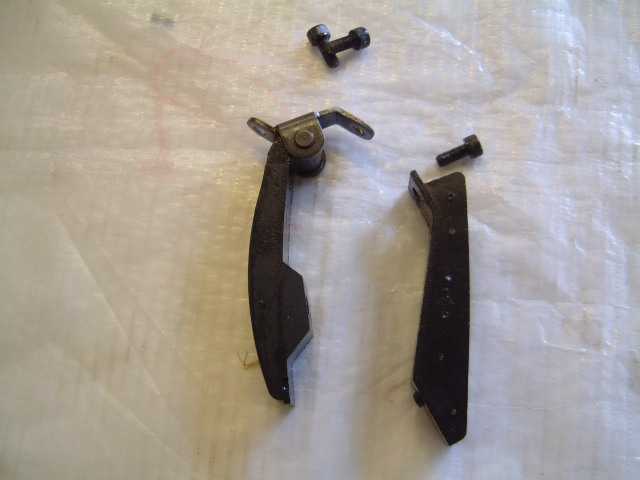

C1 - 118 PRIMARY CHAIN GUIDES - GOOD. |
 |

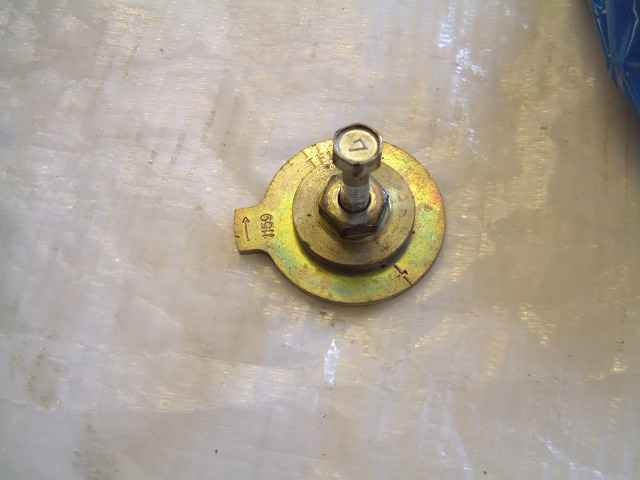

C1 - 119 TIMING MARKINGS PLATE - VERY GOOD. |
 |

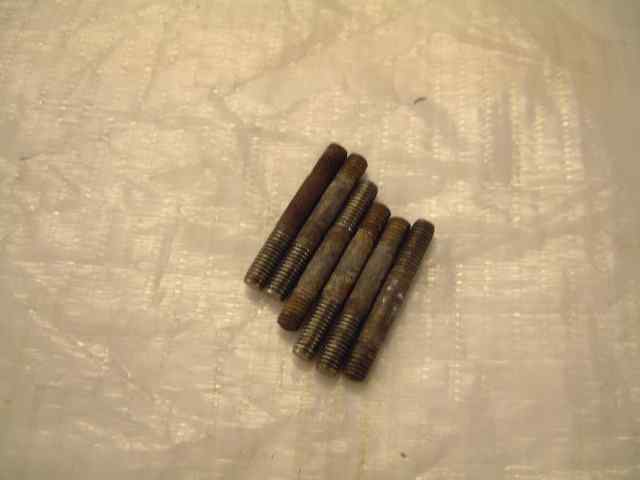

C1 - 121 RE-USEABLE EXHAUST STUDS - 5. |
 |

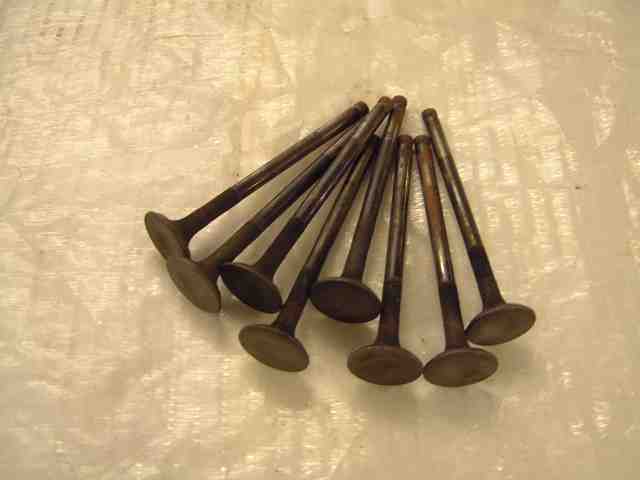

C1 - 123 SET OF EXHAUST VALVES - GOOD, WILL SPLIT. |
 |

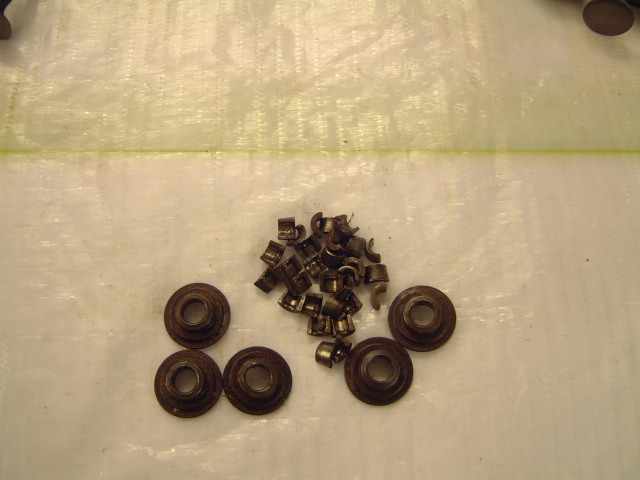

C1 - 124 VALVE RETAINING COLLARS AND A FEW WASHERS - WILL SPLIT. |
 |

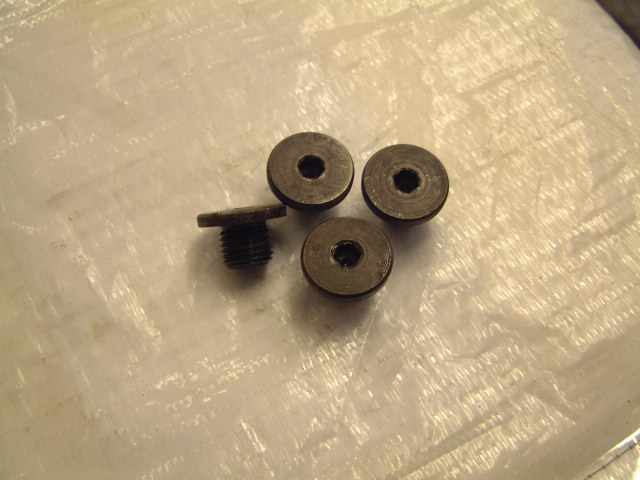

C1 - 125 ROCKER SHAFT END CAPS/SCREWS - GOOD. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No
PART DESCRIPTION / DETAILS. |
 |

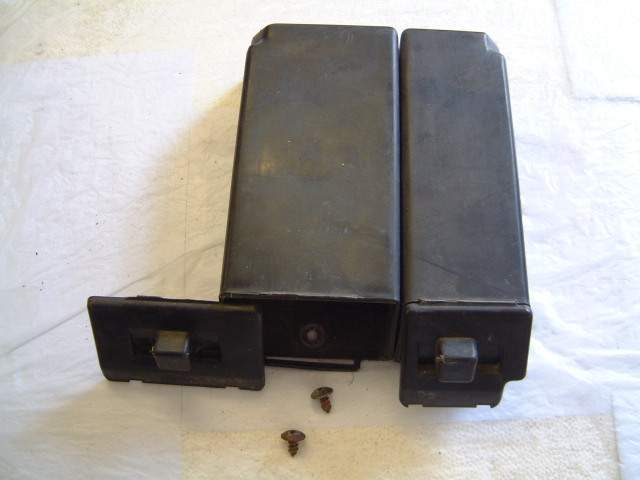

C1 - 014 PAIR OF TOOL BOXES - ONE NEEDS LID FIXING. |
 |

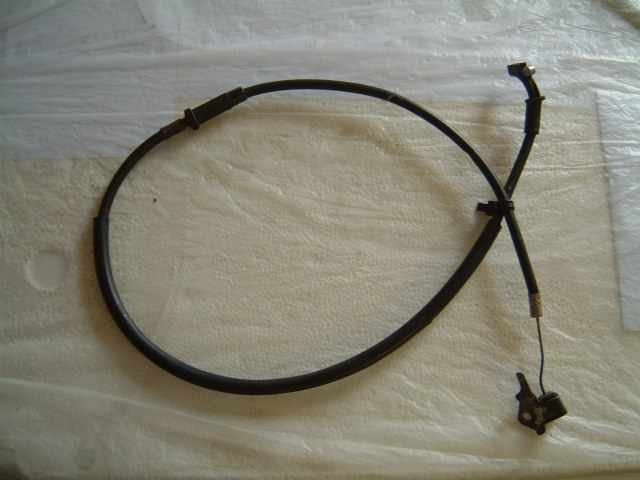

C1 - 023 CHOKE CABLE - GOOD/RE-USEABLE. |
 |

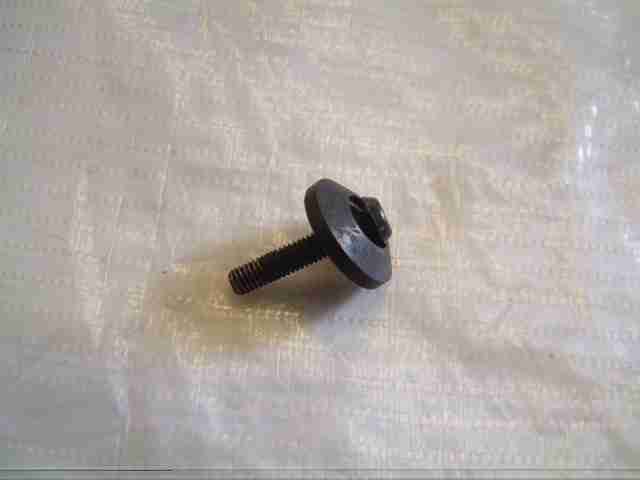

C1 - 068 LOWER BELLY PAN TO FRAME FIXING - GOOD. |
 |

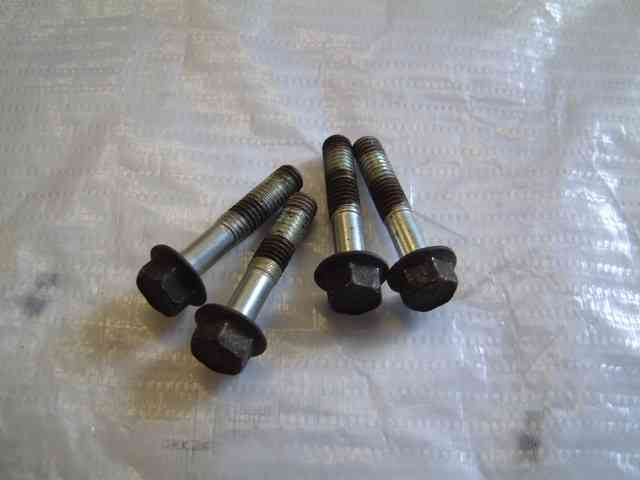

C1 - 069 LOWER YOKE BOLT SET - GOOD. |
 |

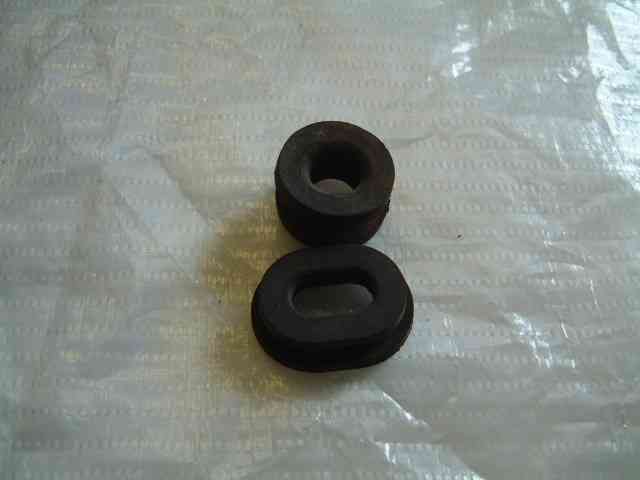

C1 - 070 RADIATOR MOUNT RUBBER (BOTTOM & UNDER BATTERY RUBBER - GOOD. |
 |

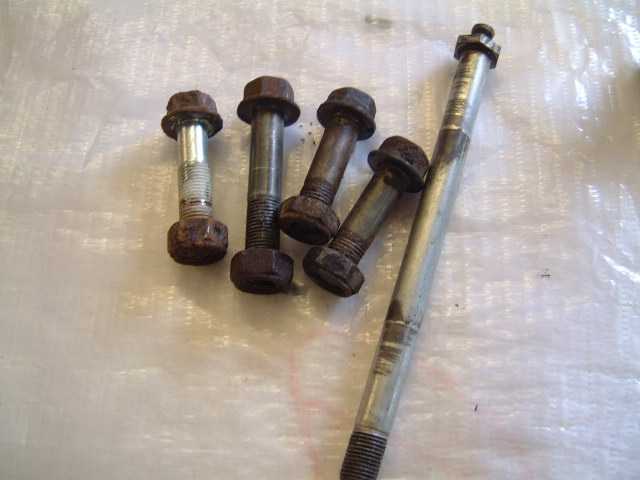

C1 - 080 VARIOUS REAR SHOCK/SUSPENSION BOLTS - SERVICEABLE. |
