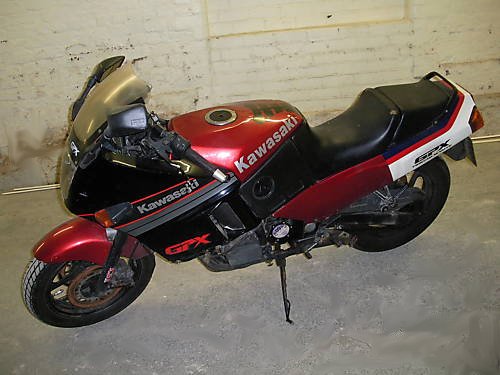

HI, MY NAME IS STEVE AND WELCOME TO MY KAWASAKI GPX600R WEB PAGE. I HAVE BROKEN TWO GPX600R's FOR SPARES. A "H" REDG 1991 C3 ON THIS PAGE AND A 1988/89 C1 ON ANOTHER PAGE, CLICK THE LINK BELOW TO VIEW THE C1 PAGE.I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT. I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART. IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE. I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING. FRAME No. = ZX600C-0227XX ~ ENGINE No. = ZX600AE0889XX ~ MODEL ZX600-C3. |
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC). |
| 2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC). |
| 3 FUEL, AIR, COOLING & EXHAUST - (AIRBOX, FUEL TAP + CAP, RAD, HOSES ETC) |
| 4 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC). |
| 5 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC). |
| 6 ENGINE - (ENGINE AND GEARBOX PARTS). |
| 7 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| TO VIEW THE PARTS I HAVE FROM THE GPX6006-C1, CLICK --->>> > HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

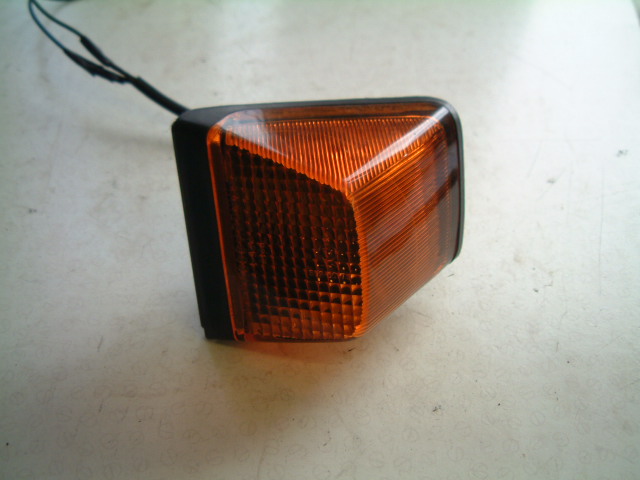

C3 - 004 RHS REAR INDICATOR - EXCELLENT. |
 |
 |

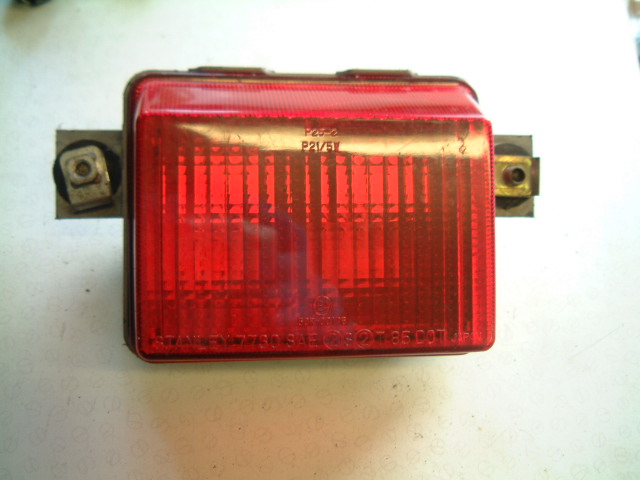

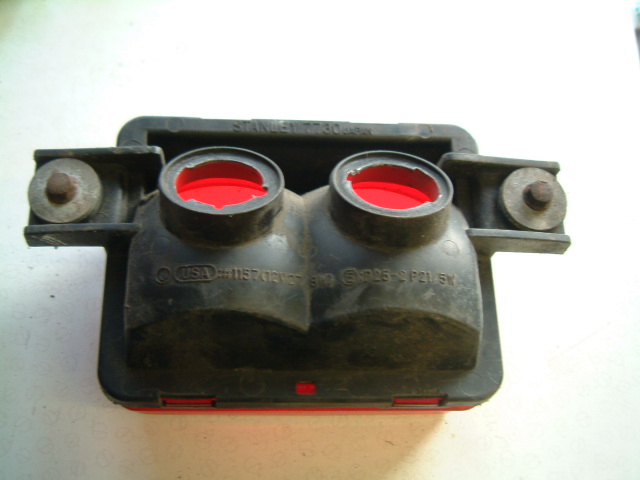

C3 - 007 TAIL LIGHT - VERY GOOD, NO DAMAGE. |
 |
 |

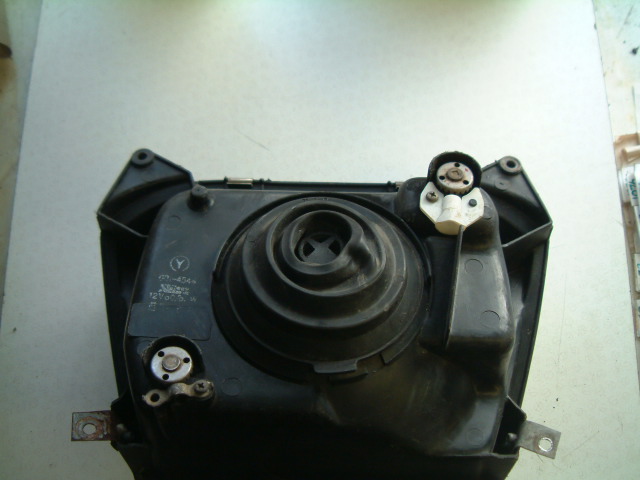

C3 - 009 HEADLIGHT - FEW LIGHT SCRATCHES ON GLASS, 2 REPAIRED FIXINGS, SOLID AND SERVICEABLE. |
 |
 |

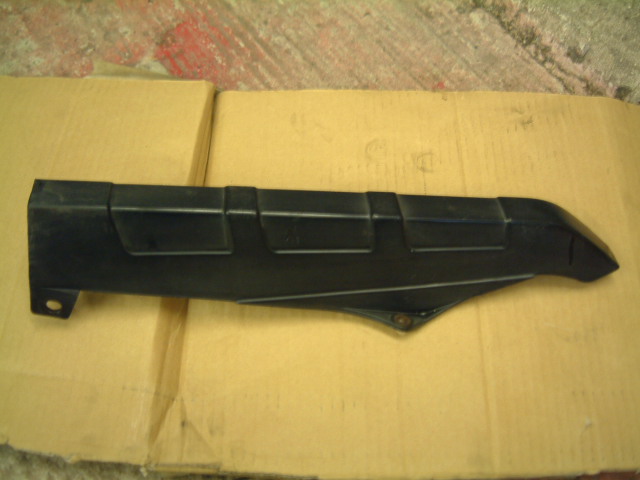

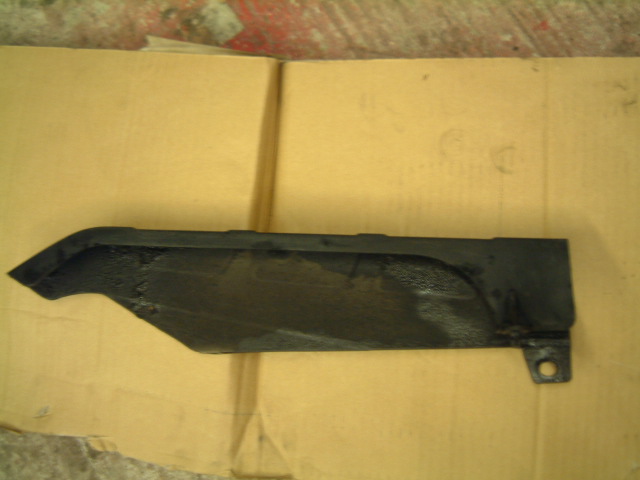

C3 - 033 CHAIN GUARD - VERY GOOD. |
 |
 |

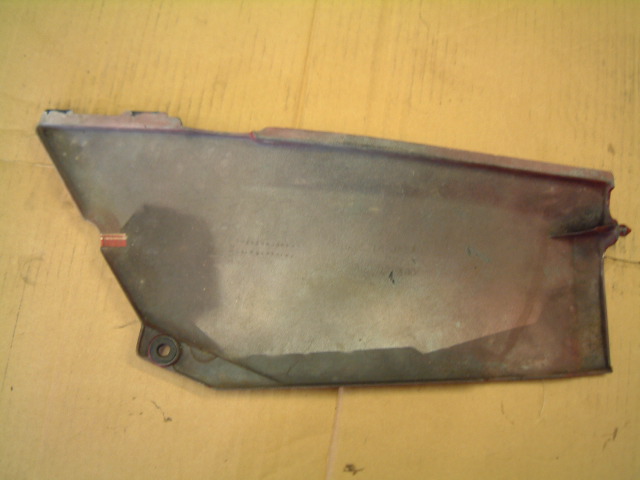

C3 - 139 RHS SIDE PANEL - VERY GOOD, FIXINGS ALL OK. |
 |
 |

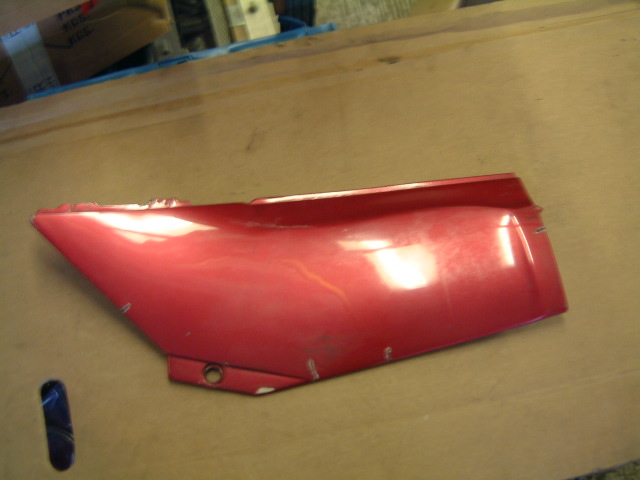

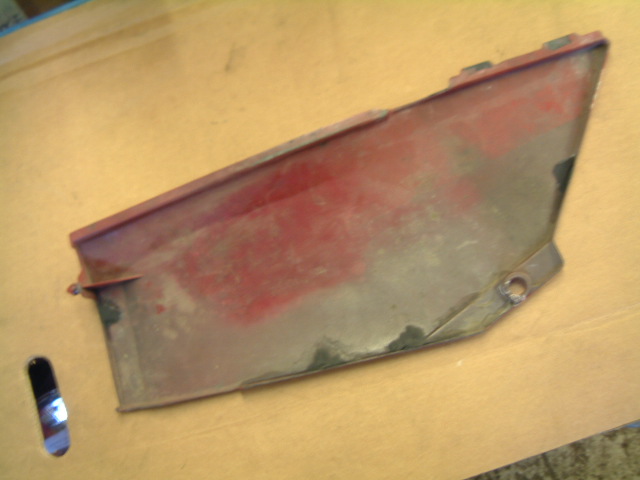

C3 - 187 LHS SIDE PANEL - FIXINGS ALL OK, HAS SOME SMALL REPAIRS WITH PLASTECH, 100% SOLID, READY FOR PREP & PAINT. |
 |
 |
 |

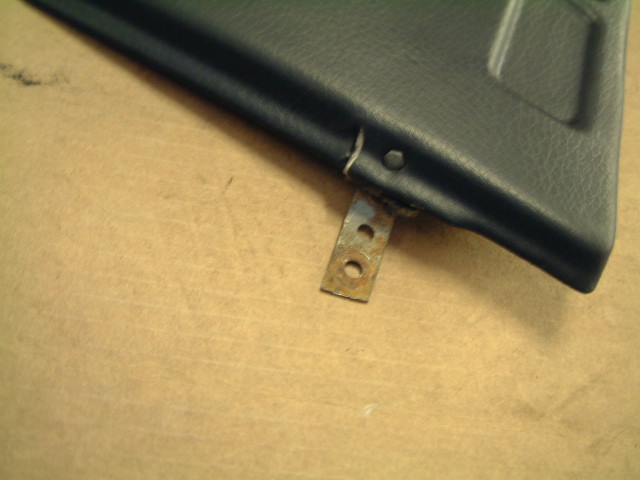

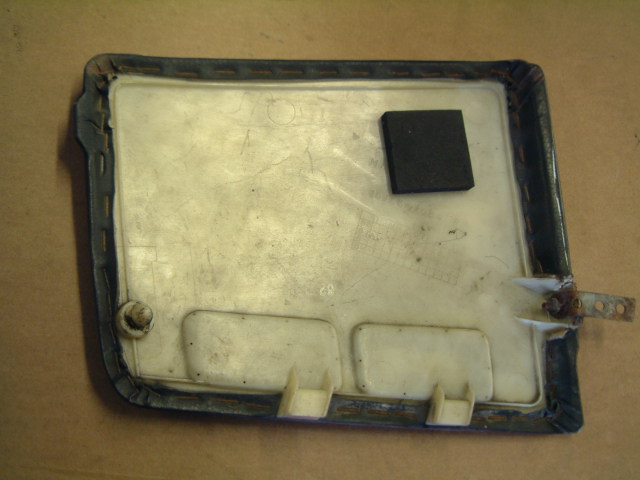

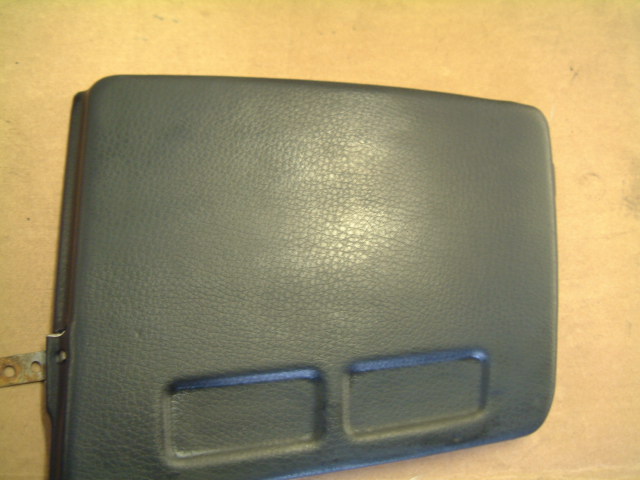

C3 - 185 RHS KNEE PAD - HAS A HOMEMADE LUG, PART NUMBER 16146-1080R. |
| BRAKE AND CLUTCH PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

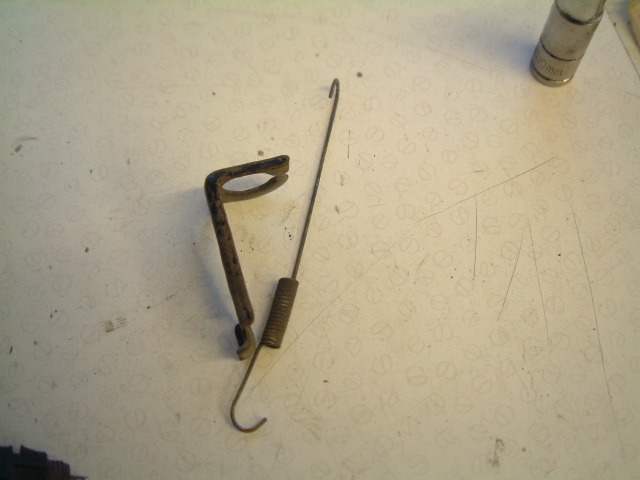

C3 - 038 REAR BRAKE SPRING AND BRACKET - GOOD. |
 |
C3 - 045 REAR BRAKE RESERVOIR - GOOD, RUBBER OK. |
 |
C3 - 059 REAR BRAKE CALIPER - WORKING WELL ONTHE BIKE, NEEDS FRESH PAINT. |
 |

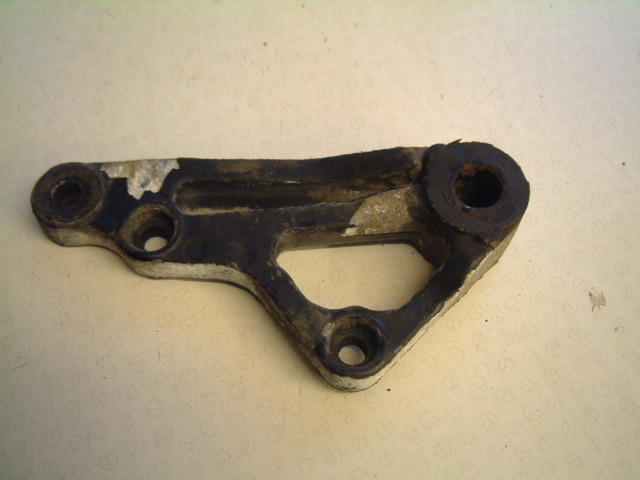

C3 - 094 REAR CALIPER BRACKET - GOOD, NO DAMAGE, NEEDS PAINT. |
 |

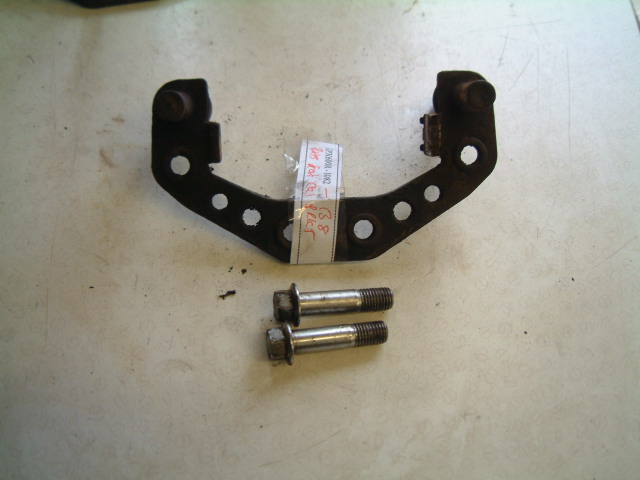

C3 - 138 FRONT BRAKE CALIPER ( LEFT & RIGHT ) BRACKET & BOLTS - THREADS OK, NEEDS A CLEAN. # 43044-1067 |
 |

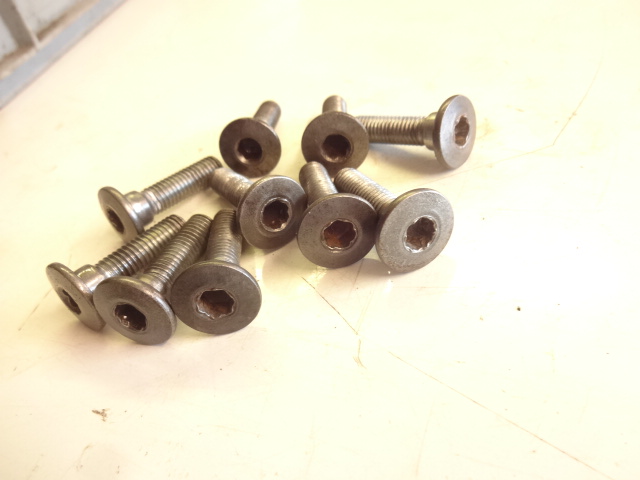

C3 - 148 DISC SCREWS - NOT PERFECT BUT ALL SERVICEABLE. |
| FUEL, AIR, COOLING PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

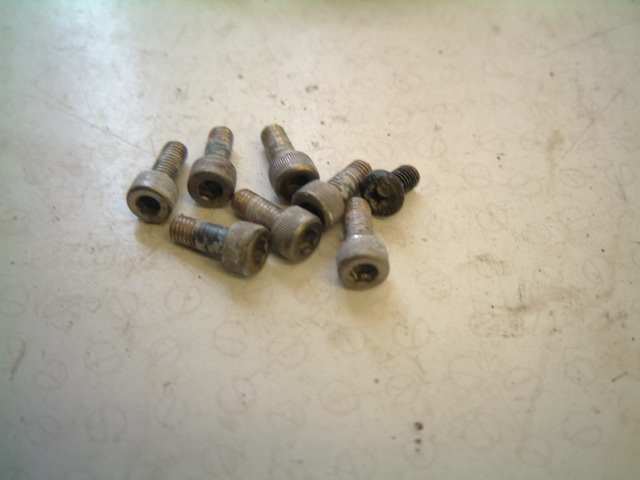

C3 - 062 FUEL CAP ALLEN SCREWS -ALL SERVICEABLE. |
 |

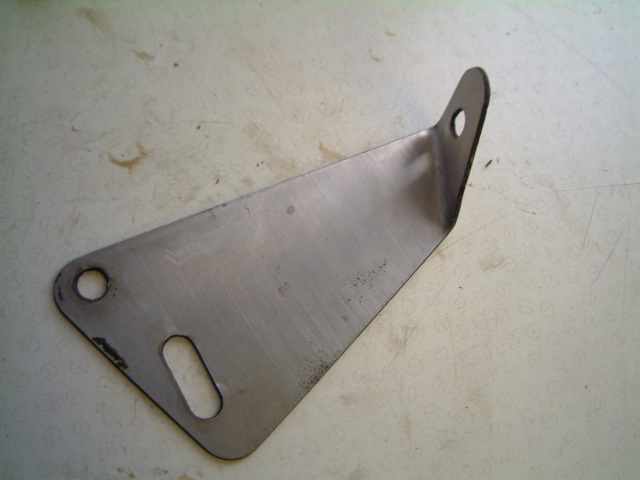

C3 - 085 STAINLESS STEEL SIDE STAND BRACKET - VERY GOOD, FOR USE WITH 4:1 EXHAUSTS. |
 |

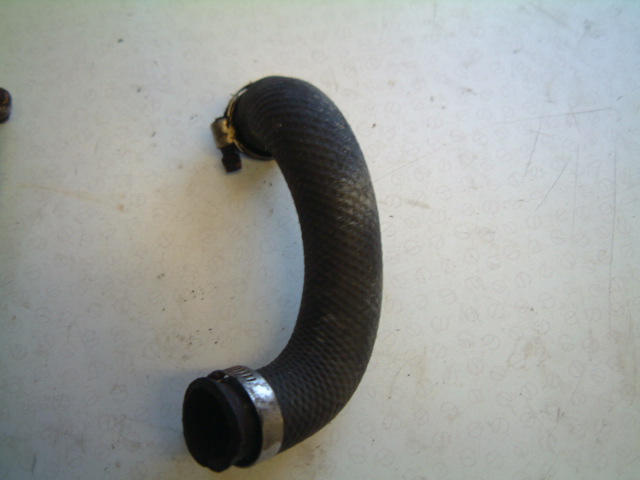

C3 - 152 RHS COOLANT HOSE FROM THERMOSTAT HOUSING - SERVICEABLE. |
 |

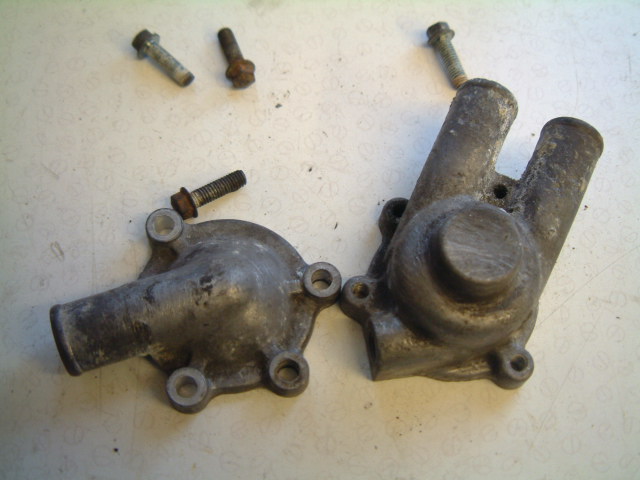

C3 - 154 THERMOSTAT HOUSING - NO DAMAGE. |
 |

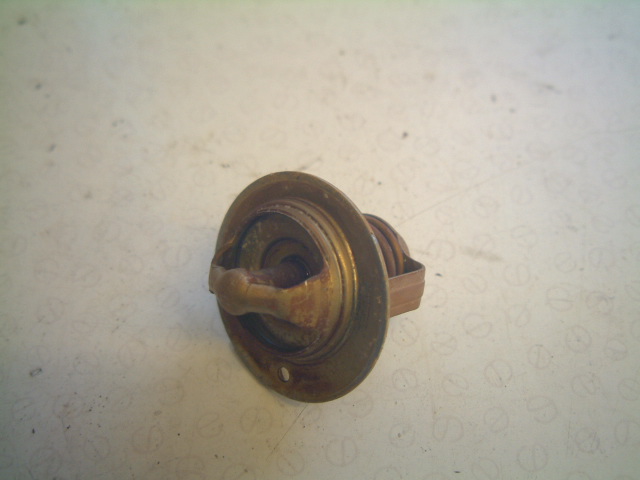

C3 - 155 THERMOSTAT- TESTED. |
 |

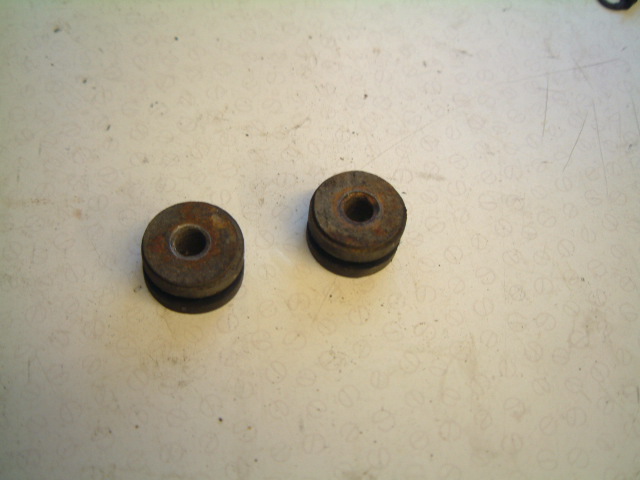

C3 - 159 RADIATOR MOUNT RUBBER & INSERTS - GOOD. |
 |

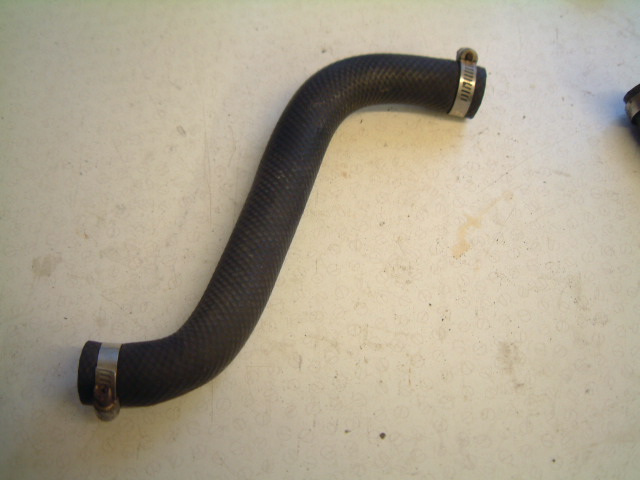

C3 - 161 COOLANT HOSE FROM BOTTOM OF RADIATOR CAP MOUNT - GOOD. |
 |

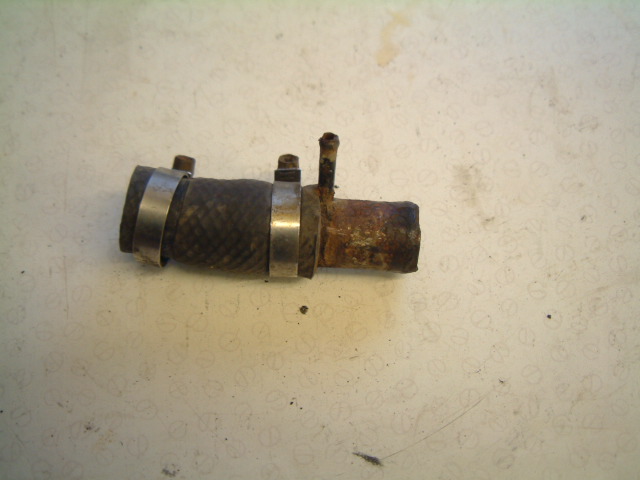

C3 - 162 SHORT HOSE AND CONNECTING PIPE - SERVICEABLE. |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

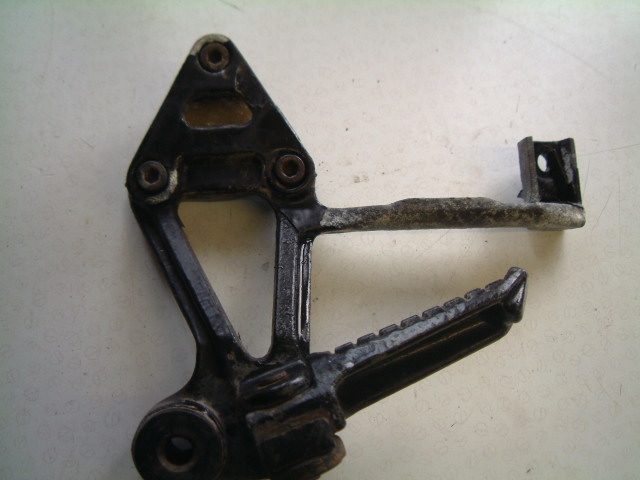

C3 - 018 LHS REAR FOOT PEG AND MOUNT - NO DAMAGE, NEEDS PAINT. |
 |

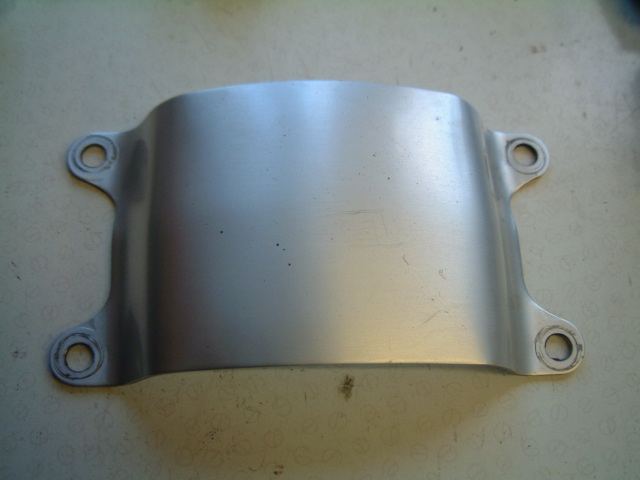

C3 - 026 FORK BRACE - VERY GOOD. |
 |

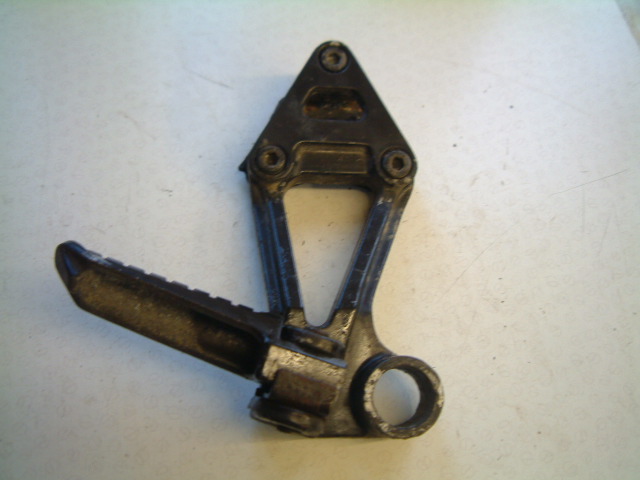

C3 - 031 RHS REAR FOOT PEG AND MOUNT - NO DAMAGE, NEEDS PAINT. |
 |

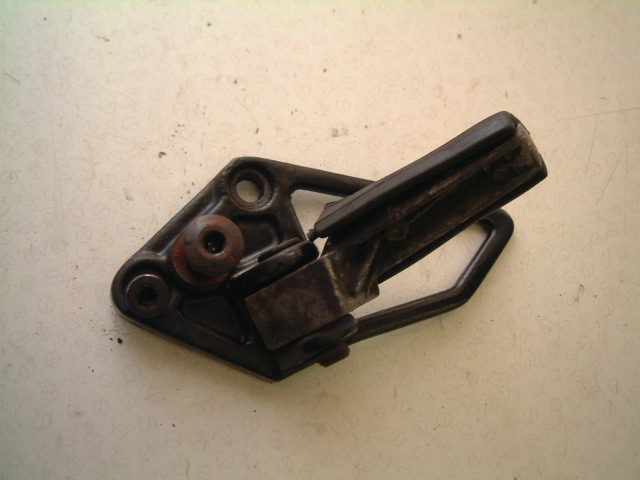

C3 - 055 LHS FRONT FOOT PEG AND MOUNT - NO DAMAGE, RUBBER WORN. |
 |

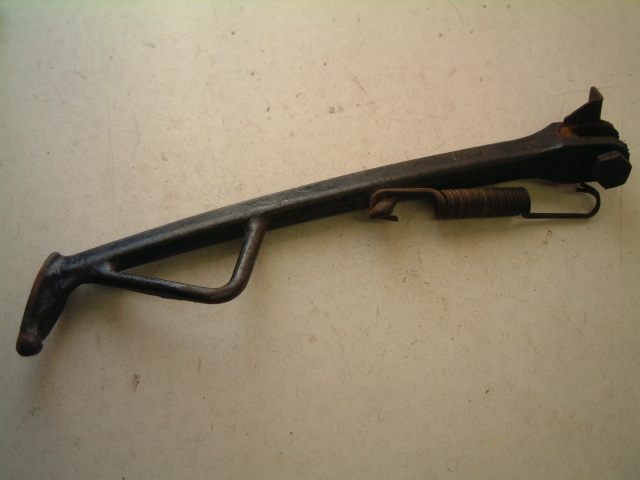

C3 - 058 SIDE STAND COMPLETE - GOOD. |
 |

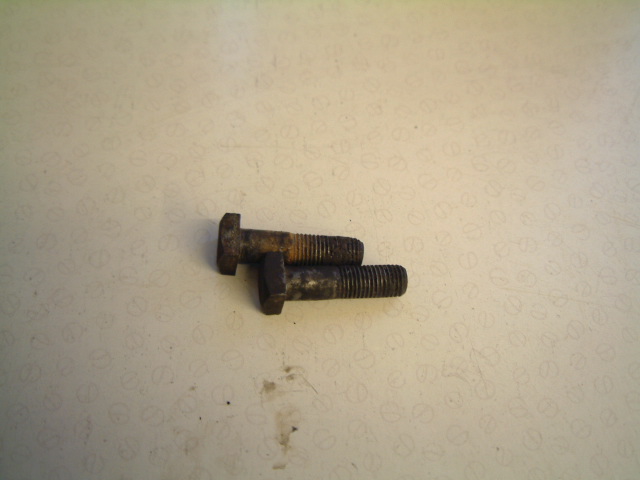

C3 - 093 TORQUE ARM BOLTS - SERVICEABLE. |
 |

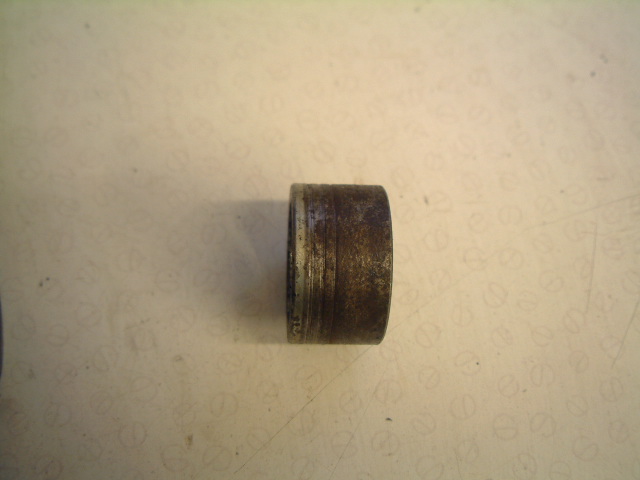

C3 - 099 LHS REAR WHEEL SPACER - SERVICEABLE. |
 |

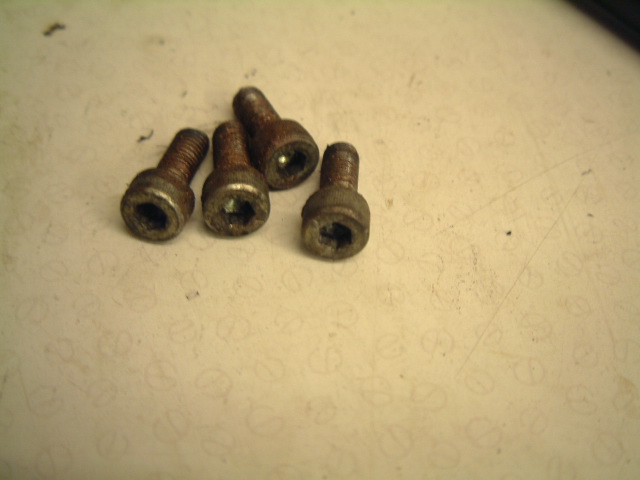

C3 - 105 HANDLEBAR ALLEN SCREWS - ALL GOOD. |
 |

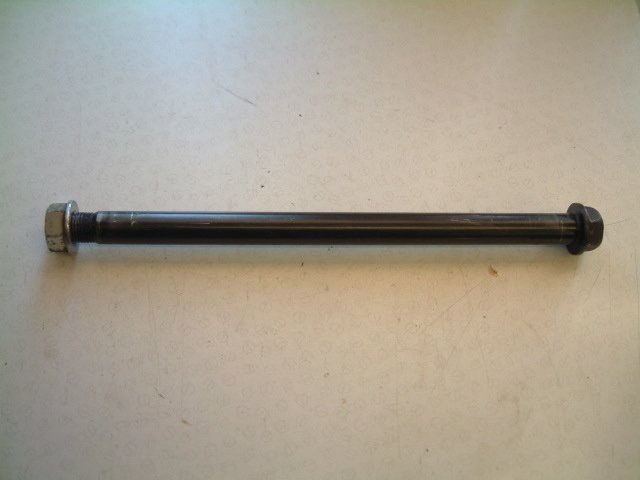

C3 - 107 SWINGARM SHAFT AND NUT - VERY GOOD. |
 |

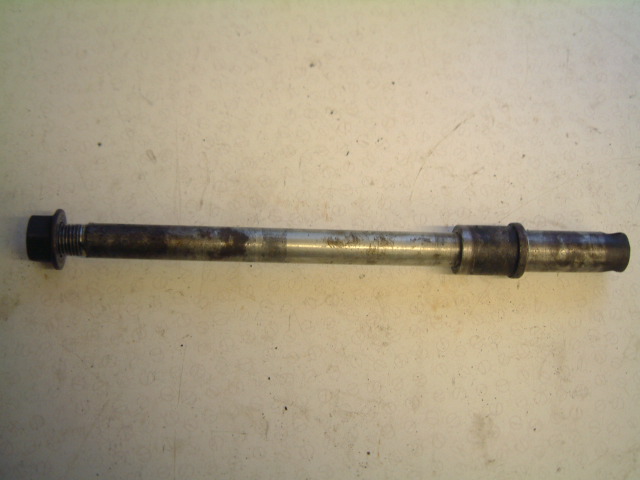

C3 - 167 FRONT WHEEL SHAFT - GOOD. |
 |

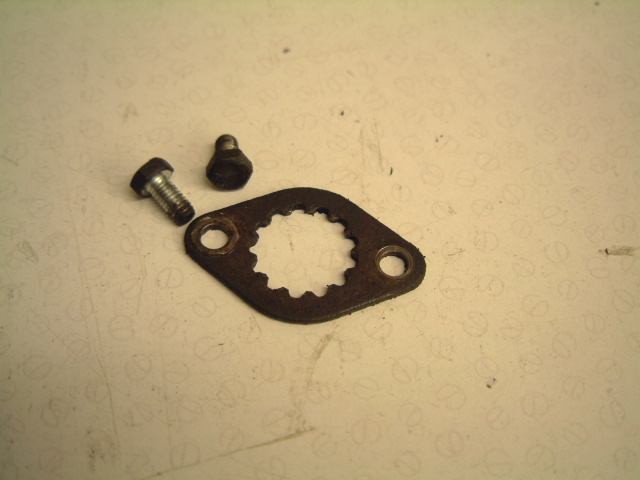

C3 - 171 DRIVE SPROCKET LOCK WASHER - GOOD. |
 |

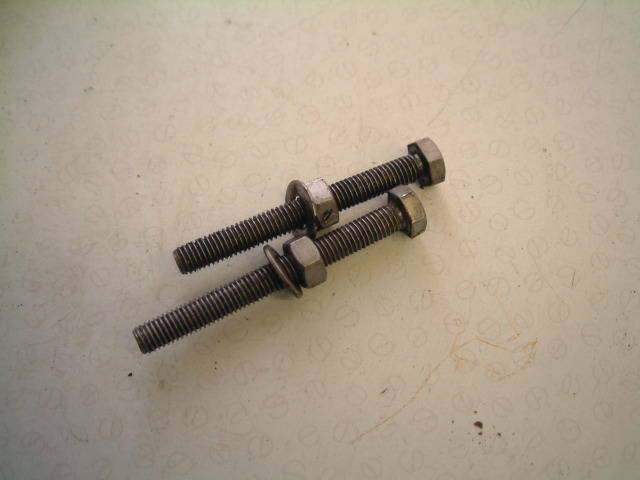

C3 - 174 REAR WHEEL ADJUSTMENT NUTS - GOOD. |
 |
C3 - 199 DISC SCREWS - FULL SET, ALL GOOD, WILL SPLIT IF YOU ONLY NEED A FEW. |
 |

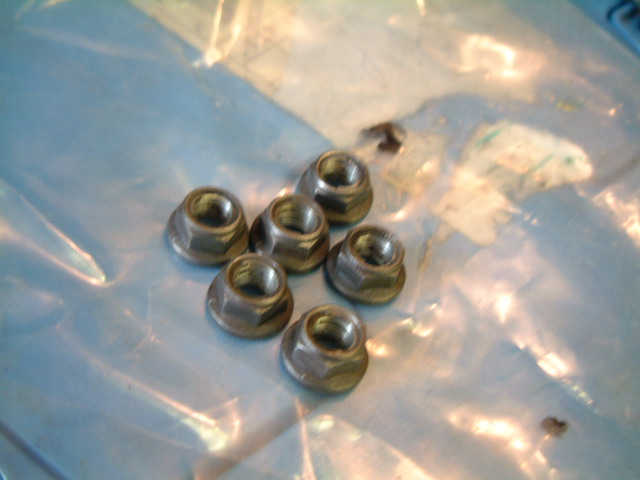

C3 - 201 REAR SPROCKET LOCK NUTS - GOOD. |
 |

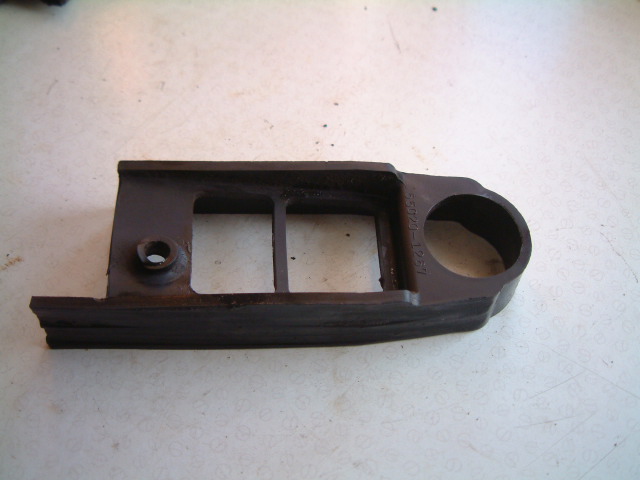

C3 - 181 CHAIN RUNNER FROM SWING ARM - SERVICEABLE. |
 |
 |

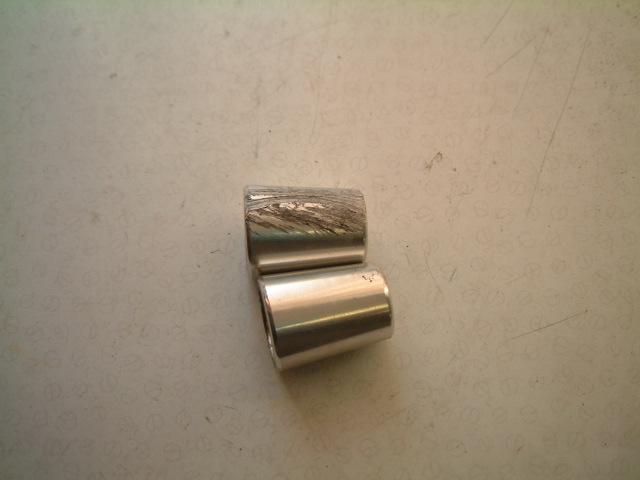

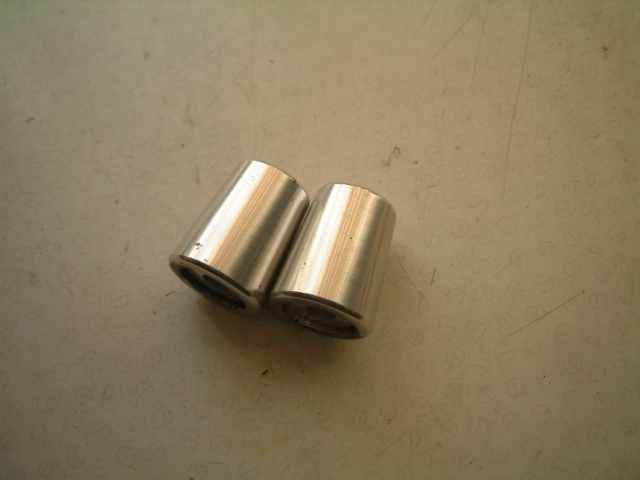

C3 - 049 HANDLEBAR END WEIGHTS - ONE SCRATCHED UNDERNEATH. |
 |
 |

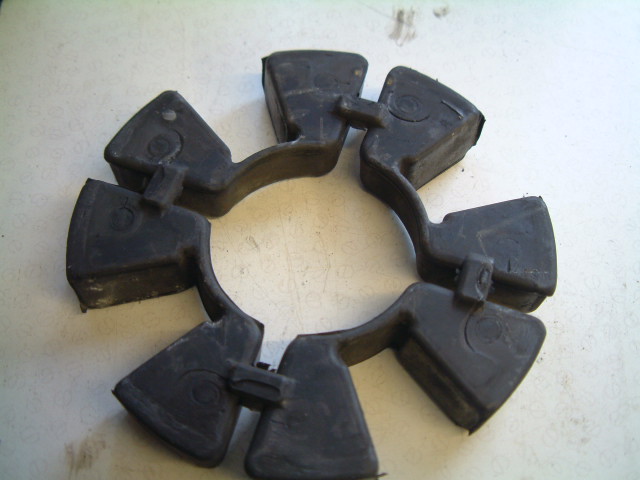

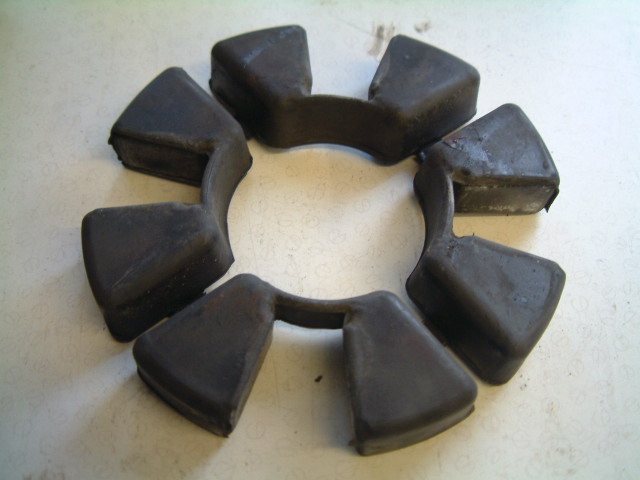

C3 - 149 CUSH DRIVE - GOOD, NO DAMAGE. |
 |
 |

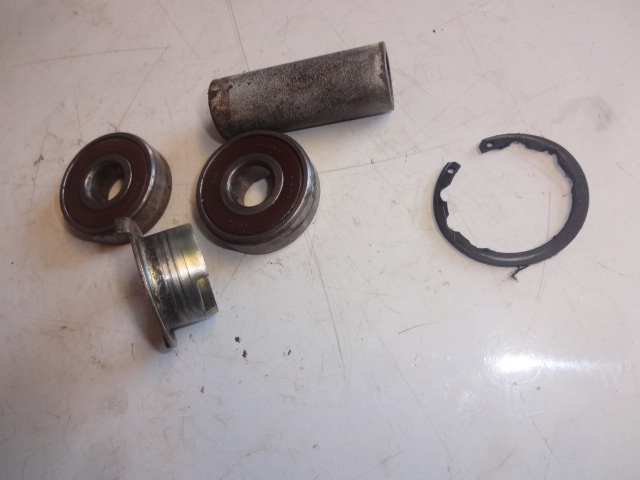

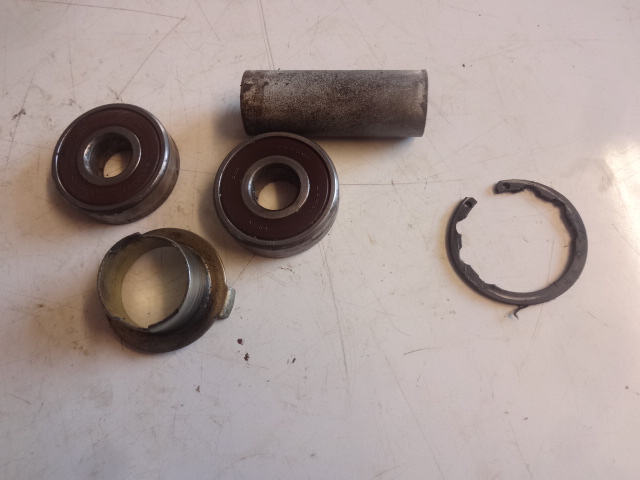

C3 - 177 BEARING, COLLAR & SPEEDO DRIVE RING FROM FRONT WHEEL - ALL GOOD |
 |
 |

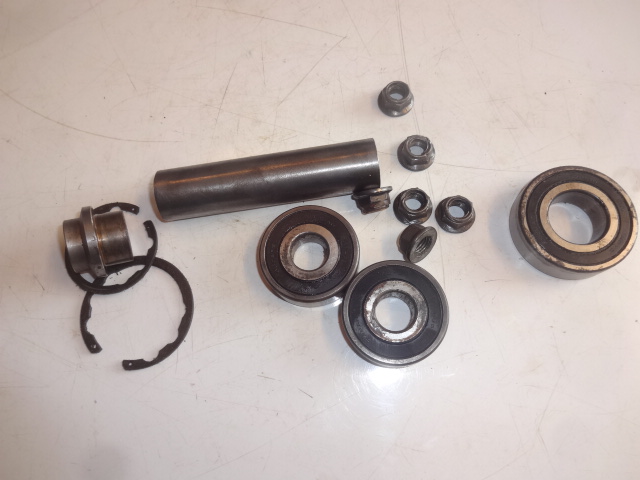

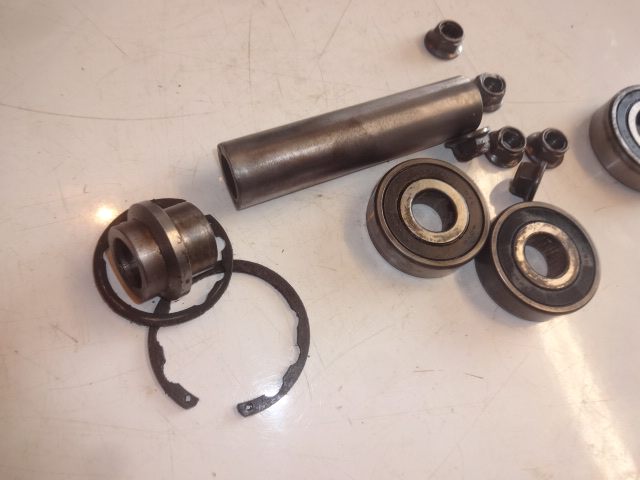

C3 - 178 BEARINGS, COLLARS & OTHER PARTS FROM REAR WHEEL - ALL GOOD |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
C3 - 008 TAIL LIGHT LOOM - VERY GOOD. |
 |
C3 - 029 COILS AND CAPS FOR CYLINDERS 1 & 4 - WORKING, MARKED AS " KP02 ". |
 |
C3 - 030 COILS AND CAPS FOR CYLINDERS 2 & 3 - WORKING, MARKED AS " KP02 ". |
||
 |

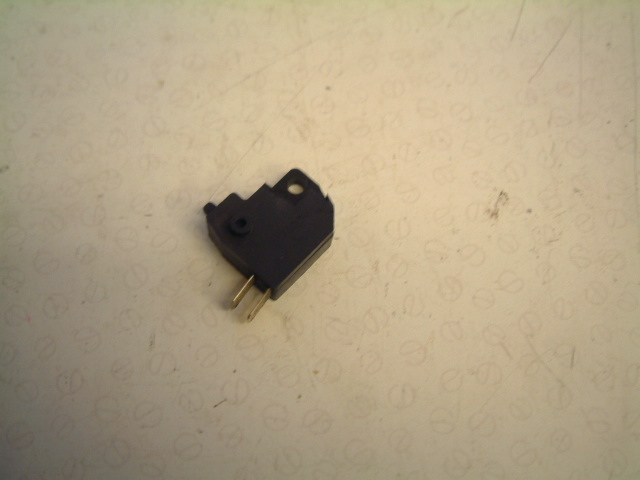

C3 - 039 FRONT BRAKE SWITCH - TESTED. |
 |

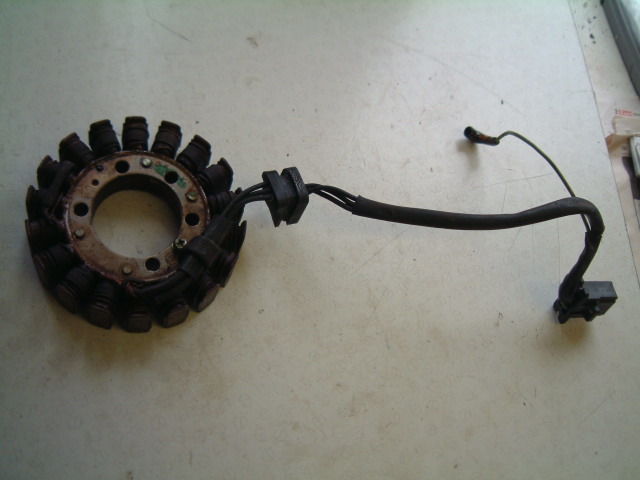

C3 - 070 STATOR - GOOD, TESTED. |
 |

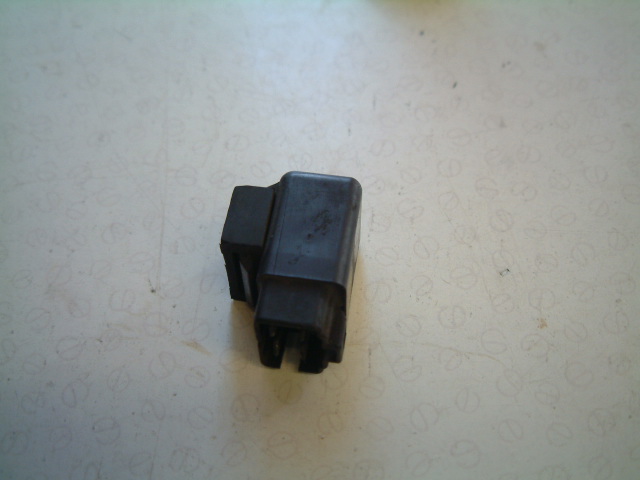

C3 - 111 ESCS 4 PIN RELAY - CHECKED AS PER MANUAL, OK. |
 |
C3 - 164 STARTER MOTOR - WORKING WELL. |
| ENGINE, CLUTCH, GEARBOX PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |

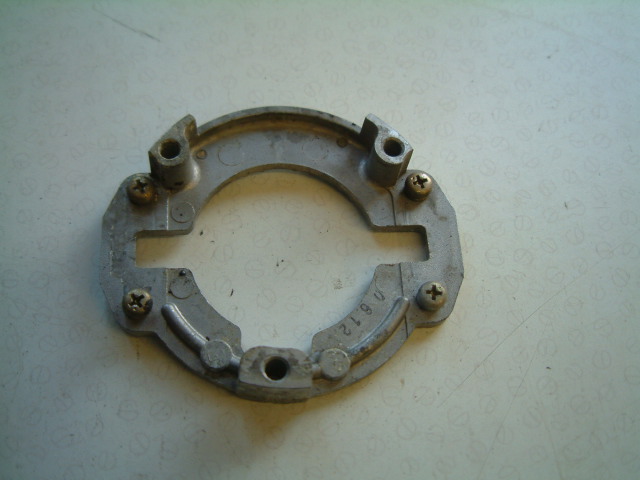

C3 - 074 PICK-UP PLATE - VERY GOOD. |
||
 |

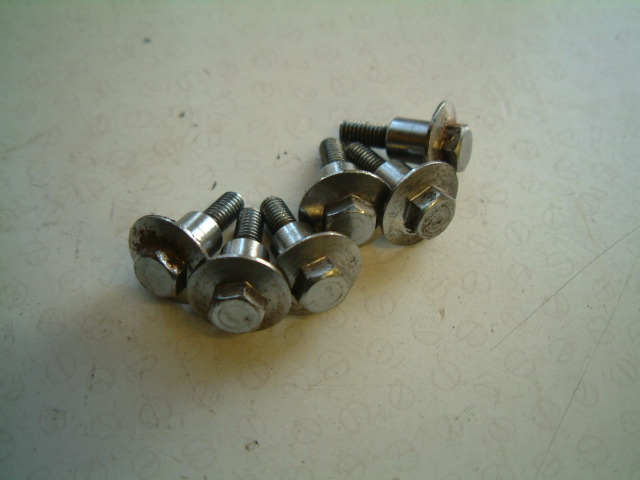

C3 - 079 HEAD COVER BOLTS - SOME A BIT RUSTY. |
 |

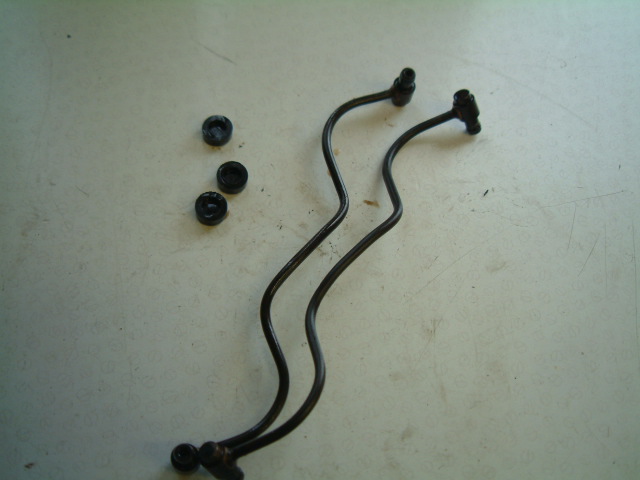

C3 - 082 OIL PIPES TO TOP OF ENGINE - GOOD. |
 |

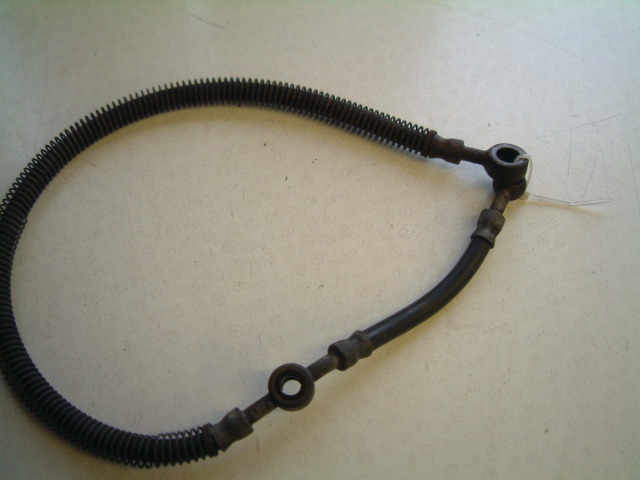

C3 - 086 OIL PIPE TO HEAD - NO PERISHING. |
 |

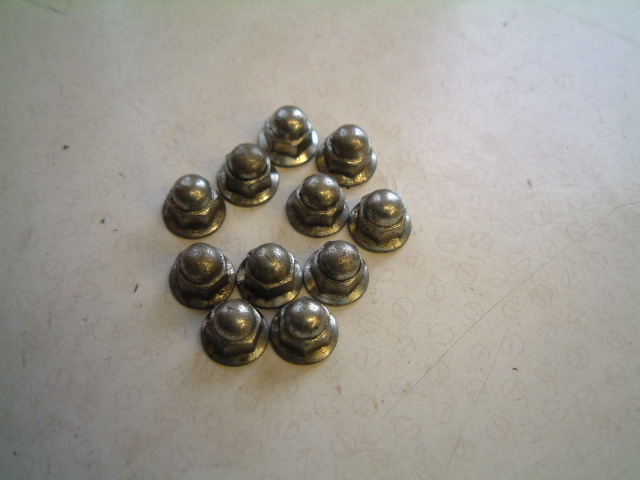

C3 - 087 HEAD NUTS - VERY GOOD. |
 |

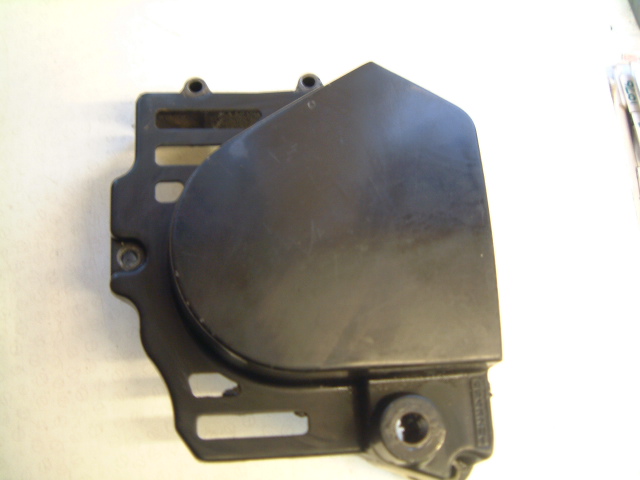

C3 - 092 ENGINE SPROCKET CASING - GOOD, NO DAMAGE. |
 |

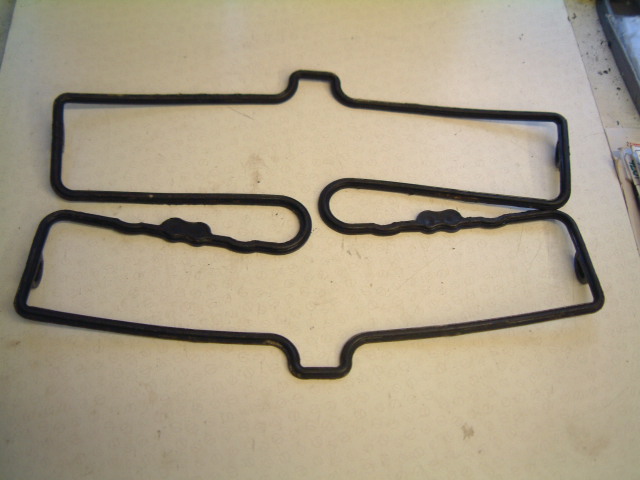

C3 - 095 CAM COVER SEAL - NO DAMAGE, STILL SERVICEABLE. |
 |

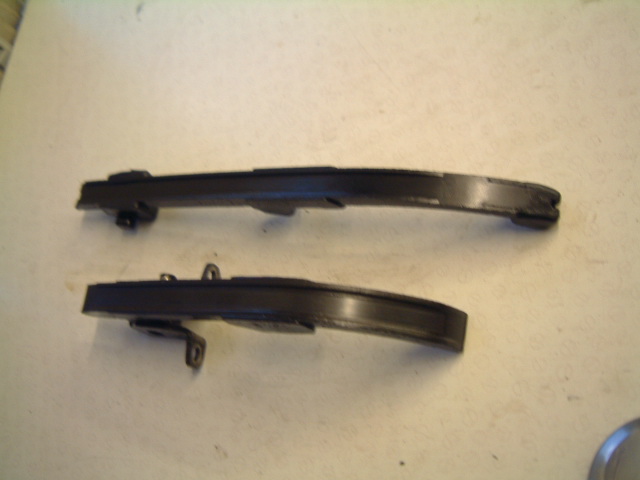

C3 - 096 CAMCHAIN GUIDES - SERVICEABLE. |
 |

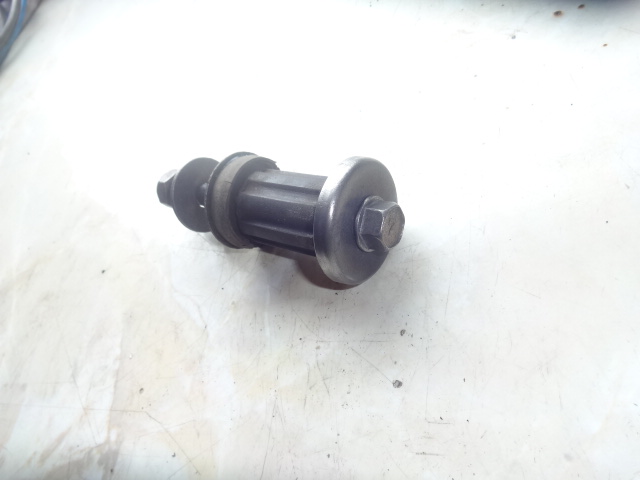

C3 - 108 RUBBER MOUNT - GOOD. |
 |

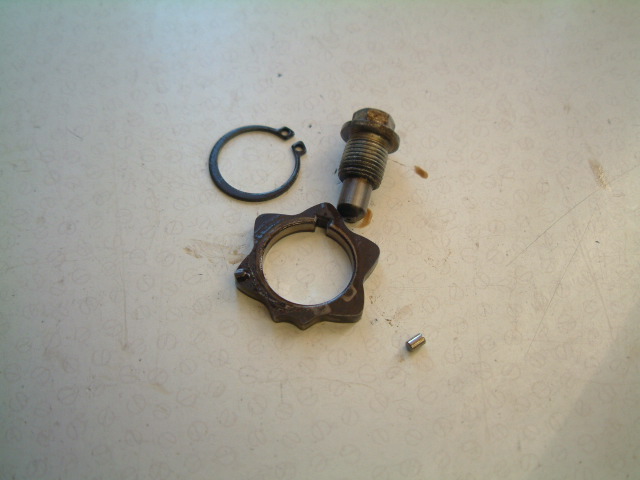

C3 - 113 GEAR SELECTOR RING - VERY GOOD. |
 |

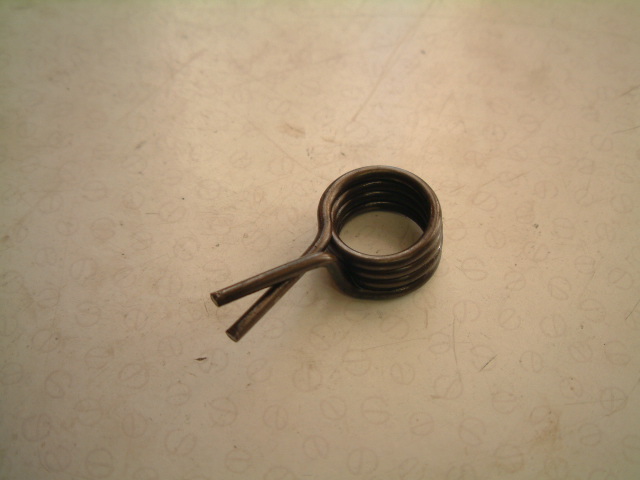

C3 - 117 SPRING FROM PRIMARY SHAFT - VERY GOOD. |
 |

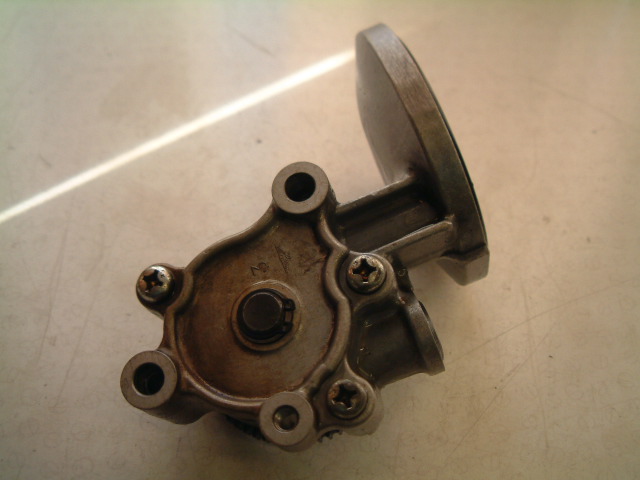

C3 - 119 OIL PUMP - ALL ENGINE INTERNALS LOOKED GOOD SO PUMP SHPULD BE OK, CAN SPLIT TO INSPECT. |
 |
C3 - 120 PRIMARY GUIDE TENSIONER - VERY GOOD. |
 |

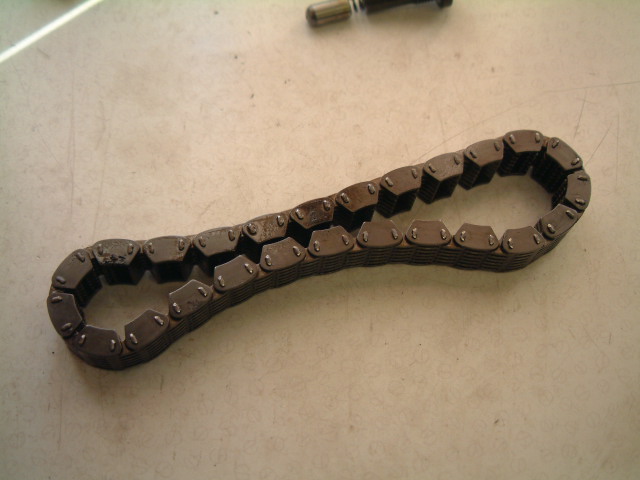

C3 - 121 PRIMARY CHAIN - IF MILEAGE OF 23,000 IS CORRECT THIS SHOULD BE FINE, PRIMARY GUIDES NOT BADLY WORN. |
 |

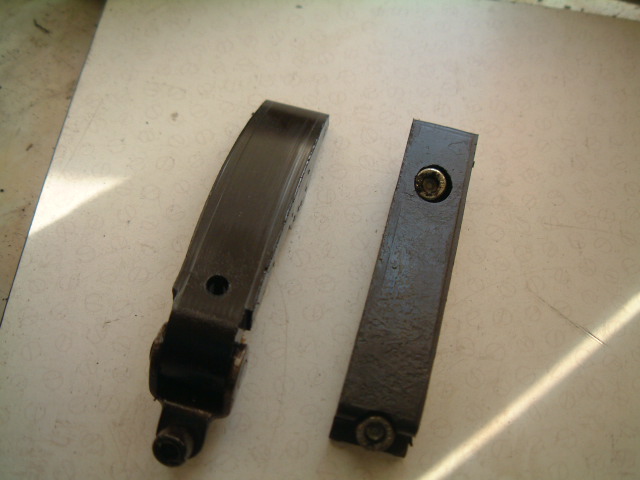

C3 - 122 PRIMARY GUIDES - LOOK GOOD. |
 |

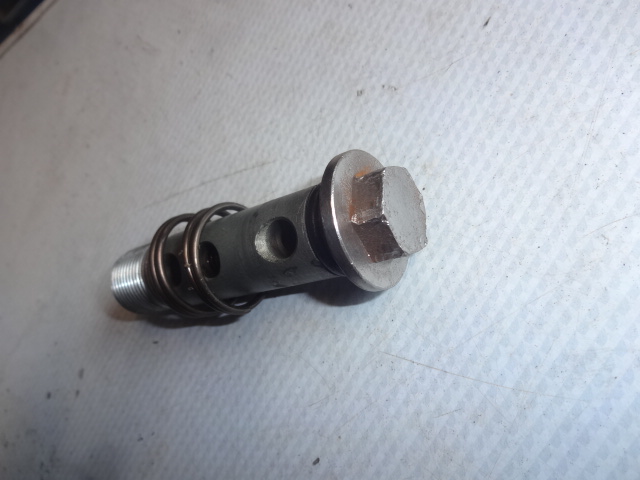

C3 - 125 OIL FILTER BOLT - SLIGHTLY ROUNDED BUT SERVICEABLE. |
 |

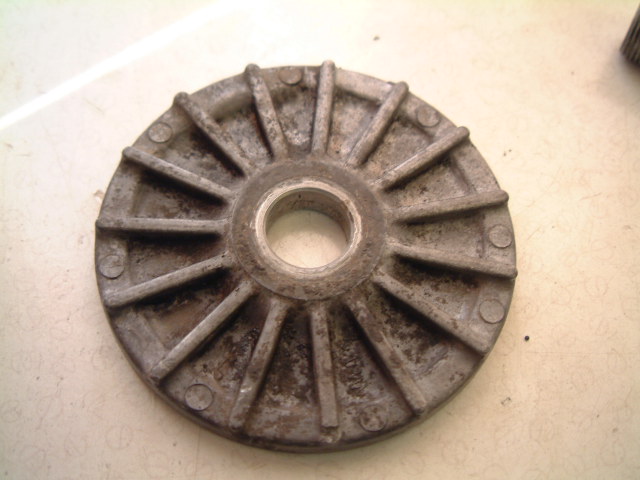

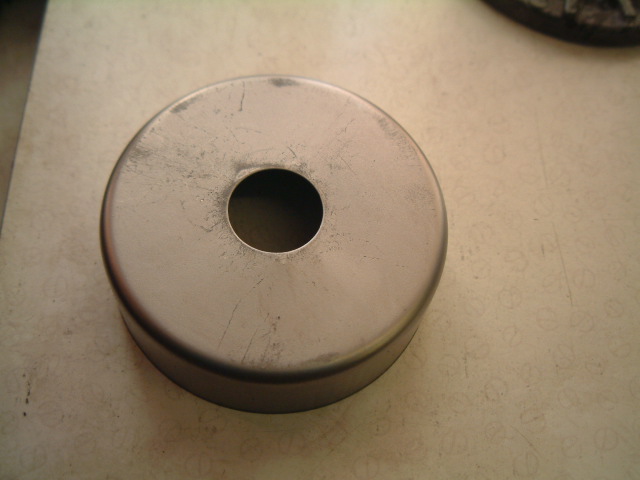

C3 - 126 OIL FILTER COVER - GOOD. |
 |
C3 - 127 OIL FILTER BOWL - GOOD. |
 |

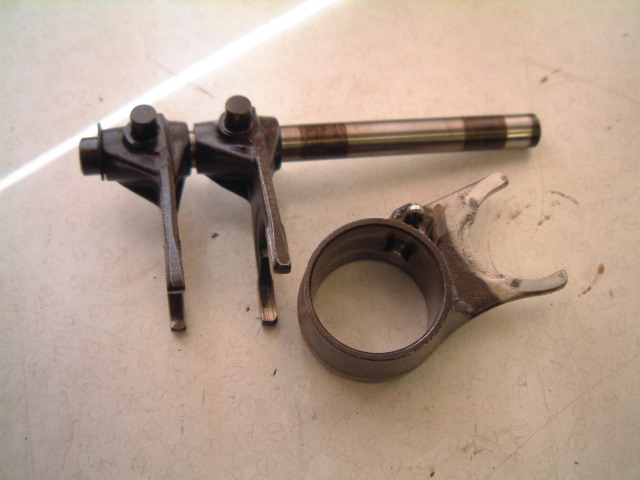

C3 - 132 SELECTOR FORKS - VERY GOOD. |
 |

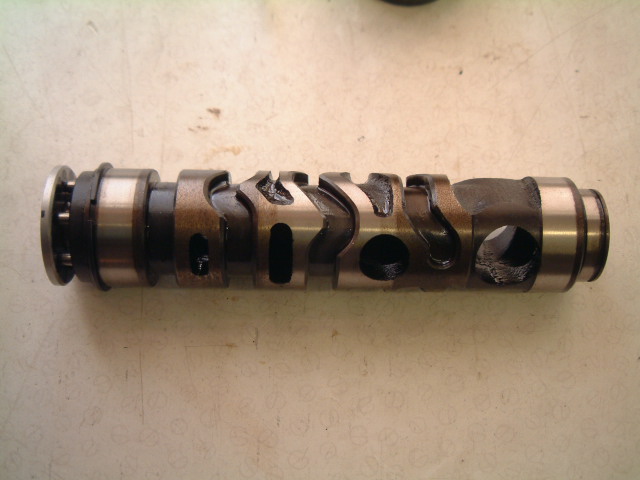

C3 - 133 SELECTOR DRUM - VERY GOOD. |
 |

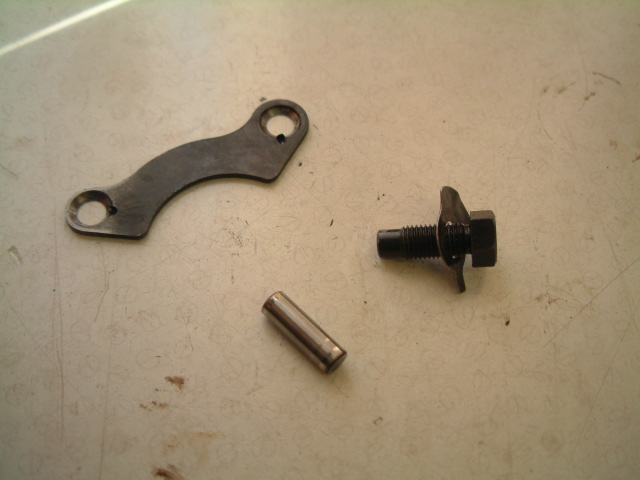

C3 - 134 LEFT OVER VARIOUS ENGINE PARTS - ALL VERY GOOD. |
 |

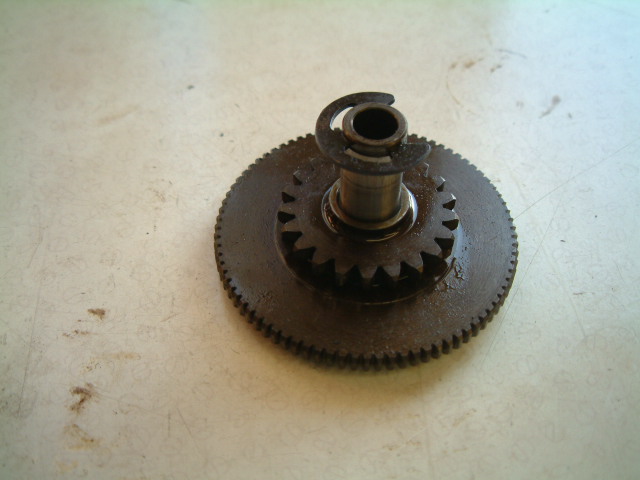

C3 - 135 IDLER GEAR - VERY GOOD. |
 |

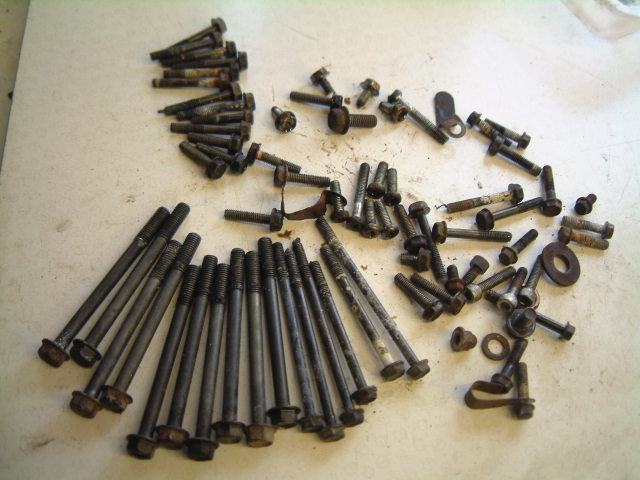

C3 - 143 LARGE COLLECTION OF BOLTS, ALLEN SCREWS ETC, MAILY ENGINE - ALL SERVICEABLE. |
 |

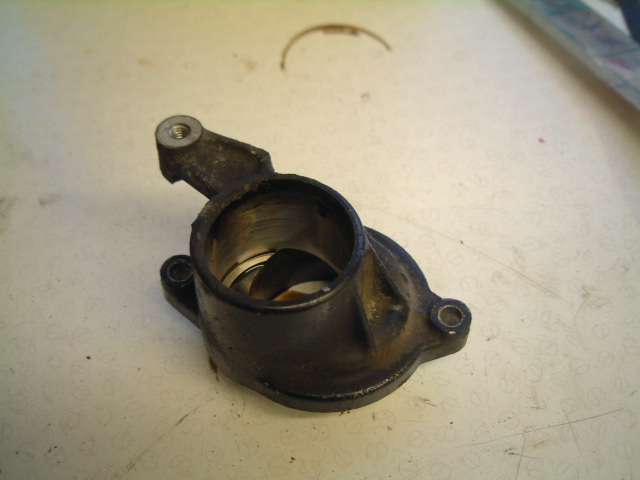

C3 - 169 WATER PUMP MOUNT - GOOD. |
 |
C3 - 173 1 FRONT ENGINE MOUNT - GOOD. |
 |

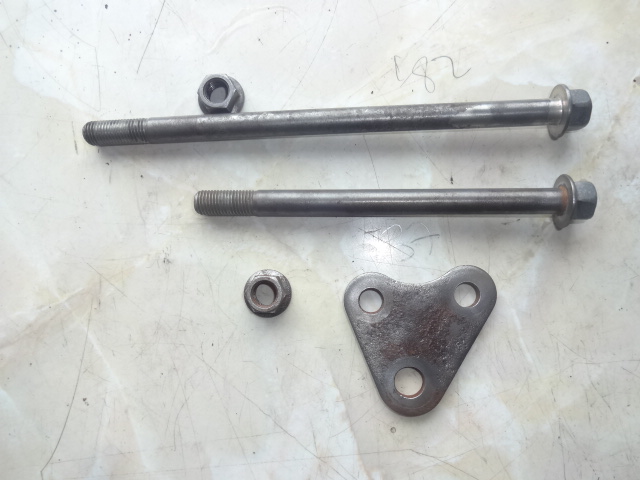

C3 - 175 REAR ENGINE BOLTS AND BRACKETS - SERVICEABLE. |
 |

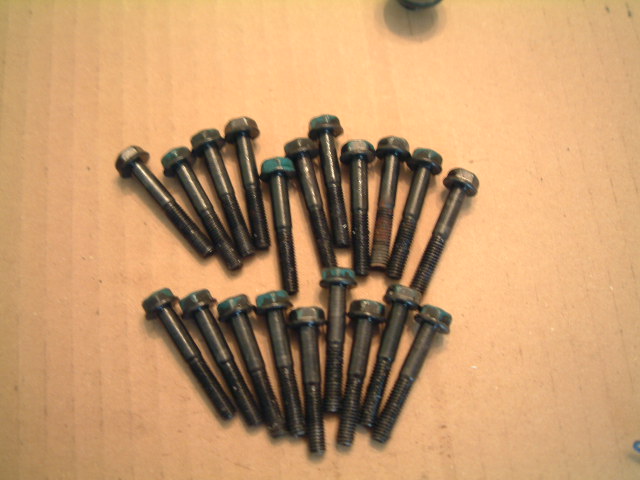

C3 - 191 CAMSHAFT CLAMP BOLT SET - VERY GOOD. |
 |
C3 - 195 ROCKER SHAFTS - ALL GOOD. |
 |

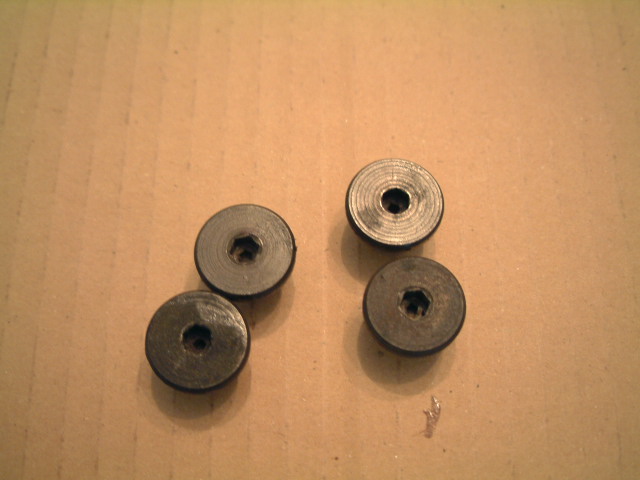

C3 - 196 ROCKER SHAFTS END CAPS X4 - ALL GOOD. |
 |

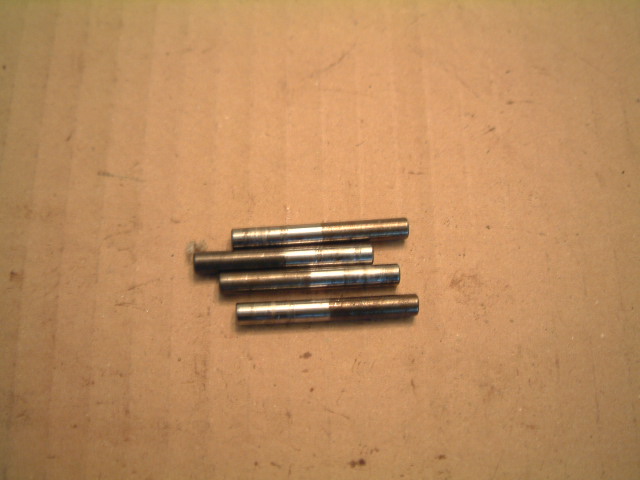

C3 - 197 ROCKER SHAFT LOCATING PEGS - ALL GOOD. |
 |
C3 - 198 VALVE SPRINGS, COLLECTS, WASHERS ETC - ALL GOOD, WILL SPLIT IF YOU JUST NEED A PART OR TWO. |
 |
 |

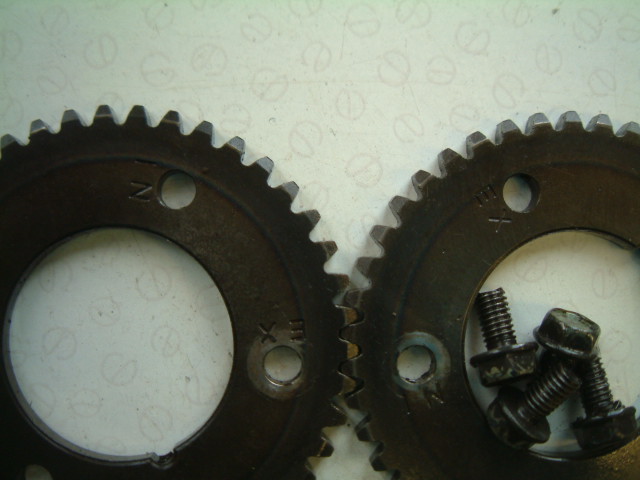

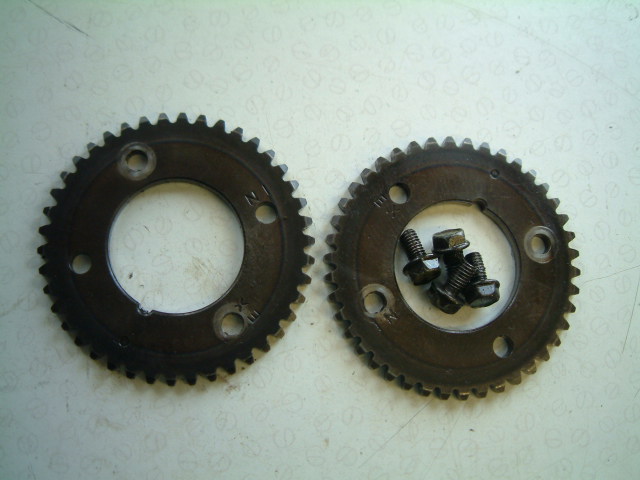

C3 - 080 CAMSHAFT SPROCKETS - VERY GOOD, NO DAMAGE. |
 |
 |

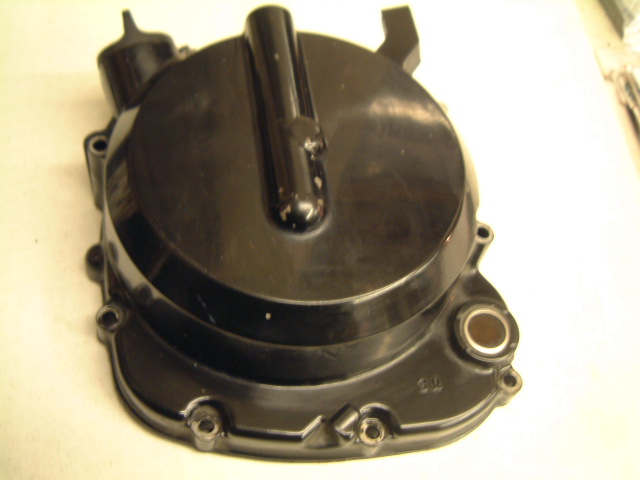

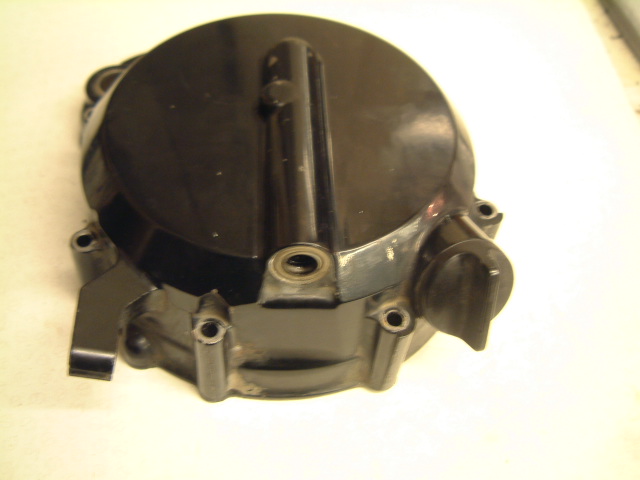

C3 - 106 CLUTCH CASING - VERY GOOD, NO DAMAGE. |
 |
 |

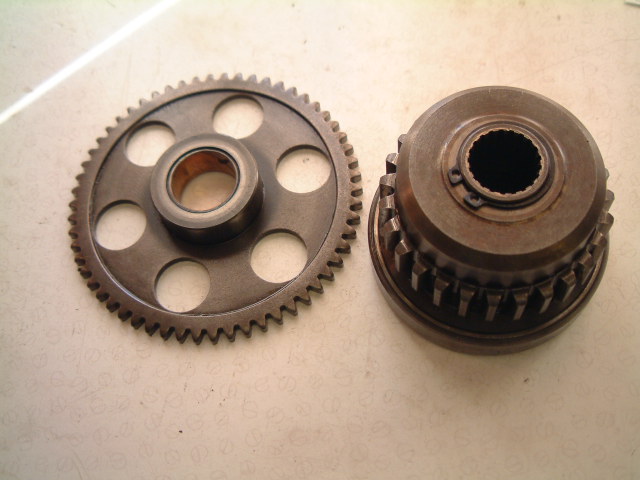

C3 - 118 STARTER CLUTCH - VERY GOOD, WORKING WELL ON THE BIKE. |
 |
 |

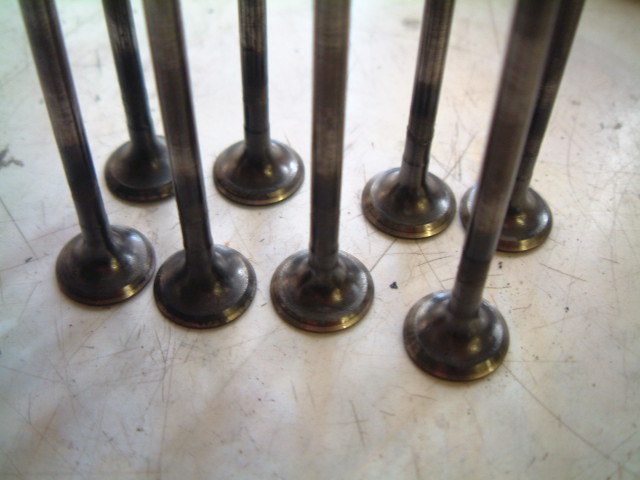

C3 - 193 EXHAUST VALVES X7 - GOOD, WILL SPLIT. ( 1 SOLD). |
 |
 |

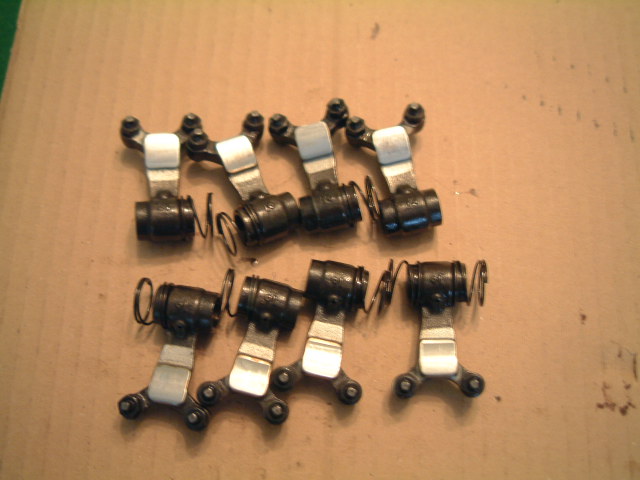

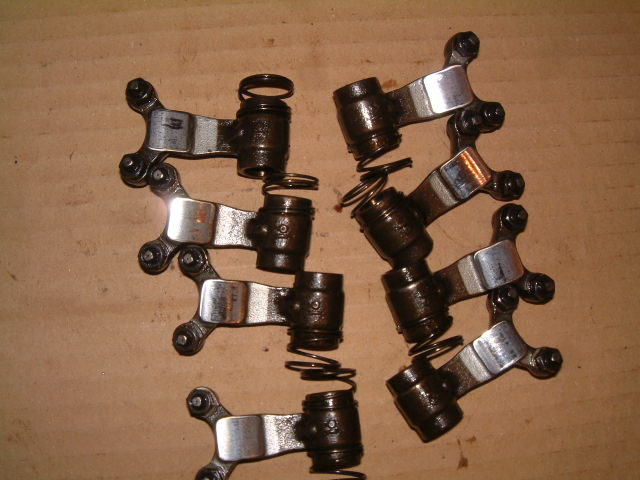

C3 - 194 ROCKER / CAM FOLLOWERS- i HAVE 5 OF THESE LEFT, ALL SERVICEABLE WITH JUST THE ODD LIGHT MARK. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
C3 - 013 REGULATOR/RECTIFIER BRACKET - THREADS OK, BIT RUSTY. |
 |

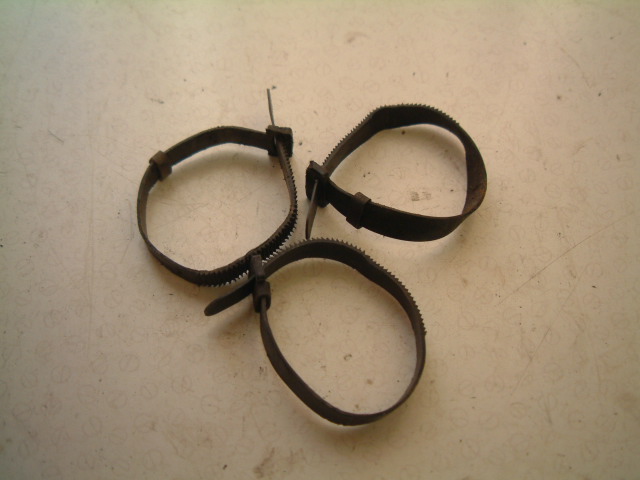

C3 - 061 HARNESS CLIPS - SERVICEABLE. |
