HI, MY NAME IS STEVE AND WELCOME TO MY YAMAHA FZ600 WEB PAGE.
I HAVE BROKEN TWO BIKES FOR SPARES.
A 1986/7 BIKE AND A 1988/9 BIKE ( PART Nos IN RED.)

I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS
TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT.
I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART.
IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE
USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE.

I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.

JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS:
     1 ANCILLARIES - (CLOCKS, BODYWORK, MUDGUARDS, LIGHTS, INDICATORS ETC).
     2 RUNNING GEAR - (FRAME, SUSPENSION, BARS, BRAKES, FOOTRESTS, STANDS, ETC).
     3 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, WIRING, FUSE BOX ETC).
     4 ENGINE, CLUTCH AND GEARBOX PARTS -
     5 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. SOME TOOLS, CABLES, RUBBER PARTS, ODD BRACKETS, ETC).

ANCILLARY PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
FZ600 - 199

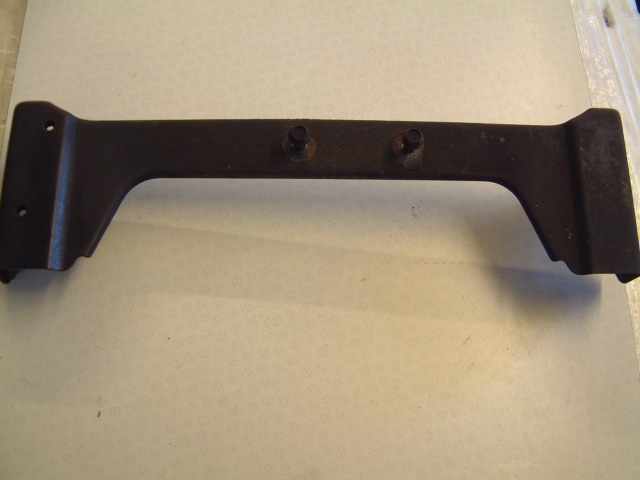

OIL COOLER MOUNTING BRACKET - GOOD.

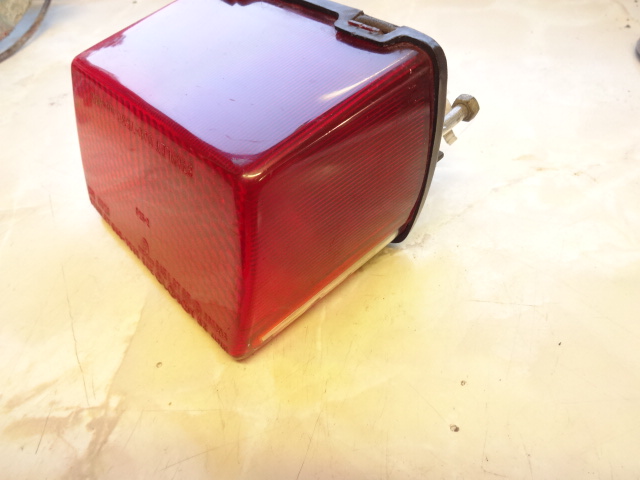

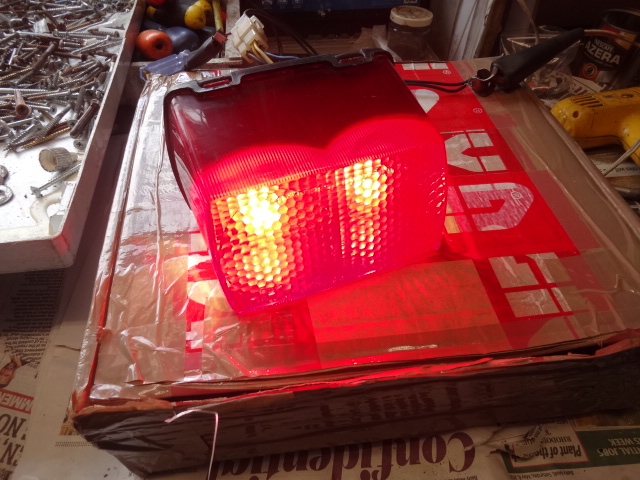

FZ600 - 155

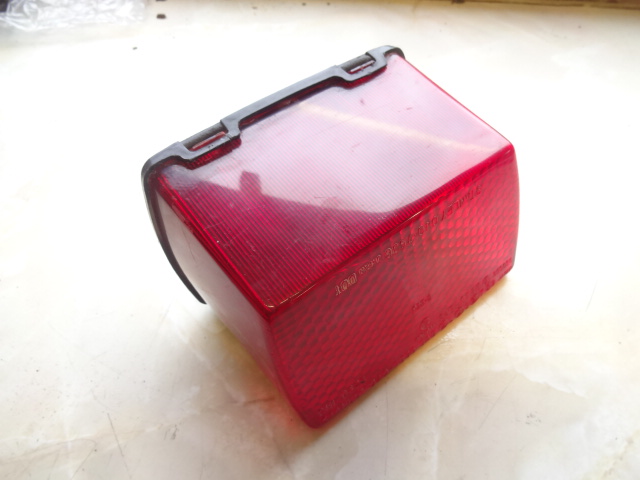

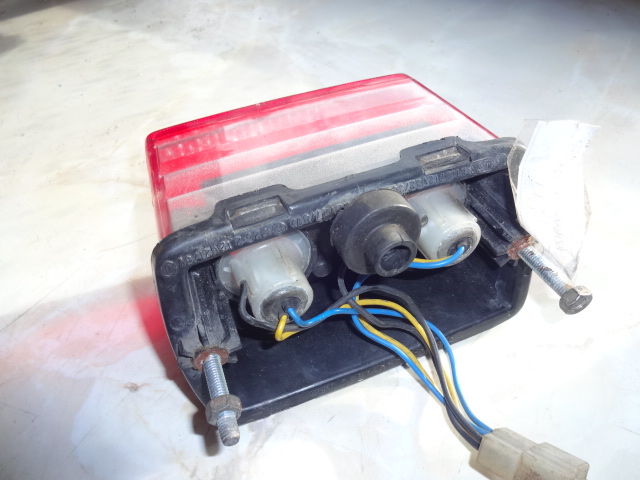

TAIL LIGHT - GOOD, FULLY WORKING.


RUNNING GEAR PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

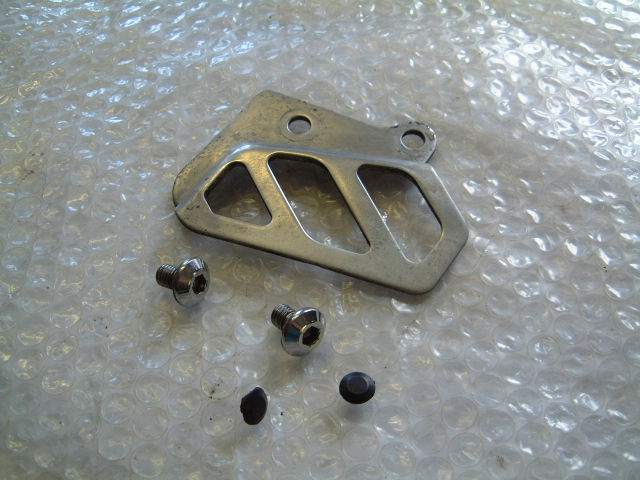

FZ600 - 012

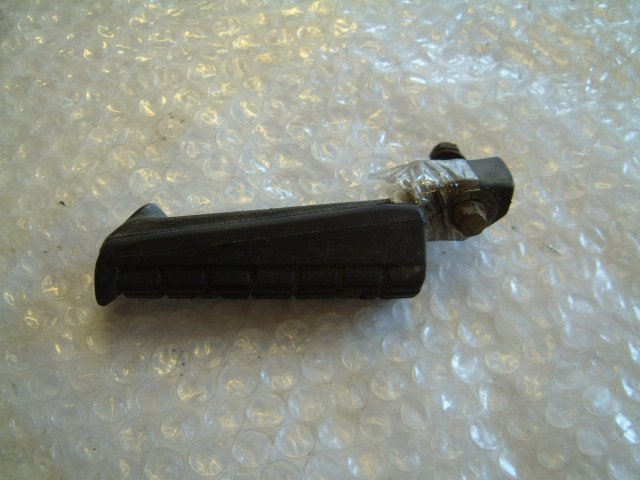

LEFT HAND FOOT GUARD AND SCREWS - VERY GOOD.		 FZ600 - 014
LEFT REAR FOOT PEG - VERY GOOD WITH DECENT RUBBER.

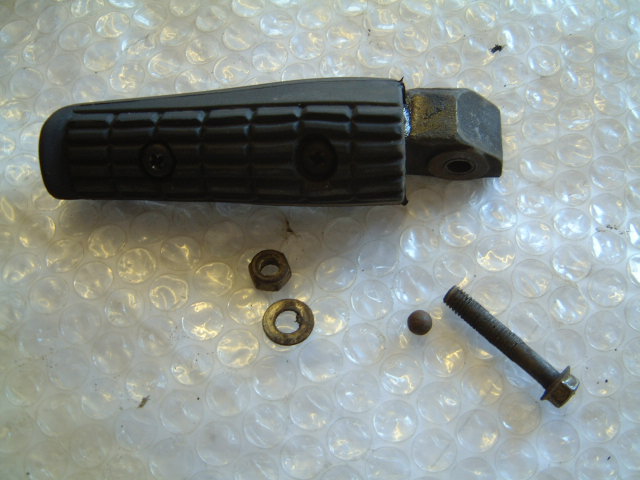

FZ600 - 015

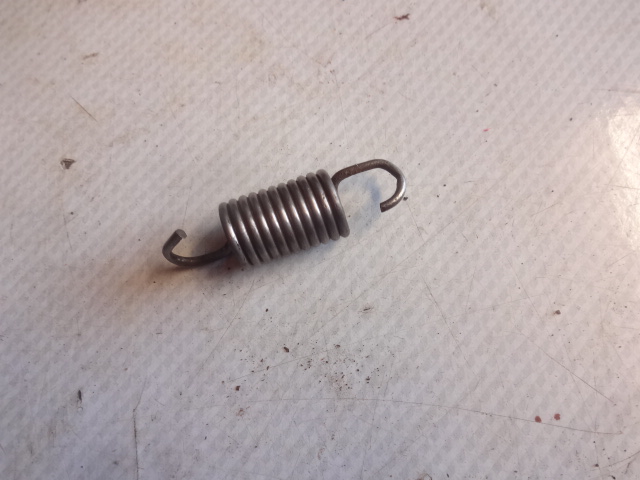

RIGHT REAR FOOT PEG - VERY GOOD WITH DECENT RUBBER.		 FZ600 - 050D
REAR BRAKE SPRING - GOOD.
FZ600 - 050E

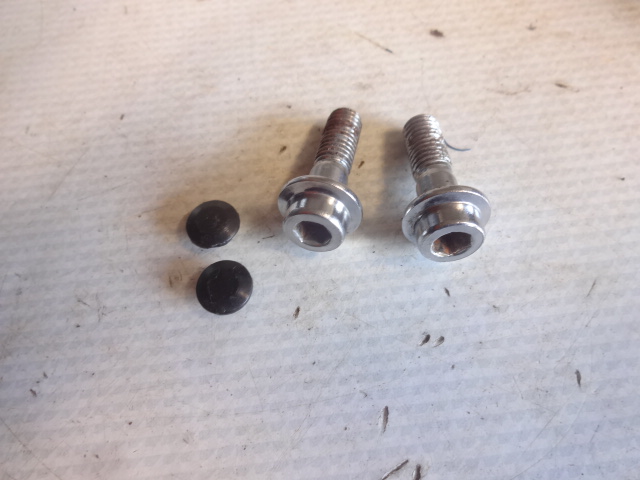

RIGHT FOOTREST CHROME ALLEN SCREWS - VERY GOOD, WITH LITTLE CAPS.		 FZ600 - 078

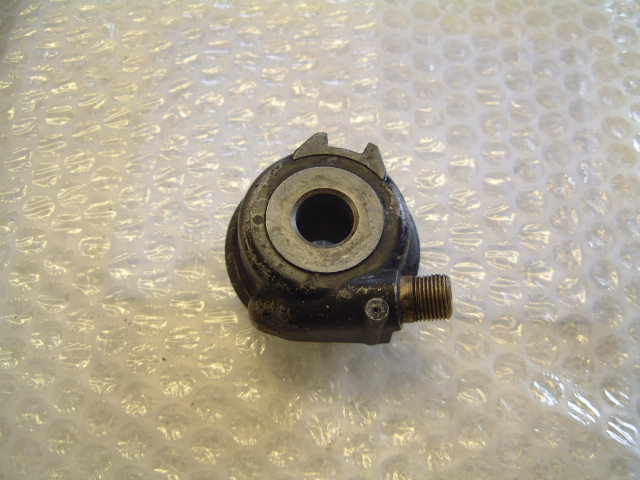

SPEEDO DRIVE - GOOD / WORKING OK.

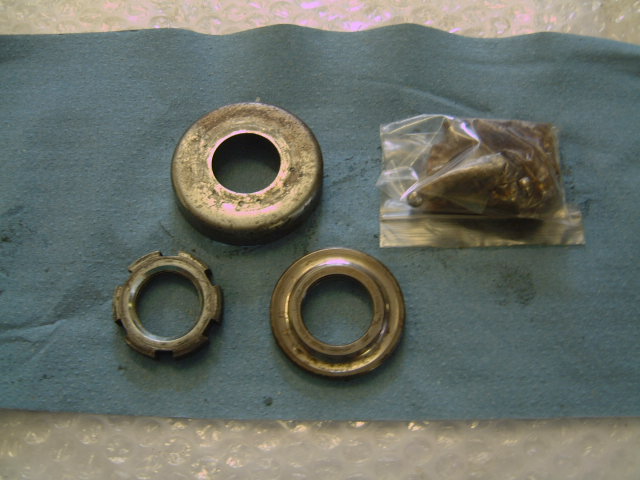

FZ600 - 104

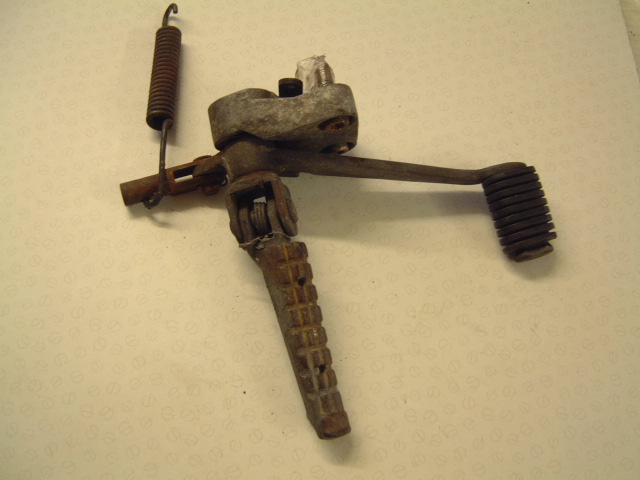

HEAD STOCK BEARING COMPLETE - GOOD.		 FZ600 - 156
REAR BRAKE PEDAL, FOOTREST ETC COMPLETE - MECHANICALLY ALL GOOD BUT NEED A GOOD CLEAN UP.

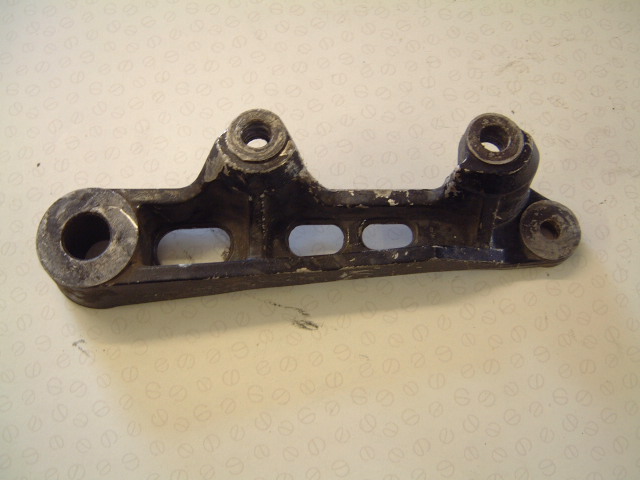

FZ600 - 188

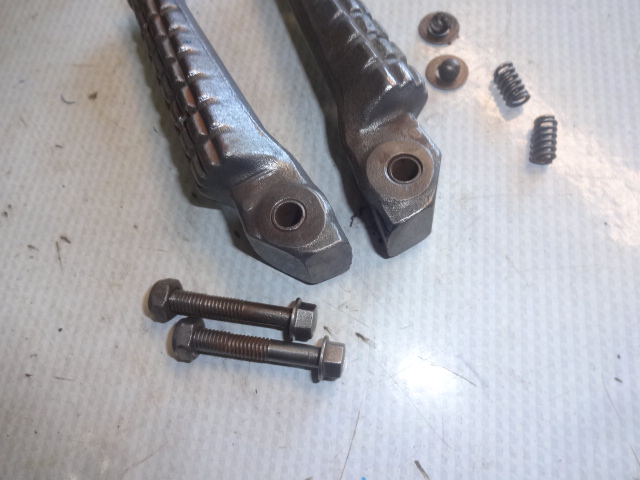

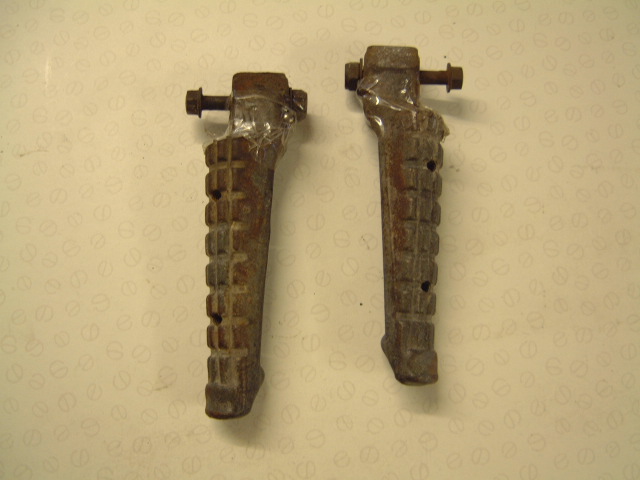

REAR CALLIPER MOUNTING BRACKET - GOOD.		 FZ600 - 172
PAIR OF REAR FOOT RESTS / PEGS - GOOD, NO DAMAGE, NEED A CLEAN UP.

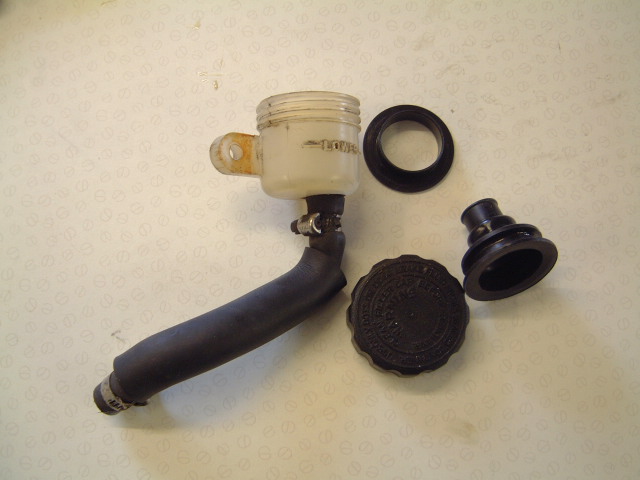

FZ600 - 192
REAR BRAKE FLUID RESERVOIR & LID ETC - ALL GOOD.		 FZ600 - 209

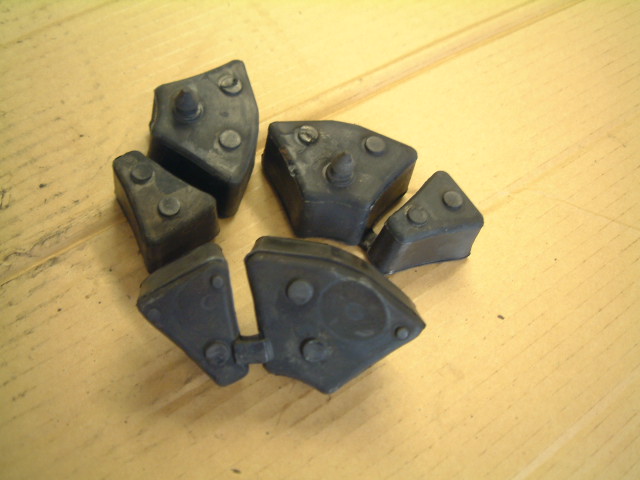

CUSH DRIVE - SERVICEABLE.
FZ600 - 142

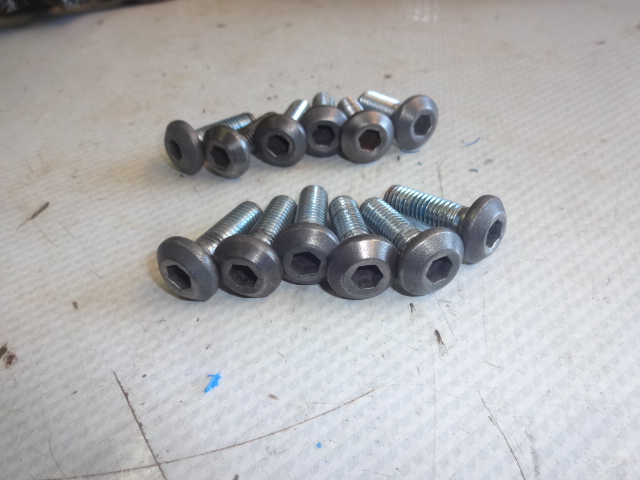

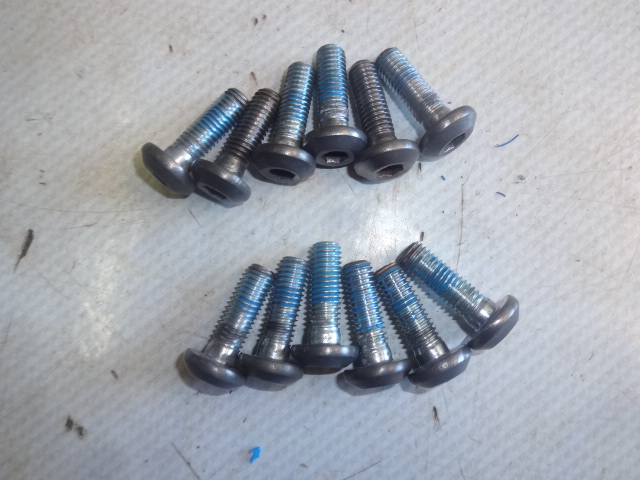

FULL SET OF FRONT DISC ALLEN BOLTS - ALL GOOD WITH UN-CHEWED HEADS - 6 LEFT.

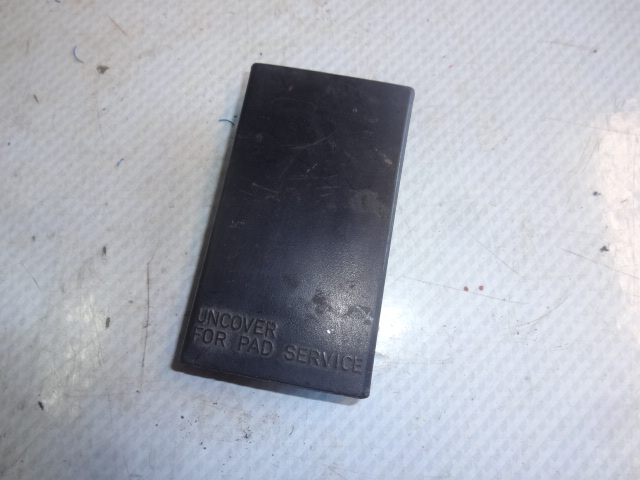

FZ600 - 219

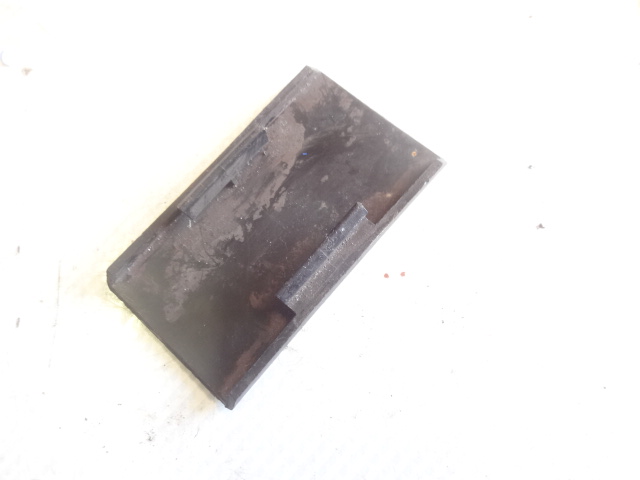

DISC PAD COVER FLAP - REAR CALIPER ?, GOOD.

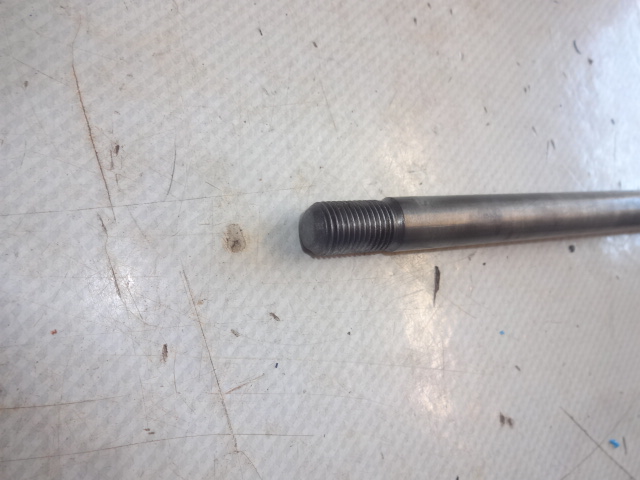

FZ600 - 076A

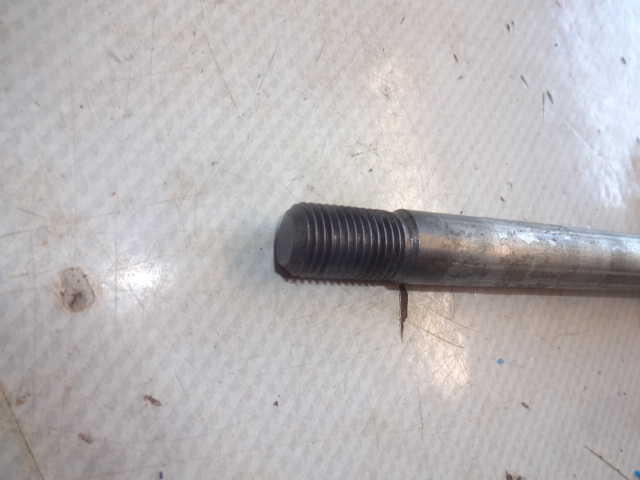

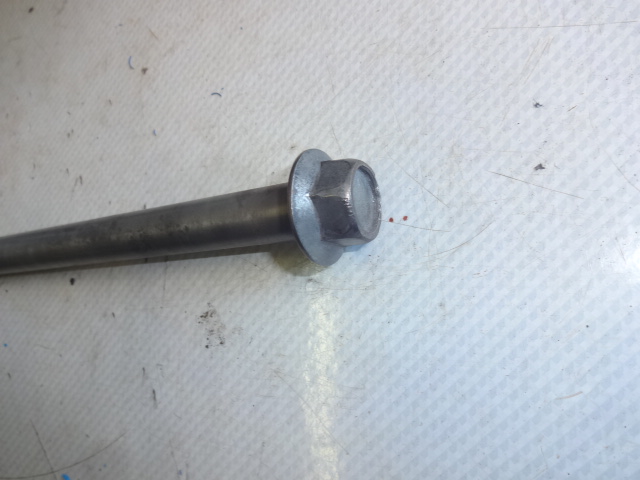

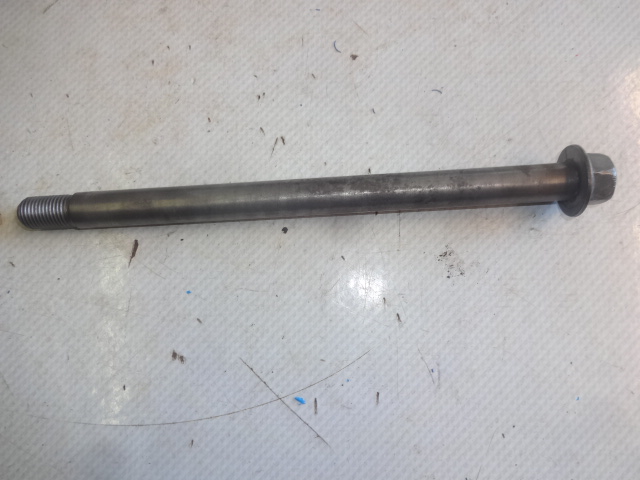

FRONT WHEEL SHAFT - GOOD.

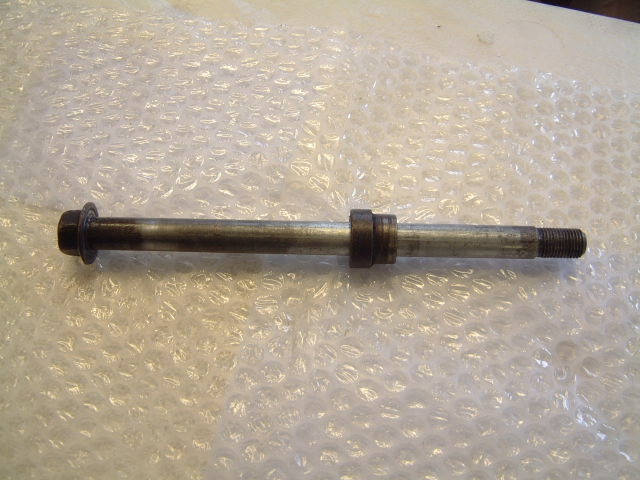

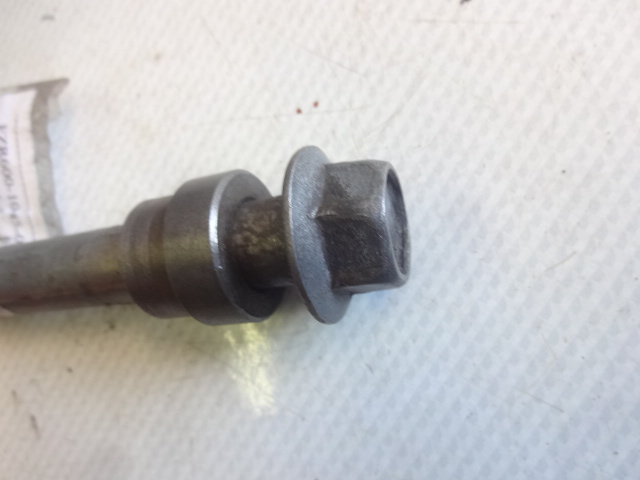

FZ600 - 076
FRONT WHEEL SHAFT AND SPACER - GOOD.

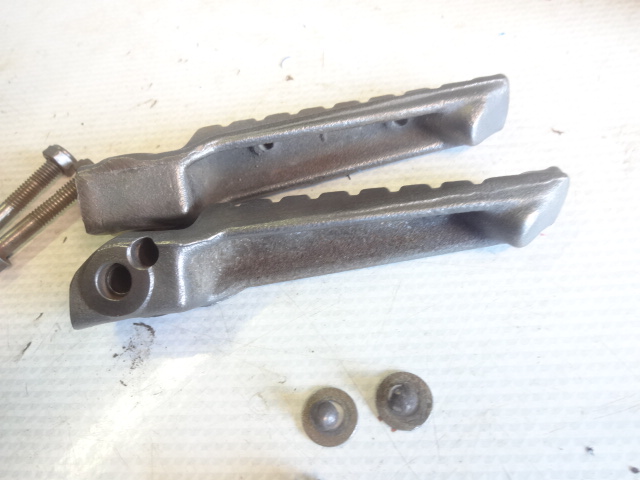

FZ600 - 172
PAIR OF REAR FOOTRESTS - VERY GOOD, NO RUBBERS.

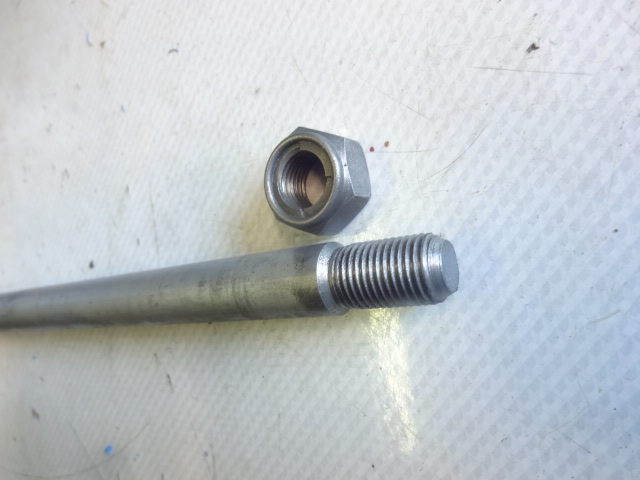

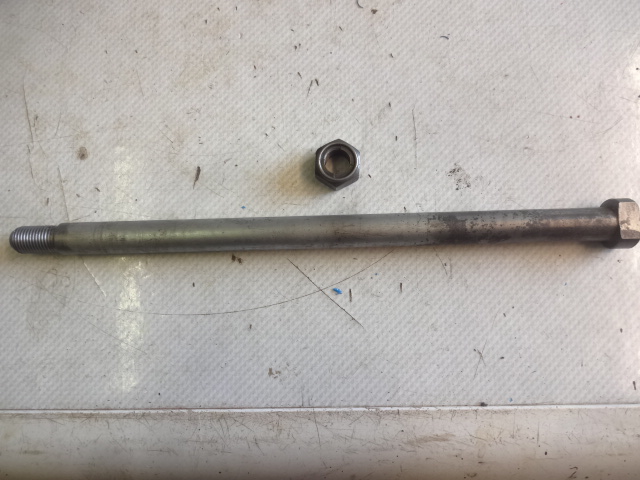

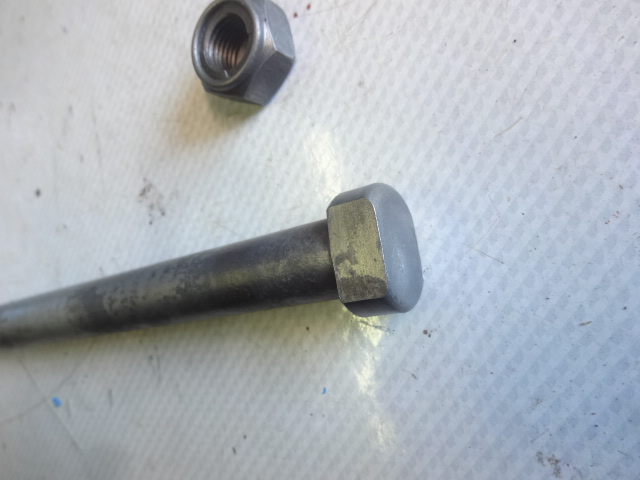

FZ600 - 182
SWINGING ARM SHAFT / SPINDLE - VERY GOOD, WITH A GOOD NUT.

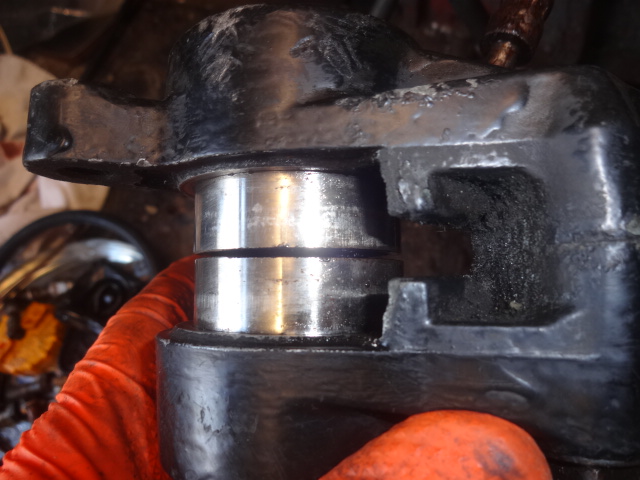

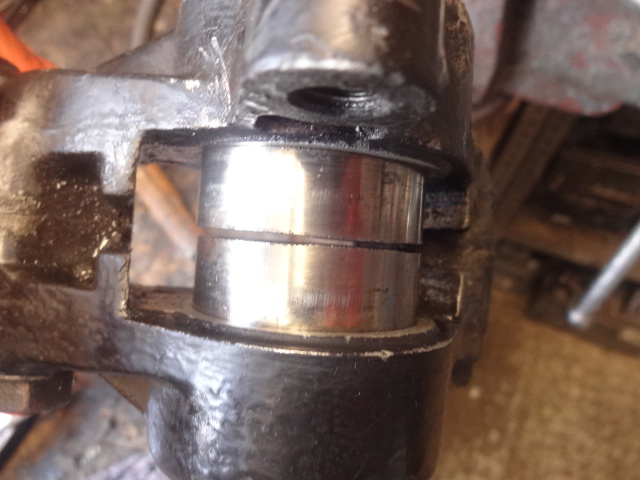

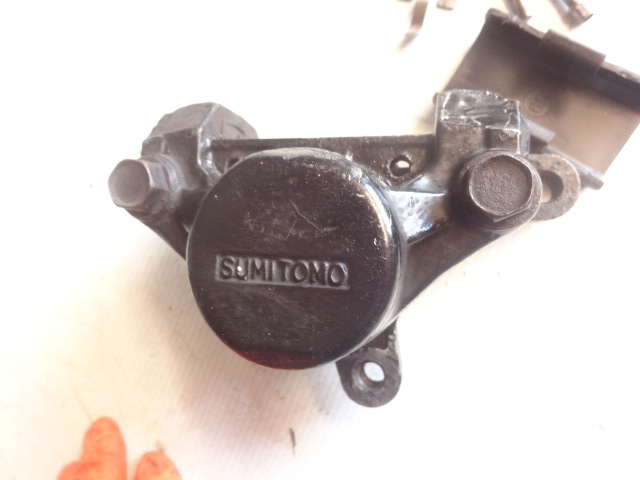

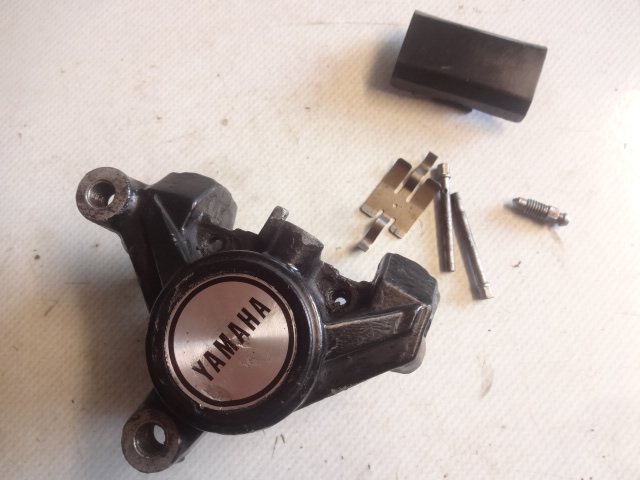

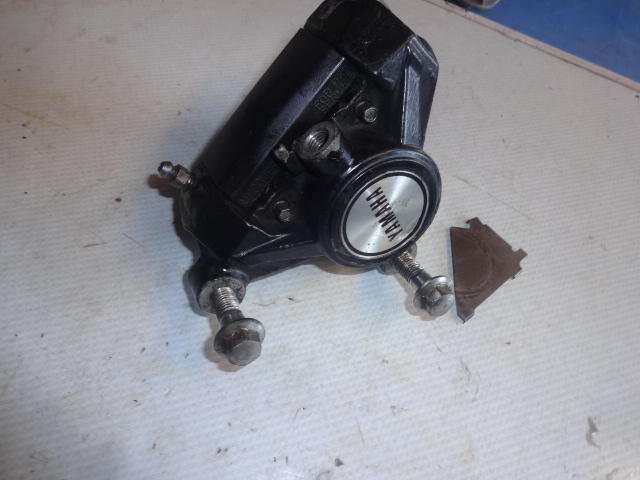

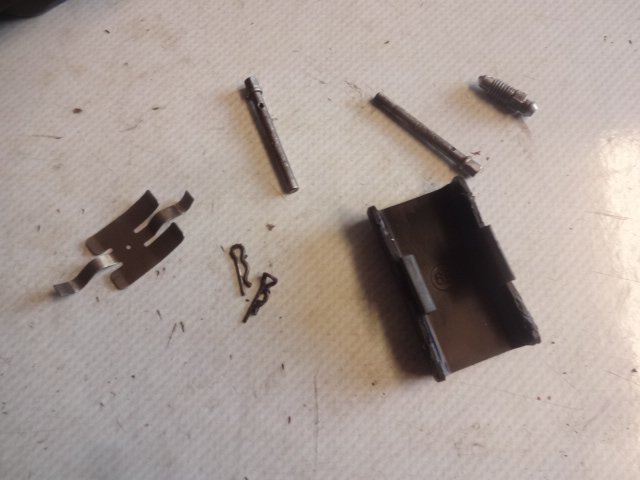

FZ600 - 207
LEFT HAND CALIPER - BLEED SCREW NOT SEIZED, BOTH THREADS VERY GOOD.

PISTONS LOOK SERVICEABLE, JUST NEEDS STRIP & NEW SEALS.

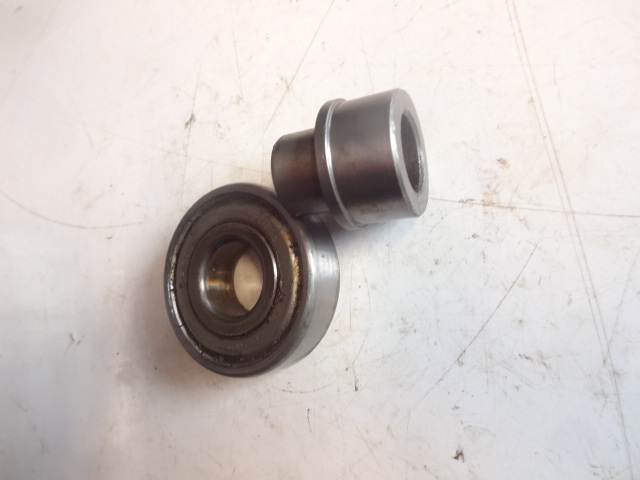

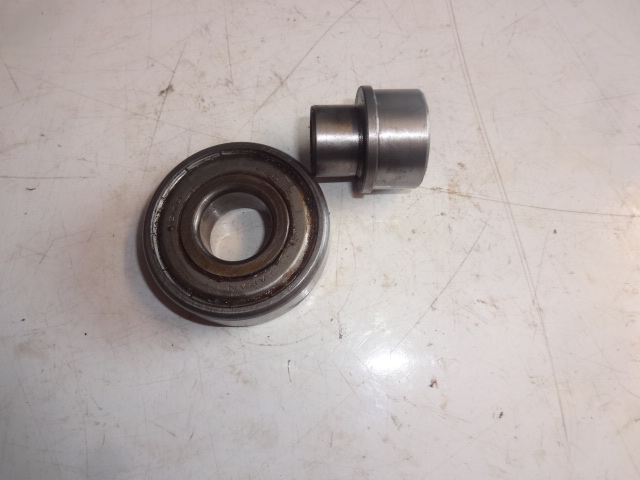

FZ600 - 210

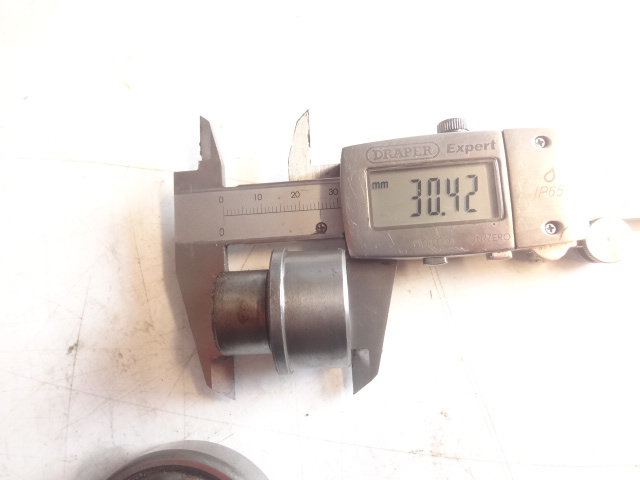

BEARING & COLLAR FRON REAR WHEEL HIB / SPROCKET CARRIER - GOOD.

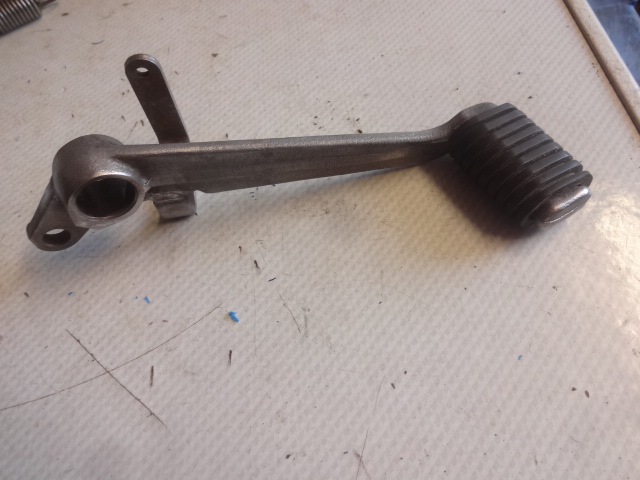

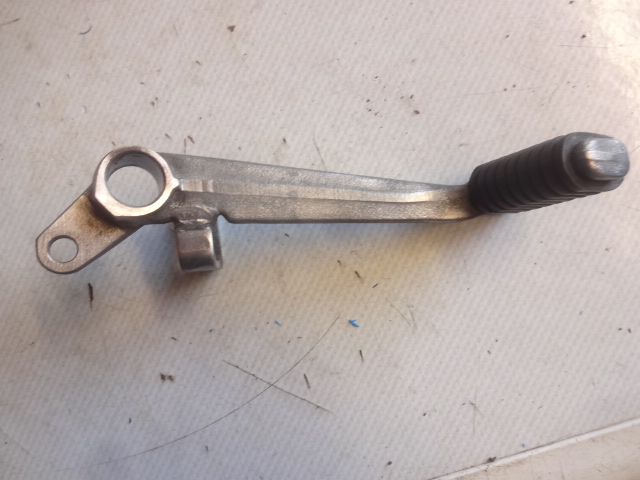

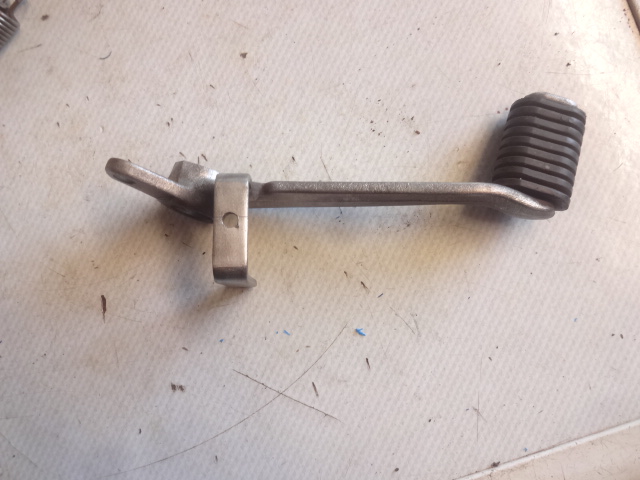

FZ600 - 050A

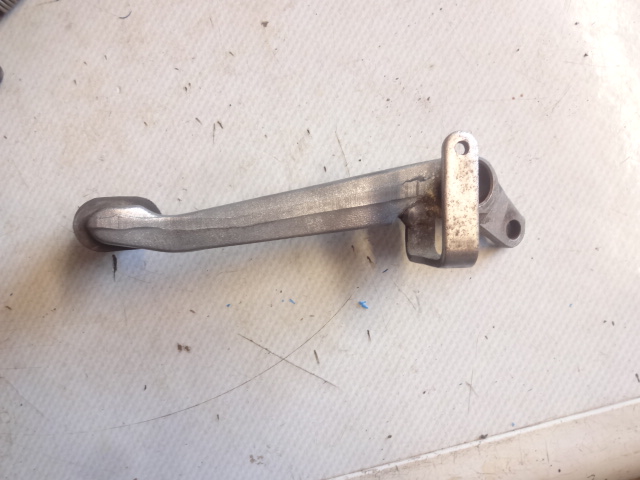

REAR BRAKE PEDAL - VERY GOOD.

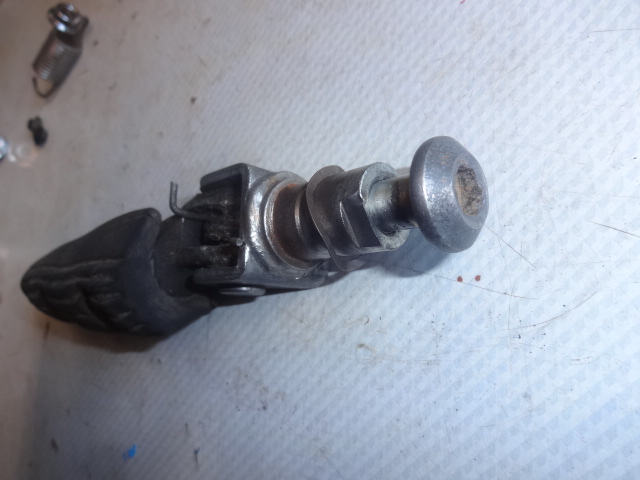

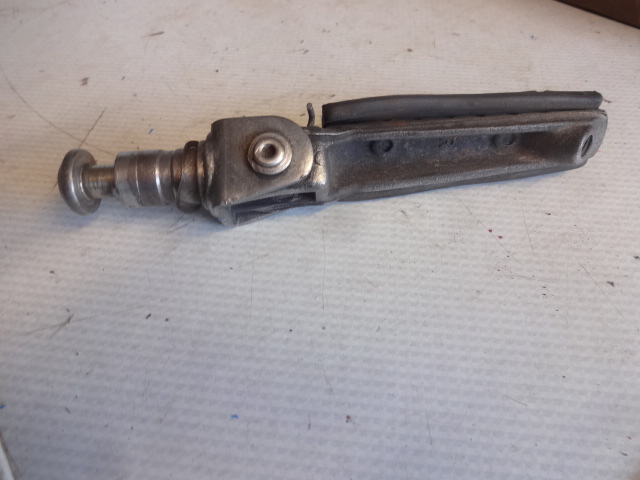

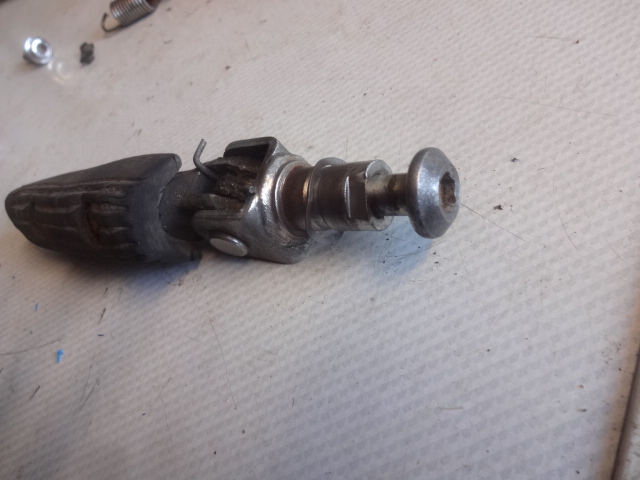

FZ600 - 050B

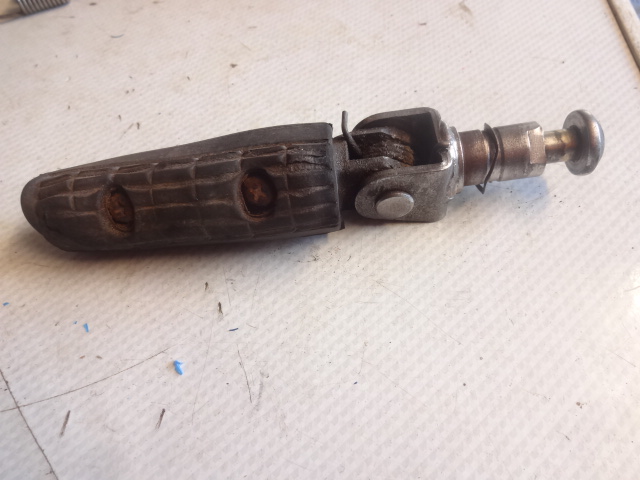

RIGHT FRONT FOOTREST - GOOD, NO DAMAGE, RUBBER A BIT WORN.

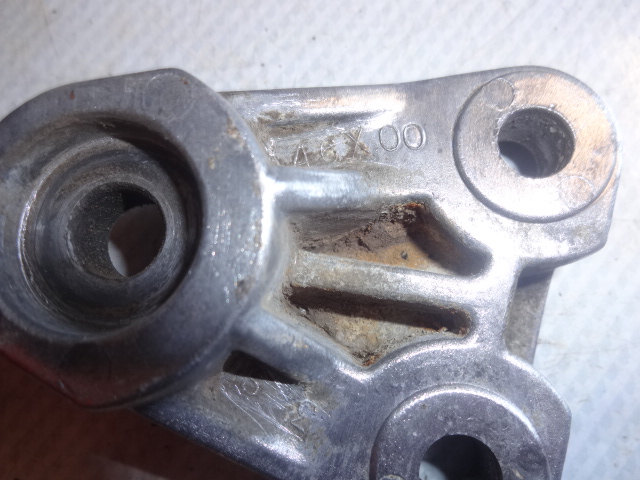

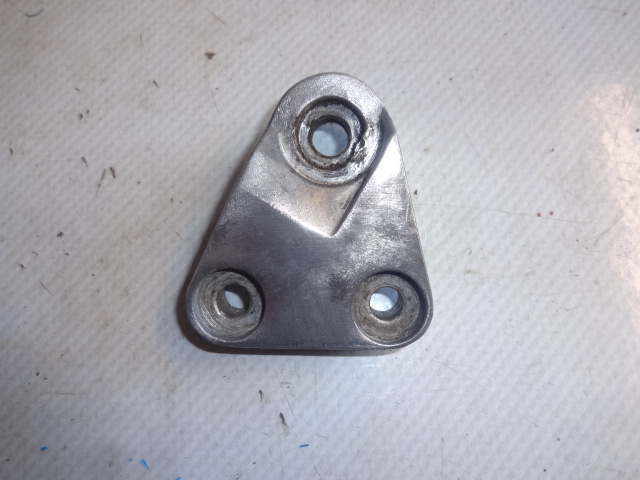

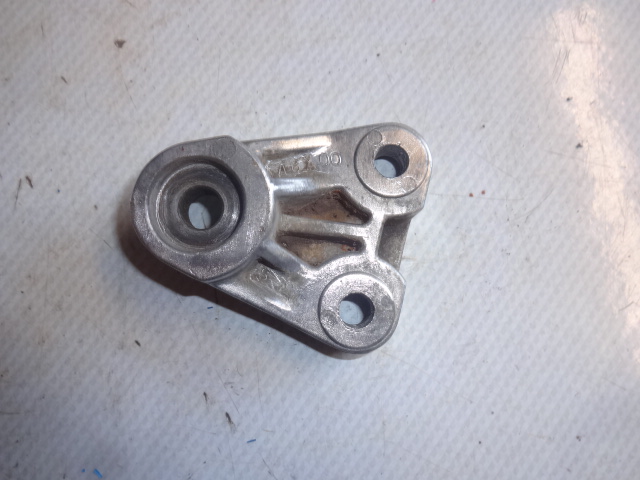

FZ600 - 050C
FRONT RIGHT FOOTREST BRSCKET - GOOD.

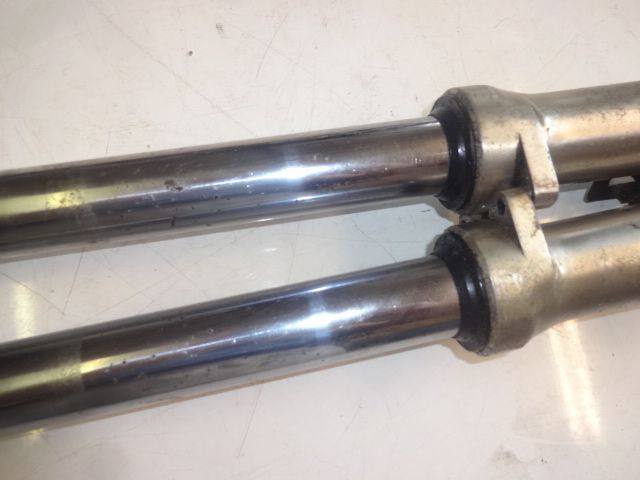

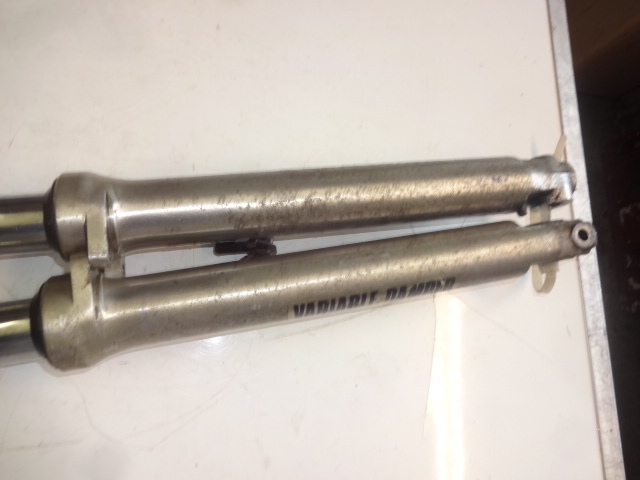

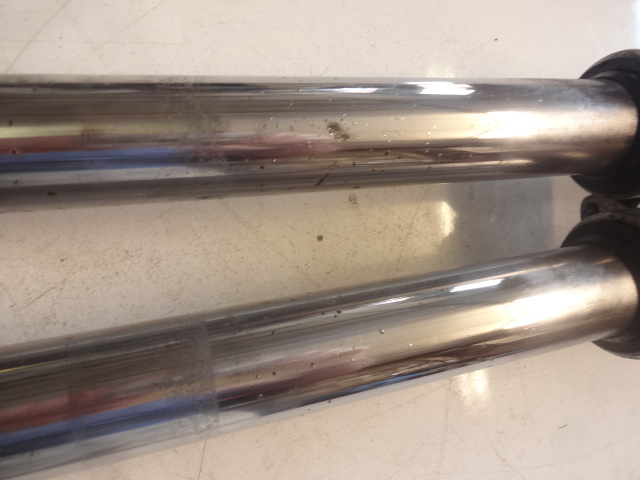

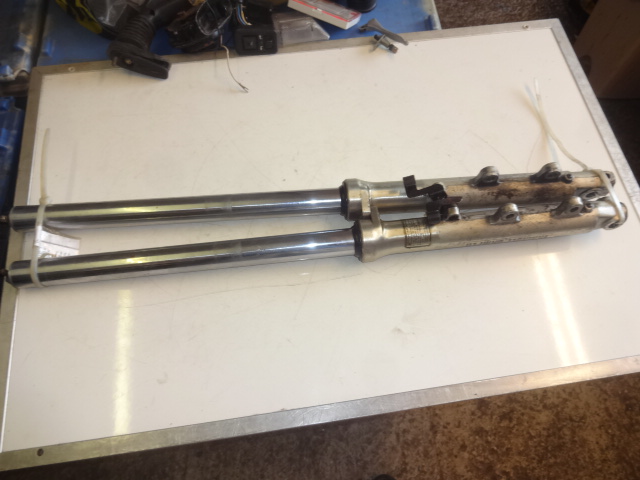

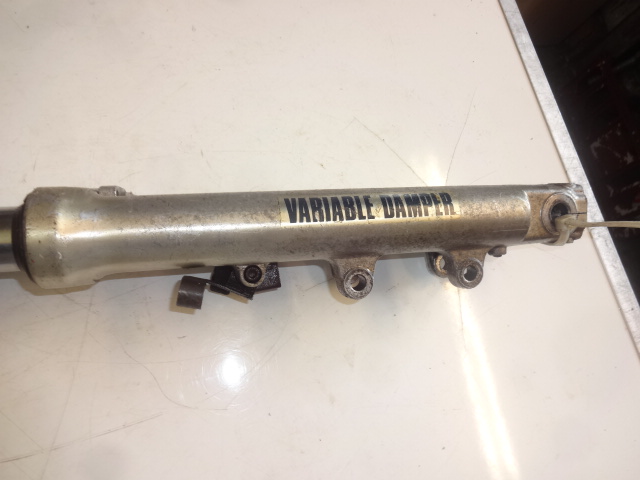

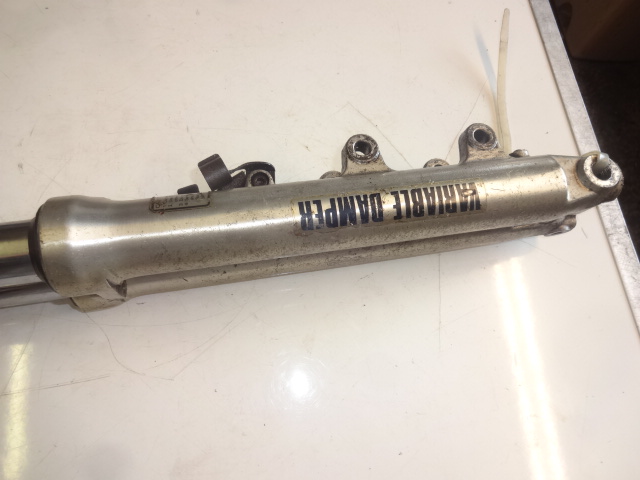

FZ600 - 230

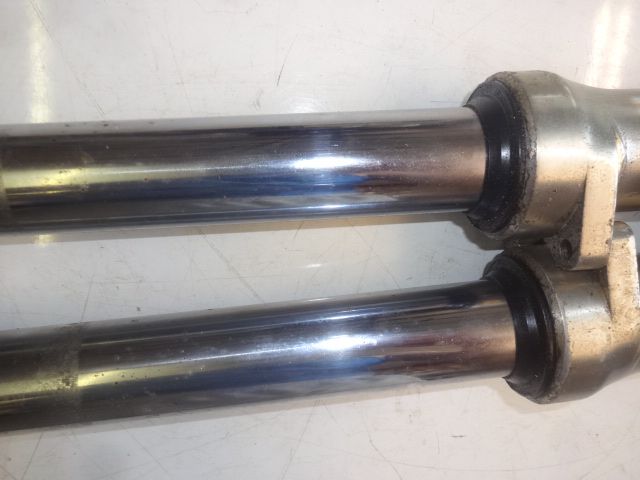

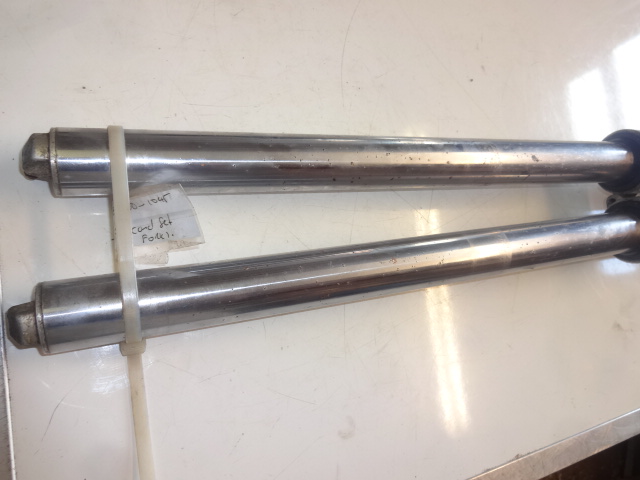

PAIR OF FORKS - STRAIGHT AND IN GOOD WORKING ORDER BUT THE TUBES ARE PITTED.

THE PITTING IS NOT BAD SO THESE WILL RE-CHOME OK.


ELECTRICAL PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

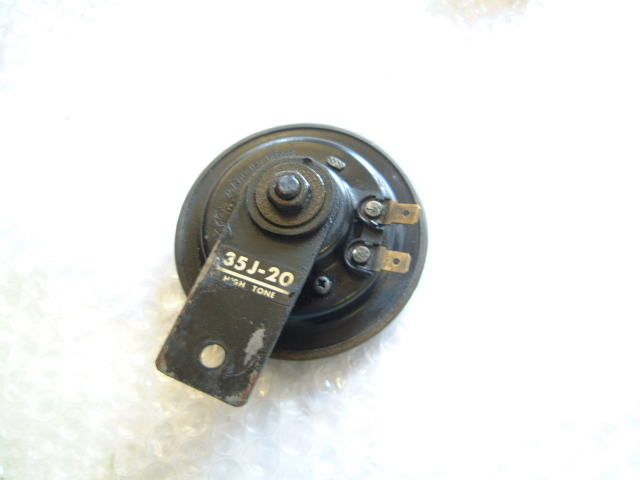

FZ600 - 002
HORN - TESTED.		 FZ600 - 031
LEFT HAND SWITCH GEAR - FULLY TESTED.

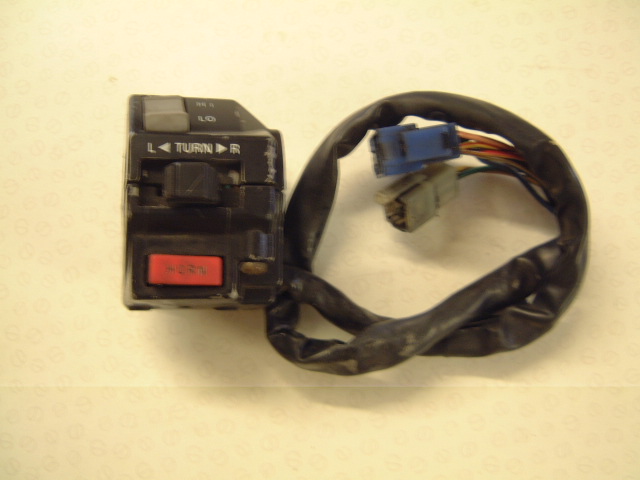

FZ600 - 152

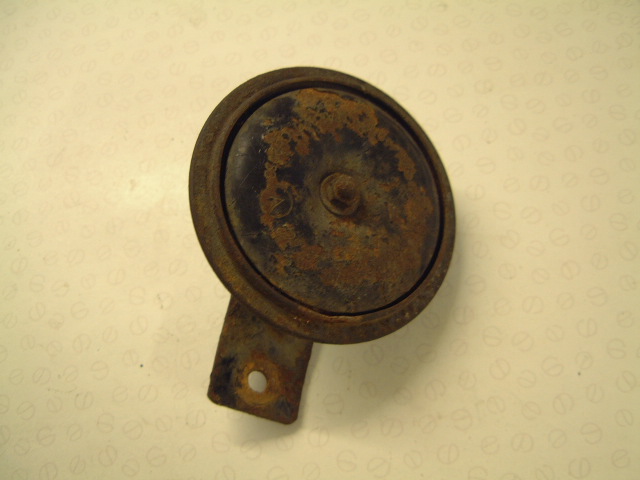

LEFT HAND SWITCHGEAR - FULLY TESTED AND OK.		 FZ600 - 173
HORN - TESTED OK.

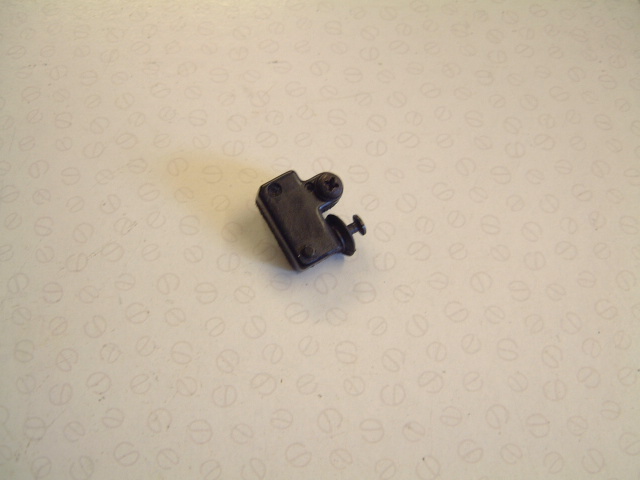

FZ600 - 203

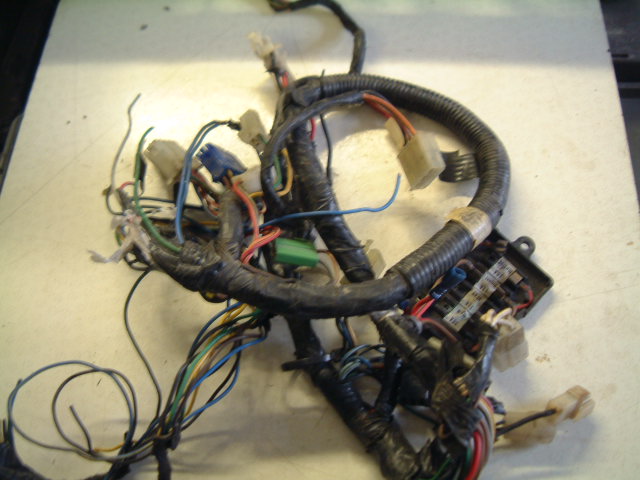

FRONT BRAKE LIGHT SWITCH - TESTED.		 FZ600 - 225
WIRING HARNESS - USEFUL FOR SPARE PARTS ONLY AS IT HAS BEEN ABUSED.

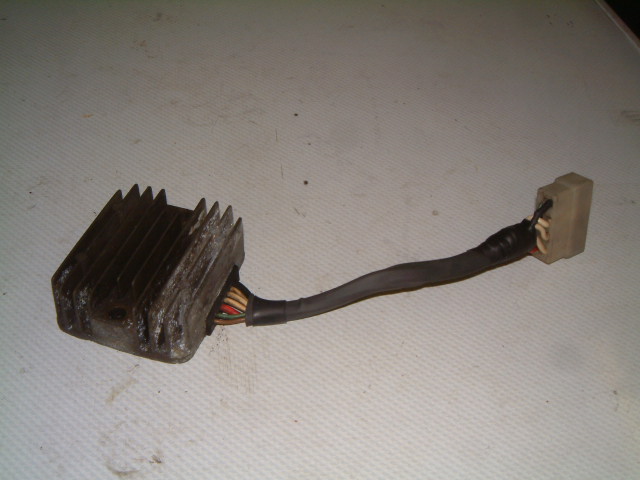

FZ600 - 024

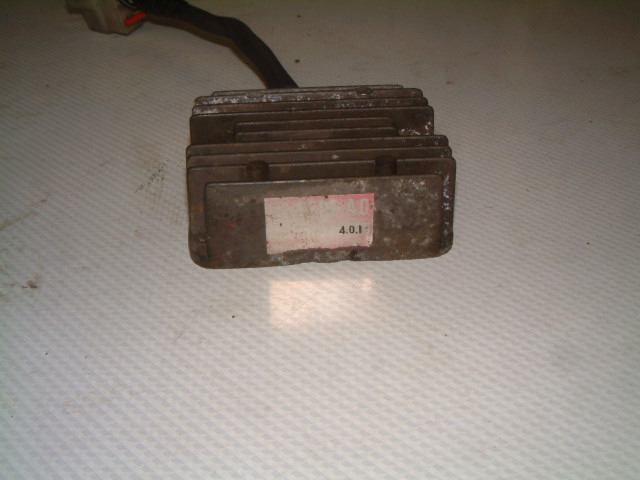

REG/RECTIFIER - SH233-12 // 12R-A0 , WORKING, PLUG AND WIRING ALL GOOD. (FROM AN EARLY FZ600 APPROX 1986 I THINK.)


ENGINE, CLUTCH, GEARBOX PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

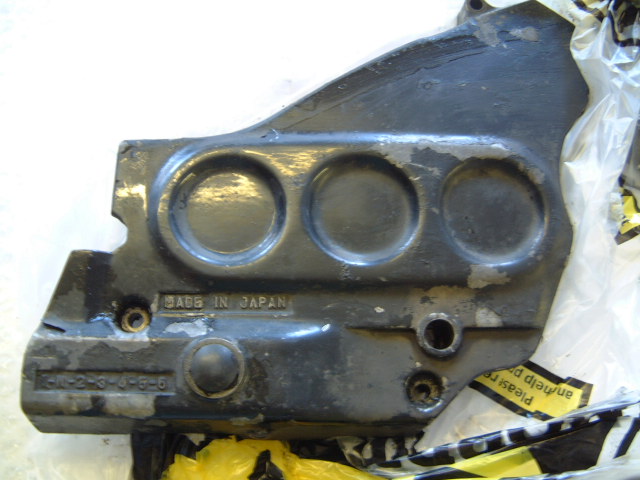

FZ600 - 062
ENGINE SIDE CASING - GOOD UNDAMAGED - NEEDS A BIT OF PAINT.		 FZ600 - 069

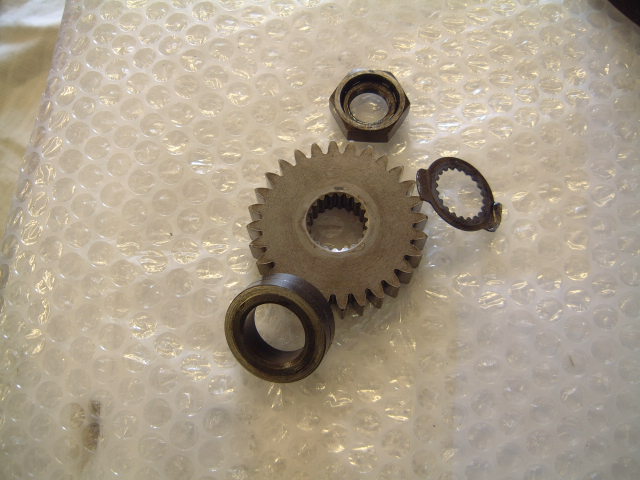

GEAR TO CLUTCH - VERY GOOD.

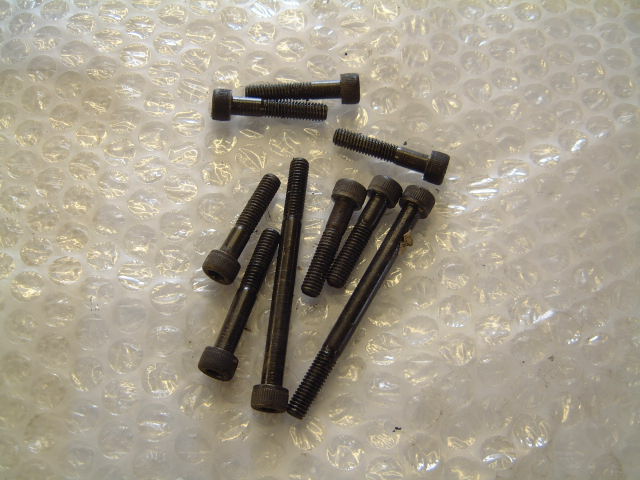

FZ600 - 070

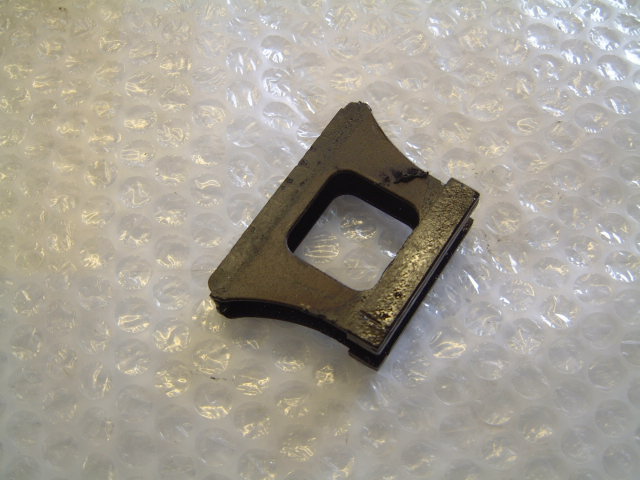

CLUTCH CASE ALLEN SET - ALL GOOD.		 FZ600 - 080
CAMCHAIN GUIDE - GOOD.

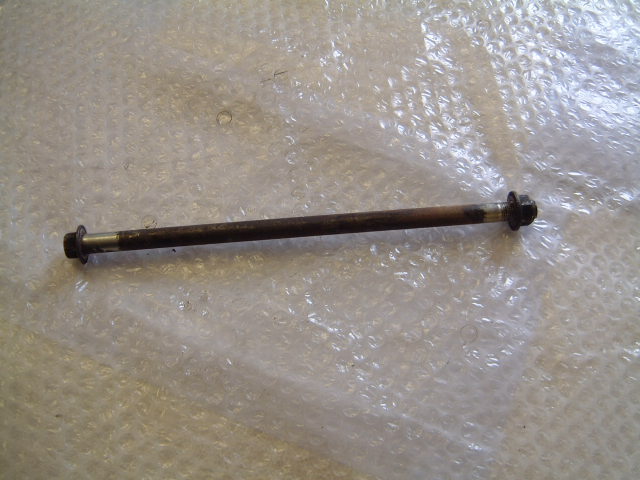

FZ600 - 083

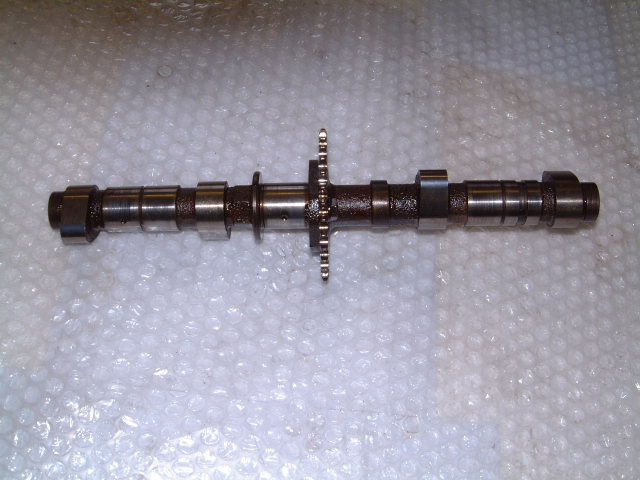

REAR ENGINE BOLT & NUT - GOOD.		 FZ600 - 099
INLET CAMSHAFT - ALL FACES LOOK GOOD.

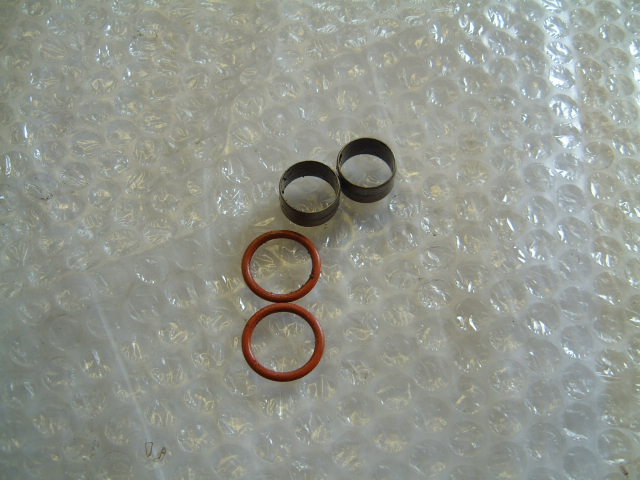

FZ600 - 112

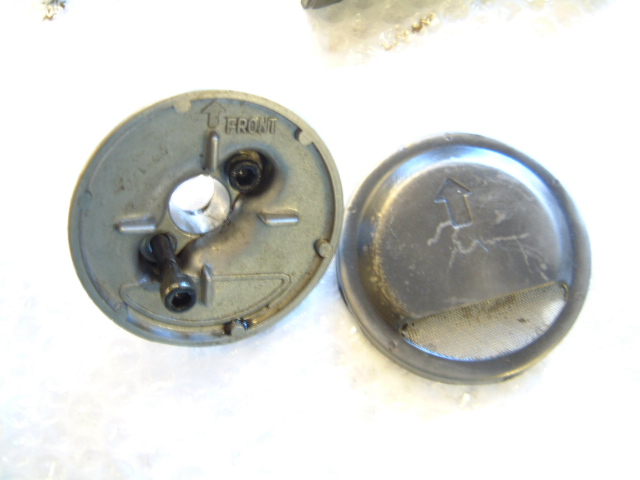

OIL WAY PEGS - GOOD.		 FZ600 - 115
OIL PICK UP - GOOD.

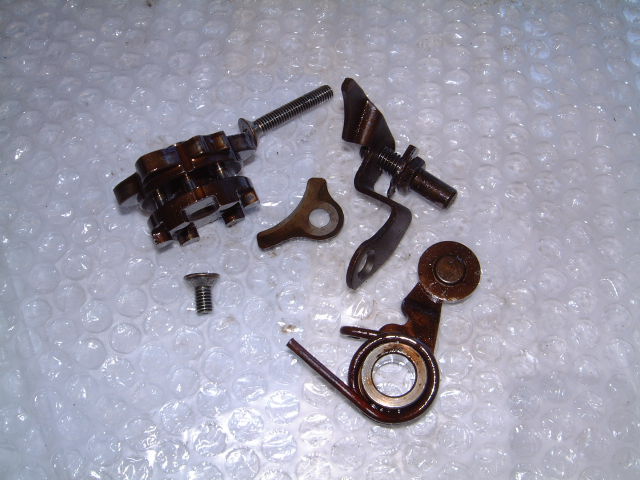

FZ600 - 117
GEAR SELECTION PARTS - ALL VERY GOOD.		 FZ600 - 118

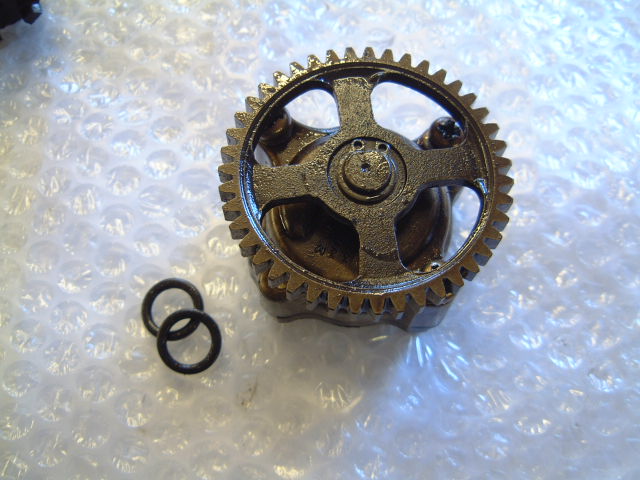

OIL PUMP.

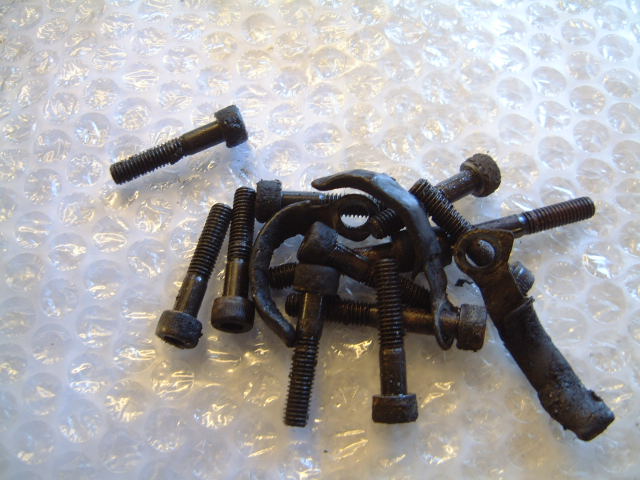

FZ600 - 119

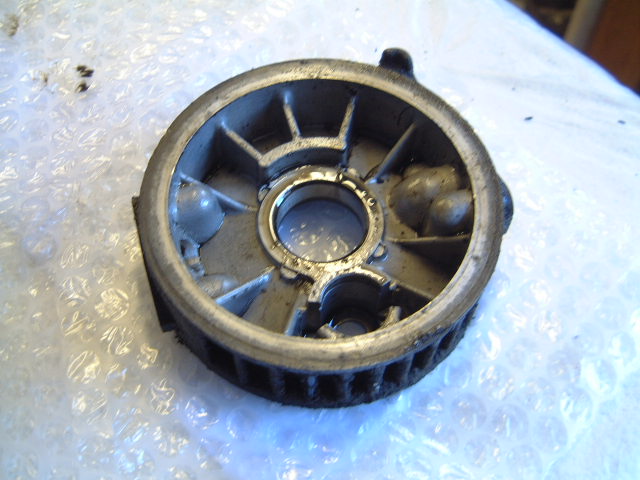

SUMP ALLEN SCREW SET - GOOD.		 FZ600 - 121
AIR FILTER MOUNT - GOOD, NEEDS CLEAN.

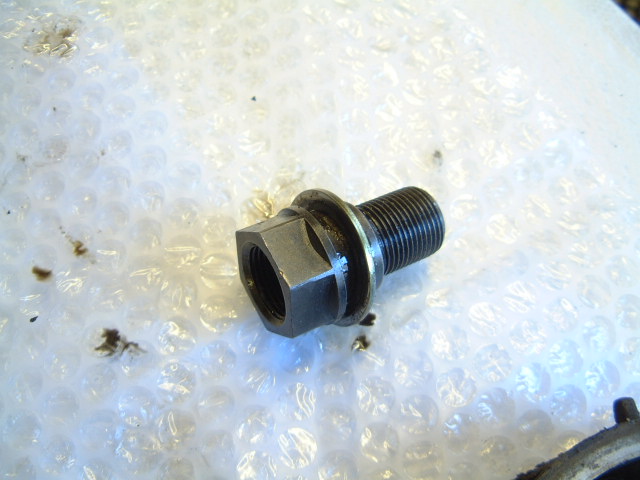

FZ600 - 122

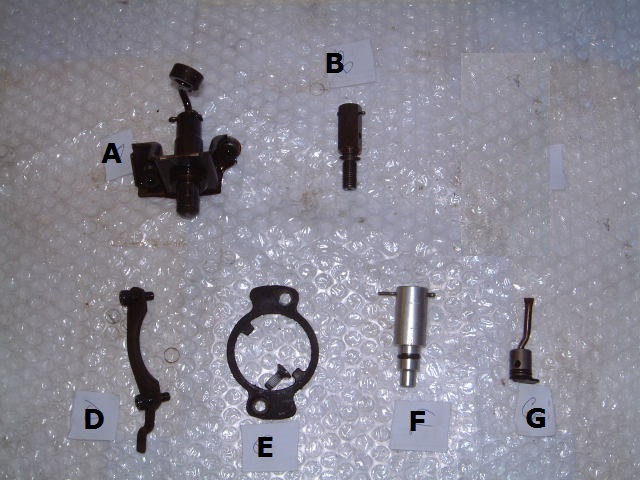

OIL FILTER CENTRE BOLT - GOOD.		 FZ600 - 123
VARIOUS ENGINE PARTS - ALL VERY GOOD.( USE LETTERS IF YOU SEE A BIT YOU NEED)

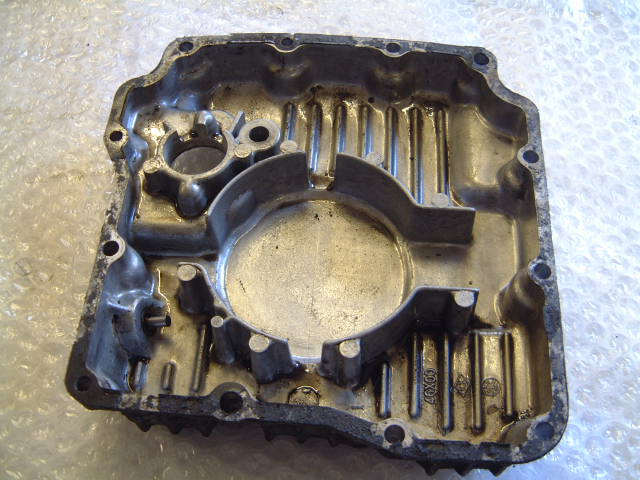

FZ600 - 124

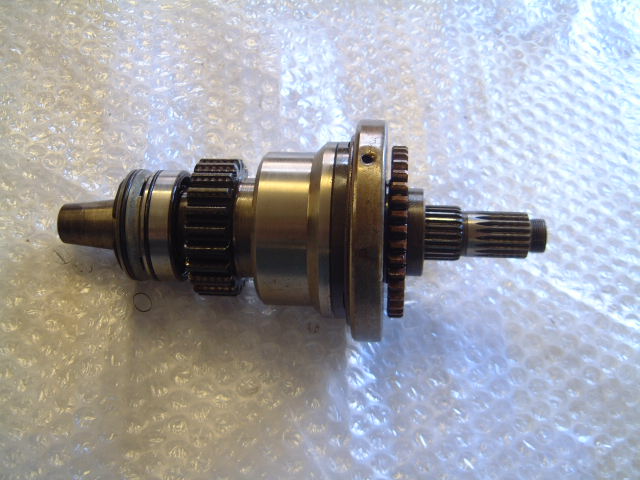

SUMP - NO DAMAGE - VERY GOOD.		 FZ600 - 125
STARTER CLUTCH AND SHAFT - VERY GOOD - TESTED.

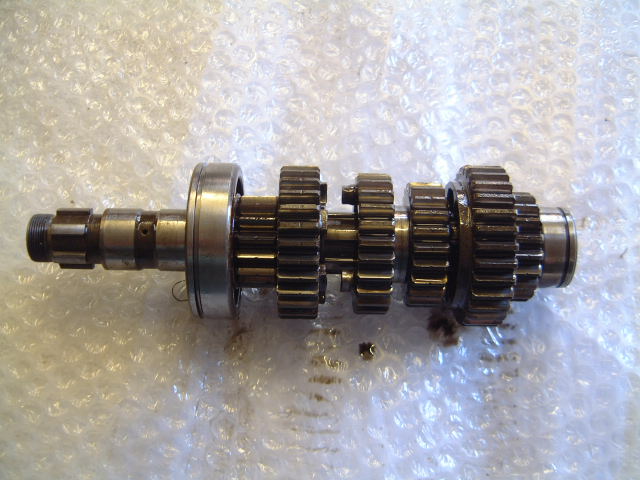

FZ600 - 126

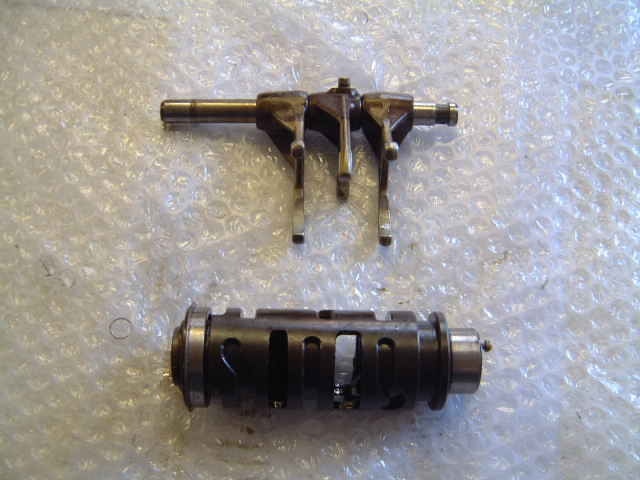

GEAR CLUSTER - VERY GOOD.		 FZ600 - 127
GEAR SELECTOR DRUM AND SPRIGOTS - ALL VERY GOOD.

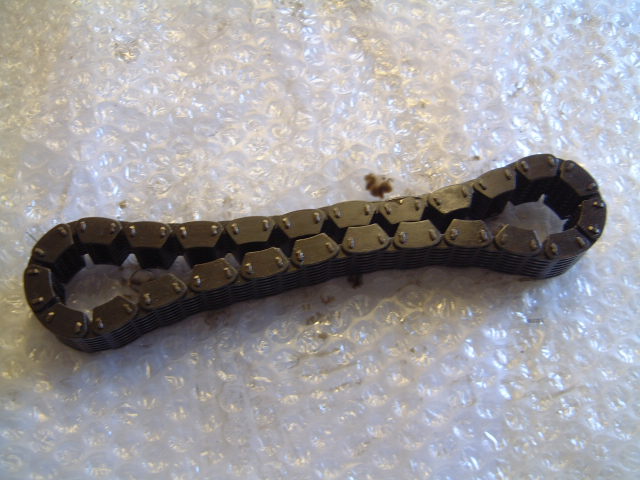

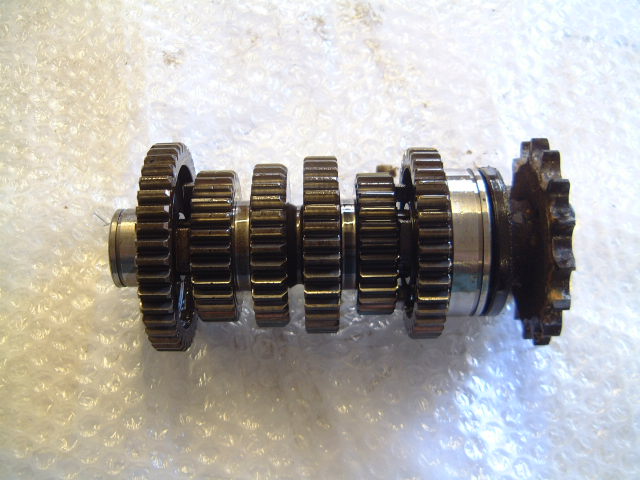

FZ600 - 128
GEAR CLUSTER - VERY GOOD.		 FZ600 - 129
PRIMARY CHAIN - BIKE DID NOT RATTLE BEFORE BEING BROKEN.

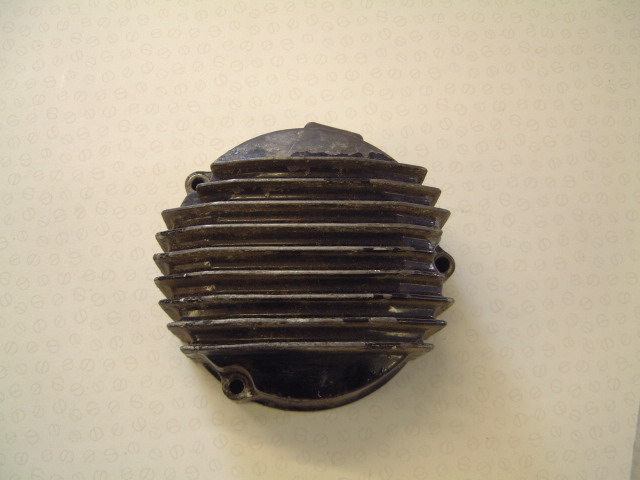

FZ600 - 181

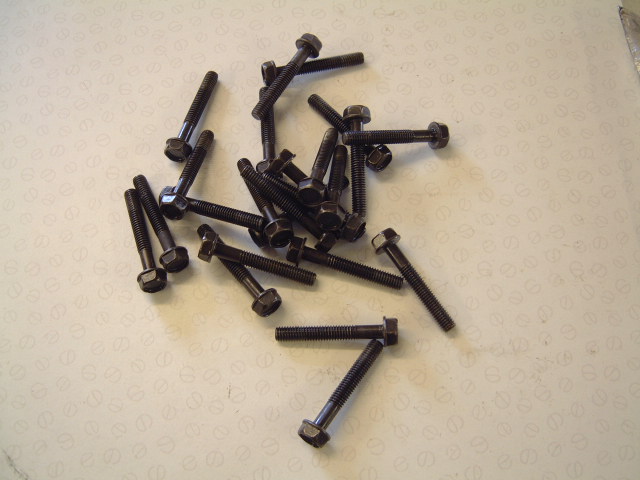

ALTERNATOR END CAP - NO DAMAGE, NEEDS PAINT.		 FZ600 - 184
SET OF CAM FOLLOWERS BOLTS - EXCELLENT.

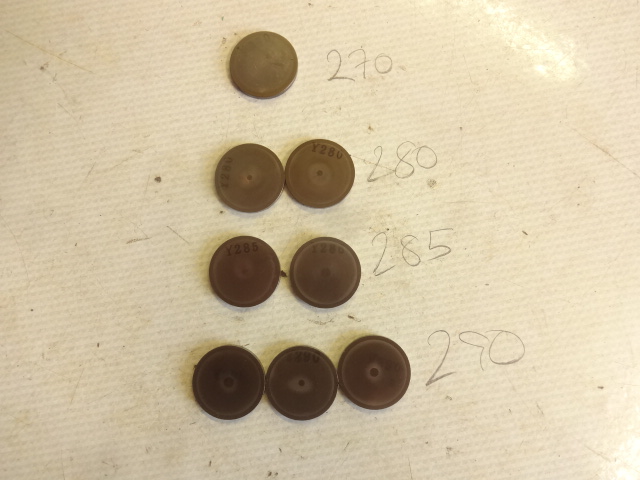

FZ600 - 232
CAMSHAFT BUCKET SHIMS - VARIOUS SIZES - GOOD.

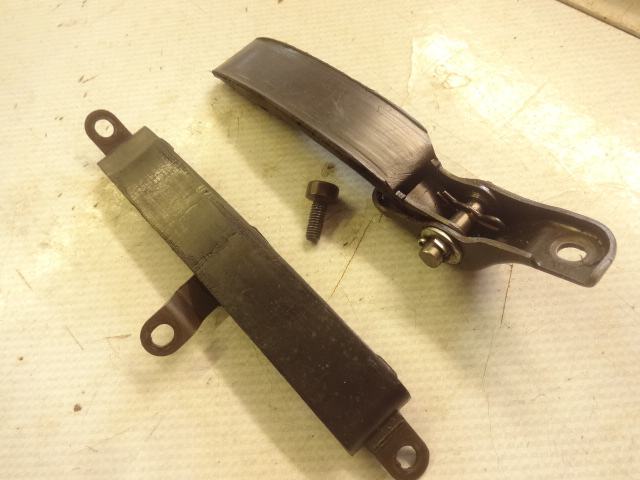

FZ600 - 116

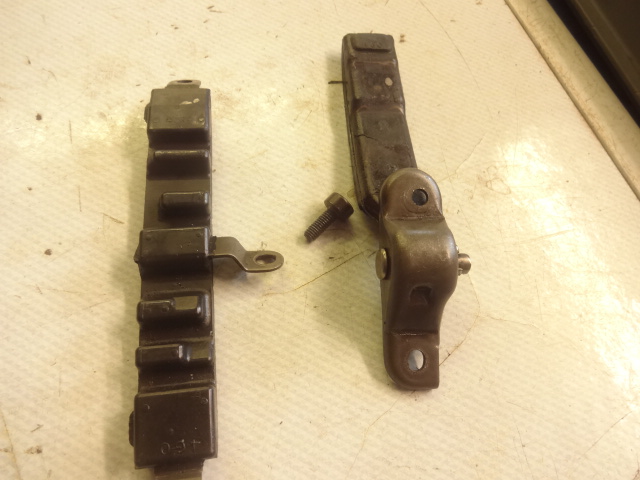

PRIMARY CHAIN GUIDES - GOOD.

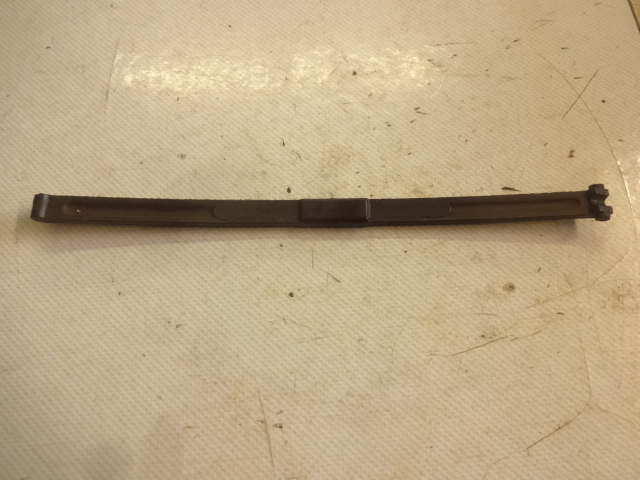

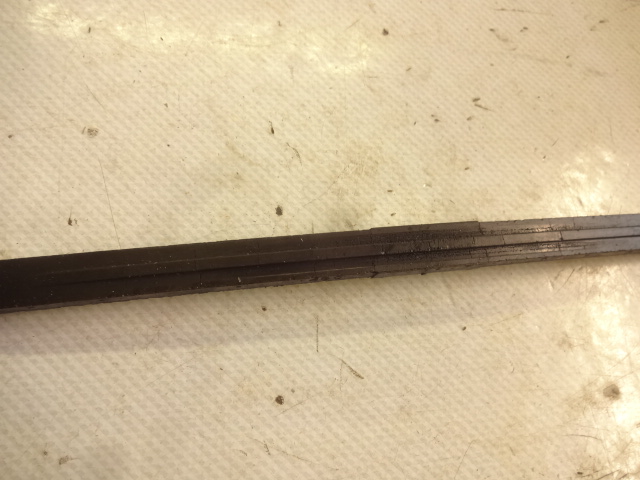

FZ600 - 131
CAM CHAIN RUNNER - SERVICEABLE.

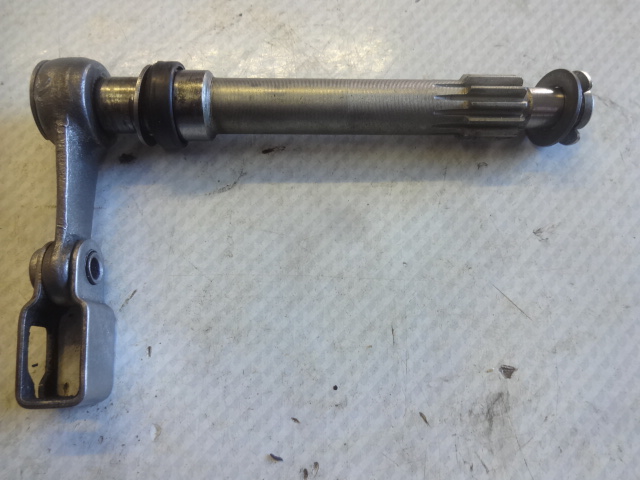

FZ600 - 103

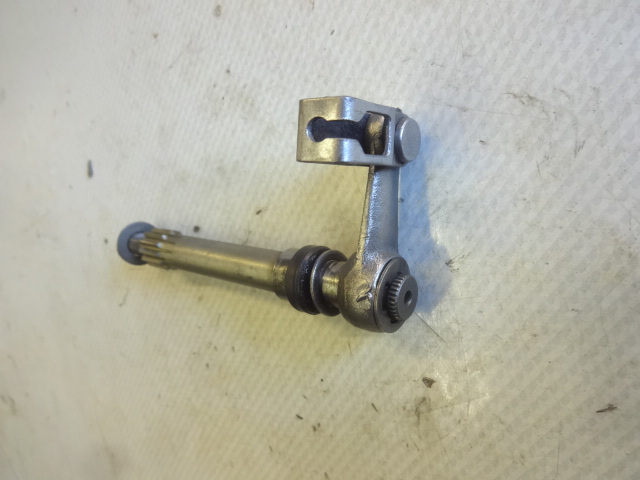

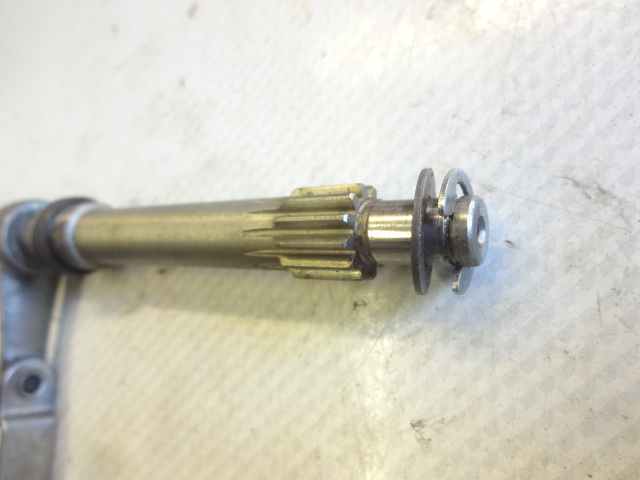

CLUTCH ARM - VERY GOOD.

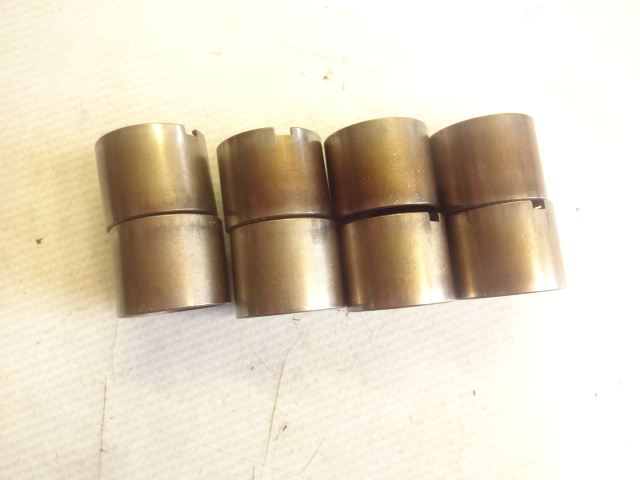

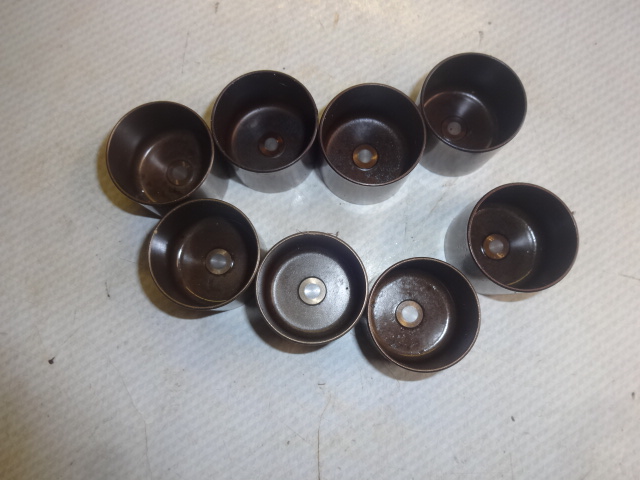

FZ600 - 233

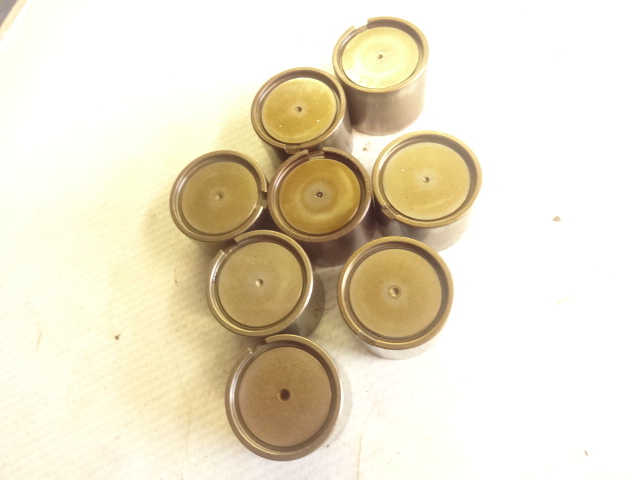

CAMSHAFT BUCKETS - GOOD.


MISCELLANEOUS PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

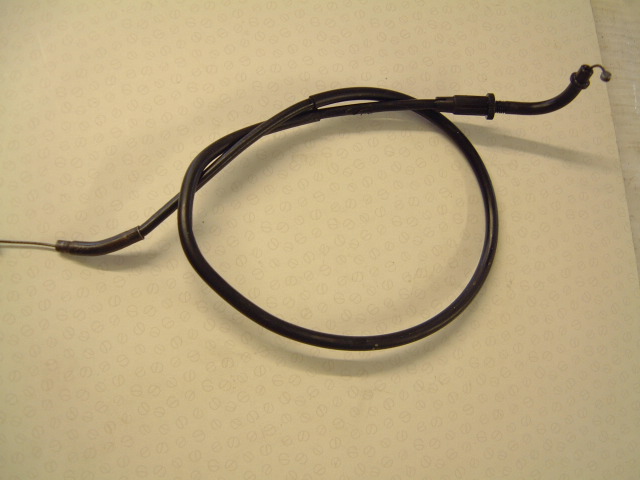

FZ600 - 153

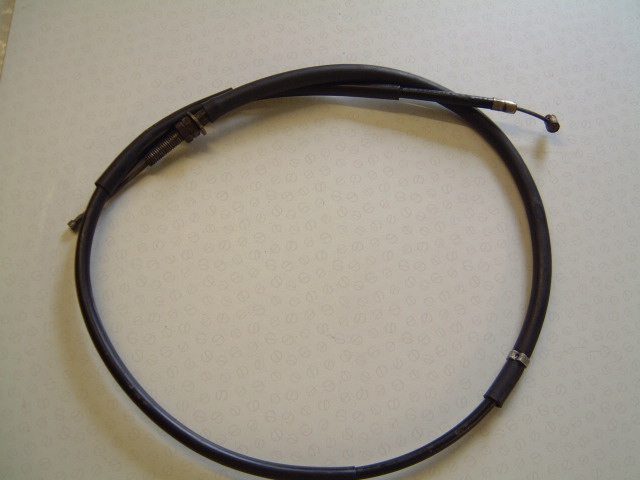

THROTTLE CABLE - GOOD.		 FZ600 - 175
CLUTCH CABLE - GOOD.

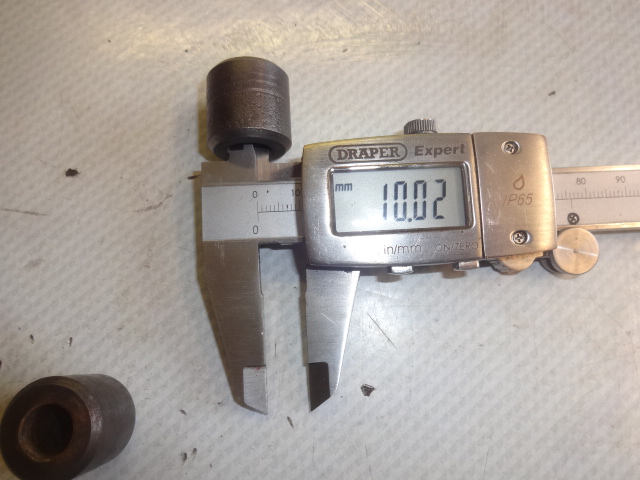

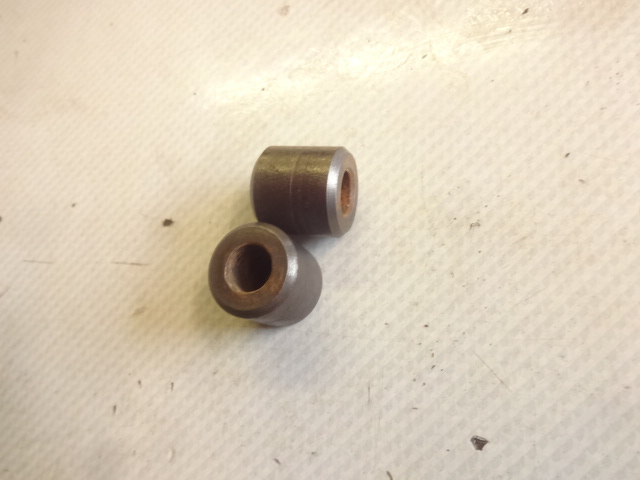

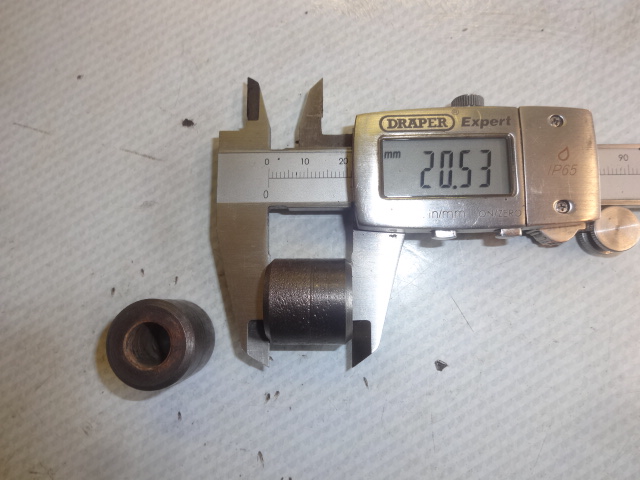

FZ600 - 234

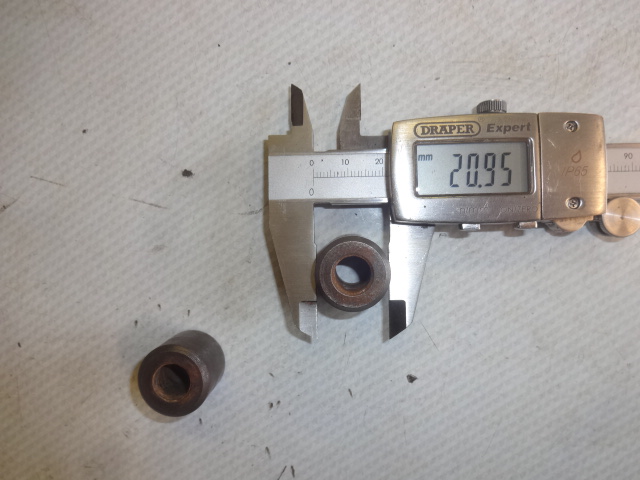

A COUPLE OF SPACERS - CAN'T REMEBER WHERE THESE CAME FROM ! - SERVICEABLE.
