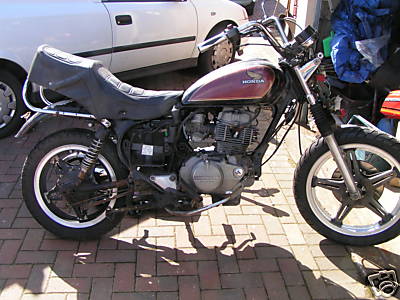

HI, MY NAME IS STEVE AND WELCOME TO MY HONDA CM250C WEB PAGE.
I HAVE BROKEN FOR SPARES A 1981 BIKE.

I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS
TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT.
I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART.
IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE
USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE

I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.

FRAME NUMBER = MC05 - 20021XX --- MODEL = CM250 YEAR 1981 --- "X" REDG
ENGINE NUMBER = CB250TE-20237XX.

JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS:
     1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC).
     2 RUNNING GEAR - (FRAME, SUSPENSION, BARS, BRAKES, FOOTRESTS, STANDS, ETC).
     3 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, SWITCHES, FUSE BOX ETC).
     4 ENGINE, CLUTCH AND GEARBOX PARTS -
     5 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC).

ANCILLARY PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

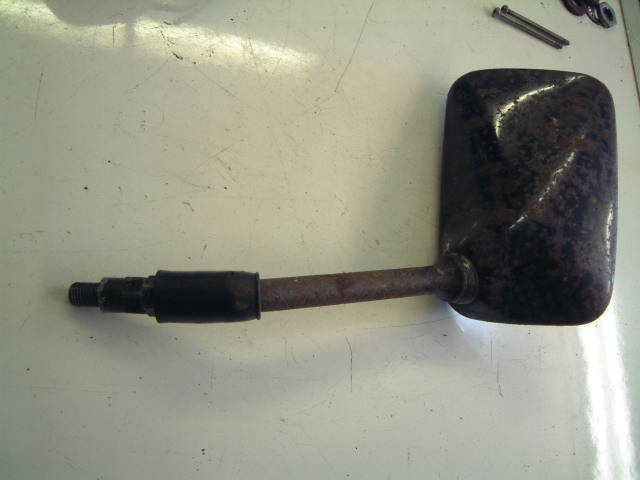

CM250 - 187

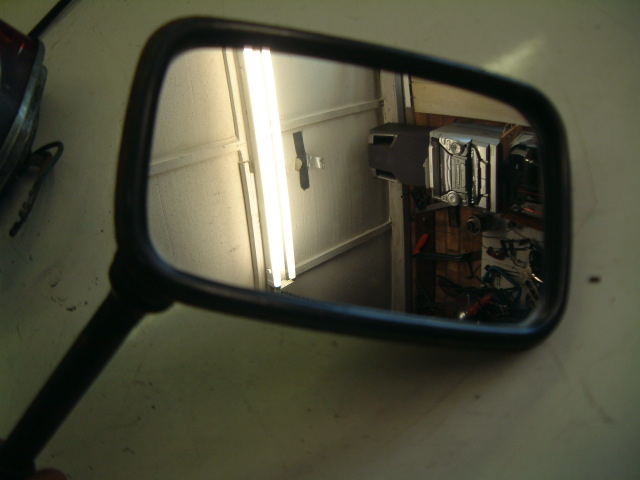

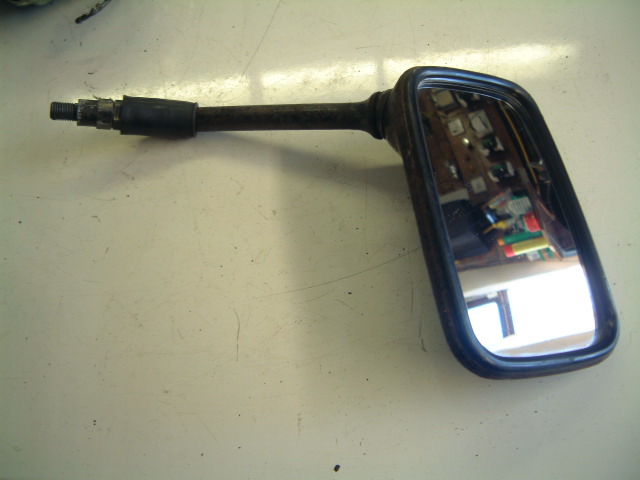

RIGHT HAND SIDE MIRROR - NEEDS RE-PAINT OTHERWISE ALL OK.


RUNNING GEAR PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
CM250 - 059

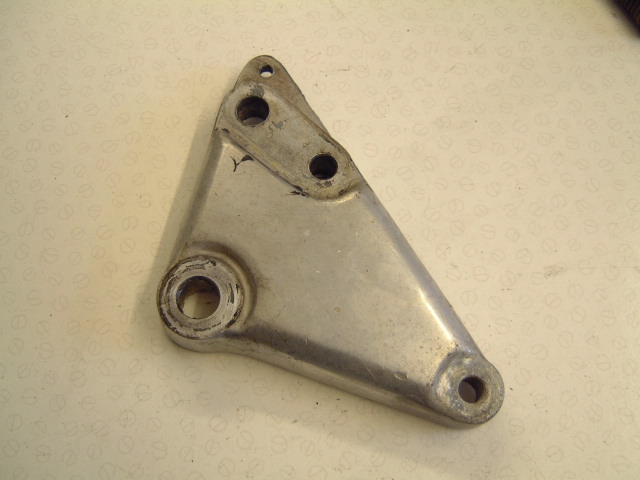

FRONT RHS FOOT REST MOUNTING BRACKET - V.GOOD.		 CM250 - 063

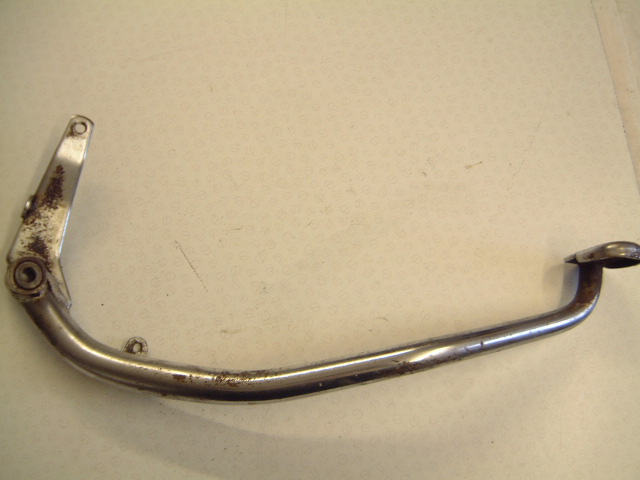

REAR BRAKE PEDAL - STRAIGHT, GOOD, BUT HAS A FEW MARKS AND PITS.
CM250 - 076

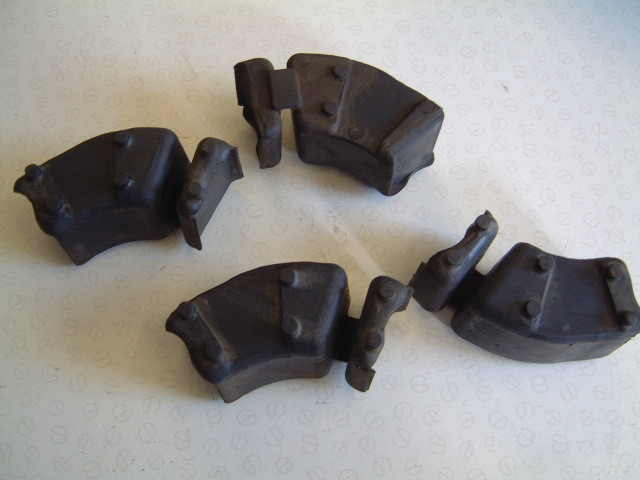

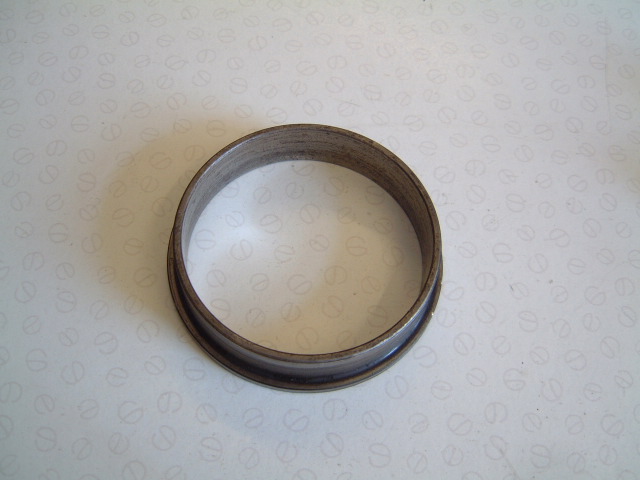

REAR WHEEL BUSH/BEARING - GOOD.		 CM250 - 080
CUSH DRIVE - VERY GOOD.

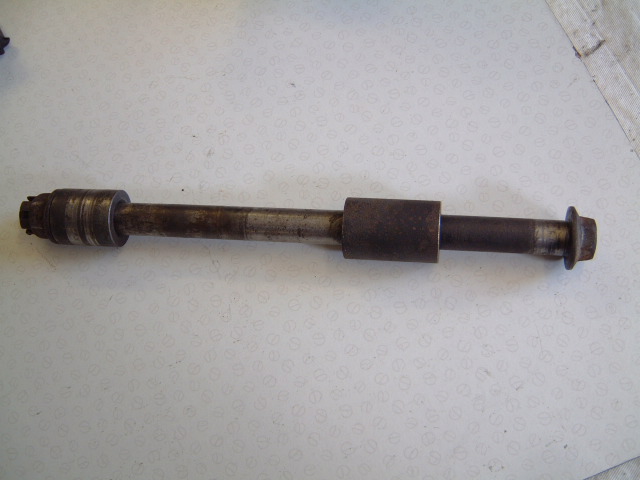

CM250 - 081
REAR SHAFT, NUT & SPACERS - ALL OK.		 CM250 - 090

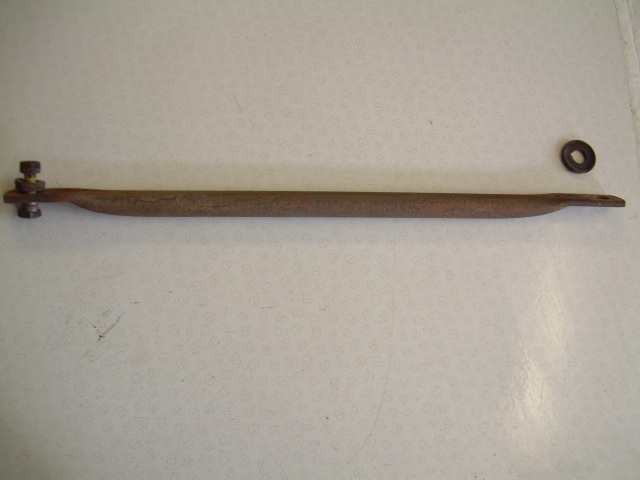

TORQUE ARM & NUT - STRAIGHT & SOLID, NEEDS NEW PAINT.
CM250 - 091

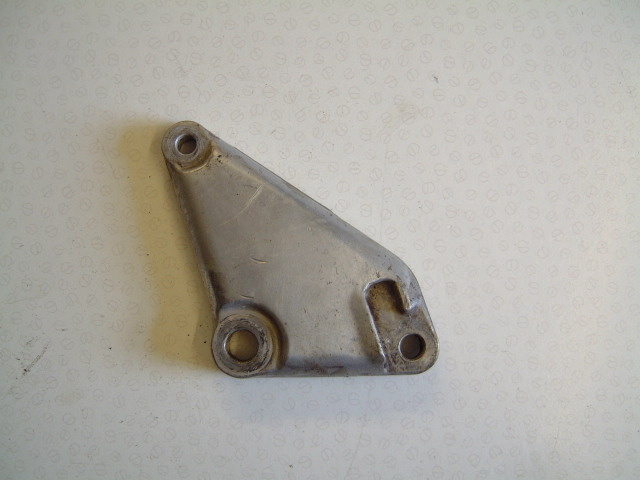

LHS FRONT FOOT REST MOUNT - VERY GOOD.		 CM250 - 210
CALIPER PARTS - GOOD.

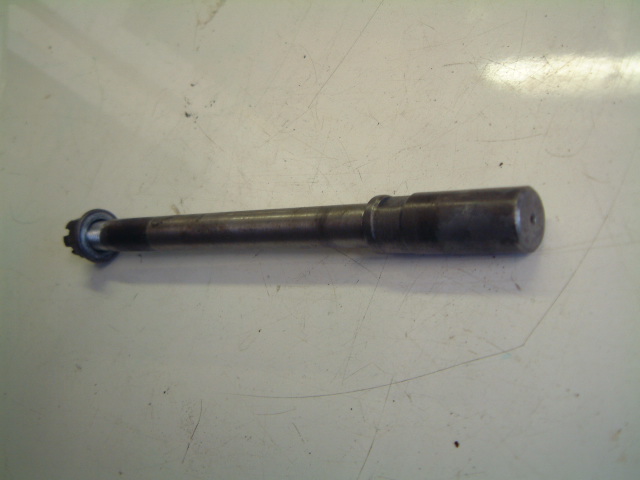

CM250 - 221

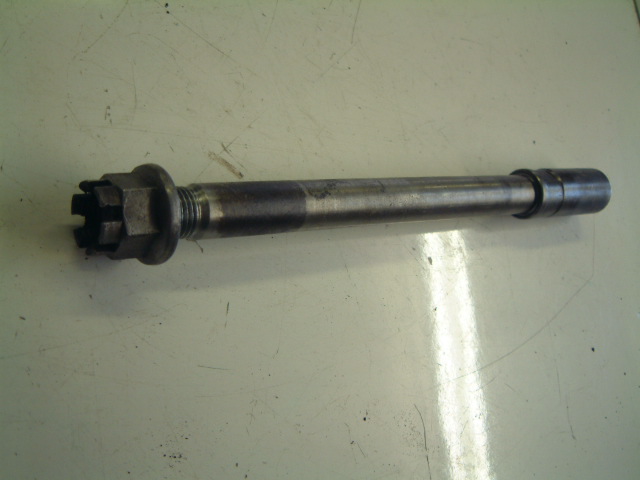

FRONT WHEEL SHAFT COMPLETE - ALL GOOD, FINISH TARNISHED.
CM250 - 221

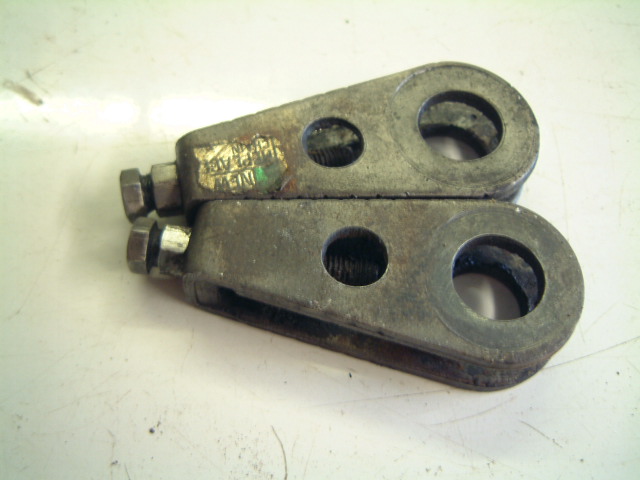

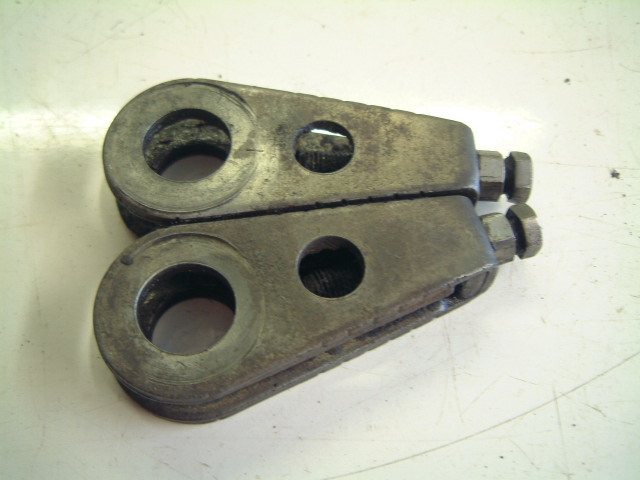

CHAIN ADJUSTERS - MECHANICALLY GOOD, FINISH TARNISHED.

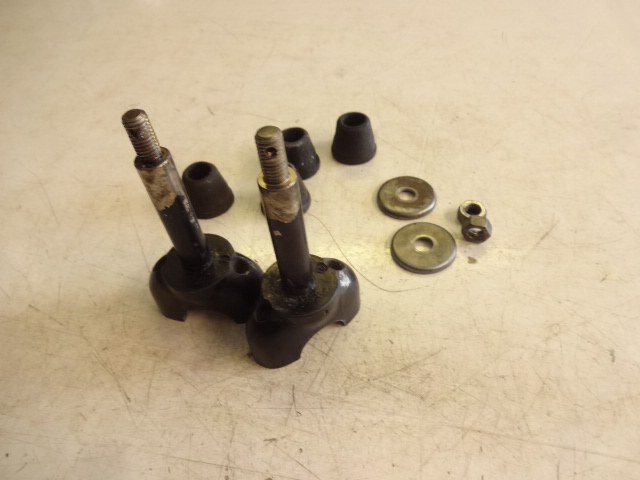

CM250 - 133A

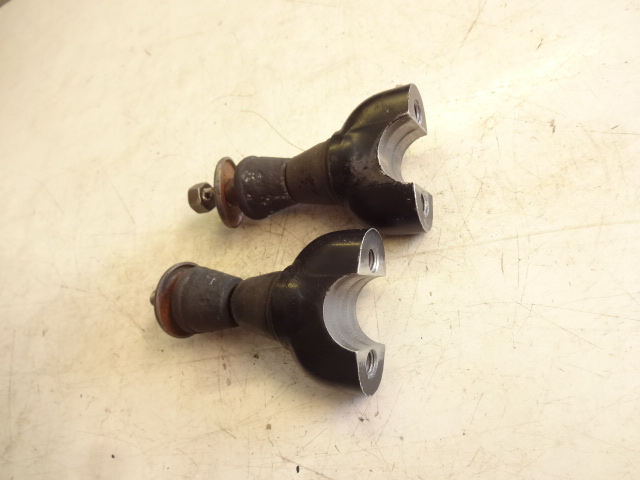

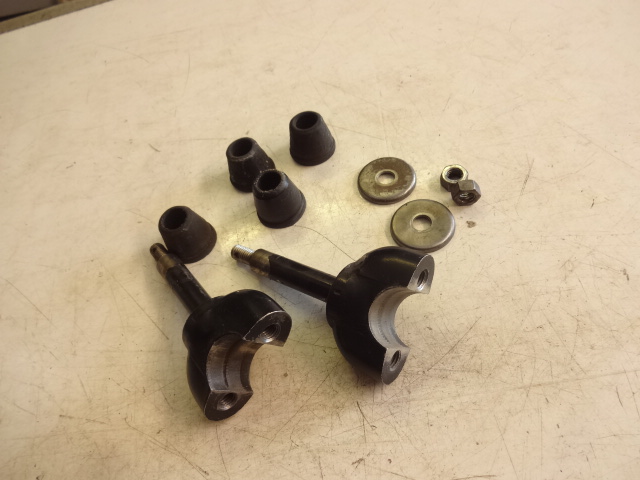

HANDLEBAR MOUNTS - GOOD, WITH FITTINGS.

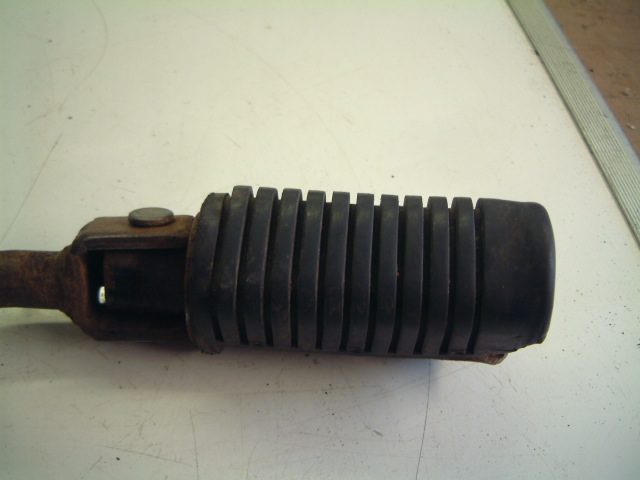

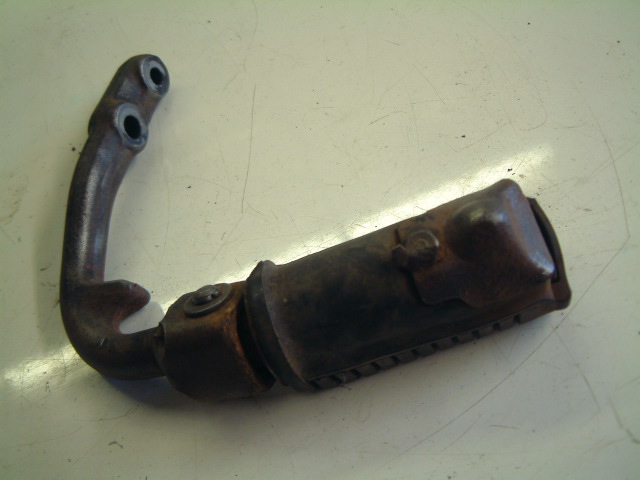

CM250 - 226

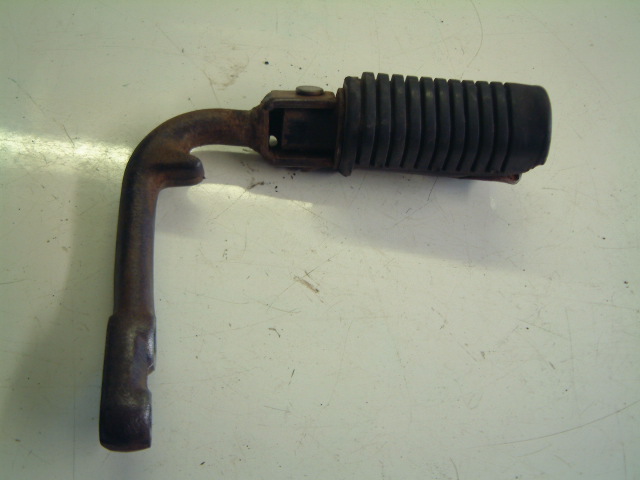

RIGHT FOOT REST - SOLID AND STRAIGHT, GOOD RUBBER.

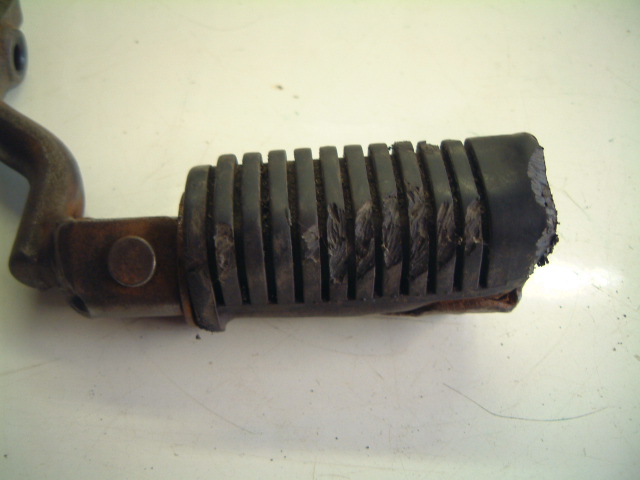

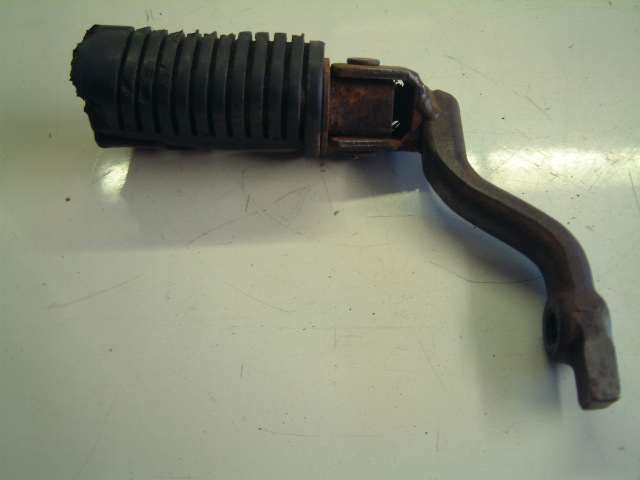

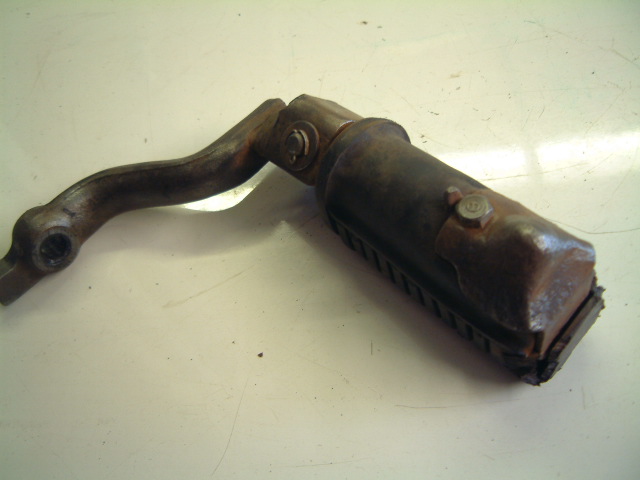

CM250 - 227
LEFT FOOT REST - SOLID AND STRAIGHT, RUBBER A BIT CHEWED.


ELECTRICAL PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
CM250 - 048

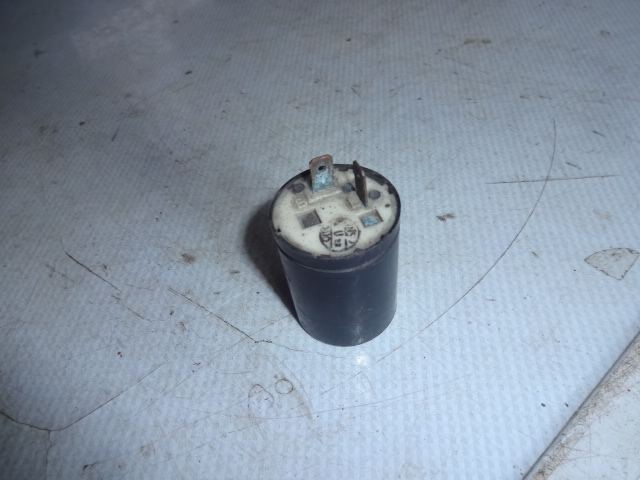

FLASHER RELAY (2 PIN) - WORKING.

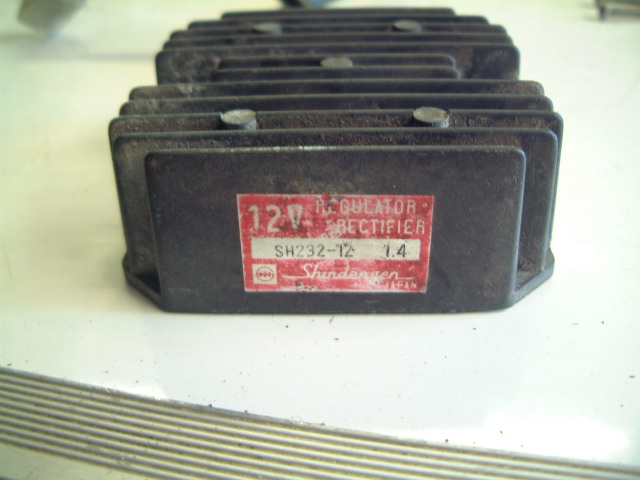

CM250 - 174

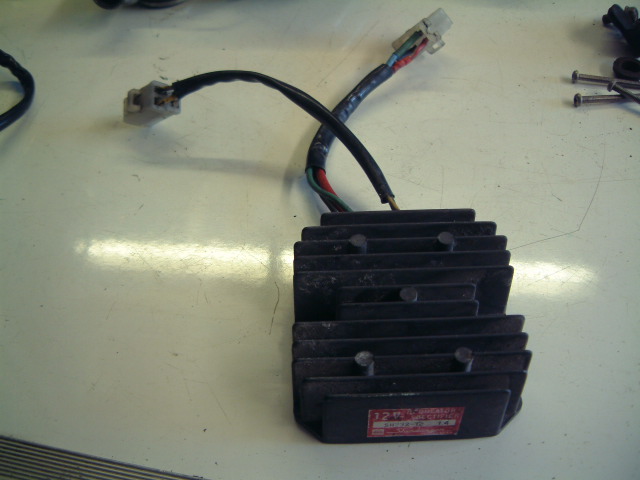

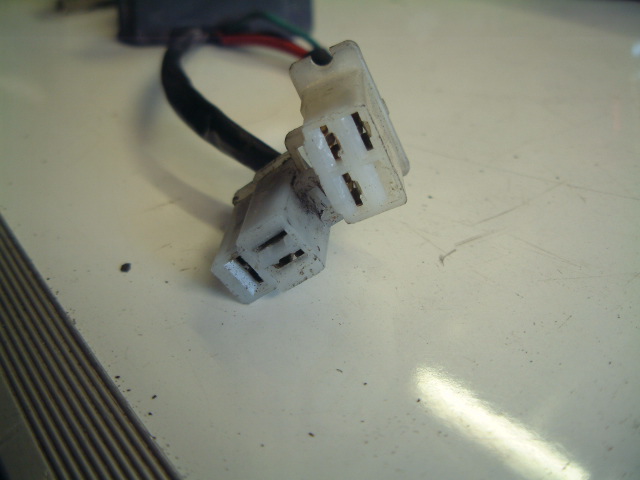

RECTIFIER / REGULATOR - SH232-12 - VERY GOOD.


ENGINE, CLUTCH, GEARBOX PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
CM250 - 092

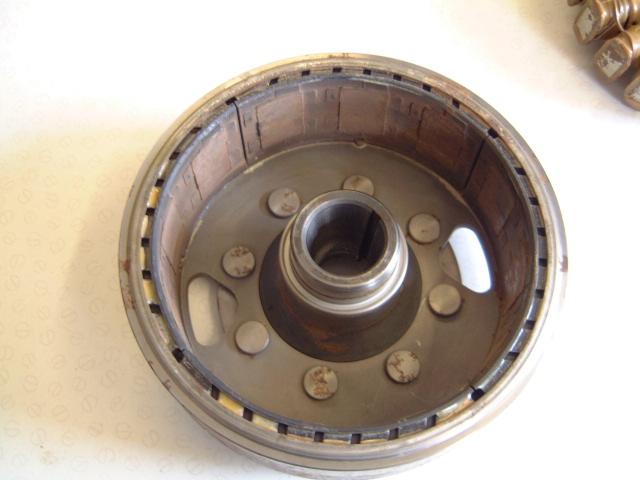

ROTOR - VERY GOOD.		 CM250 - 098

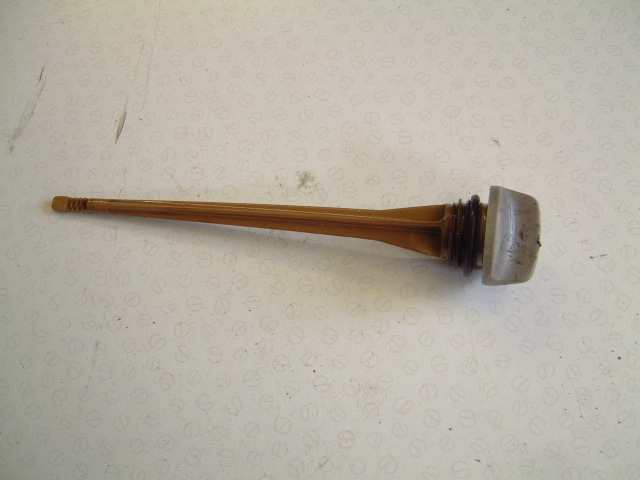

DIPSTICK - GOOD.

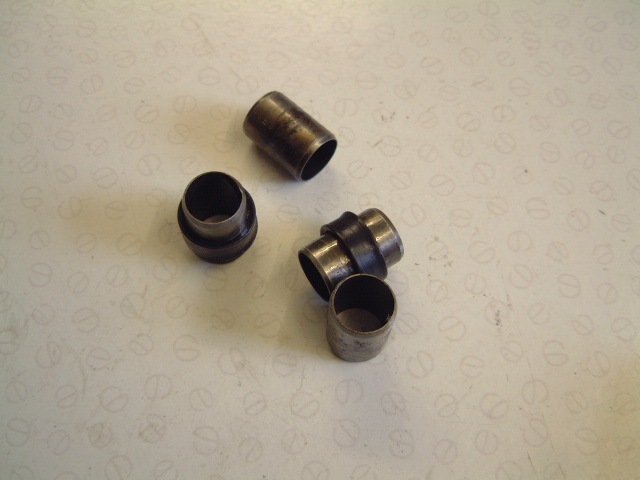

CM250 - 106
HEAD TO BARREL PEGS - GOOD.

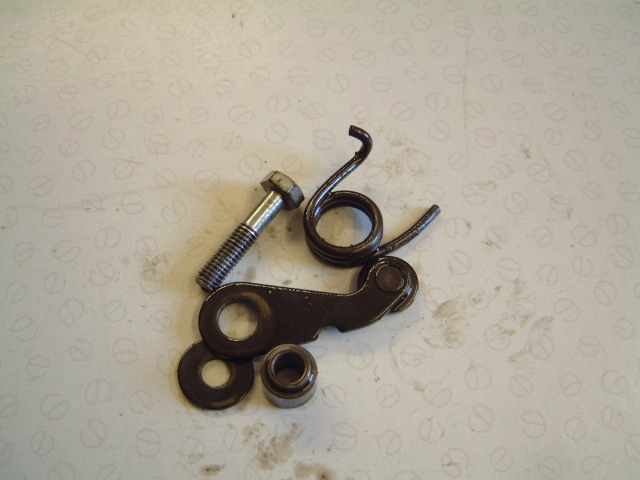

CM250 - 115
GEAR SELECTION PARTS - ALL GOOD.		 CM250 - 116

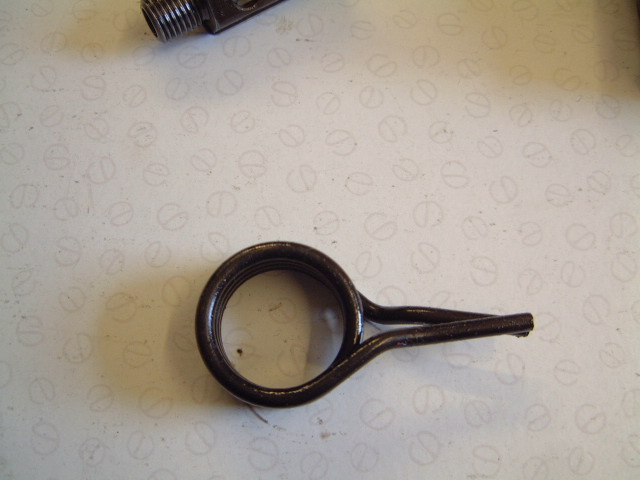

GEAR SELECTION SHAFT SPRING - GOOD.
CM250 - 118

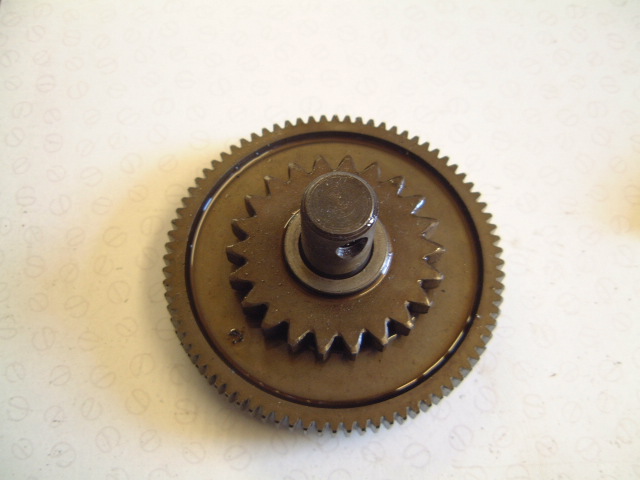

GEAR - VERY GOOD.		 CM250 - 121

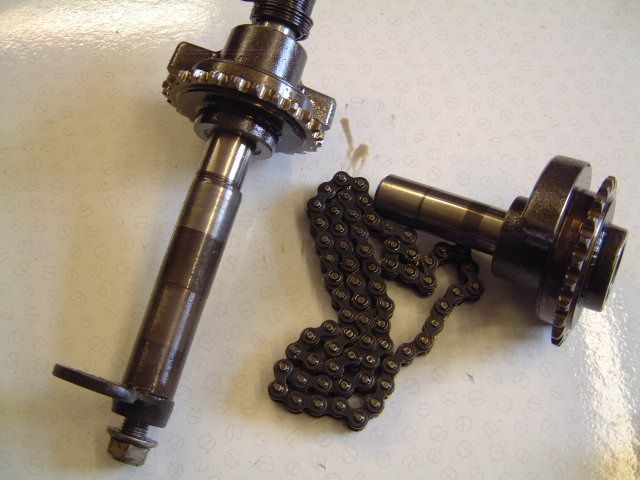

COUNTER BALANCE PARTS - ALL VERY GOOD, WILL SPLIT.

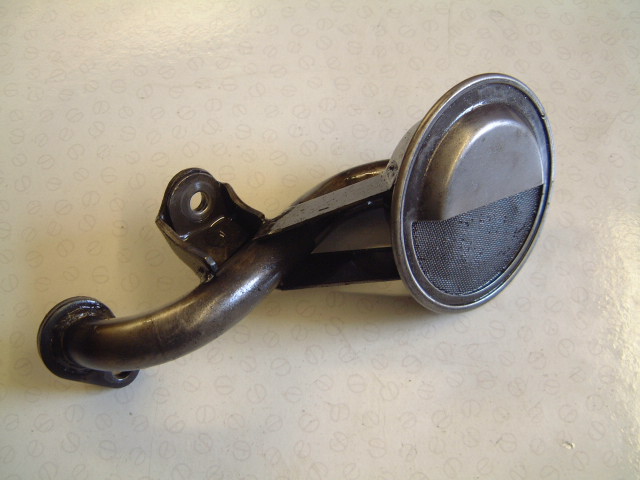

CM250 - 126
OIL PICKUP - GOOD.		 CM250 - 129

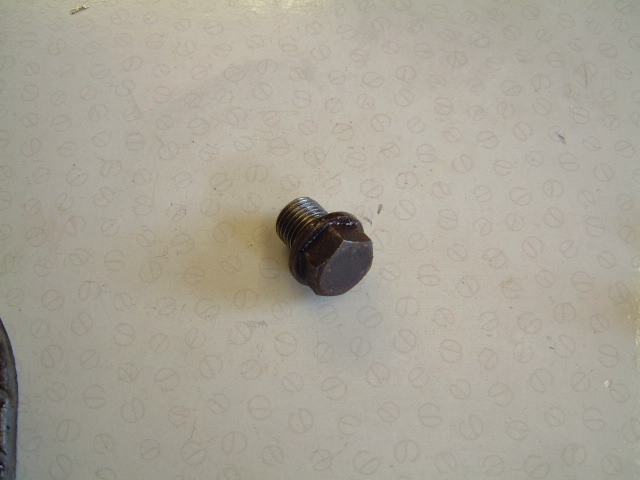

SUMP PLUG - GOOD.
CM250 - 131

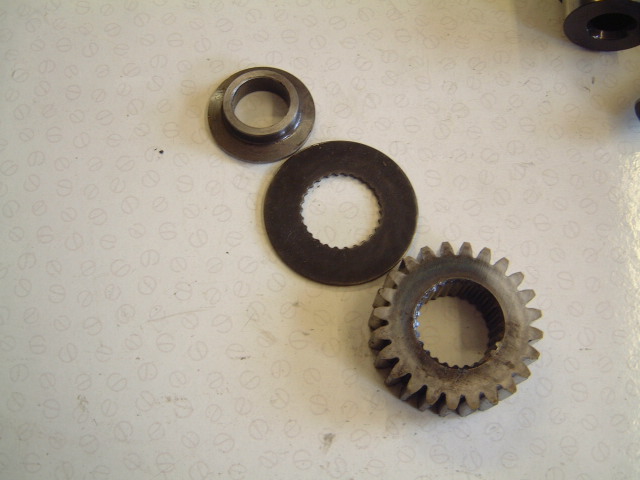

GEAR ETC - GOOD.		 CM250 - 236

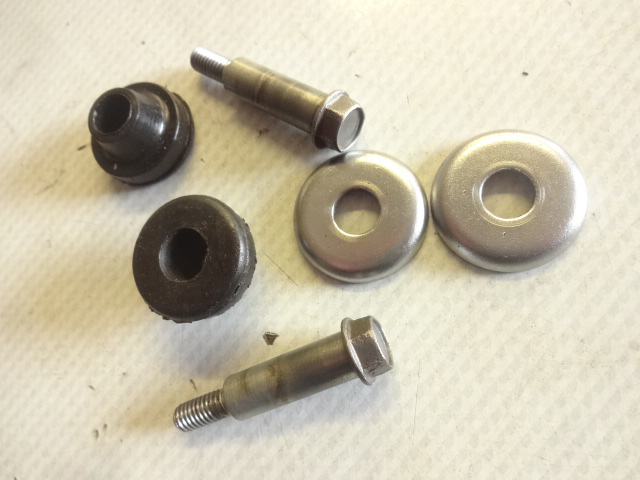

CAM COVER BOLTS ETC - GOOD, NICE CHROME.


MISCELLANEOUS PARTS:-
CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.		 CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.
CM250 - 037

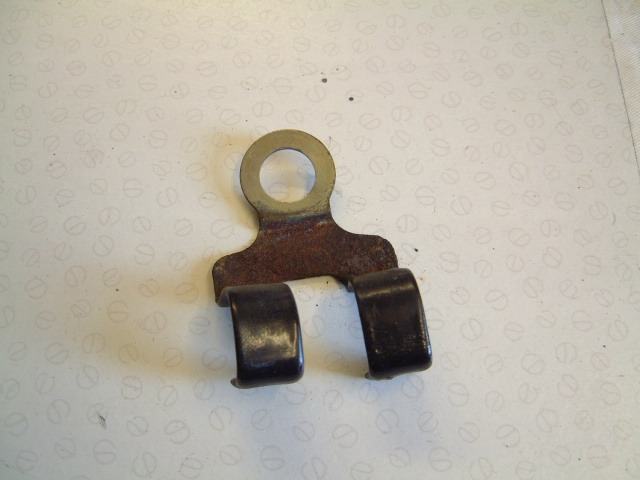

WIRING HARNESS HOLDER - GOOD.		 CM250 - 043

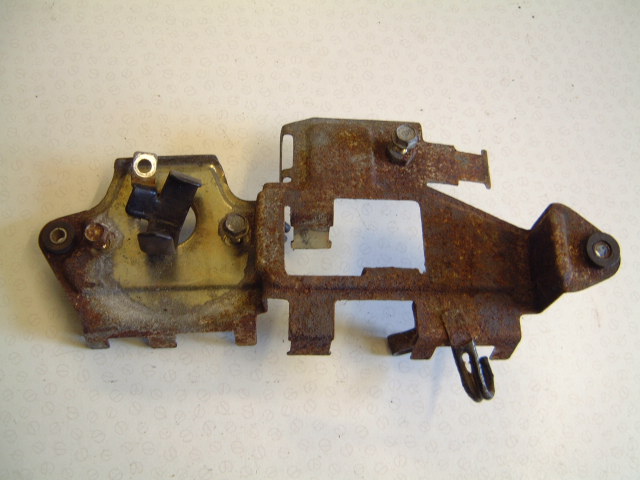

ELECTRICS MOUNTING BRACKET - SOLID, BIT RUSTY.

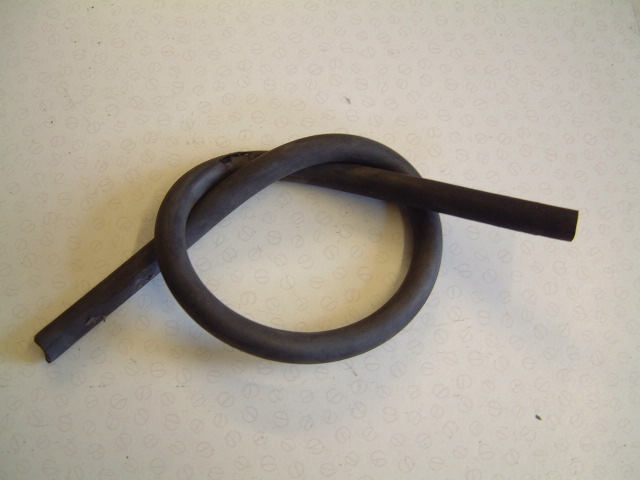

CM250 - 052
UPPER ENGINE BREATHER PIPE - GOOD, DOESN'T HAVE THE LARGER PART THAT CONNECTS TO THE ENGINE.		 CM250 - 086

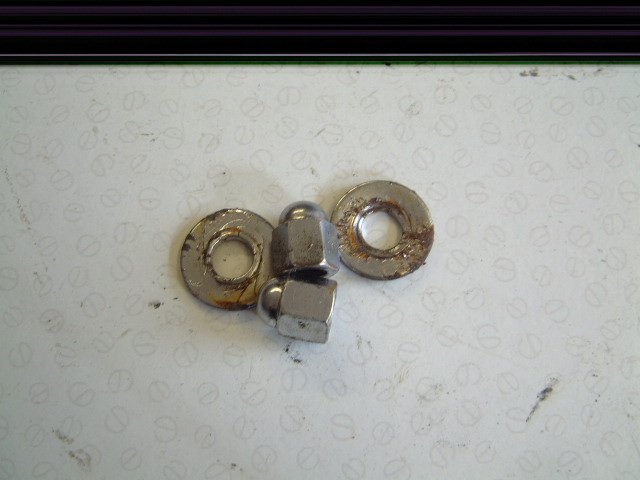

REAR SHOCK TOP NUTS & WASHERS - SERVICEABLE.
CM250 - 186

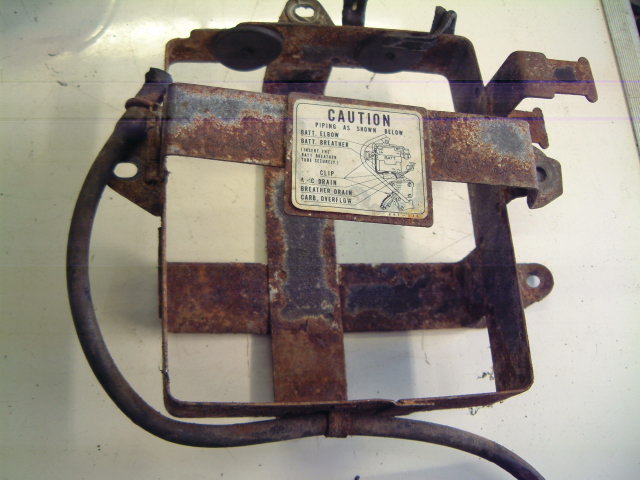

BATTERY BOX - RUSTY BUT SOLID, NEEDS PAINTING. MOST RUBBERS STILL ATTACHED.		 CM250 - 194
CLUTCH CABLE - GOOD, HAS RUBBER BOOT (this is a little tatty).
CM250 - 212

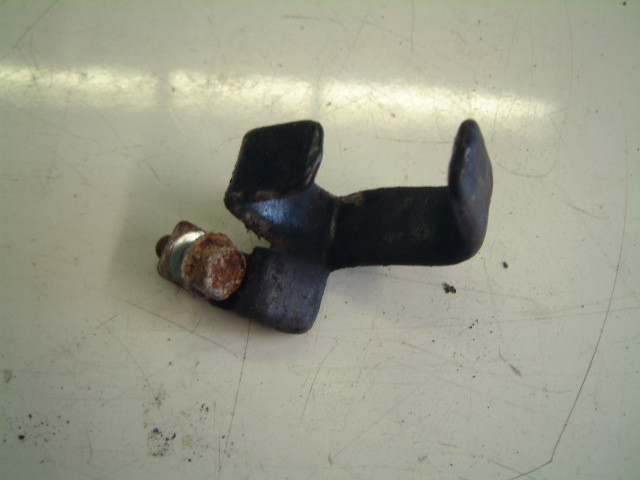

LOOM HOLDER FROM ELECTRICS BRACKETS - GOOD.		 CM250 - 213

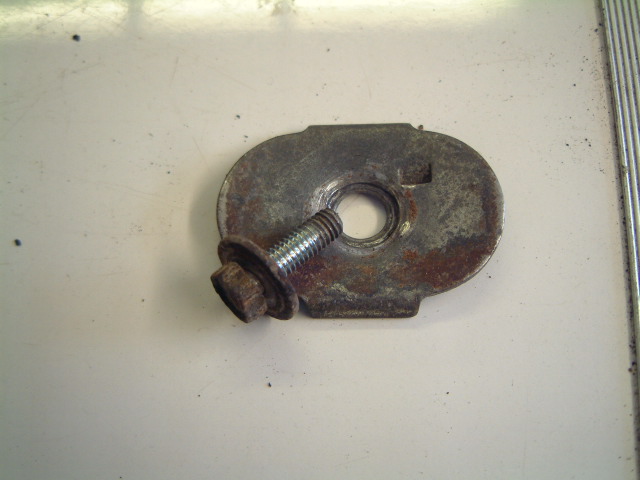

NOT SURE WHAT THIS IS ? REAR TANK HOLDER ? .

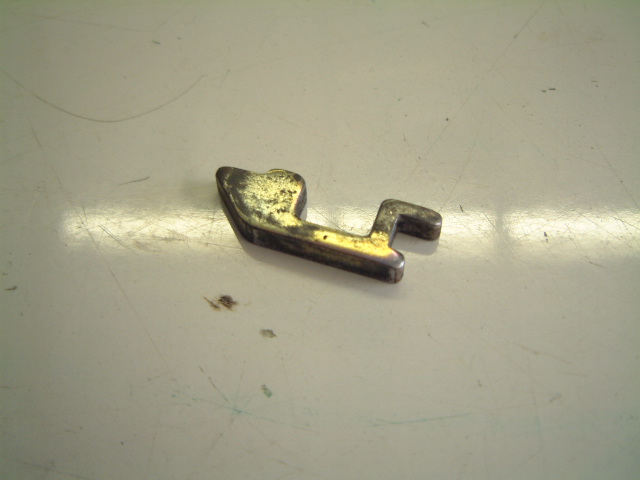

CM250 - 216
INNER PART FROM A SEAT CATCH - VERY GOOD.		 CM250 - 235

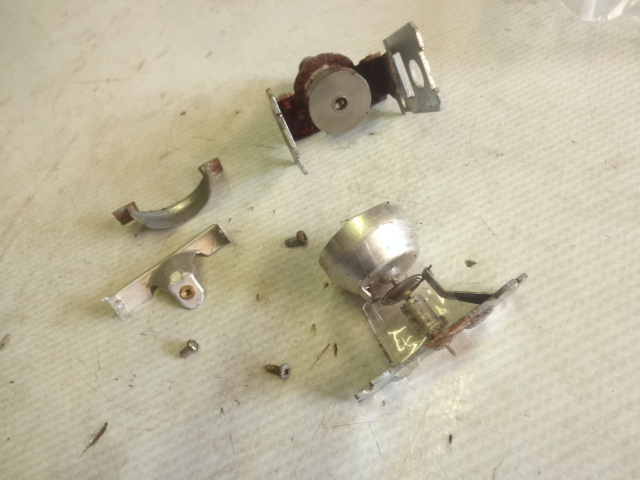

SOME PART FROM A REV COUNTER - MIGHT BE USEFUL TO SOMEONE ?.
