HI, MY NAME IS STEVE AND WELCOME TO MY HONDA CBX750FE WEB PAGE.
I HAVE BROKEN A "C" REDG 1985/6 - RC17 BIKE FOR SPARES.
I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS
TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT.
I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART. IF YOU SEE A PART YOU NEED OR HAVE ANY QUESTIONS ETC THEN PLEASE
USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE
I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.

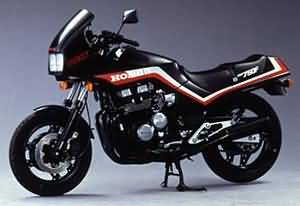

FRAME NUMBER = RC17-20151XX ~ MODEL CBX750FE.

JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS:

1 ANCILLARIES - (CLOCKS, BODYWORK, LIGHTS, MUDGUARDS ETC).

2 BRAKES AND CLUTCH - (CALIPERS, MASTER CYLINDERS & HOSES ETC).

3 FUEL, AIR, COOLING & EXHAUST - (AIRBOX, FUEL TAP + CAP, RAD, HOSES ETC)

4 RUNNING GEAR - (FRAME, SUSPENSION, BARS, FOOTRESTS, STANDS, ETC).

5 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, FUSE BOX ETC).

6 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC).

7 ENGINE - JUST A FEW ODD ENGINE PARTS.

ANCILLARY PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

CBX - 154

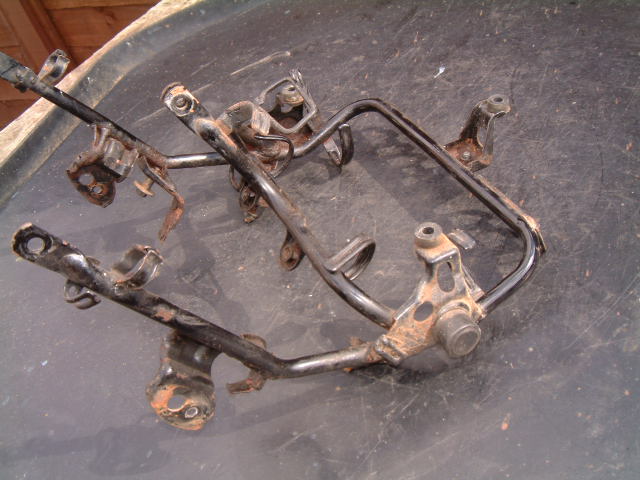

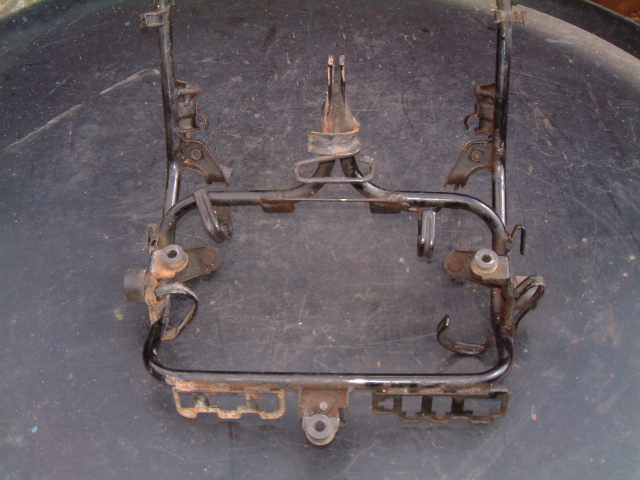

MAIN FAIRING FRAME - GOOD, STRAIGHT NOT DAMAGE OR ROT. LOTS OF THE RUBBER FIXINGS & BOLTS STILL ATTACHED.
CBX - 156

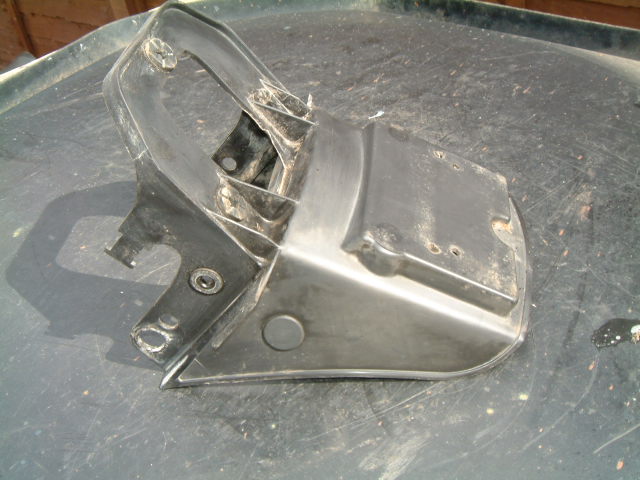

REAR MUDGUARD / TAIL LIGHT HOLDER - GOOD, NO SPLITS OR DAMAGE.

BRAKE AND CLUTCH PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

CBX - 089

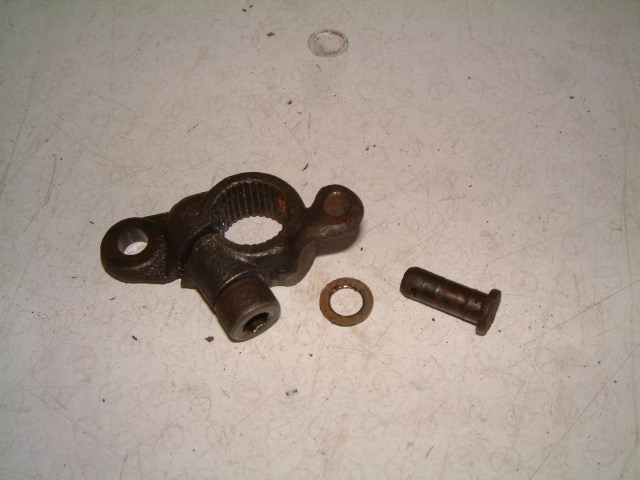

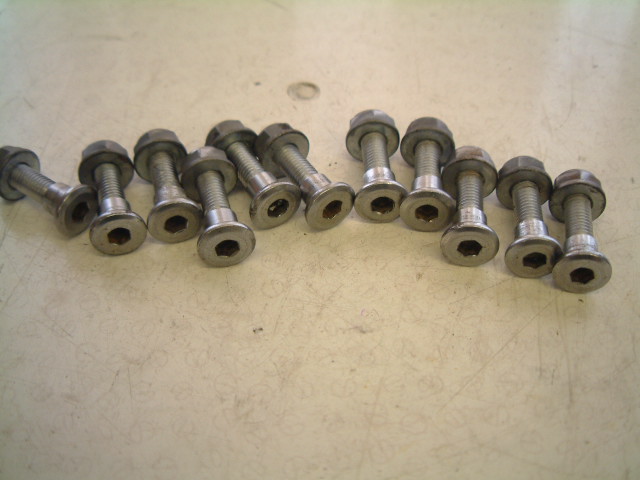

FRONT DISC SCREW AND NUTS - ALL GOOD. CBX - 125
REAR BRAKE PIVOT & PIN - SPLINES AND THREADS GOOD.
CBX - 130

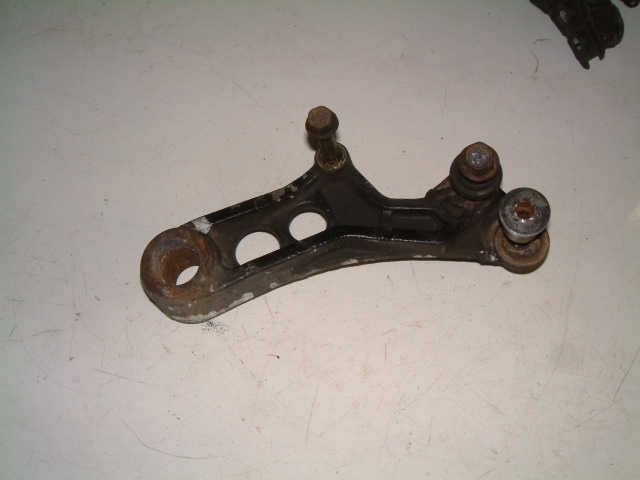

REAR BRAKE HOSE - SERVICEABLE, NOT PERISHED. CBX - 187
REAR CALIPER BRACKET & BOLTS - GOOD, JUST NEEDS A REPAINT.

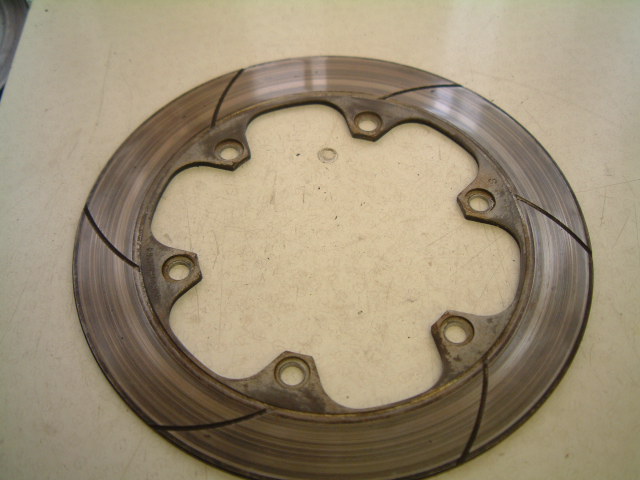

CBX - 090

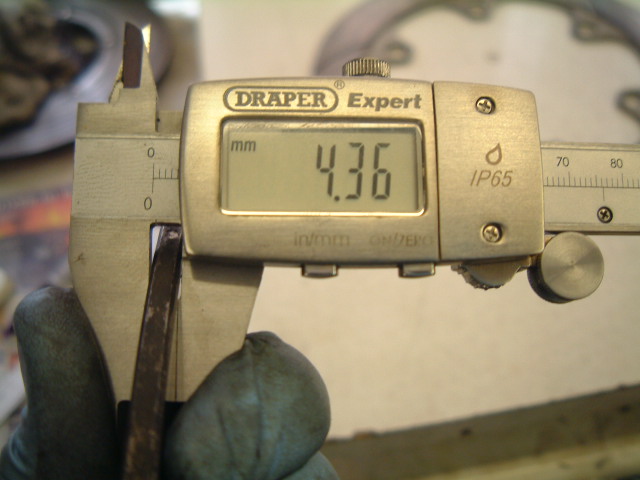

RIGHT HAND SIDE FRONT DISC - SOME POT MARKS BUT SERVICEABLE.

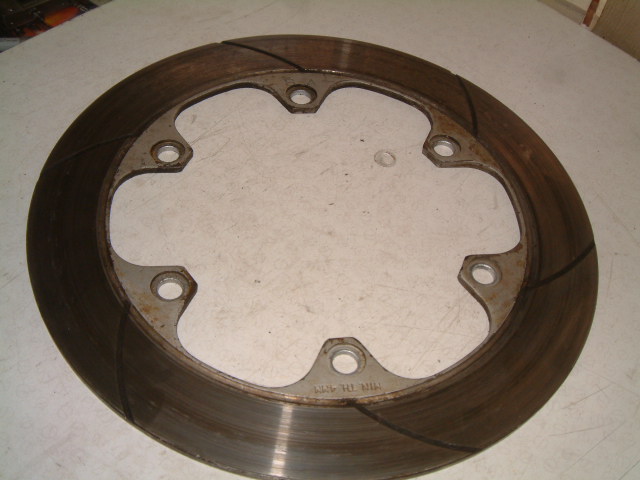

CBX - 091

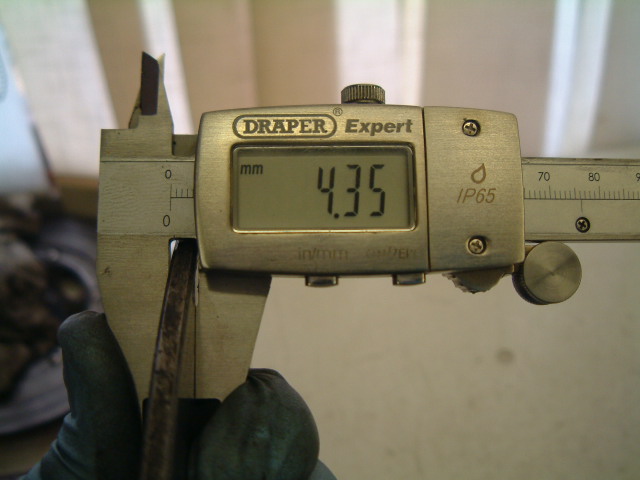

LEFT HAND SIDE FRONT DISC - SOME POT MARKS BUT SERVICEABLE.
CBX - 019

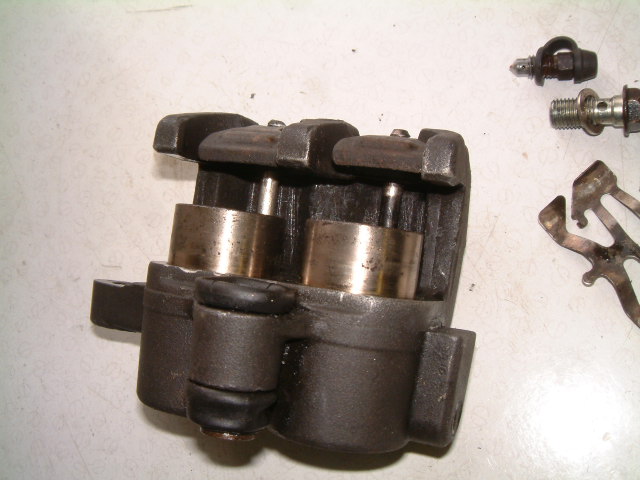

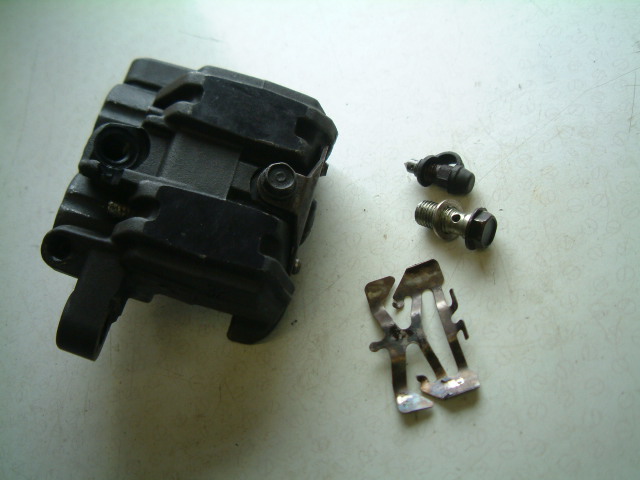

RIGHT HAND CALIPER - PISTONS NEED REPLACING THE REST IS ALL GOOD, INCLUDING THREADS AND BLEED SCREW.

FUEL, AIR, COOLING PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

CBX - 120

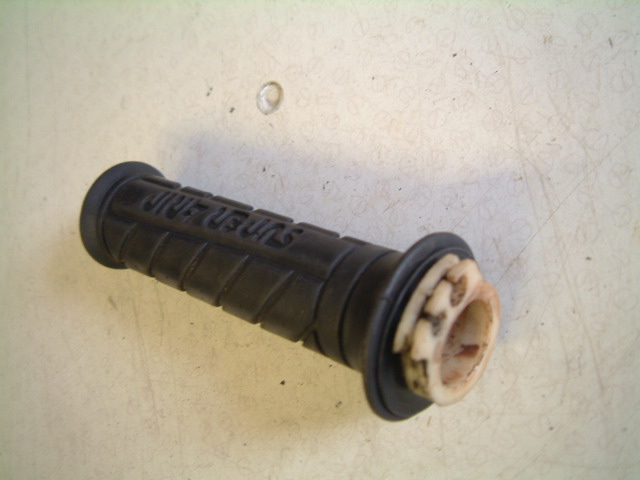

THROTTLE GRIP - GOOD. CBX - 225
LEFT RUBBER GRIP - GOOD.

RUNNING GEAR PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

CBX - 110

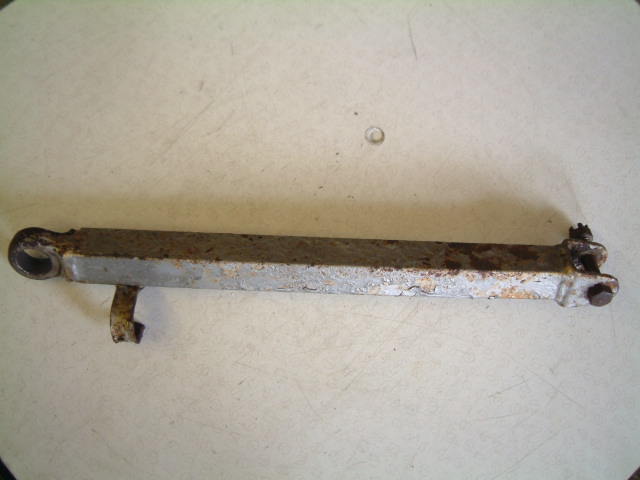

TORQUE ARM - SOLID, NEEDS STRIP AND PAINT.
CBX - 127

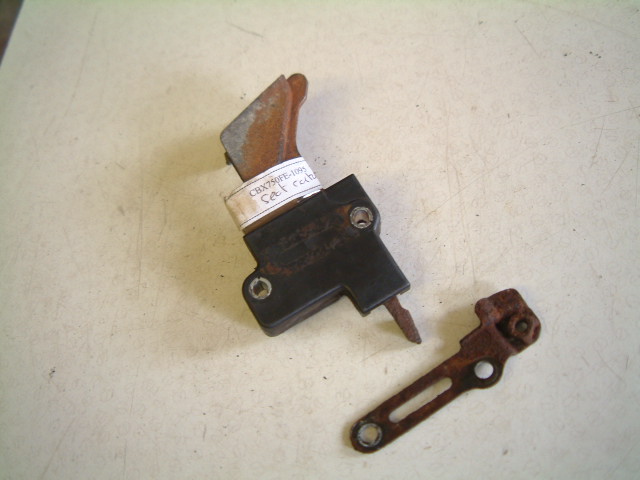

SEAT CATCH - RUSTY BUT SERVICEABLE. CBX - 133

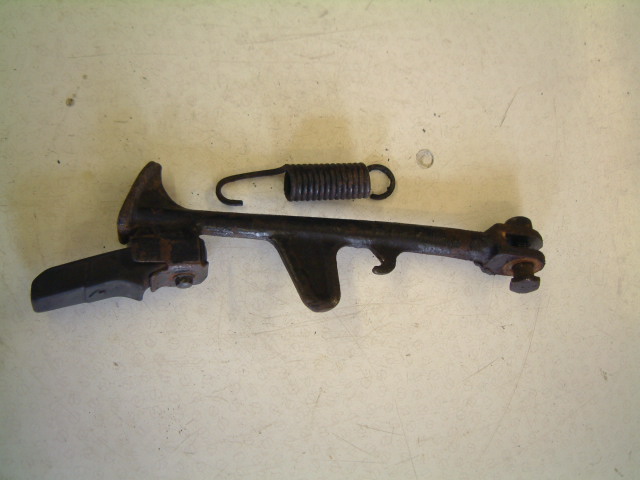

SIDE STAND - NEEDS PAINT.
CBX - 186

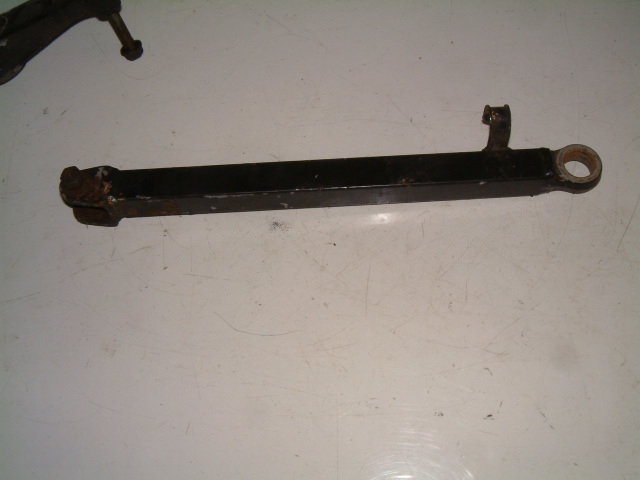

TORQUE ARM - SOLID & STRAIGHT, NEEDS PAINT. CBX - 215

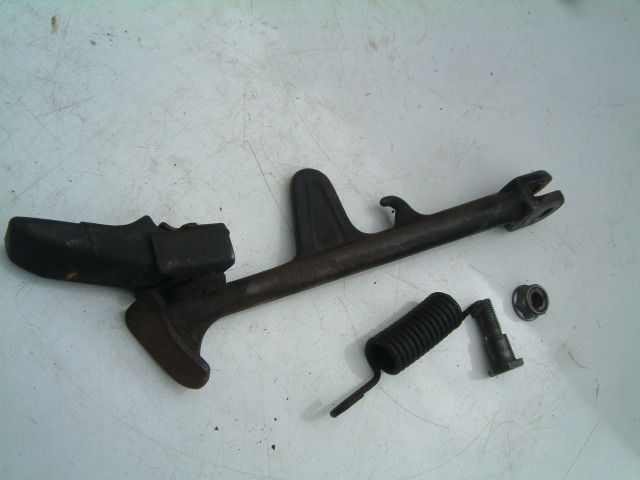

SIDE STAND - VERY GOOD INCLUDING THE RUBBER.

CBX - 082

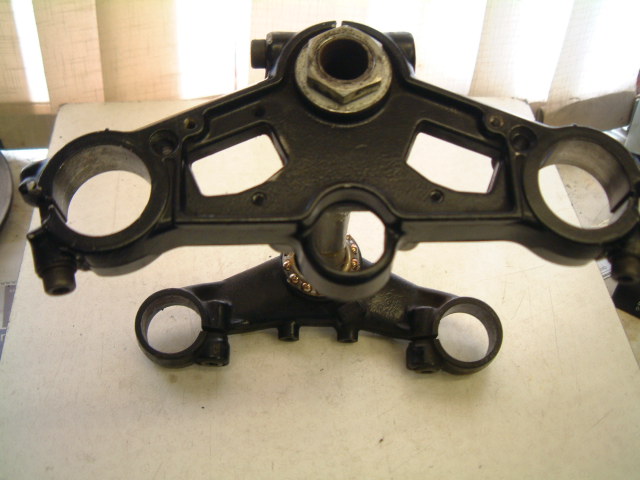

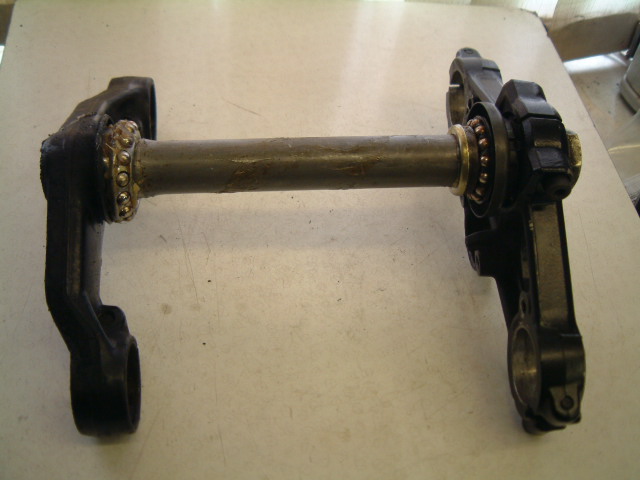

YOKES - COMPLETE AND ALL VERY GOOD.

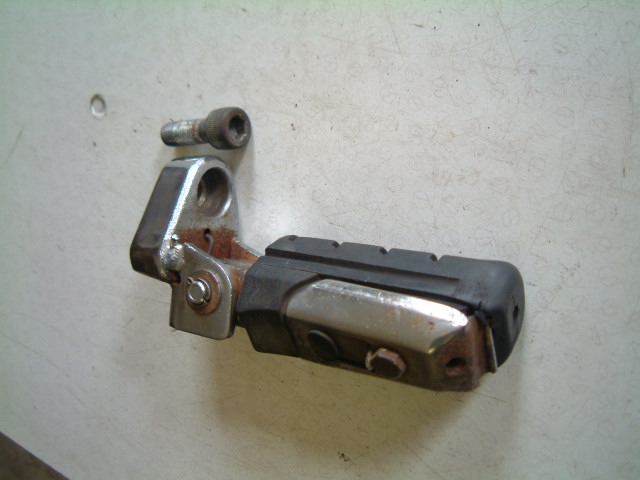

CBX - 114

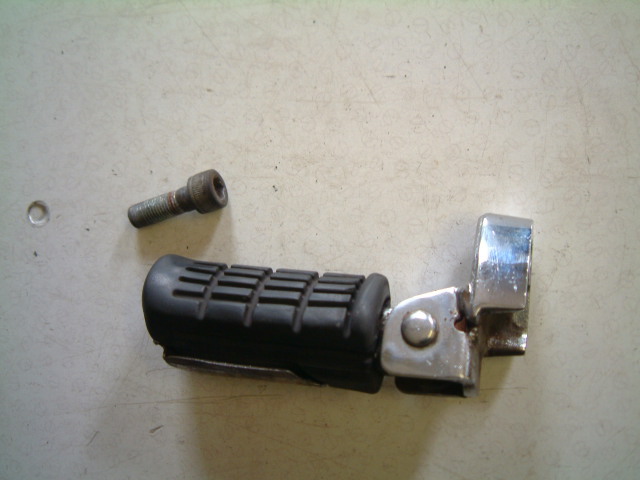

RIGHT HAND SIDE FRONT PEG - GOOD, CHROME OK, RUSTY INSIDE.

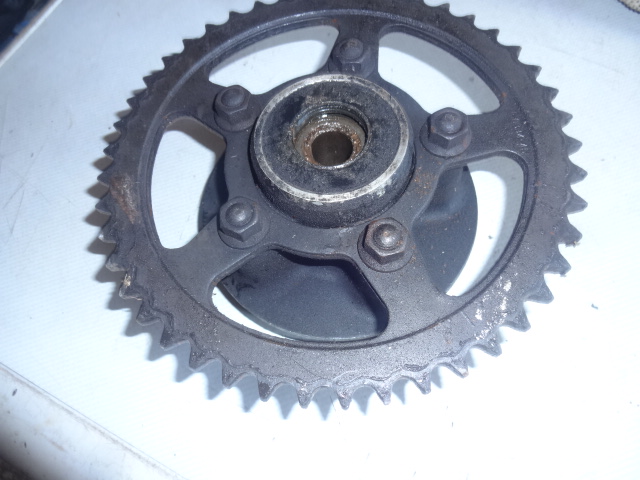

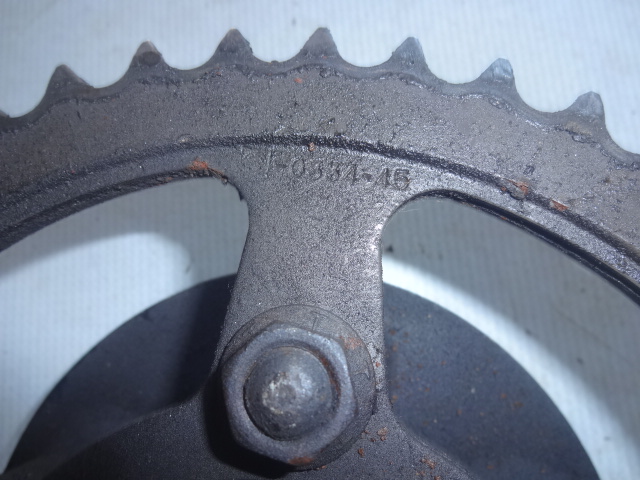

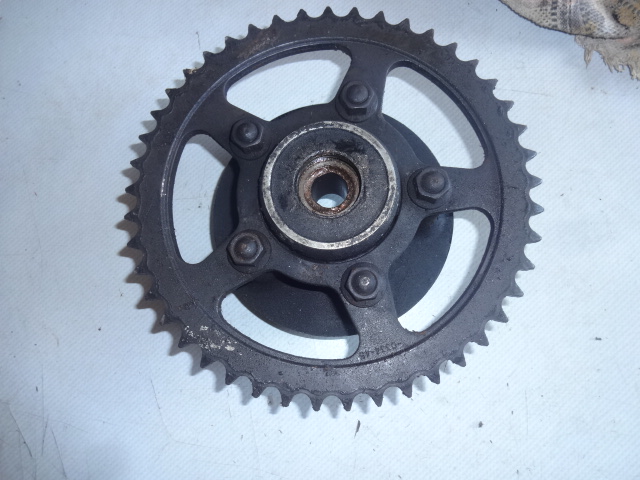

CBX - 261

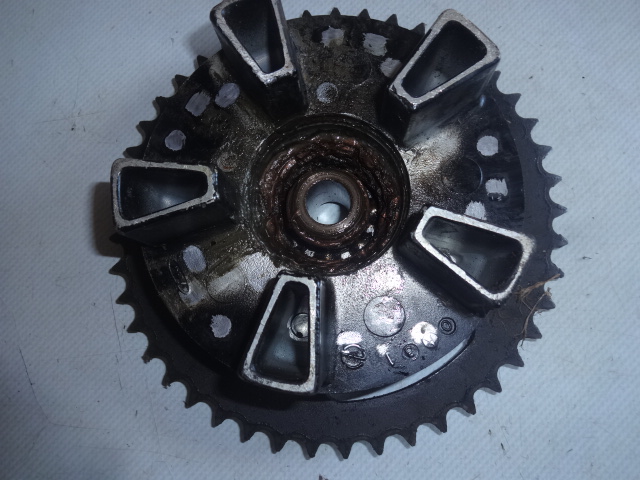

REAR WHEEL CENTRE / HUB & SPROCKET - GOOD.

BEARING GOOD & WELL GREASED, SPROCKET HAS SOME LIFE LEFT.

ELECTRICAL PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

CBX - 008

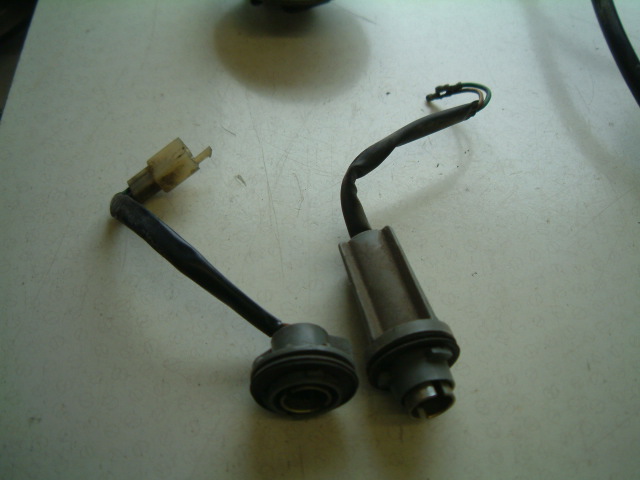

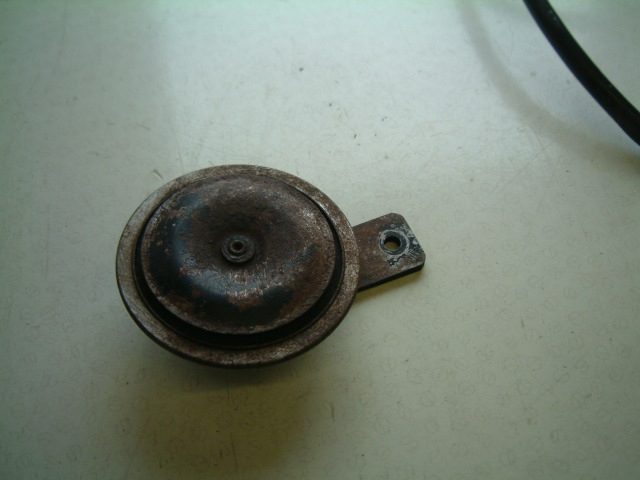

TAIL LIGHT BULB HOLDER - VERY GOOD. CBX - 009
HORN - TESTED, GOOD, NEEDS PAINT.
CBX - 014

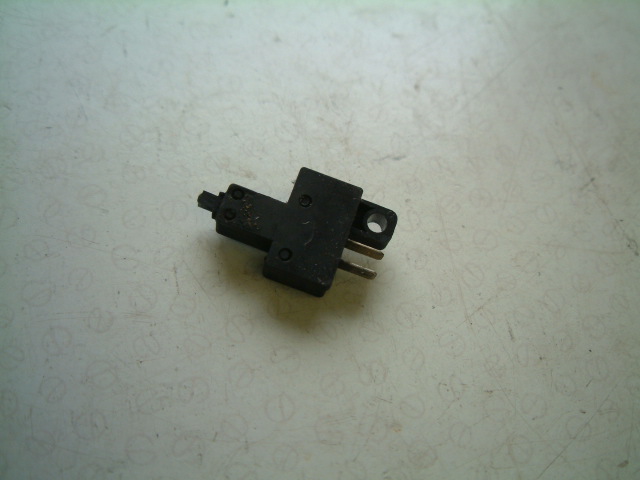

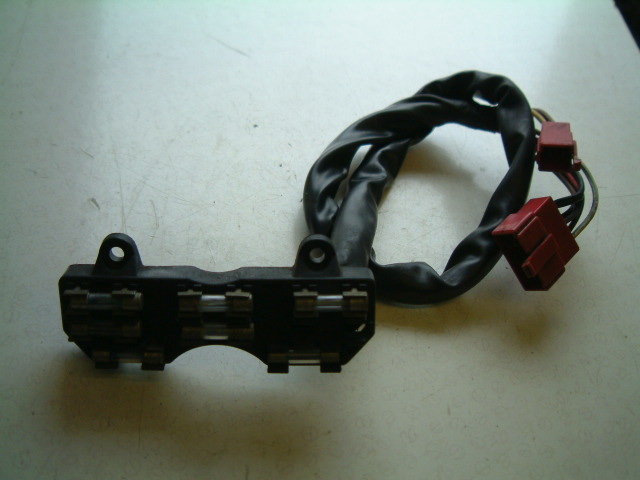

FUSE HOLDER - VERY GOOD. CBX - 030
CLUTCH SWITCH - TESTED.
CBX - 033

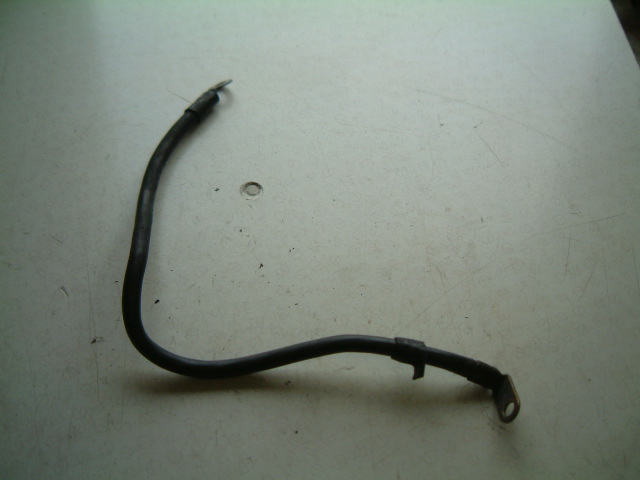

EARTH LEAD - GOOD. CBX - 056

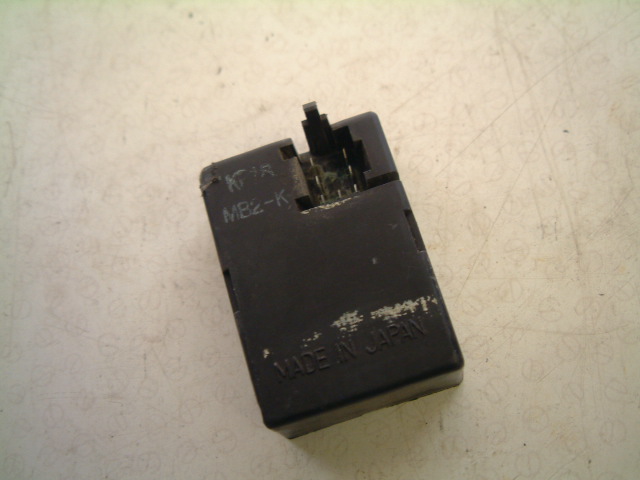

BULB FAILURE RELAY - 7-PIN.

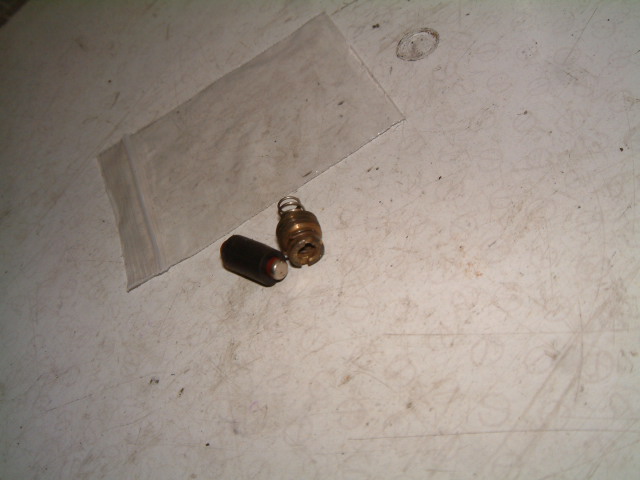

CBX - 106
HT CAP INNER - SERVICEABLE. CBX - 121

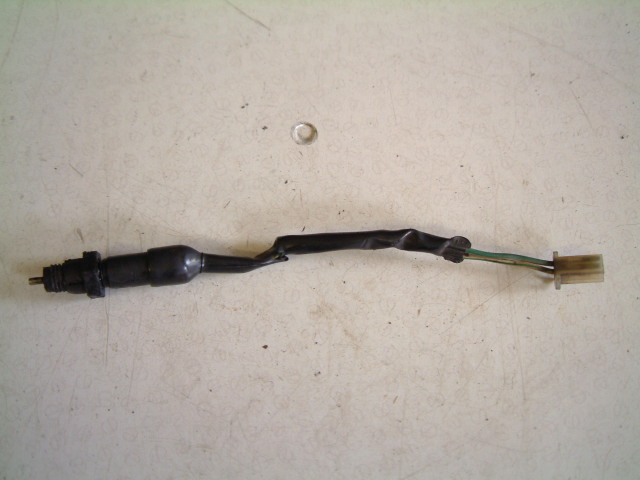

REAR BRAKE SWITCH - TESTED, GOOD.
CBX - 173

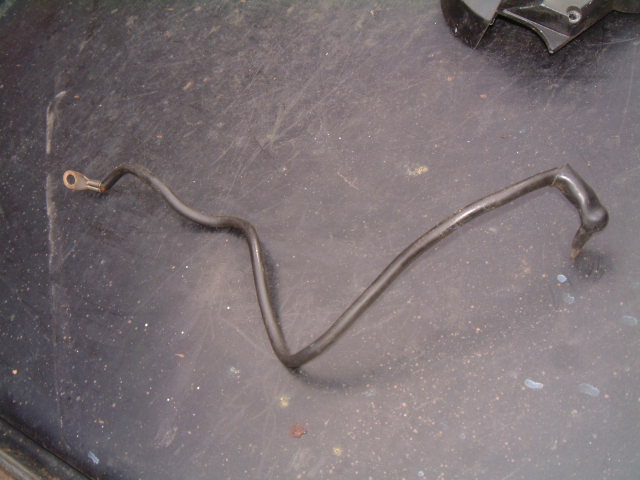

STARTER MOTOR LEAD - VERY GOOD - 51CM.

MISCELLANEOUS PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

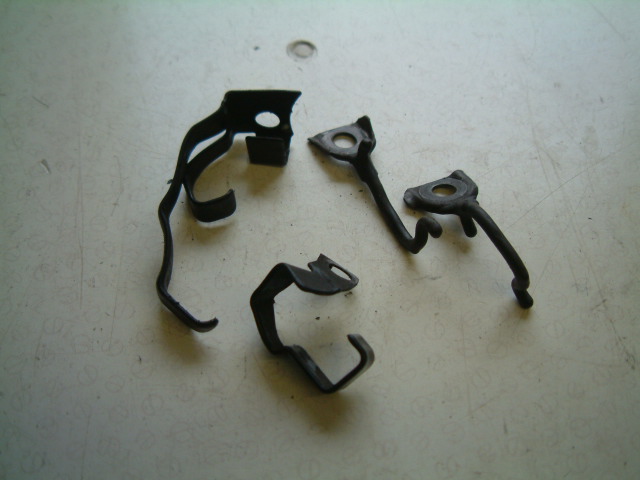

CBX - 031

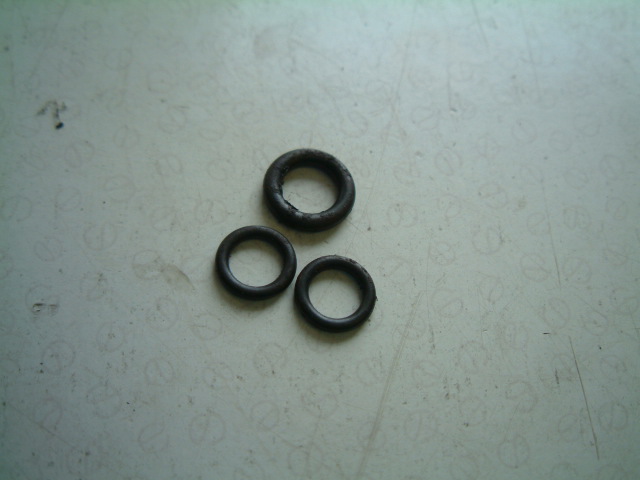

CABLE/WIRING GUIDES, FRONT TOP YOKE - GOOD. CBX - 034
A COUPLE OF OIL PIPE SEALS TO FRAME - SERVICEABLE.
CBX - 105
SOLENOID RUBBER - GOOD. CBX - 117

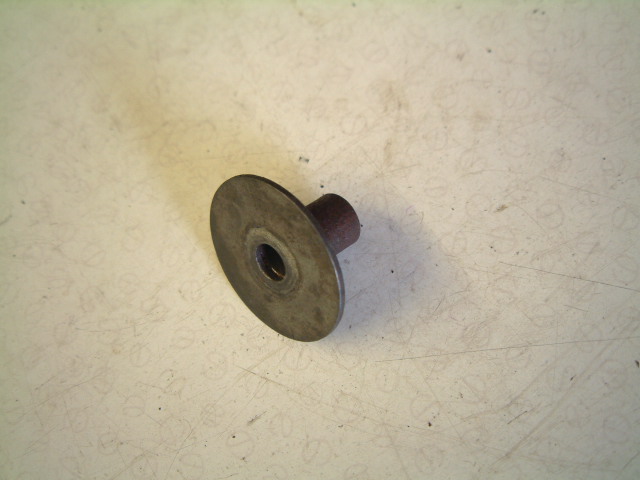

UNKNOWN SPACER - GOOD.
CBX - 205

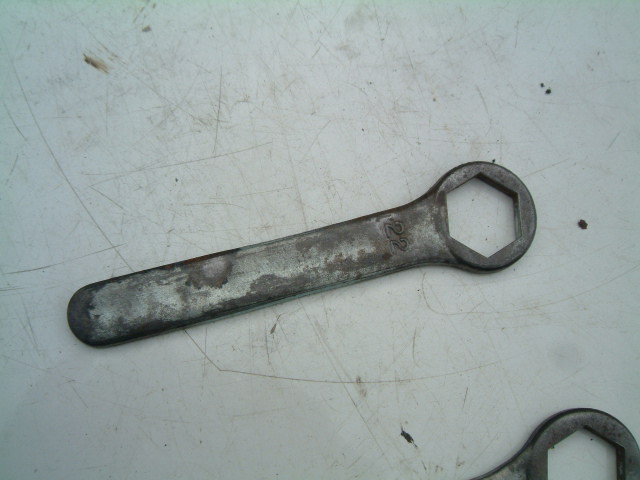

22 MM SPANNER FROM TOOL KIT - GOOD, LOOKS UNUSED, FINISH TARNISHED. CBX - 206

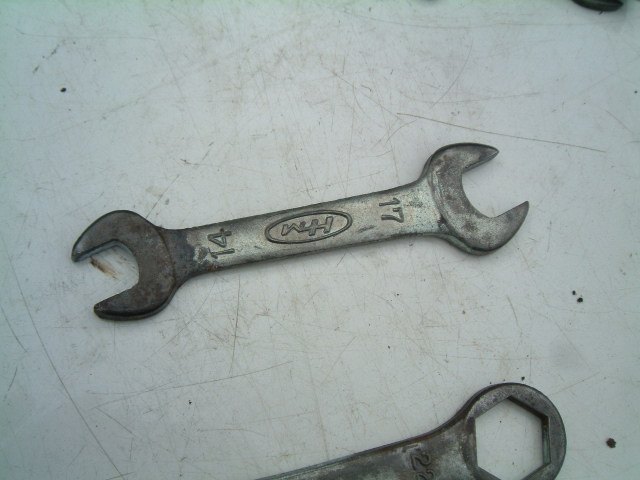

17 / 14 MM SPANNER FROM TOOL KIT - GOOD, LOOKS UNUSED, FINISH TARNISHED.

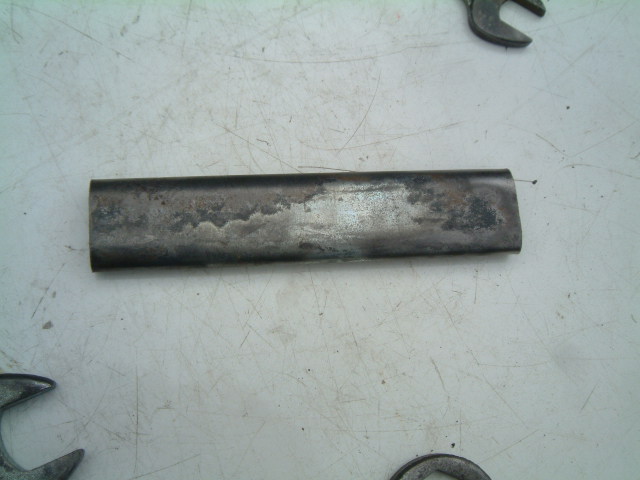

CBX - 208
SPANNER EXTENSION FROM TOOL KIT - GOOD, LOOKS UNUSED, FINISH TARNISHED. CBX - 218
LEFT SEAT CATCH - WORKING OK, FINISH A TATTY.
CBX - 231

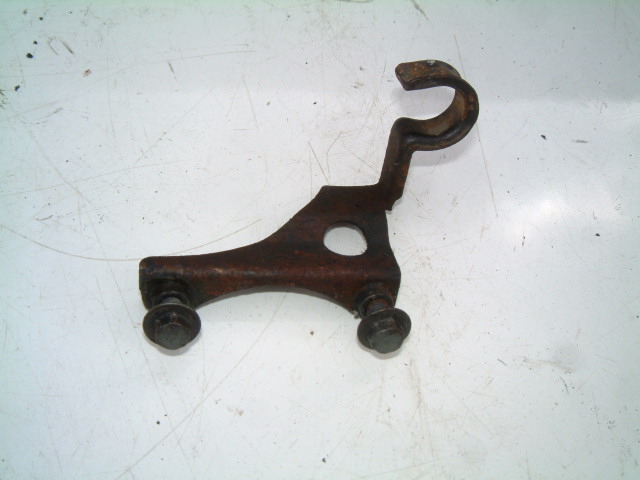

BRAKE HOSE HOLDER - SOLID, NEEDS PAINT.
CBX - 248

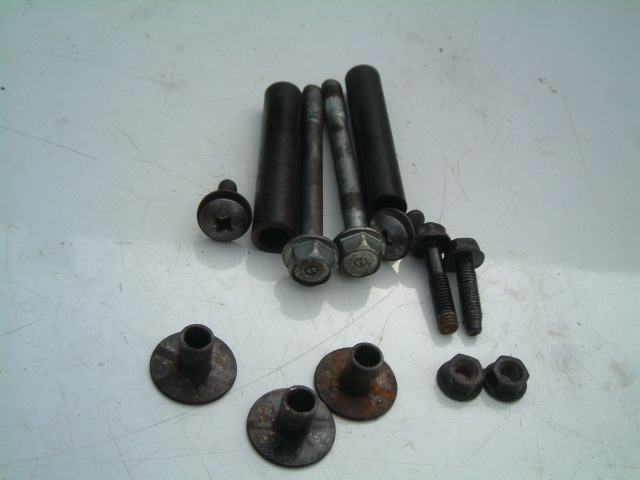

SOME VARIOUS FAIRING FIXINGS - GOOD CBX - 249
TWO LARGE INSERTS - VERY GOOD, NOT SURE WHERE THESE ARE FROM.

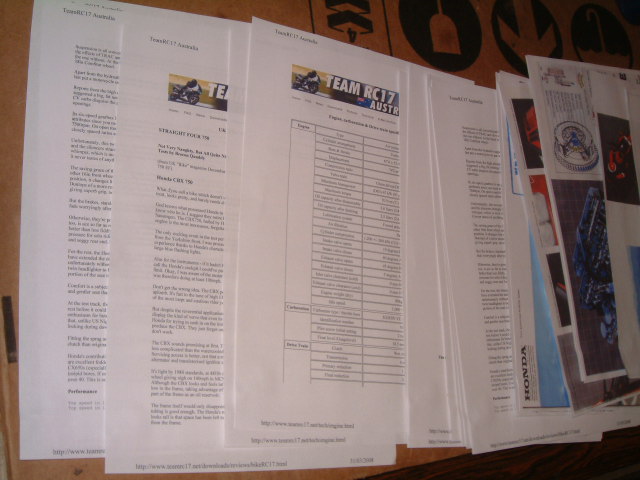

CBX - 149
A COLLECTION OF APPROX 30 PAGES OF REVIEWS, PHOTO'S ABOUT THE BIKE.

ENGINE PARTS:-

CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS. CLICK ON PICTURES TO ENLARGE. PART No.
PART / DESCRIPTION / DETAILS.

CBX - 195
CAMSHAFT COVER SEAL - GOOD.

CBX - 167

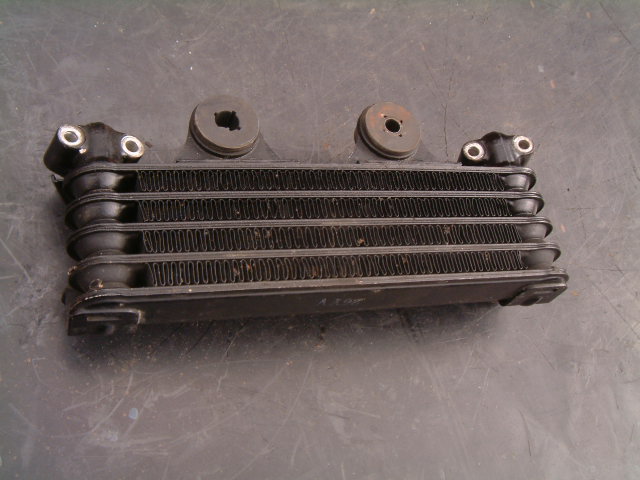

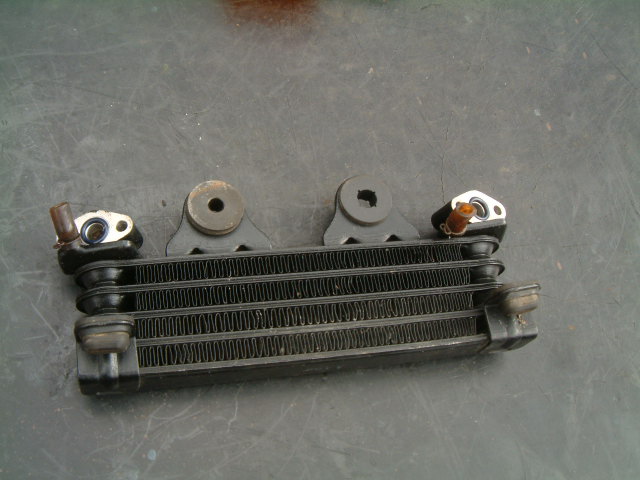

OIL COOLER - VERY GOOD.

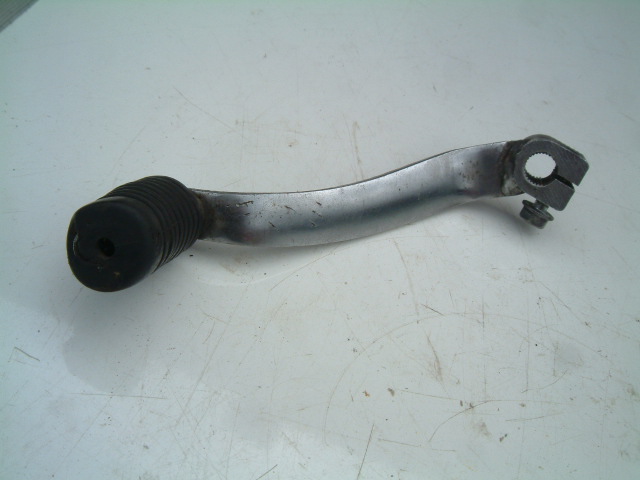

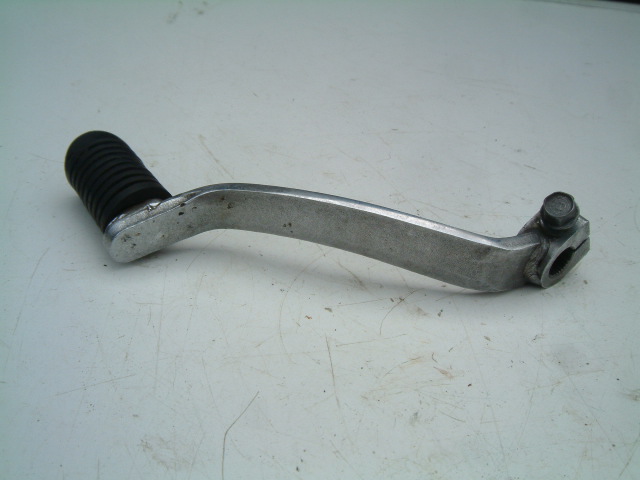

CBX - 217
GEAR CHANGE / SHIFT LEVER - GOOD BUT HAS A FEW MARKS ON IT, RUBBER HAS A NICK IN IT.

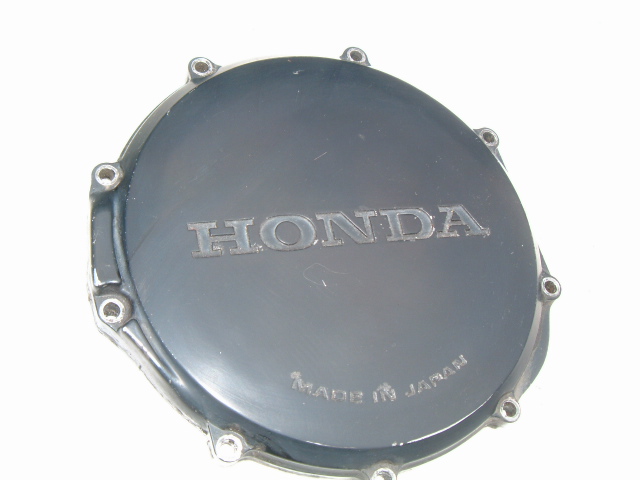

CBX - 227

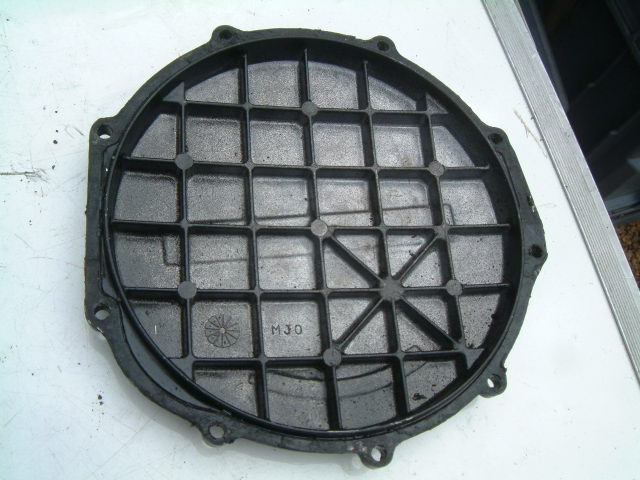

CLUTCH CASING - VERY GOOD, NO DAMAGE AND NICE FINISH.
