HI, MY NAME IS STEVE AND WELCOME TO MY HONDA VF750F WEB PAGE. I HAVE BROKEN TWO VF750F's FOR SPARES. A 1985/6 BIKE ON THIS PAGE AND A 1986 "C" REDG BIKE ON ANOTHER PAGE, CLICK THE LINK BELOW TO VIEW THE OTHER PAGE. I HAVE PHOTOGRAPHED ALL THE PARTS AND PUT THEM INTO DIFFERENT SECTIONS TO HELP IN FINDING ANY BITS YOU MIGHT WANT FOR YOUR BIKE/RESTORATION PROJECT. I HAVE ALSO INCLUDED DETAILS OF THE CONDITION OF EACH PART. IF YOU SEE A PART YOU WANT OR HAVE ANY QUESTIONS ETC THEN PLEASE USE THE E-MAIL ADDRESS SHOWN AT THE TOP LEFT OF THIS PAGE. I HOPE YOU CAN FIND SOMETHING YOU CAN USE AND THANKS FOR LOOKING.
|
| JUMP TO A PARTS SECTION USING LINKS BELOW OR SCROLL DOWN TO VIEW ALL PARTS: |
| 1 ANCILLARIES - (CLOCKS, BODYWORK, MUDGUARDS, LIGHTS, ETC). |
| 2 FUEL, AIR AND COOLING - (AIR INTAKE, RADIATOR ETC). |
| 3 RUNNING GEAR - (FRAME, SUSPENSION, BARS, BRAKES, FOOTRESTS, STANDS, ETC). |
| 4 ELECTRICAL PARTS - (RECTIFIER, REGULATOR, RELAYS, CDI, SWITCHES, WIRING, HORN ETC). |
| 5 ENGINE, CLUTCH AND GEARBOX PARTS - |
| 6 MISCELLANEOUS - (EVERYTHING NOT COVERED IN THE ABOVE SECTIONS I.E. CABLES, RUBBER PARTS, ODD BRACKETS, ETC). |
| TO VIEW THE PARTS I HAVE FROM THE OTHER VF750F, CLICK --->>> > HERE << |
| ANCILLARY PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
A - 019 RIGHT HAND REAR INDICATOR - TESTED, BRACKET BIT TATTY. |
 |
A - 020 INDICATOR LENS - GOOD. |
 |
A - 042 LEFT HAND RAIL - GOOD. |
 |
A - 043 RIGHT HAND RAIL - GOOD. |
 |
 |
A - 011 TAIL LIGHT & BULB HOLDER - VERY GOOD. |
 |
 |
A - 152 CHAIN GUARD - GOOD, NO DAMAGE OR SPLITS ETC. |
 |
 |
 |
 |
VF750F-146 FAIRING - HAS SOME PLASTECH REPAIRS, 100% SOLID, NEEDS A LITTLE FINISHING FILLER AND RE-PAINT. |
| FUEL, AIR, COOLING PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
A - 014 WATER BOTTLE RETAINING BRACKET - GOOD. |
 |
A - 029 UNDER SEAT COOLANT TANK - GOOD. |
 |
A - 030 LEFT HAND SIDE COOLANT TANK - GOOD. |
 |
A - 050 RIGHT HAND RADIATOR END COVER - GOOD. |
 |
A - 055 COOLANT PIPE - RE-USEABLE. |
 |
A - 058 COOLANT PIPE - RE-USEABLE. |
 |
A - 052 RAD TO THERMOSTAT COOLANT PIPE, - GOOD/RE-USEABLE. |
 |
A - 065 COOLANT PIPE - RE-USEABLE. |
 |
A - 066 COOLANT PIPE - RE-USEABLE. |
| RUNNING GEAR PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
A - 032 FRONT RIGHT HAND FOOT REST BRACKET - NICE. |
 |
A - 034 REAR BRAKE PEDAL & SPRING - GOOD. |
 |
A - 040 REAR BRAKE CALLIPER MOUNT BRACKET - GOOD. |
 |
A - 047 LEFT HAND FRONT FOOT REST BRACKET - GOOD. |
 |
A - 089 RIGHT HAND HANDLE BAR - STRAIGHT - GOOD. WITH LOCATING PEG STILL INTACT. |
 |
A - 094 REAR WHEEL NUT - THREADS GOOD. |
 |
A - 095 REAR WHEEL SPACER - LEFT SIDE. |
 |
A - 096 SIDE STAND, SPRING AND RUBBER - GOOD. |
 |
A - 139 SET OF FRONT DISC BOLTS & NUTS - GOOD. |
||
 |
A - 142 BOTTOM YOKE WITH BEARING, RETAINING NUTS/WASHERS ETC - ALL VERY GOOD, WILL SPLIT. |
 |
A - 143 FRONT FORKS BALANCE PIPE AND CLAMPS/SEALS - ALL GOOD. |
 |
A - 144 TOP YOKE - GOOD. |
 |
A - 184 REAR BRAKE HOSE - GOOD, NO PERISHING. |
 |
 |

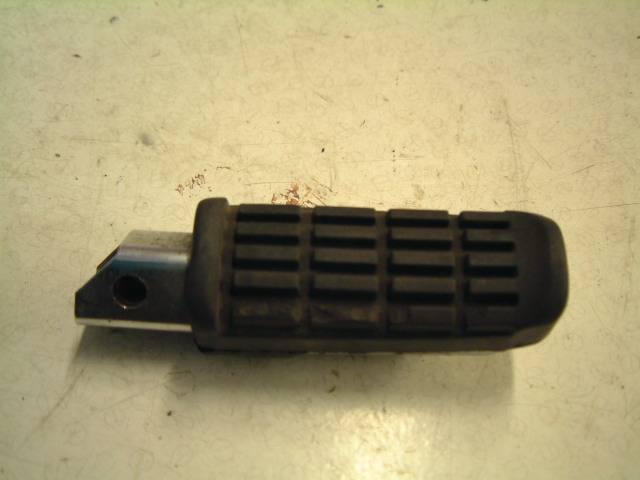

A - 012 FRONT RHS FOOT REST - GOOD, CHROME OK, RUBBER GOOD. SOME SCUFFS UNDERNEATH. |
 |
 |
A - 158 RHS HANDLEBAR - STRAIGHT - GOOD. WITH LOCATING PEG STILL INTACT. |
| ELECTRICAL PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
A - 023 ROUND RELAY (?) - IN RUBBER SLEEVE. |
 |
A - 025 ZENOR DIODE. |
 |
A - 039 RIGHT-HAND SWITCHGEAR - FOR SPARES ONLY, WIRES MISSING. |
 |
A - 053 SINGLE RADIATOR FAN UNIT (One of a pair) - TESTED. |
 |
A - 076 BATTERY - STARTER MOTOR LEAD. |
 |
A - 110 NEUTRAL SWITCH COMPLETE - TESTED. |
 |
A - 111 BATTERY - EARTH LEAD. |
| ENGINE, CLUTCH, GEARBOX PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
A - 072 CLUTCH TO CRANK GEAR - VERY GOOD. |
 |
A - 074 SUMP OIL BOLT. |
 |
A - 077 EXTERNAL OIL PIPES AND BANJO'S - VERY GOOD. |
 |
A - 080 CAM COVER BOLTS SET - EXCELLENT CHROME. |
 |
A - 082 OIL PIPES AND GUIDES - VERY GOOD. |
 |
A - 085 INLET CAMSHAFT CLAMPS & BOLTS, (FROM FRONT) - GOOD. |
 |
A - 107 VARIOUS GEAR SELECTION PARTS - VERY GOOD. |
 |
A - 108 COMPLETE CLUTCH - LOOKS GOOD. |
 |
A - 113 VARIOUS ENGINE PARTS. |
 |
A - 114 SUMP - VERY GOOD UNDAMAGED. |
 |
A - 115 ALTERNATOR ROTOR - VERY GOOD.(BOLT SOLD). |
 |
A - 117 ENGINE BOLTS - GOOD. WILL SPLIT. |
 |
A - 118 GEAR CLUSTER - ALL EXCELLENT. |
 |
A - 120 CLUTCH PUSH ROD. |
 |

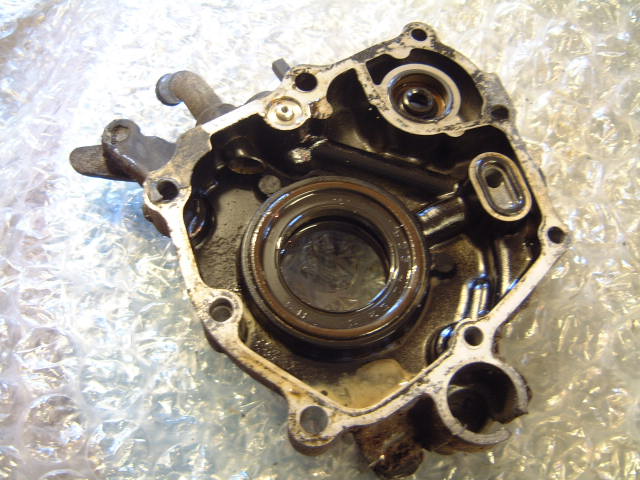

A - 128 ENGINE CASING AROUND FRONT SPROCKET - GOOD UNDAMAGED. |
||
 |
A - 129 MAIN GEAR CLUSTER - VERY GOOD NO SIGN OF ANY DAMAGE. |
 |
A - 175 VALVES SPRINGS, WASHERS ETC - ALL GOOD SERVICEABLE PARTS. ONE HEAD SET SHOWN BUT I HAVE BOTH SETS, WILL SPLIT. |
 |

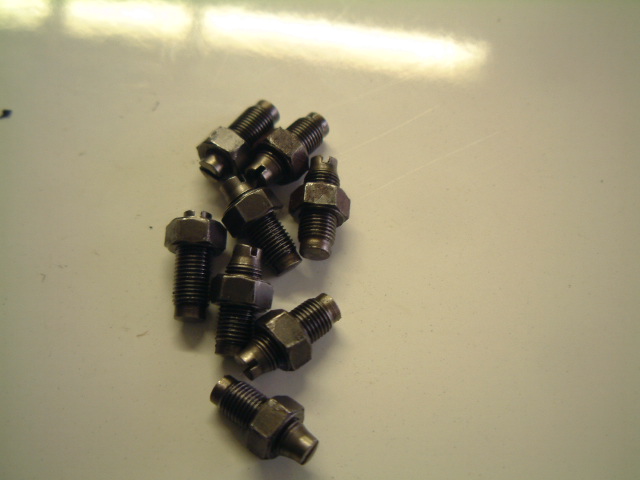

A - 176 SOME VALVE ADJUSTER SCREWS & LOCK NUTS - GOOD. |
 |
A - 178 INLET VALVES - ALL GOOD SERVICEABLE PARTS. ONE HEAD SET SHOWN BUT I HAVE BOTH SETS, WILL SPLIT. |
 |
A - 179 EXHAUST VALVES - ALL GOOD SERVICEABLE PARTS, WILL NED SOME LAPPING. ONE HEAD SET SHOWN BUT I HAVE BOTH SETS, WILL SPLIT. |
 |
A - 180 ROCKERS / CAM FOLLOWERS - 2 VERY GOOD, ONE WITH SLIGHT MARK. |
| MISCELLANEOUS PARTS:- |
| CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
CLICK ON PICTURES TO ENLARGE. |
PART No.
PART / DESCRIPTION / DETAILS. |
 |
A - 013 RELAY HOLDER - RUBBER - VERY GOOD. |
 |
A - 033 BATTERY HOLDING BRACKET - GOOD, NEEDS PAINT. |
 |
A - 061 PLASTIC COVER , FITS BY THE HEADSTOCK - VERY GOOD. |
 |
A - 092 PAIR OF CHROME REAR WHEEL ADJUSTER - NICE CHROME. |
 |
A - 134 A COLLECTION OF GROMMETS/ RUBBER BITS. |
 |
A - 171 BRAKE BLEED NIPPLES/SCREWS & RUBBER CAPS - ALL GOOD, WILL SPLIT. |
